Radiator & Heated Towel Rail FAQ Hub
Straight answers to the questions UK homeowners and installers ask most about heated towel rails and radiators: sizing, electric and dual fuel, installation, bathroom safety, running costs and fault-finding. Each answer links to a full guide by Ibrahim Kalay, who has advised on radiators since 2012.
89 questions answered across 10 topics. Updated October 2026.
Sizing & Choosing the Right Towel Rail
What size heated towel rail do I need?
Size the rail to the room's heat loss, not just the space on the wall. Work out the BTU your bathroom needs with our BTU calculator, then pick a rail whose output at ΔT50 meets or beats it. If you hang towels on it, allow 10–15% extra, because towels soak up heat.
How many BTUs do I need for a bathroom?
A rough guide is 150–175 BTU per cubic metre. A 4m² bathroom with a 2.4m ceiling is 9.6m³, so it needs roughly 1,400–1,700 BTU. Outside walls, large windows and a cold floor push that up, so use the calculator for a proper figure.
What is a BTU and how do I convert it to watts?
BTU (British Thermal Unit) is the heat unit most UK radiator catalogues use. One watt equals 3.412 BTU per hour, so 1,000W is about 3,412 BTU. To convert BTU to watts, divide by 3.412.
What does Delta T (T50, T60, T70) mean on a radiator?
Delta T is the gap between the radiator's average water temperature and the room temperature. Catalogue outputs are normally quoted at ΔT50 (about 70°C water in a 20°C room). Cooler systems, such as heat pumps, give less output than the catalogue figure.
What are pipe centres and how do I measure them?
Pipe centres are the distance between the middle of the two connections on a towel rail. On a ladder rail it is usually the width minus 50mm, so a 500mm rail has 450mm centres. Measure from the centre of one pipe or valve to the centre of the other.
How do I measure an old towel radiator for a replacement?
Measure the height, width, pipe centres and how far it sits from the wall. Note whether the pipes come from the floor or the wall, and the valve type. Matching the pipe centres means you will not need to move any pipework.
Will a heated towel rail heat my whole bathroom?
Yes, if it is sized correctly. Towel rails are designed to warm towels first, but in a small or well-insulated bathroom a rail matched to the room's BTU requirement can be the main heat source. Check the output against the room before you buy.
Do towel rails give out less heat than panel radiators?
For the same size, usually yes. Output depends on surface area, and panel radiators have convector fins that add a lot of it. Towels draped on a rail also take around 10–15% of the heat. Always compare the BTU or watt figure rather than the size.
Can I replace a normal radiator with a towel rail?
Yes, as long as the towel rail's output matches the room's heat requirement and the connections fit. Check pipe centres and valve positions first. A plumber can adjust the pipework if they do not line up.
What is EN 442?
EN 442 is the European standard that defines how radiator heat output is tested and rated. It is why outputs from different brands can be compared at the same ΔT50 conditions.
More guides on this topic
- How to Choose a Radiator: The Ultimate UK Buying Guide
- Complete Heated Towel Rail Buying Guide
- BTU Calculator: How to Size Radiators for Every Room
- Best Heated Towel Rails for Small Bathrooms
- Towel Rail and Radiator Glossary
- Single vs Double Panel Radiators
- Panel vs Designer Radiators
- Vertical Radiators: The Complete Guide
Electric Towel Rails & Heating Elements
How do electric towel rails work?
A heating element at the bottom warms the fluid inside the rail. The warm fluid rises, cooler fluid sinks to the element, and this convection keeps the whole rail circulating and heating without any connection to your boiler.
Do I need anything else for electric-only use?
No. Our electric towel rails come pre-filled with inhibited water and you choose the element. They are ready to install. The element is wired to a fused spur, which should be fitted by a qualified electrician.
What fluid is in an electric towel rail?
We fill electric towel rails with at least 85% filtered reverse-osmosis water plus an inhibitor (ethylene glycol). A small air gap, about 12.5%, is left at the top for expansion.
Do electric towel rails need bleeding?
Yes, bleed the rail the first time you heat it after installation to release trapped air. If it gurgles or is cold at the top later on, bleed it again once it has cooled.
Which side can the heating element go on?
Either the bottom left or the bottom right, so you can choose what suits your bathroom layout. The element ships separately to avoid damage in transit.
Can I fit the element at the top of the rail?
No. The element must go in the bottom connection. Heat rises, so a bottom element circulates the fluid properly, and it must always be fully covered by the fluid. Running an element dry can destroy it.

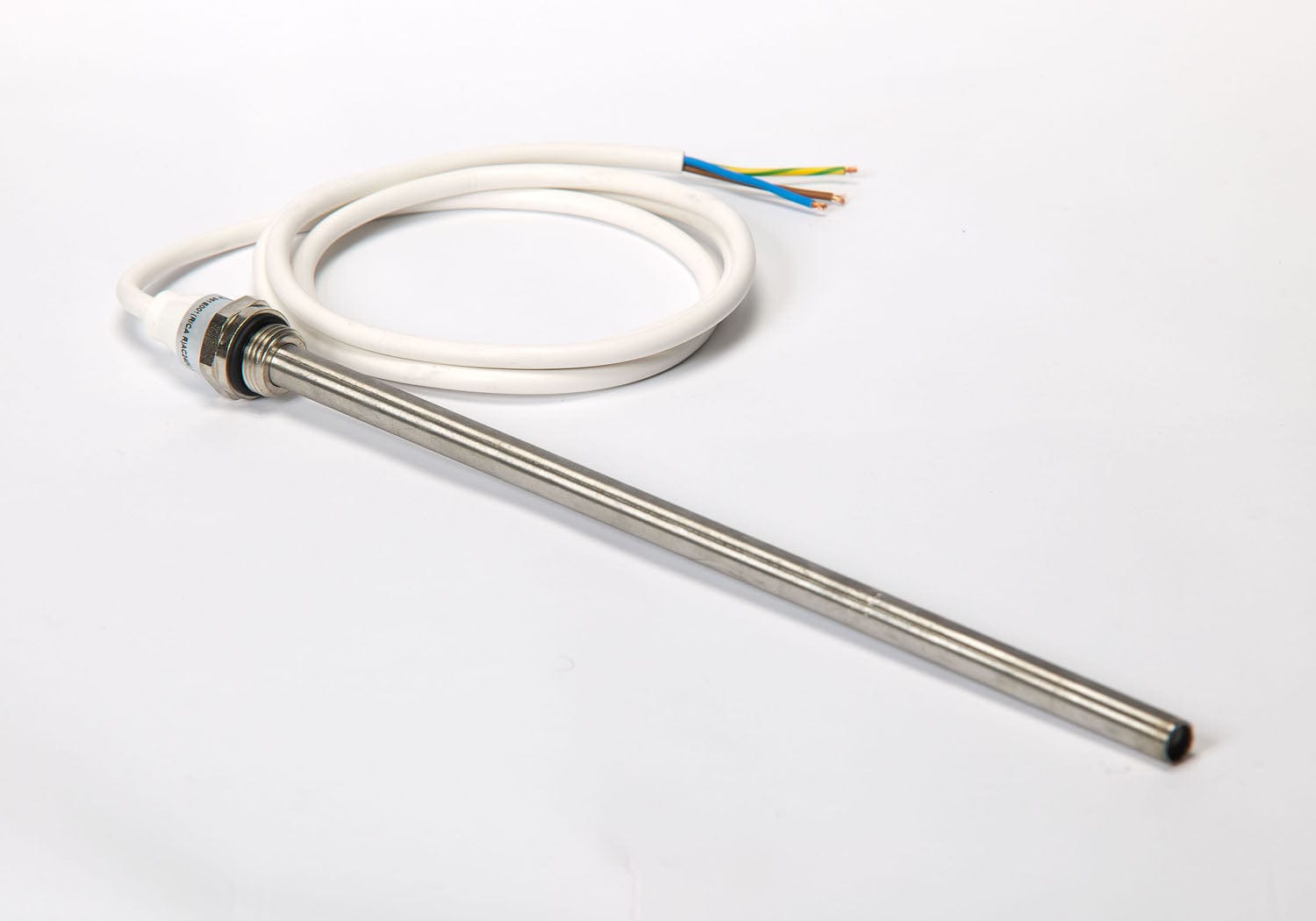

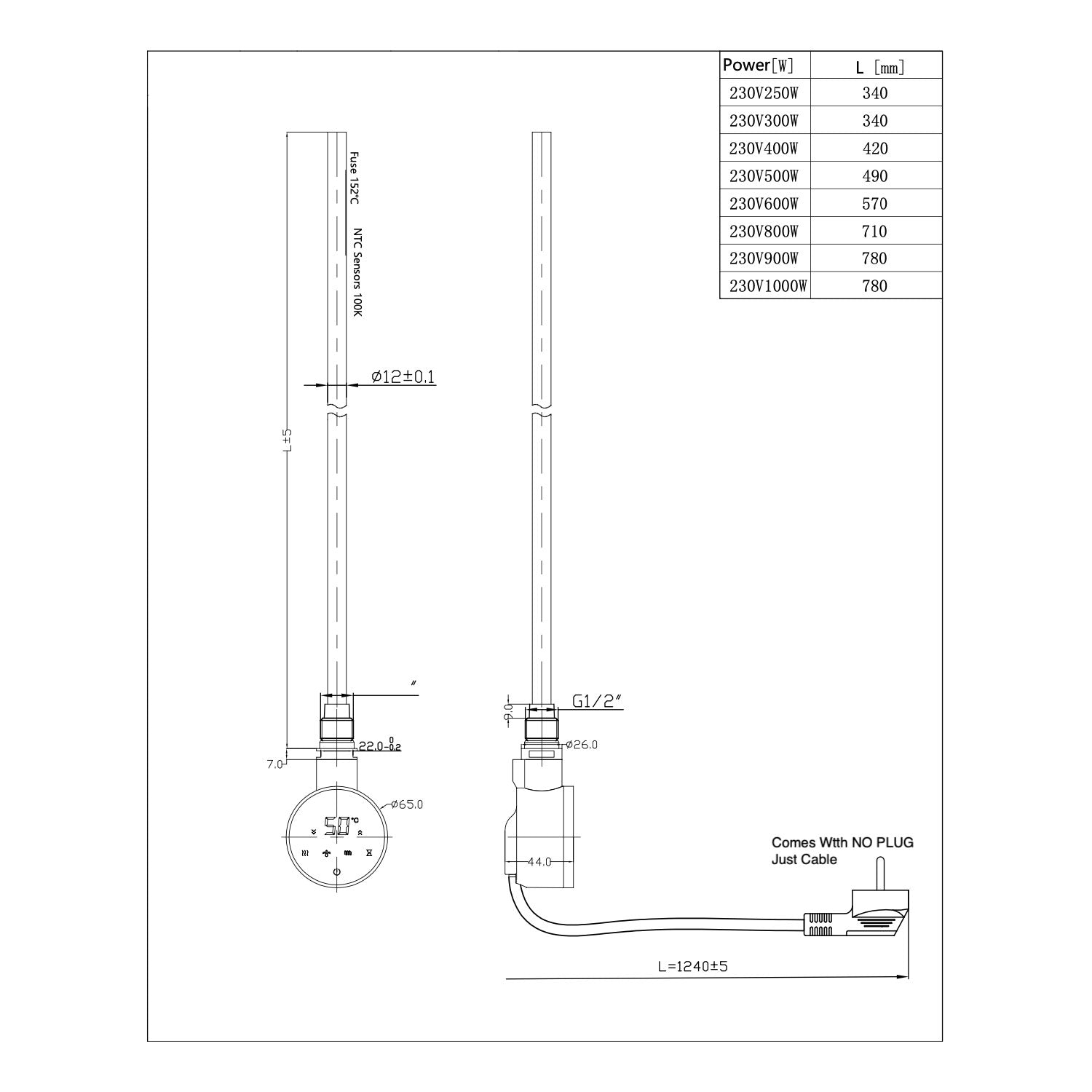

Can I replace the heating element?
Yes. Our towel rails use a standard 1/2" BSP thread, which is the UK norm, so replacement elements are easy to find. Check the wattage suits the rail before you order.

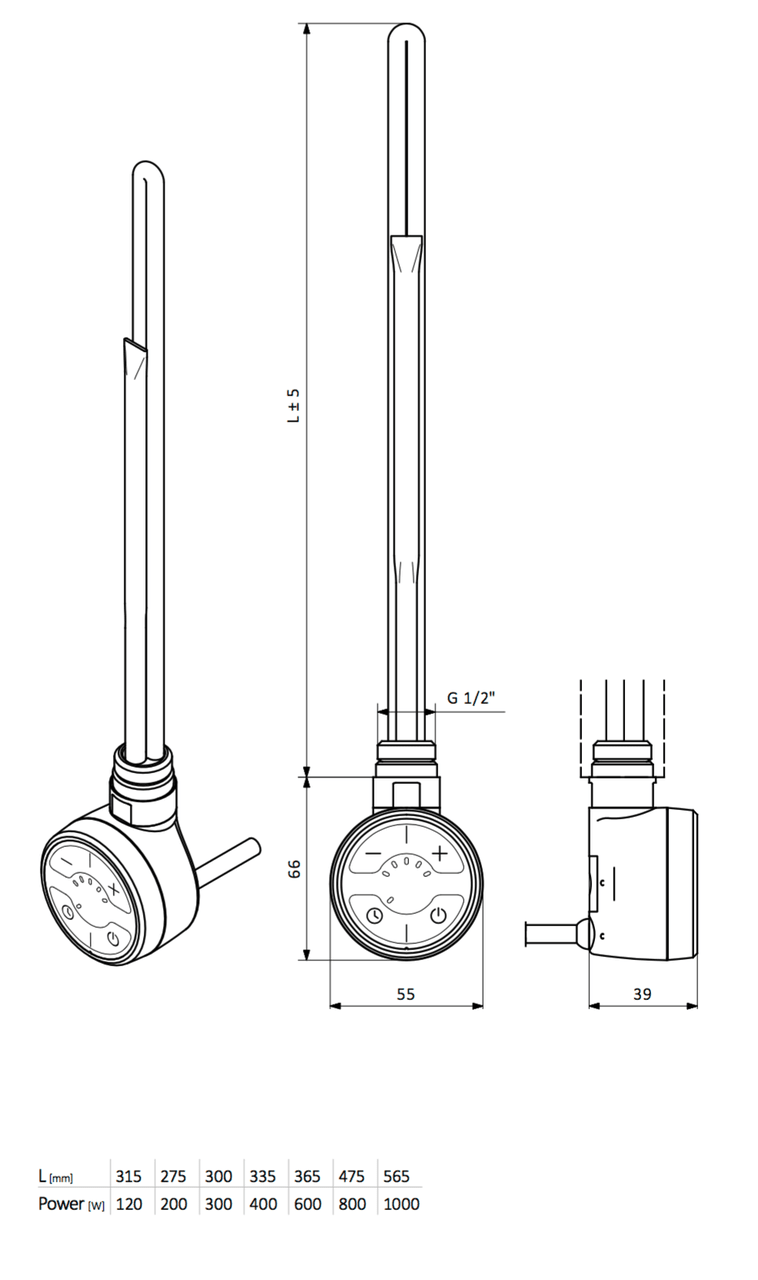

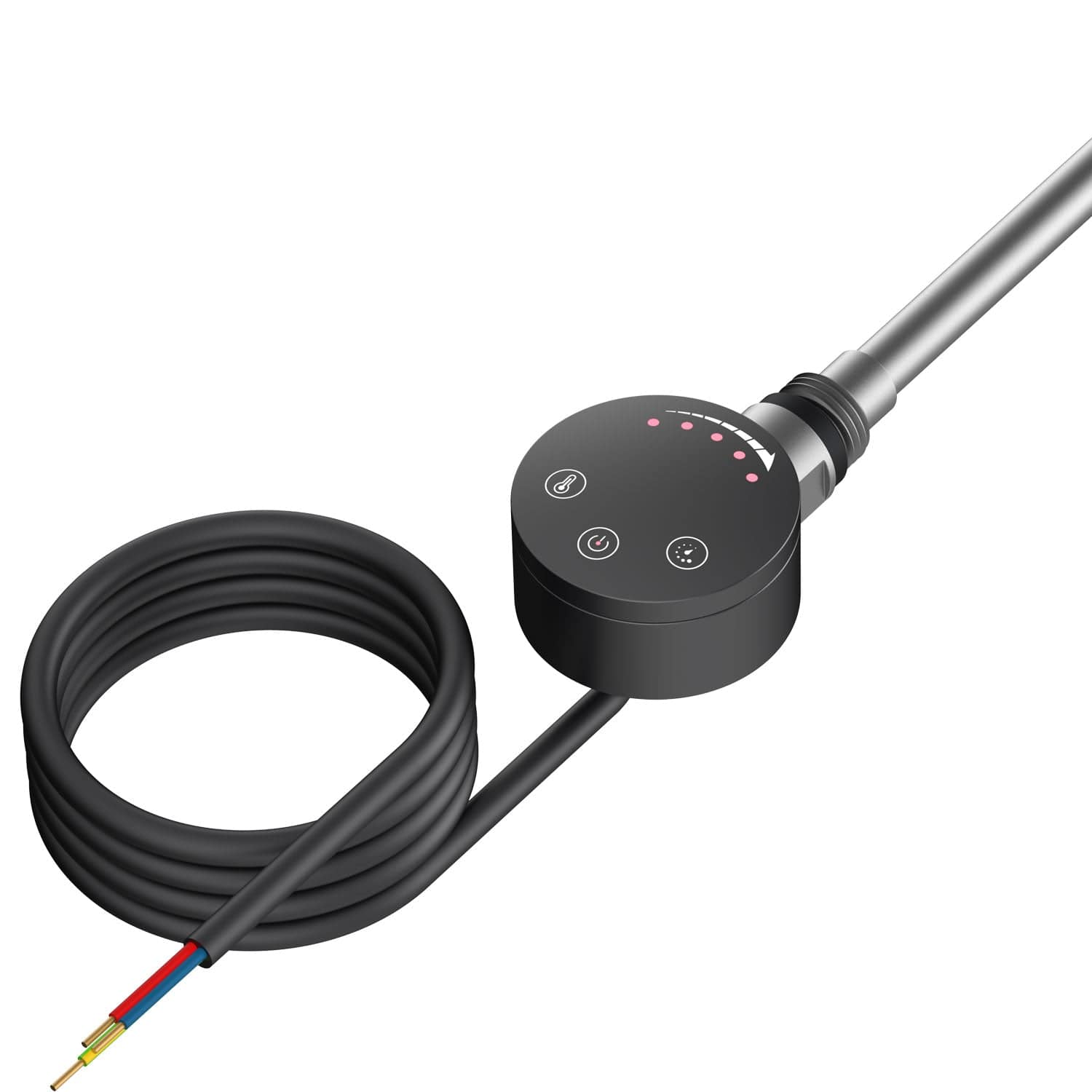

What wattage heating element do I need?
Elements for towel rails typically run from about 150W to 600W. Choose the wattage from the rail's size and the heat the room needs. Too small is slow to warm up, too large can overheat the fluid. Our volume calculator and wattage guide do the sums for you.

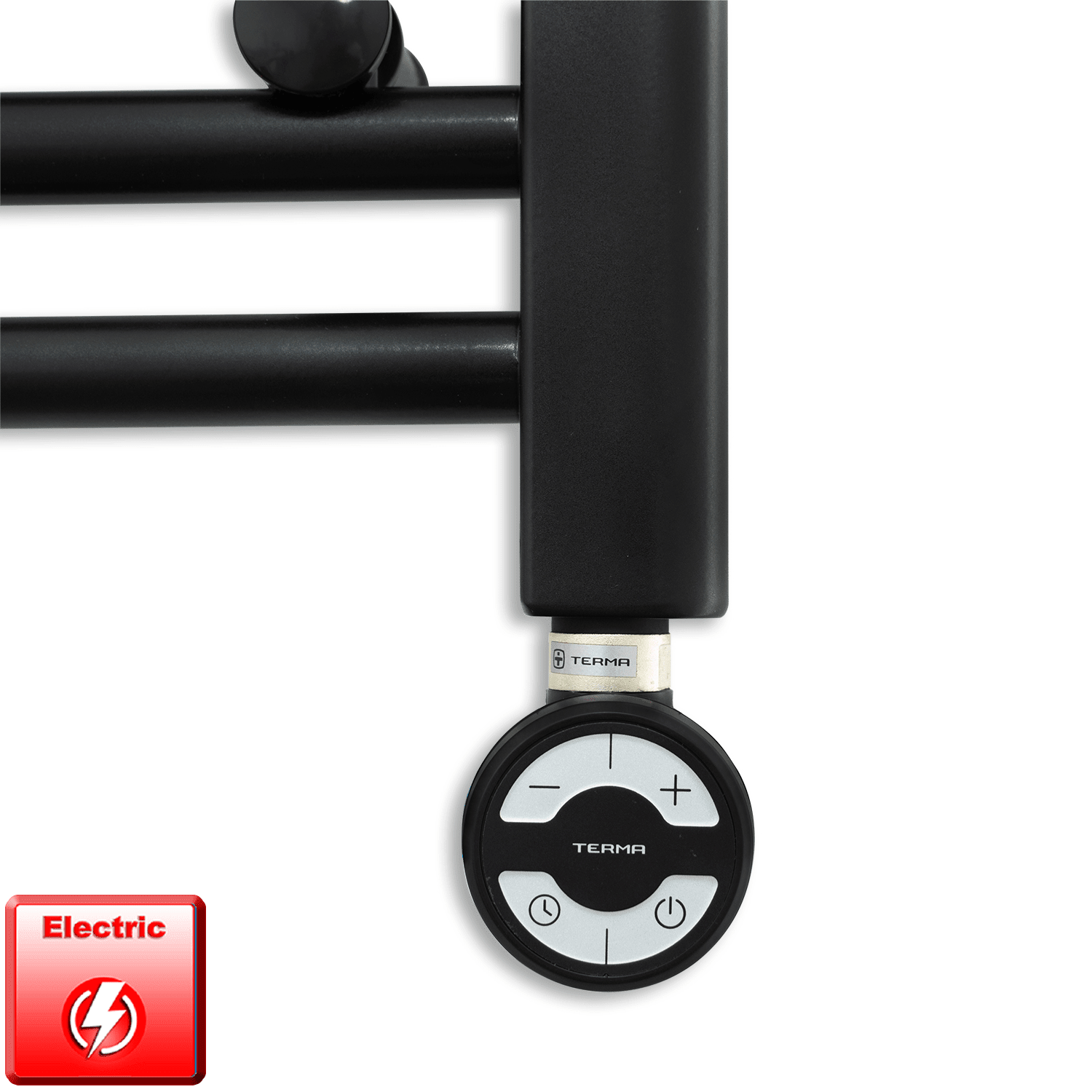

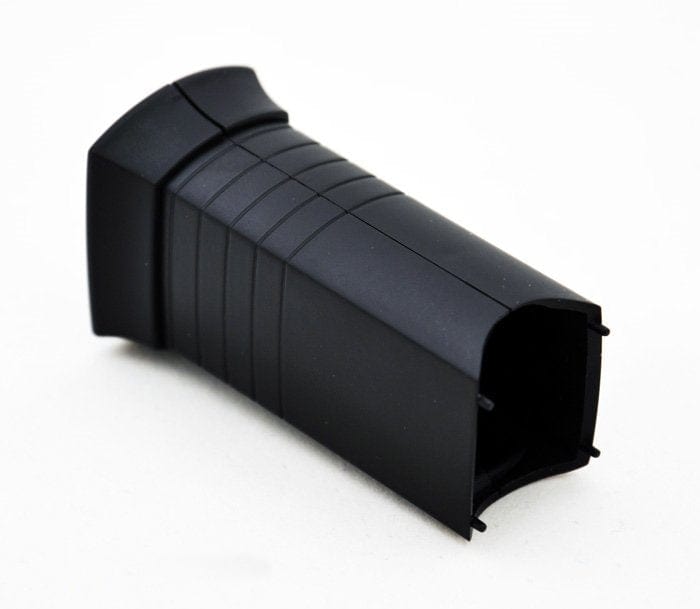

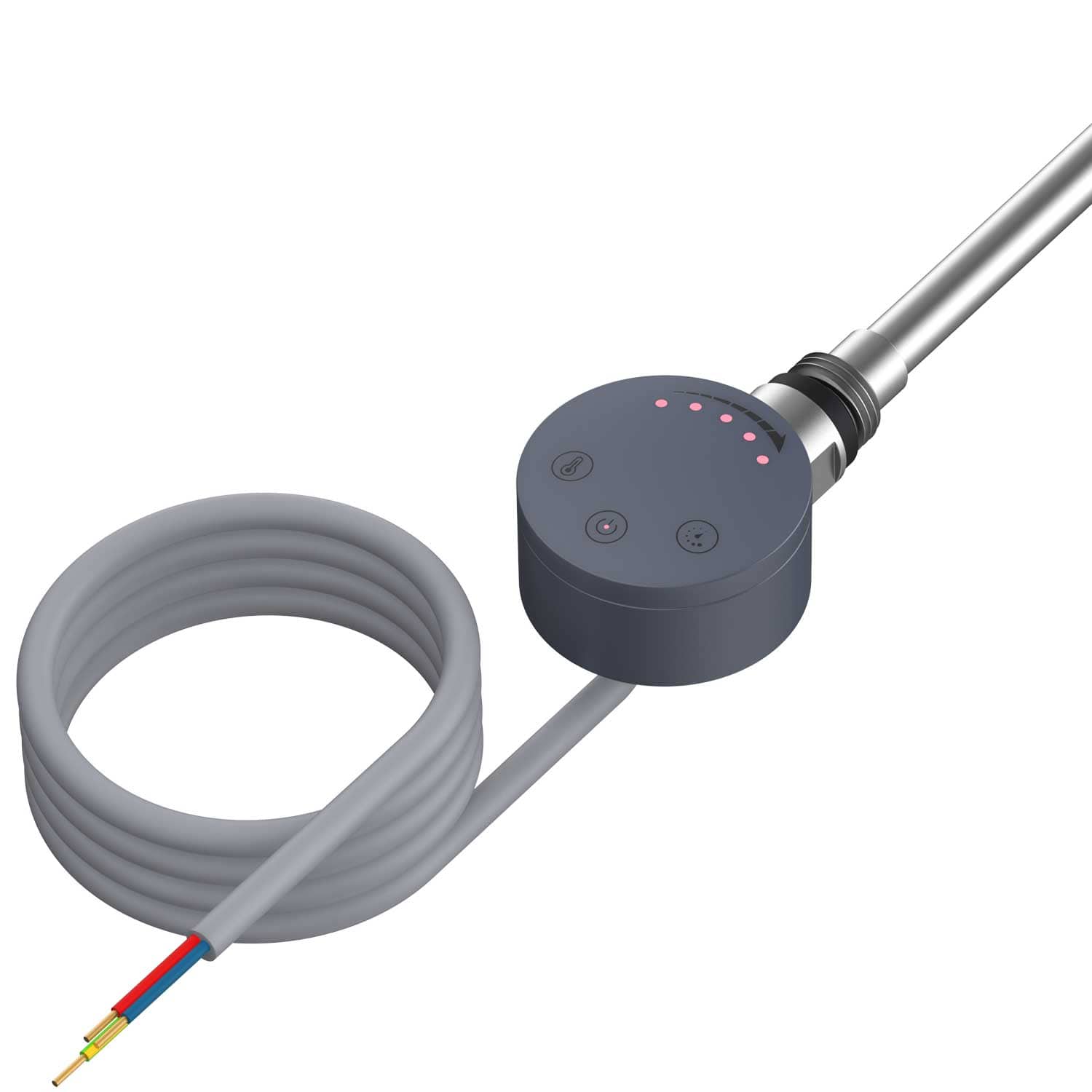

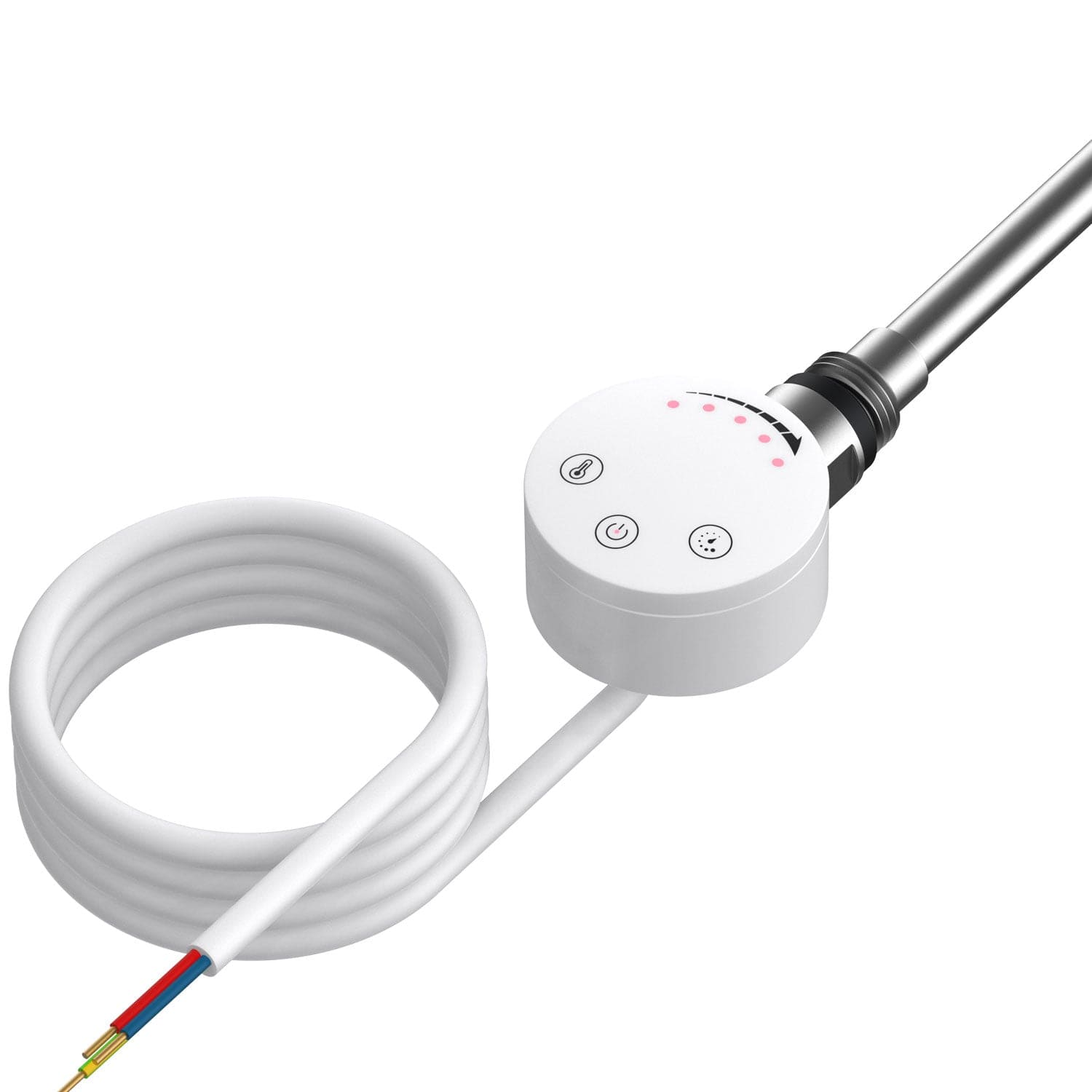

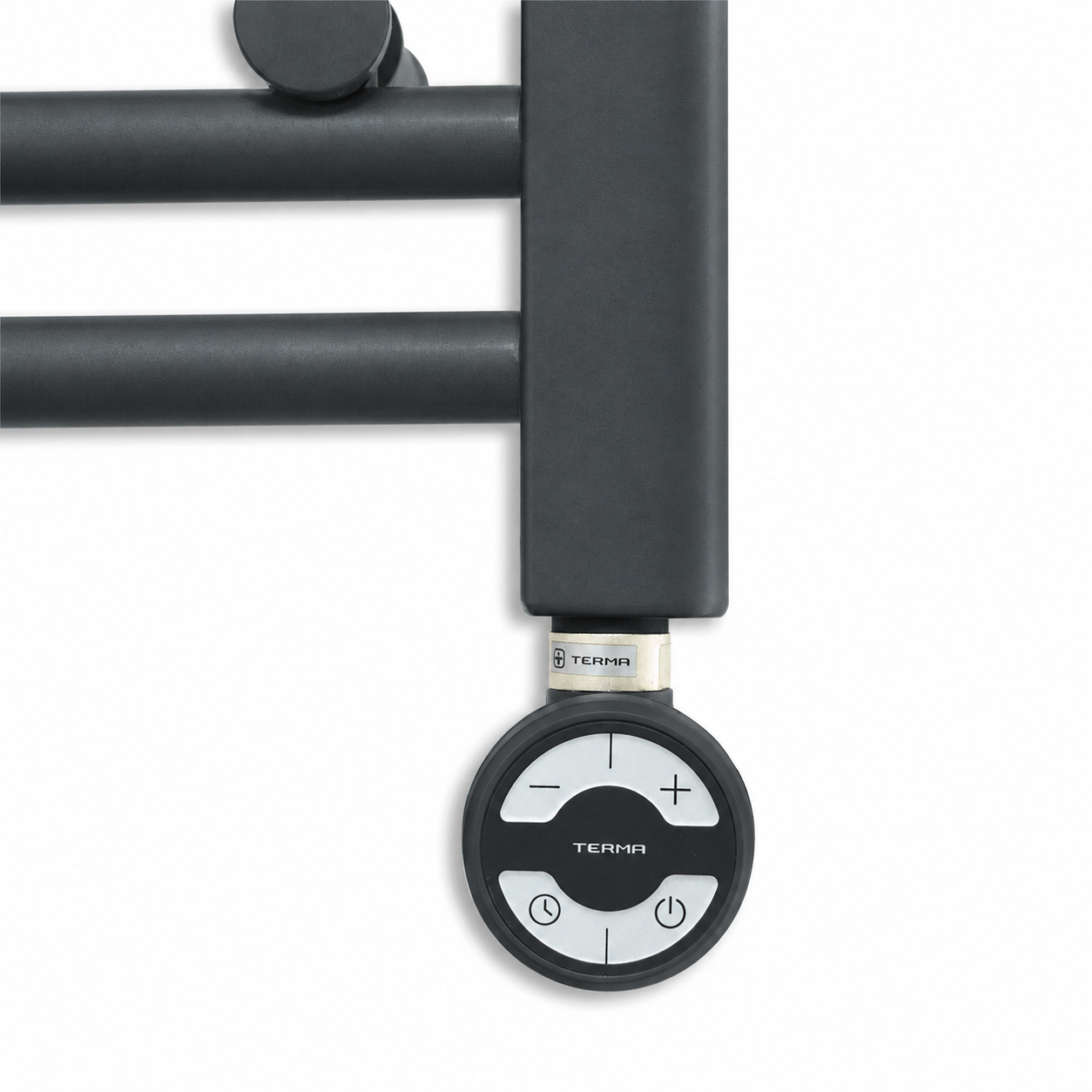

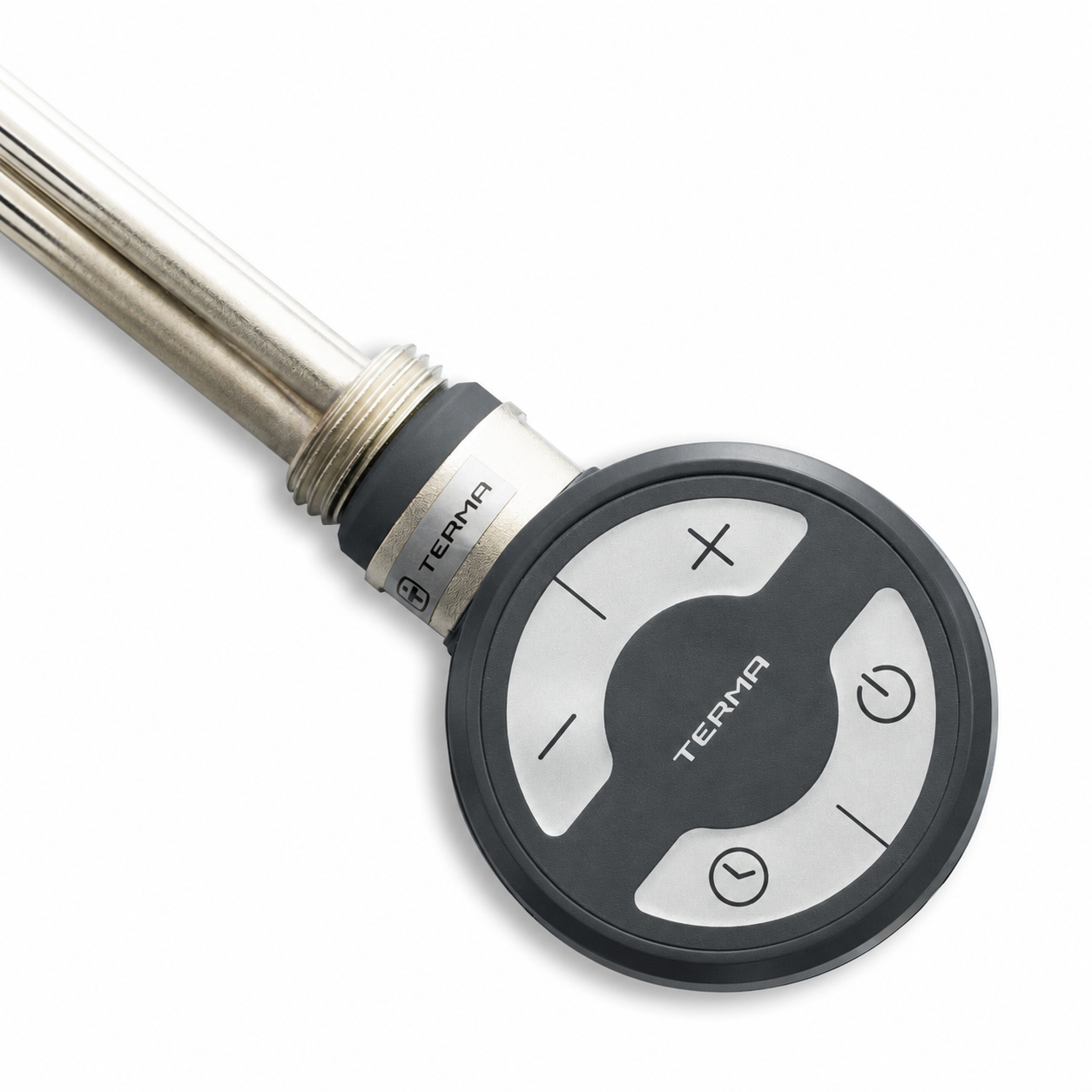

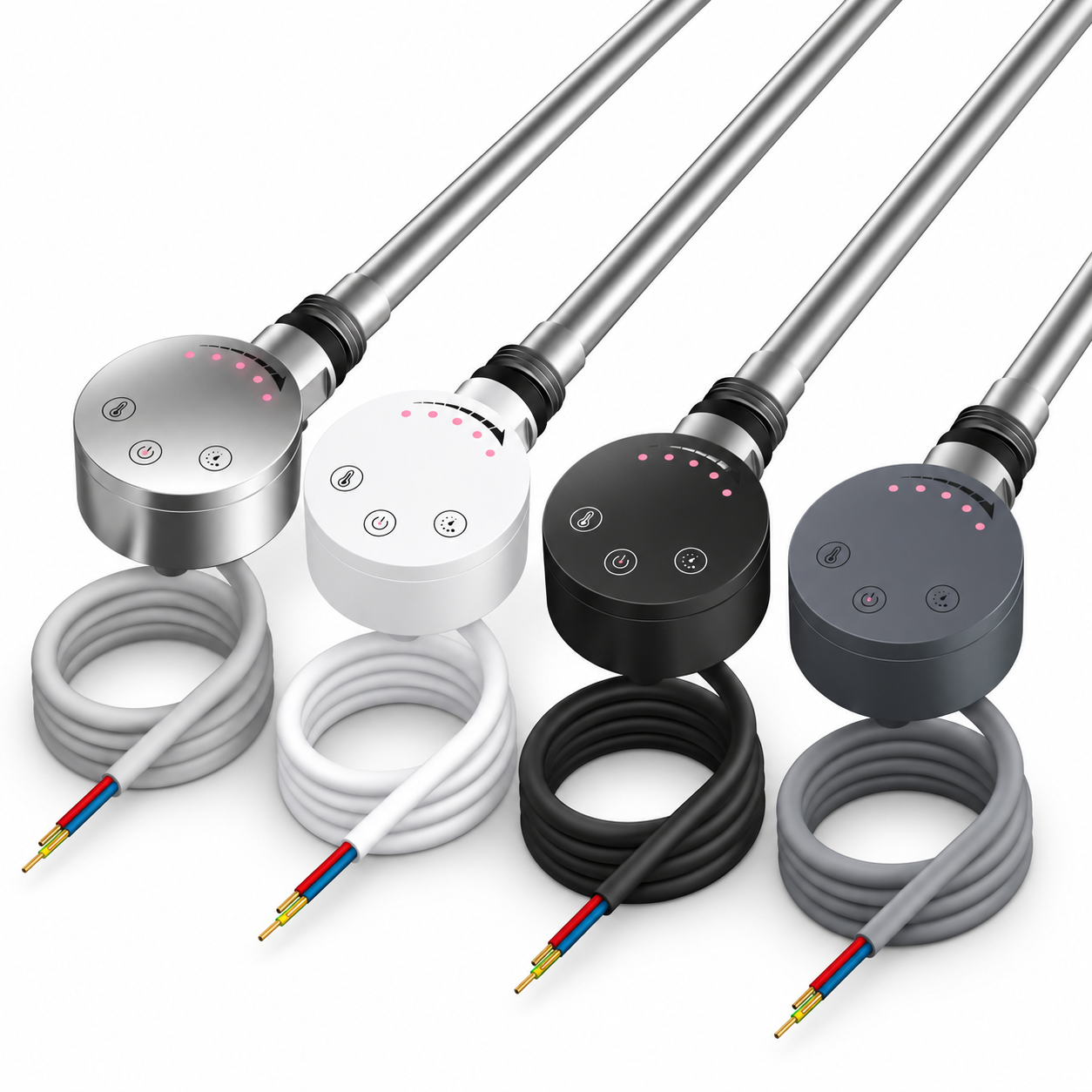

What is the difference between PTC and thermostatic elements?
A thermostatic element switches on and off to hold the temperature you set. A PTC element limits its own temperature as it heats, which makes it inherently resistant to overheating. Both suit towel rails.
Does an electric towel rail need a thermostat?
It is strongly worth having one. A thermostat stops the rail drawing power once it reaches temperature, which saves energy and keeps the surface from getting hotter than you need.

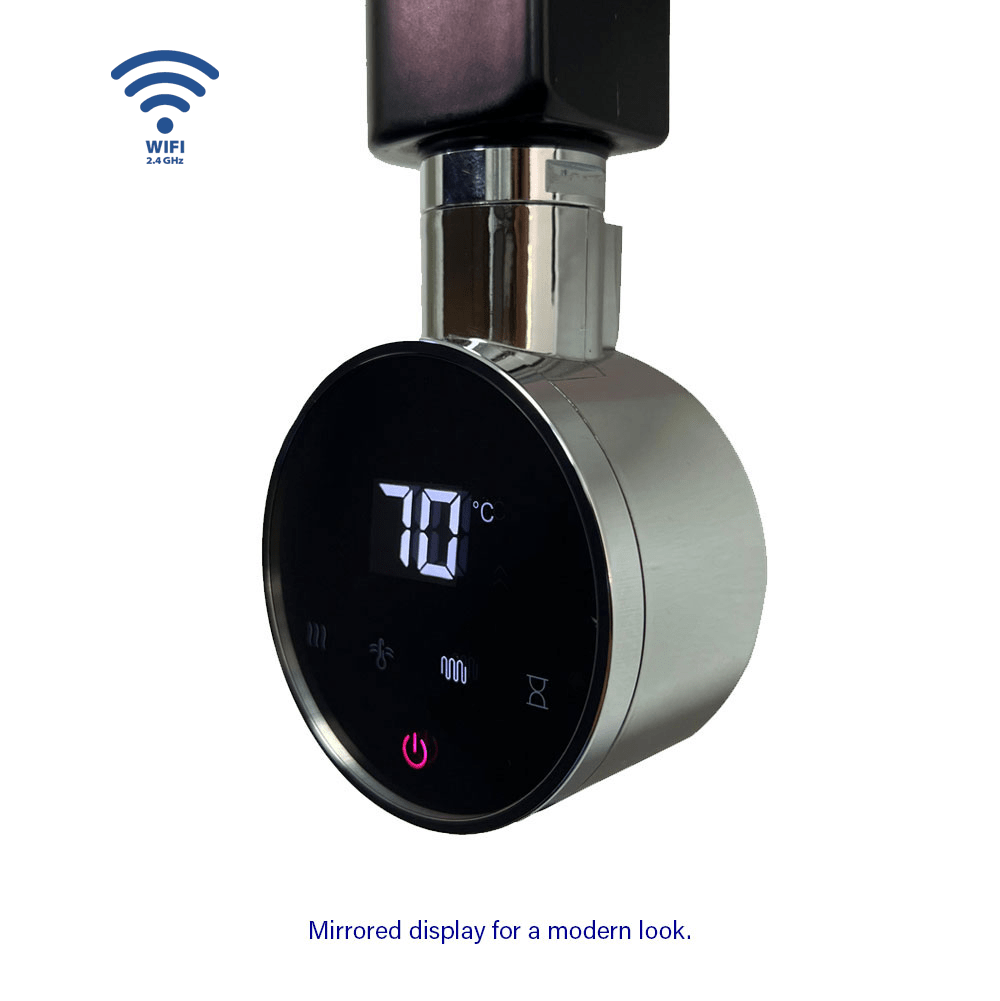

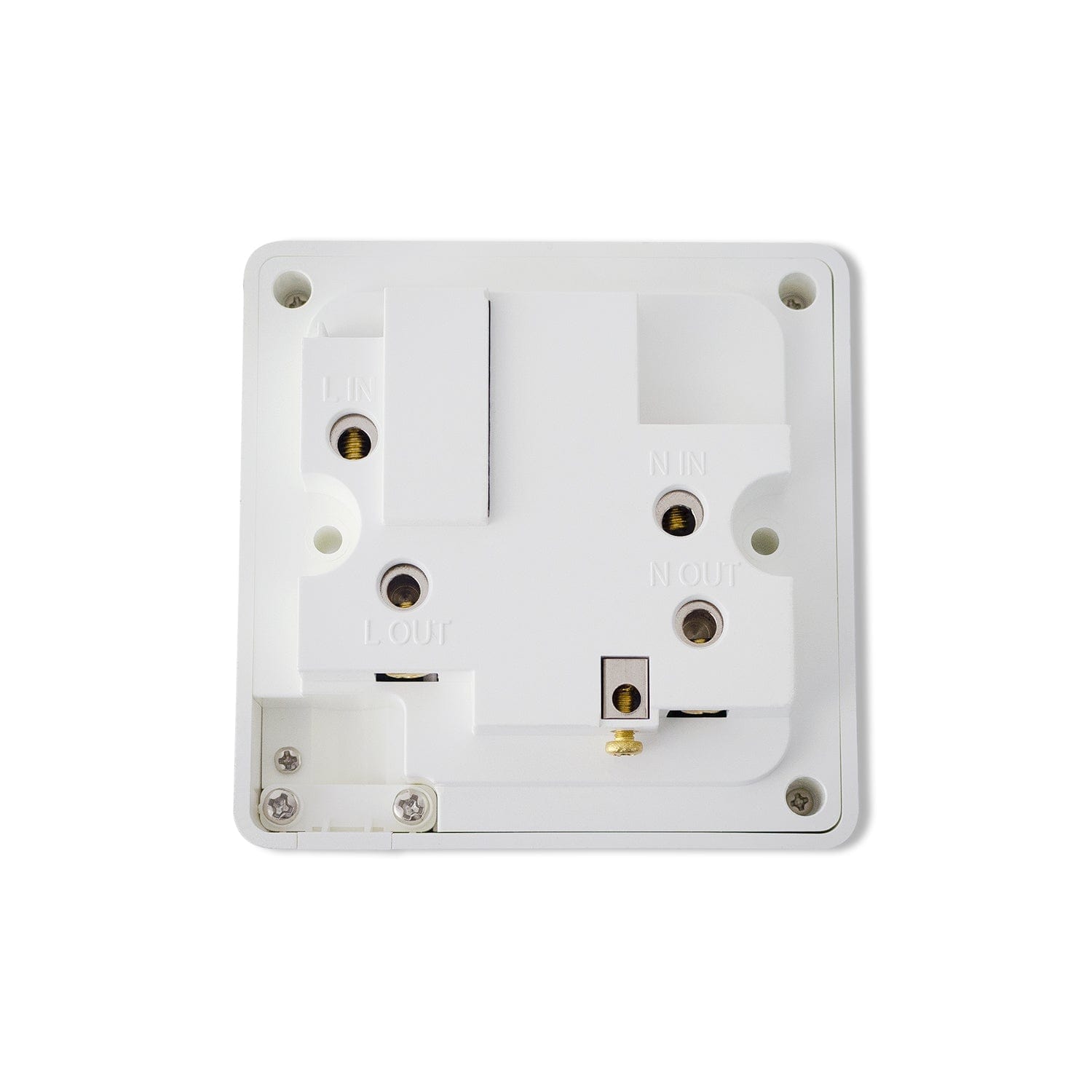

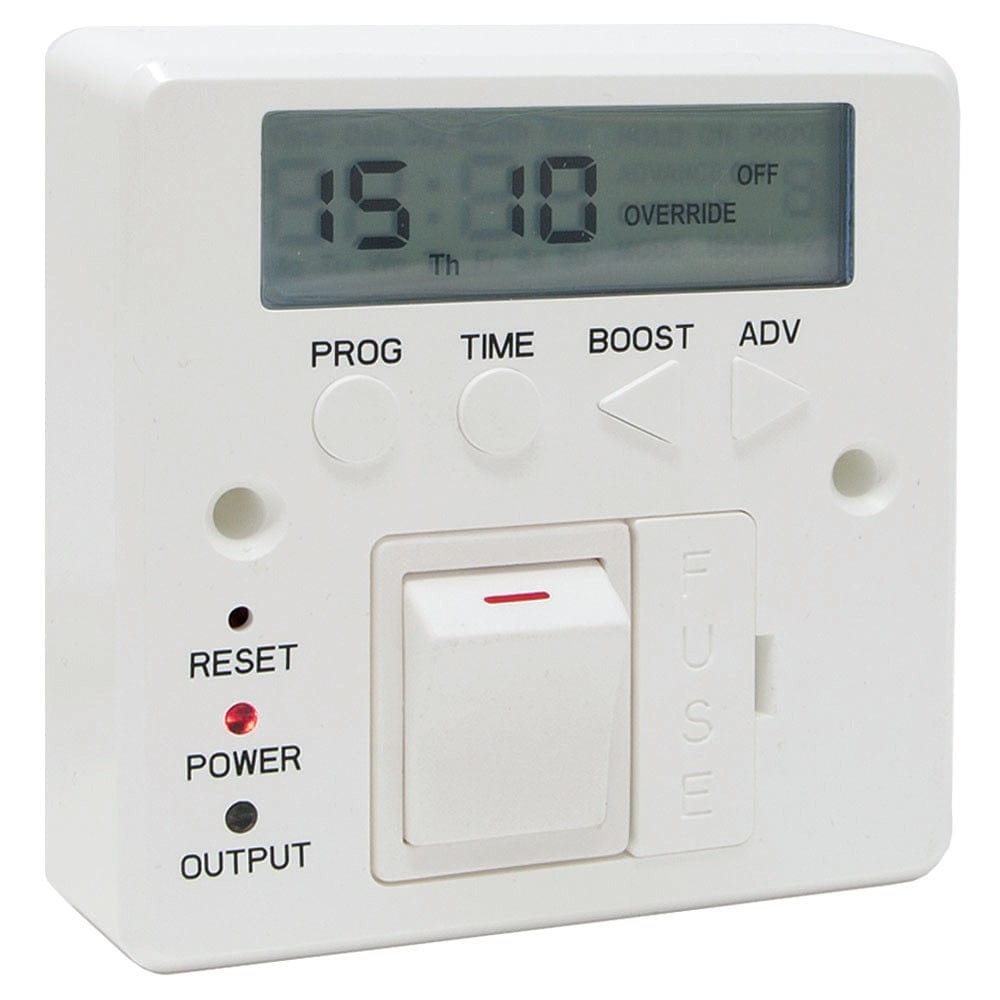

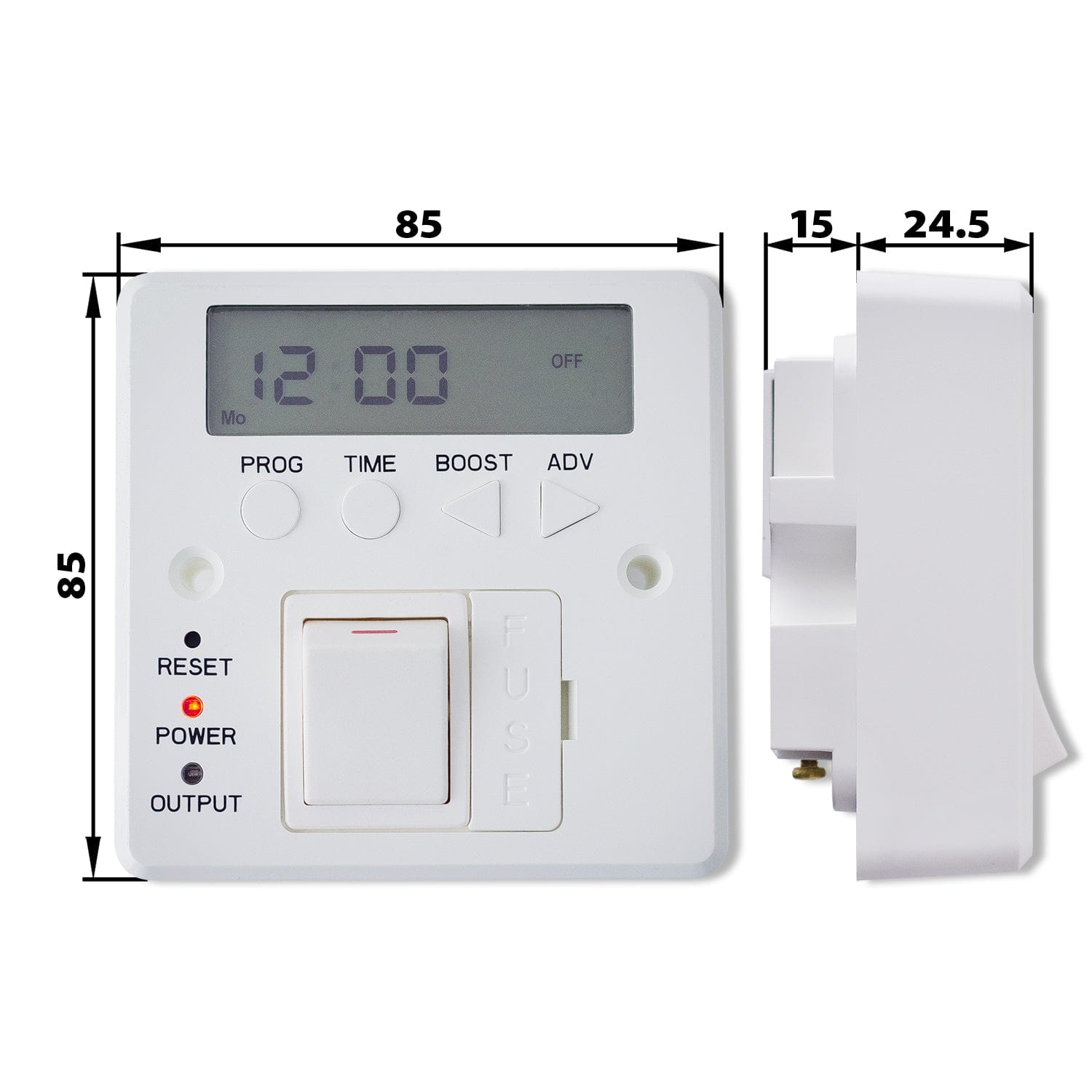

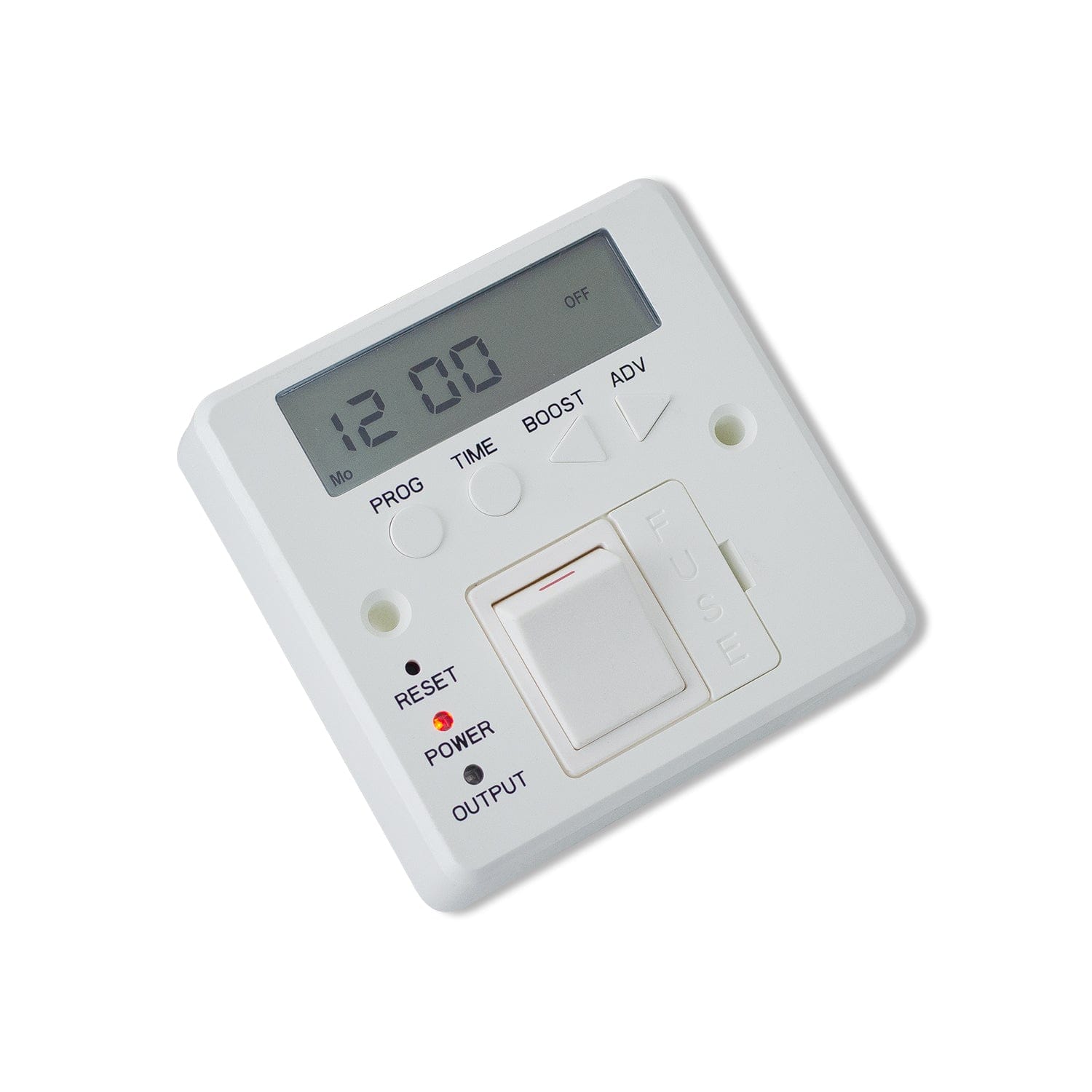

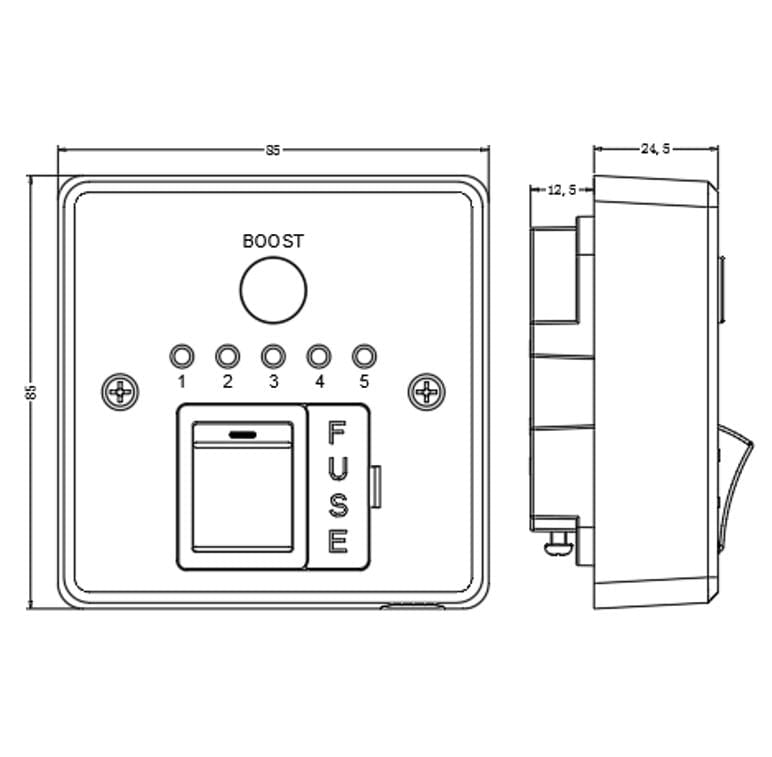

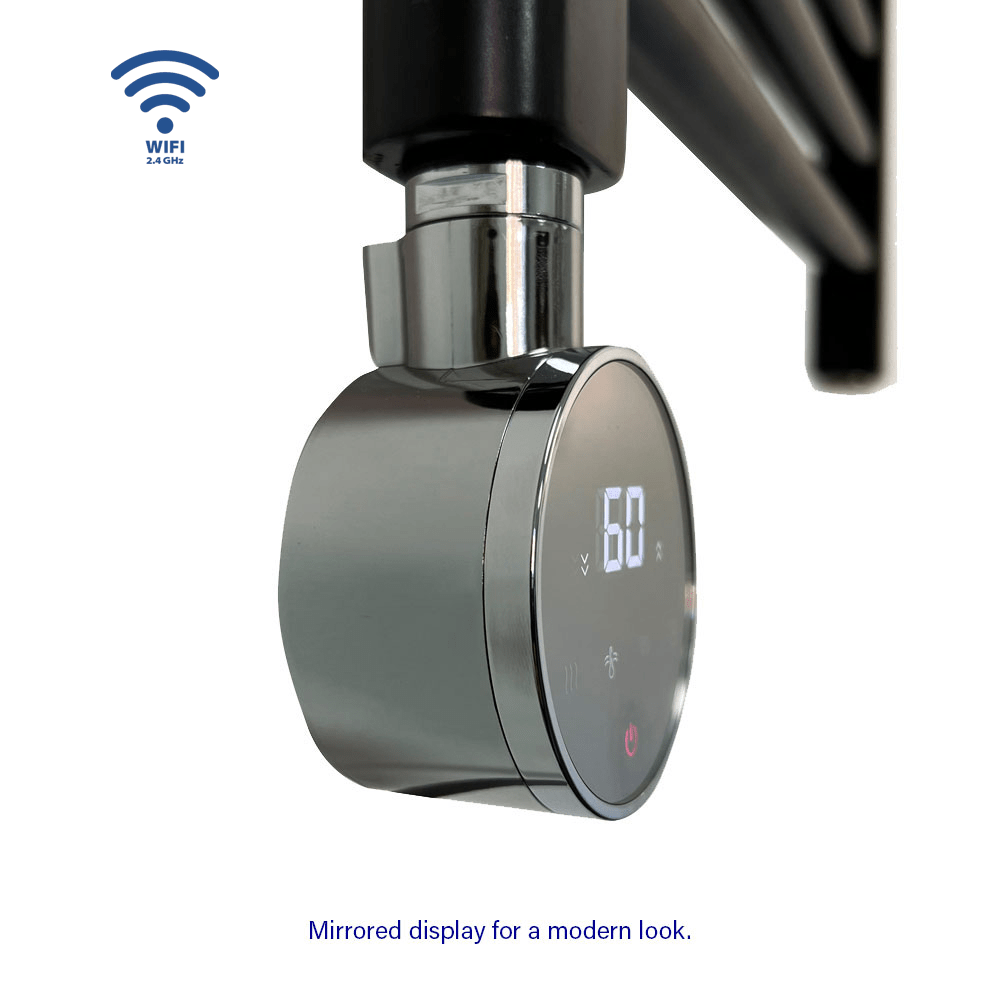

Can I control an electric towel rail with a timer or WiFi?

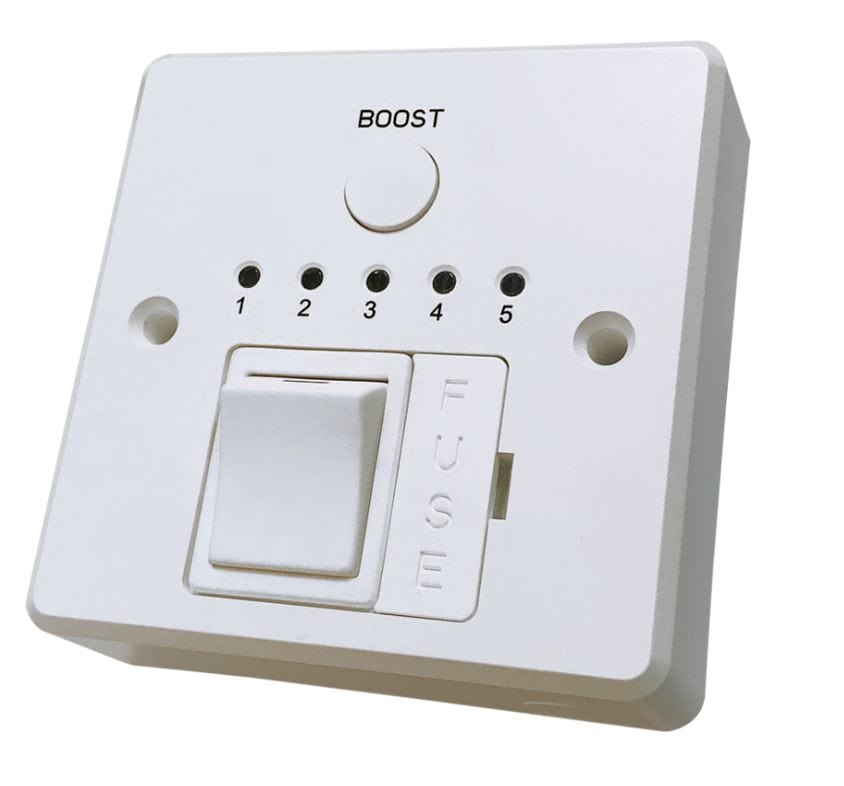

Yes. A timer fused spur gives 1–5 hour boosts or 7-day programmes, and one model can be controlled over WiFi. Remember the timer unit itself must be mounted outside the bathroom.
Can heated towel rails run 24/7?
Yes, they are tested for continuous use. A thermostatic electric rail stops drawing power when it reaches temperature and restarts when it cools, so running all day is not the same as full power all day.
What is the difference between dry and fluid-filled electric radiators?
Dry elements heat the metal directly and warm up quickly. Fluid-filled radiators heat a liquid that holds warmth longer after the element switches off. Our guide compares running cost, warm-up time and best uses.
More guides on this topic
Dual Fuel & Central Heating Towel Rails

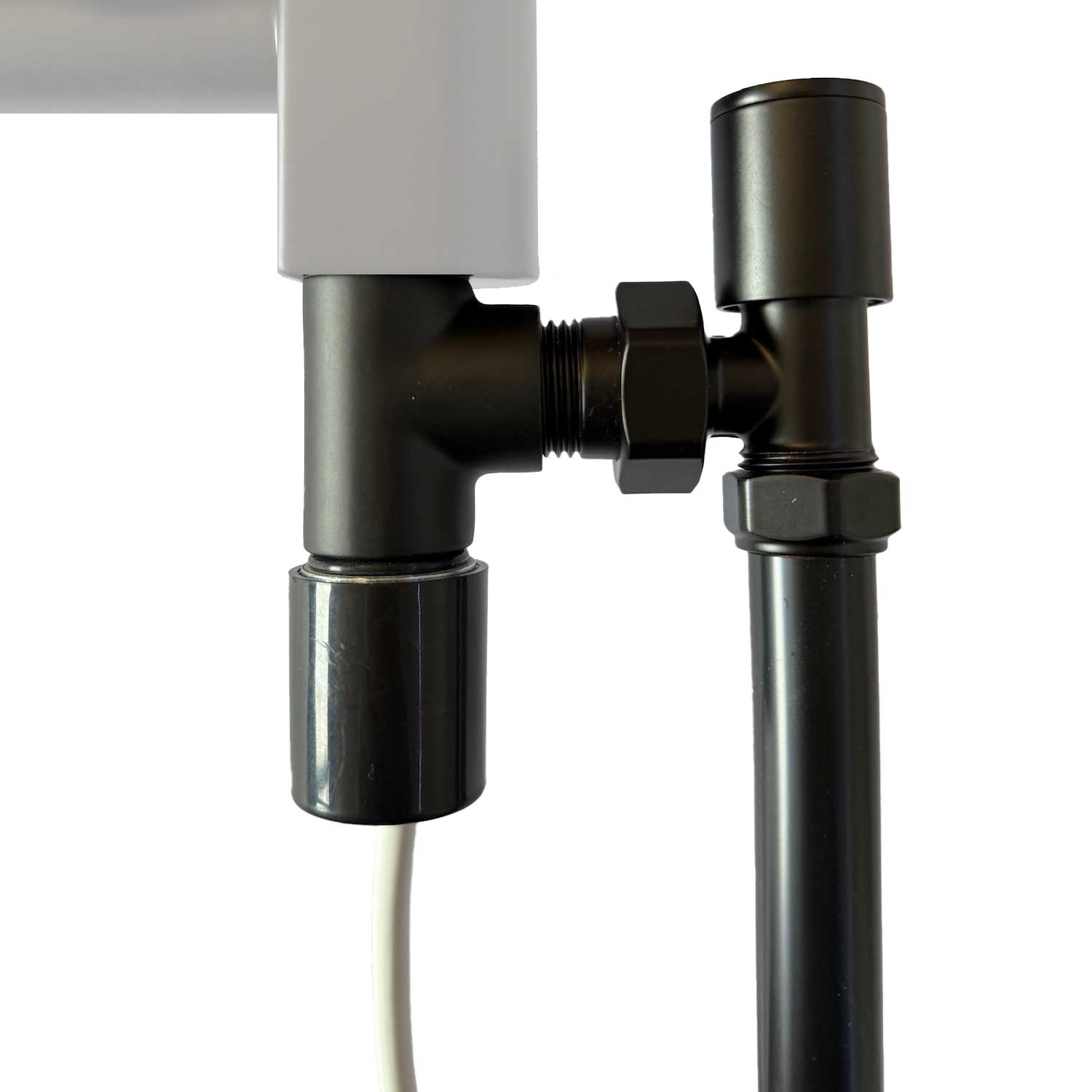

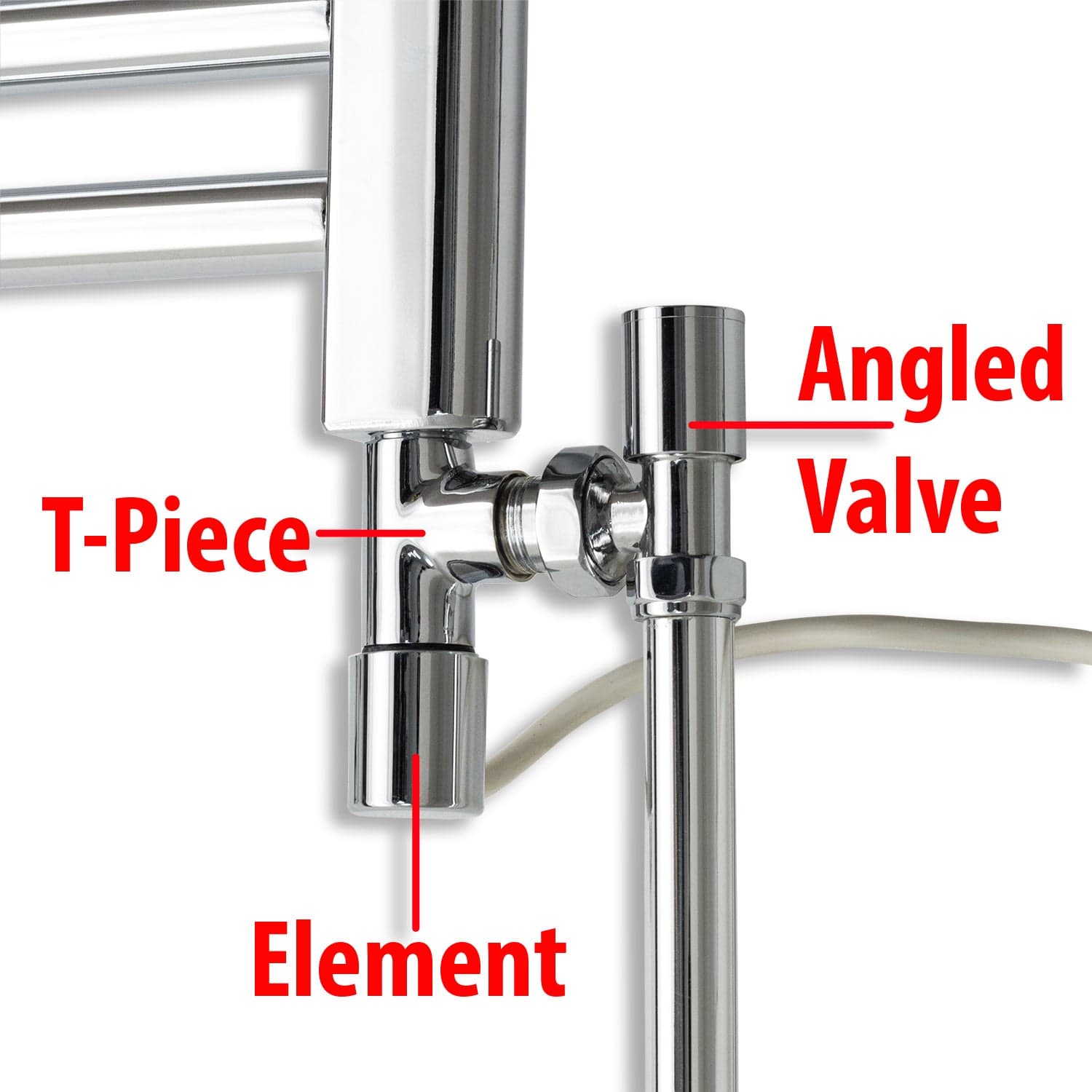

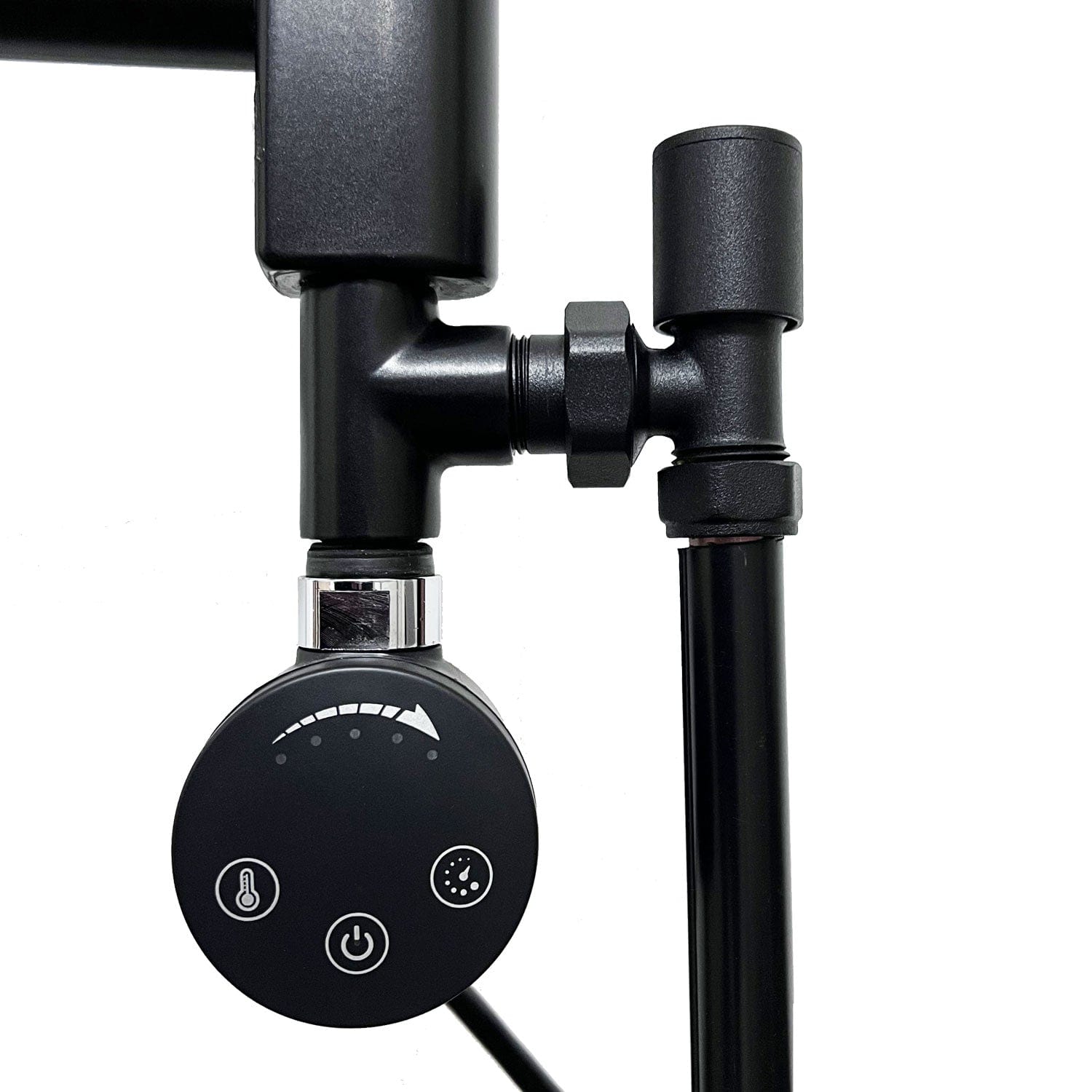

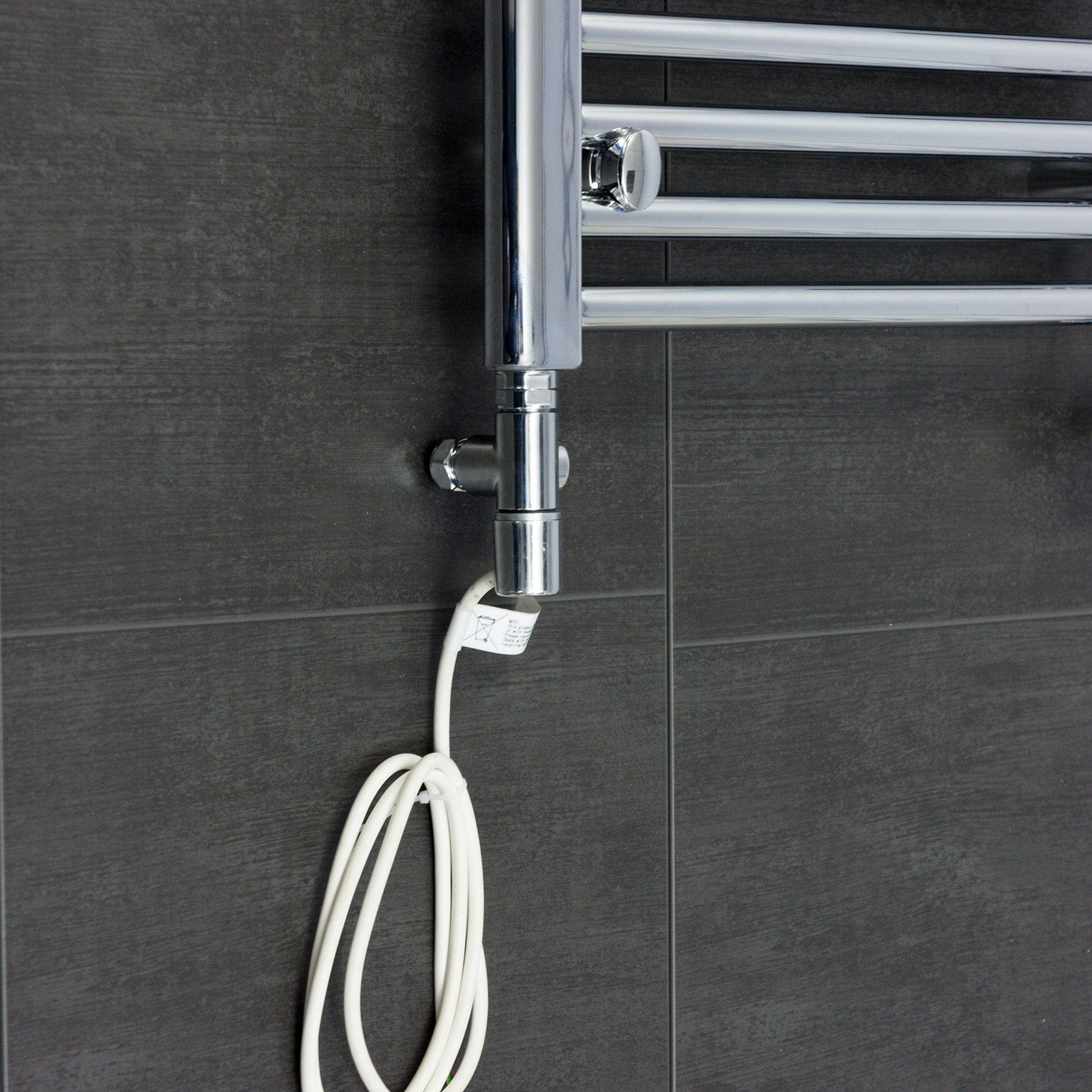

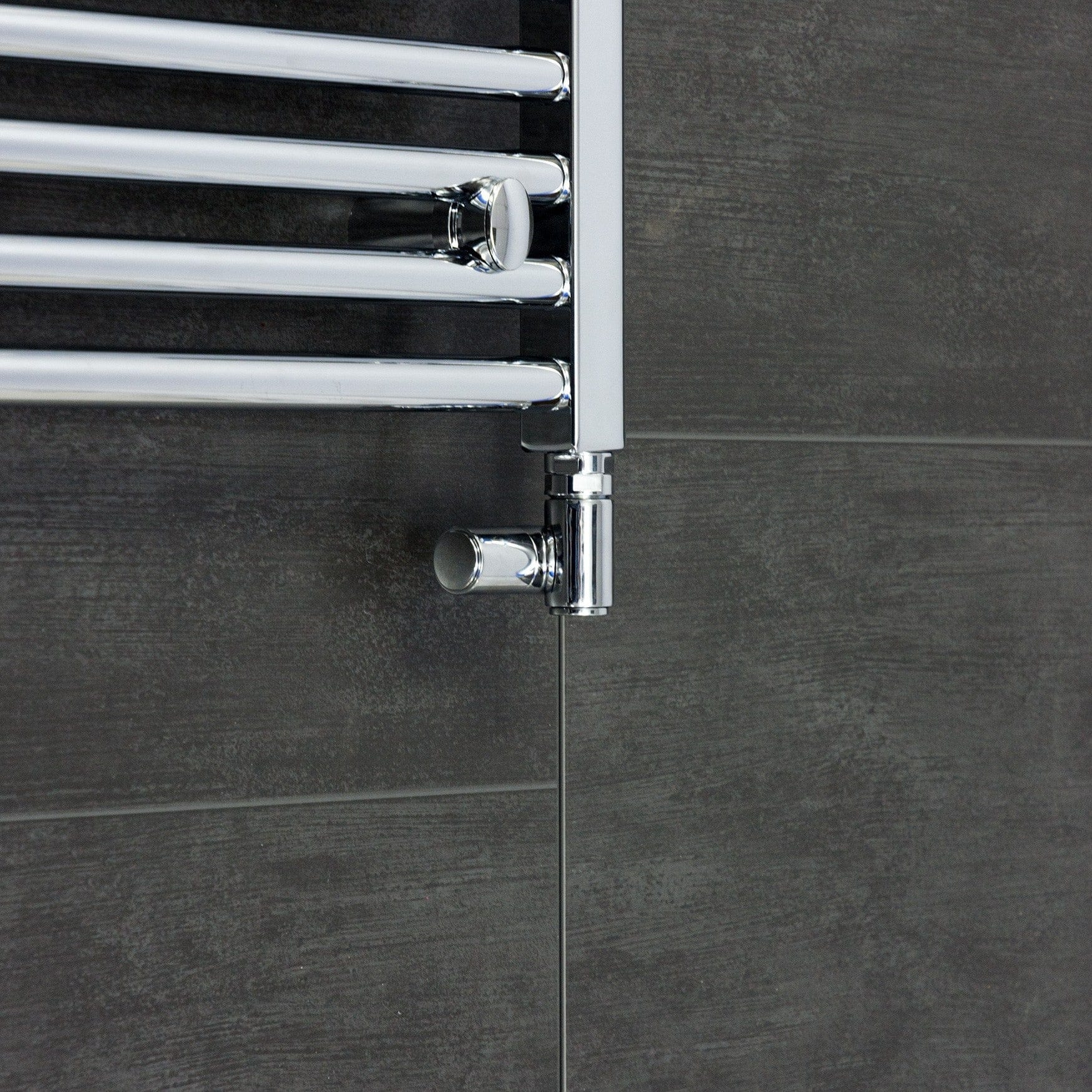

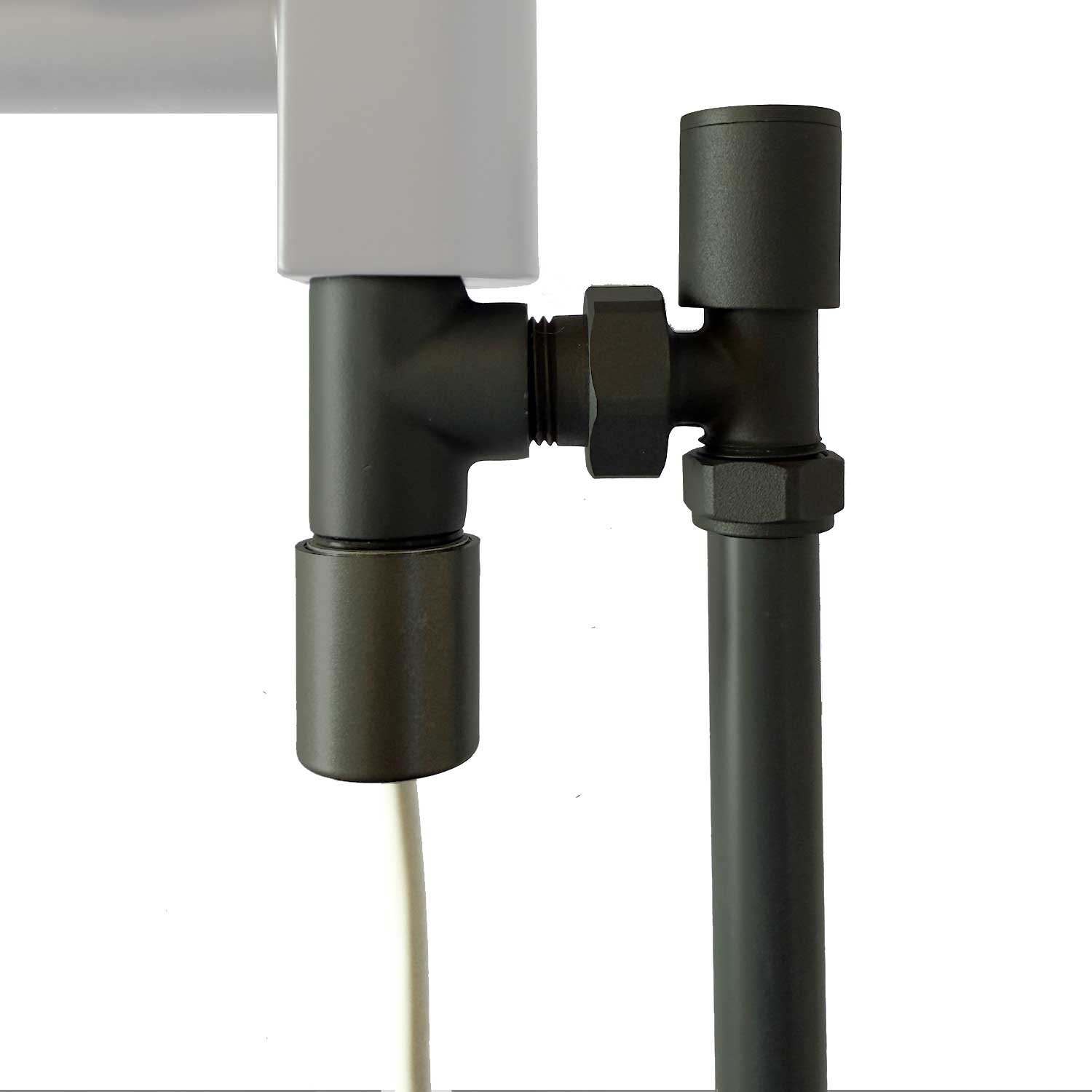

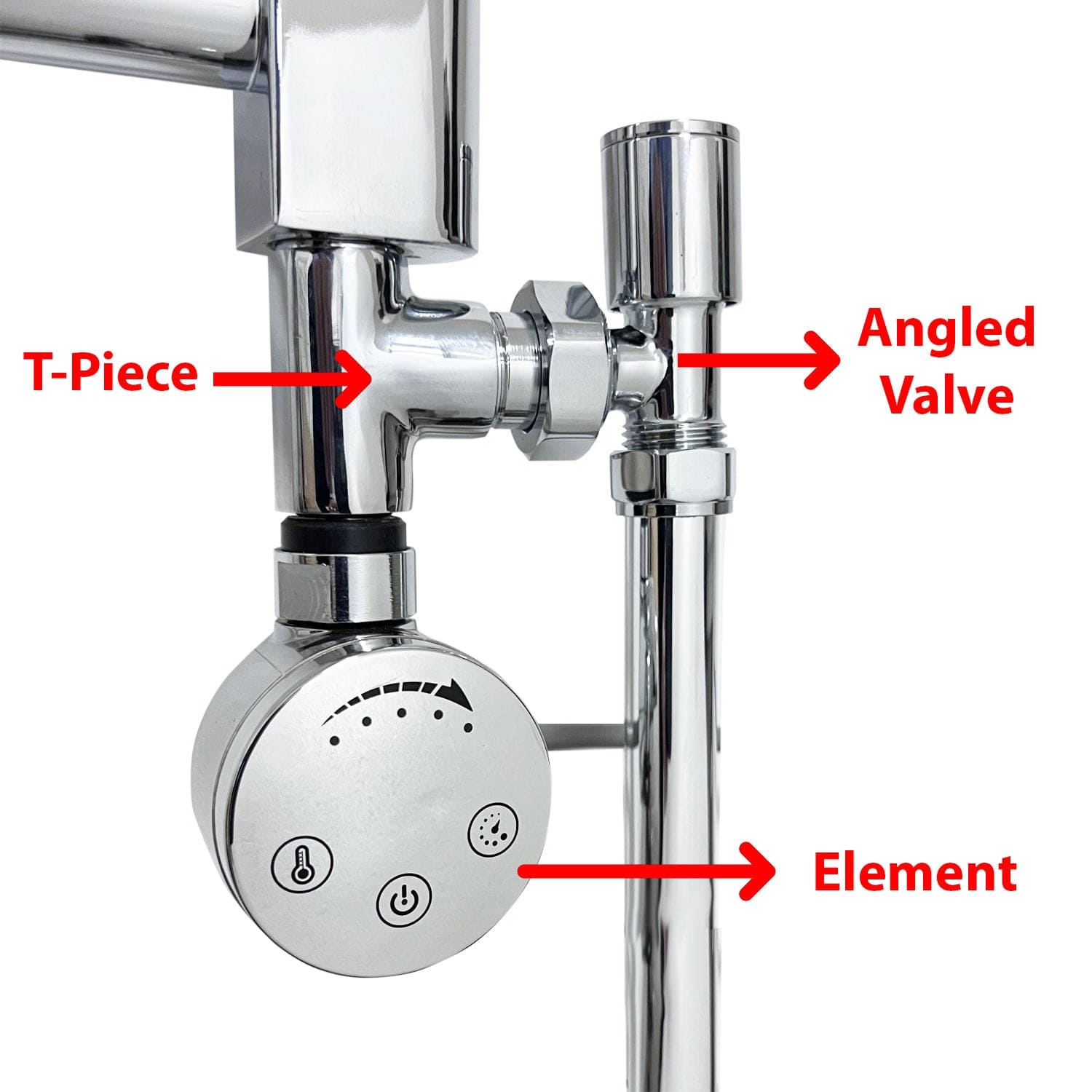

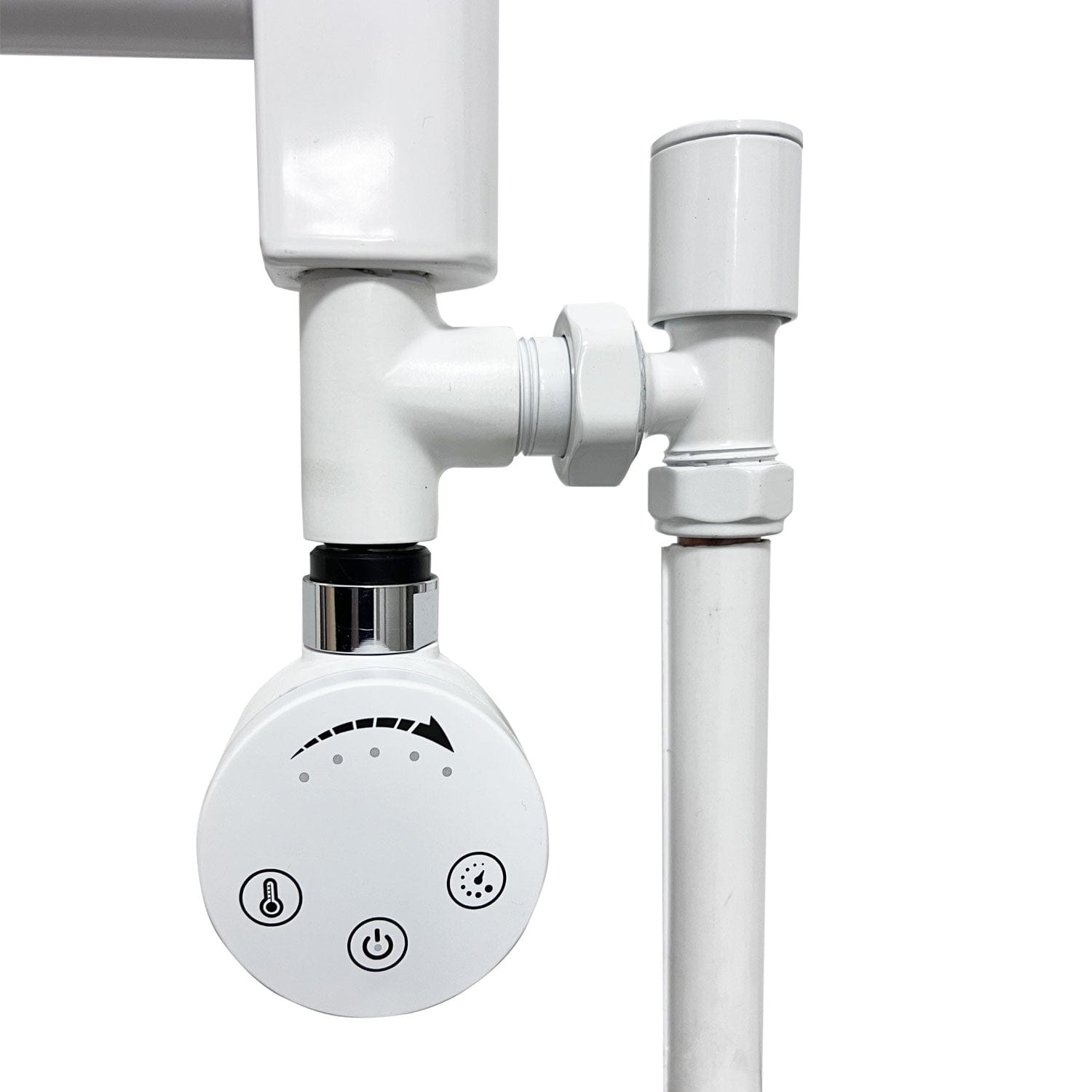

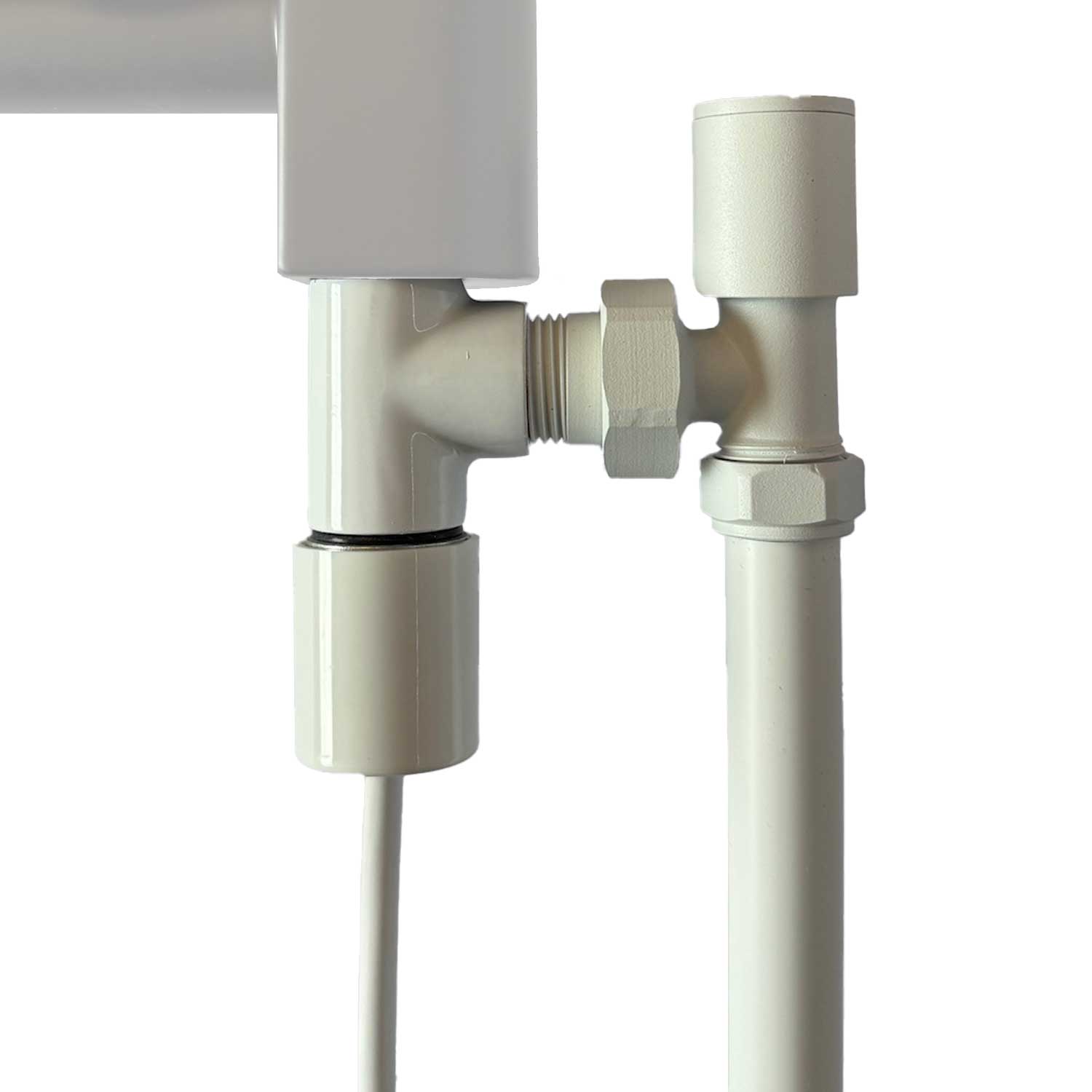

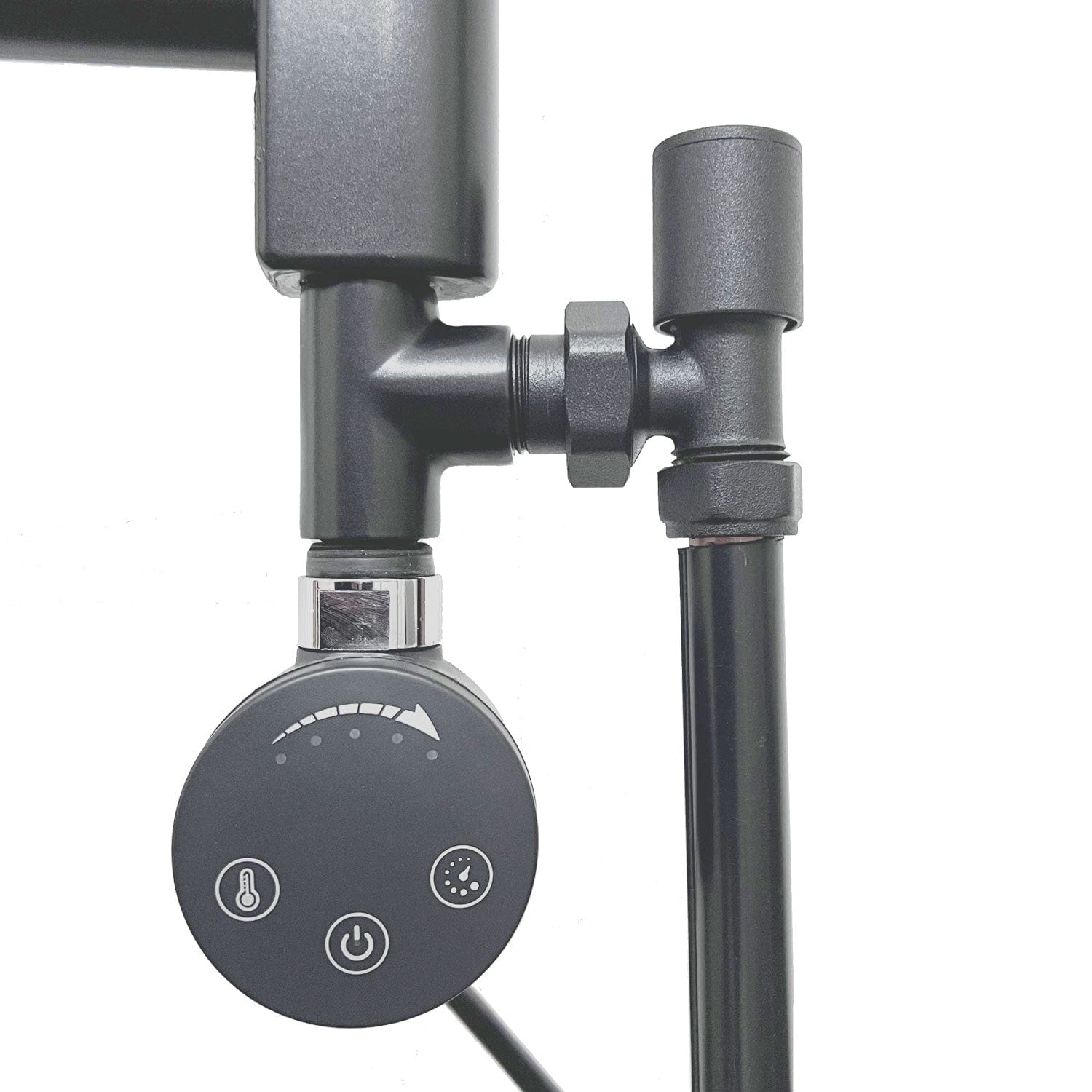

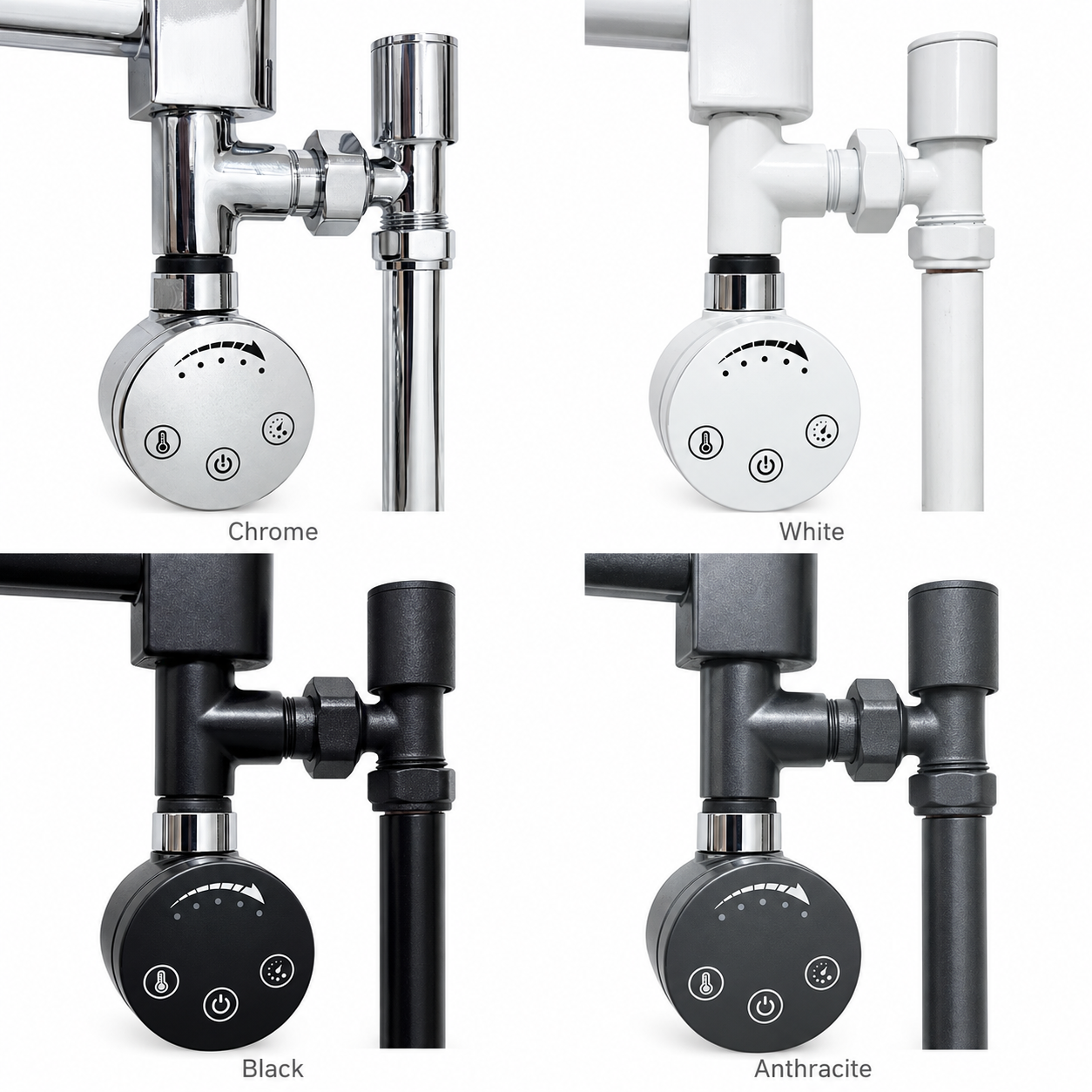

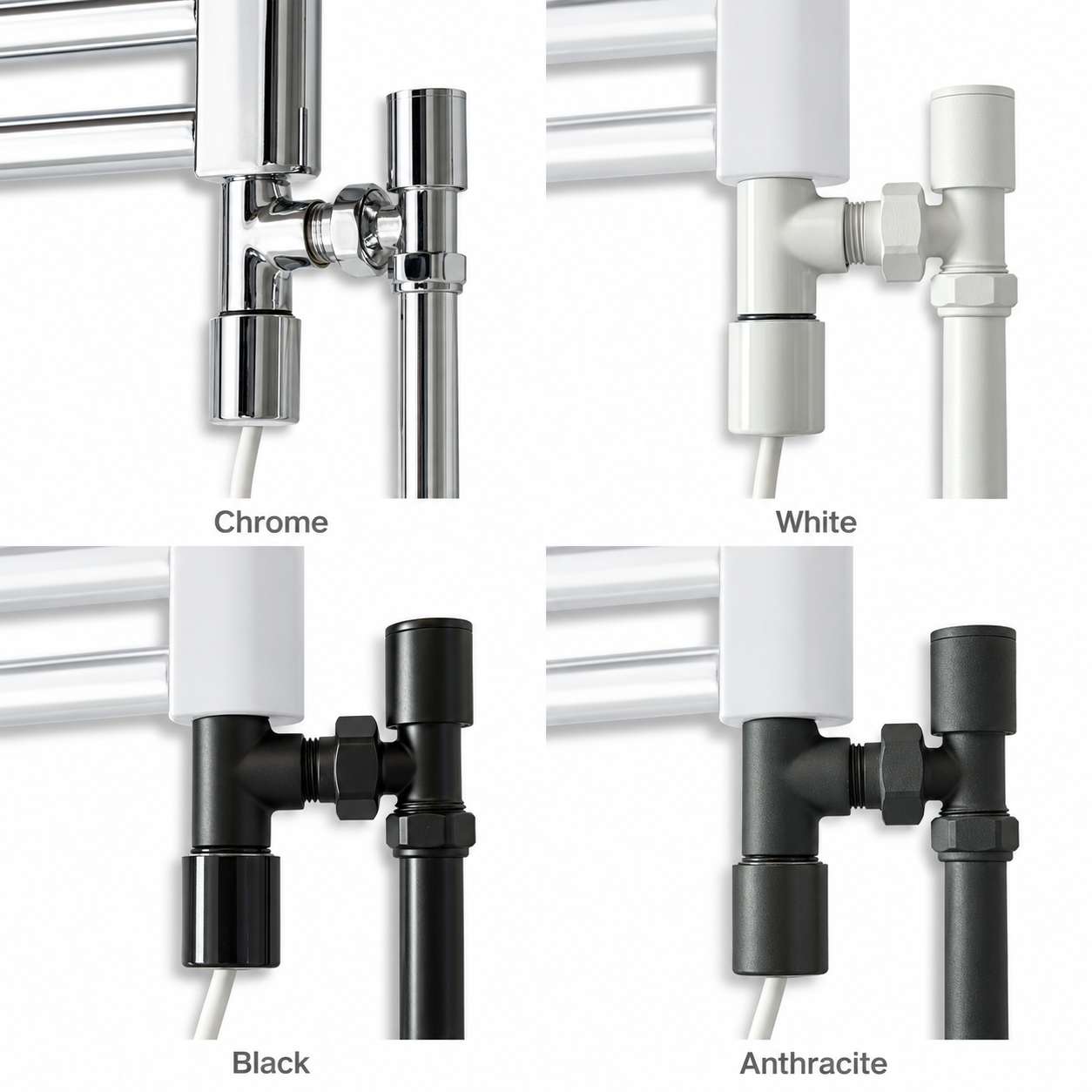

What is a dual fuel towel rail?
A dual fuel towel rail connects to your central heating and also has an electric element. You can heat it from the boiler in winter and switch to the element in summer, when the heating is off.

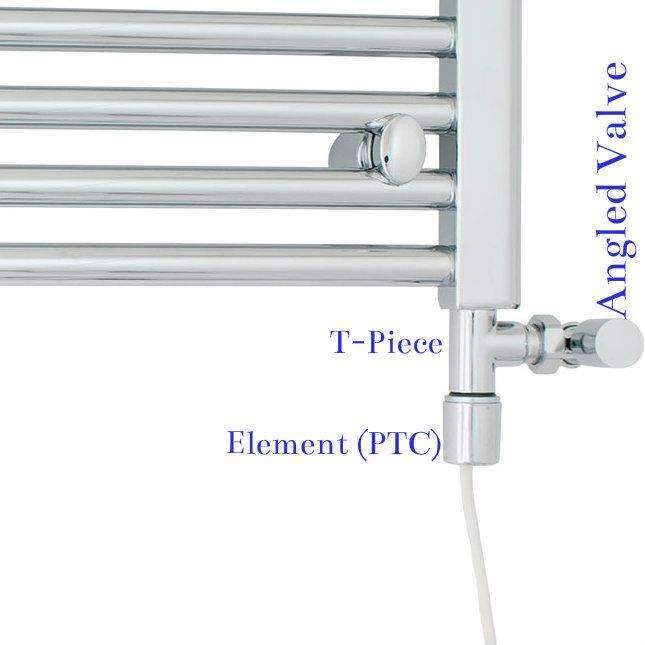

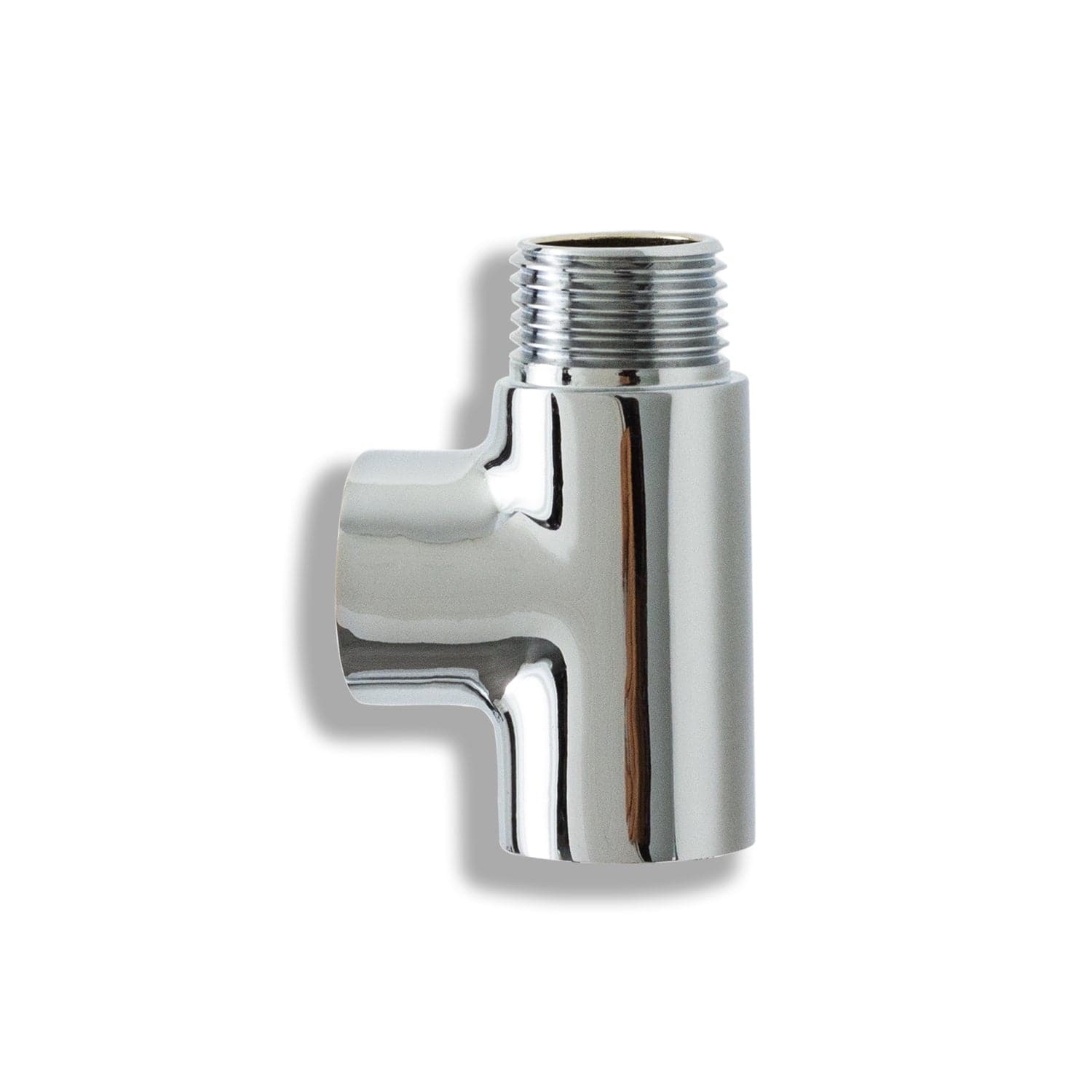

Can I convert my towel rail to dual fuel?
Yes, ladder-type towel rails can be converted. You need a heating element plus either a T-piece or a dual fuel corner valve. Contact us if you are unsure which parts suit your rail.
Can I use the element and the central heating at the same time?
No. Use one at a time. Before using the element, isolate the rail from the heating pipework by closing the valves, and make sure the rail is full of fluid. Follow the steps in the dual fuel install guide.
Should I choose electric, dual fuel or central heating?
Central heating is cheapest to run if the boiler is on anyway. Electric suits rooms with no pipework. Dual fuel gives you both, and is the most flexible for a room you want warm outside the heating season.

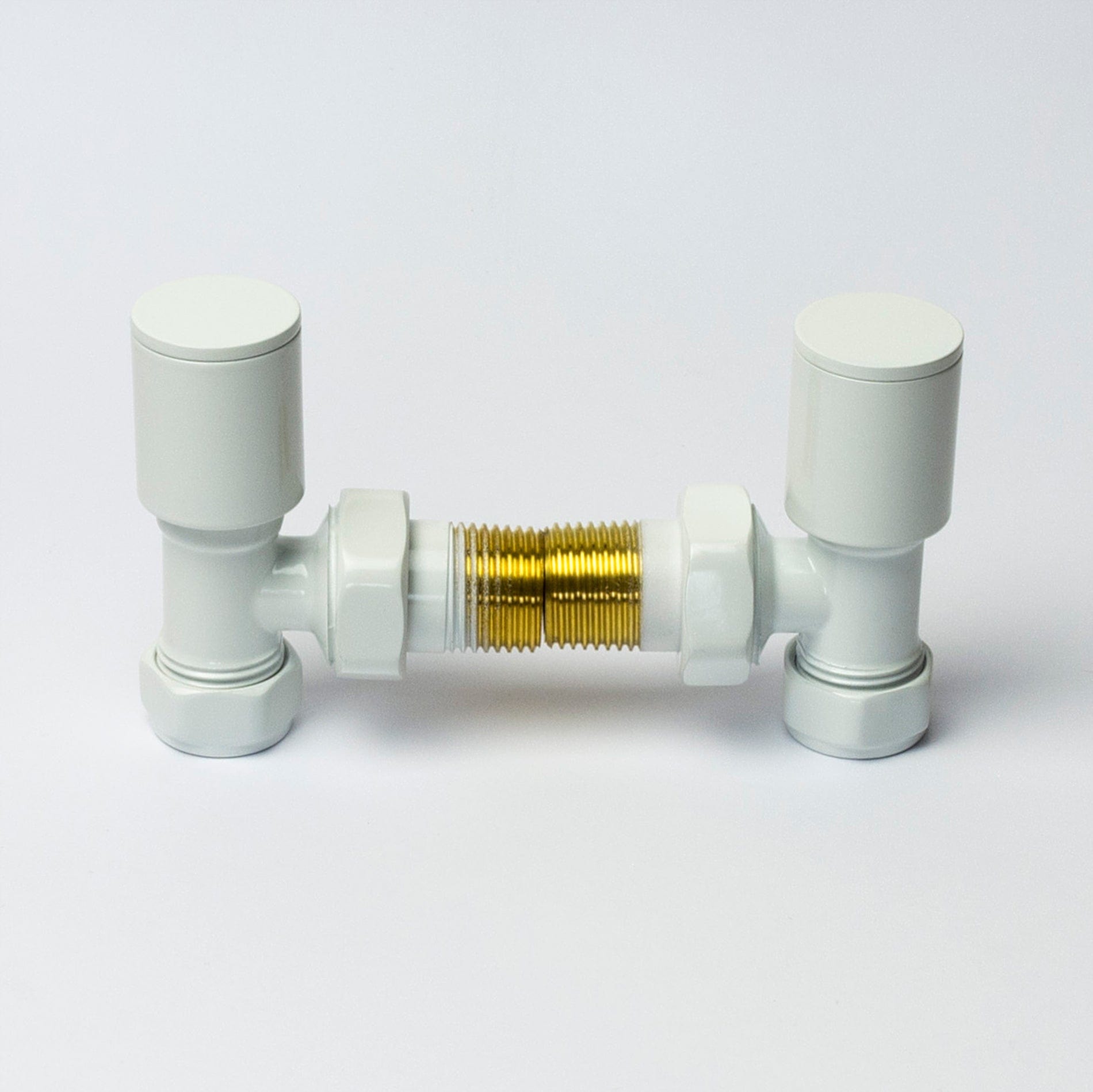

What parts do I need to connect a towel rail to central heating?
A pair of valves. Straight valves suit pipes coming up from the floor. Angled or corner valves suit pipes coming out of the wall. We stock them in chrome, anthracite, black and white to match your rail.

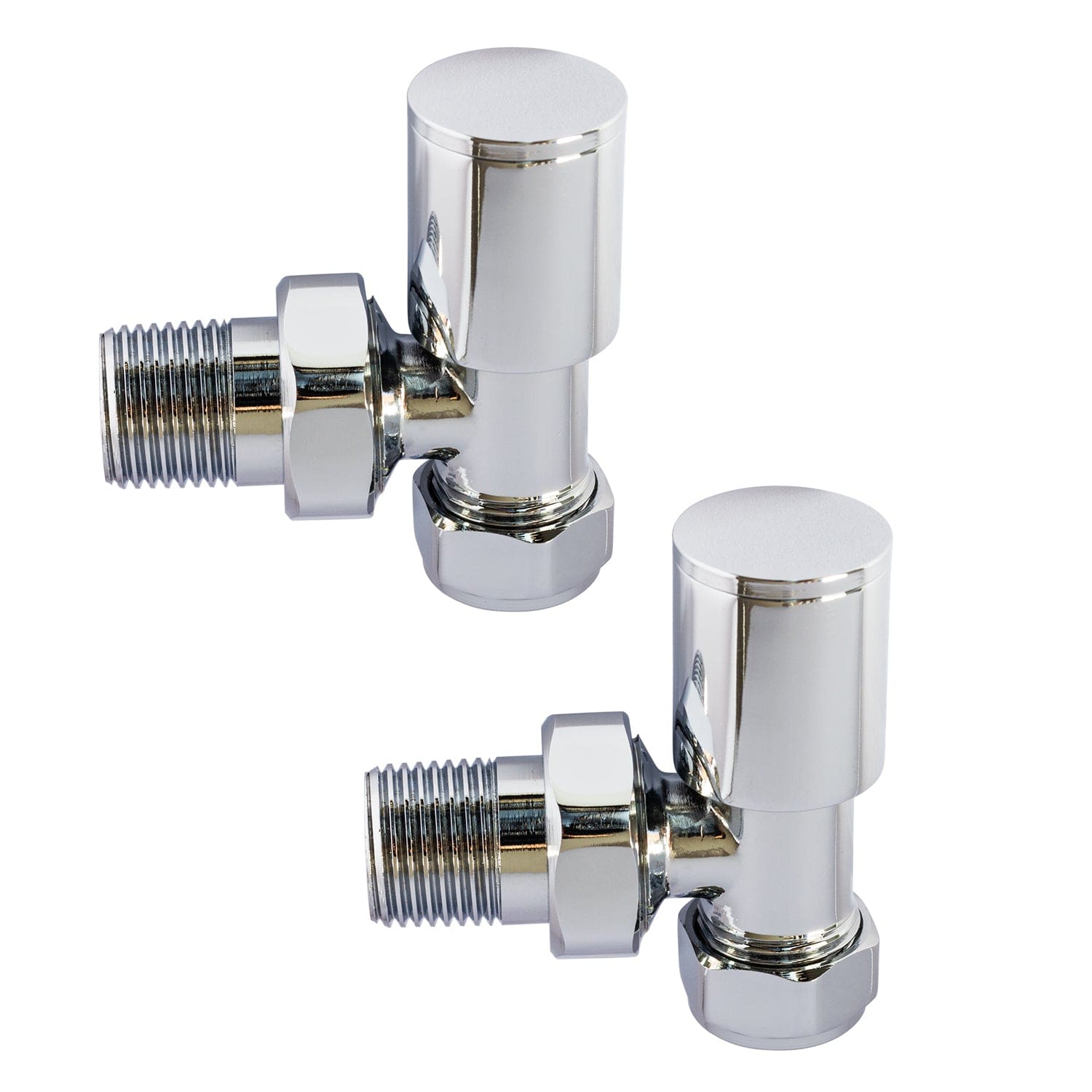

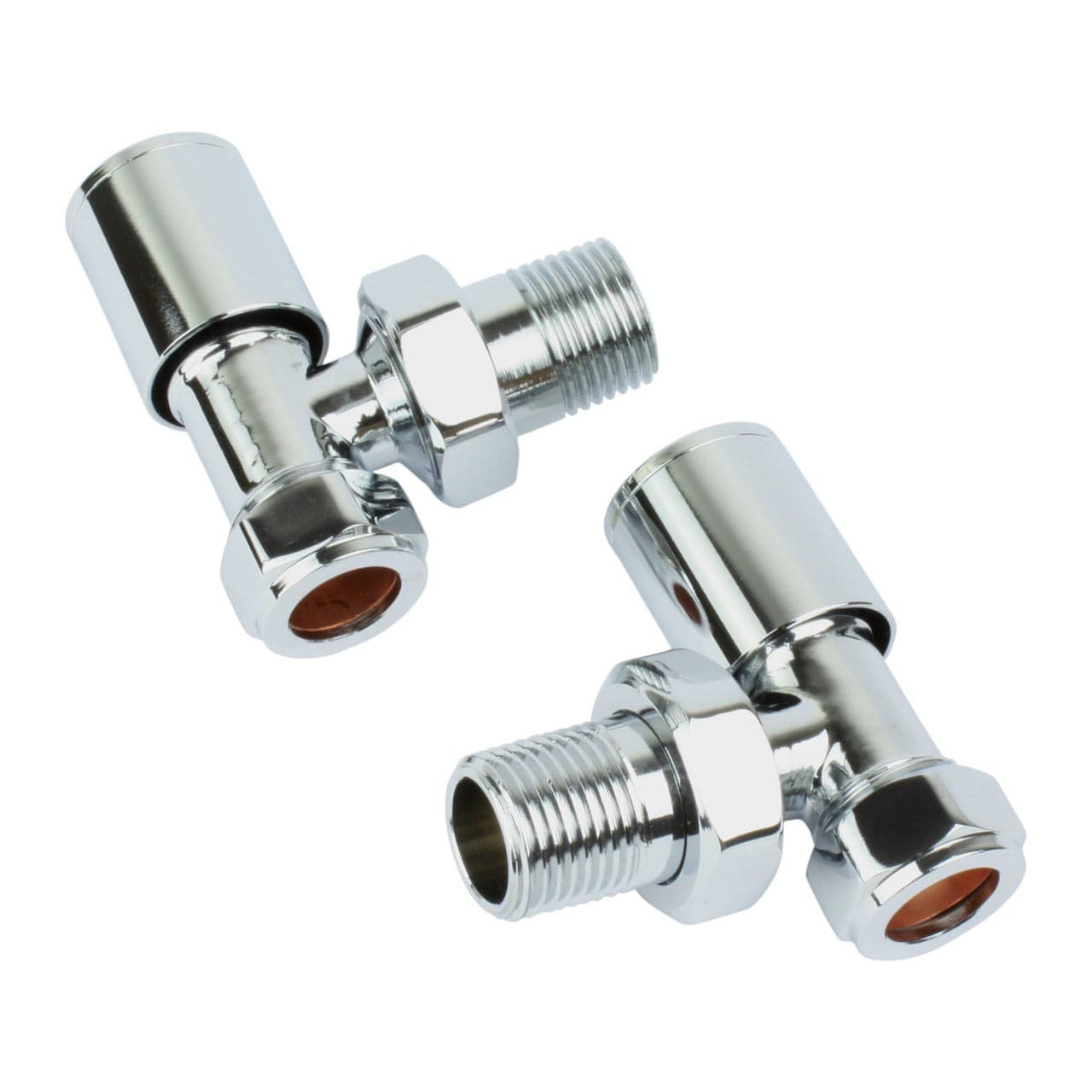

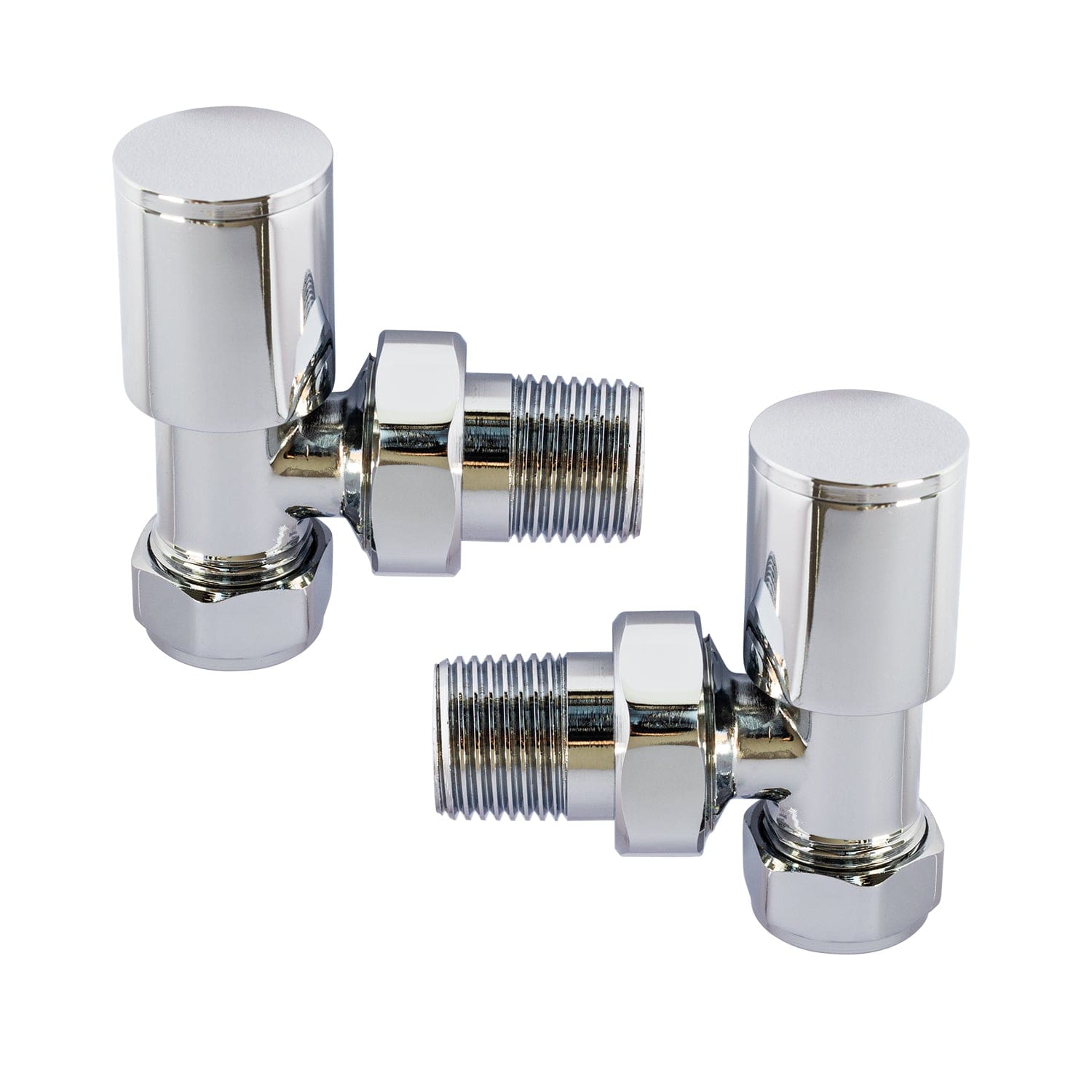

What is the difference between angled and straight valves?
It is about the direction the pipe comes in. Straight (inline) valves connect to pipes rising from the floor, while angled and corner valves turn the connection through 90° for wall pipes.
What is a lockshield valve?
The lockshield is the second valve on a radiator, usually on the right. It is set by your installer to balance flow across the system and normally should not be adjusted.
Do I need a TRV on a towel rail?
Usually not. A thermostatic valve can shut the rail off as soon as the room is warm, which means your towels never dry. A standard manual valve gives you control without that problem.
What is the maximum operating pressure of a towel rail?
Our towel rails are pressure tested to 10 bar. Typical UK central heating systems run at 1.5–2.5 bar. We recommend a maximum working pressure of 5 bar.
Installation & Plumbing
Can I install a heated towel rail myself?
Mounting a rail is a confident DIY job. Connecting it to central heating needs draining down and refilling the system, which is plumber work for most people. Electric rails need a fused spur fitted by a qualified electrician.
How much does it cost to install a heated towel rail?
It depends on whether the pipes line up, whether the system needs draining, and whether new electrics are required. Matching the pipe centres of your old rail keeps the cost down. Our installation cost guide breaks it down.
What are radiator tails?
Tails are the short threaded fittings that screw into the rail and join it to the valves. They are sealed with PTFE tape. You can usually reuse the tails from your old radiator.
How do I connect copper pipe to a towel rail?
Fit the valves to the rail with the tails, then join the copper pipe to the valves with compression fittings. Make sure everything is tight and check for leaks when you refill the system.
How do I remove an old towel radiator?
Turn off the heating, close both valves, and have a container and towels ready. Loosen the valve nuts to drain what is left in the rail, then lift the rail off its brackets. Our guide covers the full steps.
How do I drain a pressurised heating system?
Turn off the boiler and let the system cool, then drain from the lowest point using the drain-off valve and a hose. The full process, including refilling, is in our step-by-step guide.
Can a radiator be moved to a new location?
Yes, but the pipework has to move with it, which is a job for a plumber. Choosing a replacement with the same pipe centres avoids it.
Can a towel radiator be floor mounted?
Some can. Floor-standing options and floor-fed pipes both work with the right valves and brackets. The installation options guide explains each.
Do you have towel rail fitting instructions?
Yes. Yes. Our step-by-step installation guide covers fitting a heated towel rail from start to finish, including valves, brackets and bleeding.
How can I hide radiator pipes?
Radiator pipe covers, boxing in, or running pipes through the floor or wall all work. The best option depends on your room. See our ideas for a neat finish.
More guides on this topic
- How to Install a Heated Towel Rail: Step-by-Step
- How to Replace or Install a Towel Rail
- Common Towel Rail Installation Mistakes
- How to Find a Plumber for Towel Rail Installation
- Can I Change Radiators by Myself?
- Where to Install Radiators for Maximum Heat
- Radiator Placement: Optimise Heat Distribution
Bathroom Safety, Zones & Regulations
Can I put an electric towel rail in a bathroom?
Yes, if it has a suitable IP rating and sits outside the zones where electrical equipment is not allowed. Bathroom zones are set by BS 7671. Check the manufacturer's instructions and use a qualified electrician.
What IP rating does a bathroom towel rail need?
Anything in the bathroom zones needs at least IPX4. Our non-thermostatic elements are IPX6 and our thermostatic elements IPX4. Timer fused spurs are IP20, so they must be mounted outside the bathroom.
Where does the fused spur have to go?
Outside the bathroom zones, normally outside the room itself. It is a double pole 13A fused connection unit. Your electrician will confirm the correct position for your bathroom.
Do I need a registered electrician and does it need notifying?
Always use a qualified electrician for the fused spur and wiring. Whether the job has to be notified to Building Control under Part P depends on the work involved, such as a new circuit. Ask your electrician before you start.
How close can a towel radiator be to a shower?
Water-filled central heating rails have no electrical restriction. Electric rails must follow the zone rules. Our safety guide gives distances and tips.
Can an electric towel rail overheat?
Not when it is fitted and used correctly. Thermostatic and PTC elements limit the temperature, and the fluid must always cover the element. Never run an element in an empty rail.
Troubleshooting & Maintenance
Why is my towel rail not heating up?
Check four things first. Is the left valve fully open? Is the central heating on? Are the pipes hot but the rail cold, which means an air lock? Did the problem start after summer, which suggests a stuck valve pin? Our guide covers all seven common causes.
Why is my towel rail warm at the top and cold at the bottom?
This is almost always sludge. Rust particles collect at the bottom and block the flow. A radiator flush or system powerflush fixes it, and a magnetic filter helps stop it coming back.
Why is my towel rail warm at the bottom and cold at the top?
Trapped air. Bleeding the radiator releases it and takes about five minutes. Check the boiler pressure afterwards and top up if it has dropped below 1 bar.
How do I bleed a towel rail?
Turn the heating off and let the rail cool a little. Put a radiator key on the bleed valve and turn it anti-clockwise until air hisses out. Close it as soon as water appears.
Why does my towel rail make a ticking noise?
Usually expansion and contraction as the metal warms and cools. It is normally harmless. Banging or whistling suggests air, sludge or a balancing issue, covered in our noise guide.
Why are my radiators making banging or rattling noises?
The common causes are trapped air, sludge, a pipe clip that is too tight or a system pressure problem. The noisy radiator guide helps you tell which one you have.
Why is my towel rail hot when the heating is off?
Some towel rails are fed from the hot water circuit, which can warm the rail even when the heating is off. A faulty zone valve or pump can also cause it.
Why do my radiators not heat up after summer?
Valve pins can seize when they have not moved for months, and air or sludge may have built up. Pressing the pin and bleeding the radiator fixes most cases.
Can a TRV stop a towel rail heating up?
Yes. The TRV pin can stick shut. Remove the head and press the pin down and release it several times. If it stays stuck, replace the valve.
How do I know if my towel rail needs a powerflush?
Look for cold patches at the bottom, slow heat-up, discoloured water when you bleed it, and several radiators underperforming. A powerflush is typically advised every 5–8 years on older systems.
Running Costs & Saving Energy
How much does an electric towel rail cost to run?
Multiply the watts by the hours it is on, divide by 1,000, then multiply by your electricity price. A 200W rail on for 4 hours is 0.8kWh, which is about 20p a day at 25p/kWh. A thermostat means the real cost is lower.
Is gas central heating cheaper than electric heating?
Per kWh, yes. Gas costs several times less than electricity. Electric heating has no boiler to service and gives room-by-room control, which can cut wasted heat. Our comparison has the current numbers.
Should I leave my bathroom towel rail on all the time?
You do not need to. A timer or thermostat keeps the rail warm when you need it without paying for heat when you do not.
Is it cheaper to keep the heating on all day?
For most homes, heating only when needed, with good controls, is cheaper than running all day. Our guide looks at when constant heating can still make sense.
Can TRVs reduce my heating bills?
Yes. TRVs stop each radiator heating a room past the temperature you set, which cuts wasted heat. They work on panel radiators, but are not suited to towel rails.
Is electric heating more expensive?
Per unit of energy, electricity costs more than gas. Efficient controls, good insulation and choosing the right output narrow the gap.
What are the cheapest radiators to run?
Running cost depends on the energy source and how well the heat is controlled, not just the radiator. See our cost comparison for the options.
What are ErP and Lot 20, and why do they matter?
ErP and Lot 20 are energy-efficiency rules for electric heaters. They require features such as timers and thermostats to cut wasted energy. Check any electric radiator you buy is compliant.
What is the ideal temperature setting for radiators?
It depends on your system and what you are heating. Our guide to radiator temperature settings explains what to choose for comfort and efficiency.
More guides on this topic
- Central Heating vs Electric: Full Cost Comparison
- Busting Common Heating Myths
- Essential Winter Heating Tips for Savings
- Curtains Over Radiators: Why It Costs You Money
- Which Radiator Is the Most Efficient?
- Are Ceramic Heaters Cheap to Run?
- Is It OK to Turn Off Radiators in Unused Rooms?
- Switching from Gas to Electric Heating
Heat Pumps & Low-Temperature Heating
Can I use towel rails with a heat pump?
Yes, but size them for the lower flow temperature a heat pump uses. A radiator that is fine on a boiler can be too small once the water is cooler.
What is T30 and how much output do I lose?
T30 means the radiator averages 30°C above room temperature, compared with 50°C for the catalogue ratings. Output at ΔT30 is about half, roughly 52%, of the ΔT50 figure.
Do I need bigger radiators with a heat pump?
Often yes. Lower water temperatures mean each radiator gives out less, so you either choose larger radiators or add more. A room-by-room heat loss calculation tells you exactly how much.
How does the Boiler Upgrade Scheme affect my radiator choice?
If you are fitting a heat pump through the scheme, your radiators have to cope with lower flow temperatures. Our guide explains what to check.
Are electric radiators better than a heat pump?
They suit different homes. Electric radiators are cheap to install and simple to control. A heat pump costs more to install but is far more efficient to run. The comparison guide covers the trade-offs.
Materials, Finishes & Care
What are towel rails made of?
Most are steel, finished in chrome plating or powder-coated colour. Stainless steel and aluminium are the main alternatives.
Aluminium or steel radiators: which is better?
Aluminium is light and heats up and cools down fast. Steel holds heat longer and is the most common. Which suits you depends on the heating system and how you use the room.
Chrome or anthracite towel rails: which finish is right?
Chrome is bright and classic and suits most taps and fittings. Anthracite and black look modern and hide marks better. The finish does not change what the rail is made of.
Are white towel rails more efficient than chrome?
Painted rails radiate heat slightly better than shiny chrome, which reflects some of it. In practice the difference is small compared with choosing the right output for the room.
How do I clean a chrome towel rail?
Wipe with a damp cloth and polish with a dry microfibre cloth. For stubborn marks use one part distilled vinegar to one part warm water. Avoid abrasive cloths and chemical cleaners, which can mark or corrode the chrome.
Can I paint a towel rail?
Yes. Use paint made for radiators, clean and lightly key the surface, and paint only when the rail is cold. Our guide covers the steps.
Why is my towel rail rusting?
Bathrooms are damp, and a scratch or a gap in the finish lets moisture reach the metal. Wiping the rail down and fixing chips early helps prevent it.
Can I renovate an old towel rail?
Often yes. A tired rail can be cleaned, refinished or re-painted. If it leaks or is badly corroded, replacing it is the better choice.
How often should I replace a towel rail?
A well-maintained rail can last for many years. Replace it if it leaks, rusts through or no longer heats evenly. Our guide lists the signs.
Delivery, Warranty, Trade & Orders
Where can I buy an Elegant heated towel rail?
Directly from elegant-radiators.co.uk. We ship UK-wide from our Coventry warehouse (CV7 9NH).
How long does delivery take and what does it cost?
Large parcels by DHL to mainland UK take 1–2 working days. Small and medium parcels by Royal Mail or Evri take 2–4. Delivery is free on orders over £200 and £9.99 below that. Transit times are estimates.
What warranty do your towel rails have?
Five years on towel rails, one year on heating elements, and 25 years on stainless steel and aluminium products (excluding labour).
Can I return an item?
Yes. If you are not satisfied, contact us within 30 days of receiving your order and we will arrange a refund.
Do you offer a Blue Light Card discount?
Yes, Blue Light Card holders get 5% off and free delivery.
Do you offer trade accounts?
Yes. Plumbers, heating engineers and fitters get 10% off and free delivery. Our installer network also passes on local leads.
Can I collect from your warehouse?
Yes, by appointment at our Coventry warehouse. Message us on WhatsApp to arrange a time.
How do I track my order?
We email tracking details as soon as your order is dispatched. If you need help, contact us.
Calculators & Tools
Can't find your answer?
Tell us your rail, your room and what is going wrong and we will point you to the fix.
WhatsApp usContact pageEmail
