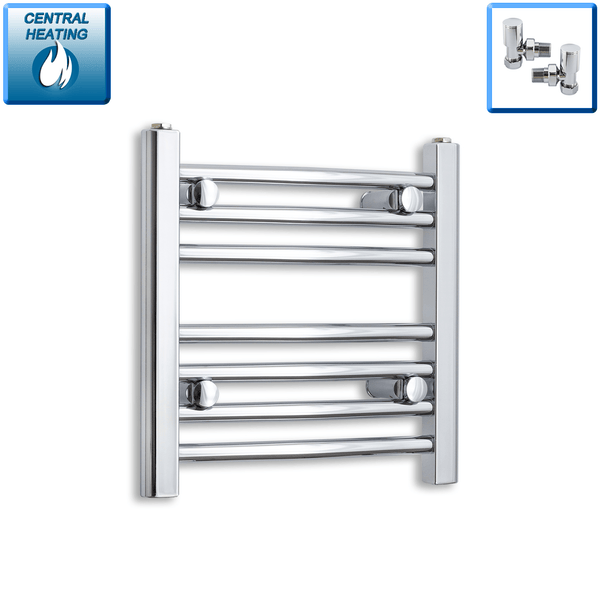

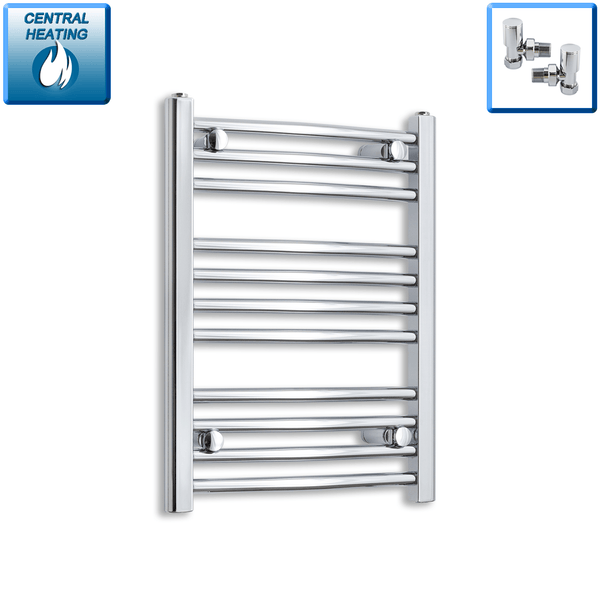

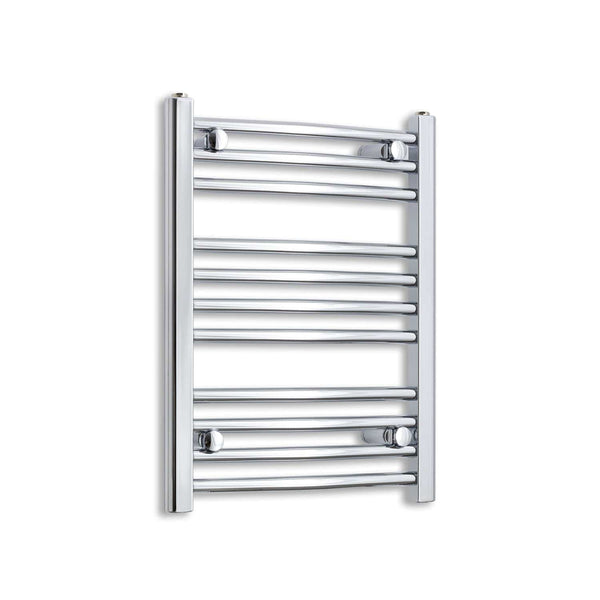

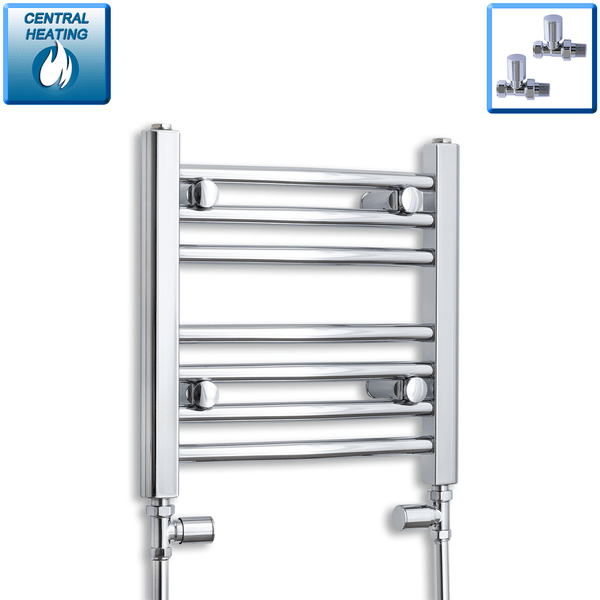

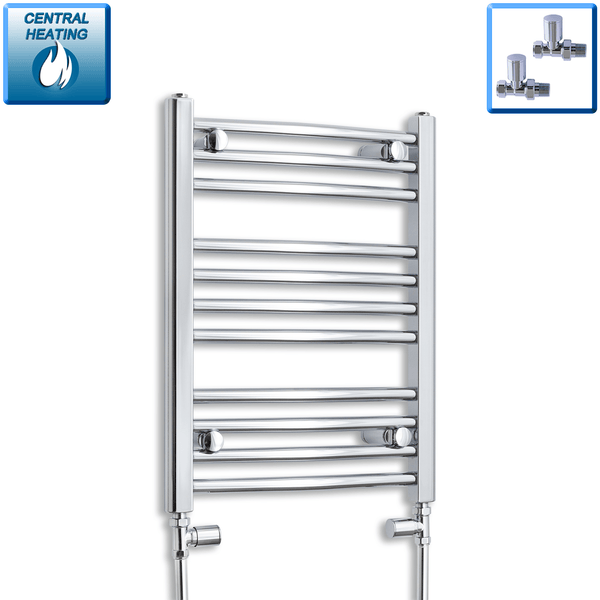

500mm Wide Chrome Towel Rail| 450mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
The 500mm chrome towel rail is the UK standard family bathroom sweet-spot. Its 450mm pipe centre aligns with the stud-wall spacings found in most UK new-build and 1990s-2010s bathrooms, making it the most natural replacement for a panel radiator removed during a bathroom renovation. At 500mm wide, a standard bath sheet lays fully flat across the bars without folding — the optimal drying configuration. Heights from 400mm to 1800mm; central heating, electric, and dual-fuel; 5-year warranty.

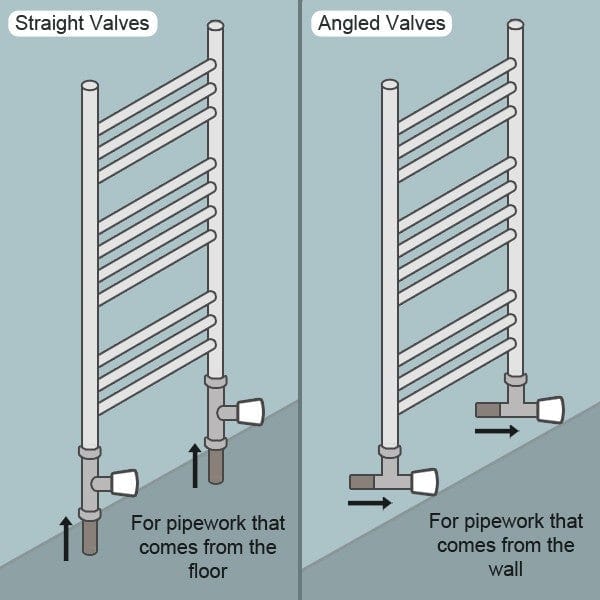

Pipe Centre Note: When installing a 500mm wide chrome towel rail on central heating, your pipework should be set at 450mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 400mm | 7 | 3+4 | 229 BTU / 67 W | 444 BTU / 130 W | 563 BTU / 165 W | 450mm |
| 600mm | 11 | 3+4+4 | 350 BTU / 103 W | 679 BTU / 199 W | 861 BTU / 252 W | 450mm |
| 800mm | 15 | 3+4+8 | 457 BTU / 134 W | 887 BTU / 260 W | 1,125 BTU / 330 W | 450mm |

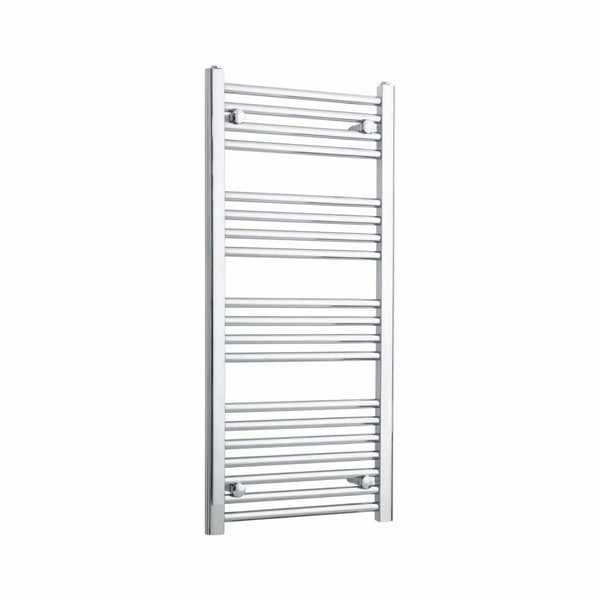

| 1000mm | 19 | 4+4+4+7 | 578 BTU / 169 W | 1,123 BTU / 329 W | 1,424 BTU / 417 W | 450mm |

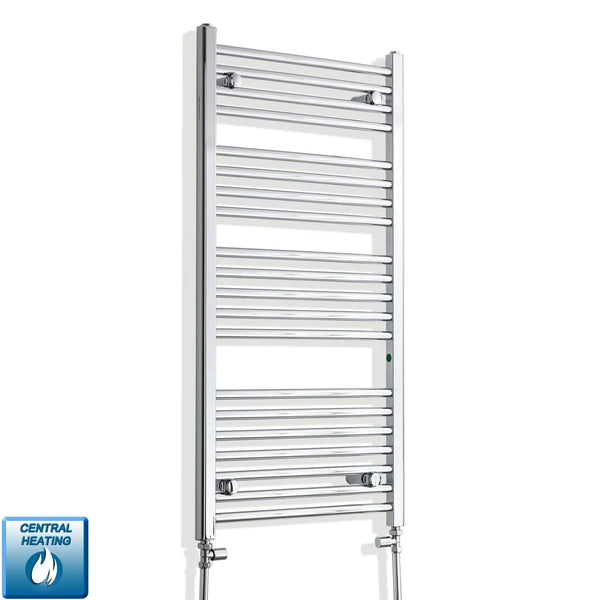

| 1100mm | 20 | 4+4+5+7 | 504 BTU / 148 W | 979 BTU / 287 W | 1,241 BTU / 364 W | 450mm |

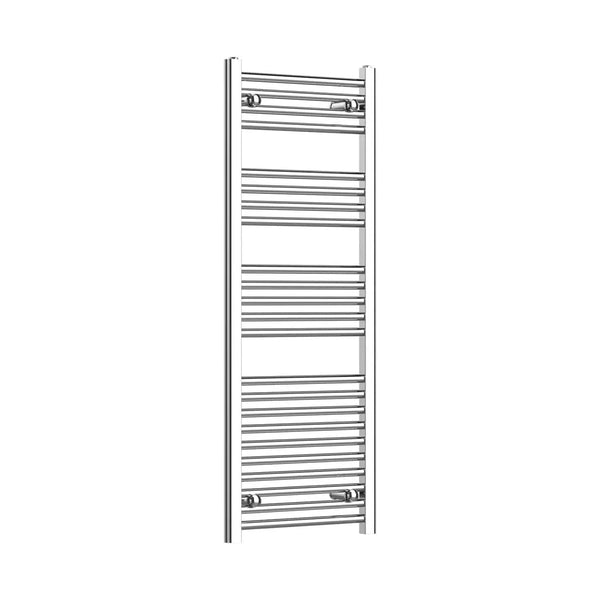

| 1200mm | 23 | 4+4+5+10 | 670 BTU / 196 W | 1,300 BTU / 381 W | 1,648 BTU / 483 W | 450mm |
| 1400mm | 25 | 4+5+6+10 | 634 BTU / 186 W | 1,232 BTU / 361 W | 1,562 BTU / 458 W | 450mm |
| 1600mm | 27 | 4+6+7+10 | 882 BTU / 258 W | 1,713 BTU / 502 W | 2,172 BTU / 637 W | 450mm |
| 1800mm | 31 | 4+7+8+12 | 1,003 BTU / 294 W | 1,948 BTU / 571 W | 2,470 BTU / 724 W | 450mm |
Why Choose a 500mm Width Towel Rail?
A 500mm width sits in the mainstream of UK bathroom sizing. The 450mm pipe centre is common in post-1990 construction, and the 500mm width suits the wall section between a bath and a window, or the main heated feature on any bathroom wall with 500-600mm of available run. This width outputs noticeably more BTU per height than the 300mm-400mm range, making it viable as the sole heat source in family bathrooms with two external walls.
- Ideal Room Suitability: Standard UK family bathrooms (5-8 m2), master ensuites, bathrooms in post-1990 new-build properties, and any space where the available wall run is 500-600mm.
- Towel Drying Capacity & Ergonomics: A full bath sheet (90x150cm or 100x180cm) lays flat without folding — the ideal drying configuration. Two bath towels fit on adjacent bar pairs for multi-user households.
- Installation & Wall Space Considerations: The 450mm pipe centre aligns with 400mm and 600mm stud spacing in UK timber-frame construction. Total wall clearance approximately 600mm. Natural drop-in replacement for most 500mm panel radiators with no pipework changes.
Explore Alternative Sizes & Finishes
If 500mm isn't the exact fit, explore related options:
- Adjacent Widths: Compare with our 450mm Wide Chrome Towel Rails or step up to 550mm Wide Chrome Towel Rails.
- Alternative Finishes in 500mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 450mm across all heights in this width range.
- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 500mm towel rail?
A: The standard pipe centre for a 500mm wide chrome towel rail is 450mm, leaving 25mm clearance on each side for valve connections.
Q: Why is 500mm considered the standard width for UK family bathroom towel rails?
A: The 500mm width matches the most common stud-wall and pipework spacing in UK bathrooms built from 1990 onwards, making it a direct drop-in replacement for panel radiators. It also provides enough bar width for a full bath sheet to dry flat — the critical ergonomic threshold narrower widths don't reach.
Q: How many towels can a 500mm chrome towel rail dry at once?
A: On a 1000mm or taller height, two full-size bath towels dry simultaneously — one on the upper bar group, one on the lower. On shorter heights (600mm or 800mm), one bath towel plus one hand towel is the practical limit. At 500mm bar width, no folding is required for standard bath towels.
