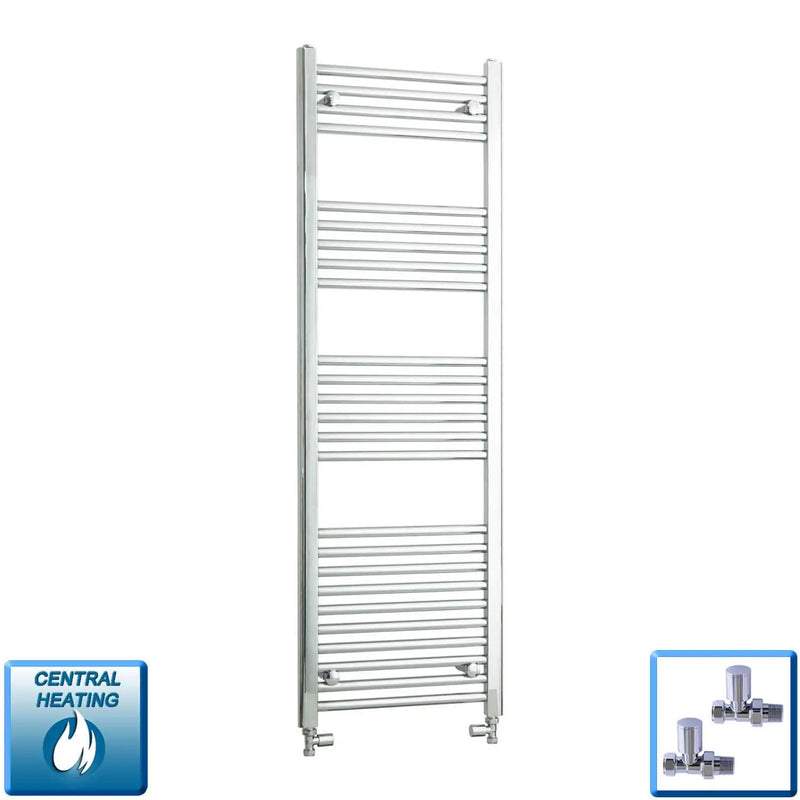

Straight inline Floor pipes
Choose this when pipework comes straight up out of the floor directly below the rail inlets.
Sale

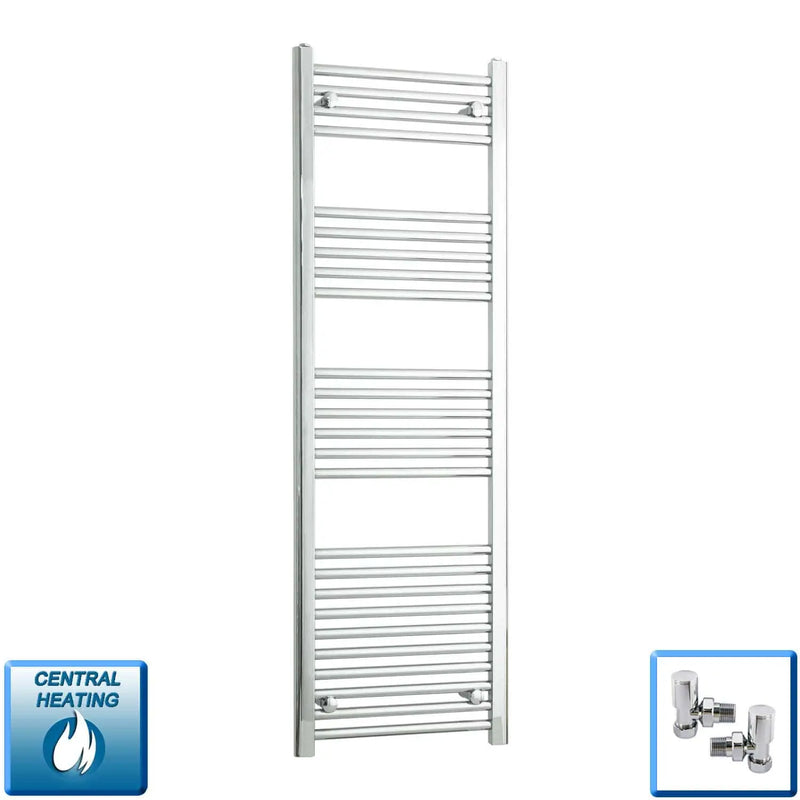

1400x400mm Heated Flat or Curved Chrome Towel Rail Radiator
£110.00
£130.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Frequently Bought Together
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Tall, wide, seriously warm
Product Overview & Heating Capacity
Twenty-five tubes in a 400mm-wide frame at 1,400mm tall — a chrome towel rail with a high tube count. 1,069 BTU (313W) at ΔT50. Use the heat-output calculator below to check it suits your room. No tube count compromises to hit a price point. Chrome plated on mild steel, BS EN 442 tested.
1069
BTU at ΔT50
313 W
Heat output
25
Tubes (4+5+6+10 layout)
5 yr
Warranty, no quibbles
Will This Towel Rail Fit My Bathroom?
Enter your room dimensions below — the calculator will tell you whether this rail is a good fit, tight, or whether you should consider a larger size.
✓ Good fit. Your room needs ~160 BTU. This rail delivers 1069 BTU — comfortable headroom.
Choose your fuel type
This listing is the central-heating version. Same design, three ways to power it — make sure you're on the right page for your setup.
Central heating You're here
Connects to your boiler via valves. Heats whenever your central heating is on.
Electric only Independent
Pre-filled and ready to plug in. Run independently of your boiler — ideal for rooms without existing pipework.
Dual fuel Best of both
Central heating in winter, electric in summer. Warm towels year-round without running your boiler.
Technical Specifications & Dimensions
Fit-check before you buy
| Manufacturer ID | CC-40-140 |
| Height | 1400mm |
| Width | 400mm |
| Projection from wall | 90–110mm |
| Pipe centres | 350mm |
| Heat output (ΔT30) | 550 BTU · 161W |
| Heat output (ΔT50) | 1069 BTU · 313W |
| Heat output (ΔT60) | 1354 BTU · 397W |
| Tube layout | 25 tubes (4+5+6+10) |
| Tube diameter | 22mm |
| Model | Curved / Curved |
| Material | Mild steel |
| Finish | Chrome plated |
| Valve connection | ½" BSP |
| Dual-fuel ready | ✓Yes (with element) |
| Electric-only ready | ✓Yes (with element) |
| Standard | BS EN 442 |

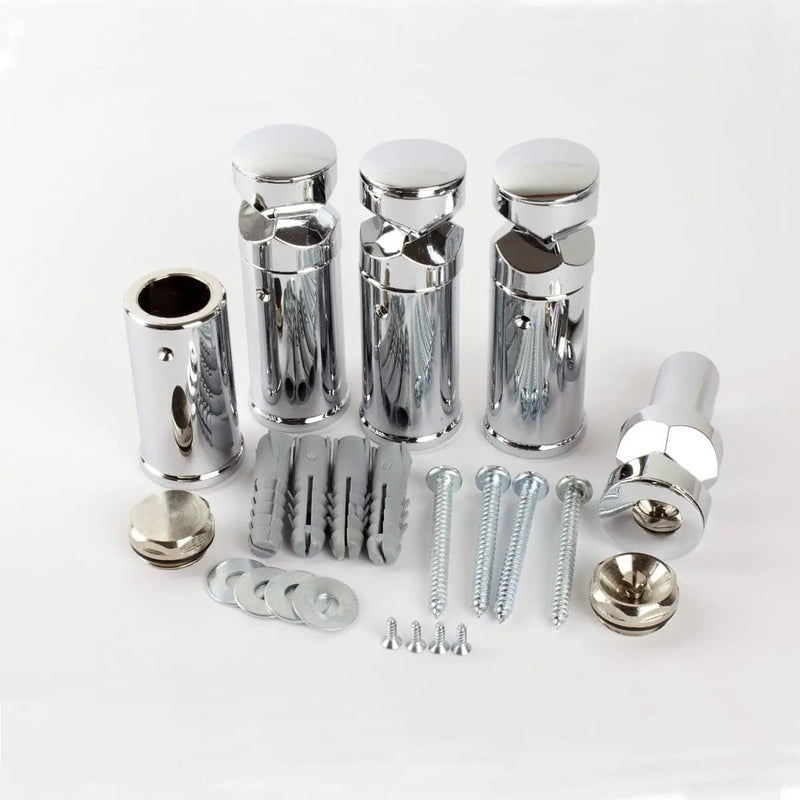

| In the box | 4× adjustable chrome brackets, screws, rawl plugs, washers, blanking & bleed plug |
| Warranty | 5 years |
Need help measuring? BTU calculator ↗

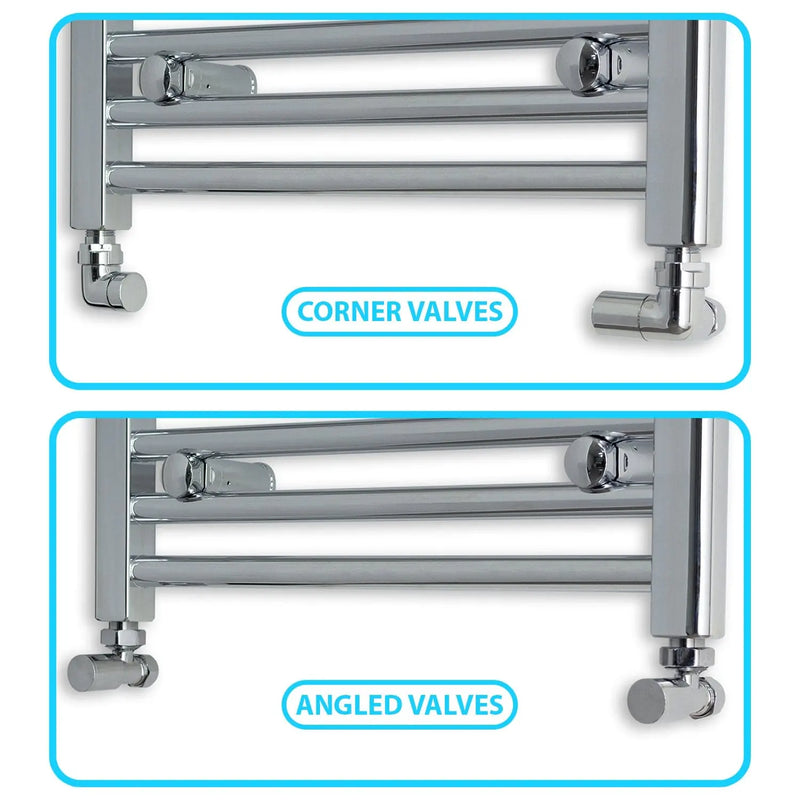

Choosing Your Valve Type
Three valve types — which one you need depends on where your pipes come out.

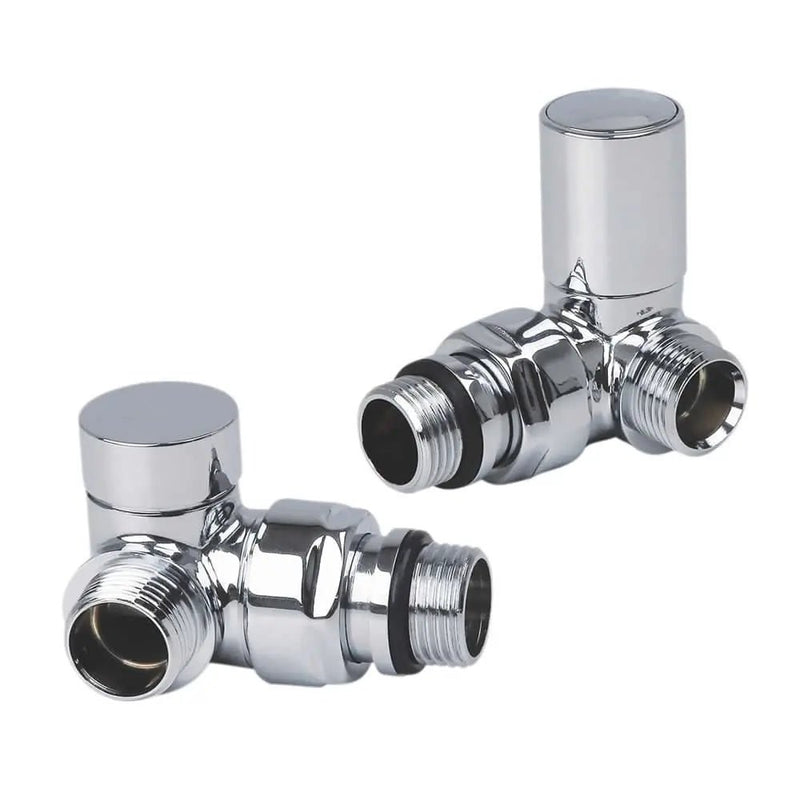

Angled Wall pipes
For pipes that exit horizontally from the wall. The valve turns 90° upward into the rail.
Corner Wall pipes
A tighter alternative for wall pipes — sits flush to the wall for a cleaner, lower-profile finish.
TRV valves are not suitable for towel rails — fitting one could leave your towels damp and smelling. Find out why ↗
Not sure which? Browse our valves ↗
Complete the look
Frequently bought together with this rail.
Frequently Asked Questions
Q.
Can this towel rail be used as electric-only or dual-fuel?
A. Yes — with the addition of a heating element, this rail converts to electric-only or dual-fuel running. We pre-fill electric rails with a minimum 85% reverse-osmosis water and inhibitor mixture (ethylene glycol), leaving an air gap for expansion. The element installs at the bottom (left or right) — heat rises, so top-mounted elements won't work properly.
Q.
Will this heat my bathroom on its own?
A. At 1,069 BTU / 313W this rail is sized for compact spaces — downstairs WCs, cloakrooms, and small en-suites. For a typical 1.2m × 1.0m WC you need roughly 160 BTU, so this rail has comfortable headroom there. For a standard bathroom (2.4m × 2m+), consider a taller or wider rail.
Q.

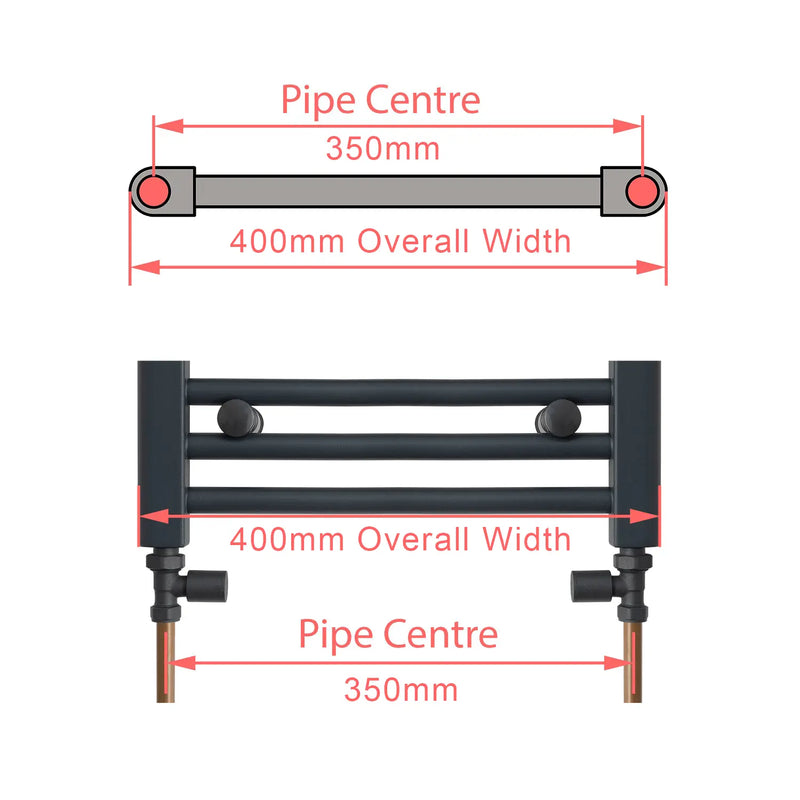

What are the pipe centre and projection measurements?
A. Pipe centres are 350mm. The brackets are adjustable: total projection from the wall is 90–110mm. That gives you flexibility if your pipes don't align perfectly with the rail inlets. Most angled valves give a further ±15mm of horizontal play, so pipe centres between 335–365mm are within tolerance.
Q.
Is the chrome finish rust-resistant?
A. Yes — the chrome plating is applied over high-quality mild steel and resists rust and tarnishing in normal bathroom conditions. The rail carries a 5-year warranty and is tested to BS EN 442.
Q.
Does it come with fixings?
A. Yes — the rail ships with 4× adjustable chrome brackets, screws, rawl plugs and washers, plus a blanking plug and a bleed plug. Valves are sold separately so you can choose straight or angled to match your pipework.
