400mm Wide Chrome Towel Rails | Central Heating| 350mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.

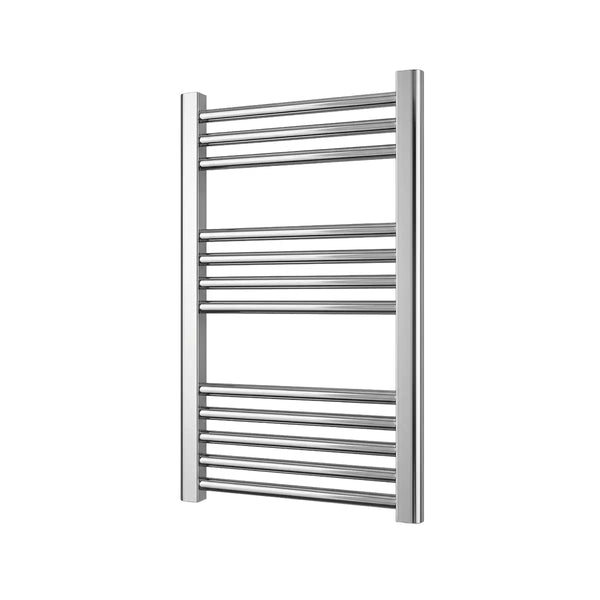

The 400mm chrome towel rail is the entry point into the standard UK bathroom range — wide enough to fold a bath towel in half and have it hang flat, yet compact enough to fit on the short wall between a bathroom door and a bath end panel. With a 350mm pipe centre and heights from 400mm to 1800mm, it replaces the most common narrow panel radiator size in UK new-build bathrooms from the 1990s onwards. Central heating, electric, and dual-fuel; 5-year warranty.
Pipe Centre Note: When installing a 400mm wide chrome towel rail on central heating, your pipework should be set at 350mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 400mm | 7 | 3+4 | 154 BTU / 45 W | 300 BTU / 88 W | 380 BTU / 111 W | 350mm |
| 600mm | 11 | 3+4+4 | 239 BTU / 70 W | 464 BTU / 136 W | 588 BTU / 172 W | 350mm |
| 800mm | 15 | 3+4+8 | 310 BTU / 91 W | 601 BTU / 176 W | 762 BTU / 223 W | 350mm |
| 1000mm | 19 | 4+4+4+7 | 392 BTU / 115 W | 761 BTU / 223 W | 965 BTU / 283 W | 350mm |
| 1400mm | 25 | 4+5+6+10 | 546 BTU / 160 W | 1,061 BTU / 311 W | 1,345 BTU / 394 W | 350mm |
| 1600mm | 27 | 4+6+7+10 | 589 BTU / 173 W | 1,143 BTU / 335 W | 1,449 BTU / 425 W | 350mm |
| 1800mm | 31 | 4+7+8+12 | 673 BTU / 197 W | 1,307 BTU / 383 W | 1,657 BTU / 486 W | 350mm |
Why Choose a 400mm Width Towel Rail?
At 400mm, the rail moves firmly into standard bathroom territory. The 350mm pipe centre matches the most common bathroom plumbing spacing in UK properties built since the 1980s. This width suits the short wall section beside a bath, the narrow panel between a door frame and a window, or any space where a 450mm or wider rail would encroach on movement paths.
- Ideal Room Suitability: Small family bathrooms (4-6 m2), ensuites with a standard-sized bath, spaces on the short wall beside a bath or below a window, and direct replacements for 400mm-wide panel radiators.
- Towel Drying Capacity & Ergonomics: A bath towel folded in half sits flat on the bars with approximately 25mm overhang each side — enough to hang securely. Two hand towels dry simultaneously on upper and lower bar sections. At 1400mm+ heights, bath sheets hang in full length.
- Installation & Wall Space Considerations: The 350mm pipe centre is the most common spacing in UK bathroom installations built since 1985. Total wall clearance approximately 500mm. Drop-in replacement for most 400mm-wide panel radiators without moving pipework.
Explore Alternative Sizes & Finishes
If 400mm isn't the exact fit, explore related options:
- Adjacent Widths: Compare with our 350mm Wide Chrome Towel Rails or step up to 450mm Wide Chrome Towel Rails.
- Alternative Finishes in 400mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 350mm across all heights in this width range.
- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 400mm towel rail?
A: The standard pipe centre for a 400mm wide chrome towel rail is 350mm, leaving 25mm clearance on each side for valve connections.
Q: Is 400mm the standard width for a chrome towel rail in a UK bathroom?
A: The 400mm width is one of the most common, alongside 500mm and 600mm. It suits small family bathrooms and ensuites where the wall run is 400-500mm. The 350mm pipe centre matches a large proportion of UK bathroom plumbing from the 1980s-2000s, making it the most frequent direct replacement width.
Q: What height 400mm towel rail do I need for a small bathroom?
A: For a small bathroom of 4-6 m2 with one external wall and average insulation, aim for 600-900 BTU at DT50. The 1000mm height (761 BTU / 223W) is the minimum for use as a sole heat source; the 1400mm height (1,061 BTU / 311W) provides more comfort margin.
