1000mm Wide White Towel Rails
The 1000mm white towel rail approaches a full metre in width — a statement piece reserved for wet rooms, grand master suites, and luxury bathroom renovations where horizontal presence is as important as heat output. Only three heights are offered at this width (600mm, 700mm, 800mm) because taller units at 1000mm+ combine exceptional filled weight with significant wall-loading requirements, and because lower-height wide rails create a distinctive landscape-format visual anchor that suits high-ceiling luxury bathrooms far better than a tall narrow unit would. The 800mm height at 1,454 BTU covers master bathrooms up to 10m² as the sole radiator.
Pipe Centre Note: When installing a 1000mm wide white towel rail on central heating, your pipework should be set at 950mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs are tested in accordance with BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 Output (Heat Pump) | ΔT50 Output (Standard Boiler) | ΔT60 Output (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 600mm | 11 | 3+4+4 | 554 BTU / 162W | 1,075 BTU / 315W | 1,363 BTU / 399W | 950mm |

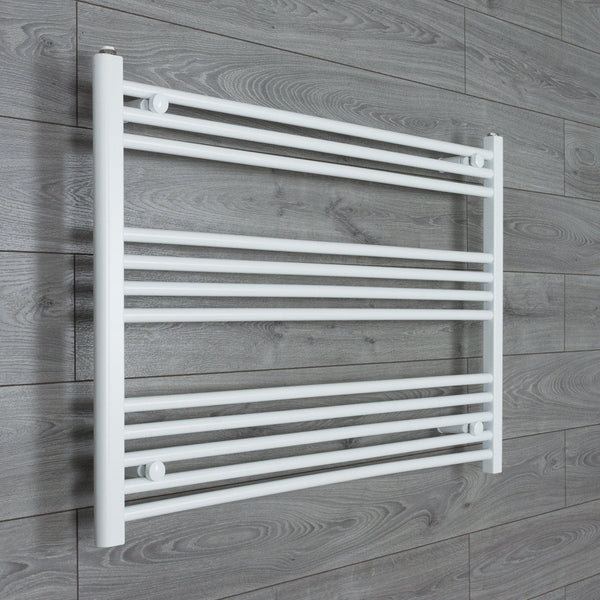

| 700mm | 12 | 4+8 | 617 BTU / 181W | 1,198 BTU / 351W | 1,519 BTU / 445W | 950mm |

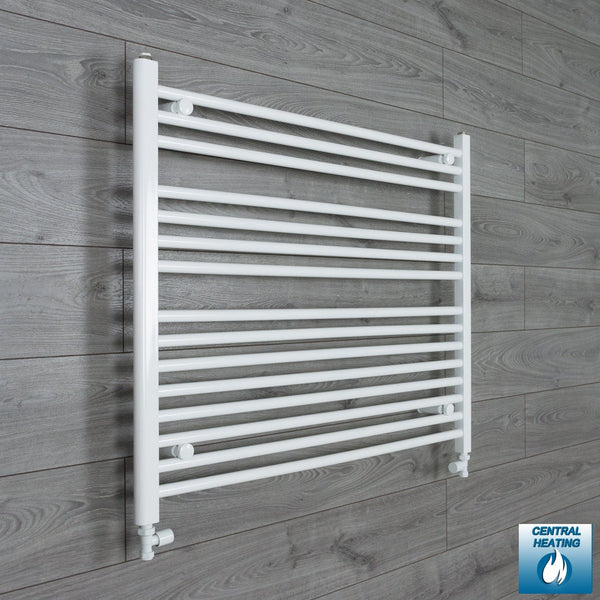

| 800mm | 15 | 3+4+8 | 749 BTU / 220W | 1,454 BTU / 426W | 1,844 BTU / 540W | 950mm |
Why Choose a 1000mm Width Towel Rail?
The 1000mm is chosen when the bathroom design demands a near-metre-wide horizontal anchor on the primary feature wall — typically a walk-in wet room or a bathroom suite where the towel rail is specified by the architect or interior designer as a visual centrepiece rather than an afterthought. Three wide, low-profile models give flexibility between a squat wide unit (600mm tall) and a more balanced landscape proportion (800mm tall).
- Ideal Room Suitability: Luxury walk-in wet rooms, grand master suites (10–18m²), architect-designed bathrooms with high ceilings, and feature-wall installations where the rail is a primary design element.
- Towel Drying Capacity & Ergonomics: Four standard bath towels (each folded to 25cm) hang side-by-side with gaps between each across the 1000mm rungs — effectively a heated towel bar for the entire household. At 800mm height, the 15-bar layout provides substantial surface area despite the lower height.
- Installation & Wall Space Considerations: Allow 1100mm of clear wall space minimum. A 1000mm steel towel rail filled with water can weigh 20–30kg — fix into minimum two solid timber studs or use a purpose-built spreader noggin. The 950mm pipe centre must be planned at first-fix stage. Wall bracket span = 1000mm − 130mm = 870mm centre-to-centre.
Explore Alternative Sizes & Finishes
- Adjacent Widths: Compare with our 900mm Wide White Towel Rails or step up to 1200mm Wide White Towel Rails.
- Alternative Finishes in 1000mm: 1000mm Chrome.
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 950mm across all heights in this width range.
- Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.
Delta T (ΔT) Thermal Output Calculations
- ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
- ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
- ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
- BTU Calculator: Calculate your exact room heat requirement.
Frequently Asked Questions
Q: What is the pipe centre measurement for a 1000mm white towel rail?
A: The standard pipe centre for a 1000mm wide white towel rail is 950mm, leaving 25mm clearance on each side for valve connections.
Q: Why are there only three heights available in the 1000mm white towel rail range?
A: Structural and logistical considerations limit the range at very large widths. A 1000mm-wide steel towel rail filled with water is exceptionally heavy, and taller models require reinforced wall fixings across a wider span than most residential walls can accommodate without specialist engineering. The three heights (600, 700, 800mm) represent the practical range for standard residential installation on solid masonry or double-stud timber walls.
Q: What is the total heat output of the largest 1000mm white towel rail?
A: The 800×1000mm model at ΔT50 produces 1,454 BTU / 426W. At ΔT30 (heat pump), this falls to 749 BTU / 220W. For standard gas boilers, the 800mm-tall model is sufficient as a primary heat source in bathrooms up to 10m². Use our BTU Calculator to confirm heat requirements for your room.
