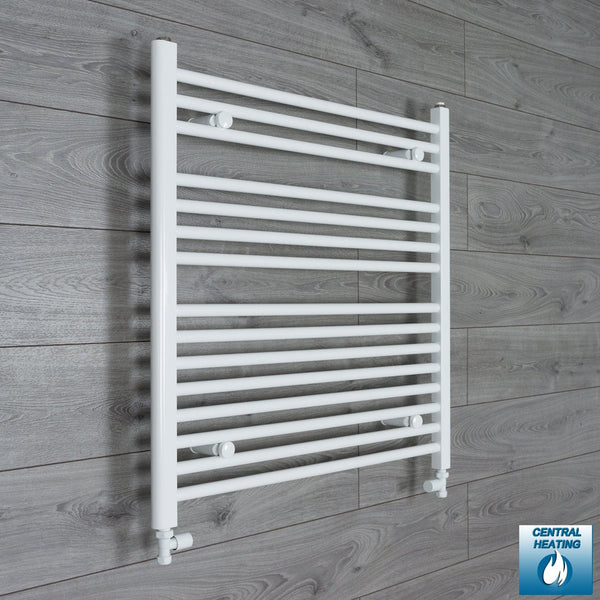

900mm Wide White Towel Rails
The 900mm white towel rail enters luxury territory — it commands a wall rather than merely occupying it. At this width, the rail becomes a defining element of the bathroom’s character: a near-metre horizontal band of white steel that anchors the space visually and provides substantial heat output across heights from 600mm to 1200mm. The 850mm pipe centre is specific to larger room layouts where a heating engineer intentionally positions supply pipes at wide spacing to accommodate a statement piece, or where existing underfloor heating pipe loops surface at 900mm spacing in a luxury wet room.
Pipe Centre Note: When installing a 900mm wide white towel rail on central heating, your pipework should be set at 850mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs are tested in accordance with BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 Output (Heat Pump) | ΔT50 Output (Standard Boiler) | ΔT60 Output (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 600mm | 11 | 3+4+4 | 431 BTU / 126W | 836 BTU / 245W | 1,060 BTU / 311W | 850mm |
| 700mm | 12 | 4+8 | 476 BTU / 140W | 925 BTU / 271W | 1,173 BTU / 344W | 850mm |
| 800mm | 15 | 3+4+8 | 583 BTU / 171W | 1,133 BTU / 332W | 1,437 BTU / 421W | 850mm |
| 1000mm | 19 | 4+4+4+7 | 738 BTU / 216W | 1,433 BTU / 420W | 1,817 BTU / 533W | 850mm |
| 1200mm | 23 | 4+4+5+10 | 891 BTU / 261W | 1,730 BTU / 507W | 2,194 BTU / 643W | 850mm |
Why Choose a 900mm Width Towel Rail?
The 900mm is chosen when the visual impact of the towel rail matters as much as its thermal performance — in luxury wet rooms, hotel-style master suites, and architect-designed bathroom renovations where the heating element is part of the room’s design language rather than an afterthought. Three towels can hang simultaneously across the width with generous spacing between each.
- Ideal Room Suitability: Luxury wet rooms, grand master suites (12–20m²), high-ceiling bathrooms where the visual weight of a wider rail is needed to balance the proportions of the space, and feature-wall installations.
- Towel Drying Capacity & Ergonomics: Three standard bath towels (each folded to 30cm) hang across the 900mm rungs with a 50mm gap between each — a hotel-standard arrangement where each towel dries without touching its neighbour. At 1200mm height (23 bars), the surface area rivals a small heated airing cupboard.
- Installation & Wall Space Considerations: Allow 1000mm of clear wall space minimum. The 850mm pipe centre requires deliberate positioning during first-fix plumbing — it cannot typically be retrofitted to existing standard-spacing rough-in without pipe relocation. Plan this width at the design stage of a bathroom renovation.
Explore Alternative Sizes & Finishes
- Adjacent Widths: Compare with our 800mm Wide White Towel Rails or step up to 1000mm Wide White Towel Rails.
- Alternative Finishes in 900mm: 900mm Chrome.
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 850mm across all heights in this width range.
- Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.
Delta T (ΔT) Thermal Output Calculations
- ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
- ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
- ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
- BTU Calculator: Calculate your exact room heat requirement.
Frequently Asked Questions
Q: What is the pipe centre measurement for a 900mm white towel rail?
A: The standard pipe centre for a 900mm wide white towel rail is 850mm, leaving 25mm clearance on each side for valve connections.
Q: Is a 900mm white towel rail typically used as a feature piece or a functional radiator?
A: Both. At 600mm height (836 BTU at ΔT50), it primarily serves as a statement piece and towel warmer with supplementary heat. At 1200mm height (1,730 BTU), it is a capable primary heat source for bathrooms up to 12m². The visual impact of a 900mm-wide, 1200mm-tall white towel rail in a luxury bathroom is substantial.
Q: What room size is a 900mm white towel rail suitable for?
A: At ΔT50, the 900mm range spans 836 BTU (600mm height) to 1,730 BTU (1200mm height), covering rooms of 6–12m² as a primary heat source. For heat-pump installations at ΔT30, the 1200mm model produces 891 BTU — suitable as the primary source for rooms up to 6m² or as supplementary heating in larger spaces.
