Reina Designer Coneva Column Horizontal Radiator
£124.80
£144.00
Save £19.20
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Mild steel column. Horizontal designer.
Product Overview & Key Specs

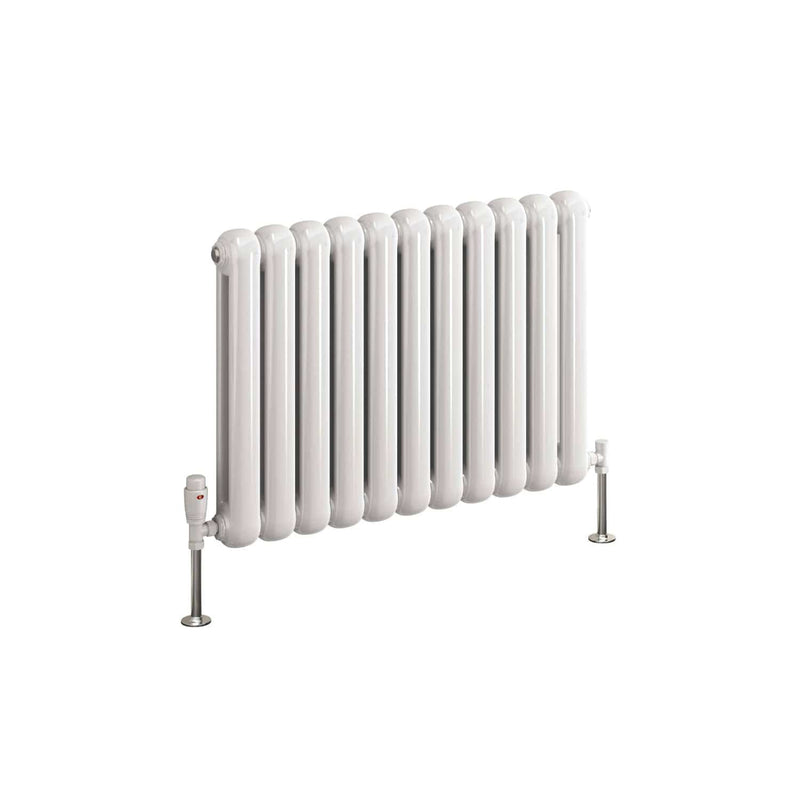

The Reina Coneva is a mild steel column central heating radiator, 550mm high in six widths from 440mm to 1420mm, in White or Anthracite. A traditional column profile with 6 to 20 bars delivers a high heat output for the wall space it takes, and the thick steel body holds its heat after the boiler switches off.
440–1420mm
Six widths
550mm
Height
2
Finishes
ΔT30
Heat pump rated
5 yr
Warranty
View the Coneva in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Coneva in your room using augmented reality.
Why Mild Steel for Central Heating?
Three practical reasons a steel column radiator suits a modern central heating system.
Robust buildHard-wearing ✔
Thick-wall steel with a durable factory finish. A column radiator takes knocks and keeps its looks in hallways, kitchens and busy rooms.
Holds its heatSteady warmth ✔
Steel retains heat after the boiler switches off, so the room temperature stays steady instead of dropping away between cycles.
Column profileClassic look
6 to 20 vertical bars give a traditional column silhouette and a generous surface area for the heat output it delivers.

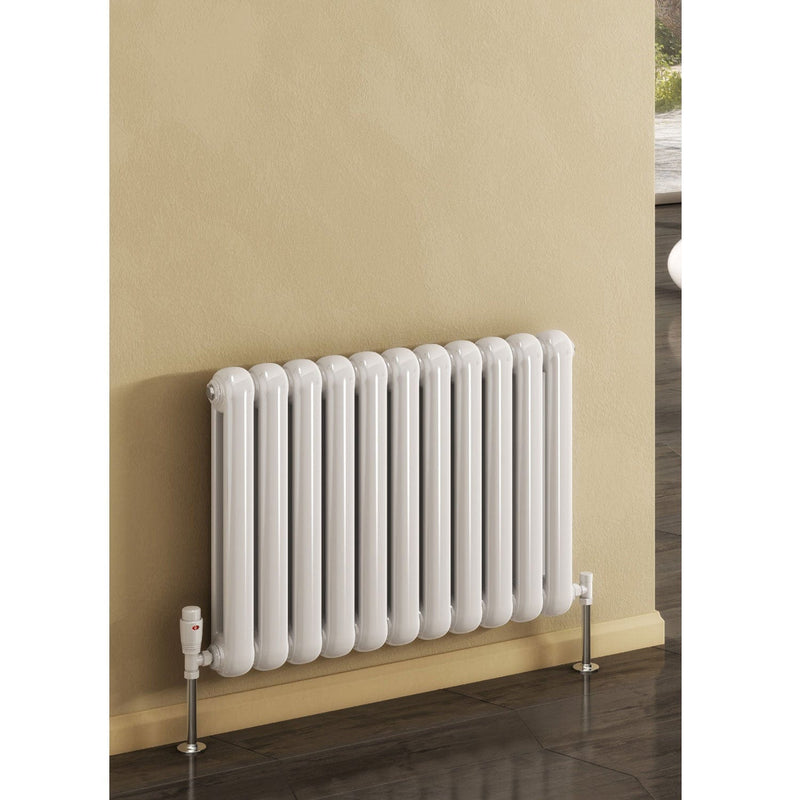

In the Room
The Coneva shown in three settings.
Choose Your Finish
White or Anthracite - same steel column body, same heat output.

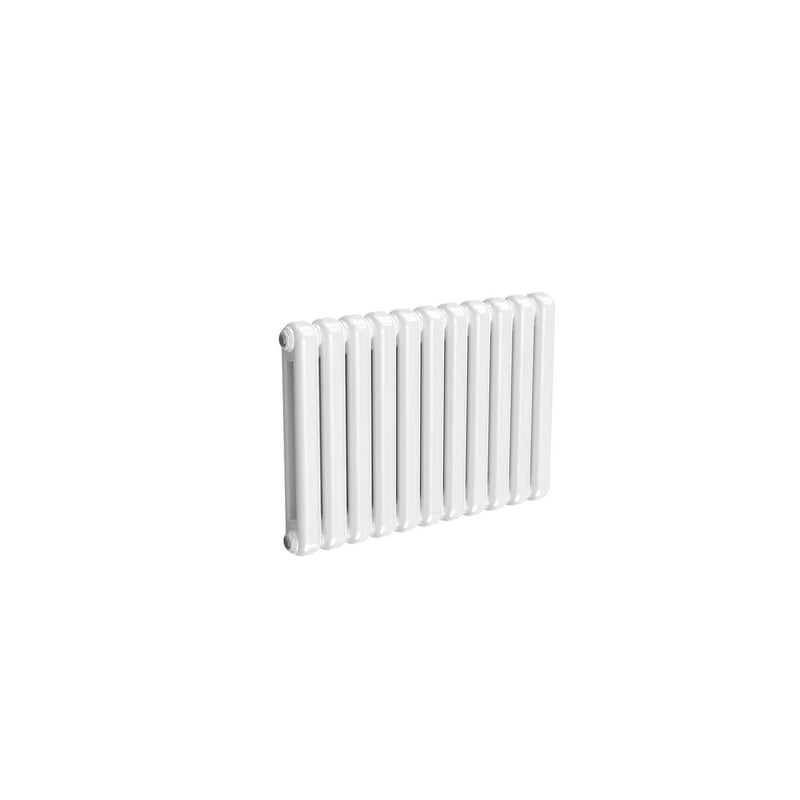

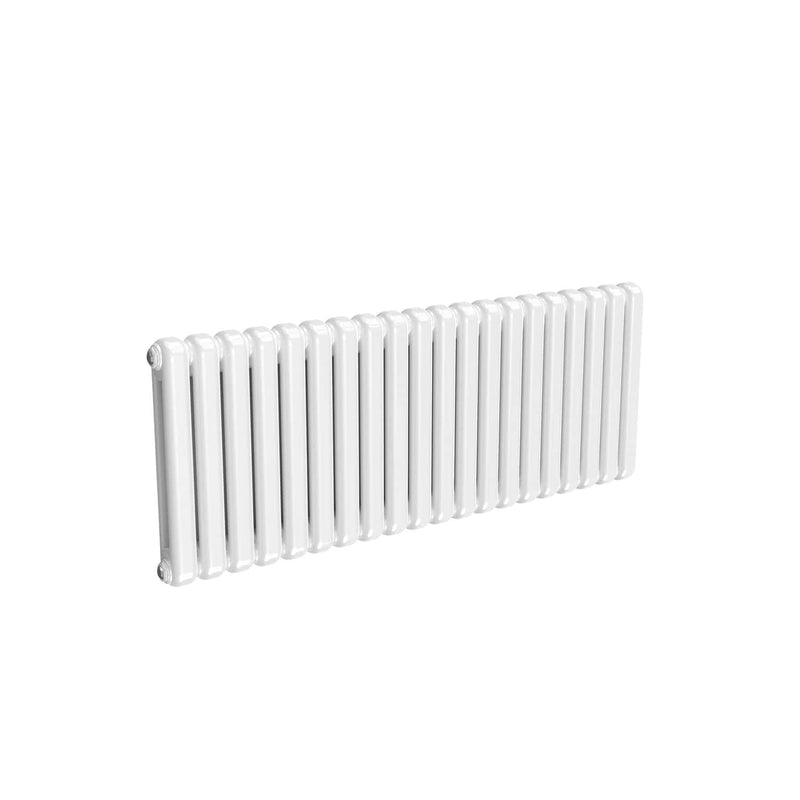

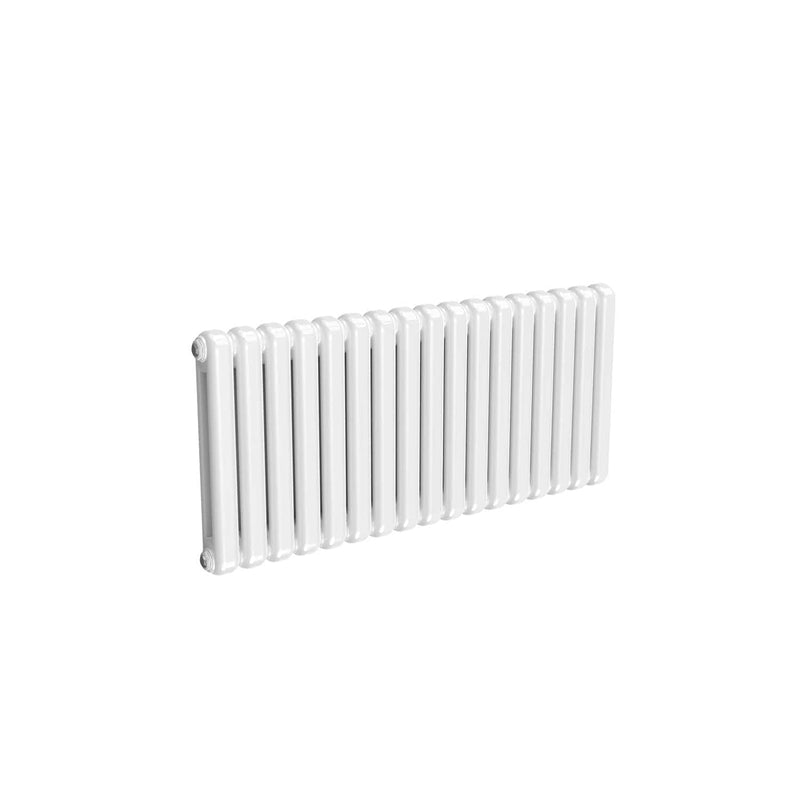

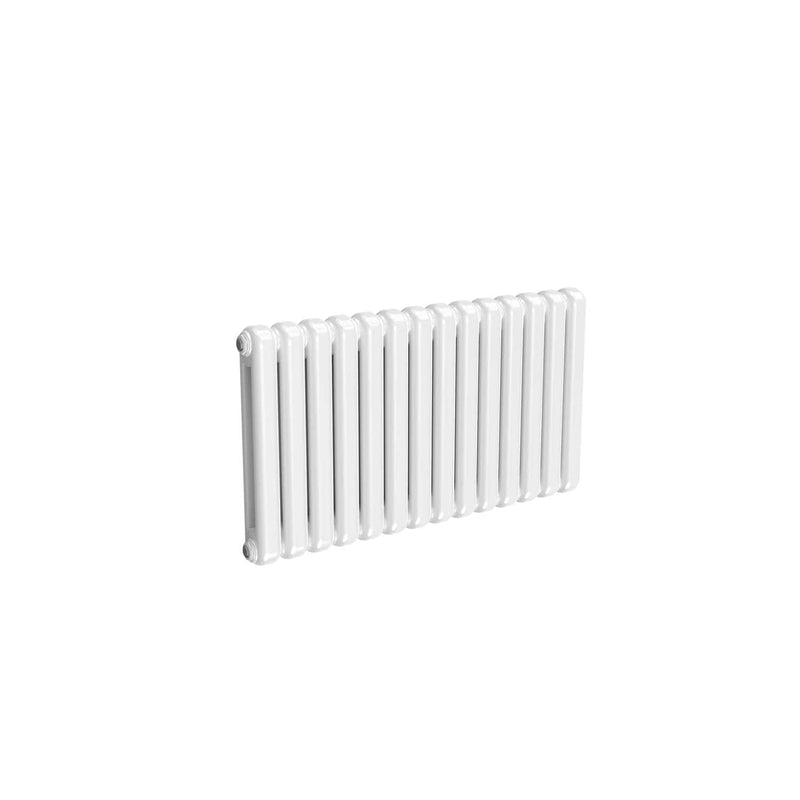

WhiteAll sizes

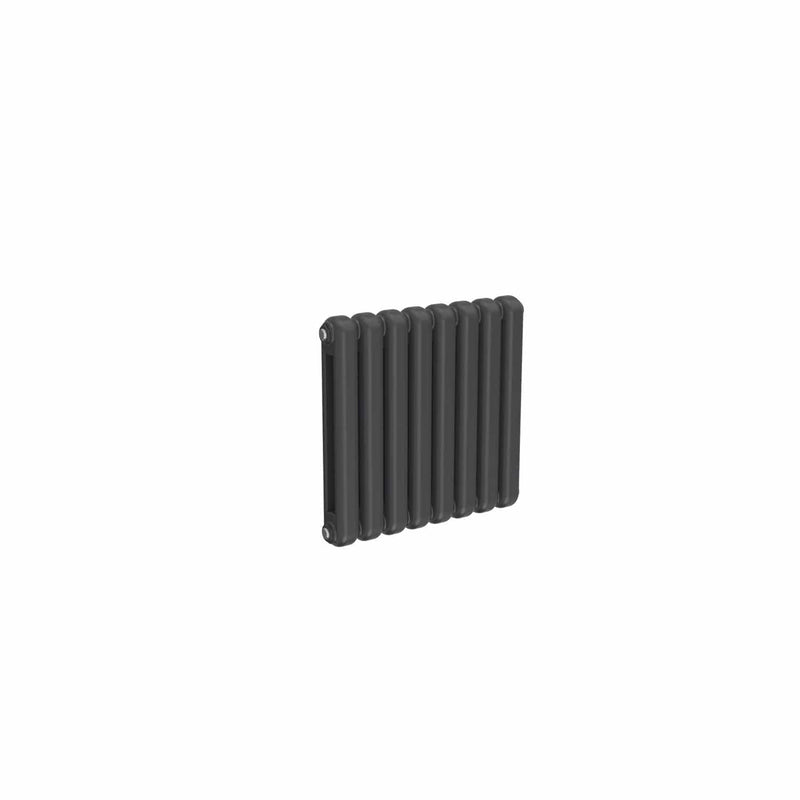

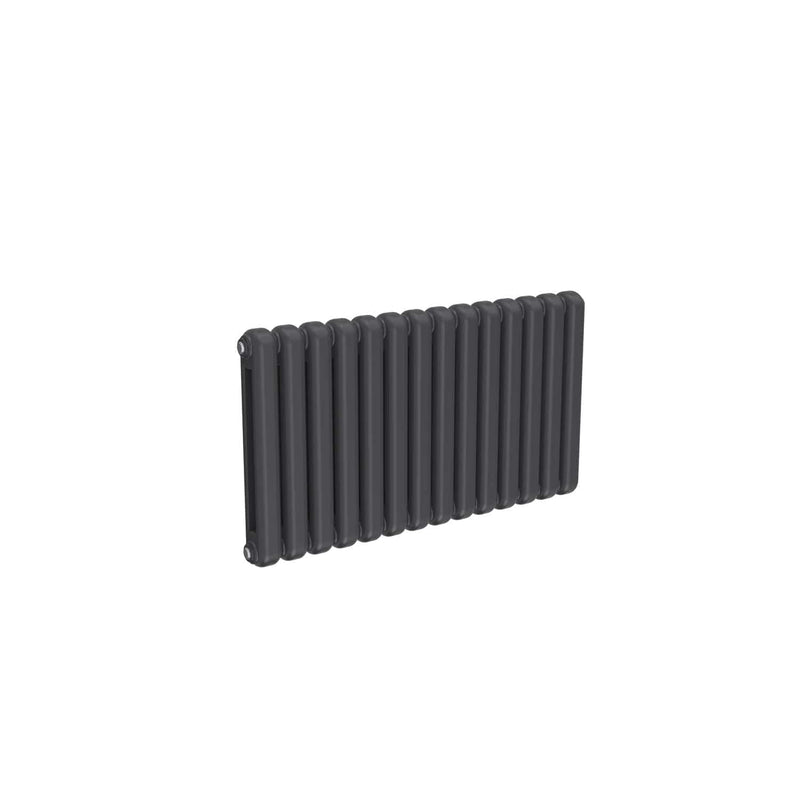

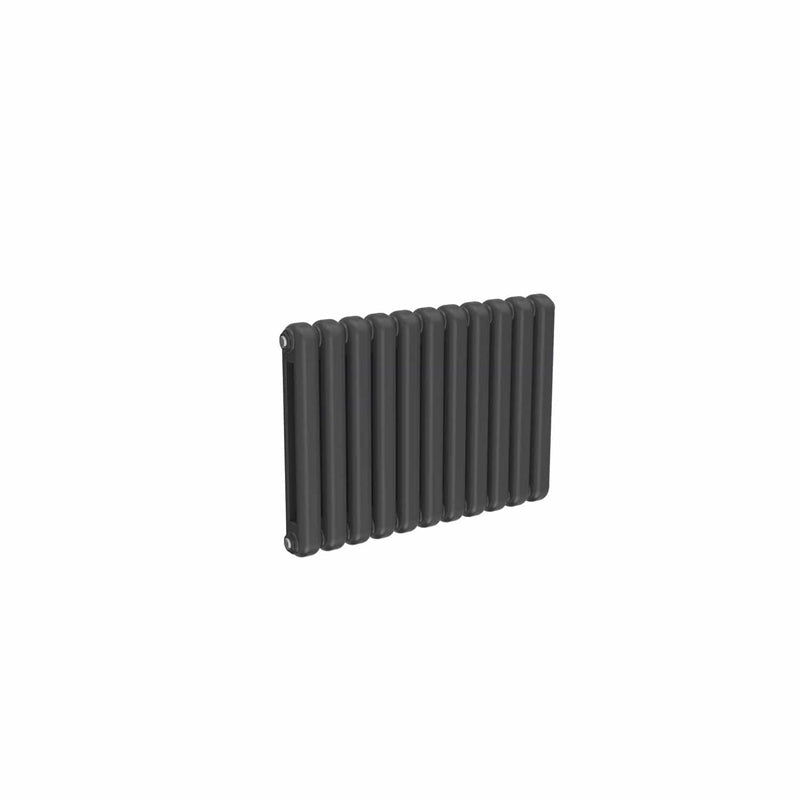

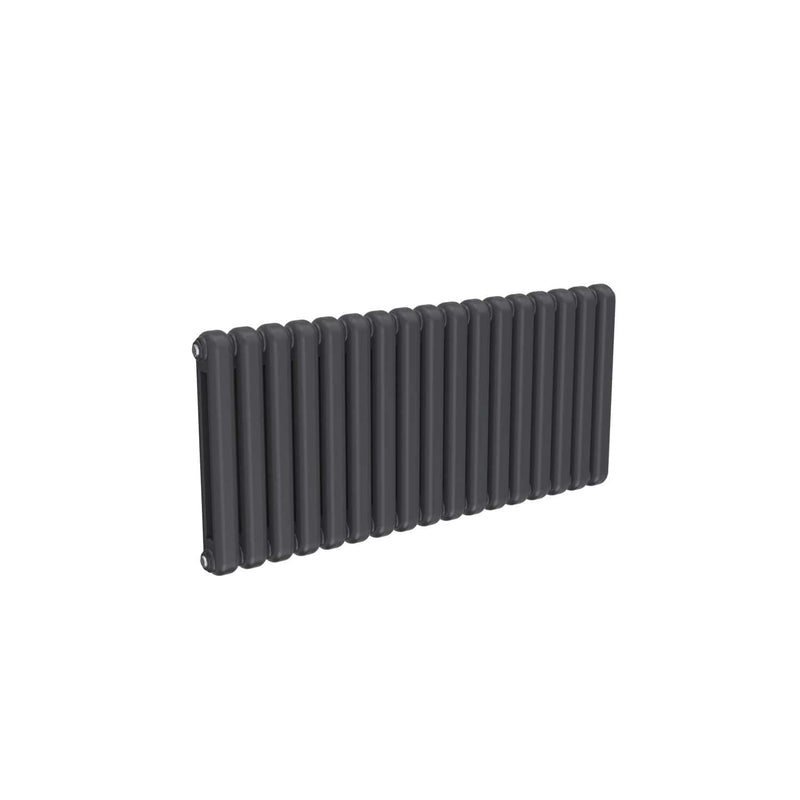

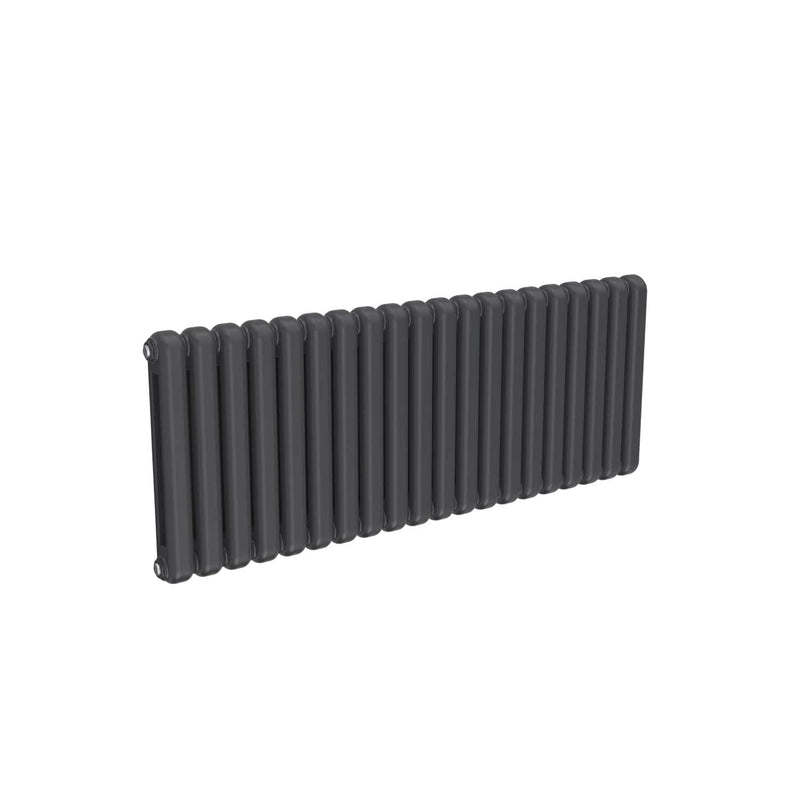

AnthraciteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). All at 550mm height.
| Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 440mm | 6 bar | 2,650 | 2,070 | 1,072 | 607 | 314 |
| 580mm | 8 bar | 3,534 | 2,761 | 1,429 | 810 | 419 |
| 790mm | 11 bar | 4,859 | 3,796 | 1,965 | 1,113 | 576 |
| 1000mm | 14 bar | 6,186 | 4,833 | 2,502 | 1,417 | 734 |
| 1210mm | 17 bar | 7,511 | 5,868 | 3,038 | 1,721 | 891 |
| 1420mm | 20 bar | 8,837 | 6,904 | 3,574 | 2,025 | 1,048 |
Heat pump owners: use the ΔT30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Coneva Horizontal |
| Height | 550mm (all sizes) |
| Width options | 440 / 580 / 790 / 1000 / 1210 / 1420mm |
| Projection from wall | 113mm |
| Pipe centres | Equal to radiator width (440–1420mm) |
| Wall to pipe centres | 68mm |
| Valve allowance | Add 90mm to width for pipe centres including valves |
| Connection | 1/2" BSP female thread |
| Material | Mild steel |
| Bars | 6 / 8 / 11 / 14 / 17 / 20 (by width) |
| Finishes | White / Anthracite |
| Fuel type | Central heating / electric / dual fuel |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 6 bar (600 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
440–1420mm
6 width options
Height550mm
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Coneva compatible with a heat pump?
A. It is rated at Delta T30, so it will work on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Steel warms up more slowly than aluminium, so if your system runs at low flow temperatures year-round an aluminium model will respond faster.
Q.
What valves do I need for the Coneva?
A. The Coneva has standard 1/2 inch BSP female connections. We recommend thermostatic radiator valves (TRVs) for individual room control. Allow for your chosen valve set when measuring pipe centres - add 90mm to the width for pipe centres including valves.
Q.
What are the pipe centres on the Coneva?
A. Pipe centres equal the radiator width - 440, 580, 790, 1000, 1210 and 1420mm. Wall to pipe centres is 68mm, and the radiator projects 113mm from the wall.
Q.
Which size Coneva do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator shows whether the radiator will meet your heat loss. As a guide, allow around 100 BTU per cubic metre for a modern well-insulated UK room.
Q.
What finishes is the Coneva available in?
A. White and Anthracite, across all six widths (440mm to 1420mm), and both finishes carry the same steel construction and heat output.
Q.
Can the Coneva be used as an electric or dual fuel radiator?
A. Yes. Reina list the horizontal Coneva for central heating, electric and dual fuel use. Choose the central heating size below, then add the matching Reina electric element or dual fuel kit - contact our team and we will confirm the correct element for your size.
Q.
Why choose a mild steel column radiator?
A. Steel is robust, takes a hard-wearing finish and holds its heat after the boiler switches off, which smooths out temperature swings. A column profile gives a traditional look with a high heat output for the wall space it uses.
