Reina Nevah Horizontal Mild Steel Designer Radiator
£102.00
£122.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee

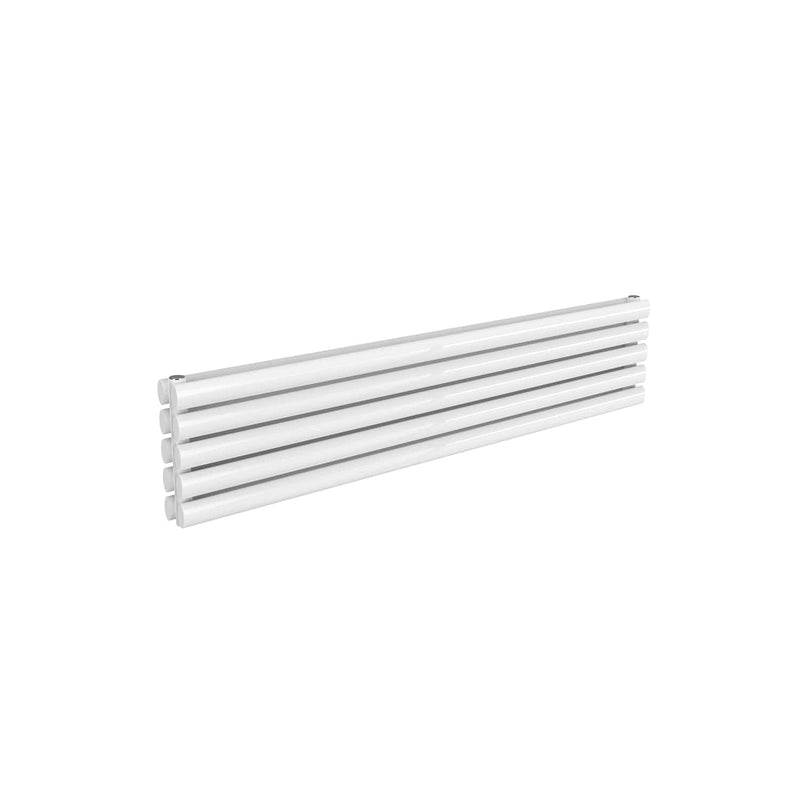

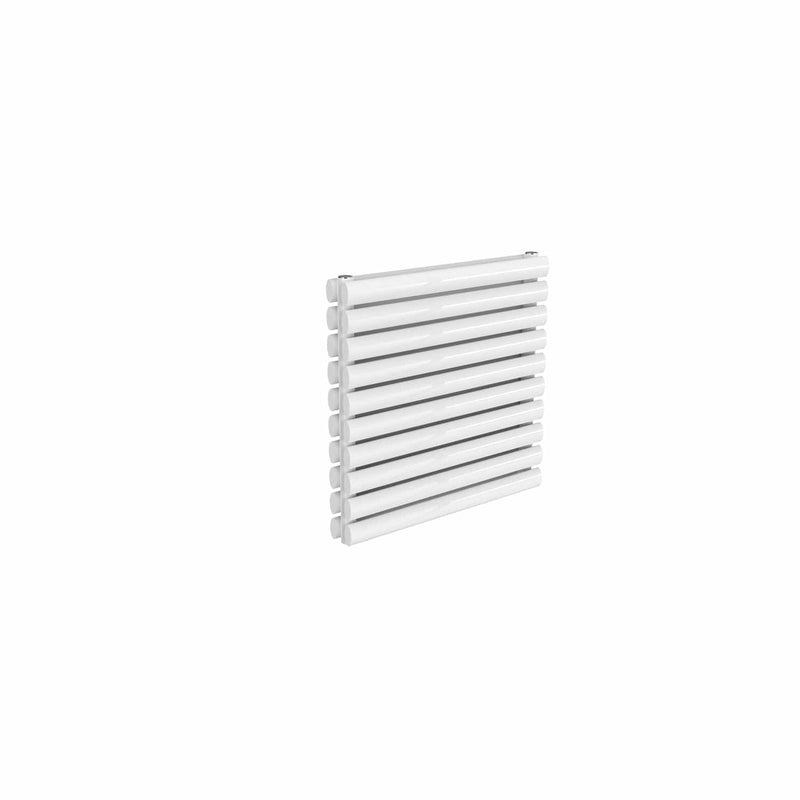

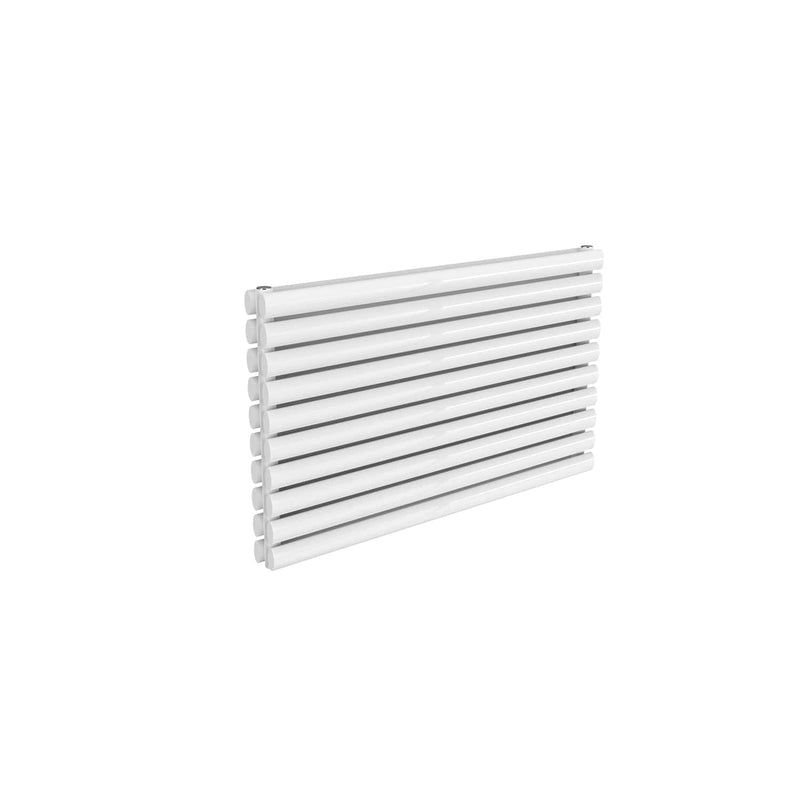

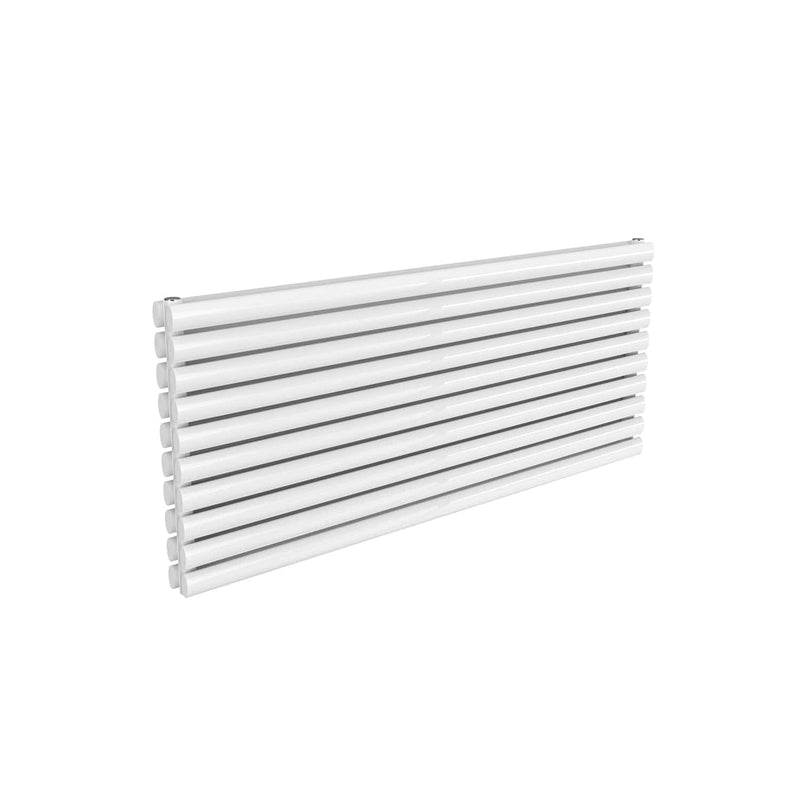

Central heating. Mild steel. Oval horizontal tubes. Single or double panel.
Product Overview & Key Specs
The Reina Nevah Horizontal is a mild steel designer radiator with elegant oval horizontal tubes, 295mm or 590mm high in widths from 600mm to 1400mm. Choose a single or double panel in White or Anthracite - eight sizes in each, with a 5-year manufacturer guarantee.
295 / 590mm
Two heights
600–1400mm
Widths
1–2
Panels
2
Finishes
5 yr
Guarantee
View the Nevah in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Nevah in your room using augmented reality.
Why Choose the Nevah?
Three practical reasons this mild steel designer radiator suits a modern central heating system.
Oval horizontal tubesClean lines ✔
Elegant oval tubes run the full width of the radiator, giving a smooth, contemporary look that suits living rooms, kitchens and hallways.
Single or double panelFlexible output ✔
Pick a single panel for a slimmer profile, or a double panel for a higher heat output from the same width and height.
Mild steel build5-year guarantee ✔
Made from robust mild steel with a factory finish, and backed by a 5-year manufacturer guarantee.

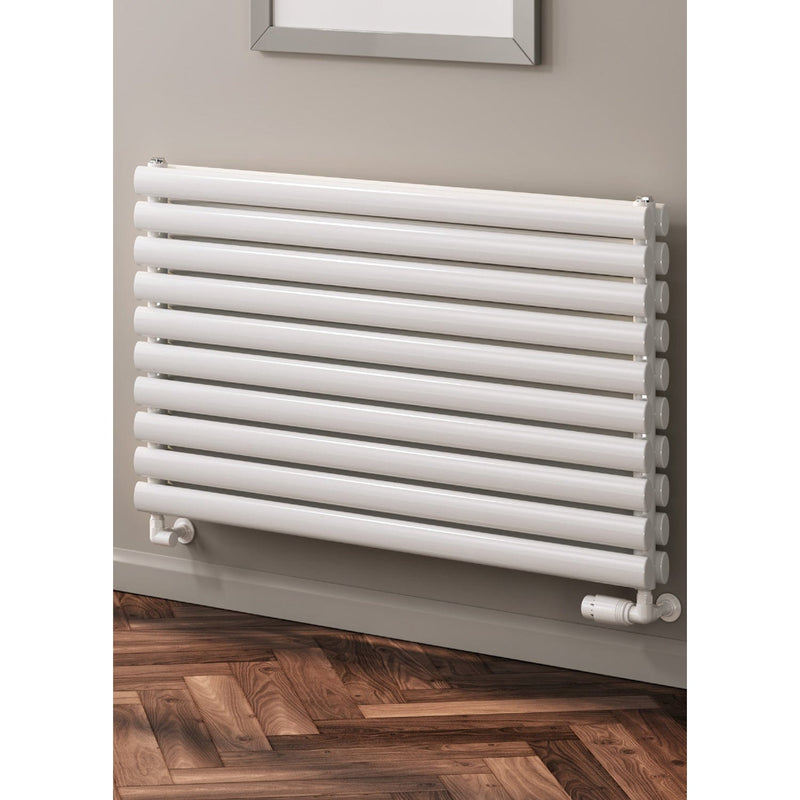

In the Room
The Nevah shown in a room setting, with two close-up views.
Choose Your Finish
White or Anthracite, as a single or double panel - the same mild steel body and the same heat output in both finishes.

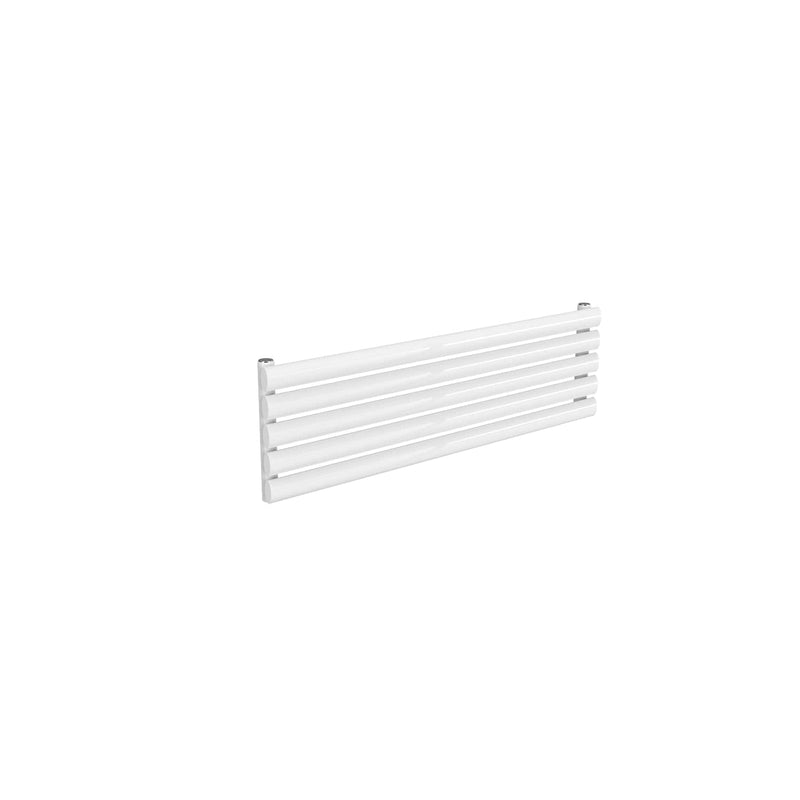

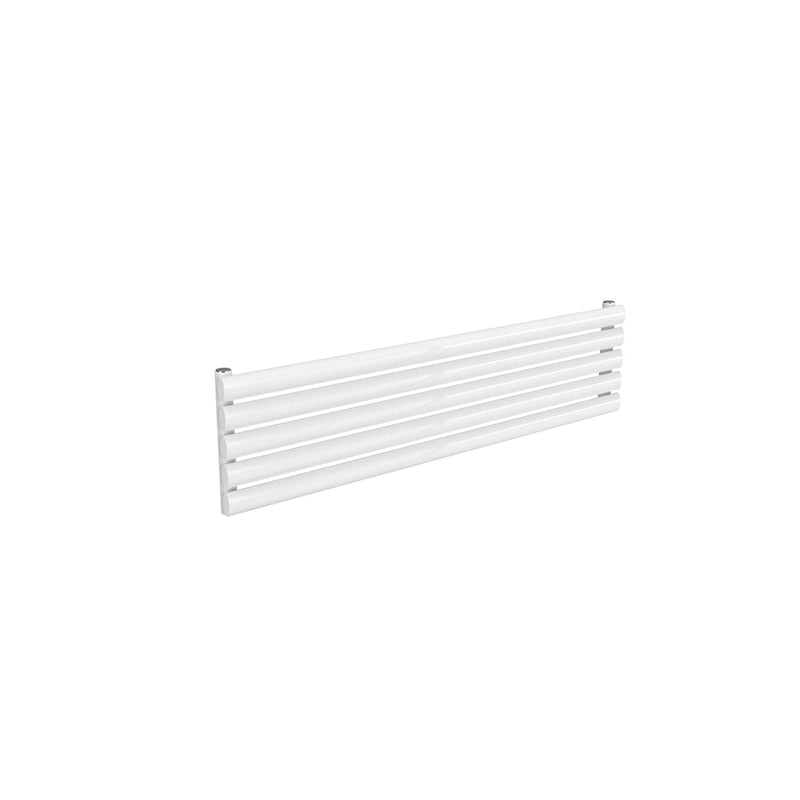

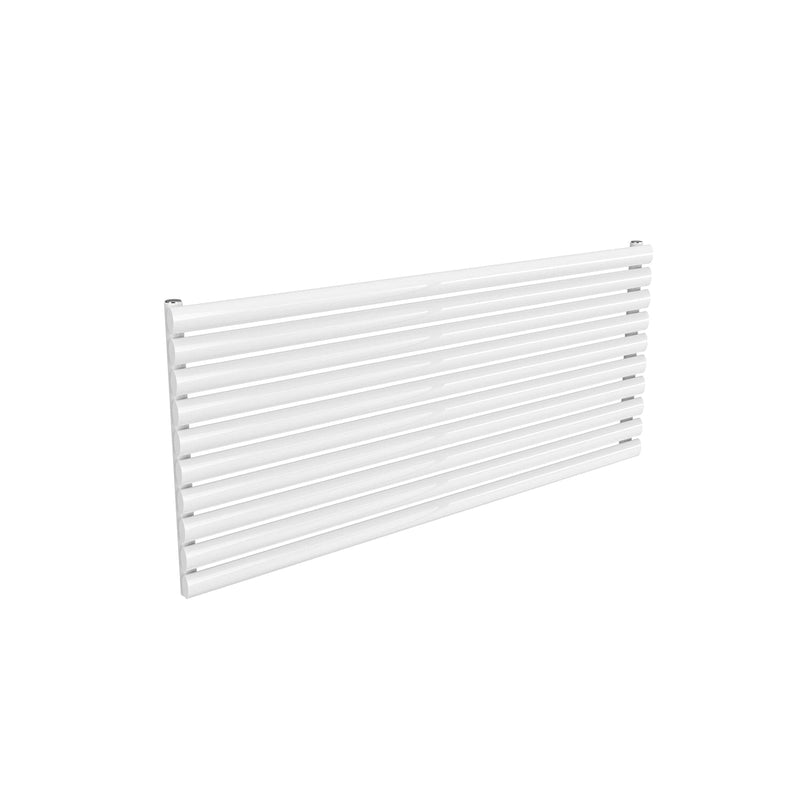

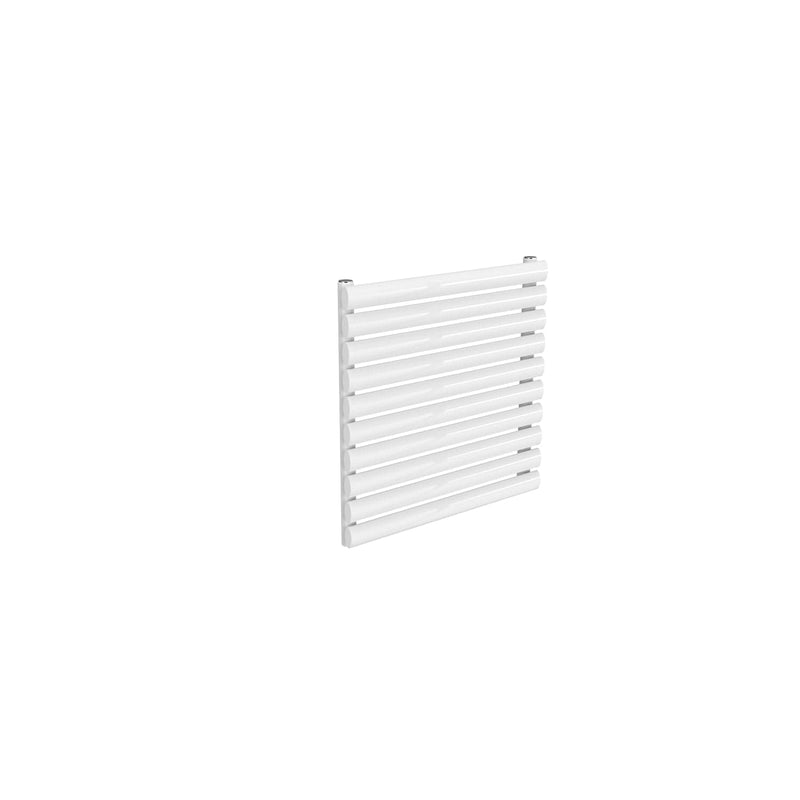

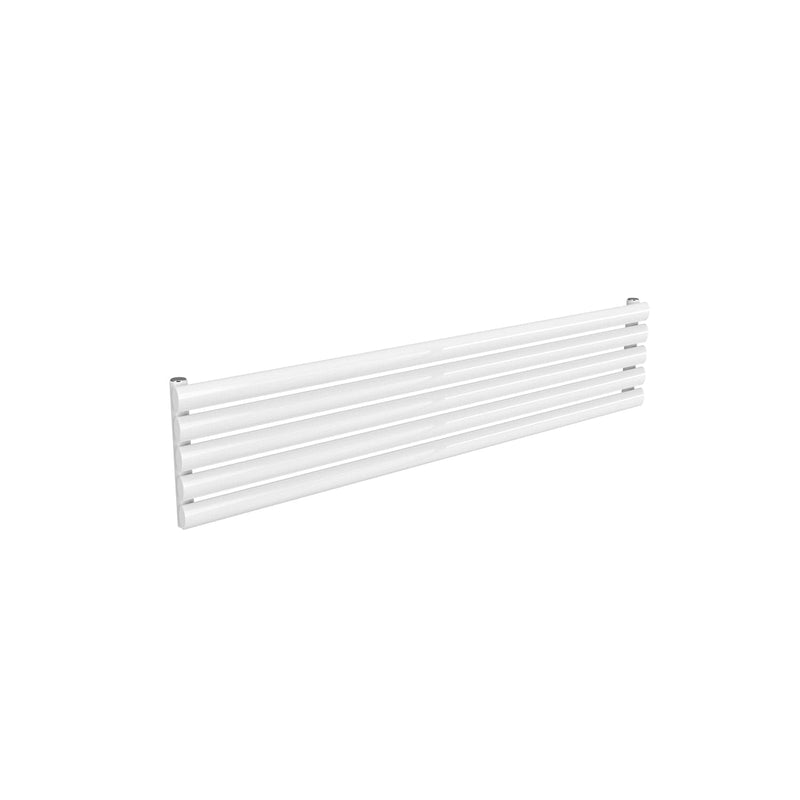

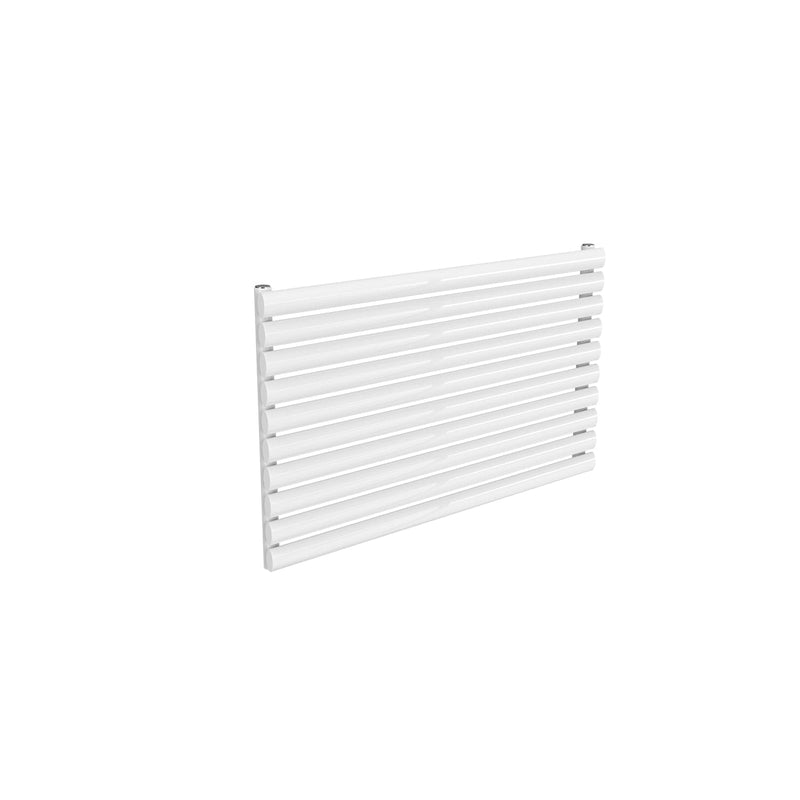

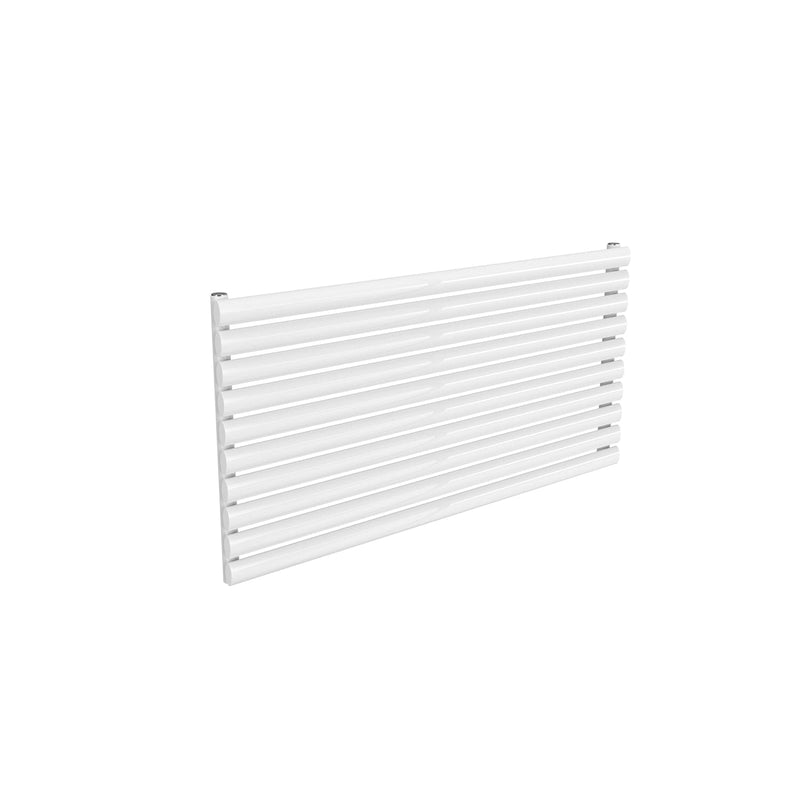

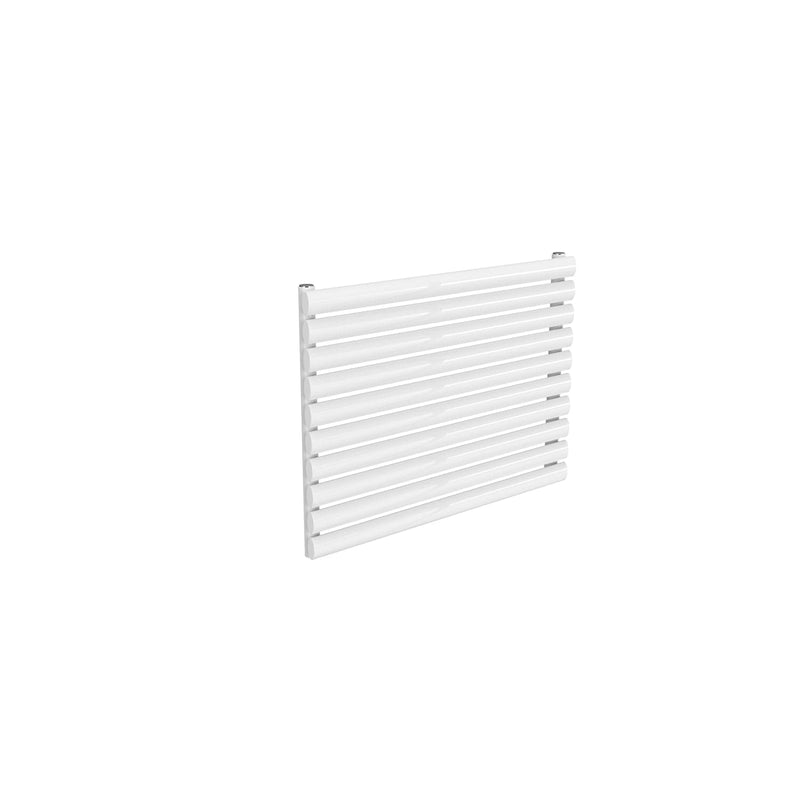

WhiteSingle panel

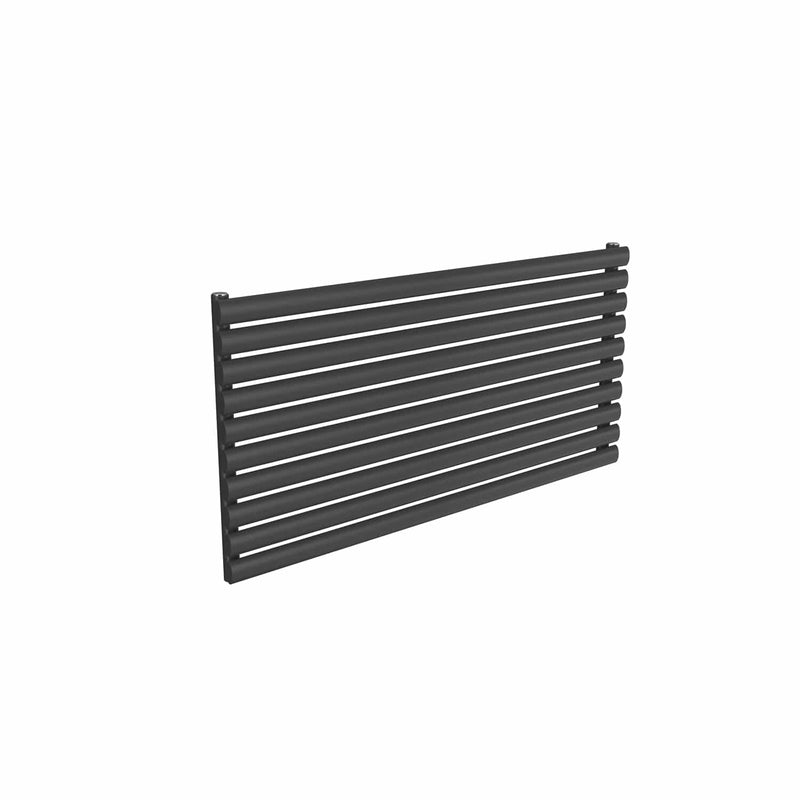

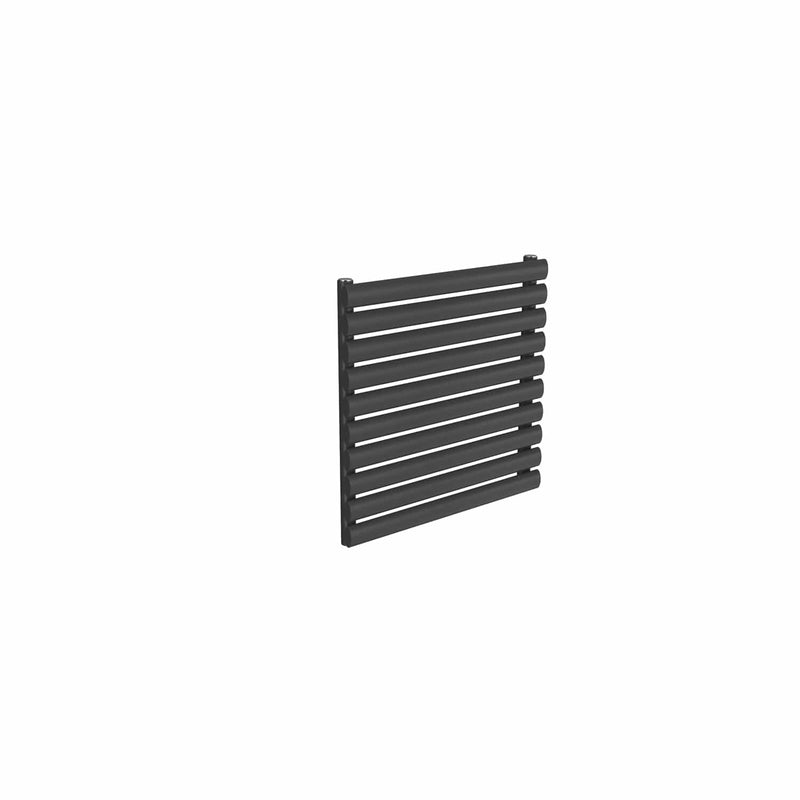

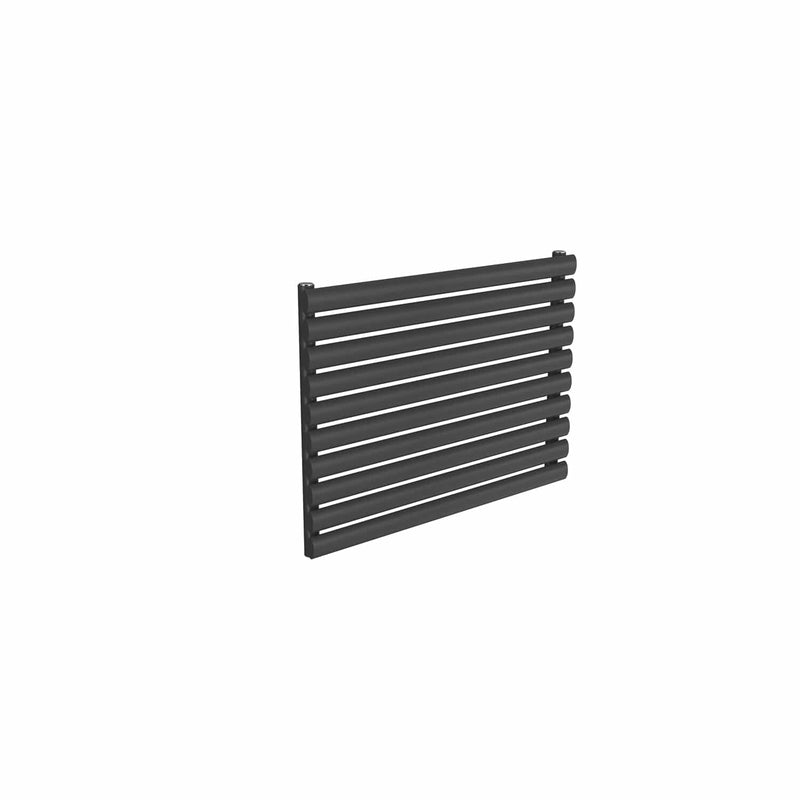

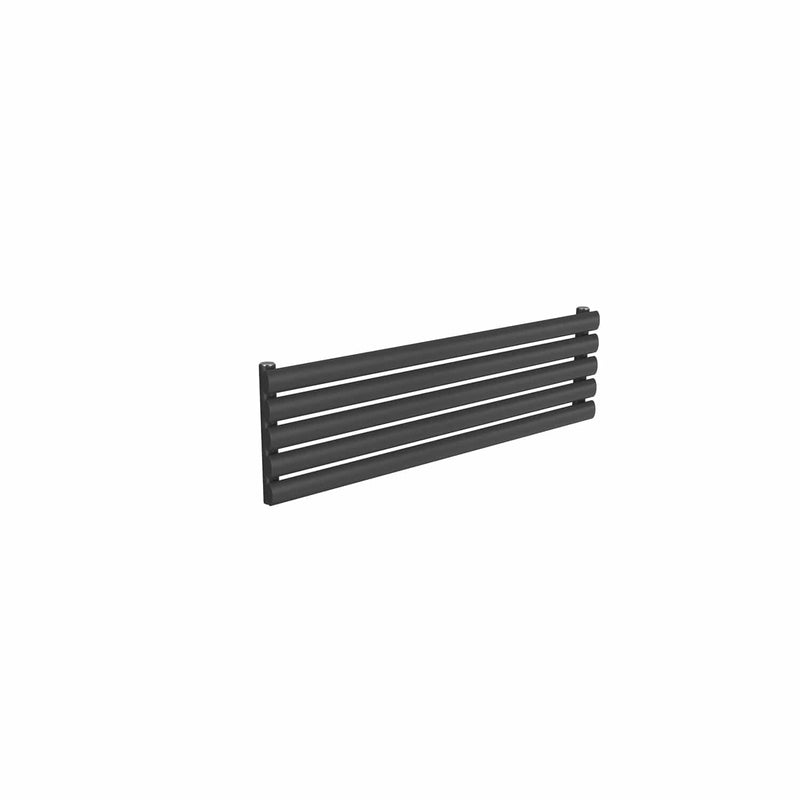

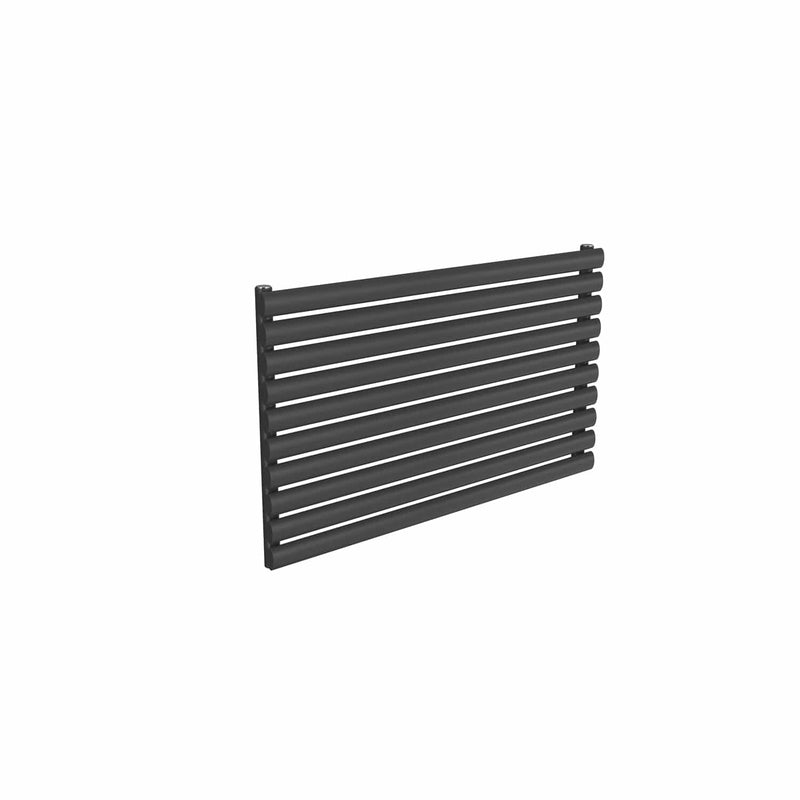

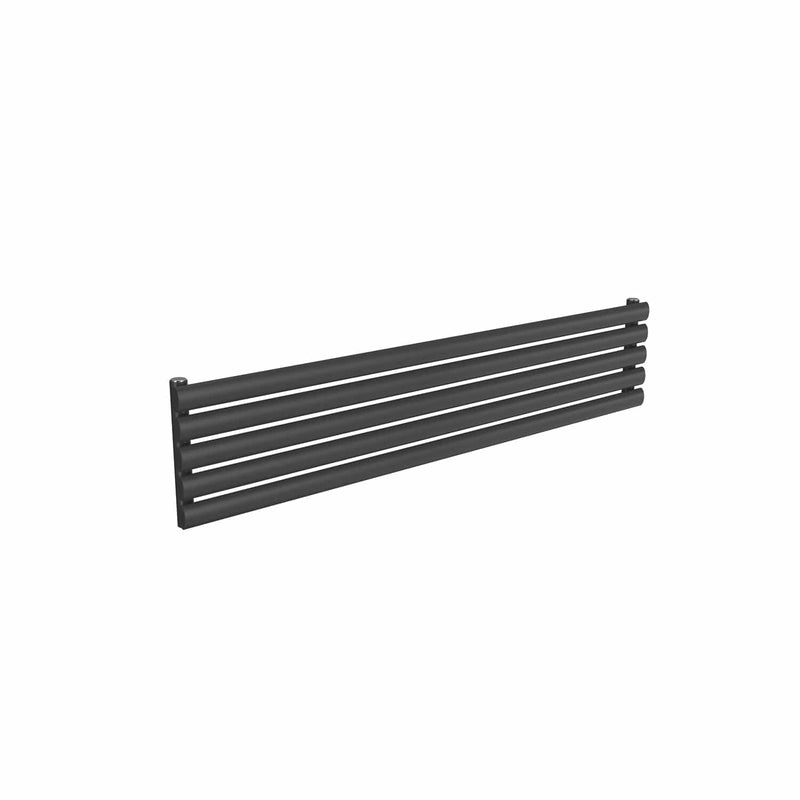

AnthraciteSingle panel

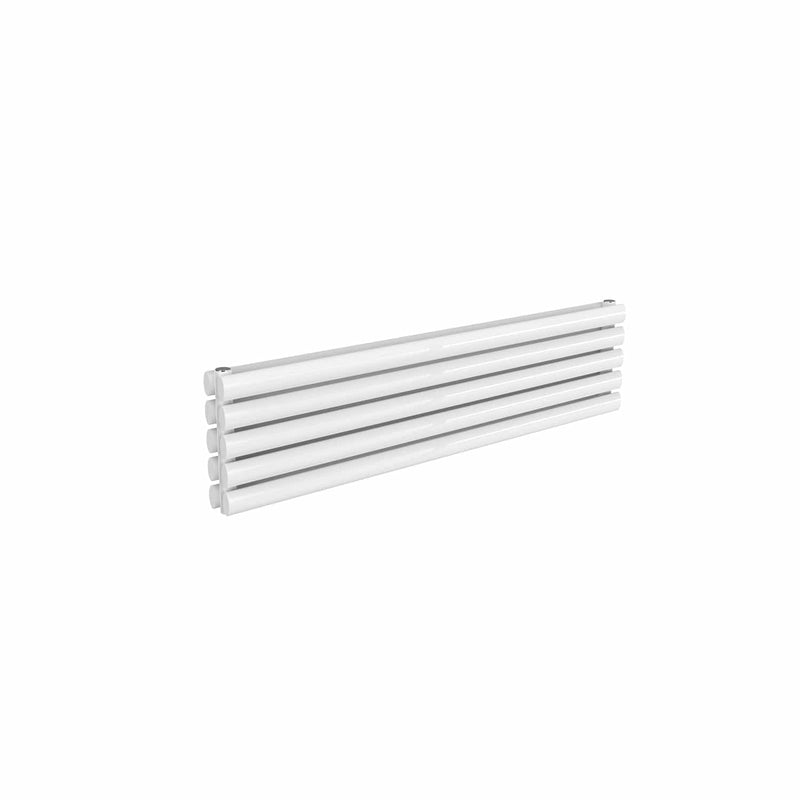

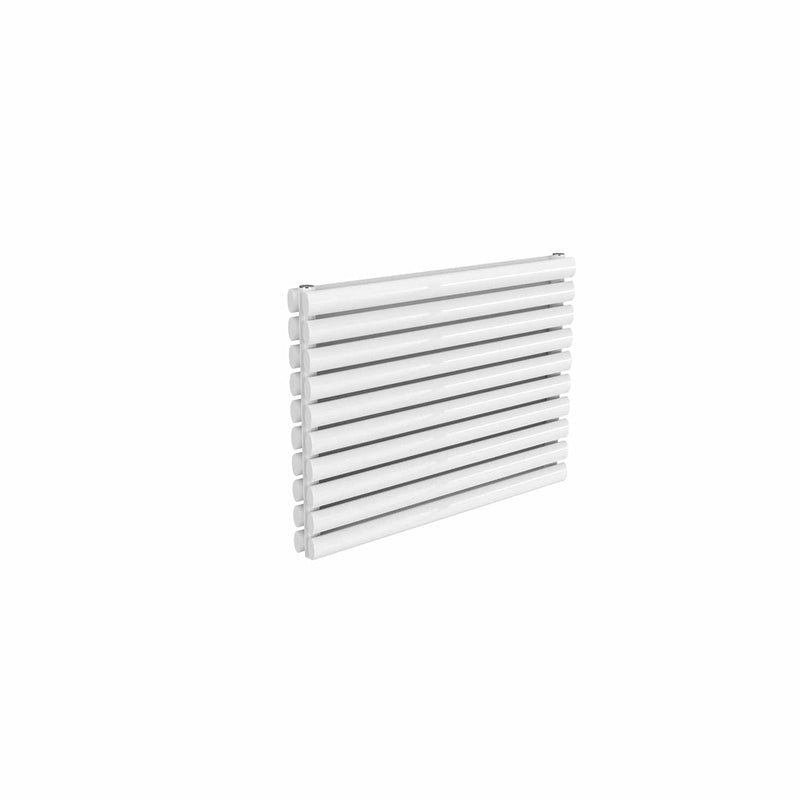

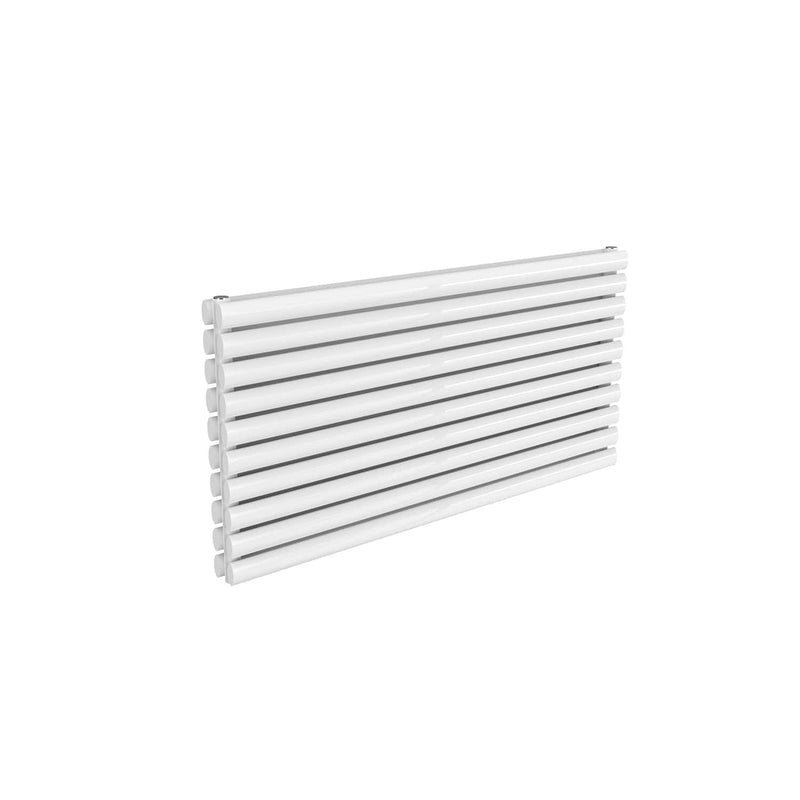

WhiteDouble panel

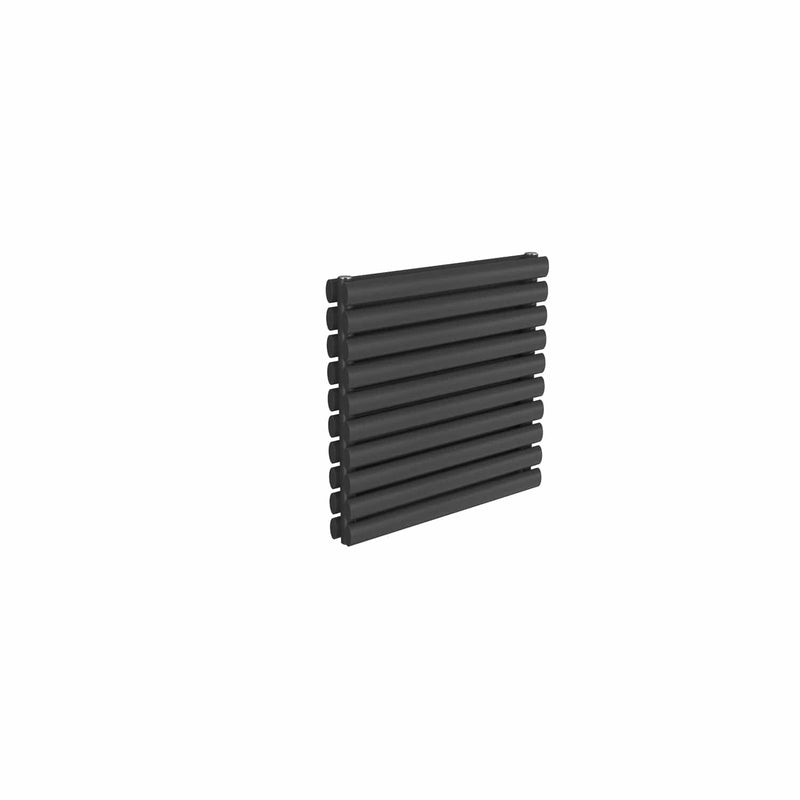

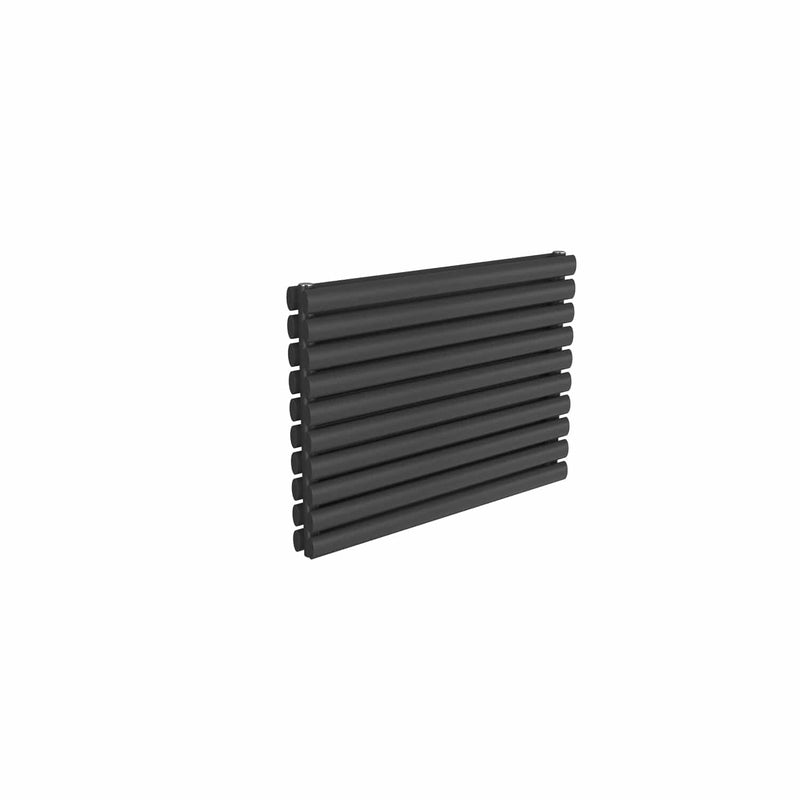

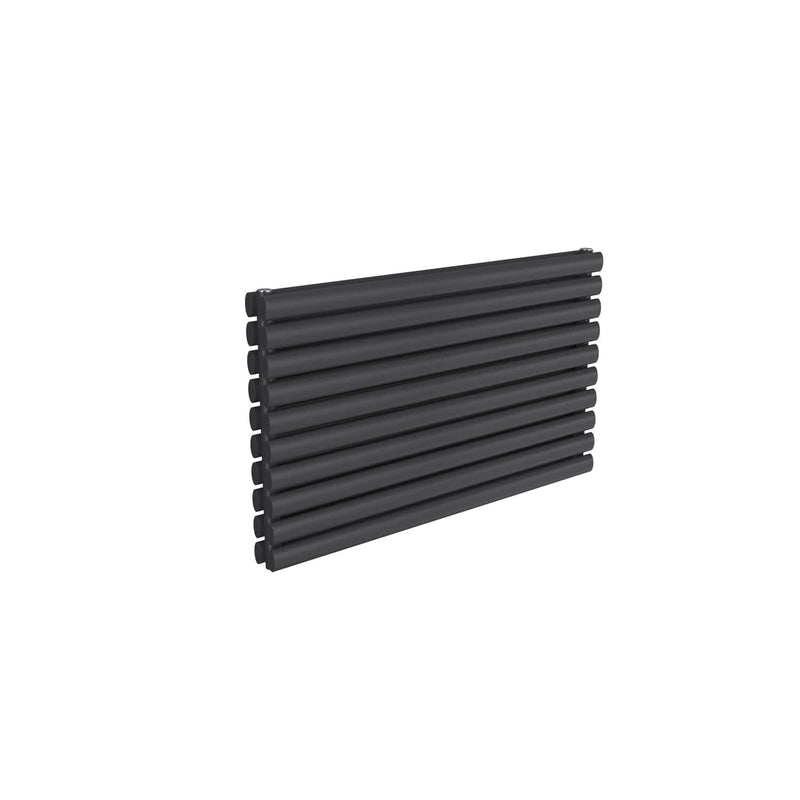

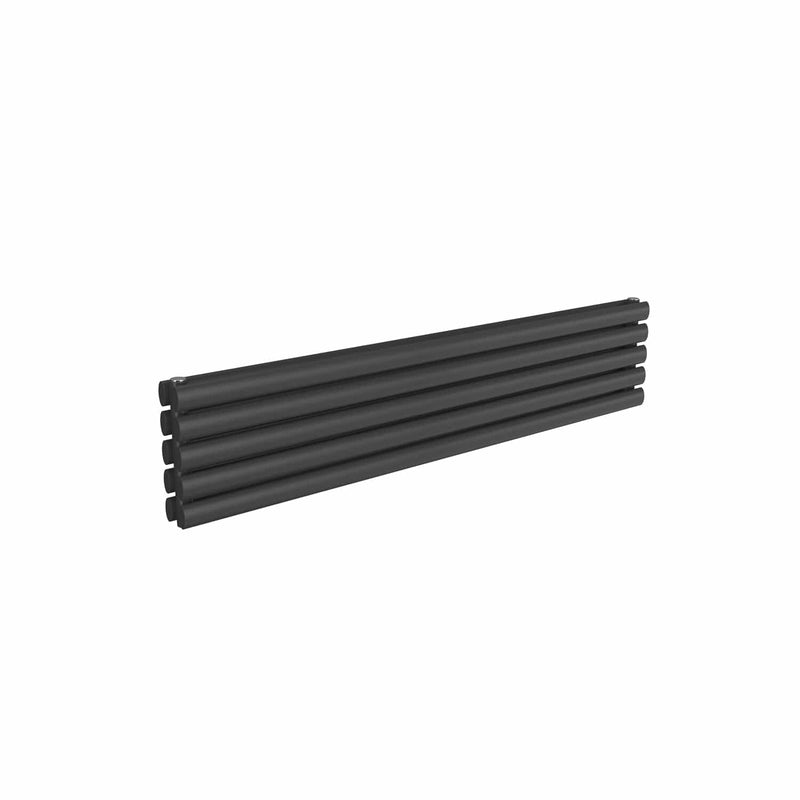

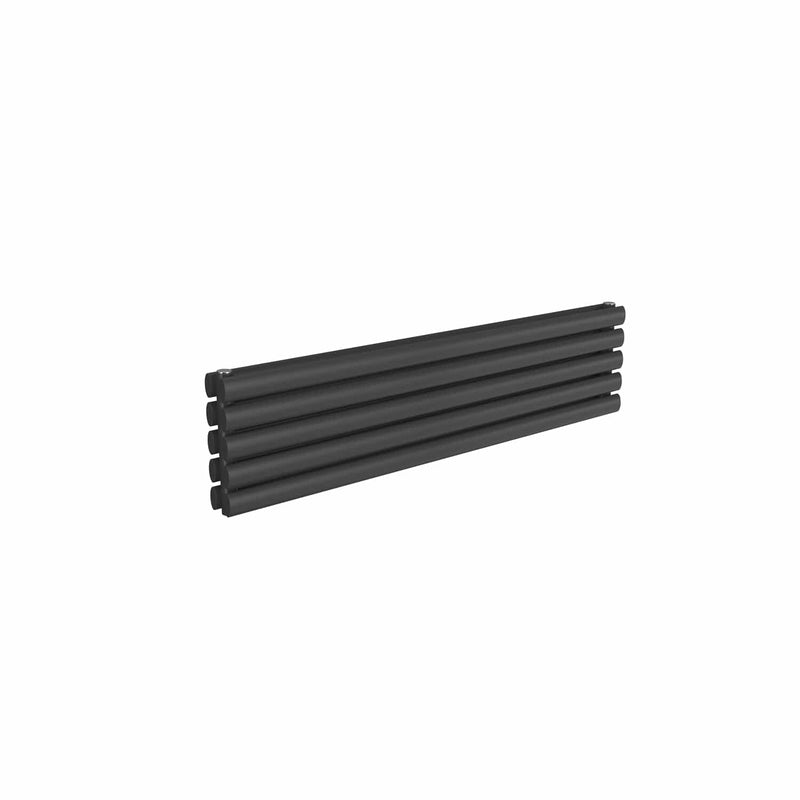

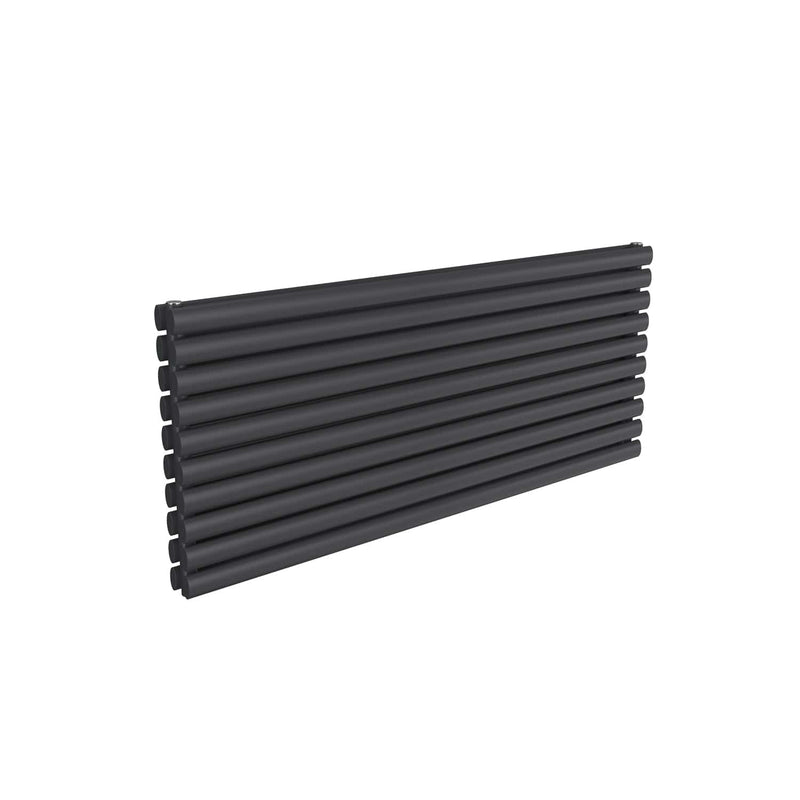

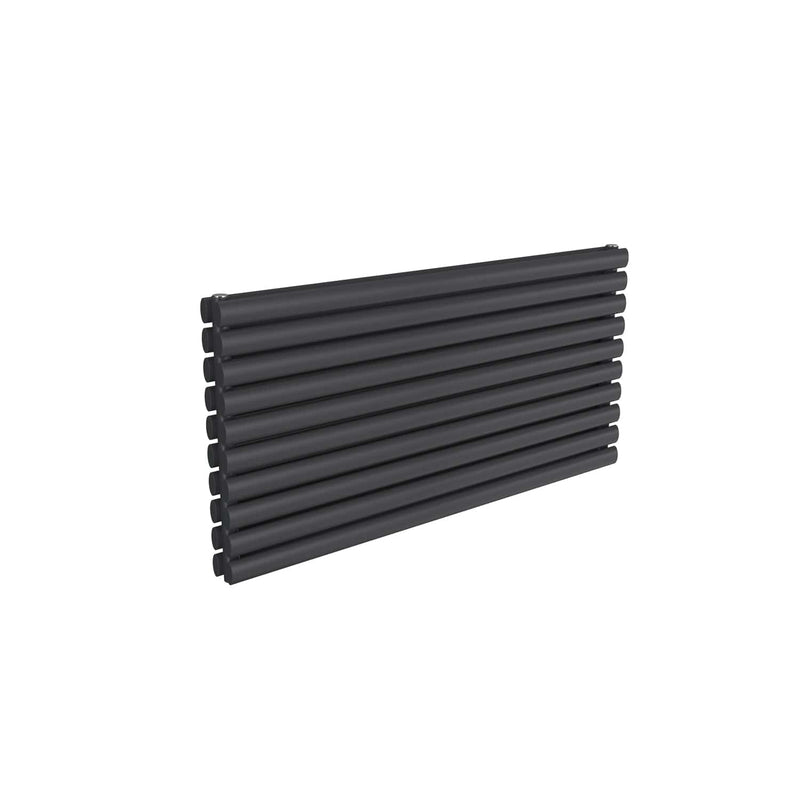

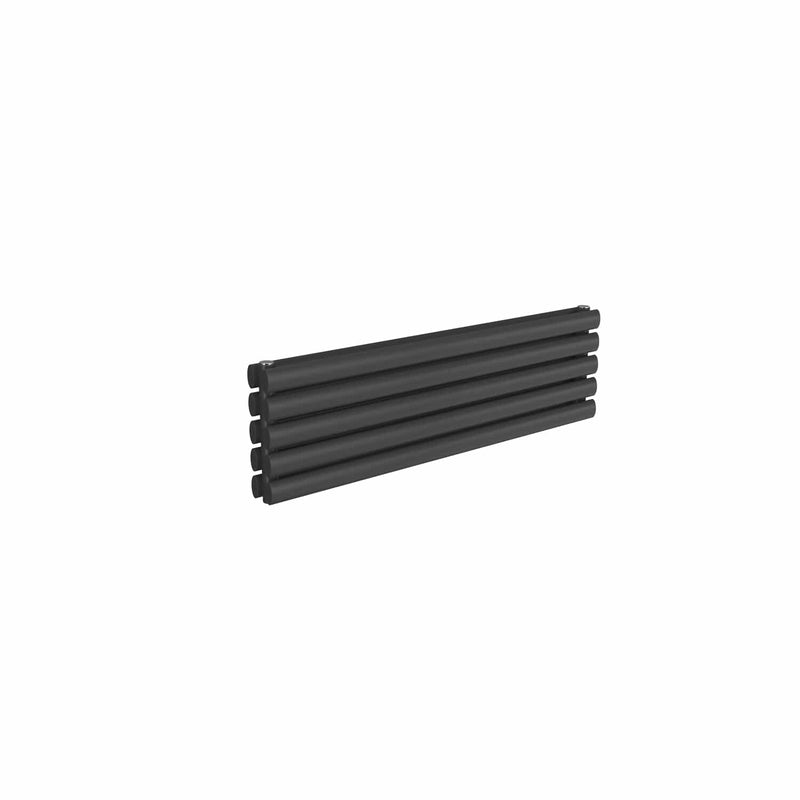

AnthraciteDouble panel
Heat Output by Size & System
ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). White and Anthracite have identical outputs.
| Height x width | Panel | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 295 x 1000mm | Single | 1,469 | 1,148 | 594 | 337 | 174 |
| 295 x 1200mm | Single | 1,730 | 1,352 | 700 | 396 | 205 |
| 295 x 1400mm | Single | 2,001 | 1,563 | 809 | 458 | 237 |
| 590 x 600mm | Single | 2,114 | 1,652 | 855 | 484 | 251 |
| 590 x 800mm | Single | 2,489 | 1,945 | 1,007 | 570 | 295 |
| 590 x 1000mm | Single | 2,933 | 2,291 | 1,186 | 672 | 348 |
| 590 x 1200mm | Single | 3,456 | 2,700 | 1,398 | 792 | 410 |
| 590 x 1400mm | Single | 4,033 | 3,151 | 1,631 | 924 | 478 |
| 295 x 1000mm | Double | 2,292 | 1,791 | 927 | 525 | 272 |
| 295 x 1200mm | Double | 2,698 | 2,108 | 1,091 | 618 | 320 |
| 295 x 1400mm | Double | 3,120 | 2,438 | 1,262 | 715 | 370 |
| 590 x 600mm | Double | 3,298 | 2,577 | 1,334 | 756 | 391 |
| 590 x 800mm | Double | 3,883 | 3,034 | 1,570 | 890 | 461 |
| 590 x 1000mm | Double | 4,576 | 3,575 | 1,851 | 1,048 | 543 |
| 590 x 1200mm | Double | 5,391 | 4,212 | 2,180 | 1,235 | 639 |
| 590 x 1400mm | Double | 6,290 | 4,914 | 2,544 | 1,441 | 746 |
Heat pump owners: use the ΔT30 column. Mild steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Nevah Horizontal |
| Height | 295mm or 590mm |
| Width options | 295mm high: 1000 / 1200 / 1400mm 590mm high: 600 / 800 / 1000 / 1200 / 1400mm |
| Panels | Single or double |
| Tubes | Single 5 (295mm) / 10 (590mm) Double 10 (295mm) / 20 (590mm) |
| Pipe centres | Width minus 45mm (555mm to 1355mm) |
| Wall to pipe centres | Single 47mm / Double 63mm |
| Wall distance | Single 88mm / Double 103mm |
| Connection | 1/2" female pipe thread |
| Material | Mild steel |
| Finishes | White / Anthracite |
| Fuel type | Central heating (selected 590mm sizes also listed for electric / dual fuel) |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 6 bar |
| Max water temperature | 95°C |
| Heat pump | ΔT30 outputs published - see table |
| Guarantee | 5 years (Reina manufacturer) |
600–1400mm
Width range
Heights295 / 590mm
Finishes2
✓
ΔT30 outputs published
Heat pump sizing
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system. The calculator checks all sixteen single and double panel sizes.
Frequently Asked Questions
Q.
Is the Reina Nevah Horizontal compatible with a heat pump?
A. Reina publish Delta T30 outputs for every Nevah size, so it can be sized for a low-temperature system - use the Delta T30 column in our heat output table. Mild steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Q.
Single or double panel - which should I choose?
A. A double panel gives a higher heat output for the same width and height: for example the 590 x 1000mm gives 2,291 BTU as a single and 3,575 BTU as a double at Delta T50. A single panel sits closer to the wall (88mm wall distance against 103mm for the double).
Q.
What valves do I need for the Nevah?
A. Valves are not supplied. The Nevah has 1/2 inch female pipe thread connections, and we recommend thermostatic radiator valves (TRVs) for individual room control.
Q.
What are the pipe centres on the Nevah?
A. Pipe centres are 45mm less than the overall width: 555mm for the 600mm width, 755mm for 800mm, 955mm for 1000mm, 1155mm for 1200mm and 1355mm for 1400mm. Wall to pipe centres is 47mm on the single panel and 63mm on the double, and the wall distance is 88mm single and 103mm double.
Q.
Which size Nevah do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator shows whether the radiator will meet your heat loss. As a guide, allow around 100 BTU per cubic metre for a modern well-insulated UK room.
Q.
What sizes and finishes does the Nevah come in?
A. Two heights, 295mm and 590mm. The 295mm height comes in 1000, 1200 and 1400mm widths and the 590mm height in 600, 800, 1000, 1200 and 1400mm widths, each as a single or double panel in White or Anthracite. Both finishes have the same heat output.
Q.
Can the Nevah be used as an electric or dual fuel radiator?
A. Reina list some sizes for central heating, electric and dual fuel use: the single panel in every 590mm-high width, and the double panel in the 590mm-high 600, 800 and 1000mm widths. The 295mm-high sizes and the 1200 and 1400mm double panels are for central heating use. If you want an electric or dual fuel set-up, contact our team and we will confirm the correct electric element kit for your size.
Q.
What is the guarantee and maximum working pressure?
A. The Nevah carries a 5-year manufacturer guarantee. The installation guide gives a maximum operational pressure of 6 bar, and we recommend a maximum water temperature of 95 degrees C.
