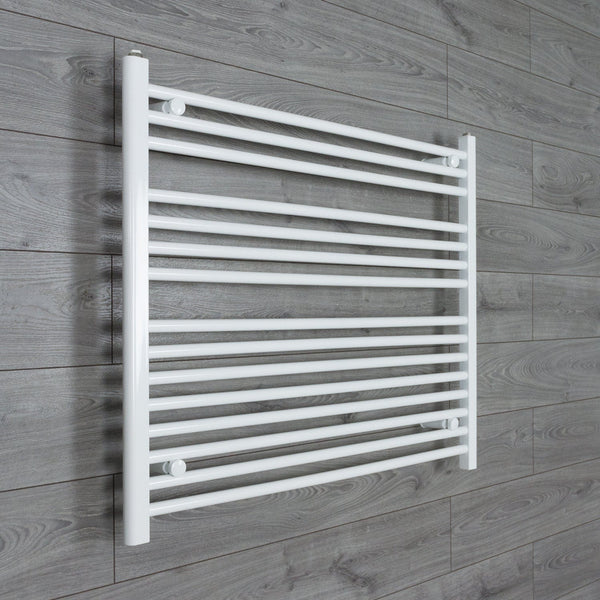

1200mm Wide White Towel Rails

At 1200mm wide — the widest white towel rail in our entire range — this is an architectural element as much as a heating appliance. The 1150mm pipe centre means supply pipes emerge nearly 1.2 metres apart, requiring deliberate planning during the wet trade stage of a bathroom renovation; this is not a retrofit option. Only two heights are available (600mm and 800mm) for the same structural reasons that constrain the 1000mm range, but within that constraint the 1200mm delivers maximum visual impact — a near wall-spanning horizontal band of white that defines a luxury wet room or grand master suite. The 800mm model at 1,668 BTU can heat a 12m² bathroom as the sole radiator.

Pipe Centre Note: When installing a 1200mm wide white towel rail on central heating, your pipework should be set at 1150mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.

Technical Specifications & Multi-ΔT Heat Output Table

All outputs are tested in accordance with BS EN 442 standards.

Why Choose a 1200mm Width Towel Rail?

The 1200mm is the statement-making final step in our white towel rail range — chosen by architects, interior designers, and bathroom specialists when the brief is “make the radiator a feature.” At this width, the rail visually fills a standard 1200mm tile module, creating a perfectly proportioned element in bathrooms built around 300mm, 400mm, or 600mm tile grids.

• Ideal Room Suitability: Luxury walk-in wet rooms, grand master suites (12–20m²), hotel-standard bathroom renovations, and any space where a near-metre-wide white horizontal band is the intended centrepiece of the heating design.
• Towel Drying Capacity & Ergonomics: Five standard bath towels or four bath sheets can hang simultaneously across the 1200mm rungs with comfortable spacing between each. Even at 600mm height, the breadth of the rail makes it the dominant element of any wall it occupies.
• Installation & Wall Space Considerations: Allow 1300mm of clear wall space minimum. A 1200mm steel towel rail filled with water can weigh 25–35kg — specialist wall fixings are essential. On timber stud partitions, a full-width structural noggin spanning the 1200mm is required. On solid masonry, use M10 bolts into resin-bonded anchors. The 1150mm pipe centre must be specified at architect/first-fix stage — it cannot be modified after tiling without significant disruption.

Explore Alternative Sizes & Finishes

• Adjacent Width: Compare with our 1000mm Wide White Towel Rails.
• Alternative Finishes in 1200mm: 1200mm Chrome.

Key Installation & Accessory Compatibility

• Pipe Centre Alignment: Fixed at 1150mm across all heights in this width range.
• Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.
• Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.

Delta T (ΔT) Thermal Output Calculations

• ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
• ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
• ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
• BTU Calculator: Calculate your exact room heat requirement.

Frequently Asked Questions

Q: What is the pipe centre measurement for a 1200mm white towel rail?
A: The standard pipe centre for a 1200mm wide white towel rail is 1150mm, leaving 25mm clearance on each side for valve connections.

Q: Does a 1200mm wide white towel rail require a structural wall to mount safely?
A: Not necessarily structural, but it requires careful preparation. A filled 1200mm steel towel rail can weigh 25–35kg. On a timber stud partition, install a purpose-made noggin spanning the full width and fix into it with M8 coach screws. On solid masonry or concrete walls, standard M8 bolts into resin anchors are adequate. Always confirm the fixing method with your installer before ordering.

Q: Can a 1200mm white towel rail replace a full-length panel radiator?
A: It depends on the panel radiator’s output. The 800×1200mm produces 1,668 BTU / 488W at ΔT50 — comparable to a 1200×400mm single-panel Type 11 convector radiator. If replacing a double-panel Type 22 unit, the towel rail output will be lower; supplementary underfloor heating or a dual-fuel electric element may be needed to maintain comfort during cold weather.
