Central heating. Mild steel. Flat panel.
Product Overview & Key Specs
The Reina Slimline Horizontal is a mild steel flat panel radiator with a single smooth face, designed to sit close to the wall for a contemporary look. Choose 400, 600, 800, 1000, 1200 or 1400mm wide, all 600mm high, in White or Anthracite. It connects to a standard central heating system.
400–1400mm
Six widths
600mm
Height
2
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Slimline Horizontal in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Slimline Horizontal in your room using augmented reality.
Why the Slimline Horizontal?
Three practical reasons this flat panel radiator suits a modern living space.
Slim flat panelClose to the wall ✔
A single smooth panel face with a minimal projection, for a clean, contemporary look on any wall.
Six widths, one height400–1400mm ✔
All six widths share the same 600mm height, so it is easy to match a run of radiators or fit a specific wall space.
5-year guaranteeReina backed ✔
Reina back the Slimline Horizontal with a 5-year manufacturer guarantee.
In the Room

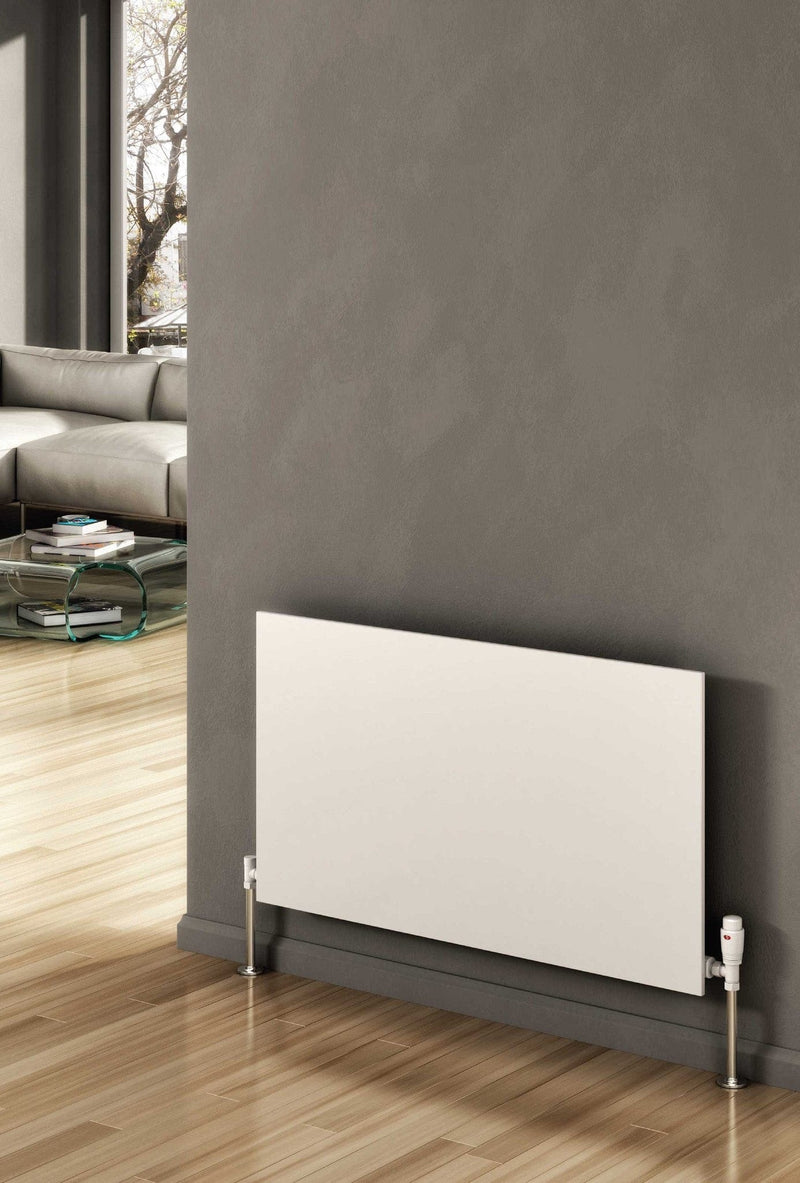

The Slimline Horizontal shown in a room setting, plus two close-ups of the White finish.
Choose Your Finish
White or Anthracite - same construction, same heat output.
WhiteAll sizes
AnthraciteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Size Height x Width |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| 600 x 400mm | 1,367 | 1,068 | 553 | 313 | 162 |
| 600 x 600mm | 2,054 | 1,605 | 831 | 471 | 244 |
| 600 x 800mm | 2,735 | 2,137 | 1,106 | 627 | 324 |
| 600 x 1000mm | 3,422 | 2,673 | 1,384 | 784 | 406 |
| 600 x 1200mm | 4,102 | 3,205 | 1,659 | 940 | 486 |
| 600 x 1400mm | 4,789 | 3,741 | 1,937 | 1,097 | 568 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Slimline Horizontal |
| Height | 600mm (all widths) |
| Width | 400 / 600 / 800 / 1000 / 1200 / 1400mm |
| Projection from wall | 62–87mm |
| Pipe centres | Equal to radiator width (add 90mm with valves fitted) |
| Wall to pipe centres | 30–55mm |
| Material | Mild steel |
| Style | Flat panel, no rails or bars |
| Finishes | White / Anthracite |
| Fuel type | Central heating only |
| Included | Wall mounting brackets and fixing kit |
| Not included | Radiator valves |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
400–1400mm
6 widths · 600mm high
Finishes2
Max BTU (ΔT50)3,741
✓
ΔT30 rated
Heat pump compatible
✓
Slim profile
62–87mm projection
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Slimline Horizontal compatible with a heat pump?
A. Reina publish a Delta T30 output for every Slimline Horizontal size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Q.
Can I use this radiator with an electric or dual fuel system?
A. No - Reina list the Slimline Horizontal for central heating only, so it is not available as an electric or dual fuel version.
Q.
What valves do I need for the Slimline Horizontal?
A. Valves are not supplied with the radiator. Pipe centres match the radiator width (400 to 1400mm), with 30 to 55mm from the wall to the pipe centres - add 90mm to the pipe centre measurement if you are including the valves, and check these figures before ordering.
Q.
What are the pipe centres and wall distances on the Slimline Horizontal?
A. Pipe centres equal the radiator width, so a 600 x 800mm radiator has 800mm pipe centres. Wall to pipe centres is 30 to 55mm, and the radiator projects 62 to 87mm from the wall for all six widths.
Q.
Can I use the Slimline Horizontal as a towel rail?
A. No - the Slimline Horizontal is a flat panel radiator with no rails or bars, so it will not hold towels. If you want a towel warmer in this range, see the separate Reina Slimline Towel Bar.
Q.
Which size Slimline Horizontal do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which width meets your heat loss. All six widths share the same 600mm height.
Q.
What finishes is the Slimline Horizontal available in?
A. White and Anthracite, across all six widths. Both finishes have the same construction and heat output.
Q.
What is the Slimline Horizontal guarantee and maximum operating temperature?
A. Reina back the Slimline Horizontal with a 5-year guarantee. The standard maximum water temperature for this type of steel radiator is 95 degrees C.
