650mm Wide Chrome Towel Rails | 600mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
The 650mm chrome towel rail pairs a 600mm pipe centre with a bar width that makes it a standout primary heat source in large bathrooms and master suites. Heights from 600mm to 1800mm scale from 798 BTU up to 2,313 BTU at standard boiler temperatures — sufficient for rooms up to 14 m2. The 600mm pipe centre matches tile-grid plumbing layouts common in post-2005 wet rooms and contemporary bathroom designs. Central heating, electric, and dual-fuel; 5-year warranty.
Pipe Centre Note: When installing a 650mm wide chrome towel rail on central heating, your pipework should be set at 600mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|

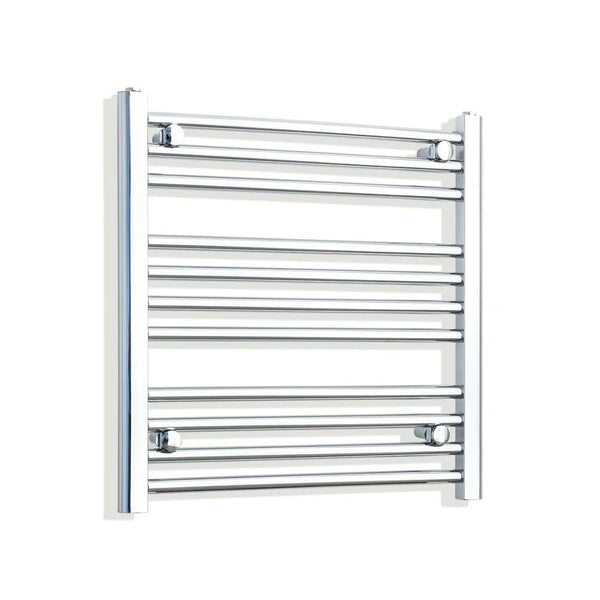

| 600mm | 11 | 3+4+4 | 411 BTU / 120 W | 798 BTU / 234 W | 1,012 BTU / 297 W | 600mm |

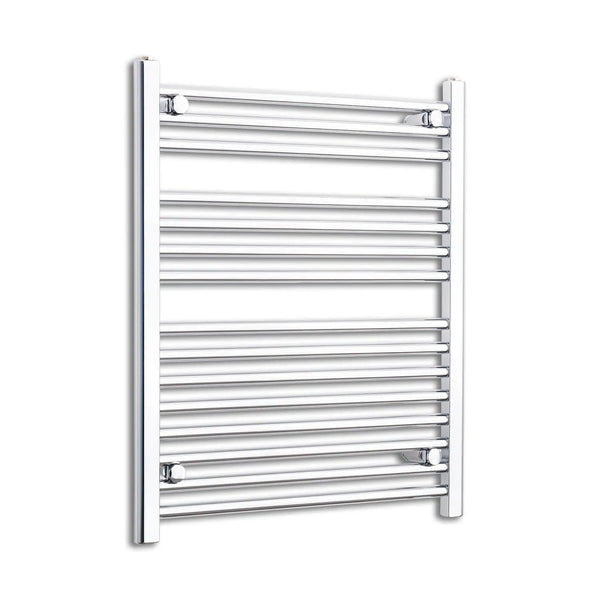

| 800mm | 15 | 3+4+8 | 555 BTU / 163 W | 1,078 BTU / 316 W | 1,367 BTU / 401 W | 600mm |
| 1000mm | 19 | 4+4+4+7 | 699 BTU / 205 W | 1,358 BTU / 398 W | 1,722 BTU / 505 W | 600mm |

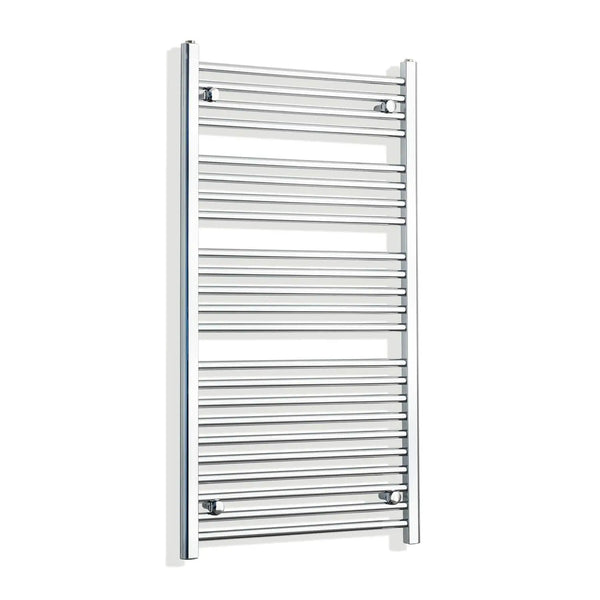

| 1200mm | 23 | 4+4+5+10 | 844 BTU / 247 W | 1,638 BTU / 480 W | 2,077 BTU / 609 W | 600mm |
| 1400mm | 25 | 4+5+6+10 | 946 BTU / 277 W | 1,836 BTU / 538 W | 2,328 BTU / 682 W | 600mm |

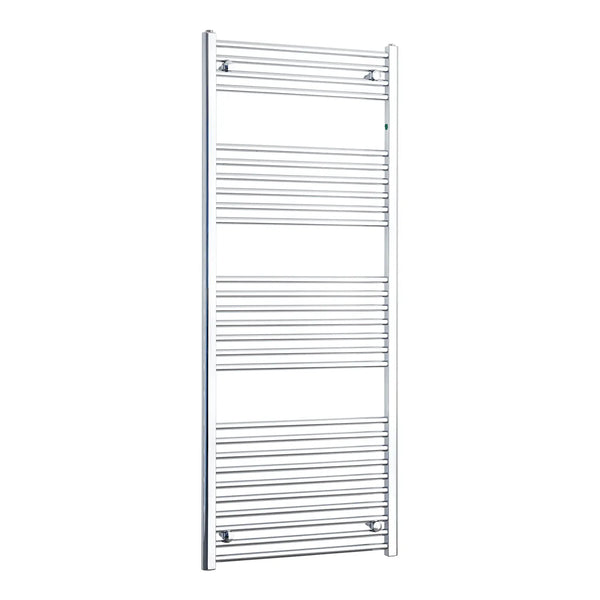

| 1600mm | 27 | 4+6+7+10 | 1,048 BTU / 307 W | 2,034 BTU / 596 W | 2,579 BTU / 756 W | 600mm |

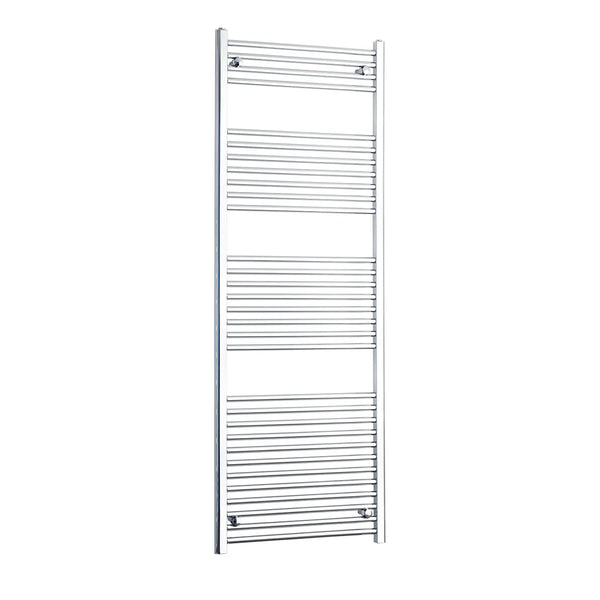

| 1800mm | 31 | 4+7+8+12 | 1,191 BTU / 349 W | 2,313 BTU / 677 W | 2,933 BTU / 860 W | 600mm |
Why Choose a 650mm Width Towel Rail?
The 650mm width sits between the popular 600mm and 700mm sizes — the preferred choice when existing pipework is at exactly 600mm centres. The 600mm pipe centre is also characteristic of wet-room designs planned on a standard 600x600mm tile grid. At this width, the rail becomes a substantial visual element in the room.
- Ideal Room Suitability: Large family bathrooms and master ensuites (8-14 m2), wet rooms with tile-grid plumbing layouts, and rooms with high heat loss requiring output above 1,500 BTU at standard boiler temperatures.
- Towel Drying Capacity & Ergonomics: Two average bath towels (70x130cm) fold in half and hang side by side across the bar width with minimal gap between them — efficient multi-user drying. A bath sheet lies flat with 25mm clearance each side.
- Installation & Wall Space Considerations: The 600mm pipe centre is specific — verify existing plumbing spacing before ordering. Allow approximately 750mm total wall clearance. The 650mm width is well-suited to wet rooms where floor-level pipe entry from beneath tiled floors is the norm.
Explore Alternative Sizes & Finishes
If 650mm isn't the exact fit, explore related options:
- Adjacent Widths: Compare with our 600mm Wide Chrome Towel Rails or step up to 700mm Wide Chrome Towel Rails.
- Alternative Finishes in 650mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 600mm across all heights in this width range.
- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 650mm towel rail?
A: The standard pipe centre for a 650mm wide chrome towel rail is 600mm, leaving 25mm clearance on each side for valve connections.
Q: What is the pipe centre for a 650mm wide chrome towel rail?
A: A 650mm wide chrome towel rail uses a 600mm pipe centre — exactly 25mm inset from each casing edge. This matches bathroom plumbing set out on a 600mm tile module, common in post-2005 wet rooms and contemporary bathroom designs.
Q: How does a 650mm towel rail compare to a 600mm in terms of output?
A: The 650mm range delivers approximately 5-8% higher BTU output at equivalent heights compared to the 600mm range. The 1800mm height produces 2,313 BTU / 677W vs 2,163 BTU / 634W for 600mm. If pipework is already at 600mm centres, the 650mm is the better technical and ergonomic choice.
