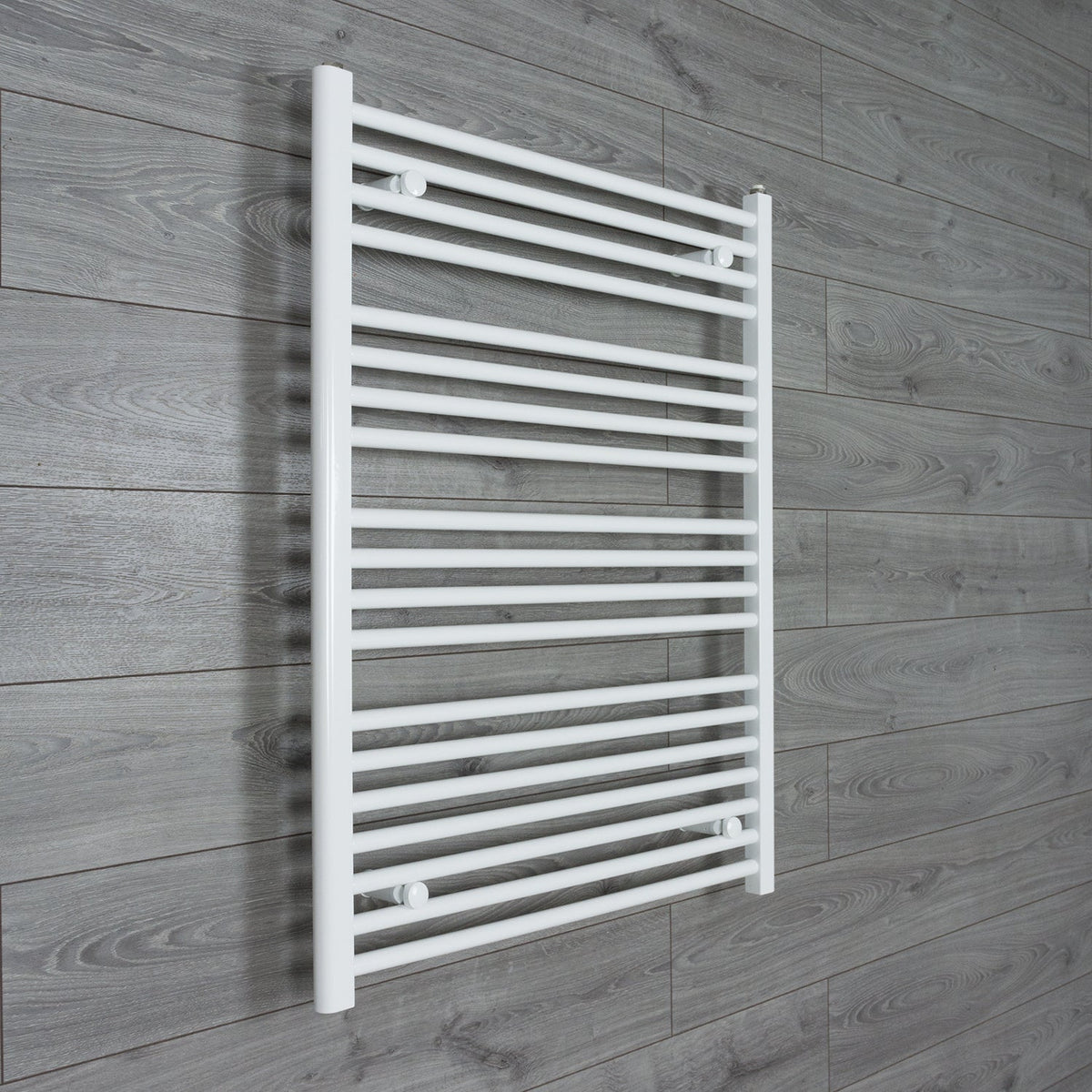

750mm Wide White Towel Rails

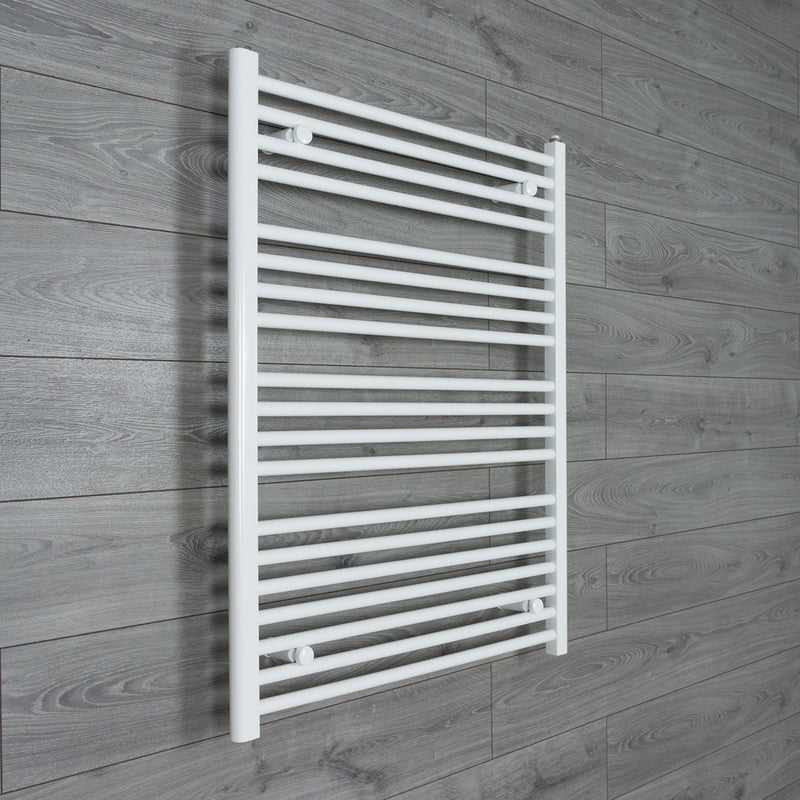

The 750mm white towel rail is the overlooked sweet spot between 700mm and 800mm — delivering 50mm more rung width than the 700mm (useful for wider towels or a slightly larger gap between side-by-side hanging) while remaining 50mm narrower than the 800mm for rooms where every centimetre of wall clearance matters. The 700mm pipe centre aligns with many large master bathroom layouts where supply pipes are positioned to the nearest 100mm, and the full height range from 600mm to 1800mm gives flexibility from a feature warmer (877 BTU at 600mm) up to a high-output primary heat source (2,068 BTU at 1800mm).
Pipe Centre Note: When installing a 750mm wide white towel rail on central heating, your pipework should be set at 700mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs are tested in accordance with BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 Output (Heat Pump) | ΔT50 Output (Standard Boiler) | ΔT60 Output (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|

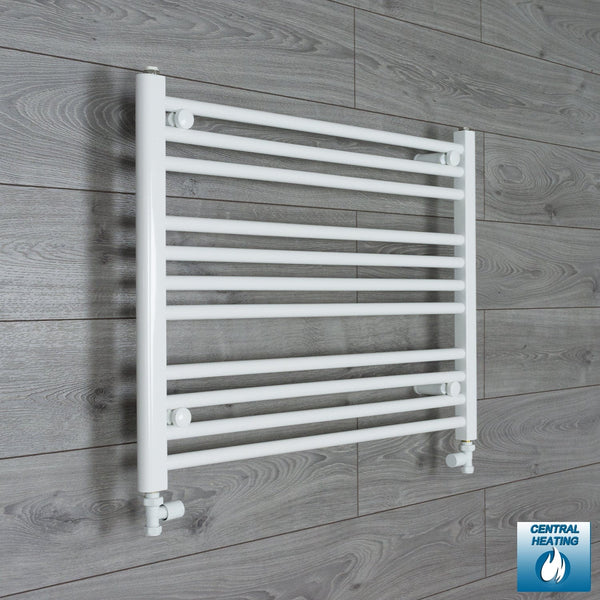

| 600mm | 11 | 3+4+4 | 452 BTU / 132W | 877 BTU / 257W | 1,112 BTU / 326W | 700mm |
| 800mm | 15 | 3+4+8 | 611 BTU / 179W | 1,187 BTU / 348W | 1,505 BTU / 441W | 700mm |
| 1000mm | 19 | 4+4+4+7 | 769 BTU / 225W | 1,494 BTU / 438W | 1,894 BTU / 555W | 700mm |
| 1200mm | 23 | 4+4+5+10 | 771 BTU / 226W | 1,498 BTU / 439W | 1,899 BTU / 557W | 700mm |
| 1400mm | 25 | 4+5+6+10 | 852 BTU / 250W | 1,655 BTU / 485W | 2,099 BTU / 615W | 700mm |
| 1600mm | 27 | 4+6+7+10 | 933 BTU / 273W | 1,812 BTU / 531W | 2,298 BTU / 673W | 700mm |

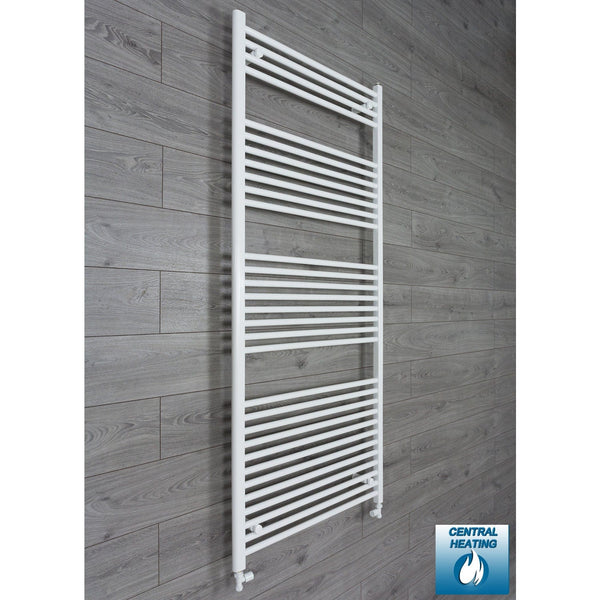

| 1800mm | 31 | 4+7+8+12 | 1,065 BTU / 312W | 2,068 BTU / 606W | 2,622 BTU / 768W | 700mm |
Why Choose a 750mm Width Towel Rail?
In master ensuites where a 700mm feels slightly narrow for the space but an 800mm would crowd the tiled reveal or encroach on the door swing, the 750mm resolves the dilemma without compromise. The 700mm pipe centre is also the most natural spacing for large-format bathroom layouts built around 700mm module tiles — supply pipes placed to the tile grid land naturally at 700mm centres.
- Ideal Room Suitability: Spacious master bathrooms and ensuites (8–14m²) where a 700mm is marginally too narrow but an 800mm is 50mm too wide for the available wall section.
- Towel Drying Capacity & Ergonomics: Two adult bath sheets (each 90cm wide, folded to 45cm) hang side-by-side with a 60mm gap between them — a comfortable clearance that allows the towels to warm and dry without contact. On a 700mm rail, the same two sheets need to be folded more tightly to achieve a gap.
- Installation & Wall Space Considerations: Allow 860mm of clear wall space minimum. The 700mm pipe centre requires pipe placement consistent with the 750mm width — if replacing an existing 700mm-wide rail, the pipework may already be in the correct position. Wall bracket span = 750mm − 130mm = 620mm centre-to-centre.
Explore Alternative Sizes & Finishes
- Adjacent Widths: Compare with our 700mm Wide White Towel Rails or step up to 800mm Wide White Towel Rails.
- Alternative Finishes in 750mm: 750mm Chrome.
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 700mm across all heights in this width range.

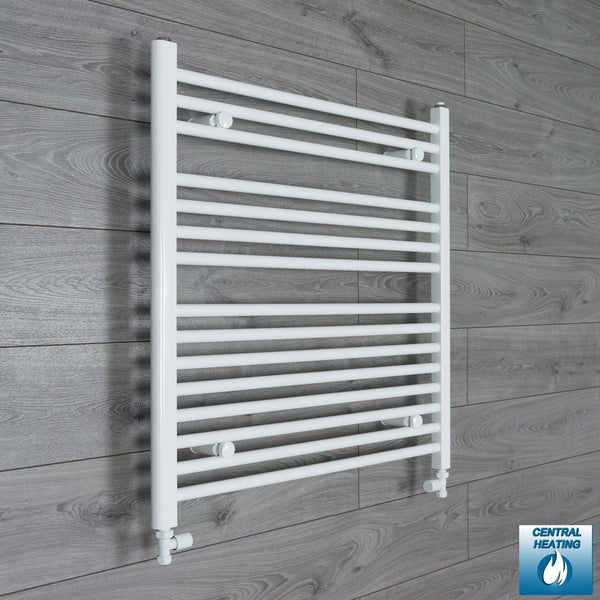

- Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.

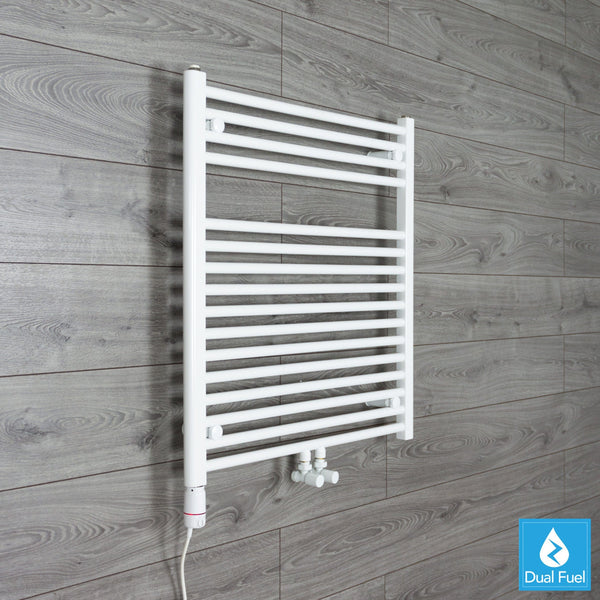

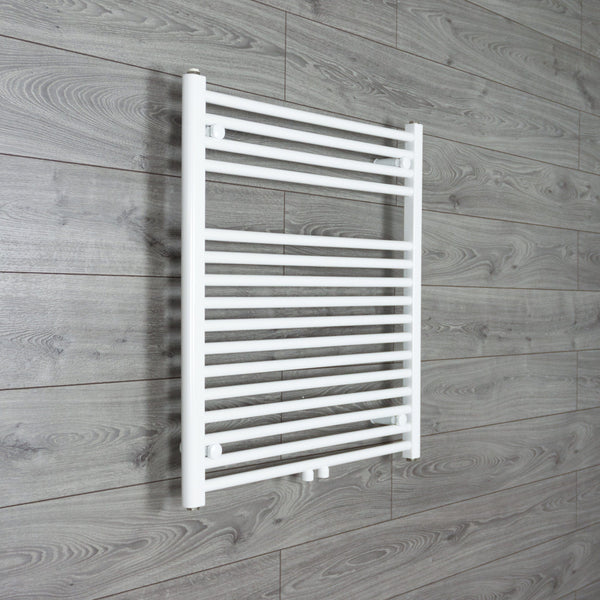

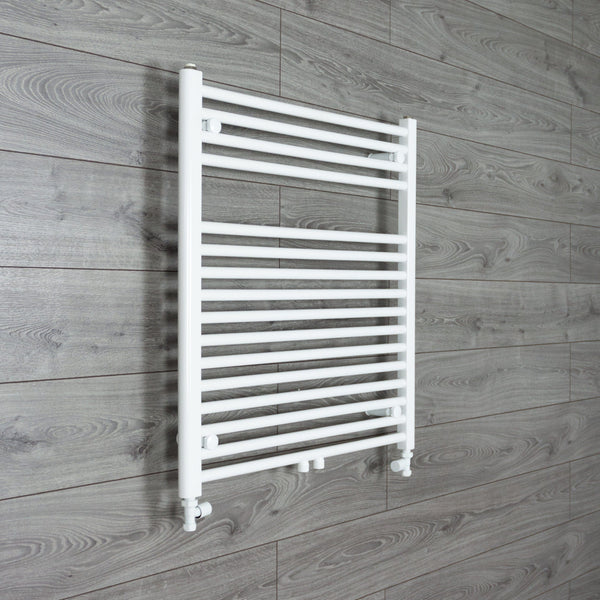

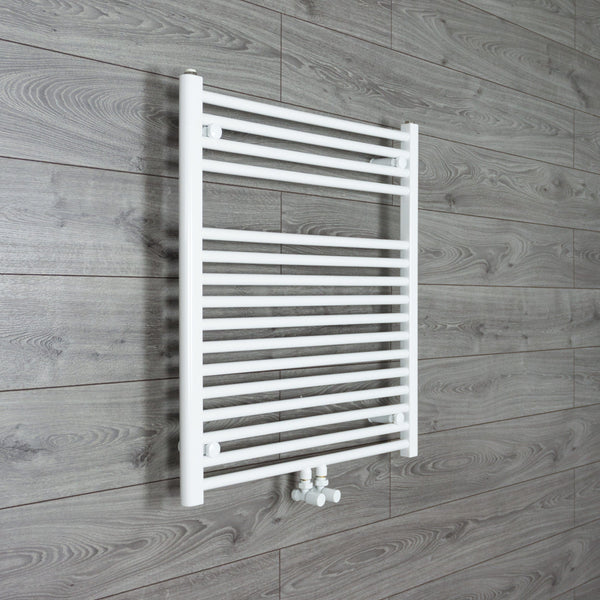

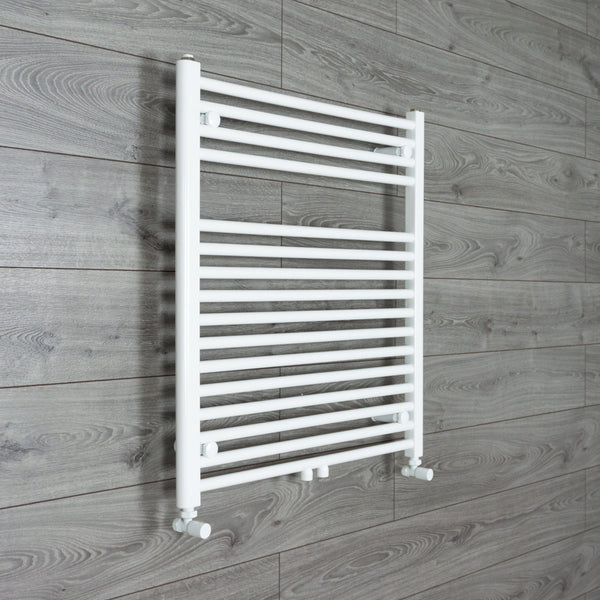

- Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.
Delta T (ΔT) Thermal Output Calculations
- ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
- ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
- ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
- BTU Calculator: Calculate your exact room heat requirement.
Frequently Asked Questions
Q: What is the pipe centre measurement for a 750mm white towel rail?
A: The standard pipe centre for a 750mm wide white towel rail is 700mm, leaving 25mm clearance on each side for valve connections.
Q: What practical difference does 50mm extra width make compared to a 700mm towel rail?
A: The 750mm allows two adult bath sheets (each folded to 45cm) to hang side-by-side with a 60mm gap between them — enough clearance that towels warm and dry without contact. On a 700mm rail, the same two sheets need to be folded to approximately 30cm each to achieve a similar gap, which reduces the hanging area per towel.
Q: Is a 750mm white towel rail suitable as the primary heat source in a king-size master ensuite?
A: Yes. The 1800×750mm at 2,068 BTU / 606W covers master ensuites up to 14m² at standard heat-loss as the primary heat source. At 1400mm height (1,655 BTU), it covers rooms to 11m². Use our BTU Calculator to confirm for your specific room dimensions and construction type.
