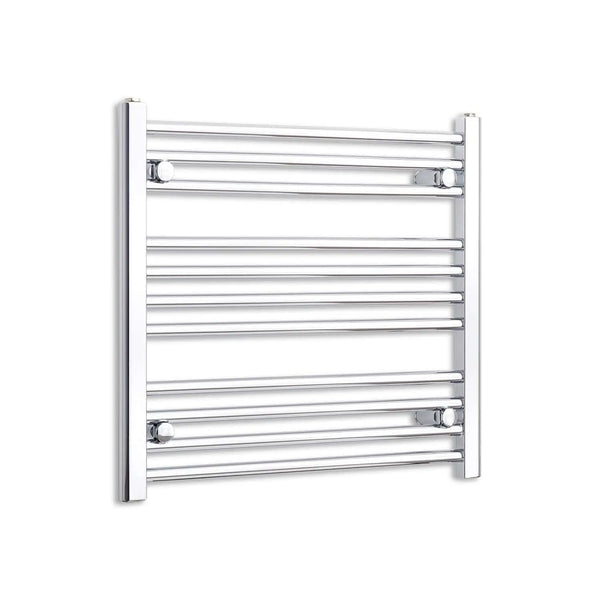

600mm Wide Chrome Towel Rail Radiator| 550mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
The 600mm chrome towel rail is the go-to choice for large family bathrooms and high heat-loss rooms. With a 550mm pipe centre and heights up to 1800mm delivering over 2,000 BTU at standard boiler temperatures, it provides reliable primary-source heating for rooms up to approximately 12 m2. The 600mm bar width gives a bath sheet a full flat hang with comfortable clearance on both sides — the ergonomic benchmark for multi-user towel drying. Central heating, electric, and dual-fuel; 5-year warranty.
Pipe Centre Note: When installing a 600mm wide chrome towel rail on central heating, your pipework should be set at 550mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 400mm | 7 | 3+4 | 204 BTU / 60 W | 396 BTU / 116 W | 502 BTU / 147 W | 550mm |
| 600mm | 11 | 3+4+4 | 392 BTU / 115 W | 761 BTU / 223 W | 965 BTU / 283 W | 550mm |
| 800mm | 15 | 3+4+8 | 508 BTU / 149 W | 986 BTU / 289 W | 1,250 BTU / 366 W | 550mm |
| 1000mm | 19 | 4+4+4+7 | 645 BTU / 189 W | 1,252 BTU / 367 W | 1,588 BTU / 465 W | 550mm |
| 1200mm | 23 | 4+4+5+10 | 743 BTU / 218 W | 1,443 BTU / 423 W | 1,830 BTU / 536 W | 550mm |
| 1400mm | 25 | 4+5+6+10 | 900 BTU / 264 W | 1,747 BTU / 512 W | 2,215 BTU / 649 W | 550mm |
| 1600mm | 27 | 4+6+7+10 | 791 BTU / 232 W | 1,535 BTU / 450 W | 1,946 BTU / 570 W | 550mm |
| 1800mm | 31 | 4+7+8+12 | 1,114 BTU / 326 W | 2,163 BTU / 634 W | 2,743 BTU / 804 W | 550mm |
Why Choose a 600mm Width Towel Rail?
At 600mm, the rail enters the large-bathroom category. The 550mm pipe centre is found in bathrooms where the original plumber set out specifically for a 600mm towel rail. This width starts to make a visual impact — horizontal lines at 600mm span catch the eye and anchor the bathroom design, complementing large-format wall tiles and walk-in shower configurations.
- Ideal Room Suitability: Large family bathrooms (7-12 m2), master bathrooms with high heat loss, rooms with two external walls or large windows, and any bathroom where the designer wants the towel rail to be a visual feature as well as a heat source.
- Towel Drying Capacity & Ergonomics: A full bath sheet lies flat with 25mm margin each side. For a family of four, the 1400mm or 1800mm heights provide enough bar space to dry two bath towels and two hand towels simultaneously.
- Installation & Wall Space Considerations: The 550mm pipe centre is less common than 350mm or 450mm — verify existing pipework before ordering. Allow approximately 700mm total wall clearance. At 600mm width, the rail becomes a design element, so consider positioning relative to the main bathroom mirror and vanity.
Explore Alternative Sizes & Finishes
If 600mm isn't the exact fit, explore related options:
- Adjacent Widths: Compare with our 550mm Wide Chrome Towel Rails or step up to 650mm Wide Chrome Towel Rails.
- Alternative Finishes in 600mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 550mm across all heights in this width range.
- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 600mm towel rail?
A: The standard pipe centre for a 600mm wide chrome towel rail is 550mm, leaving 25mm clearance on each side for valve connections.
Q: Is 600mm wide enough for a chrome towel rail to heat a family bathroom?
A: Yes — the 1000mm height (1,252 BTU / 367W) and above provides enough output for most family bathrooms of 7-10 m2. The 1800mm height reaches 2,163 BTU / 634W — sufficient for rooms up to 12 m2 with average insulation. For heat pump systems, use the DT30 output column.
Q: What pipe centre distance does a 600mm chrome towel rail use?
A: A 600mm wide chrome towel rail uses a 550mm pipe centre — 25mm inset from each side of the casing. Verify your existing bathroom pipework spacing before ordering.
