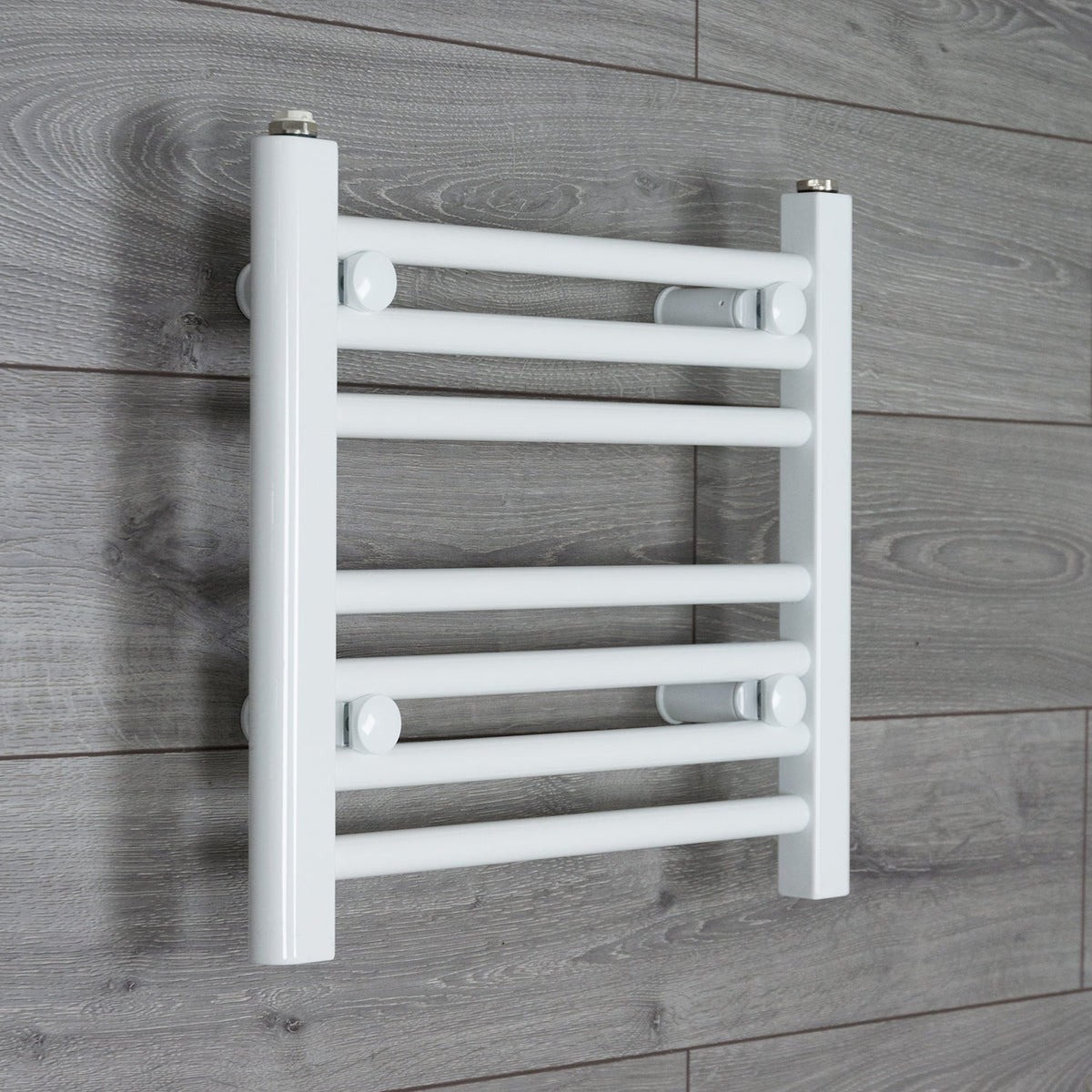

400mm Wide White Towel Radiator
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
400mm Wide White Towel Rails
With a 350mm pipe centre, the 400mm white towel rail is the standard direct replacement for a 400mm-wide panel radiator — the single most common radiator width found in UK bathrooms built between 1985 and 2010. Fold a standard bath towel once to 35cm, and it lays flat across the rungs with 25mm of rung each side; a king-size bath sheet folded to 45cm still sits within the 400mm rung span with 25mm to spare. Heights up to 1800mm give a maximum output of 1,307 BTU, making this a capable primary heat source for ensuites and small family bathrooms up to 9m².
Pipe Centre Note: When installing a 400mm wide white towel rail on central heating, your pipework should be set at 350mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs are tested in accordance with BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 Output (Heat Pump) | ΔT50 Output (Standard Boiler) | ΔT60 Output (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 400mm | 7 | 3+4 | 155 BTU / 45W | 300 BTU / 88W | 380 BTU / 111W | 350mm |
| 600mm | 11 | 3+4+4 | 239 BTU / 70W | 464 BTU / 136W | 588 BTU / 172W | 350mm |
| 800mm | 15 | 3+4+8 | 310 BTU / 91W | 601 BTU / 176W | 762 BTU / 223W | 350mm |
| 1000mm | 19 | 4+4+4+7 | 392 BTU / 115W | 761 BTU / 223W | 965 BTU / 283W | 350mm |
| 1200mm | 23 | 4+4+5+10 | 469 BTU / 137W | 911 BTU / 267W | 1,155 BTU / 338W | 350mm |
| 1400mm | 25 | 4+5+6+10 | 547 BTU / 160W | 1,061 BTU / 311W | 1,345 BTU / 394W | 350mm |
| 1600mm | 27 | 4+6+7+10 | 589 BTU / 173W | 1,143 BTU / 335W | 1,449 BTU / 425W | 350mm |
| 1800mm | 31 | 4+7+8+12 | 673 BTU / 197W | 1,307 BTU / 383W | 1,657 BTU / 486W | 350mm |
Why Choose a 400mm Width Towel Rail?
The 400mm is where the white towel rail range transitions from “fitting into a tight space” to “replacing the old panel radiator like-for-like.” The 350mm pipe centre is the standard for most 400mm panel radiators, which means in the majority of bathroom renovation projects the pipework stays exactly where it is — only the wall fitting height and valve style may need to change.
- Ideal Room Suitability: Small family bathrooms (5–9m²), ensuites being renovated from panel radiator to towel rail, and any room where the existing 400mm panel rough-in should not be disturbed.
- Towel Drying Capacity & Ergonomics: Bath towels fold to 35cm and sit flat with 25mm of rung each side. Bath sheets fold to 45cm and sit flat within the 400mm rung width. Two face towels can hang side-by-side with a 100mm gap between them — practical for shared ensuites.
- Installation & Wall Space Considerations: The rail body is 400mm. Allow 500mm of clear wall space to accommodate 15mm compression valves and leave the valve handwheels accessible for balancing. The 350mm pipe centre is the most common rough-in spacing found in UK bathroom panel radiator installations.
Explore Alternative Sizes & Finishes
- Adjacent Widths: Compare with our 350mm Wide White Towel Rails or step up to 500mm Wide White Towel Rails.
- Alternative Finishes in 400mm: 400mm Chrome | 400mm Matt Black | 400mm Anthracite.
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 350mm across all heights in this width range.
- Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.
Delta T (ΔT) Thermal Output Calculations
- ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
- ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
- ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
- BTU Calculator: Calculate your exact room heat requirement.
Frequently Asked Questions
Q: What is the pipe centre measurement for a 400mm white towel rail?
A: The standard pipe centre for a 400mm wide white towel rail is 350mm, leaving 25mm clearance on each side for valve connections.
Q: Can a 400mm white towel rail replace a 400mm panel radiator directly?
A: Yes, if your existing panel radiator has a 350mm pipe centre (standard for most 400mm-wide panels), the 400mm towel rail connects to the same pipework with no modifications. You will only need to select the correct valve style — angled or corner valves for wall-emerging pipes, straight valves for floor pipework.
Q: How much clear wall space do I need for a 400mm white towel rail with valves fitted?
A: The rail body is 400mm wide. With standard 15mm compression valves fitted, the overall installation width is approximately 450–470mm. Allow 500mm of clear wall space to ensure valves are accessible. Wall brackets sit inward approximately 65mm from each end of the rail.
