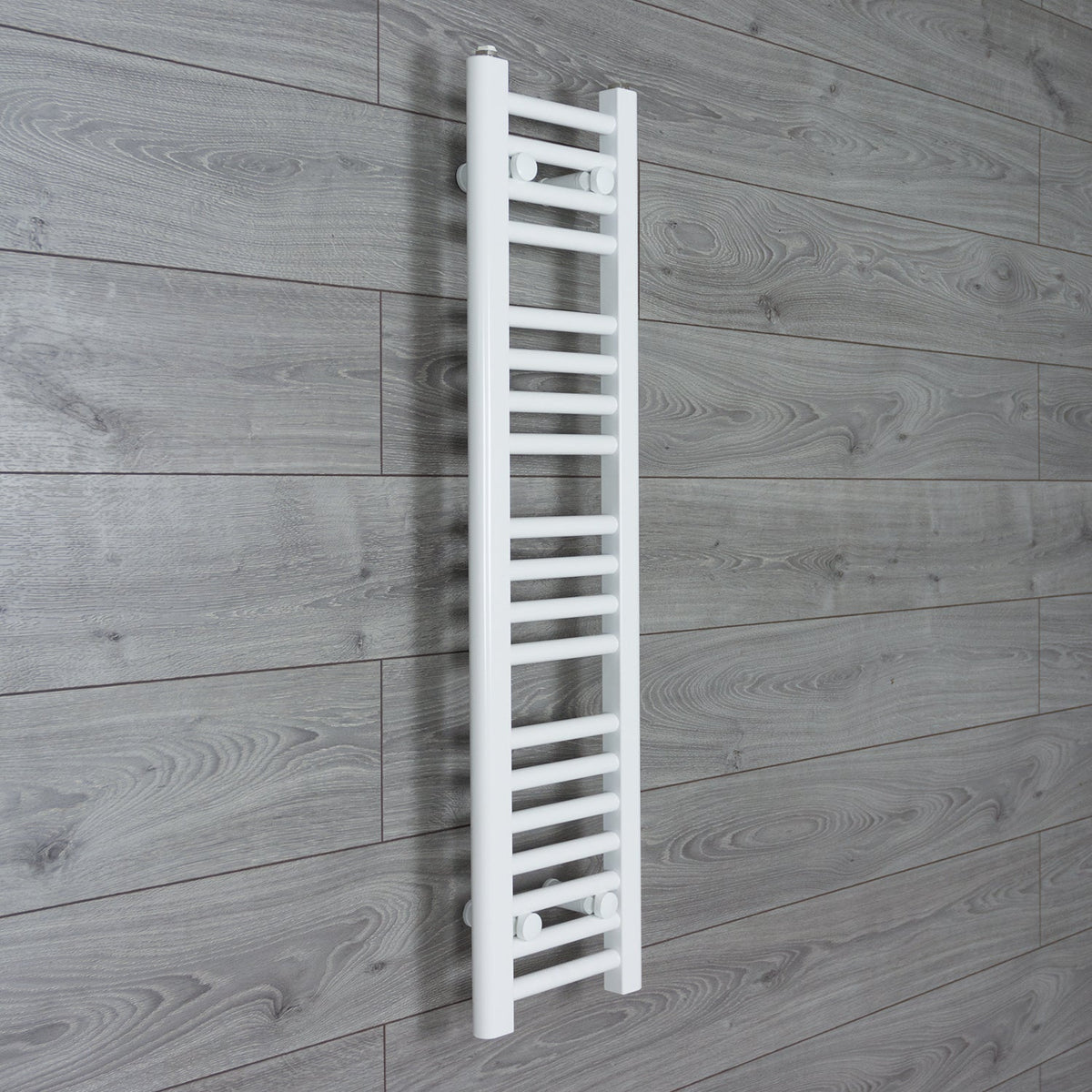

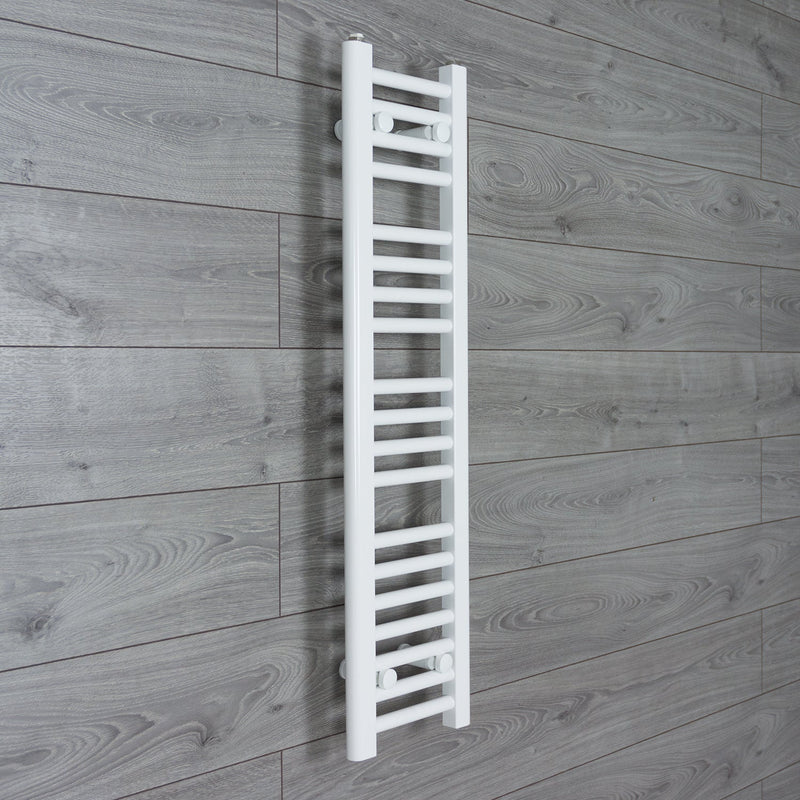

250mm Wide White Towel Rails
The narrowest full-rung ladder towel rail in our white range — and the first width where conventional over-rung towel hanging becomes practical. At 250mm, a compact ensuite that cannot accommodate anything wider gains a proper heated towel rail with seven horizontal bars at 600mm height, rising to 31 bars at 1800mm. Where the 200mm flat panel says “I’m a heater,” the 250mm ladder says “I’m a towel rail” — a meaningful distinction in a galley-format bathroom or cloakroom where the visual expectation matters. Heights up to 1800mm let you trade width for vertical capacity where going tall is the only viable option.

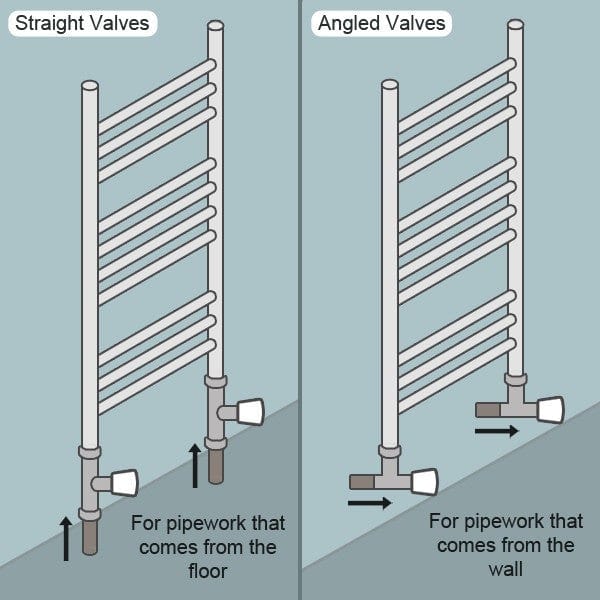

Pipe Centre Note: When installing a 250mm wide white towel rail on central heating, your pipework should be set at 200mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs are tested in accordance with BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 Output (Heat Pump) | ΔT50 Output (Standard Boiler) | ΔT60 Output (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 600mm | 11 | 3+4+4 | 336 BTU / 99W | 653 BTU / 192W | 828 BTU / 243W | 200mm |

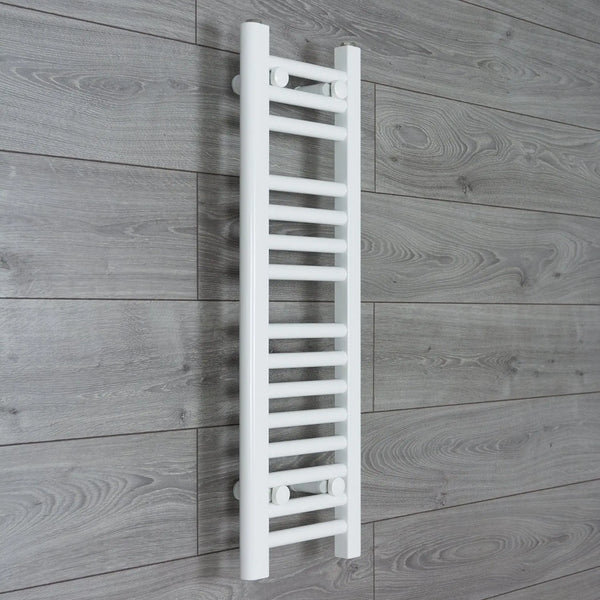

| 800mm | 15 | 3+4+8 | 460 BTU / 135W | 893 BTU / 262W | 1,132 BTU / 332W | 200mm |
| 1000mm | 19 | 4+4+4+7 | 584 BTU / 171W | 1,133 BTU / 332W | 1,437 BTU / 421W | 200mm |

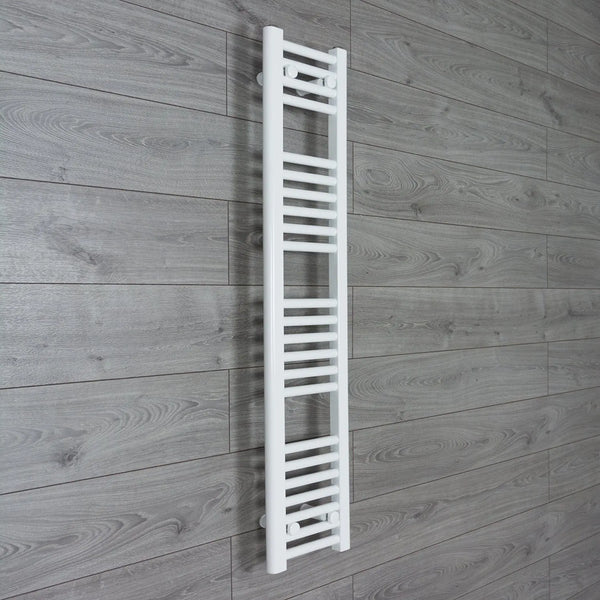

| 1200mm | 23 | 4+4+5+10 | 707 BTU / 207W | 1,373 BTU / 402W | 1,741 BTU / 510W | 200mm |

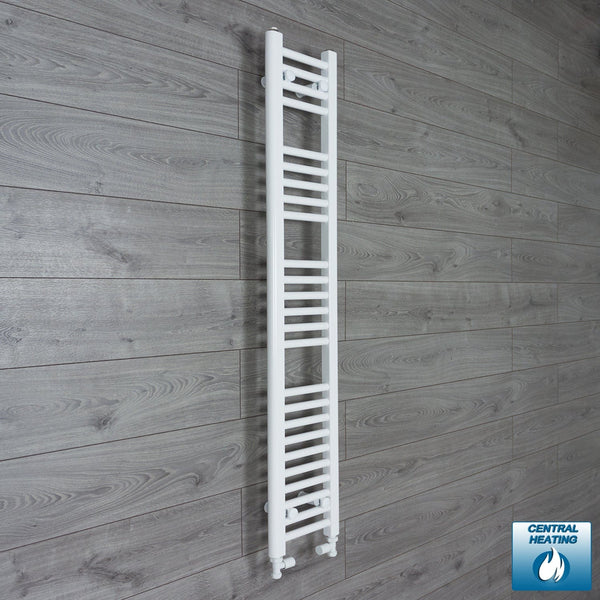

| 1400mm | 25 | 4+5+6+10 | 831 BTU / 244W | 1,613 BTU / 473W | 2,045 BTU / 599W | 200mm |

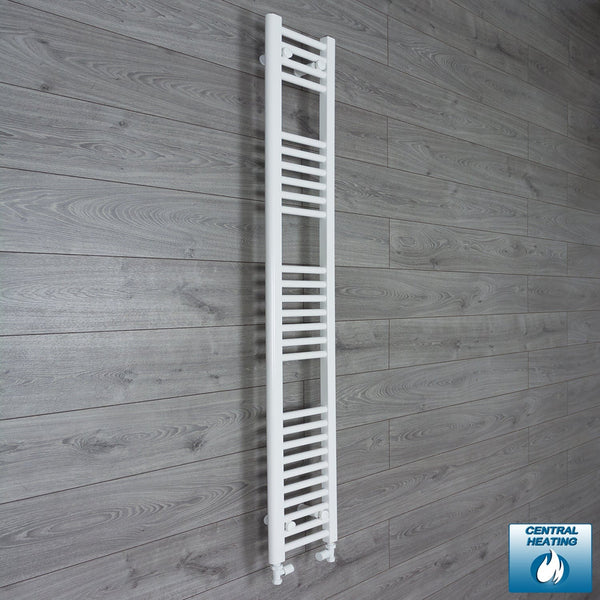

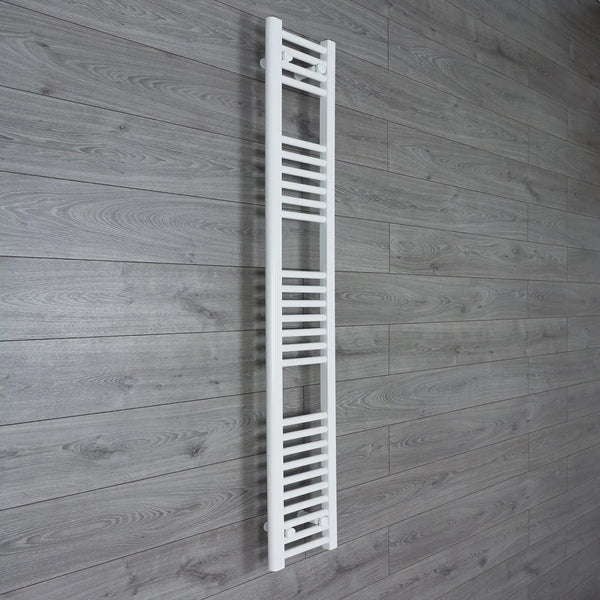

| 1600mm | 27 | 4+6+7+10 | 954 BTU / 280W | 1,853 BTU / 543W | 2,350 BTU / 689W | 200mm |

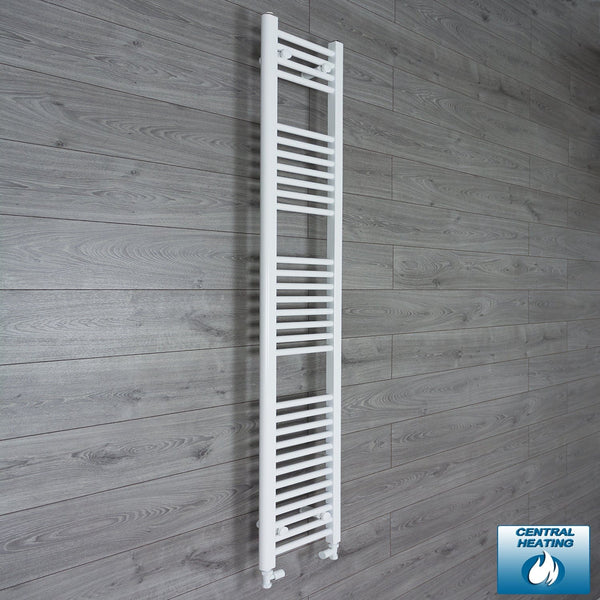

| 1800mm | 31 | 4+7+8+12 | 1,079 BTU / 316W | 2,095 BTU / 614W | 2,657 BTU / 779W | 200mm |
Why Choose a 250mm Width Towel Rail?
When space is tight but you need a proper towel rail — not a flat panel — the 250mm is the minimum viable ladder width. It fits the gap beside a compact WC cistern, slides into a narrow tiled alcove, or occupies the only available wall in a galley-format ensuite. Going tall is the strategy: a 1800×250mm produces 2,095 BTU, enough to be the sole heat source in a 4–5m² compact ensuite.
- Ideal Room Suitability: Micro ensuites (2–5m²), compact cloakrooms with partial towel-drying need, galley-format bathrooms where only one narrow wall is available for a radiator.
- Towel Drying Capacity & Ergonomics: A standard UK face towel (50cm wide) hangs flat across all 250mm rungs with approximately 25mm of rung extending each side. Full bath towels must be folded lengthways to approximately 250mm. Prioritise height over width in your selection — the 1800mm model hangs three face towels simultaneously across its 31 bars.
- Installation & Wall Space Considerations: The 200mm pipe centre is the narrowest spacing for a ladder-style towel rail. Confirm your rough-in pipework is set at 200mm before ordering. Allow 320mm of clear wall space to accommodate valve connections beyond the 250mm body.
Explore Alternative Sizes & Finishes
- Adjacent Widths: Compare with our 200mm Wide White Towel Rails (flat panel) or step up to 300mm Wide White Towel Rails.
- Alternative Finishes in 250mm: 250mm Chrome.
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 200mm across all heights in this width range.
- Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.

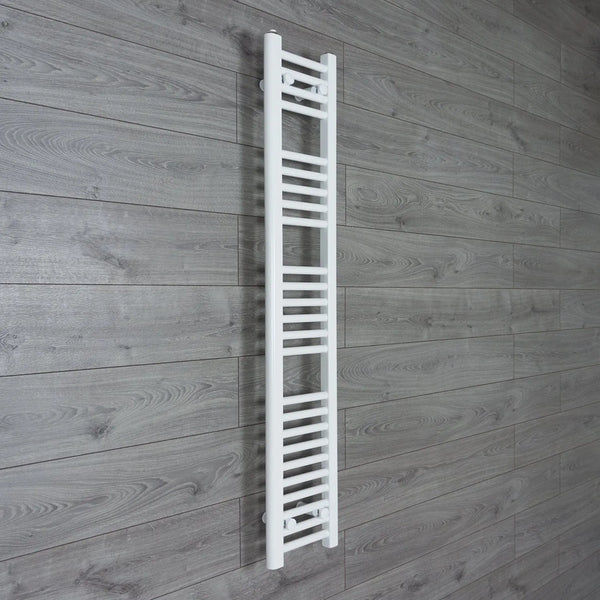

- Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.
Delta T (ΔT) Thermal Output Calculations
- ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
- ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
- ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
- BTU Calculator: Calculate your exact room heat requirement.
Frequently Asked Questions
Q: What is the pipe centre measurement for a 250mm white towel rail?
A: The standard pipe centre for a 250mm wide white towel rail is 200mm, leaving 25mm clearance on each side for valve connections.
Q: What is the practical difference between the 200mm flat panel and the 250mm ladder rail?
A: The 200mm is a smooth flat panel with no rungs — towels drape against its face. The 250mm is a ladder rail with horizontal bars, which allows towels to hang over individual rungs, promoting better airflow and faster drying. The ladder style is also the conventional visual expectation for a heated towel rail.
Q: Is a 250mm wide towel rail sufficient for a standard face towel to hang flat?
A: Yes. A standard UK face towel (approximately 50cm wide) fits flat across the 250mm rungs with around 25mm of rung showing each side. A full bath towel (70cm wide) must be folded lengthways to approximately 250mm. For full-width bath towel hanging, consider the 400mm range or wider.
