200mm Wide Chrome Towel Radiator| 150mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
The 200mm chrome towel rail is purpose-built for spaces where every millimetre counts: the narrow recess beside a cloakroom basin, the gap between a WC and an exterior wall, or the slim column of wall between a shower cubicle and a door frame. At 200mm wide with a 150mm pipe centre, this is the go-to rail when no wider model will physically fit — yet it still scales from a 600mm 11-bar unit up to an 1800mm 31-bar radiator delivering serious BTU output in a compact room. Available in central heating, electric, and dual-fuel with a 5-year warranty.
Pipe Centre Note: When installing a 200mm wide chrome towel rail on central heating, your pipework should be set at 150mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|

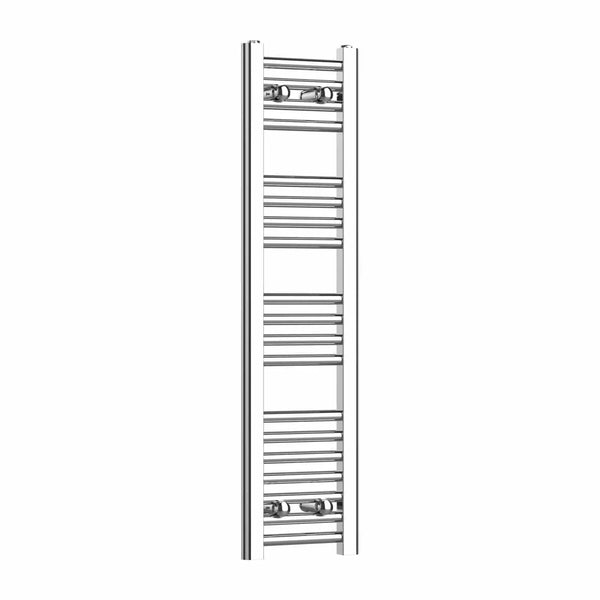

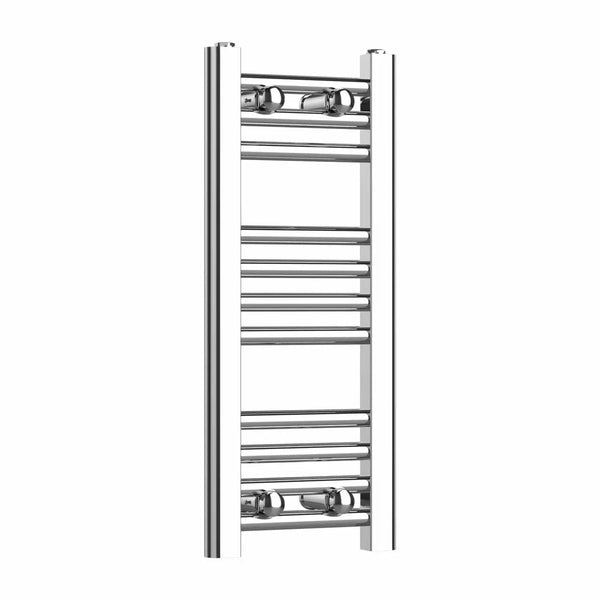

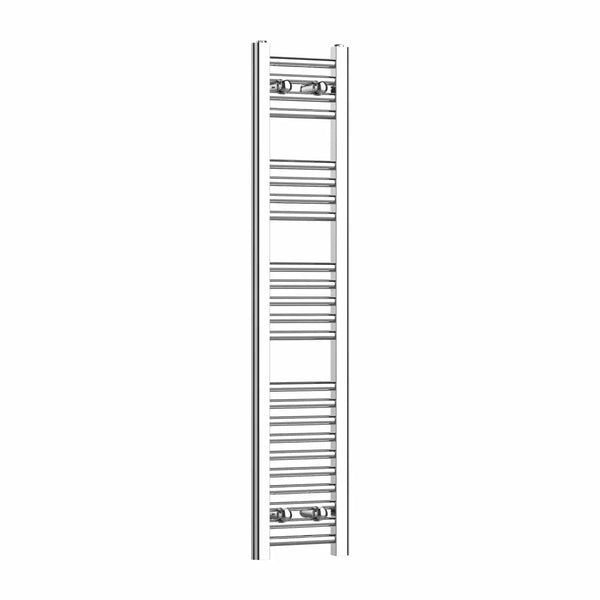

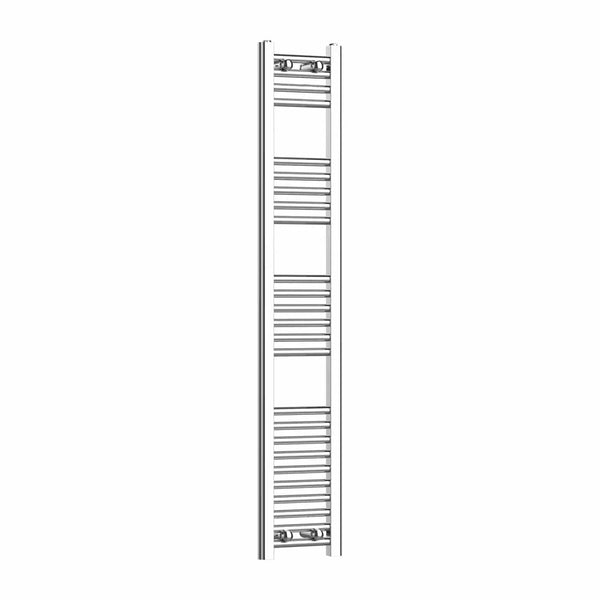

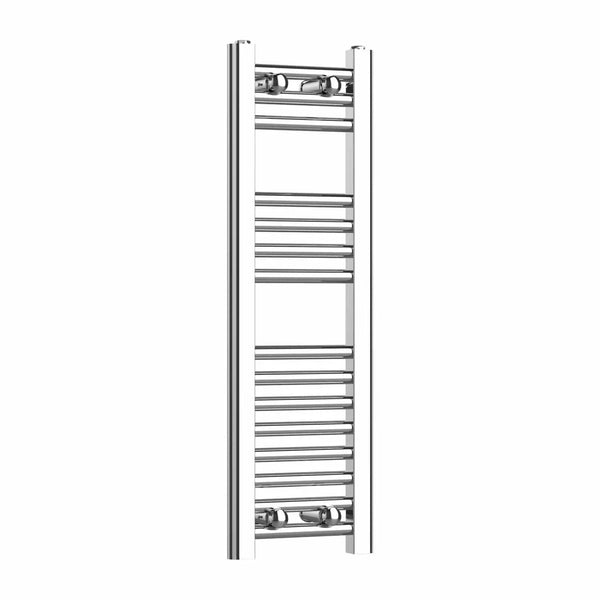

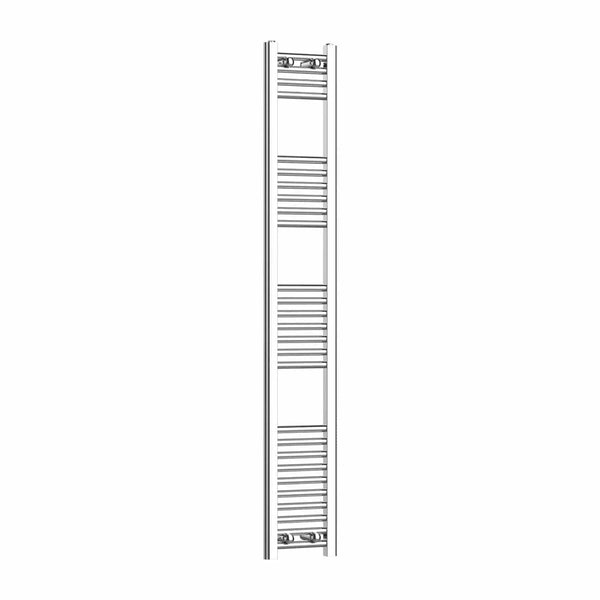

| 600mm | 11 | 3+4+4 | 268 BTU / 79 W | 520 BTU / 153 W | 659 BTU / 193 W | 150mm |
| 800mm | 15 | 3+4+8 | 327 BTU / 96 W | 634 BTU / 186 W | 804 BTU / 236 W | 150mm |
| 1000mm | 19 | 4+4+4+7 | 385 BTU / 113 W | 747 BTU / 219 W | 947 BTU / 278 W | 150mm |
| 1200mm | 23 | 4+4+5+10 | 462 BTU / 135 W | 898 BTU / 263 W | 1,139 BTU / 334 W | 150mm |
| 1400mm | 25 | 4+5+6+10 | 530 BTU / 155 W | 1,030 BTU / 302 W | 1,306 BTU / 383 W | 150mm |
| 1600mm | 27 | 4+6+7+10 | 599 BTU / 176 W | 1,163 BTU / 341 W | 1,475 BTU / 432 W | 150mm |
| 1800mm | 31 | 4+7+8+12 | 677 BTU / 198 W | 1,314 BTU / 385 W | 1,666 BTU / 488 W | 150mm |
Why Choose a 200mm Width Towel Rail?
A 200mm width occupies just 200mm of horizontal wall — narrower than a standard A4 sheet. It thrives in micro cloakrooms (often under 1.5 m2), utility rooms with tight wall runs, or narrow alcoves beneath a staircase. The 150mm pipe centre is among the closest-spaced in the straight ladder range, making it a direct replacement for older 200mm rails without moving pipework.
- Ideal Room Suitability: Micro cloakrooms (under 1.5 m2), WC alcoves, utility room corners, narrow recesses beside shower cubicles, and any space where a 250mm or wider rail would protrude into the usable room.
- Towel Drying Capacity & Ergonomics: At 200mm, a standard hand towel (typically 50x90cm) hangs folded in thirds vertically. The multi-bar layout means two hand towels can dry simultaneously — one on upper bars, one on lower — without overlap.
- Installation & Wall Space Considerations: The 150mm pipe centre requires precision pipework. Allow approximately 300mm total wall clearance (200mm + 50mm each side for valve knuckles). Use corner or angled valves if pipes emerge from the wall rather than the floor.
Explore Alternative Sizes & Finishes
If 200mm isn't the exact fit, explore related options:
- or step up to 250mm Wide Chrome Towel Rails.
- Alternative Finishes in 200mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 150mm across all heights in this width range.
- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 200mm towel rail?
A: The standard pipe centre for a 200mm wide chrome towel rail is 150mm, leaving 25mm clearance on each side for valve connections.
Q: Is a 200mm chrome towel rail wide enough to heat a small cloakroom?
A: Yes, with the correct height. A typical downstairs cloakroom of 1-2 m2 with one exterior wall needs roughly 200-400 BTU at DT50. The 600mm height delivers 520 BTU / 153W — sufficient for a well-insulated cloakroom. For older solid-wall properties, choose the 800mm or 1000mm height.
Q: Can I fit a 200mm towel rail in the gap beside my WC?
A: In most cases yes, provided you have at least 300mm of clear wall space (200mm for the rail + 50mm each side for valve clearance). Measure from any protruding cistern or fitting edges. If pipes emerge from the wall rather than the floor, angled valves keep everything flush.
