T-Piece + Angled Valve Combo Floor or wall pipes
- Most flexible option — pipes from floor or wall
- Adjusts pipe gap to 75mm or 225mm
- Available in Chrome, White, Matt Black, Anthracite
Sale

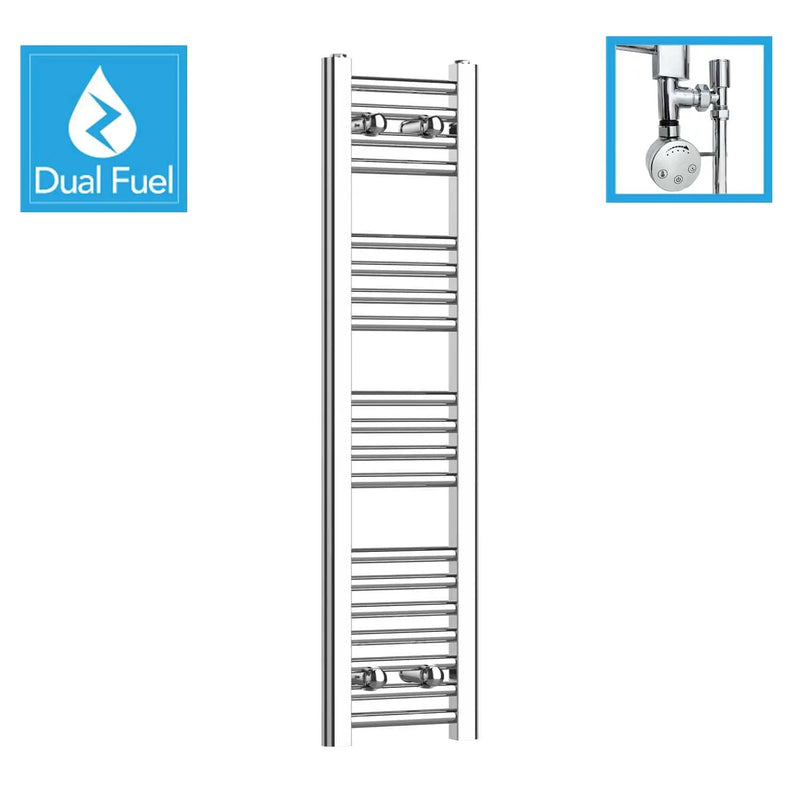

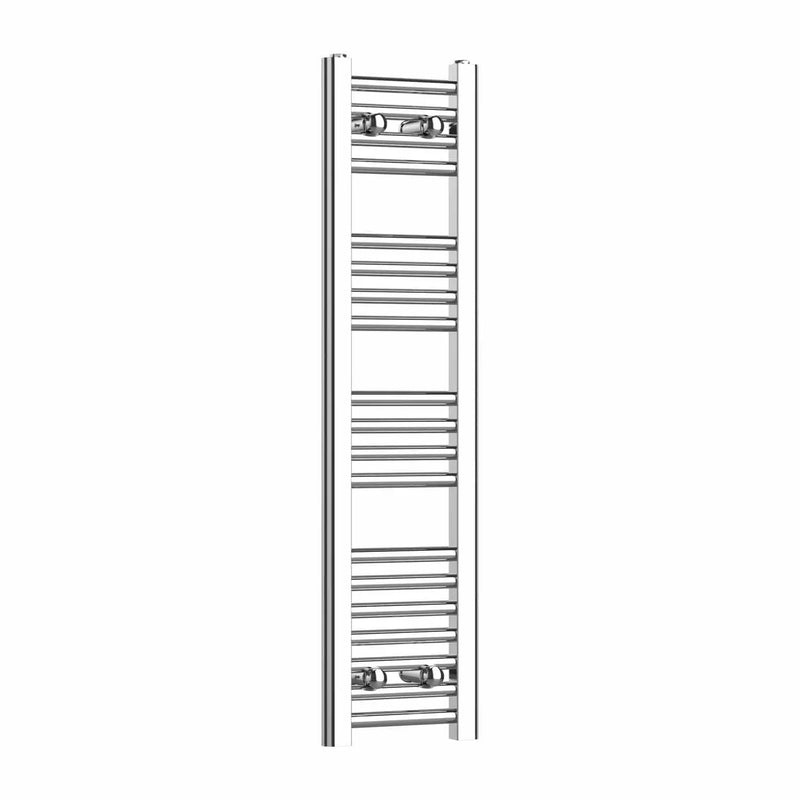

1000x200mm Chrome Dual Fuel Flat Heated Towel Rail Radiator
532
BTU
156W
Watts
1000mm
Height
200mm
Width
£152.00
£172.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
30-day returns
Frequently Bought Together
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating + electric backup
Product Overview & Heating Capacity
A 19-tube flat ladder rail at 1000mm — the step up from the standard 800mm where you want noticeably more heat output and more hanging space without going to the tallest sizes. Runs on your central heating and keeps going on a 300W electric element when the boiler is off. Pre-filled with glycol, triple-layer chrome on mild steel, BS EN 442 tested, 10-bar pressure tested.
532
BTU central heating (ΔT50)
19
Tubes · 1000mm height
150mm
Pipe centres
5 yr
Warranty, no quibbles
Will This Rail Suit My Room?
Based on the central heating output. Enter your room size — we’ll estimate whether this rail comfortably heats the space or is best used alongside other heating.
✓ Enter your dimensions to see the result.
Choose your fuel type
This listing is the dual fuel version. Same rail, three ways to run it — make sure you’re on the right page for your setup.
Central heating Boiler-fed
Connects to your boiler via valves. Heats whenever your central heating is on.
Electric only No plumbing
Pre-filled and runs entirely off the mains — ideal for rooms without existing pipework.
Dual fuel You’re here
Central heating in winter, electric in summer. Warm towels year-round without running your whole boiler.
Technical Specifications & Dimensions
Check before you buy
| Manufacturer ID | FC-20-100-DFK-SMR |
| Height | 1000mm |
| Width | 200mm |
| Projection from wall | 90–110mm |
| Pipe centres | 150mm |
| Heat output (ΔT50) | 532 BTU / 156W |
| Heat output (ΔT30) | 273 BTU / 80W |
| Heat output (ΔT60) | 675 BTU / 198W |
| Electric element | 300W (included) |
| Tube layout | 19 tubes |
| Tube diameter | 22mm |
| Model | Straight / Flat |
| Material | Mild steel |
| Finish | Chrome |
| Valve connection | ½" BSP · matching dual fuel kit available |
| Dual-fuel ready | ✓Yes |
| Pre-filled | ✓Yes — glycol (anti-freeze & anti-corrosion) |
| Element entry | Bottom inlets — left or right hand side |
| Standard | BS EN 442 · 10-bar tested |

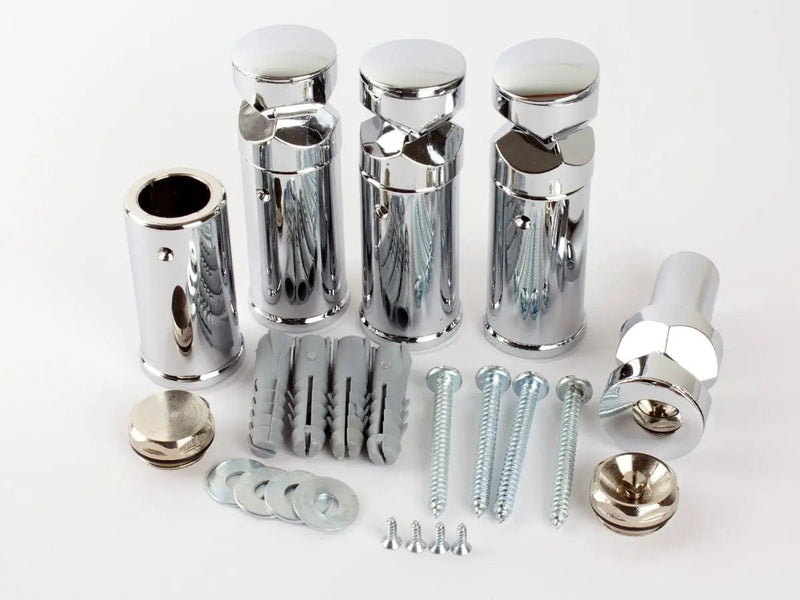

| In the box | Towel rail, standard element, angled valves, T-piece, brackets, fixings |
| Warranty | 5 years (towel rail) · 1 year (element) |
532BTU
156W at ΔT50
ΔT30 273 BTU 80W
ΔT60 675 BTU 198W
✓
Dual-fuel ready
Element & valves
included in the box
included in the box
✓
19 heated tubes
1000mm height — more heat,
more hanging space
more hanging space
Free UKdelivery
In stockships today
30-dayreturns
Need help measuring? BTU calculator ↗
Running Cost — Electric Mode
When the boiler is off, the 300W element keeps the rail warm. Adjust below to match your usage.
1 h
15p
Estimated daily running cost for the 300W electric element. Adjust hours and rate to match your usage and tariff.
—
per day
—
per month
Dual Fuel Setup — Choose Your Valves
Two ways to connect this rail to dual fuel — pick the one that suits your pipework.
Dual Fuel Ready Corner Valves Wall pipes · neatest
- Built-in T-piece — no extra adaptor needed
- Designed for pipes from the wall only
- Available in Chrome, White, Matt Black, Anthracite
Dual fuel tip: when you're heating on the electric element, close one of the two central-heating valves. This stops heat escaping back down your central-heating pipes, so the element only warms the rail. Either valve is fine — left or right — as long as one stays shut. When the boiler comes back on in autumn, reopen it so hot water can flow through the system again.

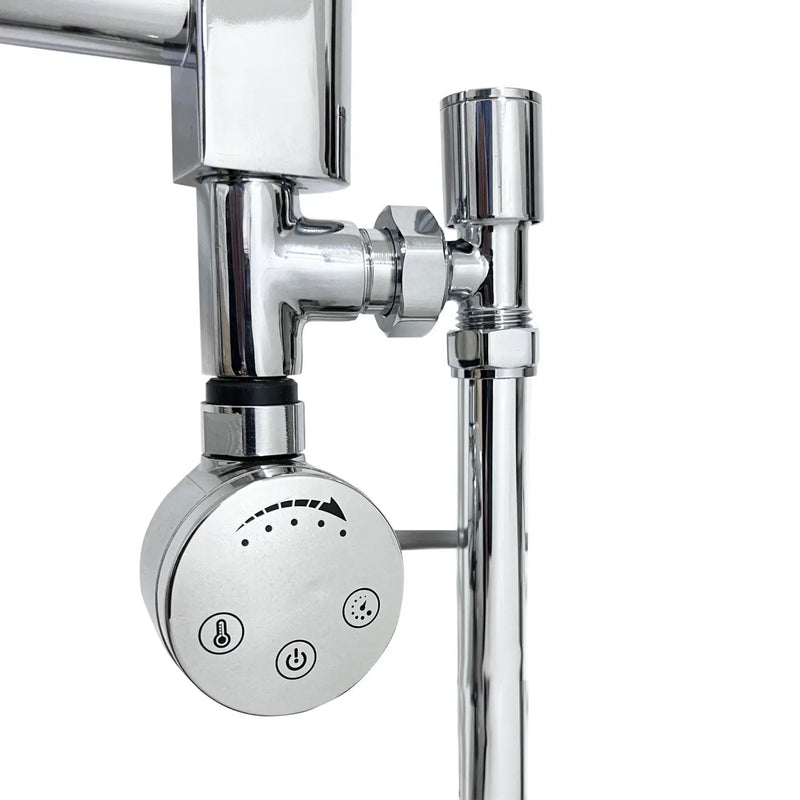

Choose Your Dual Fuel Element Kit
The element makes the rail work when your boiler is off. Pick how much control you want — each kit comes complete with the T-piece and matching-finish valves, and is fitted by your electrician into the bottom inlet — on either the left or right hand side.
Single Heat Basic
- On/off at full power — no thermostat
- Lowest cost element option
- Compatible with wall timers
- Complete kit — includes T-piece + matching valves
ER-Touch Thermostatic Set & hold
- Set target temperature 45–65°C
- Cycles to hold temp — saves energy vs flat-out
- Touch dial on element head
- 1–5 hour drying mode · IPX4 rated
- Complete kit — includes T-piece + matching valves
A qualified electrician must install the element and connect it to a fused spur — a regulatory requirement for bathroom electrics in the UK.
Watch our installation guide on YouTube ↗
Watch our installation guide on YouTube ↗
Add a Timer (Optional)
Controls when the element runs — can be added or upgraded at any time.
No Timer
- Towels stay cold until you switch on manually
- Runs all day if you forget
Complete the look
Frequently bought together with this rail.
Standard Heating Element ↗
Electric backup for when the boiler is off
£24.99
Pipe covers (pair) ↗
Snap over the valve pipes for a clean finish
£5.99
Towel rail pegs (pair) ↗
Doubles the hanging area — tool-free fit
£10.99

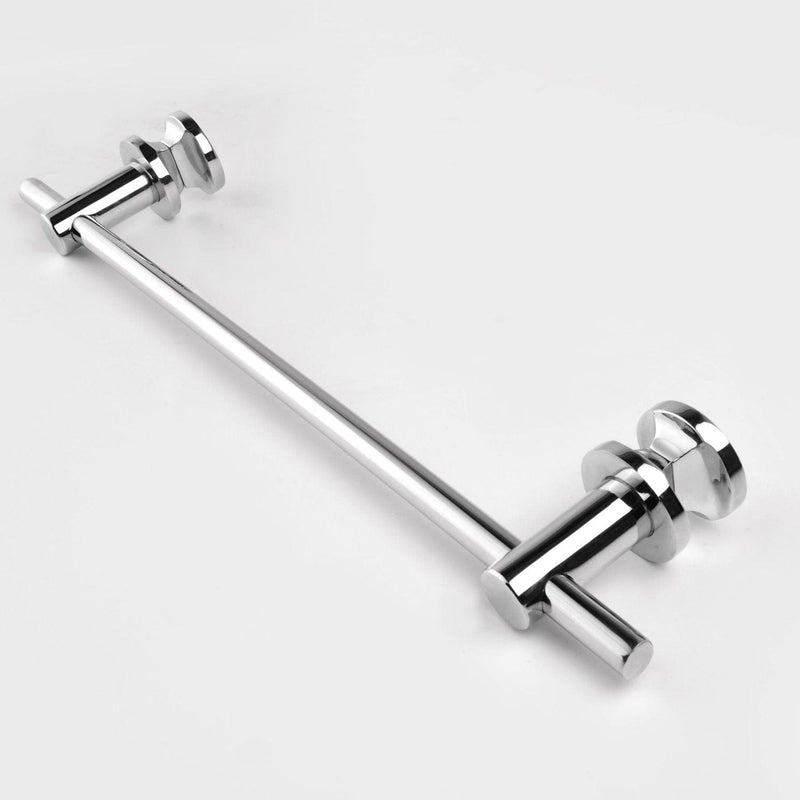

Extra Towel Rail Bar 460mm ↗
Adds an extra hanging rail — tool-free fit
£24.95
Frequently Asked Questions
Q.
What makes this a dual fuel towel rail?
A. It connects to your central heating via valves and also has a bottom inlet for a 300W electric element. In winter, your boiler heats it. When the boiler is off — in summer or a mild evening — the element keeps it warm independently.
Q.
Can I use it as electric-only without connecting to central heating?
A. Yes. Isolate the valves and run purely on the electric element. However, if there's no existing pipework, the pre-filled electric-only version is a simpler and neater installation.
Q.
Do I need both a plumber and an electrician?
A. For a full dual fuel setup, yes — a plumber connects the rail to your central heating via valves, and a qualified electrician wires the element to a fused spur. Both are regulatory requirements for bathroom installations in the UK.
Q.
Is the electric element already fitted?
A. No. The element is ordered separately and shipped in the box. Your electrician fits it into the bottom inlet — on either the left or right hand side. You only need it if you want the rail to run when your central heating is off.
Q.
What does the glycol pre-fill do?
A. The glycol fluid acts as anti-freeze and anti-corrosion protection when the rail runs in electric mode. It also reduces noise and limescale build-up, helping the rail last longer. The rail is sealed — no top-ups required.
Q.

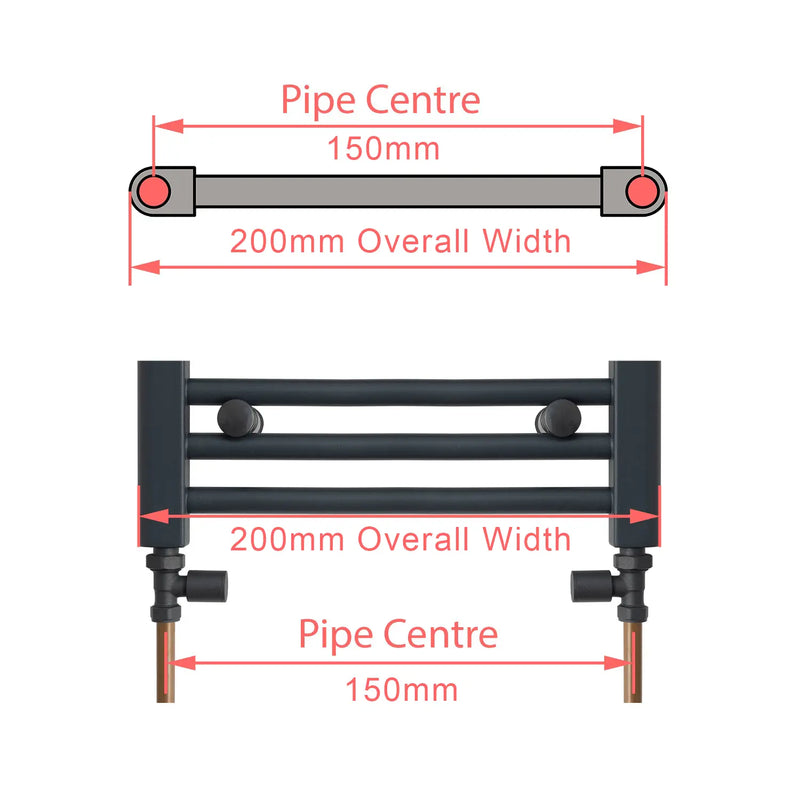

What are the pipe centres, and how do I check they match?
A. Pipe centres are 150mm — the horizontal distance between your hot and cold pipes at the wall. Measure between your existing pipe centres before buying. For a 200mm wide rail, 150mm is the standard spacing. A T-piece + angled valve combo shifts this by ~70–75mm if your pipes don't line up exactly.
Q.
Why do I close one central heating valve in dual fuel mode?
A. When you heat the rail on its electric element, close one of the two central heating valves. This stops heat escaping back down your central heating pipes, so the element only warms the rail. Either valve is fine — left or right — as long as one stays shut. When the boiler comes back on in autumn, reopen it so hot water can flow through the system again.
