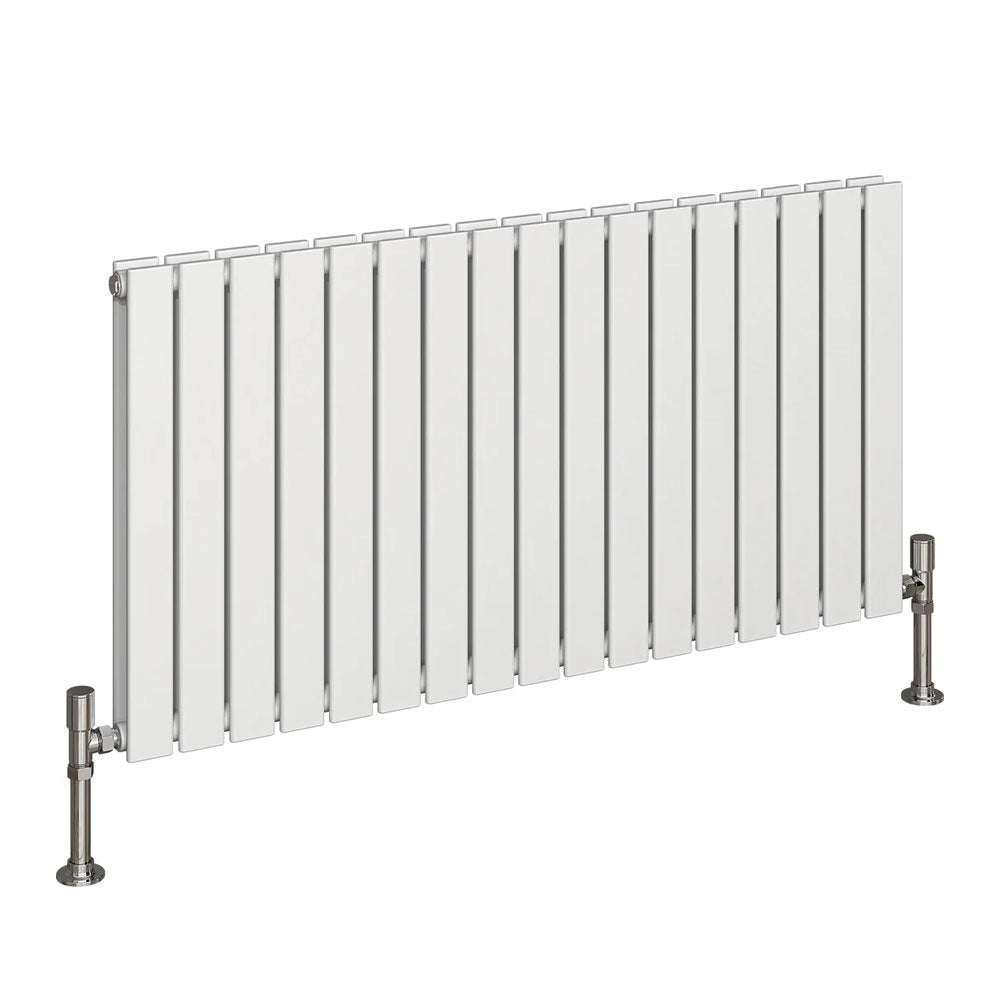

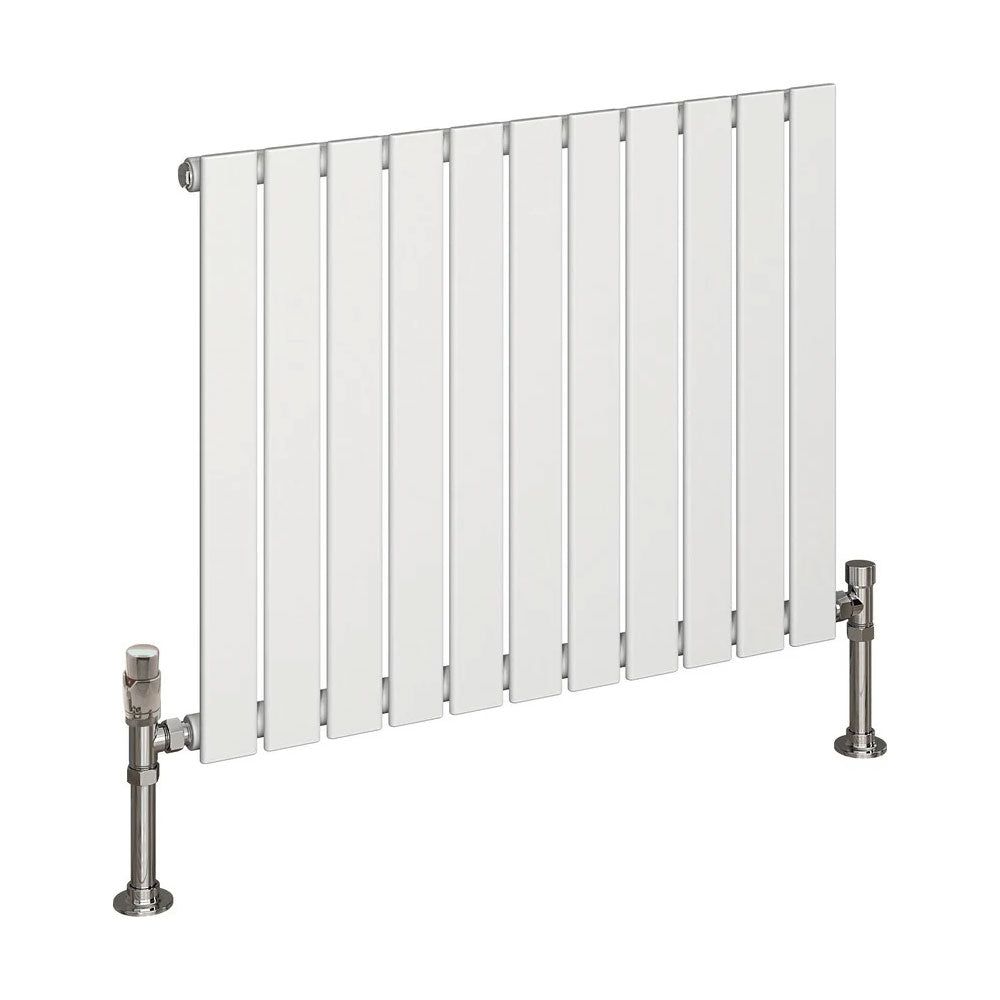

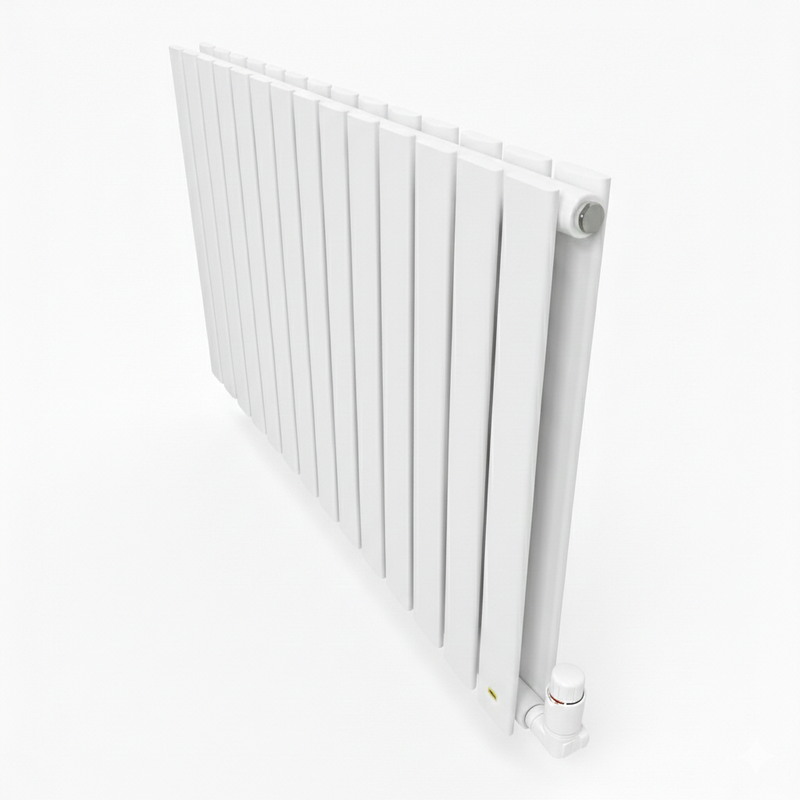

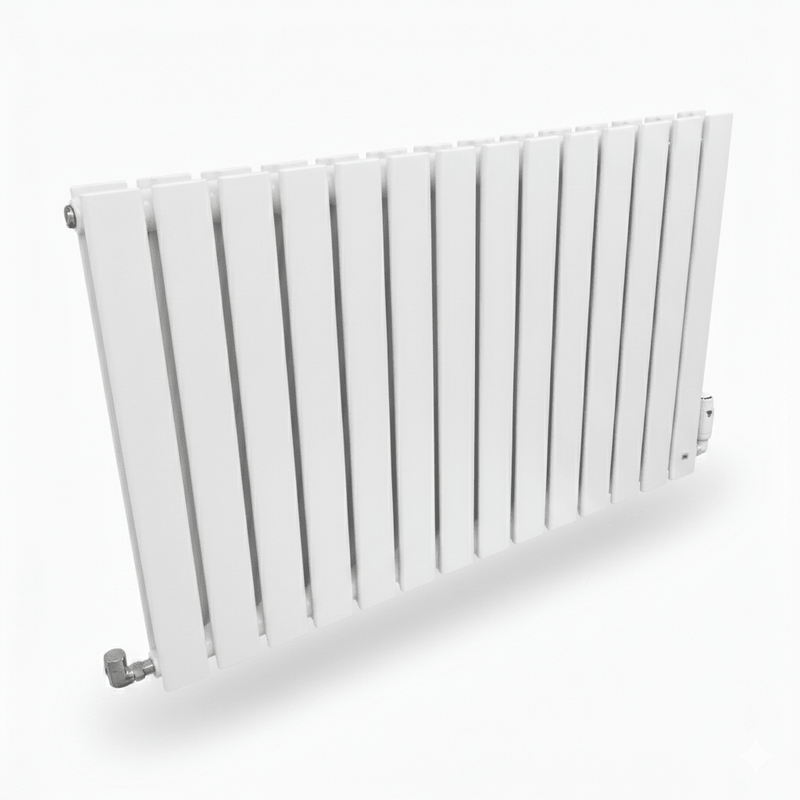

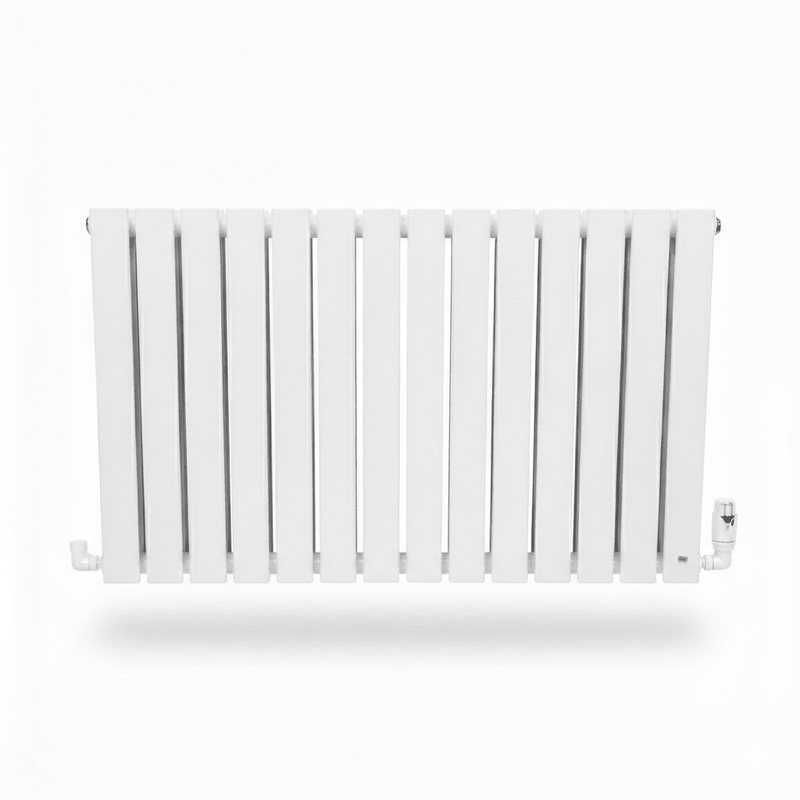

Elegant Flatty White Horizontal Column Panel Radiators – 600mm Height Single / Double
Enhance your space with the timeless appeal and reliable warmth of a 600 mm white horizontal column panel radiator. The classic horizontal layout is perfect for installation under windows or along standard walls, providing excellent heat distribution. The smooth white finish complements any interior décor, from traditional to contemporary. Choose a Single Panel for a slimmer profile or a Double Panel when you need a higher BTU output for larger spaces.
Why this model?
- Efficient Heat Distribution: The wide column design ensures consistent and comfortable warmth across the room.

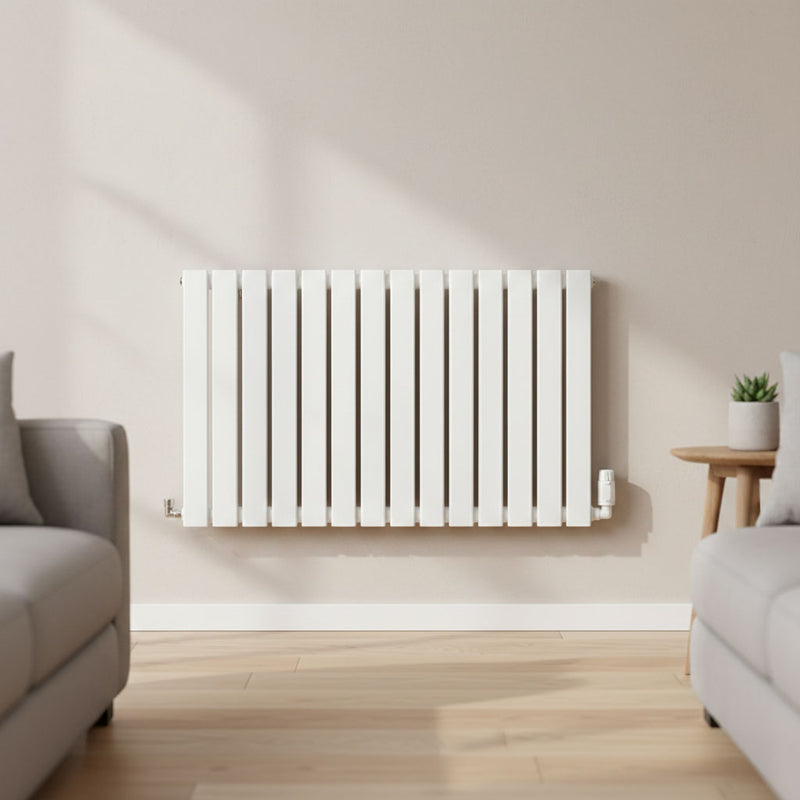

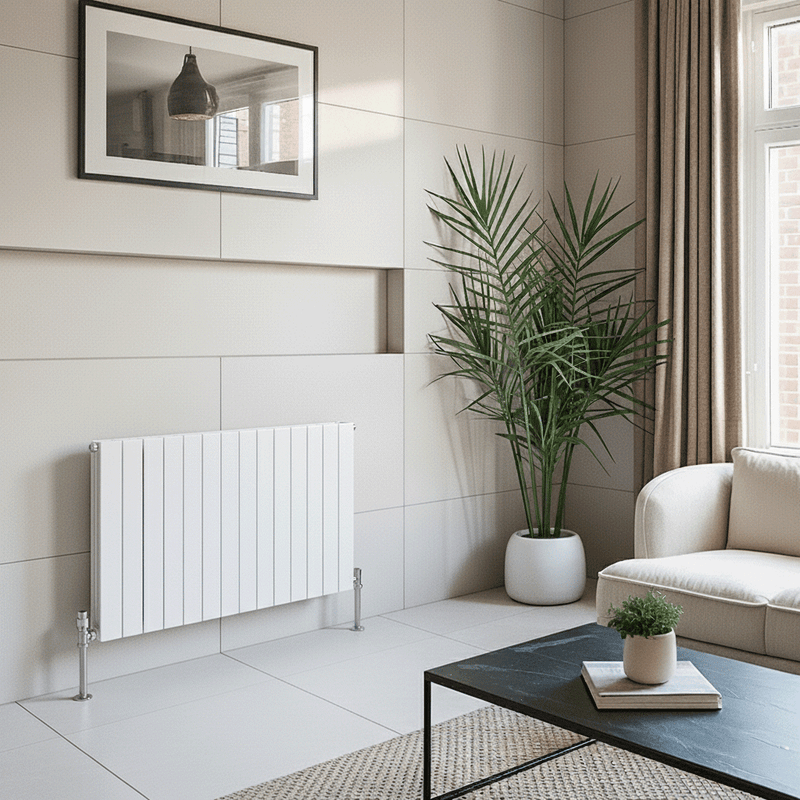

- Versatile Installation: The classic low-profile design fits perfectly under windows and integrates seamlessly into traditional room layouts.
- Built for Everyday Life: The durable, smooth white finish is easy to clean and maintains a fresh, bright appearance for years to come.

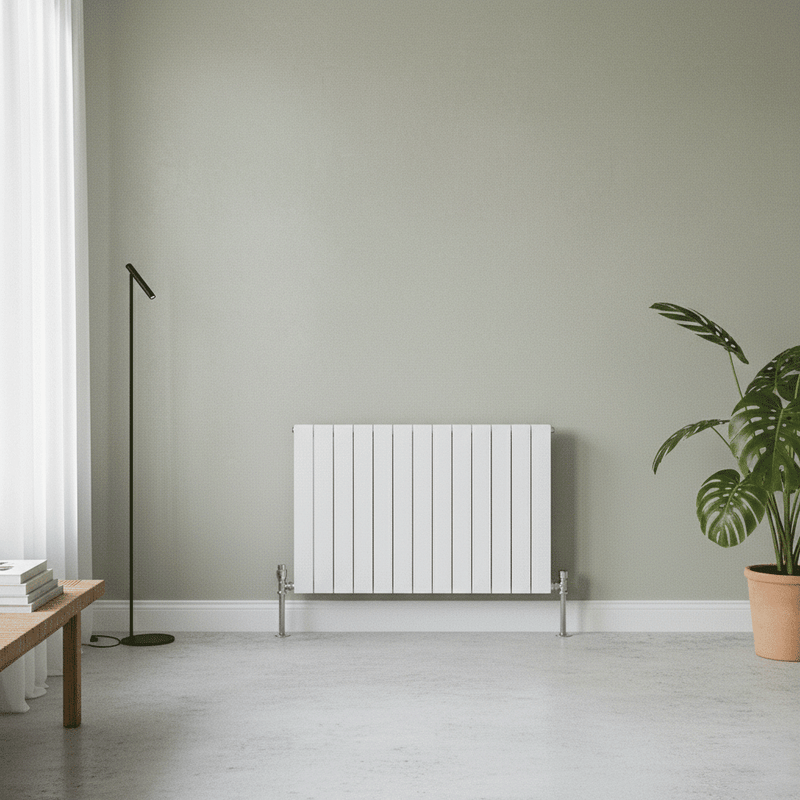

Single vs Double Panel
- Single Panel: A slimmer profile; ideal for smaller rooms or where projection from the wall is a concern.
- Double Panel: Greater surface area provides a higher BTU output, making it ideal for larger rooms or areas with higher heat loss.
Available Widths & Panel Options (600 mm Height – White Horizontal)
| H (mm) | W (mm) | Type | Bars | Pipe Centres |
Wall Pipe | Wall Distance |
BTU | W |
|---|---|---|---|---|---|---|---|---|

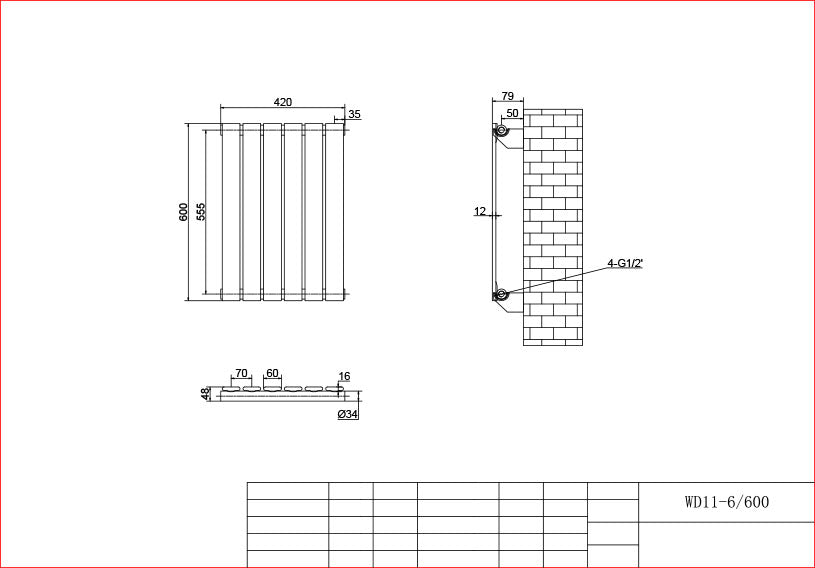

| 600 | 420 | Single | 6 | 420 mm | 50 mm | 79 mm | 1220 | 358 |

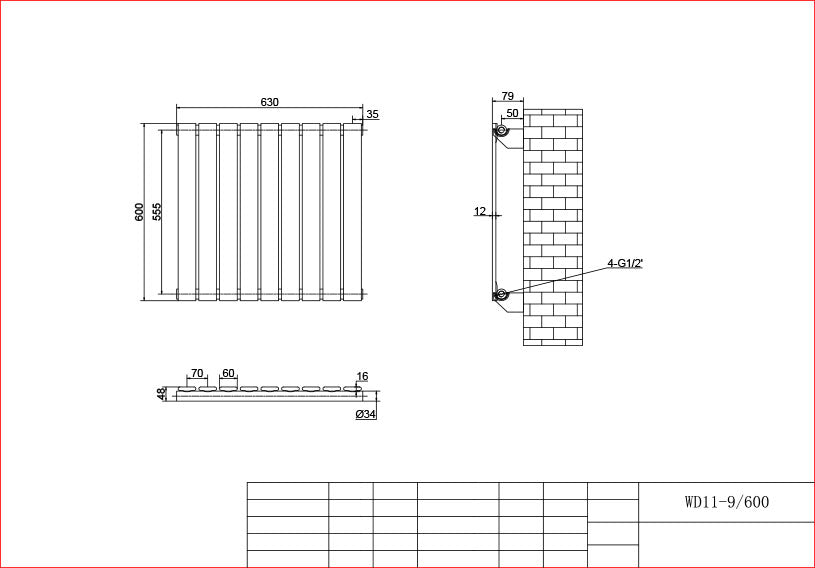

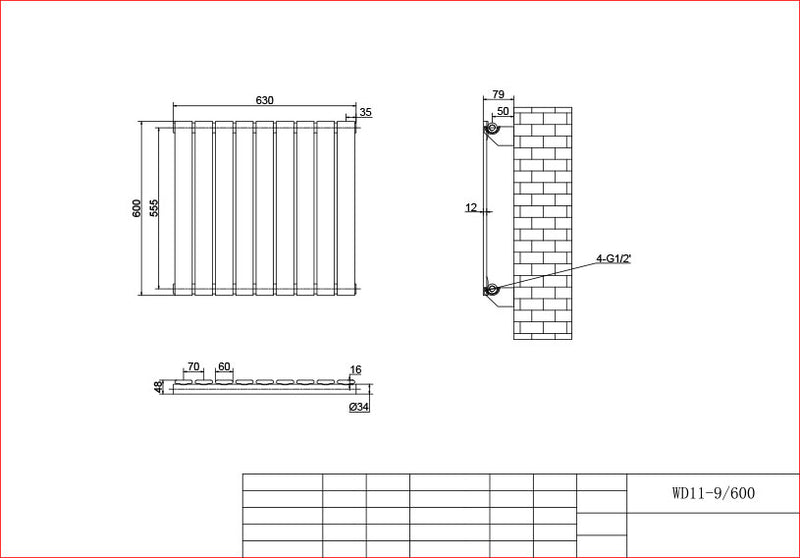

| 600 | 630 | Single | 9 | 630 mm | 50 mm | 79 mm | 1830 | 537 |

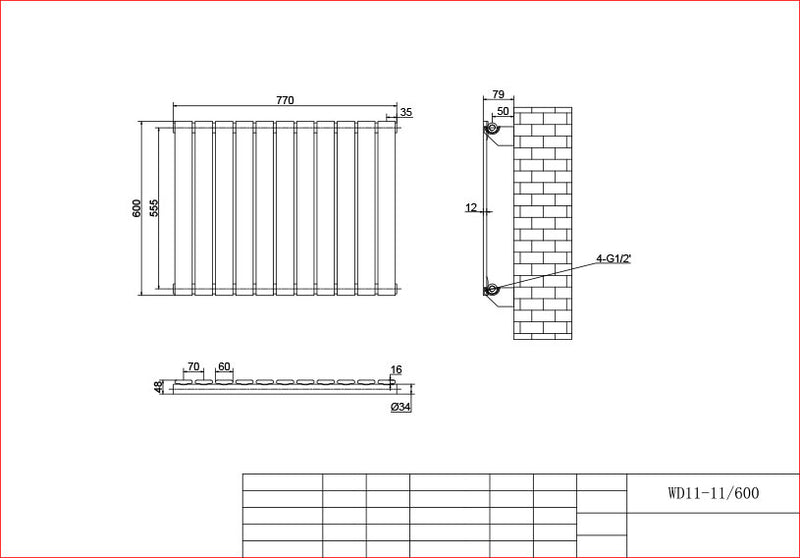

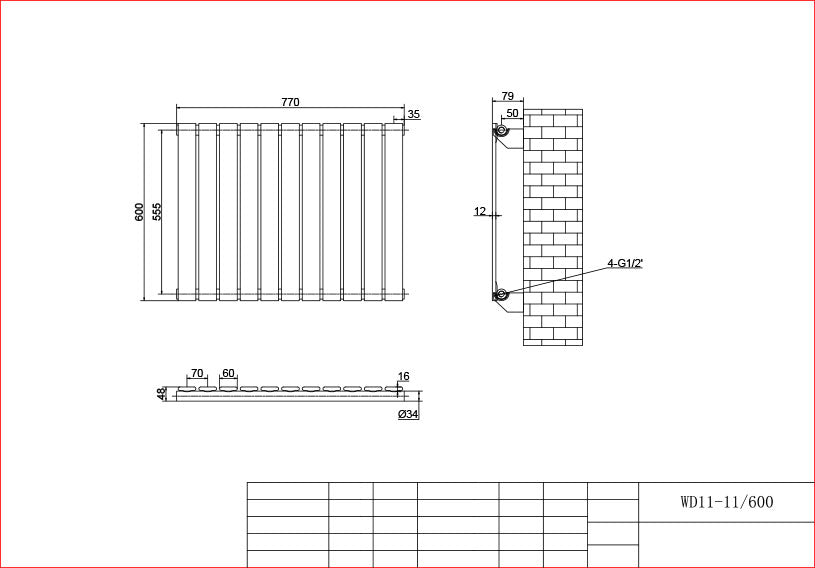

| 600 | 770 | Single | 11 | 770 mm | 50 mm | 79 mm | 2236 | 656 |

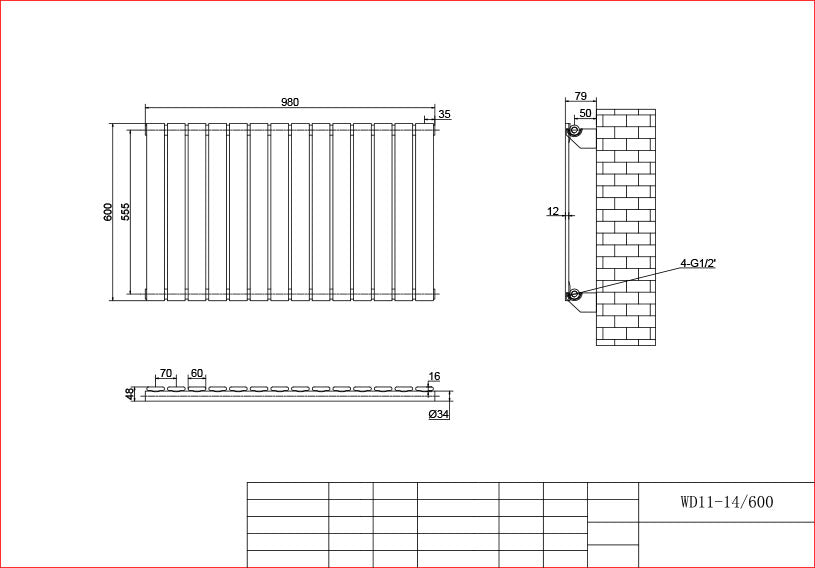

| 600 | 980 | Single | 14 | 980 mm | 50 mm | 79 mm | 2845 | 834 |

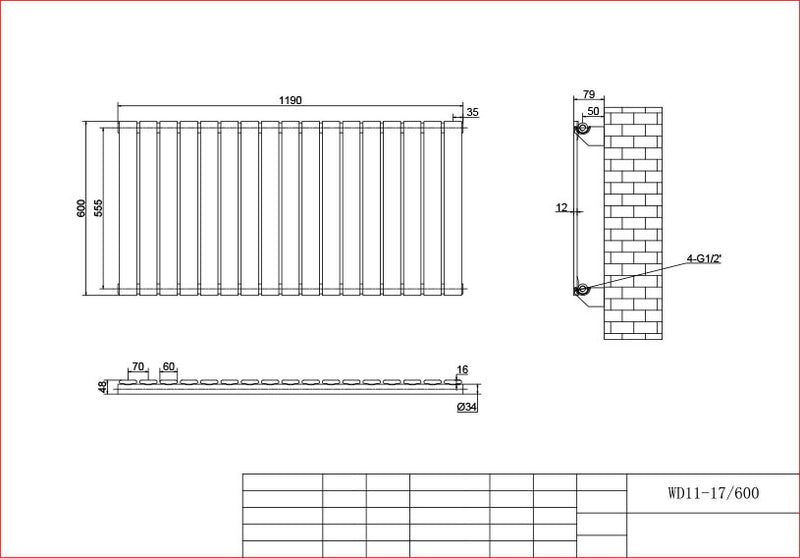

| 600 | 1190 | Single | 17 | 1190 mm | 50 mm | 79 mm | 3457 | 1014 |

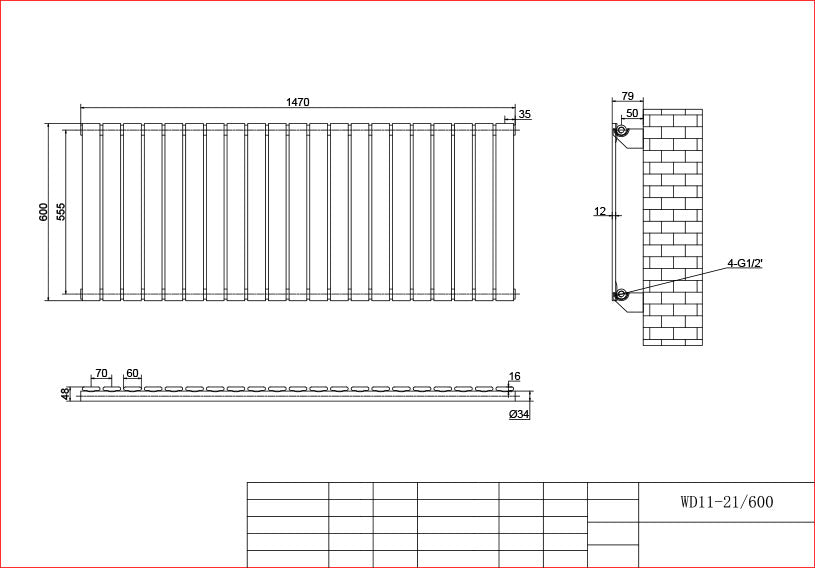

| 600 | 1470 | Single | 21 | 1470 mm | 50 mm | 79 mm | 4271 | 1252 |

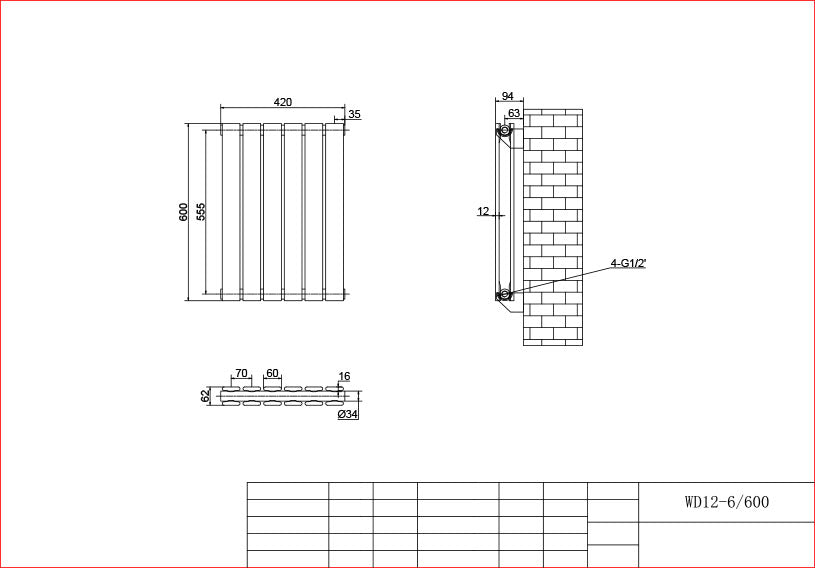

| 600 | 420 | Double | 12 | 420 mm | 63 mm | 94 mm | 1974 | 579 |

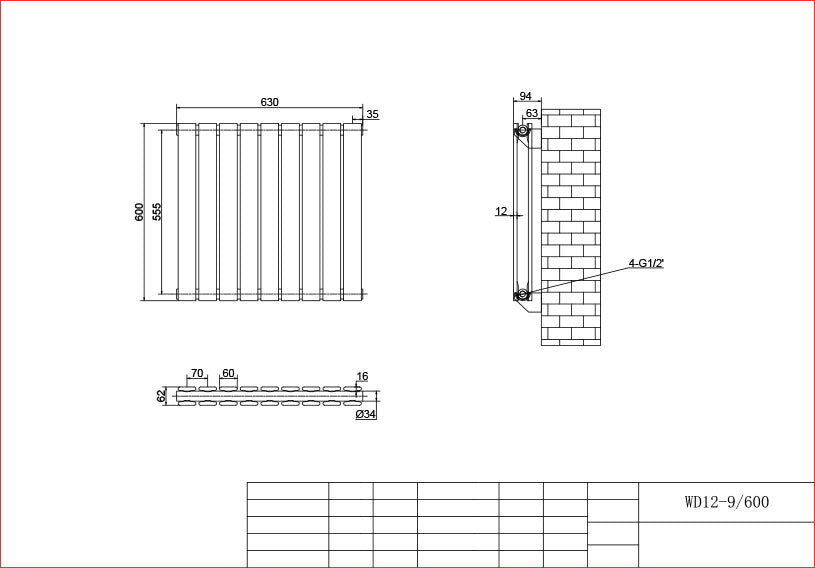

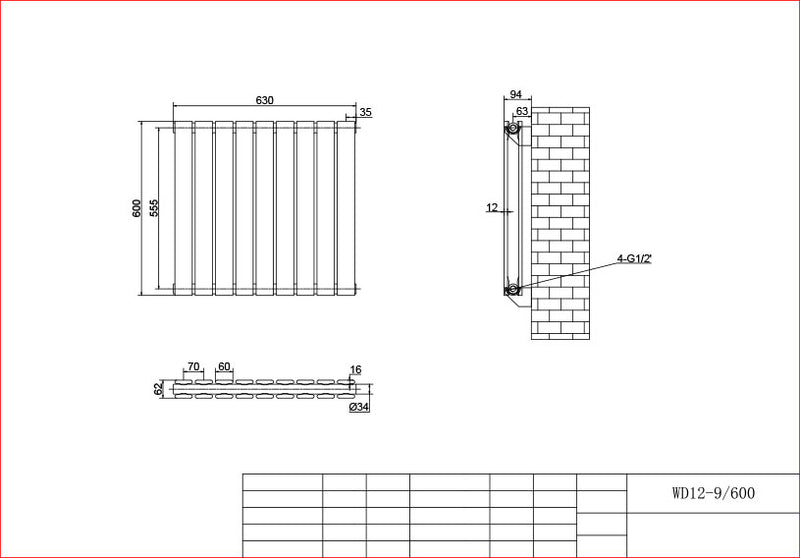

| 600 | 630 | Double | 18 | 630 mm | 63 mm | 94 mm | 2961 | 868 |
| 600 | 770 | Double | 22 | 770 mm | 63 mm | 94 mm | 3618 | 1061 |

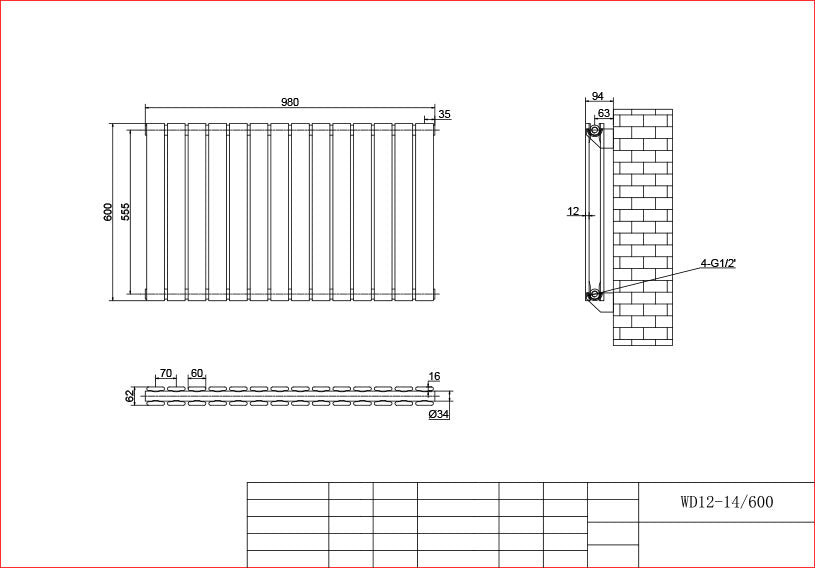

| 600 | 980 | Double | 28 | 980 mm | 63 mm | 94 mm | 4606 | 1351 |

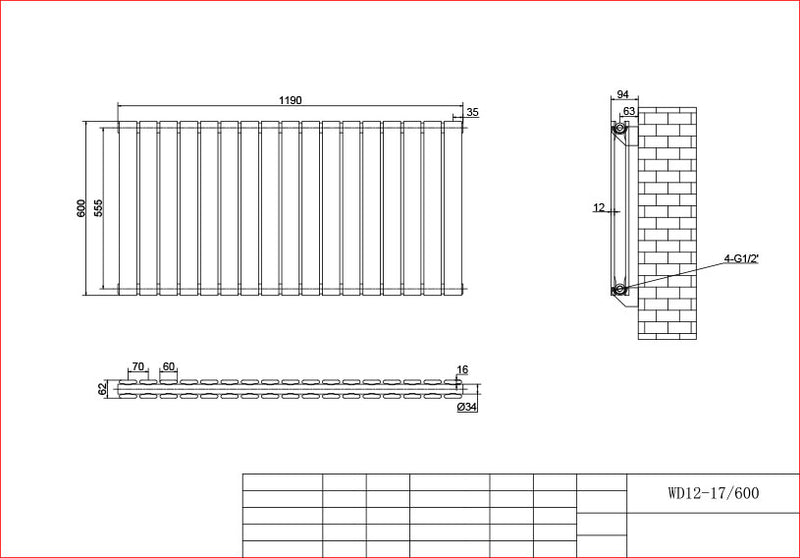

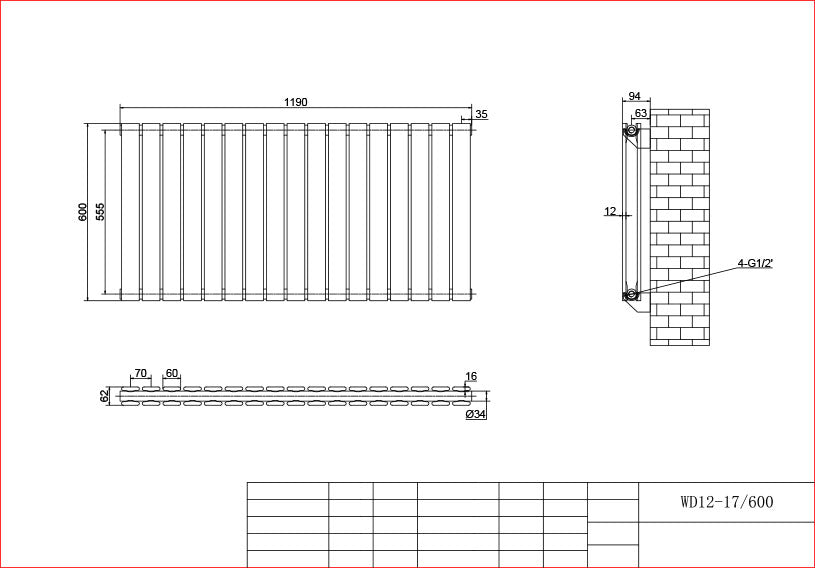

| 600 | 1190 | Double | 34 | 1190 mm | 63 mm | 94 mm | 5594 | 1640 |

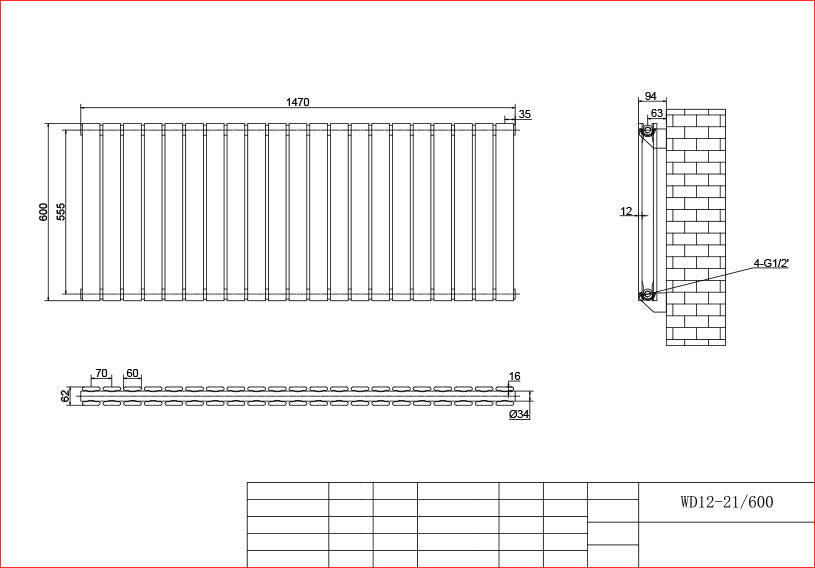

| 600 | 1470 | Double | 42 | 1470 mm | 63 mm | 94 mm | 6909 | 2026 |
Sizing & BTU Guidance
Always size your radiator by BTU requirement rather than physical dimensions. Use our BTU Calculator to estimate the ΔT50 BTU output needed based on room dimensions, insulation, and glazing. You can meet the total BTU requirement with one larger radiator or by combining multiple radiators in the same room.
What’s Included
- Wall brackets & fixings
- Blanking plug & bleed valve
- Installation guide
Valves not included. Pair with angled or straight valves to suit your pipework; a thermostatic (TRV) set is recommended for finer temperature control.
Quick Spec
| Orientation | Horizontal |
| Finish | Classic White, smooth and easy-to-clean |
| Material | Low-carbon steel |
| Compliance | BS EN 442 |
| System Type | Closed-loop (water) central heating |
| Connections | Standard radiator valve connections |
| Warranty | 5 Years |
| Product Type | Panel Radiator |
| Panel Options | Single & Double Panel |
| Orientation | Vertical |
| Material | Steel |
| Finish | Anthracite (RAL 7016) |
| Available Heights | 1600 mm, 1800 mm |
| Available Widths | 300 mm – 600 mm |
| BTU Range (ΔT50) | 2,697 – 7,973 BTU/hr |
| Watt Range | 791 – 2,338W |
| Connection Type | Bottom connection |
| Thread Size | ½" BSP |
| Pipe Centres | 50 mm from wall |
| Working Pressure | 10 bar |
| Test Pressure | 13 bar |
| Heating System | Central Heating (Hot Water) |
| Standard | BS EN 442 Certified |
| Included | Wall brackets, fixings, blanking plug, bleed valve |
| Not Included | Radiator valves (sold separately) |
| Warranty | 5 Years |
| MPN / SKU | RV-HRH066SW |
| Brand | Elegant Radiators |
Customer Reviews
Excellent product.
Fast UK Delivery
Order before noon for next working day delivery anywhere in the UK mainland.
5 Years Guarantee
Every product is backed by a manufacturer guarantee for complete peace of mind.
Expert Advice
Real heating specialists — not a call centre. WhatsApp us for instant help.
Trusted Since 2012
UK-based in Coventry with 14 years serving homeowners, plumbers & designers.
Powerful Heat, Sleek Design
Don't compromise on warmth for style. This radiator delivers serious heat output while looking stunning in any room — from living spaces to hallways and bedrooms.
Connected to your central heating system, it provides consistent, controllable warmth throughout the heating season with zero extra running costs.
Built to Last — 5 Years Guarantee
Every radiator is independently tested to BS EN 442 — the European standard for radiator heat output. The numbers we show are real, tested figures.
- Carbon Steel construction with quality welds
- Pressure tested: 13 bar test, 10 bar working pressure
- 5 Years guarantee — we stand behind every unit
- Compatible: All central heating systems, combi & system boilers
Everything You Need (Except Valves)
Each radiator arrives with all the wall mounting hardware. The only extra you'll need is a pair of radiator valves — we sell matching sets separately.
- Included: Wall brackets, fixings, blanking plug, bleed valve
- Included: Installation guide with dimensions
- You'll need: A pair of radiator valves (angled or corner)
- Installation: DIY-friendly for like-for-like swaps
Single vs Double Panel
Double panel radiators output roughly 60–80% more BTUs than single panel in the same dimensions. Choose double for larger rooms or if you want more heat from a smaller footprint. Single panels are slimmer and lighter.
- Single Panel: Slimmer profile (~50mm), lighter, ideal for smaller rooms or hallways
- Double Panel: Higher heat output (~60-80% more BTU), deeper (~100mm), best for living rooms and bedrooms
