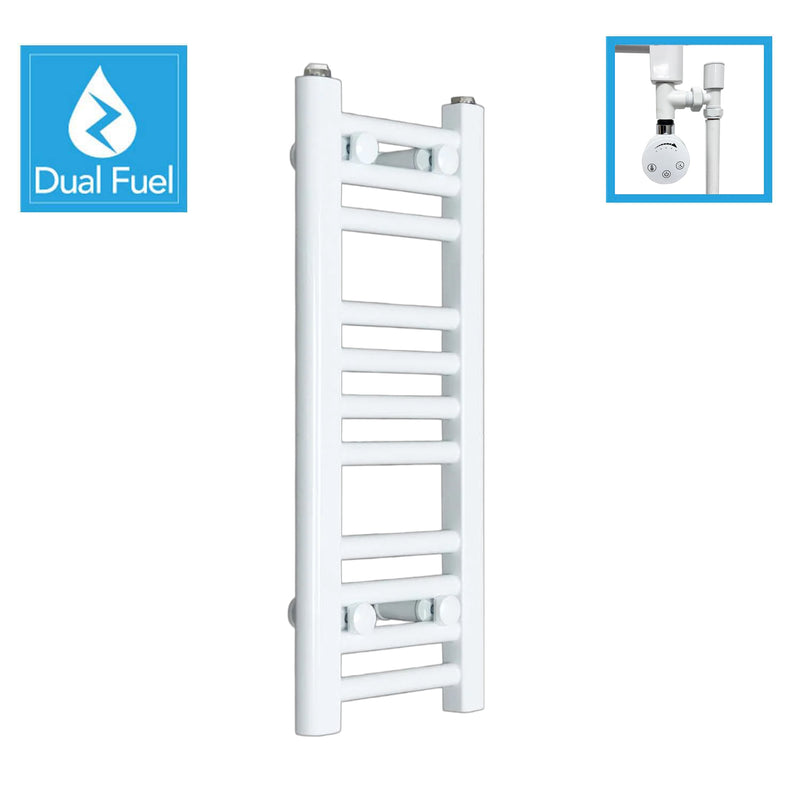

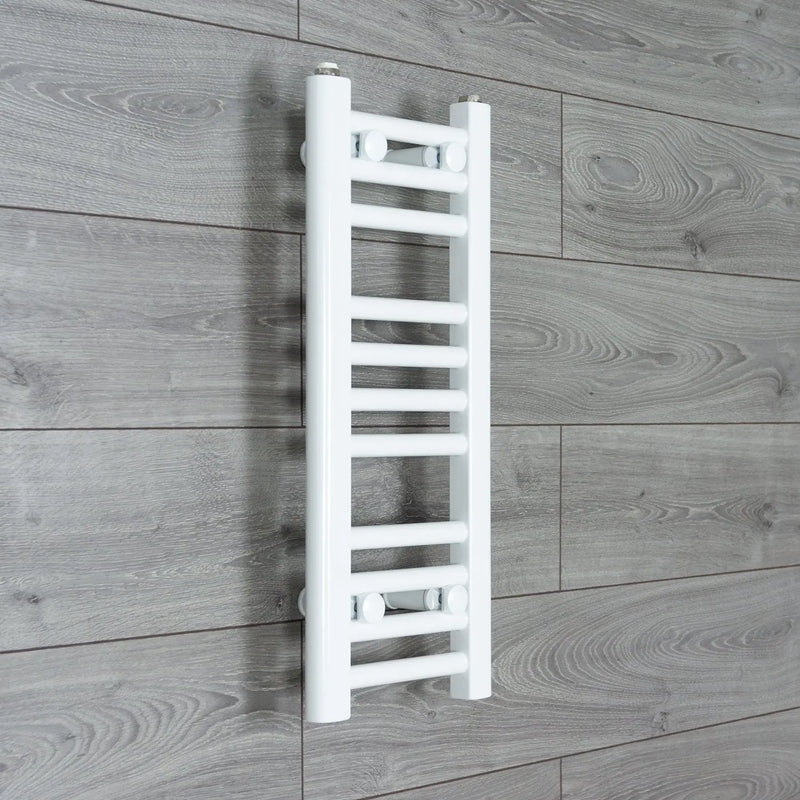

Eleven tubes in a 200mm-wide frame at 600mm tall with a 150W thermostatic heating element. 420 BTU at ΔT50 delivers confident warmth from your central heating in winter — then switch to electric mode for warm, dry towels all summer without firing up the boiler. Matt white powder coat on mild steel, BS EN 442 tested.
| Manufacturer ID | FW-20-60-DFK-SMR |
| Height | 600mm |
| Width | 200mm |
| Projection from wall | 90–110mm |

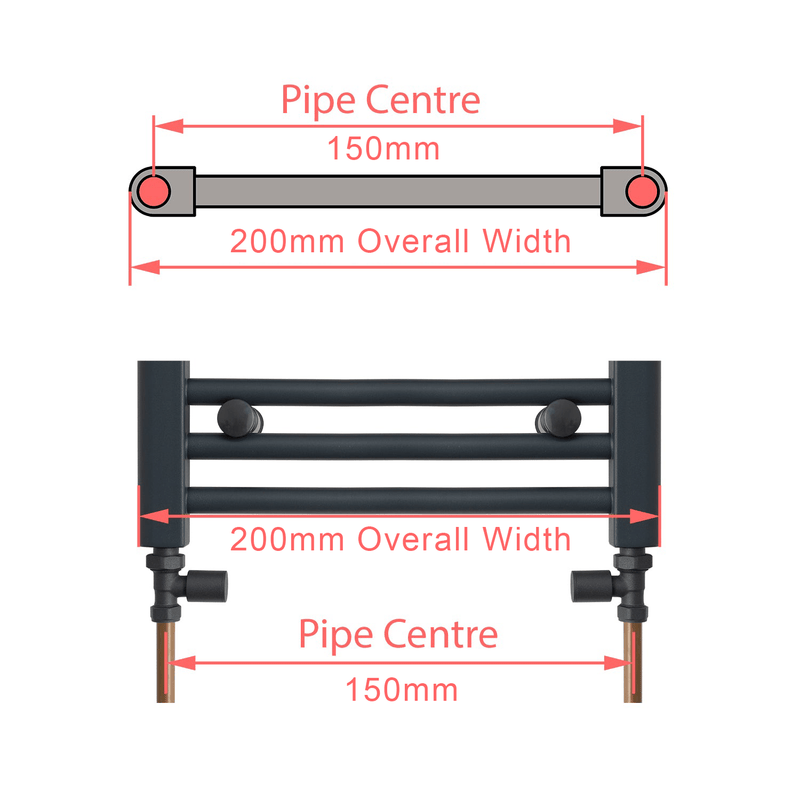

| Pipe centres | 150mm |
| Heat output (ΔT30) | 217 BTU · 64W |
| Heat output (ΔT50) | 420 BTU · 123W |
| Heat output (ΔT60) | 532 BTU · 156W |
| Tube layout | 3+4+4 (11 tubes total) |
| Tube diameter | 22mm |
| Element power | 150W |
| Element options | Single Heat · ER-Touch Thermostatic |
| Timer options | None · Booster · Digital · Wifi |
| DFK connection | T-piece + angled valves or corner tee |
| Warranty | 5 years (towel rail) · 1 year (element) |
| Model | Straight / Flat |
| Material | Mild steel |
| Finish | Matt white powder coat |
| Valve connection | ½" BSP |
| Dual-fuel ready | ✓Yes (with element) |
| Electric-only ready | ✓Yes (with element) |
| Standard | BS EN 442 |
| In the box | 4× adjustable white brackets, screws, rawl plugs, washers, blanking & bleed plug, ER-Touch heating element, dual-fuel T-piece adaptor |
| Warranty | 5 years |
Dual fuel gives you the best of both worlds. In winter, the radiator runs from your central heating system like a normal heated towel rail. In summer, you switch to the built-in electric element for warm towels without turning on your entire boiler. A T-piece adaptor allows both the central heating water and the electric element to connect to the same rail — they never run at the same time.
No. Your chosen element ships separately in the box and must be fitted by a qualified electrician. The element screws into the T-piece adaptor (standard ½" BSP thread) and is wired to a fused spur connection. Full instructions are included.
You need one or the other — not both. A T-piece adaptor with angled valves works for both floor and wall pipes but extends pipe centres by 70–75mm. Corner tee dual fuel valves are all-in-one units that keep the pipe centres exactly the same but only work with wall pipes. Both options connect the central heating pipework and the electric element to the same rail.
No — and you would never need to. Dual fuel means you choose one heat source at a time. In winter, your central heating system keeps the rail hot alongside the rest of your home. In warmer months, the electric element heats the rail independently. The system is designed so only one heat source is active at any time.
The central heating side uses standard ½" BSP radiator valves — either straight (for floor pipes), angled (for wall pipes), or corner (for a neater wall-pipe finish). Valves are not included with the rail and must be purchased separately. We stock matching white valves on our website.
Your towel rail is covered by a 5-year manufacturer warranty. The heating element is covered for 1 year. This covers manufacturing defects and premature corrosion under normal domestic use. Labour costs are not included.
