Reina Designer Coneva Column Vertical Radiator
£177.60
£197.60
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Mild steel column. Vertical designer.
Product Overview & Key Specs

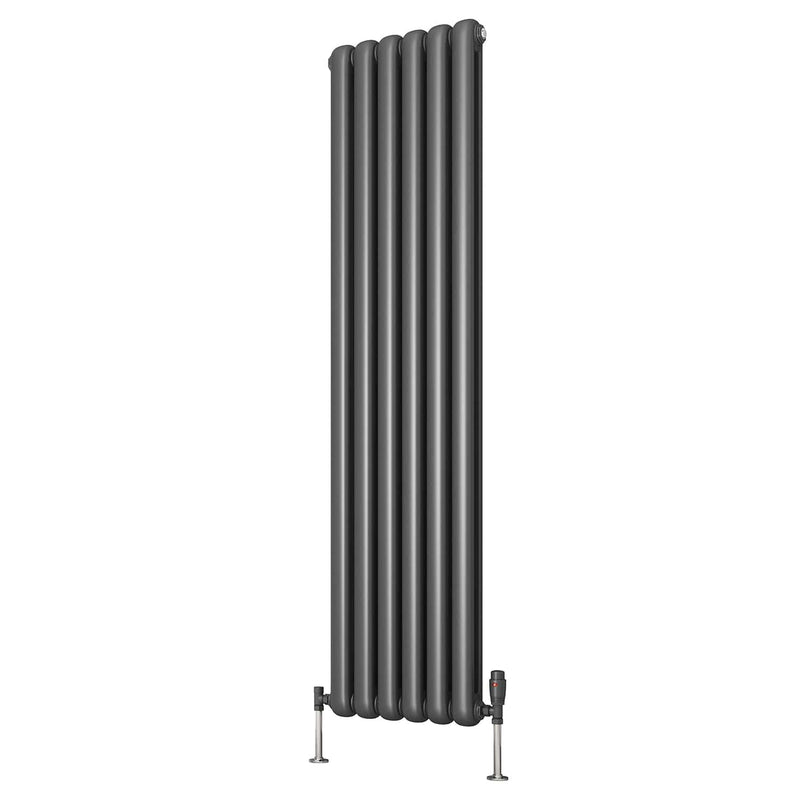

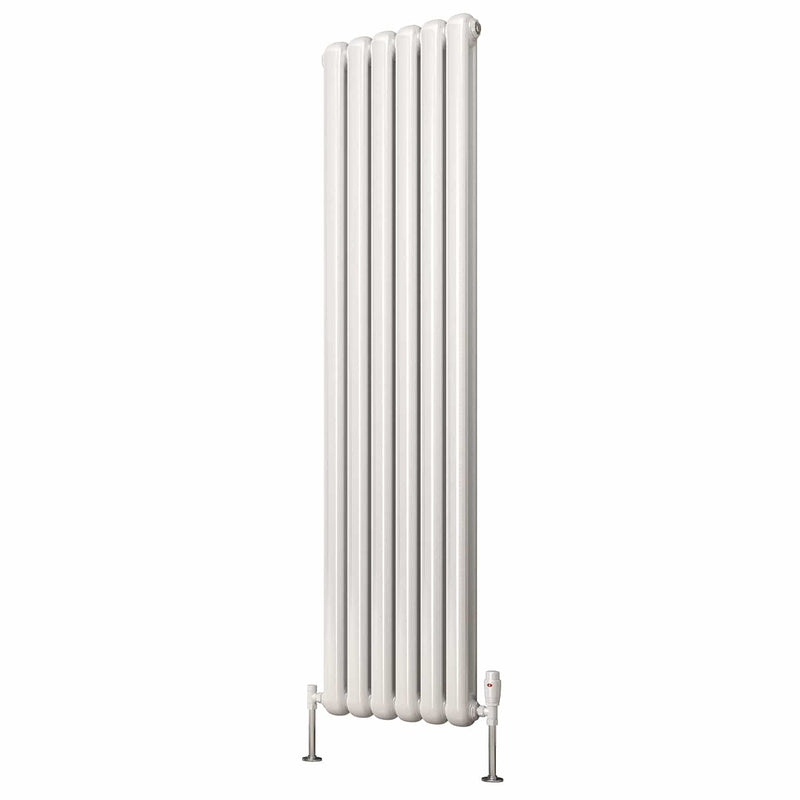

The Reina Coneva Vertical is a mild steel column central heating radiator, available 1500mm or 1800mm high in four widths from 300mm to 510mm, in White or Anthracite. A tall column profile with 4 to 7 bars delivers a high heat output from a narrow footprint, and the thick steel body holds its heat after the boiler switches off.
1500/1800mm
Two heights
300–510mm
Four widths
2
Finishes
ΔT30
Heat pump rated
5 yr
Warranty
View the Coneva in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Coneva in your room using augmented reality.
Why Mild Steel for Central Heating?
Three practical reasons a steel column radiator suits a modern central heating system.
Robust buildHard-wearing ✔
Thick-wall steel with a durable factory finish. A column radiator takes knocks and keeps its looks in hallways, kitchens and busy rooms.
Holds its heatSteady warmth ✔
Steel retains heat after the boiler switches off, so the room temperature stays steady instead of dropping away between cycles.
Column profileClassic look
4 to 7 vertical bars give a traditional column silhouette and a generous surface area for the heat output it delivers.

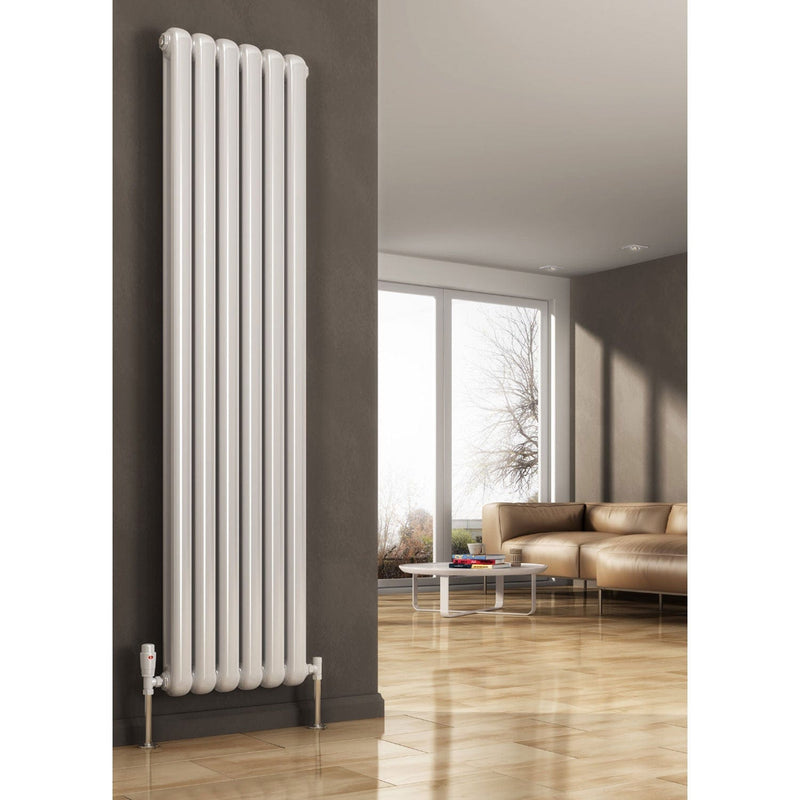

In the Room
The Coneva Vertical shown in three settings.
Choose Your Finish
White or Anthracite - same steel column body, same heat output.

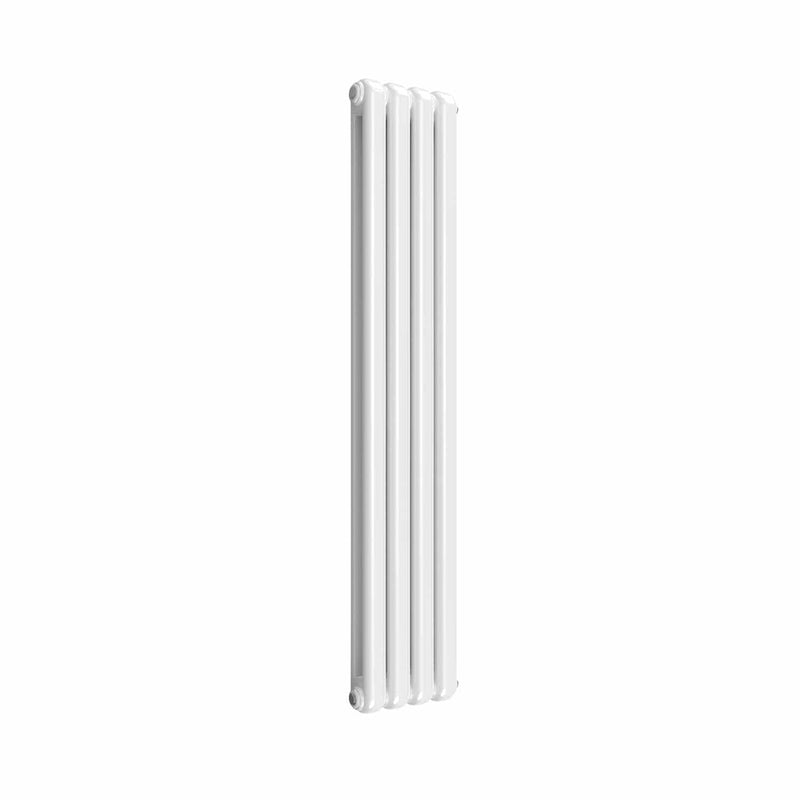

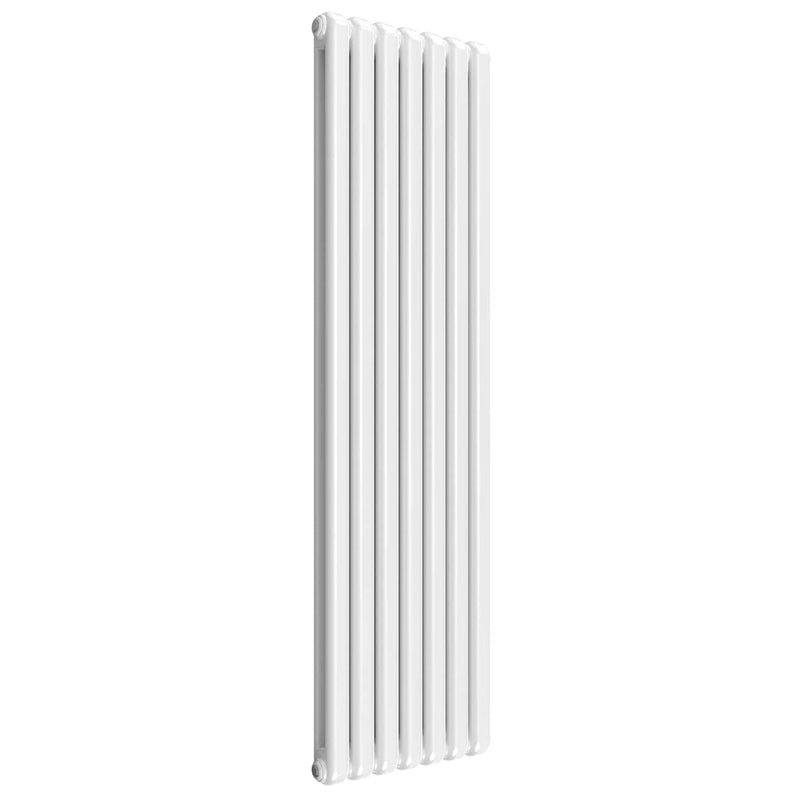

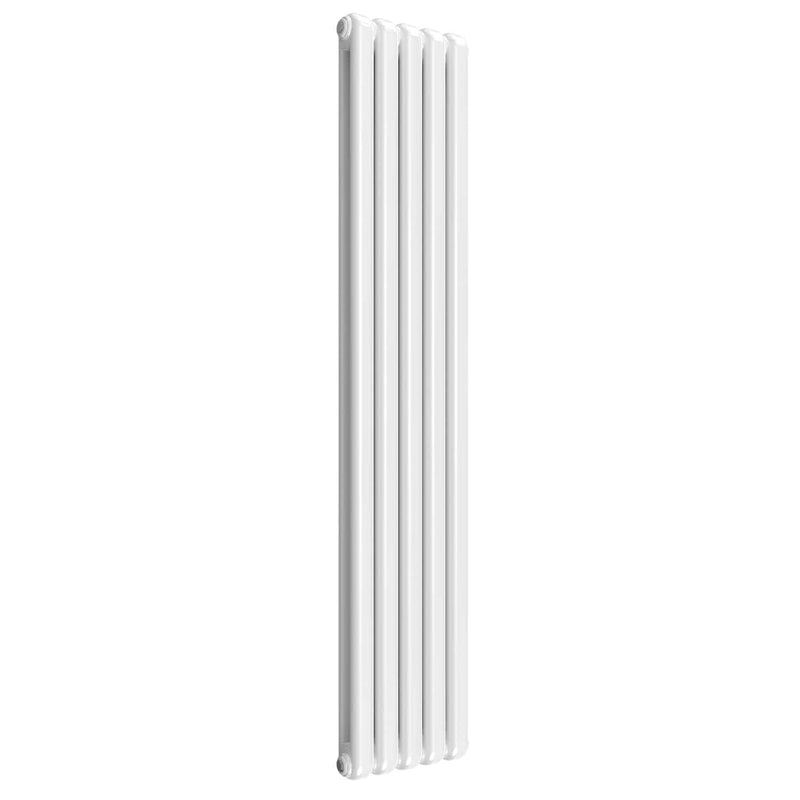

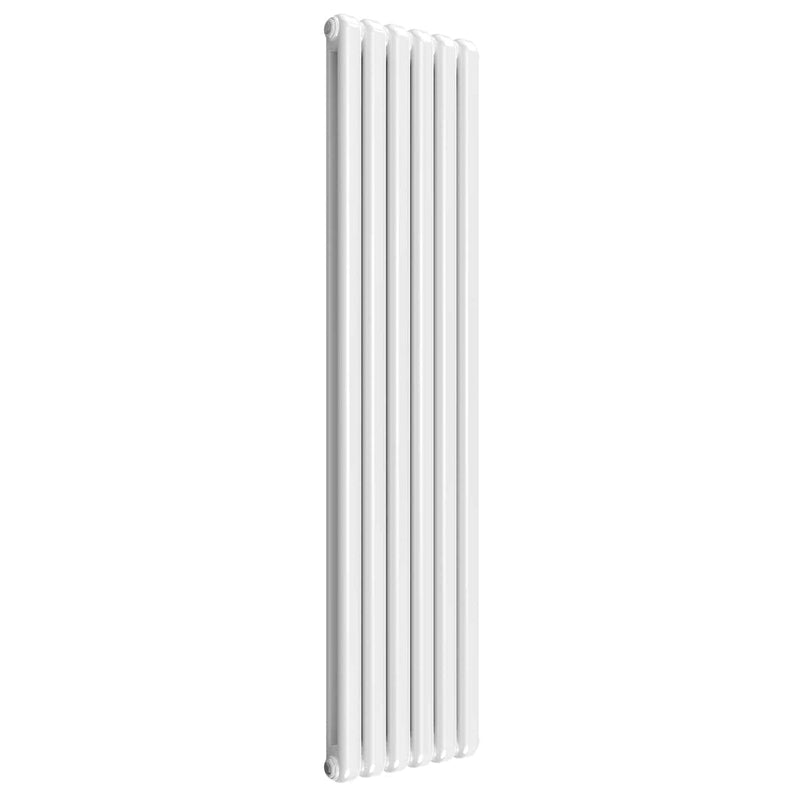

WhiteAll sizes

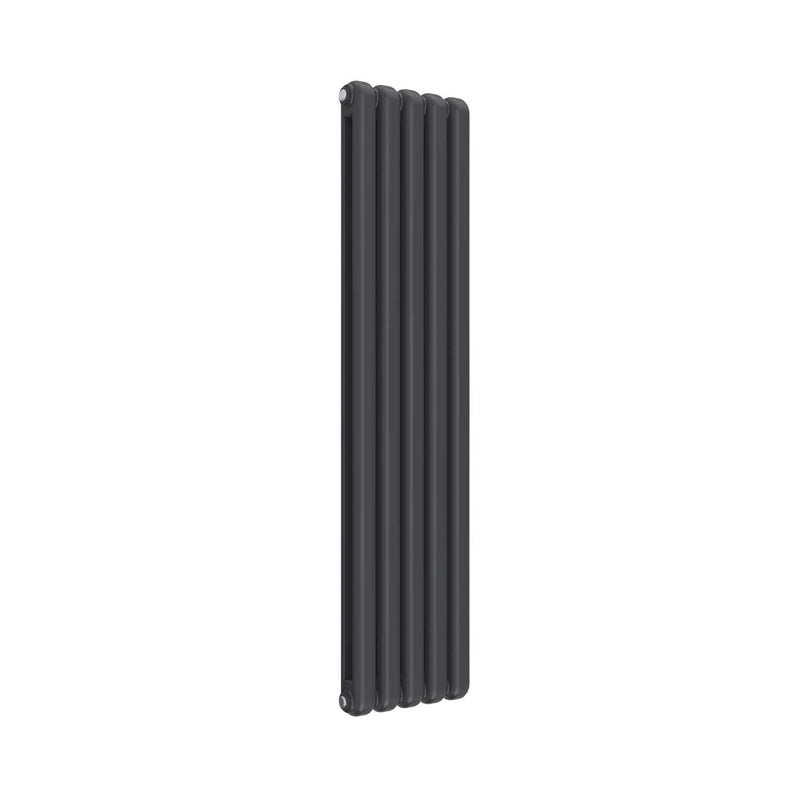

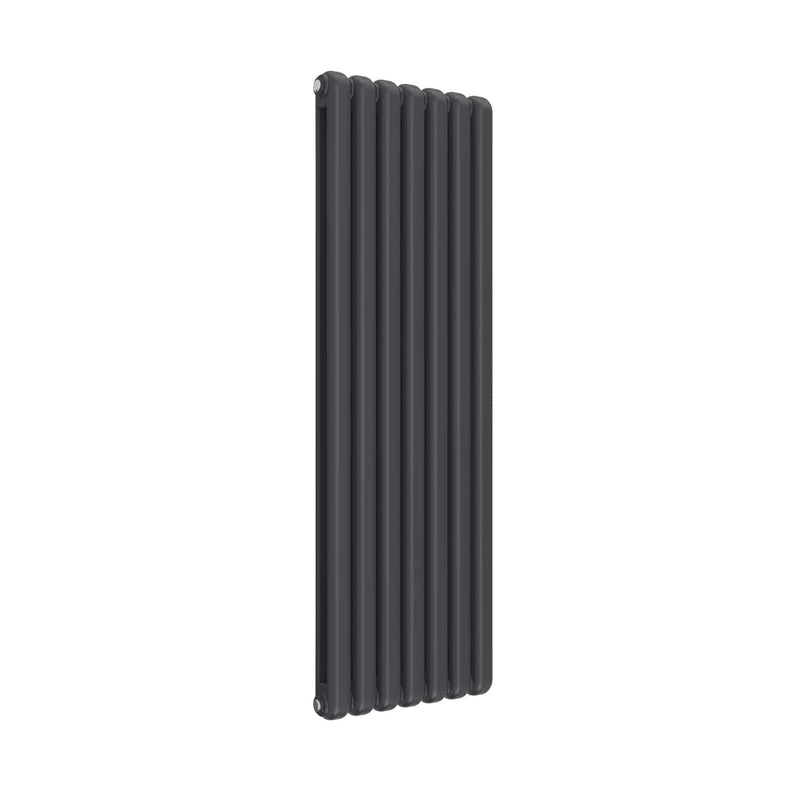

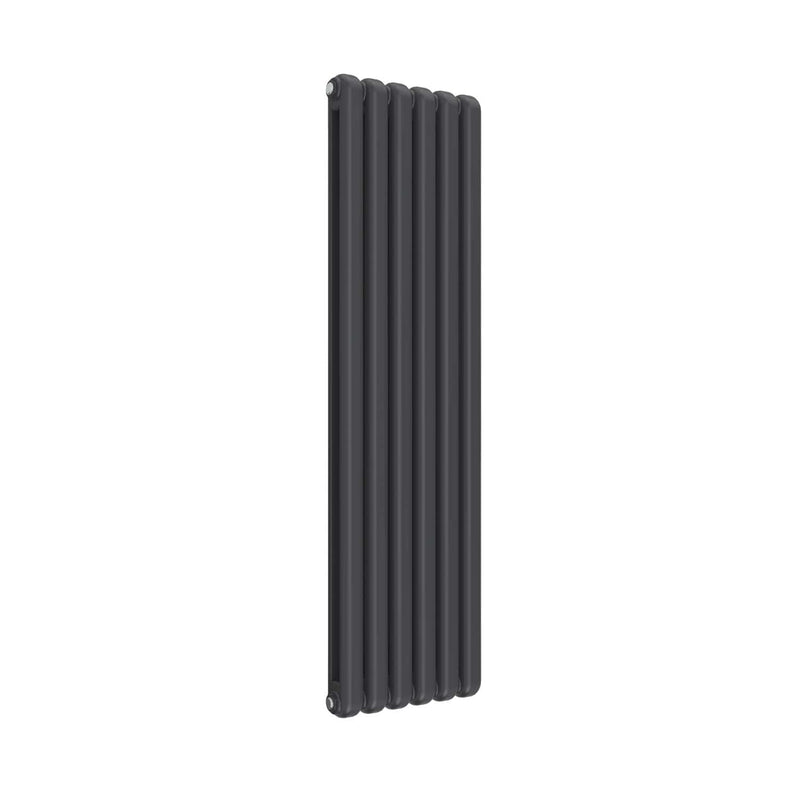

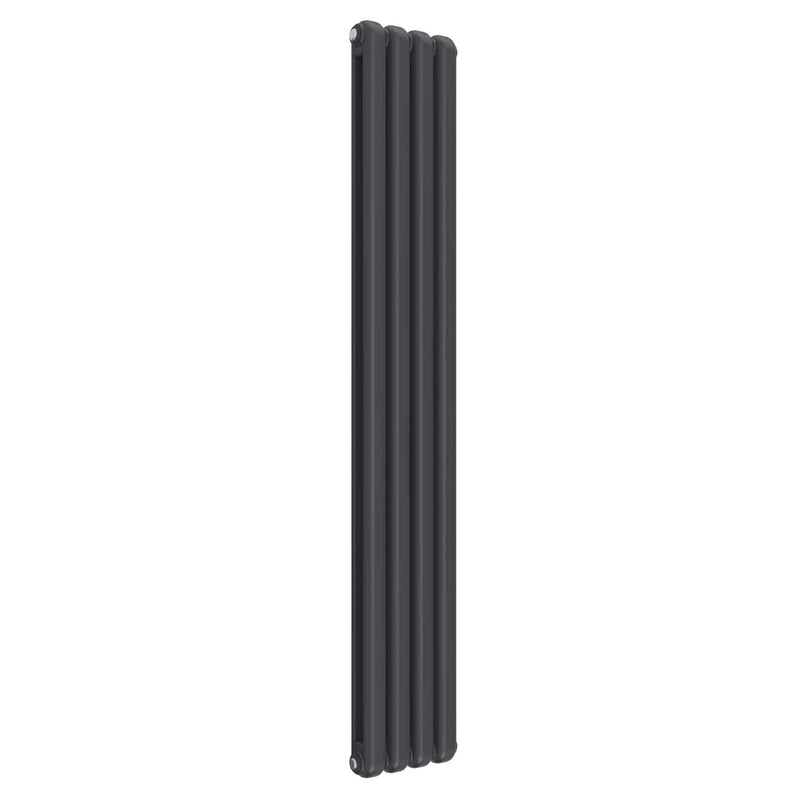

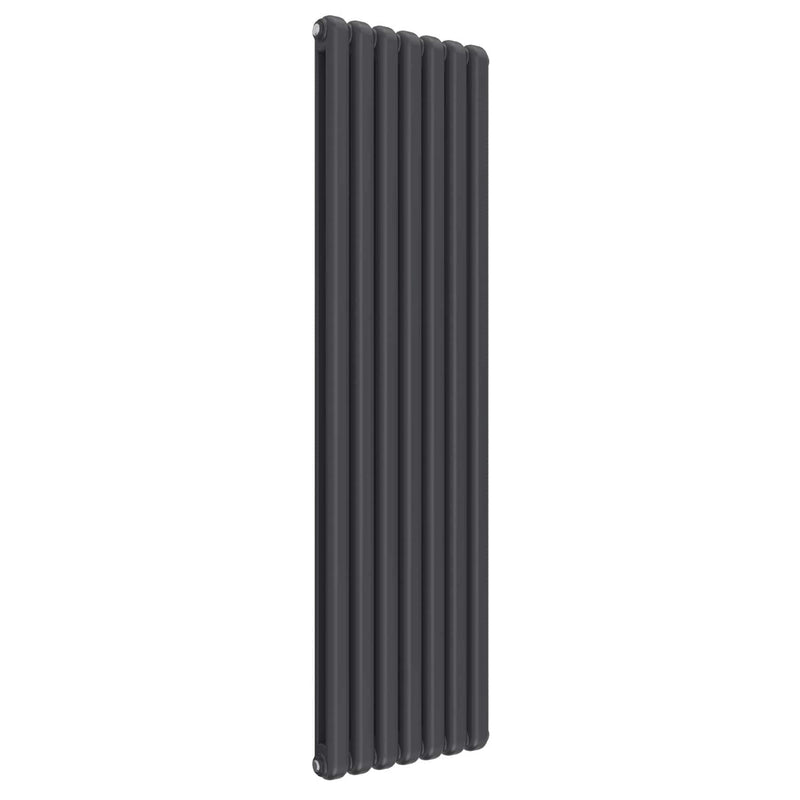

AnthraciteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height | Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|

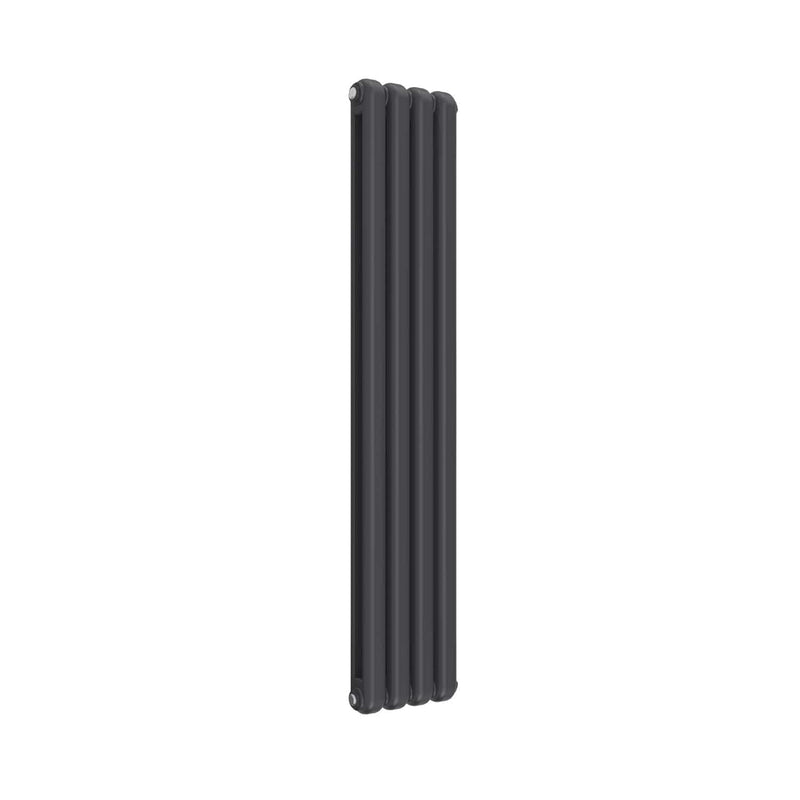

| 1500mm | 300mm | 4 bar | 4,124 | 3,222 | 1,668 | 945 | 489 |

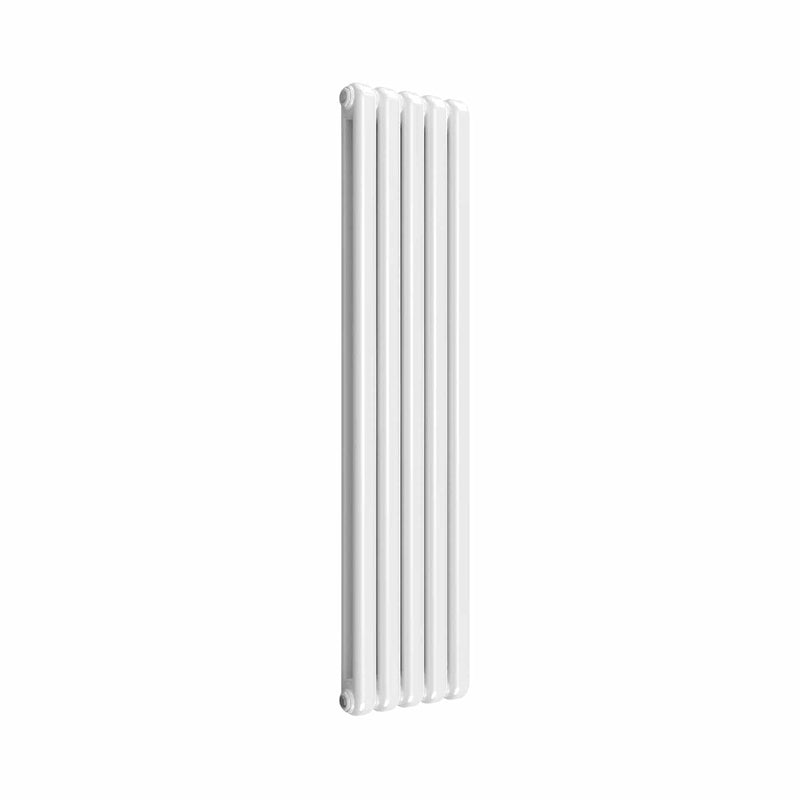

| 1500mm | 370mm | 5 bar | 5,155 | 4,027 | 2,085 | 1,181 | 611 |

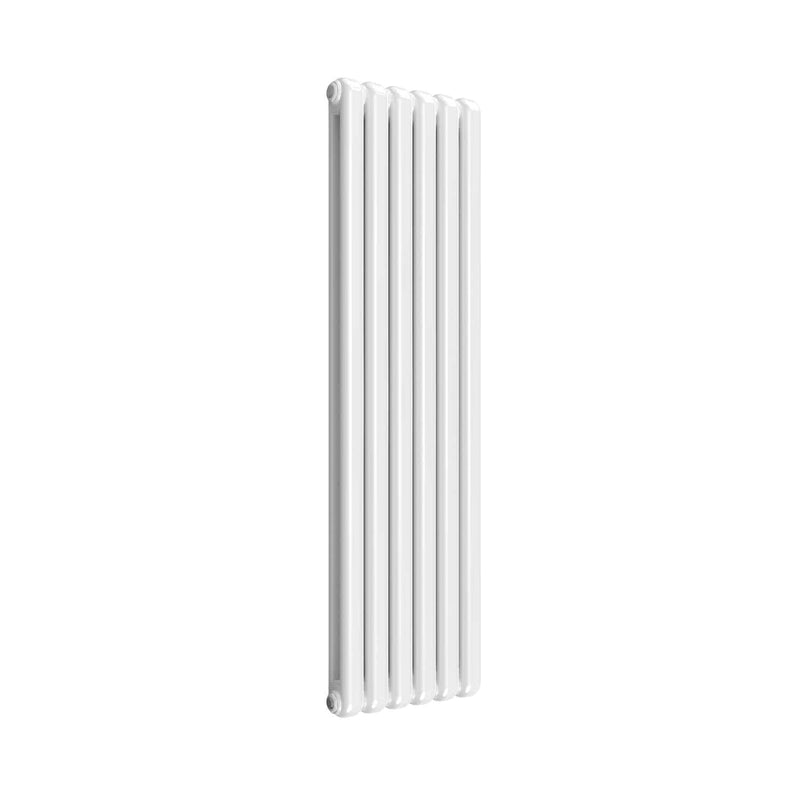

| 1500mm | 440mm | 6 bar | 6,186 | 4,833 | 2,502 | 1,417 | 734 |

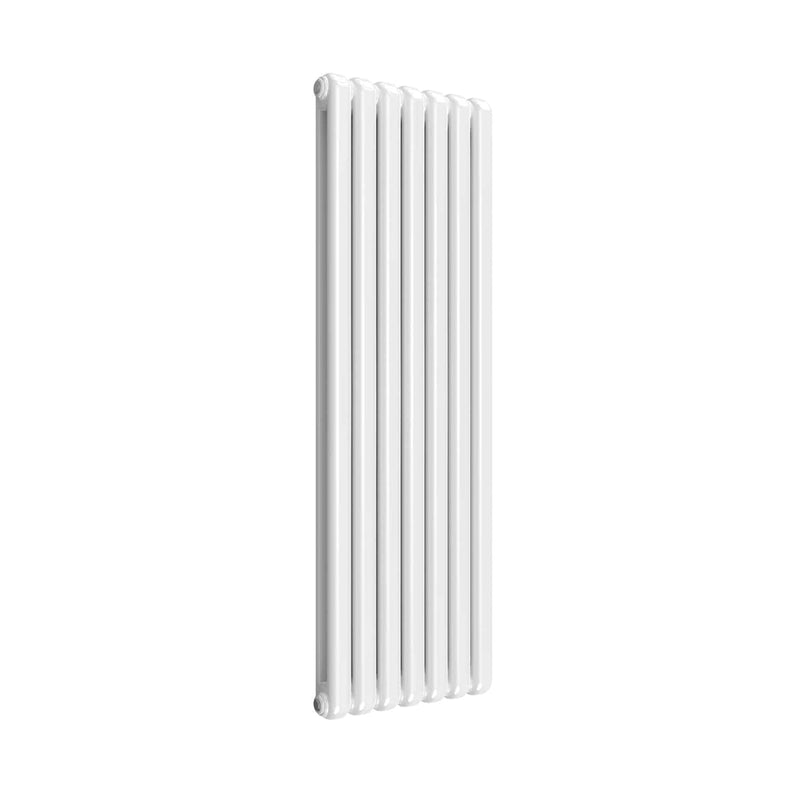

| 1500mm | 510mm | 7 bar | 7,216 | 5,638 | 2,918 | 1,653 | 856 |

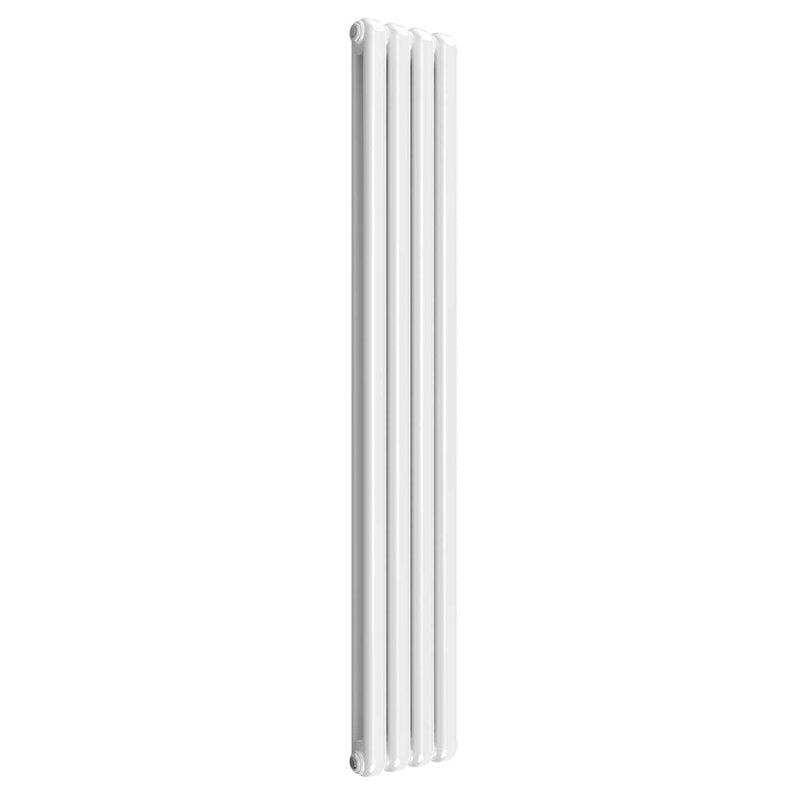

| 1800mm | 300mm | 4 bar | 4,948 | 3,866 | 2,001 | 1,134 | 587 |

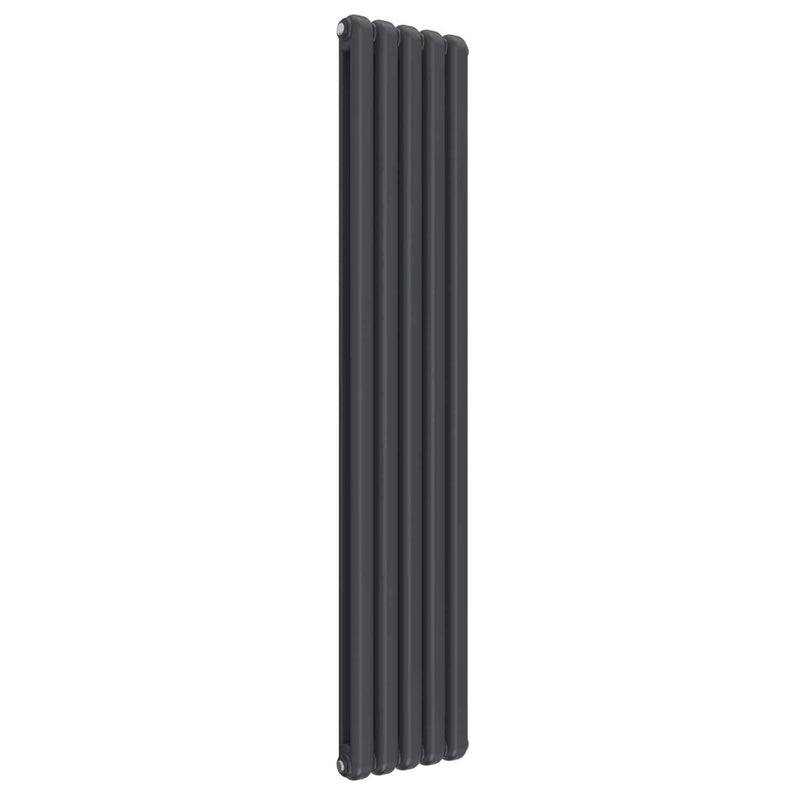

| 1800mm | 370mm | 5 bar | 6,186 | 4,833 | 2,502 | 1,417 | 734 |

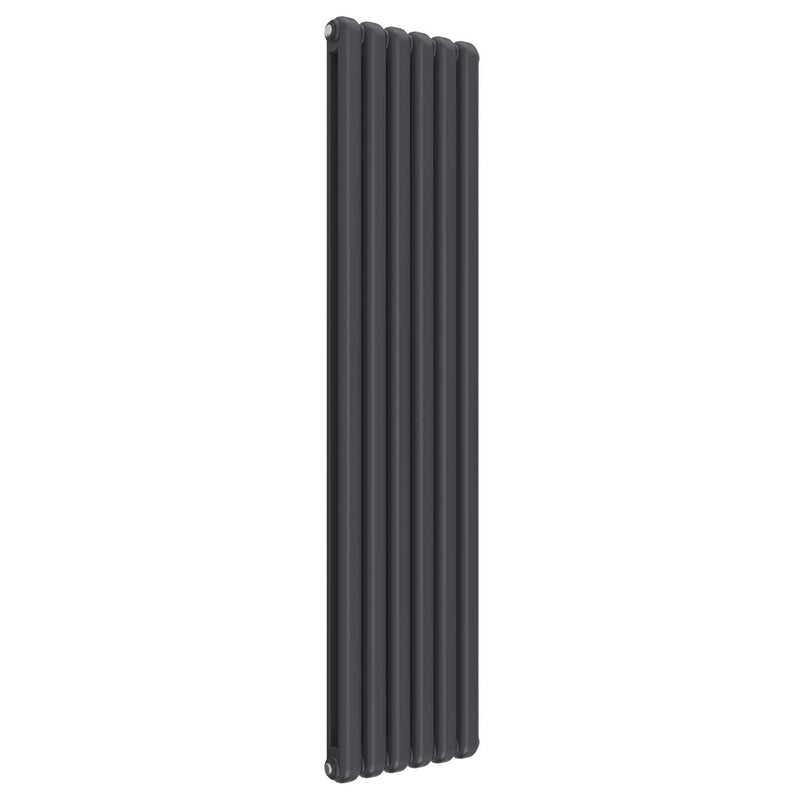

| 1800mm | 440mm | 6 bar | 7,422 | 5,798 | 3,002 | 1,700 | 880 |
| 1800mm | 510mm | 7 bar | 8,659 | 6,765 | 3,502 | 1,984 | 1,027 |
Heat pump owners: use the ΔT30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Coneva Vertical |
| Height | 1500mm or 1800mm |
| Width options | 300 / 370 / 440 / 510mm |
| Projection from wall | 113mm |
| Pipe centres | Equal to radiator width (300–510mm) |
| Wall to pipe centres | 68mm |
| Valve allowance | Add 90mm to width for pipe centres including valves |
| Connection | 1/2" BSP female thread |
| Material | Mild steel |
| Bars | 4 / 5 / 6 / 7 (by width) |
| Finishes | White / Anthracite |
| Fuel type | Central heating |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 6 bar (600 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
1500/1800mm
2 heights · 4 widths
Widths300–510mm
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Coneva Vertical compatible with a heat pump?
A. It is rated at Delta T30, so it will work on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Steel warms up more slowly than aluminium, so if your system runs at low flow temperatures year-round an aluminium model will respond faster.
Q.
What valves do I need for the Coneva Vertical?
A. The Coneva has standard 1/2 inch BSP female connections. We recommend thermostatic radiator valves (TRVs) for individual room control. Allow for your chosen valve set when measuring pipe centres - add 90mm to the width for pipe centres including valves.
Q.
What are the pipe centres on the Coneva Vertical?
A. Pipe centres equal the radiator width - 300, 370, 440 and 510mm. Wall to pipe centres is 68mm, and the radiator projects 113mm from the wall.
Q.
Which height Coneva Vertical do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator shows whether the radiator will meet your heat loss. The 1800mm height gives more output in the same footprint than the 1500mm, which suits taller walls and larger rooms.
Q.
What finishes is the Coneva available in?
A. White and Anthracite, across all eight size combinations, and both finishes carry the same steel construction and heat output.
Q.
Can the vertical Coneva be used as an electric radiator?
A. Reina list the vertical Coneva for central heating. If you need a vertical electric or dual fuel column radiator, contact our team and we will recommend the closest match from the range.
Q.
Why choose a mild steel column radiator?
A. Steel is robust, takes a hard-wearing finish and holds its heat after the boiler switches off, which smooths out temperature swings. A column profile gives a traditional look with a high heat output for the wall space it uses.
