Reina Colona Horizontal Column Mild Steel Radiator
£162.65
£182.65
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Mild steel column. Horizontal designer.
Product Overview & Key Specs
The Reina Colona Horizontal is a traditional mild steel column radiator, available with 2, 3 or 4 columns across 13 heights and widths from 300 x 1010mm up to 600 x 1370mm, in White, Anthracite or Raw Steel Lacquer. The classic multi-column profile gives a high heat output for the wall space it takes, and the thick steel body holds its heat after the boiler switches off.
2–4
Columns
13
Sizes
3
Finishes
ΔT30
Heat pump rated
5 yr
Warranty
Why Mild Steel for Central Heating?
Three practical reasons a steel column radiator suits a modern central heating system.
Robust buildHard-wearing ✔
Thick-wall steel with a durable factory finish. A column radiator takes knocks and keeps its looks in hallways, kitchens and busy rooms.
Holds its heatSteady warmth ✔
Steel retains heat after the boiler switches off, so the room temperature stays steady instead of dropping away between cycles.
Column profileClassic look
13 to 30 vertical bars, depending on size and column count, give a traditional column silhouette and a generous surface area for the heat output it delivers.

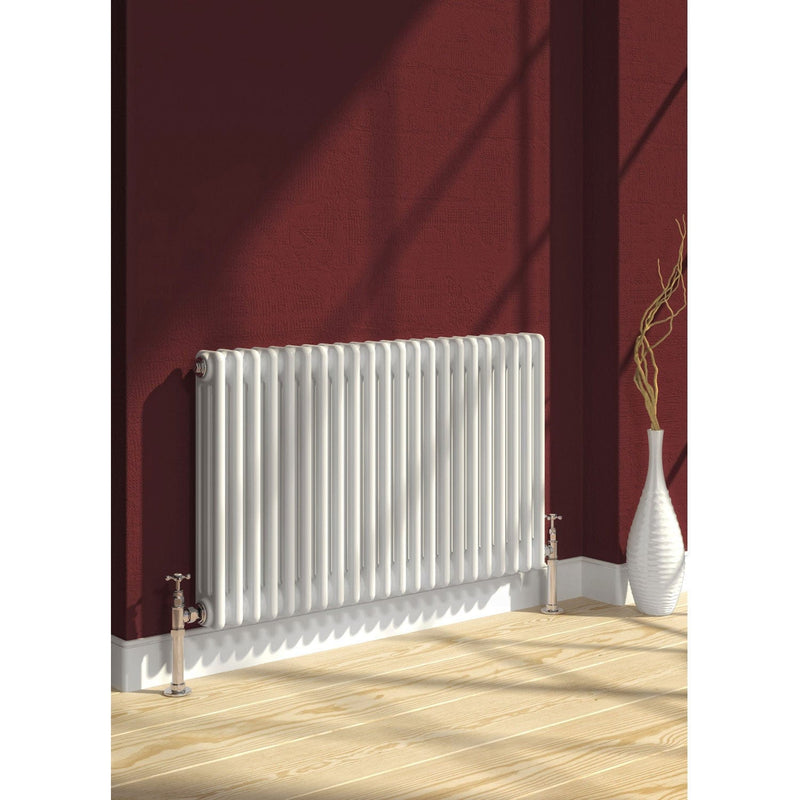

In the Room
The Colona Horizontal shown in three settings.
Choose Your Finish
White, Anthracite or Raw Steel Lacquer - same steel column body, same heat output at a given size.
WhiteAll 58 sizes/columns

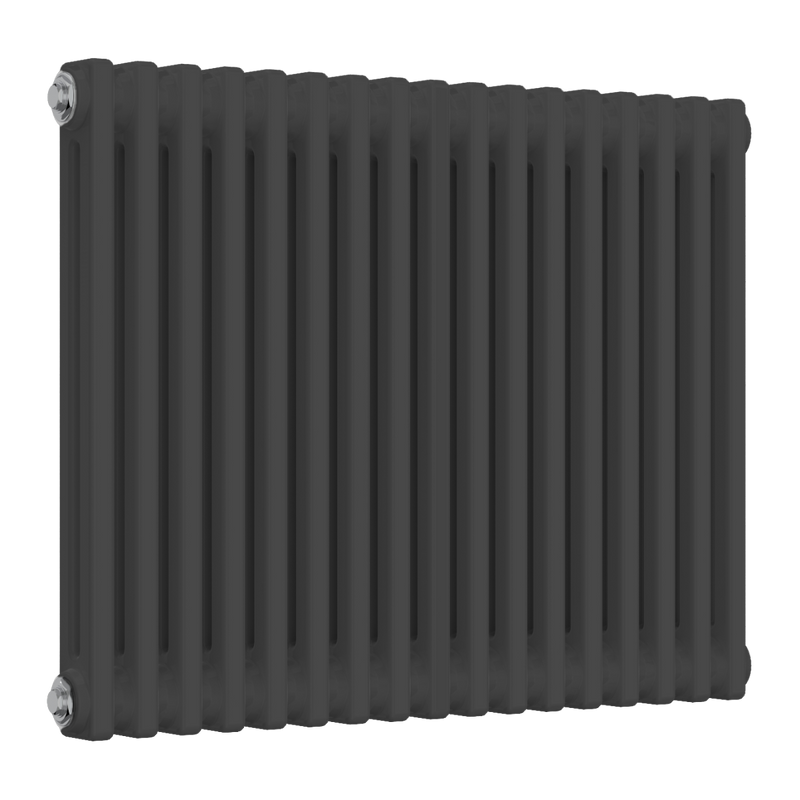

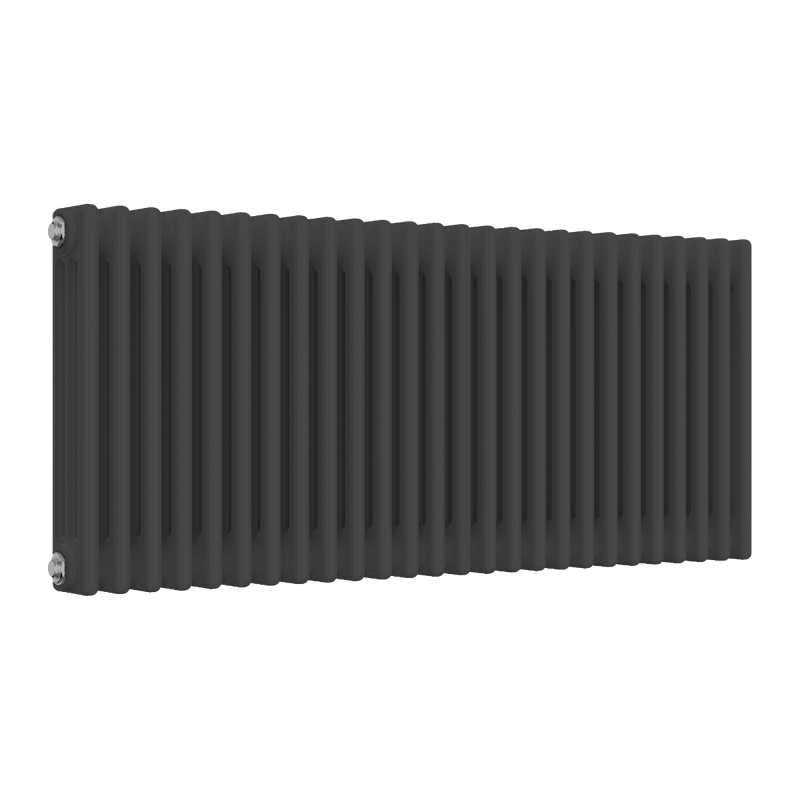

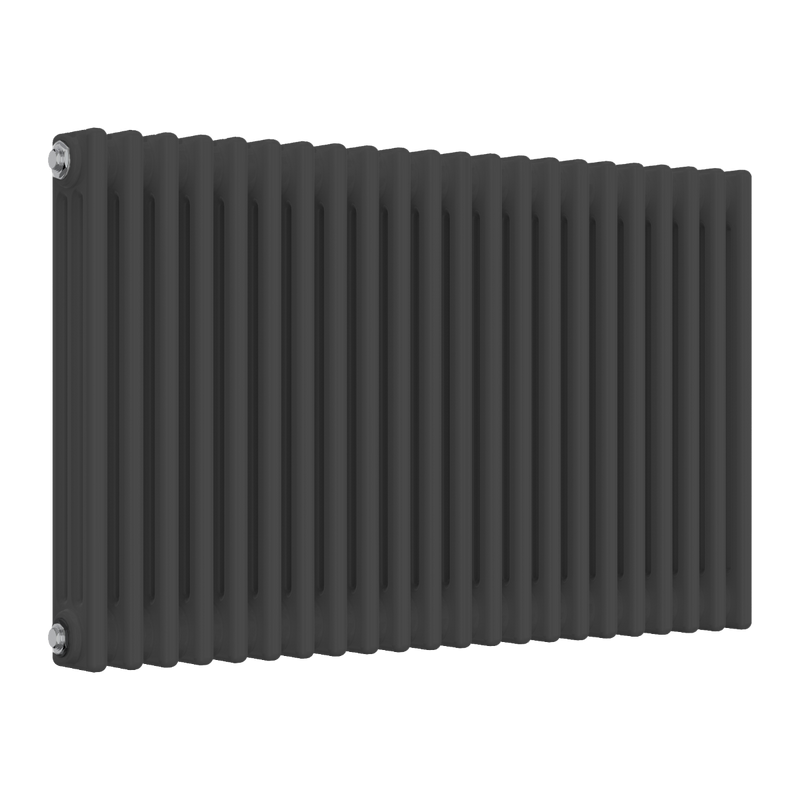

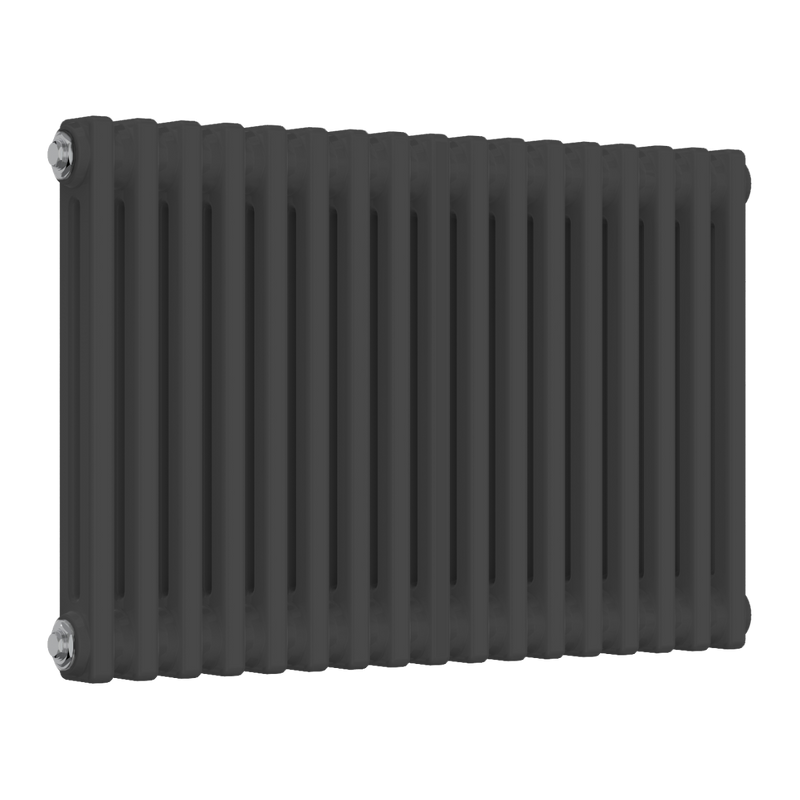

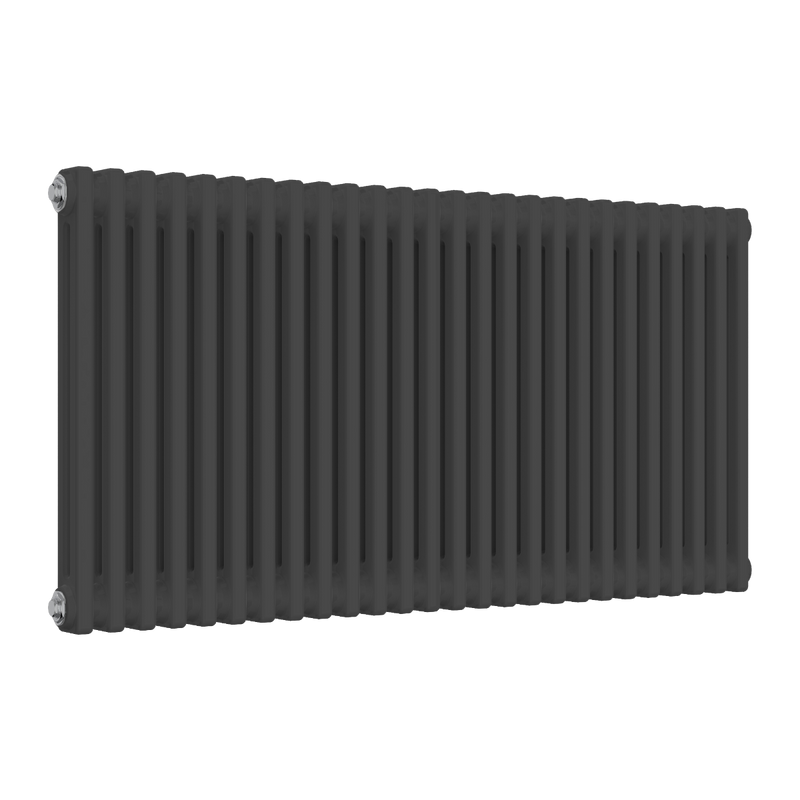

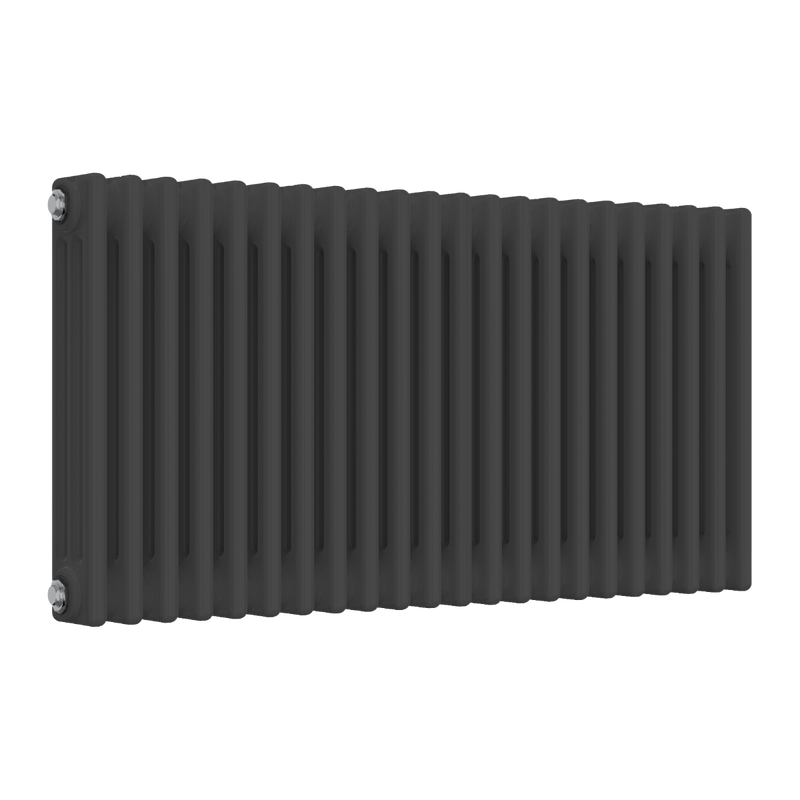

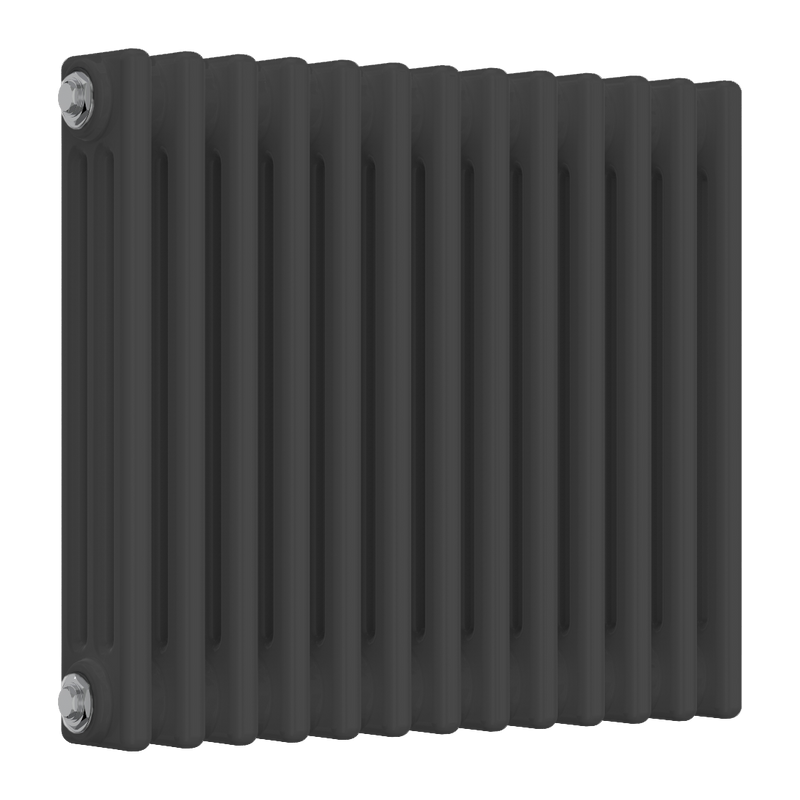

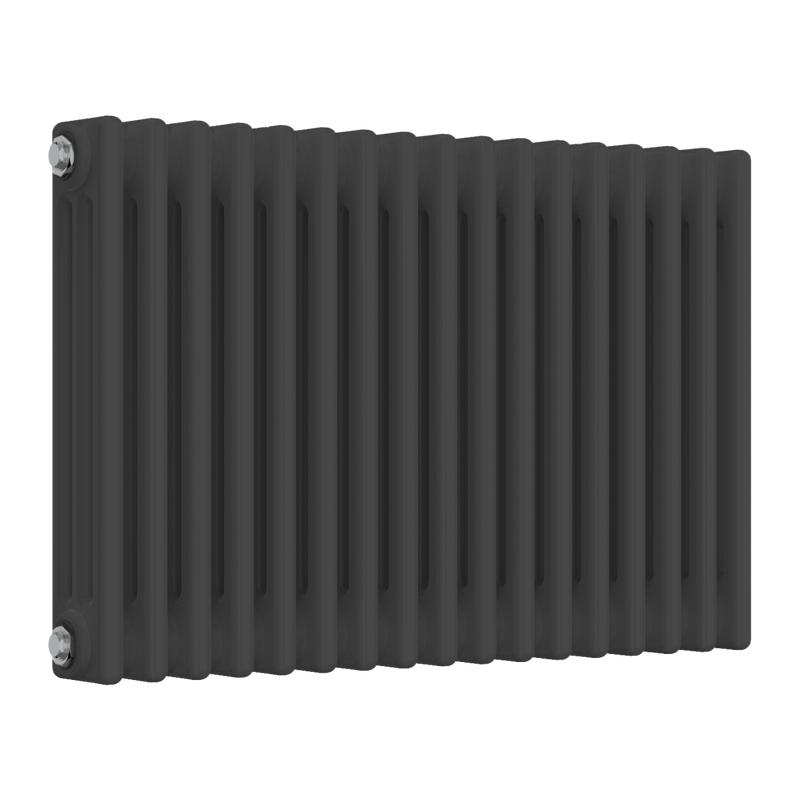

Anthracite2 & 3 Column

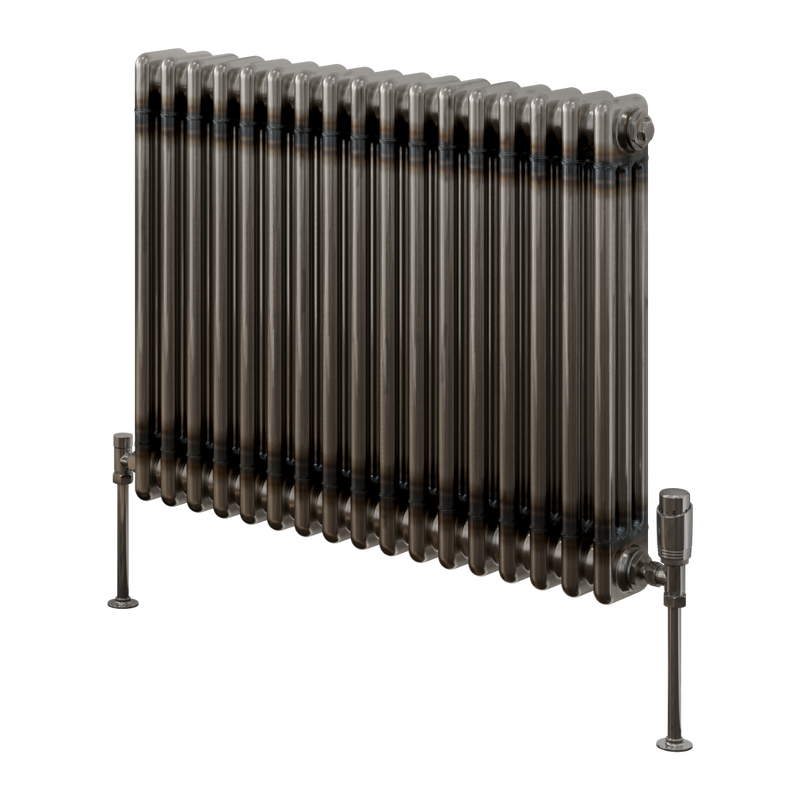

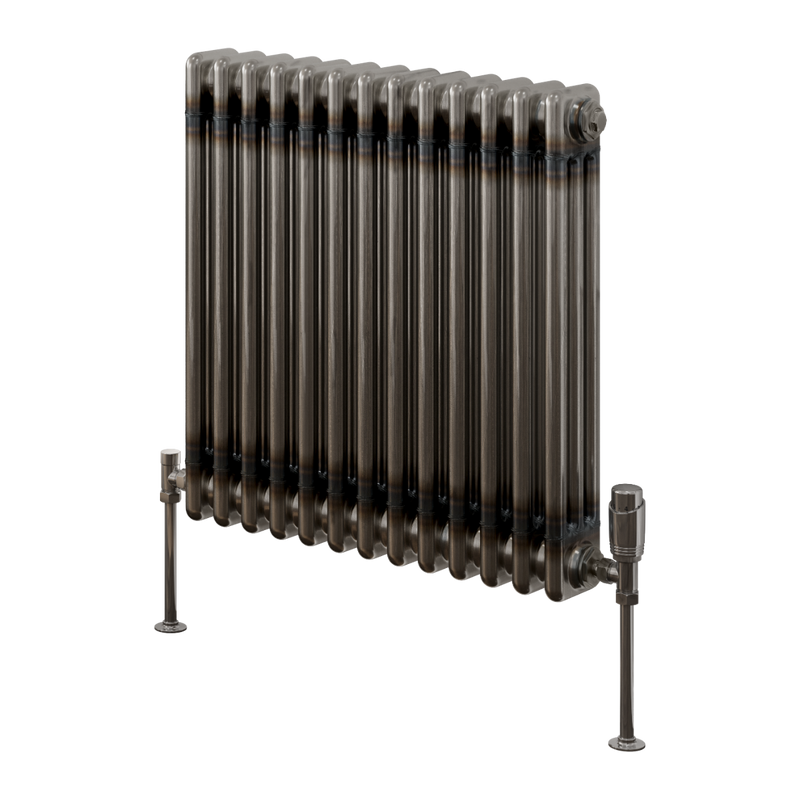

Raw Steel Lacquer600mm height only
Heat Output by Size & Column Count
Calculated to EN 442 and taken directly from Reina's own datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Figures are the same across finishes at a given size - grouped below by column count (2 / 3 / 4) rather than repeated per finish.

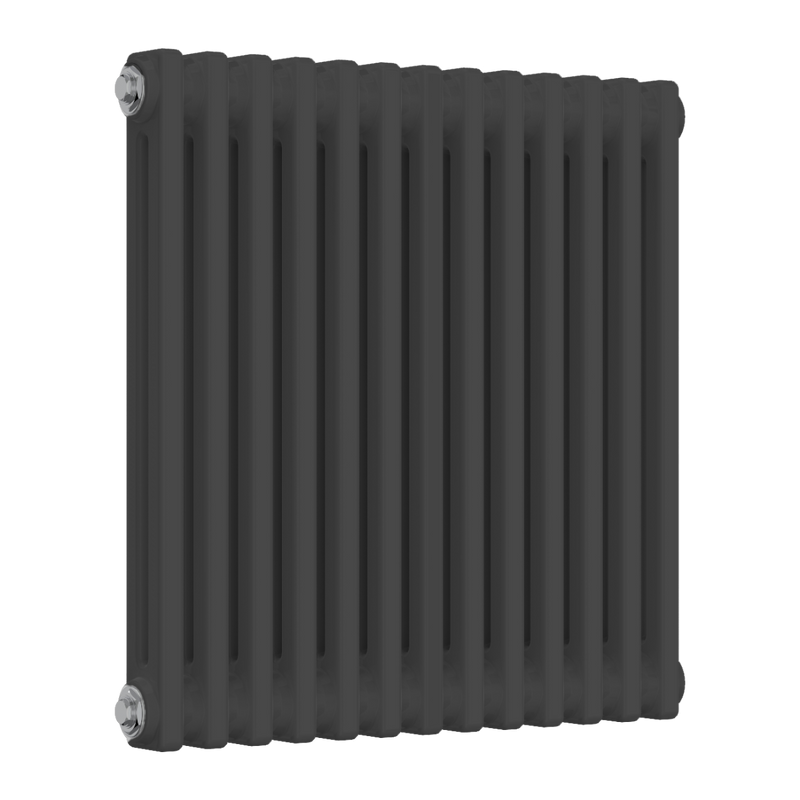

2 Column - 8 sizes (500mm or 600mm height, 605-1190mm wide, White or Anthracite)
| Height x Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|

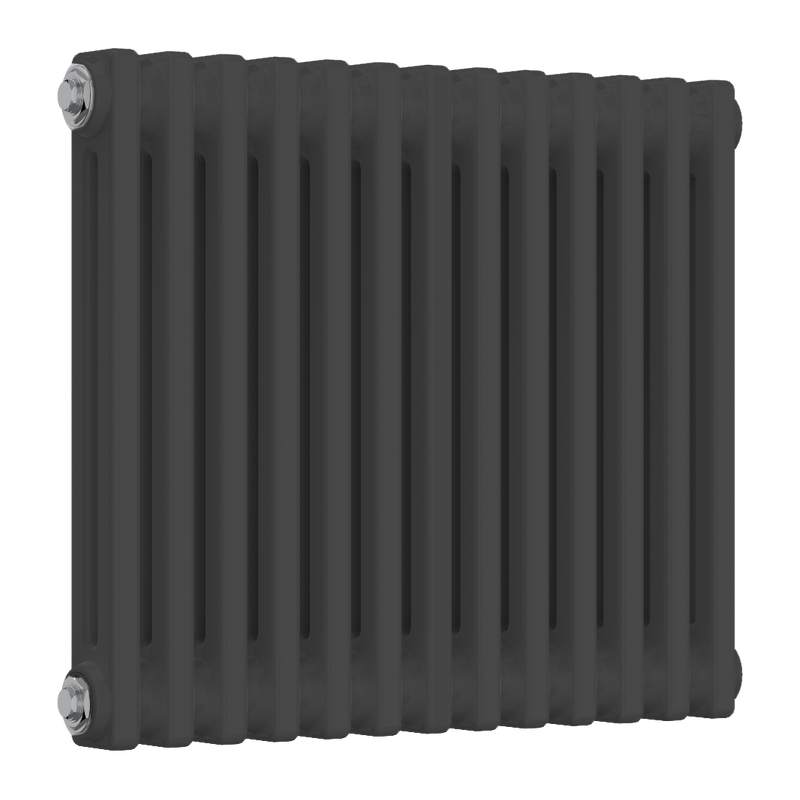

| 500 x 605mm | 13 | 2,082 | 1,627 | 842 | 477 | 247 |
| 600 x 605mm | 13 | 2,477 | 1,935 | 1,002 | 567 | 294 |

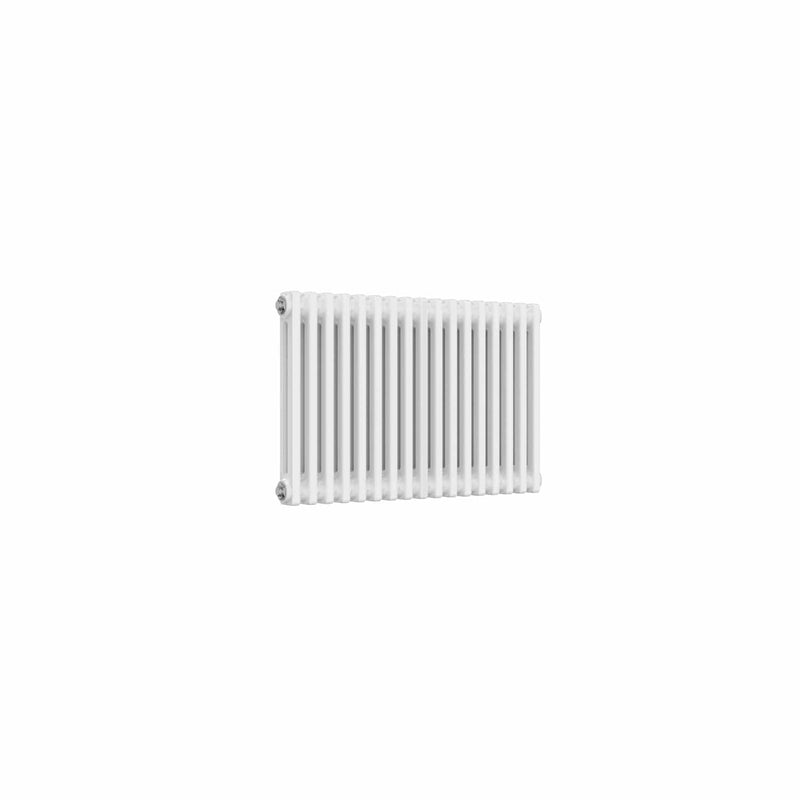

| 500 x 785mm | 17 | 2,723 | 2,127 | 1,101 | 624 | 323 |
| 600 x 785mm | 17 | 3,239 | 2,530 | 1,310 | 742 | 384 |
| 500 x 1010mm | 22 | 3,525 | 2,754 | 1,426 | 808 | 418 |
| 600 x 1010mm | 22 | 4,190 | 3,273 | 1,695 | 960 | 497 |
| 500 x 1190mm | 26 | 4,165 | 3,254 | 1,684 | 954 | 494 |
| 600 x 1190mm | 26 | 4,953 | 3,870 | 2,003 | 1,135 | 587 |

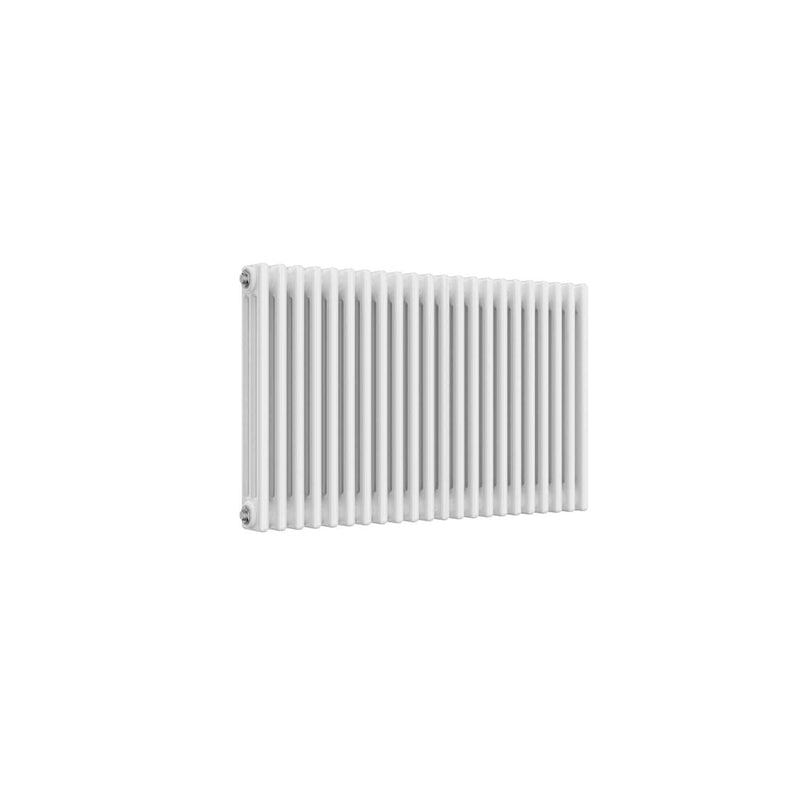

3 Column - 13 sizes (300/500/600mm height, 605-1370mm wide, White; Anthracite on 500/600mm height only)
| Height x Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 500 x 605mm | 13 | 2,870 | 2,242 | 1,161 | 658 | 340 |
| 600 x 605mm | 13 | 3,390 | 2,648 | 1,371 | 777 | 402 |

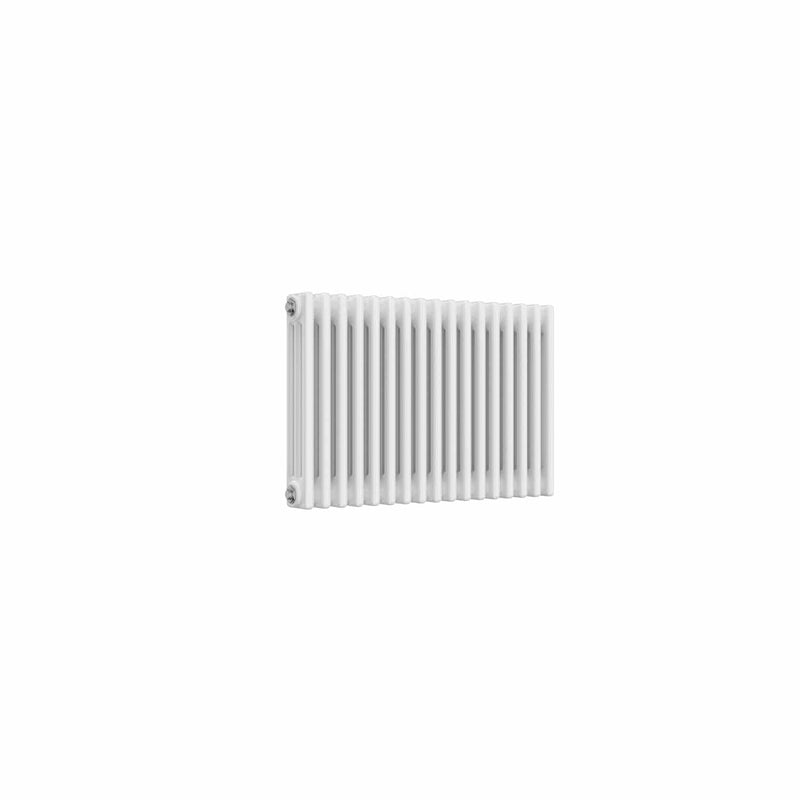

| 500 x 785mm | 17 | 3,753 | 2,932 | 1,518 | 860 | 445 |
| 600 x 785mm | 17 | 4,416 | 3,450 | 1,786 | 1,012 | 524 |
| 300 x 1010mm | 22 | 2,953 | 2,307 | 1,194 | 677 | 350 |
| 500 x 1010mm | 22 | 4,856 | 3,794 | 1,964 | 1,113 | 576 |
| 600 x 1010mm | 22 | 5,715 | 4,465 | 2,311 | 1,309 | 678 |

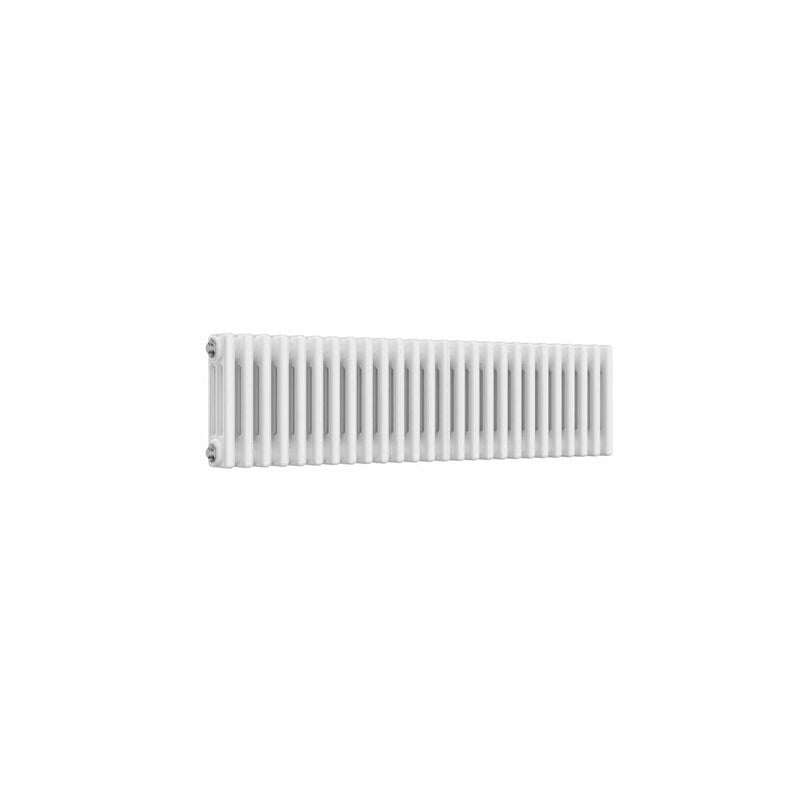

| 300 x 1190mm | 26 | 3,489 | 2,726 | 1,411 | 799 | 414 |
| 500 x 1190mm | 26 | 5,742 | 4,486 | 2,322 | 1,316 | 681 |

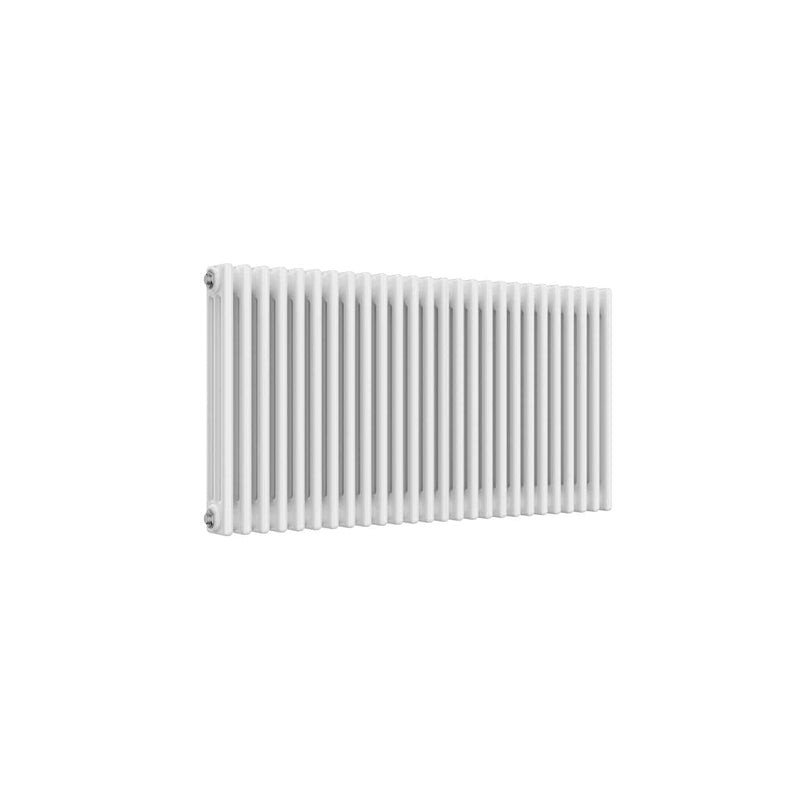

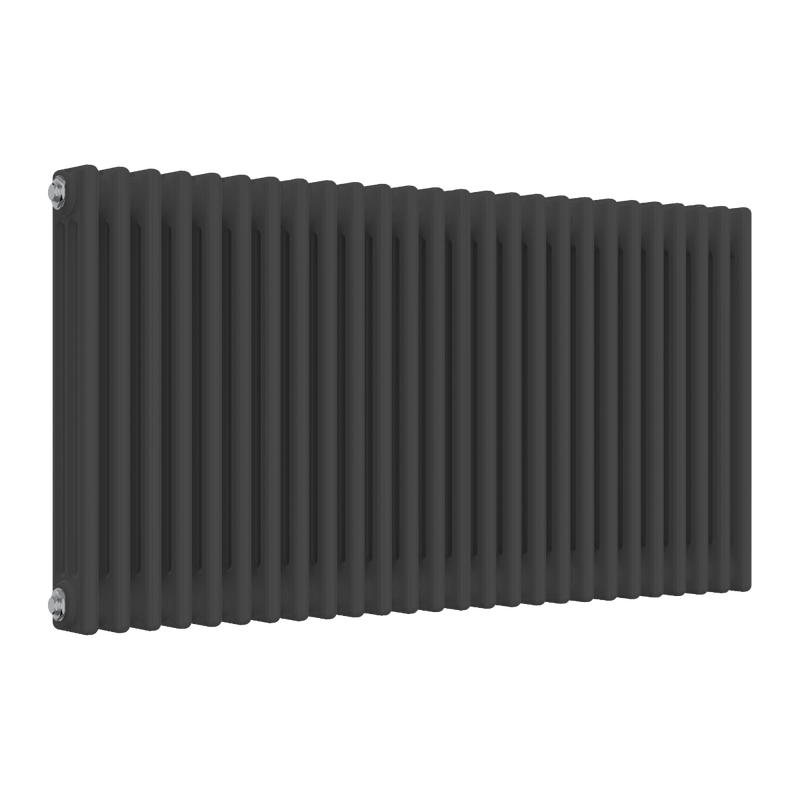

| 600 x 1190mm | 26 | 6,755 | 5,277 | 2,732 | 1,548 | 801 |

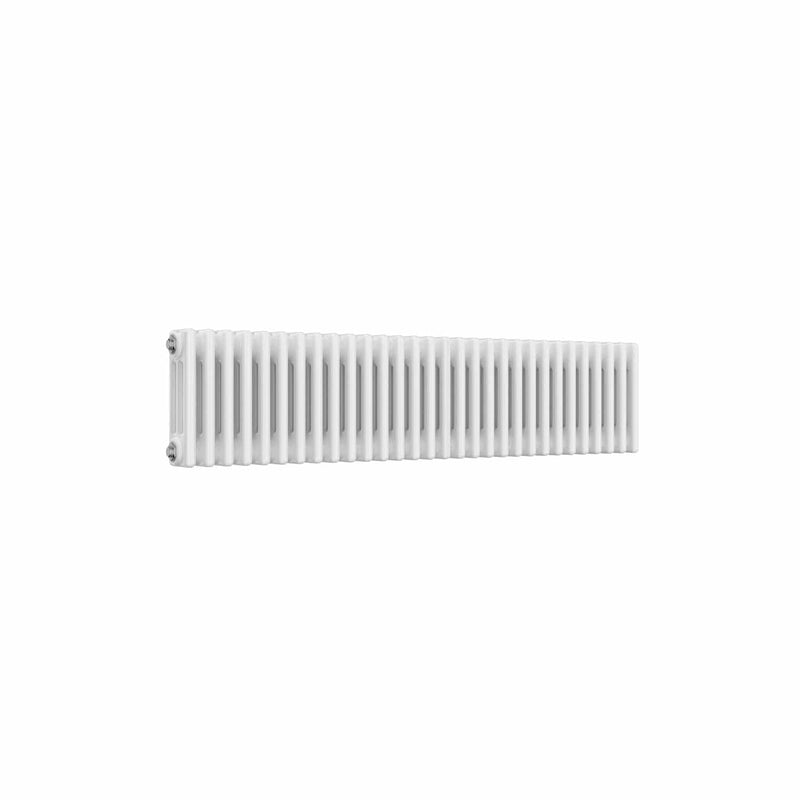

| 300 x 1370mm | 30 | 4,026 | 3,145 | 1,628 | 922 | 477 |
| 500 x 1370mm | 30 | 6,624 | 5,175 | 2,679 | 1,518 | 786 |

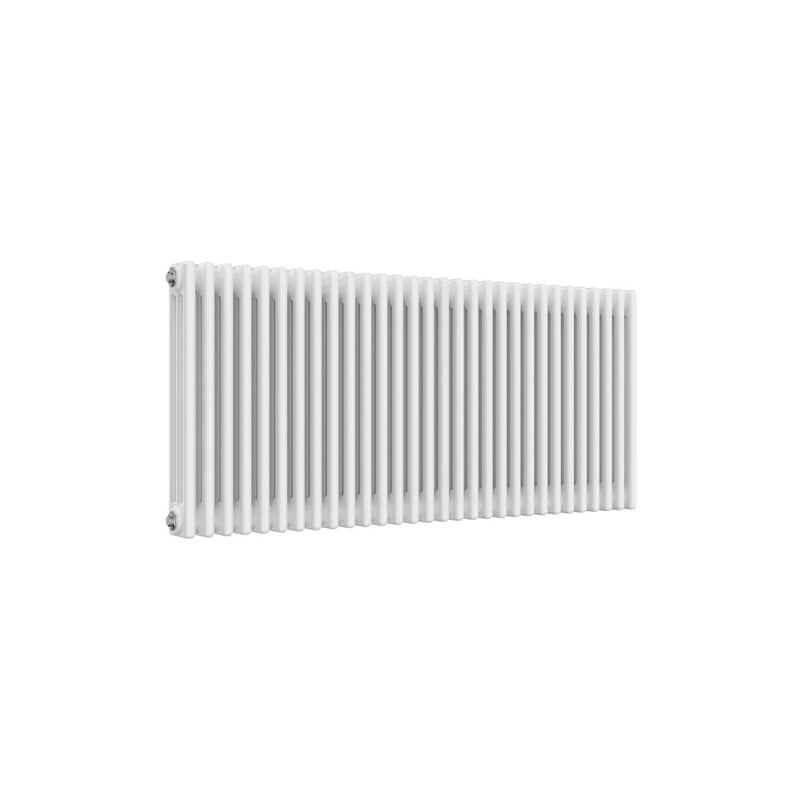

| 600 x 1370mm | 30 | 7,793 | 6,088 | 3,152 | 1,785 | 924 |

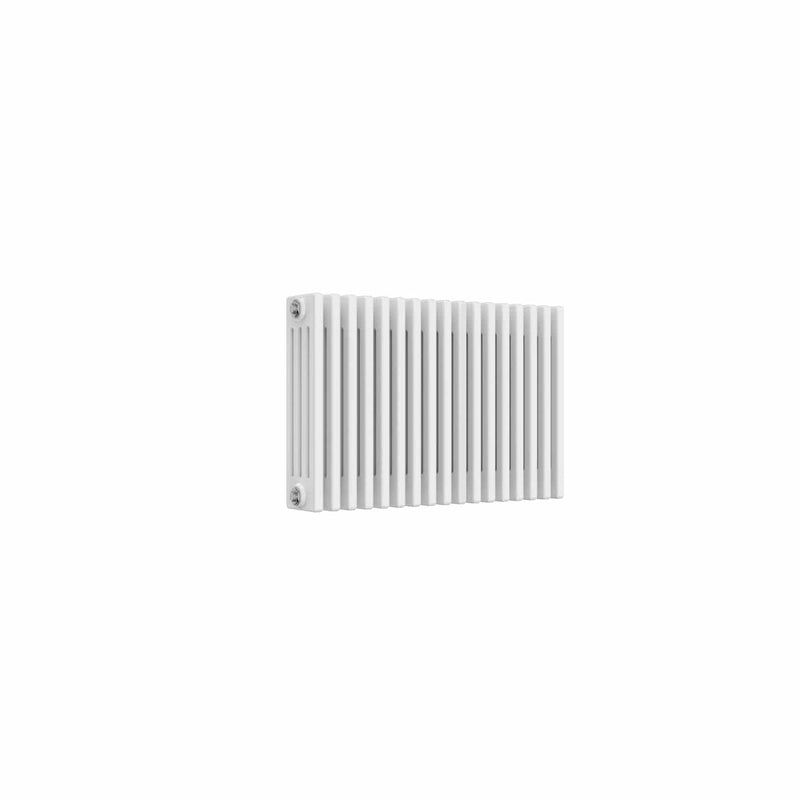

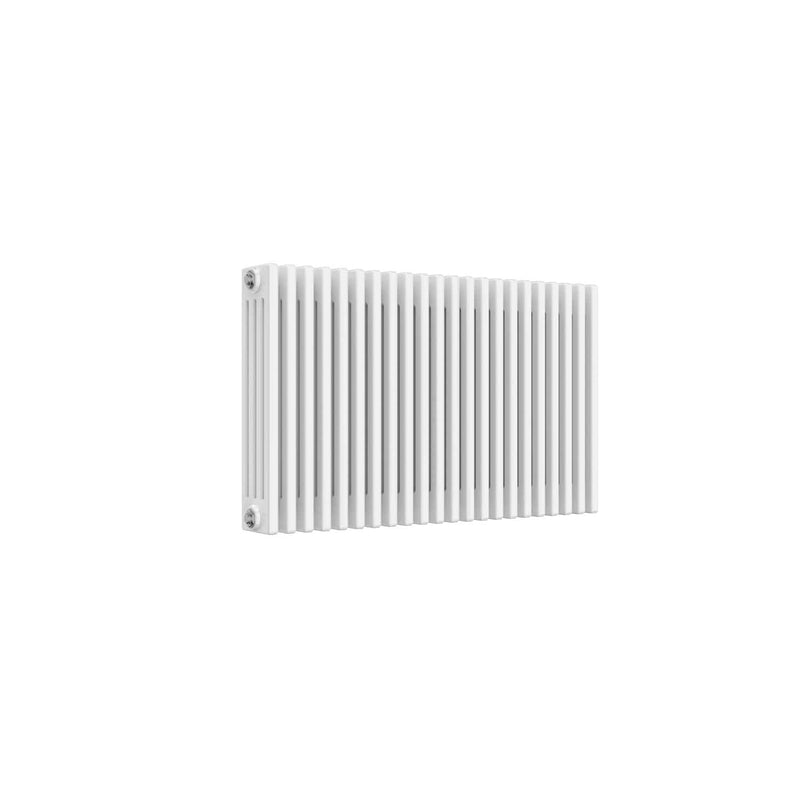

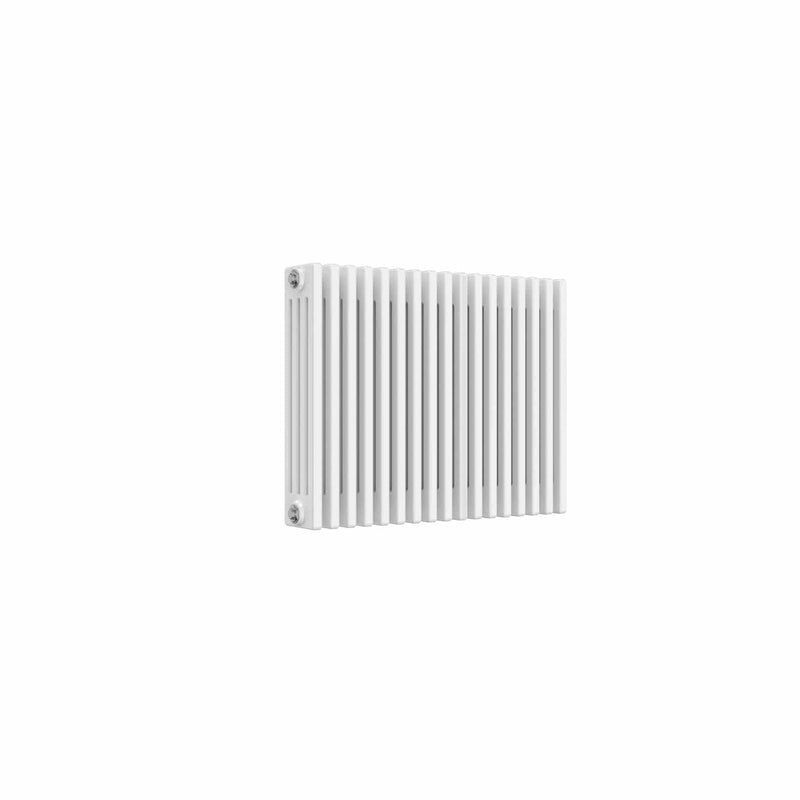

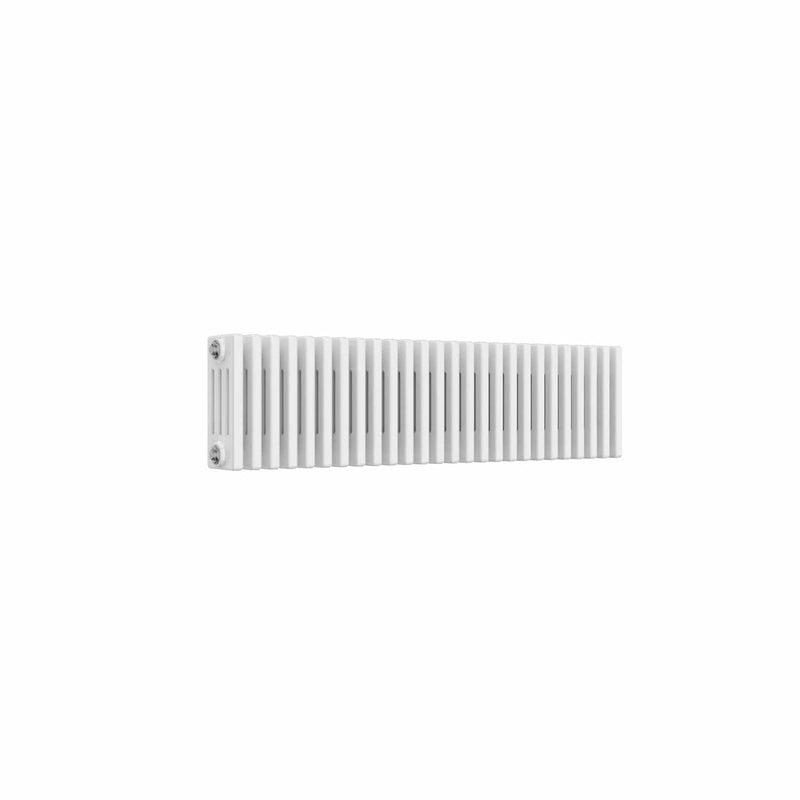

4 Column - 13 sizes (300/500/600mm height, 605-1370mm wide, White only)
| Height x Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 500 x 605mm | 13 | 3,658 | 2,858 | 1,479 | 838 | 434 |
| 600 x 605mm | 13 | 4,334 | 3,386 | 1,753 | 993 | 514 |
| 500 x 785mm | 17 | 4,784 | 3,738 | 1,935 | 1,096 | 567 |
| 600 x 785mm | 17 | 5,668 | 4,428 | 2,292 | 1,299 | 672 |

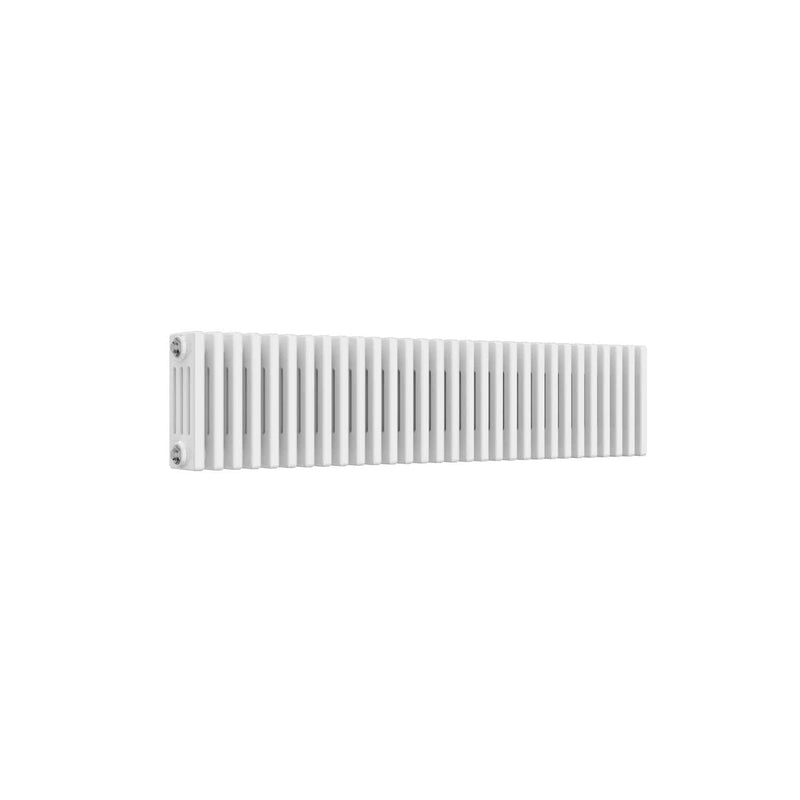

| 300 x 1010mm | 22 | 3,811 | 2,977 | 1,541 | 873 | 452 |
| 500 x 1010mm | 22 | 6,191 | 4,837 | 2,504 | 1,418 | 734 |
| 600 x 1010mm | 22 | 7,335 | 5,730 | 2,966 | 1,680 | 870 |
| 300 x 1190mm | 26 | 4,502 | 3,517 | 1,821 | 1,031 | 534 |
| 500 x 1190mm | 26 | 7,317 | 5,716 | 2,959 | 1,676 | 868 |
| 600 x 1190mm | 26 | 8,668 | 6,772 | 3,506 | 1,986 | 1,028 |
| 300 x 1370mm | 30 | 5,196 | 4,059 | 2,101 | 1,190 | 616 |
| 500 x 1370mm | 30 | 8,443 | 6,596 | 3,415 | 1,934 | 1,001 |
| 600 x 1370mm | 30 | 10,001 | 7,813 | 4,045 | 2,291 | 1,186 |
Heat pump owners: use the ΔT30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.

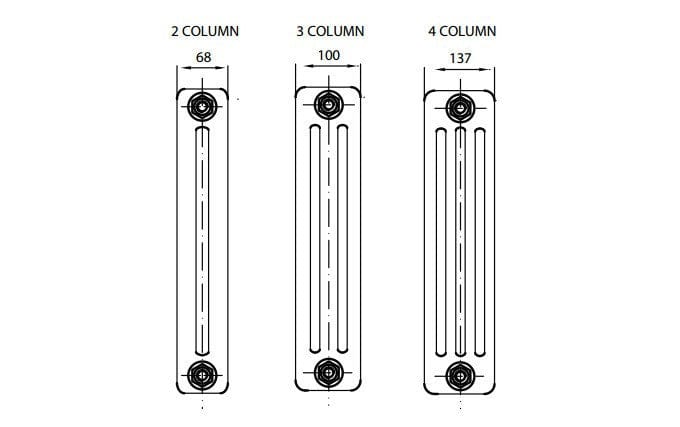

Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Colona Horizontal |
| Heights | 300 / 500 / 600mm |
| Widths | 605 / 785 / 1010 / 1190 / 1370mm |
| Column options | 2, 3 or 4 column |
| Pipe centres | Equal to radiator width (605–1370mm) |
| Wall to pipe centres | 66mm (500/600mm height models), 68mm (300mm height models) |
| Wall distance (projection) | 98mm (500/600mm height models), 118mm (300mm height models) |
| Valve allowance | Add 90mm to width for pipe centres including valves |
| Material | Mild steel |
| Bars | 13 to 30, by size and column count |
| Finishes | White / Anthracite / Raw Steel Lacquer (availability varies by size - see Choose Your Finish above) |
| Fuel type | Central heating, electric or dual fuel (C/E/D) on most sizes; 500 & 600 x 1370mm are central heating only (C) |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
2–4
Column options
Sizes13
Finishes3
✓
ΔT30 rated
Heat pump compatible
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system. Checks all 34 size/column combinations for the best fit.
Frequently Asked Questions
Q.
Is the Reina Colona Horizontal compatible with a heat pump?
A. It is rated at Delta T30, so it will work on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Steel warms up more slowly than aluminium, so if your system runs at low flow temperatures year-round an aluminium model will respond faster.
Q.
How many columns should I choose - 2, 3 or 4?
A. More columns means more surface area and a higher heat output for the same height and width, at a higher price. Use the room fit calculator on this page with each column count to compare - a 2 column may suit a small en-suite, while a 4 column in the same footprint suits a larger living room.
Q.
What valves do I need for the Colona Horizontal?
A. Radiator valves are not supplied with the Colona Horizontal. We recommend thermostatic radiator valves (TRVs) for individual room control. Allow for your chosen valve set when measuring pipe centres - add 90mm to the width for pipe centres including valves.
Q.
What are the pipe centres on the Colona Horizontal?
A. Pipe centres equal the radiator width, from 605mm up to 1370mm depending on size. Wall to pipe centres is 66mm and the radiator projects 98mm from the wall on the 500mm and 600mm high models; the 300mm high models are 68mm and 118mm respectively.
Q.
Which size and column count do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator checks every one of the 34 size/column combinations and shows the smallest one that meets your heat requirement.
Q.
What finishes is the Colona Horizontal available in?

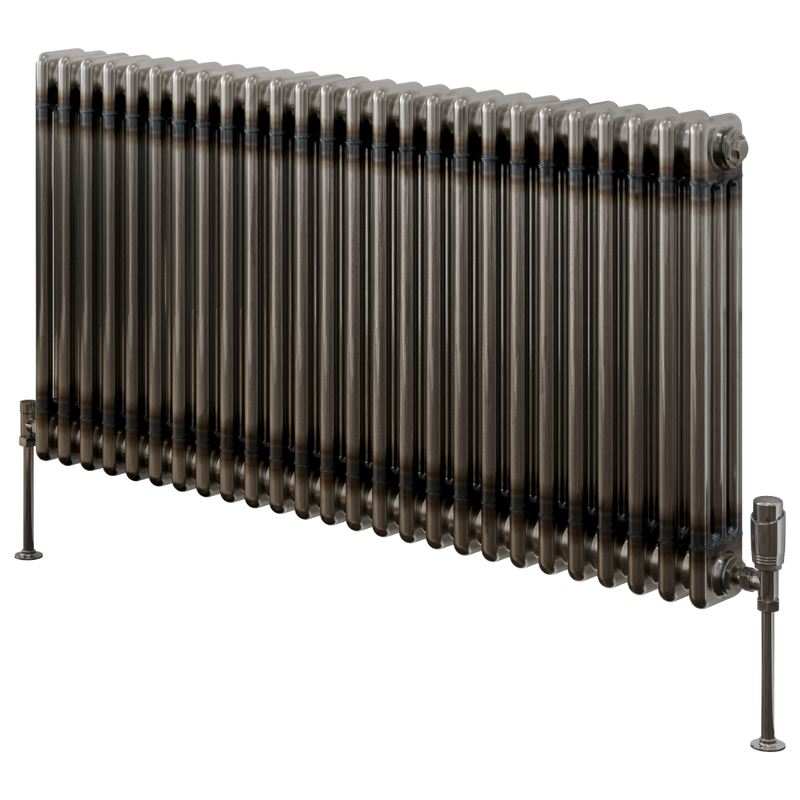

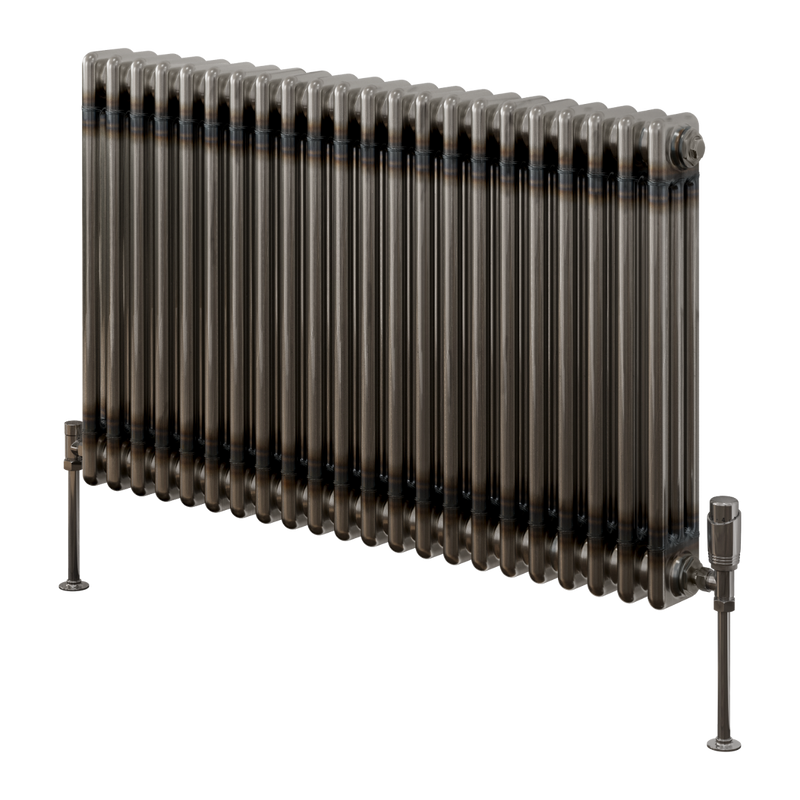

A. White and Anthracite across most of the 2 and 3 column sizes, with the 4 column limited to White. Raw Steel Lacquer is available on 2 and 3 column models at 600mm height only (605-1190mm wide) - each Raw Steel Lacquer radiator has a unique, unpainted metal appearance.
Q.
Why choose a mild steel column radiator?
A. Steel is robust, takes a hard-wearing finish and holds its heat after the boiler switches off, which smooths out temperature swings. A traditional multi-column profile, inspired by heritage cast iron radiators, gives a high heat output for the wall space it uses.
Q.
Is the Colona Horizontal available as electric or dual fuel?
A. Most sizes are listed as C/E/D (central heating, electric or dual fuel) on Reina's datasheet, but the 500mm and 600mm high, 1370mm wide sizes are central heating only. Contact our team to check electric element kit availability and pricing for your chosen size.
