900mm Wide Chrome Towel Rails | 850mm Pipe Centre
14 years supplying UK bathrooms, est. February 2012. Free delivery on orders over £200. 5-year manufacturer's warranty on all towel rails.
At 900mm wide, the chrome towel rail crosses into luxury territory — nearly a metre of polished chrome on the wall, with an 850mm pipe centre and outputs up to 1,730 BTU at standard boiler temperatures. The 900mm width is the natural choice for grand master suites, large wet rooms, and open-plan bathroom designs where the towel rail anchors the room's visual identity. Six heights from 600mm to 1200mm available. Central heating, electric, and dual-fuel; 5-year warranty.
Pipe Centre Note: When installing a 900mm wide chrome towel rail on central heating, your pipework should be set at 850mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, use angled or corner valve offsets.
Technical Specifications & Multi-ΔT Heat Output Table
All outputs tested to BS EN 442 standards.
| Height (mm) | Total Bars | Bar Layout | ΔT30 (Heat Pump) | ΔT50 (Standard Boiler) | ΔT60 (High Temp) | Pipe Centres |
|---|---|---|---|---|---|---|
| 600mm | 11 | 3+4+4 | 431 BTU / 126 W | 836 BTU / 245 W | 1,060 BTU / 311 W | 850mm |
| 700mm | 12 | 4+8 | 476 BTU / 140 W | 925 BTU / 271 W | 1,173 BTU / 344 W | 850mm |
| 800mm | 15 | 3+4+8 | 583 BTU / 171 W | 1,133 BTU / 332 W | 1,437 BTU / 421 W | 850mm |
| 900mm | 16 | 4+4+8 | 754 BTU / 221 W | 1,464 BTU / 429 W | 1,856 BTU / 544 W | 850mm |
| 1000mm | 19 | 4+4+4+7 | 738 BTU / 216 W | 1,433 BTU / 420 W | 1,817 BTU / 533 W | 850mm |
| 1200mm | 23 | 4+4+5+10 | 891 BTU / 261 W | 1,730 BTU / 507 W | 2,194 BTU / 643 W | 850mm |
Why Choose a 900mm Width Towel Rail?
The 900mm width produces a rail with genuine visual authority. Chrome at this width catches light across a nearly-metre span, acting as an ambient mirror element in well-lit bathrooms. The 850mm pipe centre is found in premium bathroom installations, particularly those designed around large-format 900x900mm floor tiles where the plumber sets out pipes on tile-module centres.
- Ideal Room Suitability: Grand master bathrooms (14-20 m2), hotel-specification bathrooms, wet rooms with tile-grid plumbing, and open-plan bathroom spaces where the rail is the centrepiece of both heating and design.
- Towel Drying Capacity & Ergonomics: Two bath sheets — not just towels — can hang simultaneously on a 900mm bar. The extra width versus 800mm and 850mm rails means individual items have more separation, improving air circulation and drying speed.
- Installation & Wall Space Considerations: The 850mm pipe centre is wide — confirm pipework spacing before ordering. Allow approximately 1,000mm total wall clearance. At 900mm, the rail's visual scale relative to bathroom fittings needs careful design consideration.
Explore Alternative Sizes & Finishes
If 900mm isn't the exact fit, explore related options:
- Adjacent Widths: Compare with our 850mm Wide Chrome Towel Rails or step up to 950mm Wide Chrome Towel Rails.
- Alternative Finishes in 900mm Width:
Key Installation & Accessory Compatibility
- Pipe Centre Alignment: Fixed at 850mm across all heights in this width range.

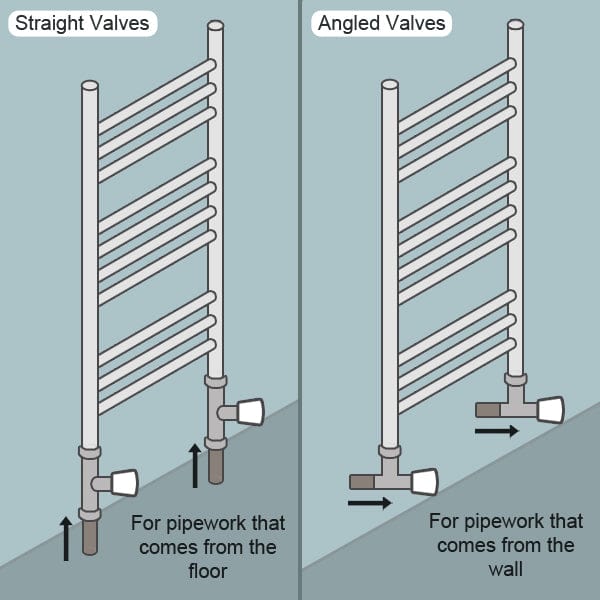

- Required Valve Hardware: Pair with our Chrome Radiator Valves — straight valves for floor pipework or angled/corner valves for wall pipework.
- Dual Fuel Conversion: Use your rail in summer with a Dual Fuel Kit and Heating Element.
Understanding the ΔT30 / ΔT50 / ΔT60 Output Columns
The three output columns in the table above correspond to different heating system types. ΔT50 is the UK standard (BS EN 442) used by most gas boilers; ΔT30 applies to heat pump systems running at lower flow temperatures; ΔT60 applies to older high-temperature gravity-fed systems. For a full explanation of how these figures work, how to match them to your system, and how to calculate the exact BTU your room needs, see our Towel Rail Heat Output & BTU Calculator Guide.
Frequently Asked Questions
Q: What is the pipe centre for a 900mm towel rail?
A: The standard pipe centre for a 900mm wide chrome towel rail is 850mm, leaving 25mm clearance on each side for valve connections.
Q: How wide does a wall need to be to fit a 900mm chrome towel rail?
A: The rail itself is 900mm wide, but valve clearance adds approximately 50mm each side, requiring a minimum 1,000mm of clear wall space. Bracket fixings land at 850mm centres. If the available wall section is less than 1,000mm, consider the 850mm or 800mm range instead.
Q: Does a 900mm chrome towel rail need special installation compared to smaller widths?
A: The installation process is the same as any other width — flow and return connections at the bottom, brackets at 850mm centres. However, the larger physical size means ensuring the wall fixings land in solid masonry or stud timber. At 900mm, the weight when filled with water is higher, so appropriate wall anchors are essential.
