Reina Pietra Mild Steel Offset Ladder Towel Radiator
£244.00
£264.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
Free delivery over £200 · Same-day dispatch before 12pm · 5-year warranty
Mild steel. Offset ladder towel rail. Reversible design.
Product Overview & Key Specs
The Reina Pietra is a modern offset ladder towel radiator in mild steel with square-tube construction. It can be mounted left or right handed, comes in three heights (530, 720 and 1100mm) at 530mm wide, and is available in Chrome or Anthracite. Reina list it for central heating, electric and dual fuel.
530–1100mm
Three heights
530mm
Width, all sizes
2
Finishes
ΔT30
Heat pump outputs listed
5 yr
Warranty
View the Pietra in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Pietra in your room using augmented reality.
Why an Offset Mild Steel Ladder?
Three practical reasons the Pietra suits a modern bathroom or cloakroom.
Reversible mountingLeft or right ✔
The offset design can be mounted left or right handed, so the open bars extend to whichever side suits your wall and doorway.
Square-tube steelDurable ✔
Square-section mild steel tube gives a crisp, architectural profile and a solid build, backed by a 5-year manufacturer guarantee.
Heat pump outputs listedDelta T30 data
Outputs are published at Delta T50, Delta T60 and Delta T30, so you can size it for a gas boiler or a heat pump system.

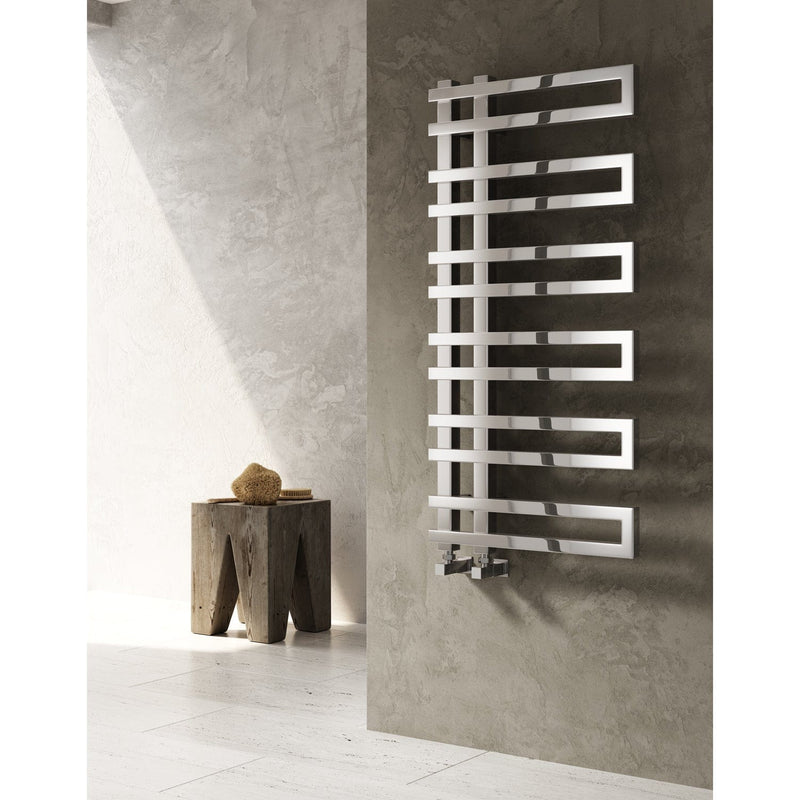

In the Room
The Pietra shown in a room setting, with close-ups of the square-tube bars and the connections.
Choose Your Finish
Chrome or Anthracite - same design and sizes. Heat outputs differ by finish, so check the table below.

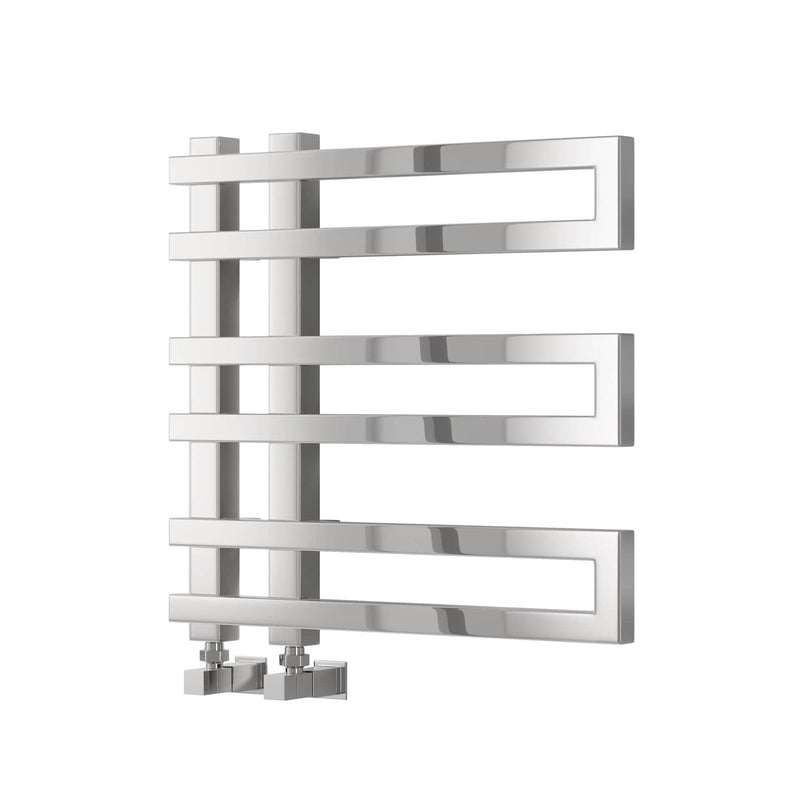

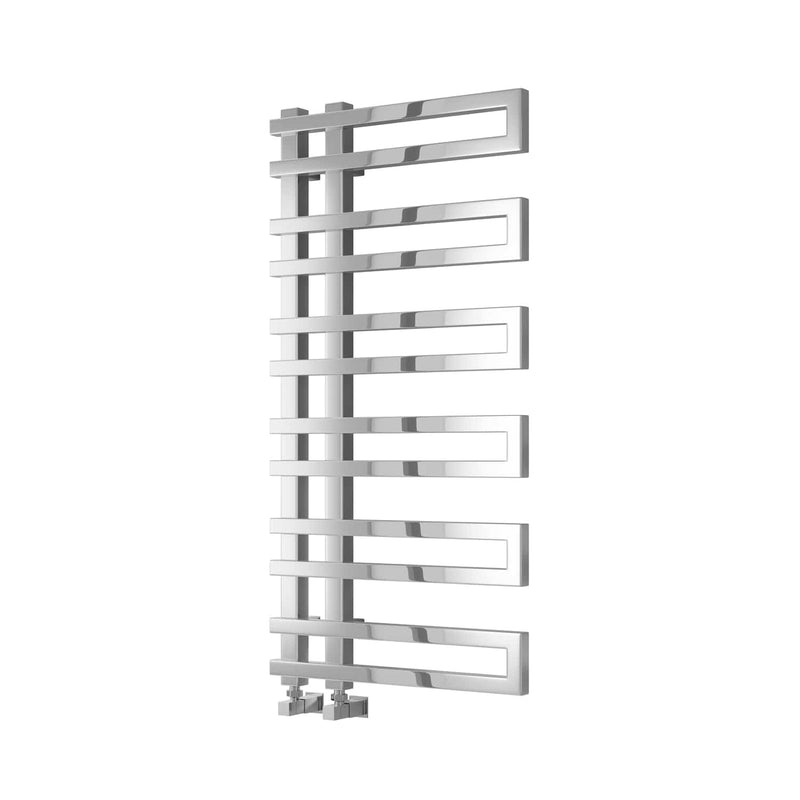

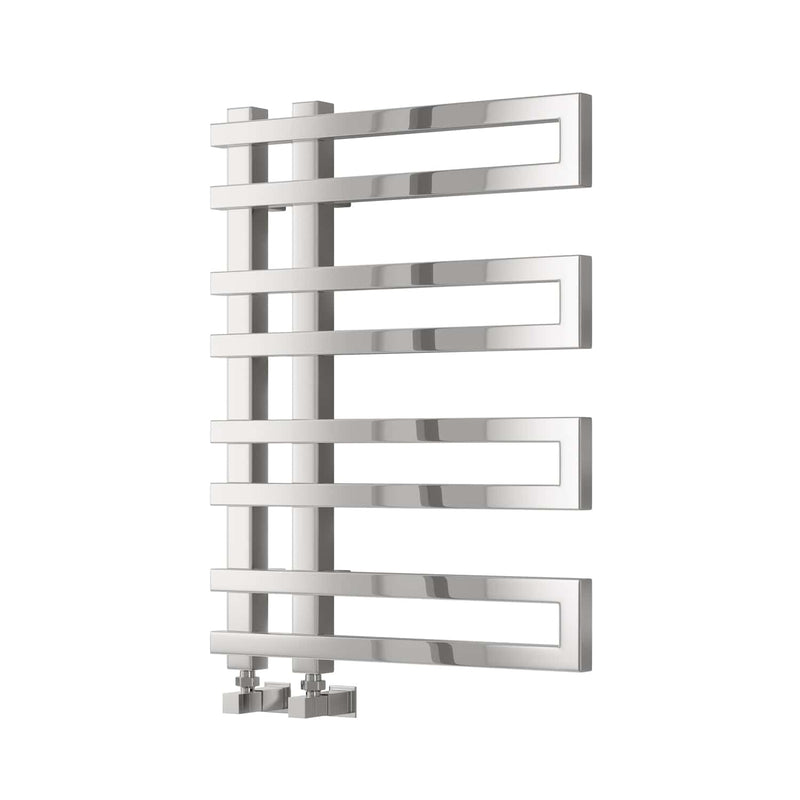

ChromeAll sizes

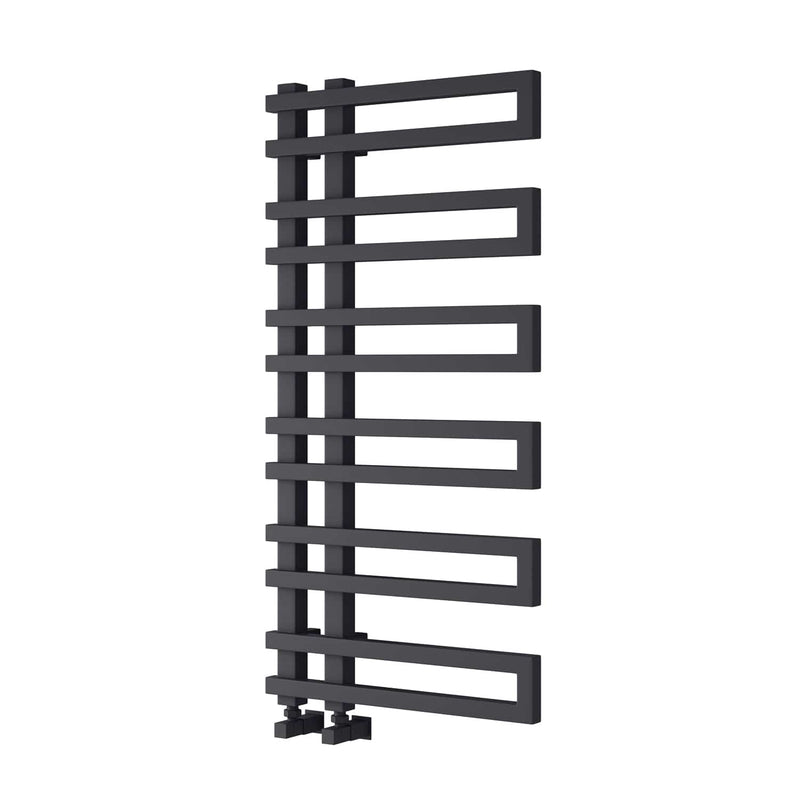

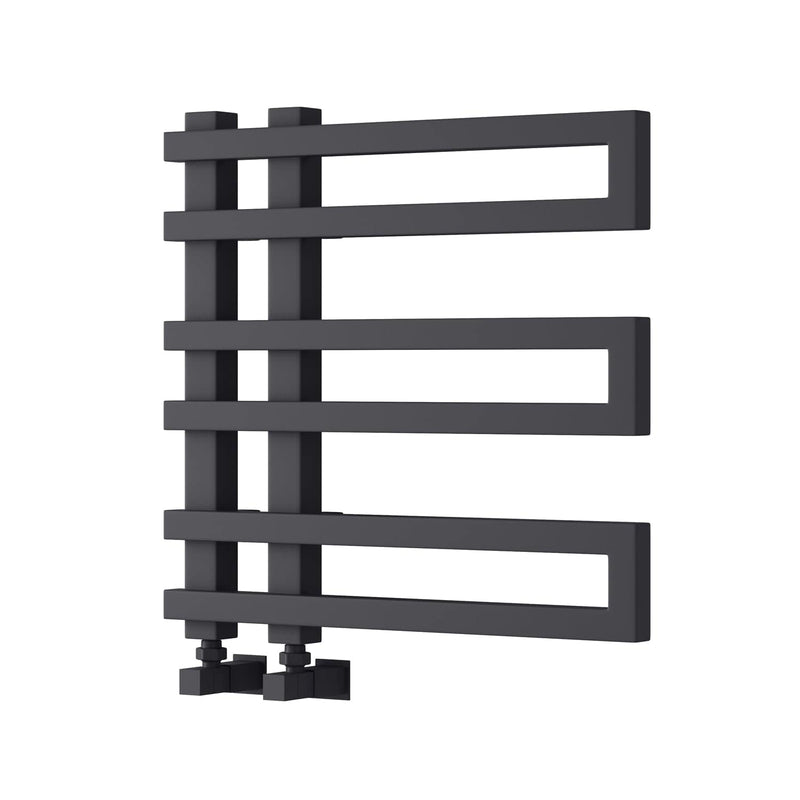

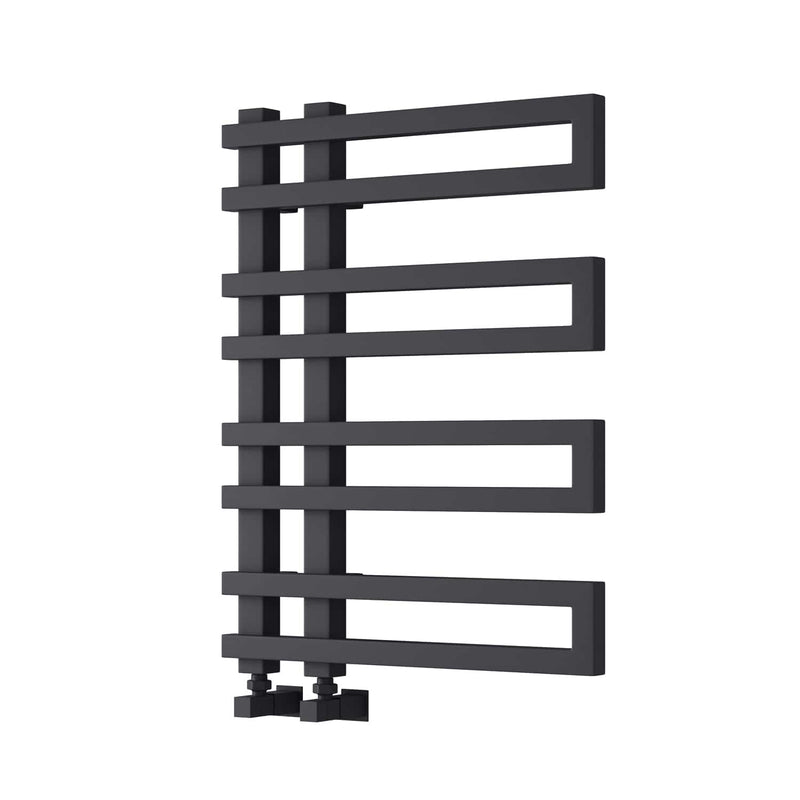

AnthraciteAll sizes
Heat Output by Size, Finish & System
ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Figures are per finish, as published by Reina.
| Height | Width | Finish | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|---|
| 530mm | 530mm | Chrome | 6 bar | 811 | 634 | 328 | 186 | 96 |
| 530mm | 530mm | Anthracite | 6 bar | 1,260 | 984 | 510 | 289 | 149 |
| 720mm | 530mm | Chrome | 8 bar | 1,135 | 887 | 459 | 260 | 135 |
| 720mm | 530mm | Anthracite | 8 bar | 1,732 | 1,353 | 700 | 397 | 205 |
| 1100mm | 530mm | Chrome | 12 bar | 1,867 | 1,459 | 755 | 428 | 221 |
| 1100mm | 530mm | Anthracite | 12 bar | 2,896 | 2,263 | 1,171 | 663 | 343 |
Heat pump owners: use the Delta T30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Pietra |
| Height options | 530mm / 720mm / 1100mm |
| Width | 530mm (all sizes) |
| Pipe centres | 100mm |
| Wall to pipe centres | 73-87mm |
| Wall distance | 108-122mm |
| Connection axis (vertical) | 300mm (530) / 490mm (720) / 870mm (1100) |
| Connections | G1/2" |
| Material | Mild steel, square tube |
| Bars | 6 / 8 / 12 (by height) |
| Finishes | Chrome / Anthracite |
| Mounting | Reversible - left or right handed |
| Fuel type | Central heating / Electric / Dual fuel (Reina) |
| Included | Wall brackets, fixings, end plug and air vent |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max water temperature | 95°C |
| Heat pump outputs | Delta T30 figures listed |
| Warranty | 5 years (Reina manufacturer) |
530–1100mm
3 heights · 530mm wide
Bars6 / 8 / 12
Finishes2
✓
ΔT30 outputs listed
For heat pump sizing
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
5-yearmanufacturer warranty
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Pietra compatible with a heat pump?
A. Reina publish Delta T30 outputs for the Pietra, so it can be sized for a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Q.
What valves do I need for the Pietra?
A. Valves are not supplied. The Pietra has G1/2 inch connections, and Reina's installation guide lists a lockshield valve plus a manual or thermostatic valve as the items you need. The valves visible in the product photos are not included. Thermostatic radiator valves (TRVs) give you individual room control.
Q.
What are the pipe centres and connection positions?
A. Pipe centres are 100mm, wall to pipe centres 73-87mm and wall distance 108-122mm. The vertical connection axis is 300mm on the 530mm high model, 490mm on the 720mm and 870mm on the 1100mm. See the technical drawing on this page for the full layout.
Q.
Can the Pietra be mounted left or right handed?
A. Yes. Reina describe the Pietra as a reversible design that can be mounted left or right handed, so you can choose the side the open bars extend to.
Q.
Which size Pietra do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which size and finish meets your heat loss. All three heights are 530mm wide; the 1100mm high model gives the highest output.
Q.
Do the chrome and anthracite versions give the same heat output?
A. No. Reina's datasheet lists different outputs for each finish, so our table shows every size in both chrome and anthracite. Check the row for the finish you want before you choose.
Q.
Can the Pietra be used as an electric or dual fuel radiator?
A. Reina list the Pietra for central heating, electric and dual fuel. For the electric element kit and the right set-up for your room, contact our team and we will advise before you order.
Q.
What are the operating limits and warranty?
A. The installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. The Pietra has a 5-year manufacturer guarantee. Reina state it must be fitted by a fully qualified installer.
