Sale
Reina Designer Grace Vertical Chrome Heated Towel Rail Steel Radiator
£200.00
£220.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
Same-day dispatch before 12pm · 5-year guarantee
Central heating, electric or dual fuel. Mild steel. Chrome, anthracite or white.
Product Overview & Key Specs
The Reina Grace is a mild steel towel radiator with round horizontal bars in a chrome, anthracite or white finish. Choose 780mm or 1140mm high, both 500mm wide, with 7 or 10 bars for towels. Reina rate it for central heating, electric or dual fuel, and publish heat pump outputs for every size and finish.
780 / 1140mm
Two heights
500mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Grace in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Grace in your room using augmented reality.
Why Mild Steel?
Three practical reasons the Grace suits a bathroom, cloakroom or hallway.
Solid steel buildMild steel ✔
Reina build the Grace from mild steel, a strong material that transfers heat well, with a chrome, anthracite or white finish.
5-year guaranteeReina manufacturer ✔
Reina back the Grace with a 5-year guarantee, so you are covered for the long term.
7 or 10 towel barsOpen bar design ✔
Round horizontal bars give plenty of room to hang towels, with 7 bars on the 780mm rail and 10 on the 1140mm rail.
In the Room

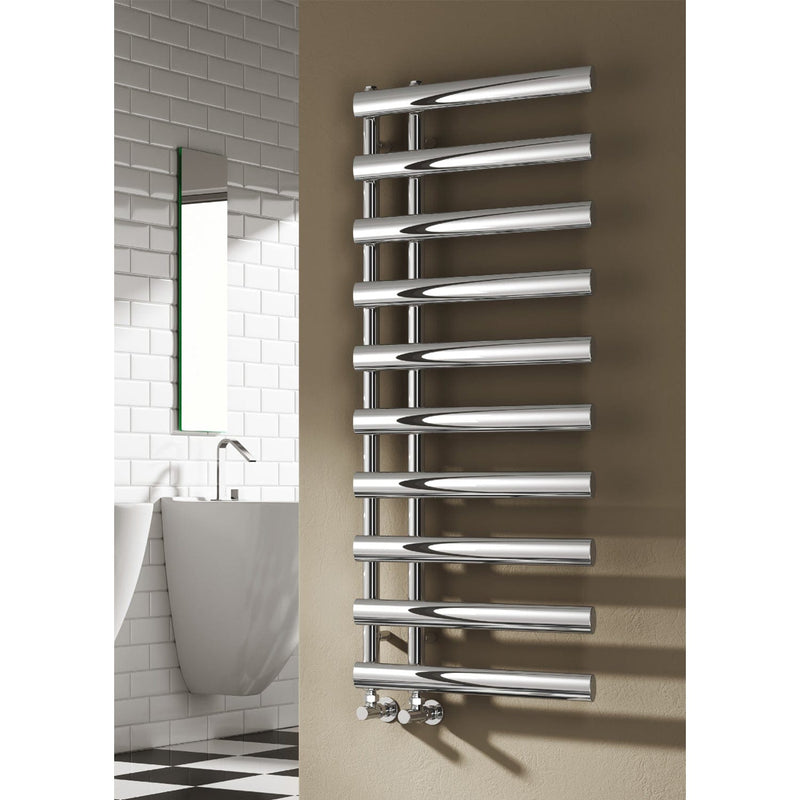

The chrome Grace shown in a room setting, plus two close-ups of the chrome bars.
Choose Your Finish
Chrome, anthracite or white - available in both sizes.

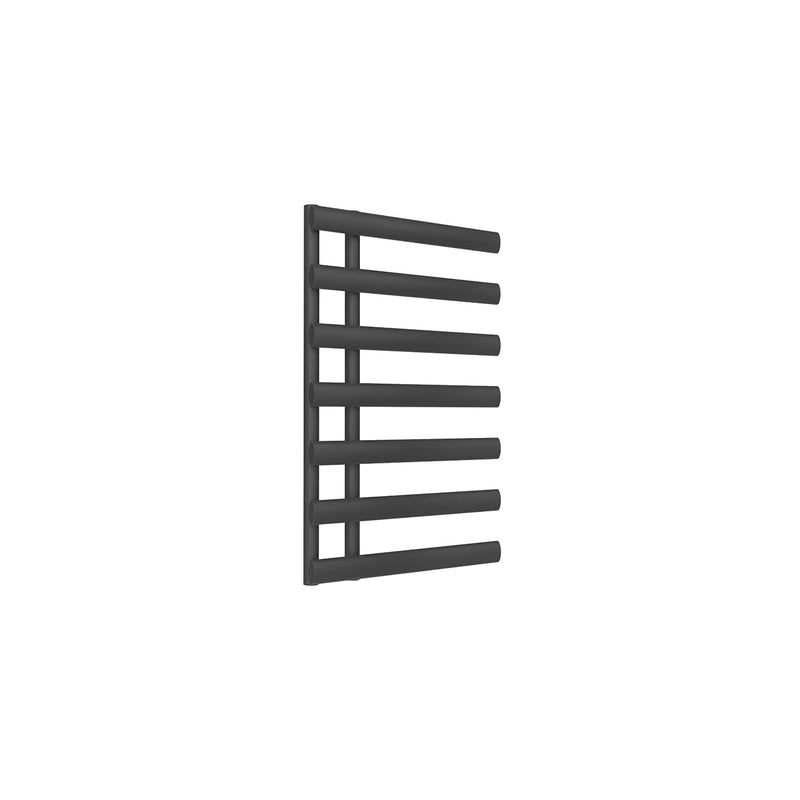

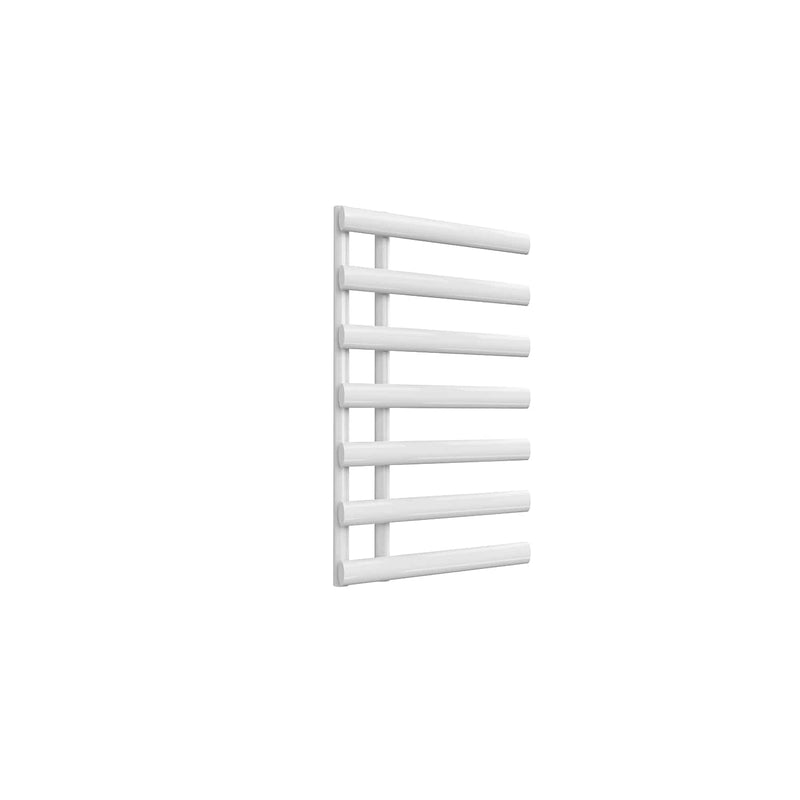

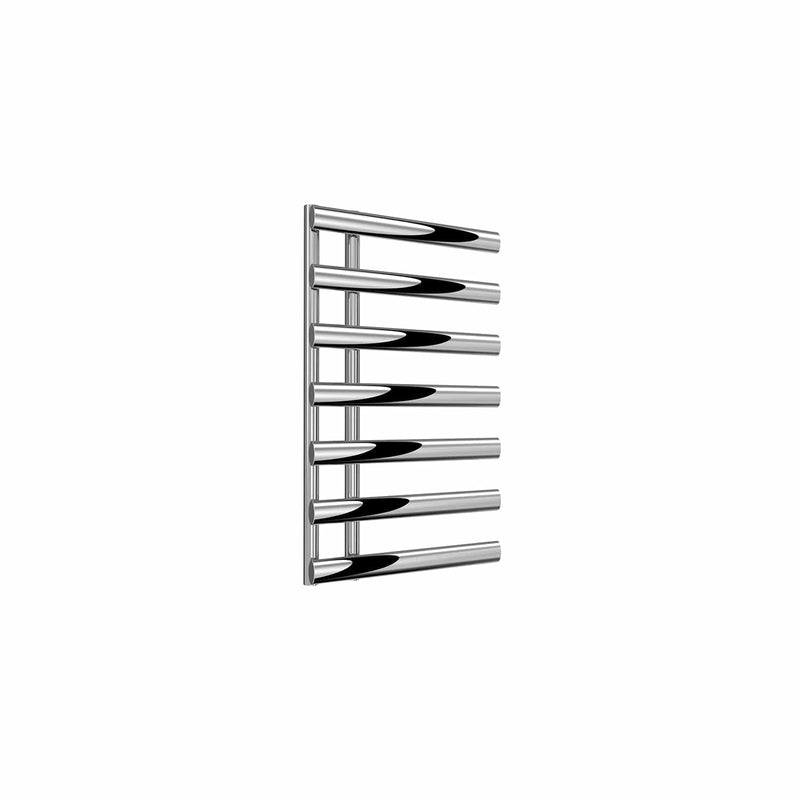

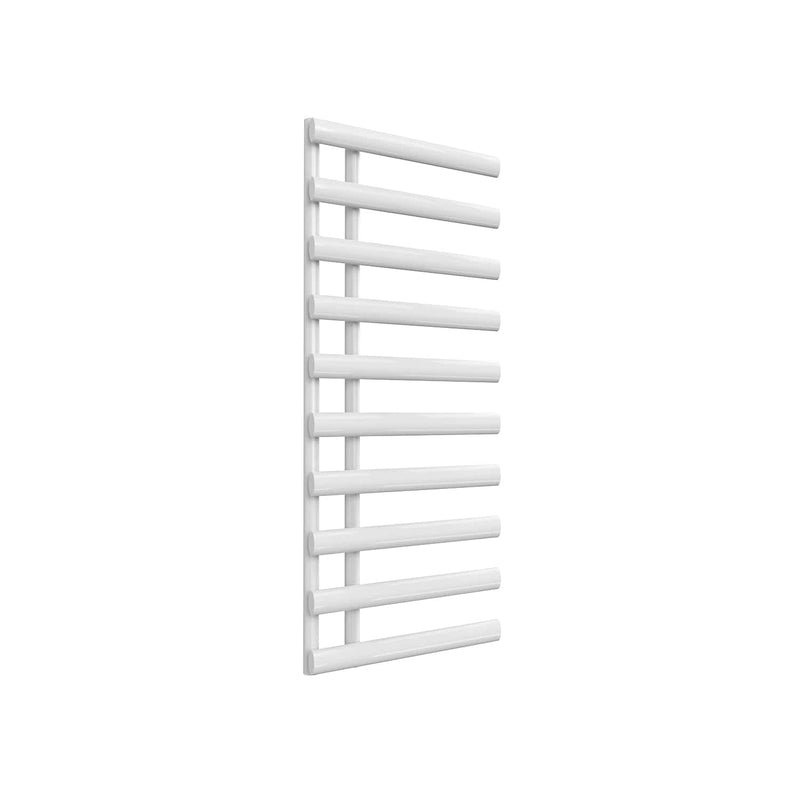

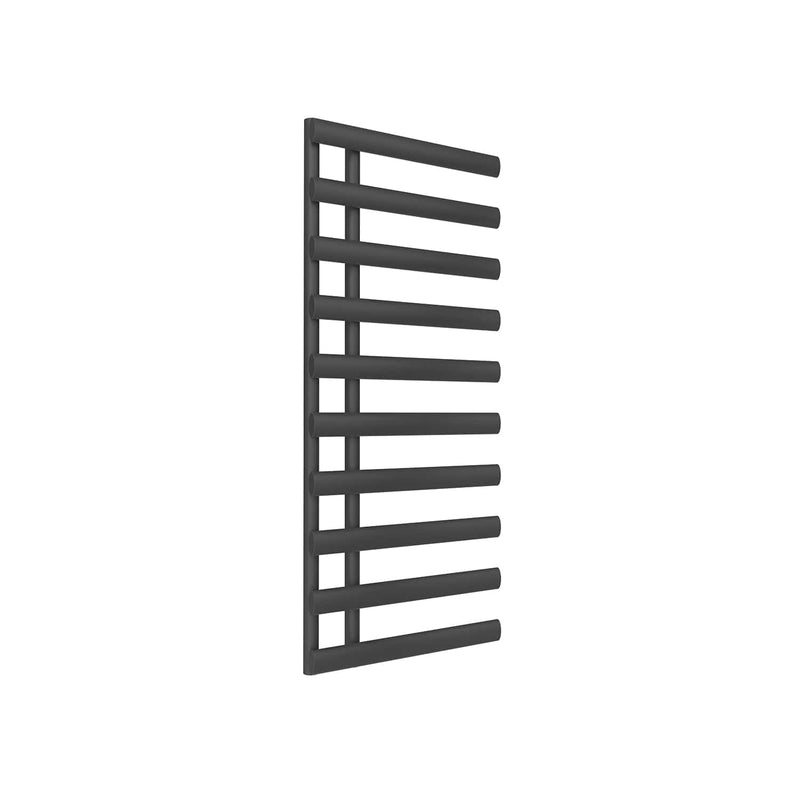

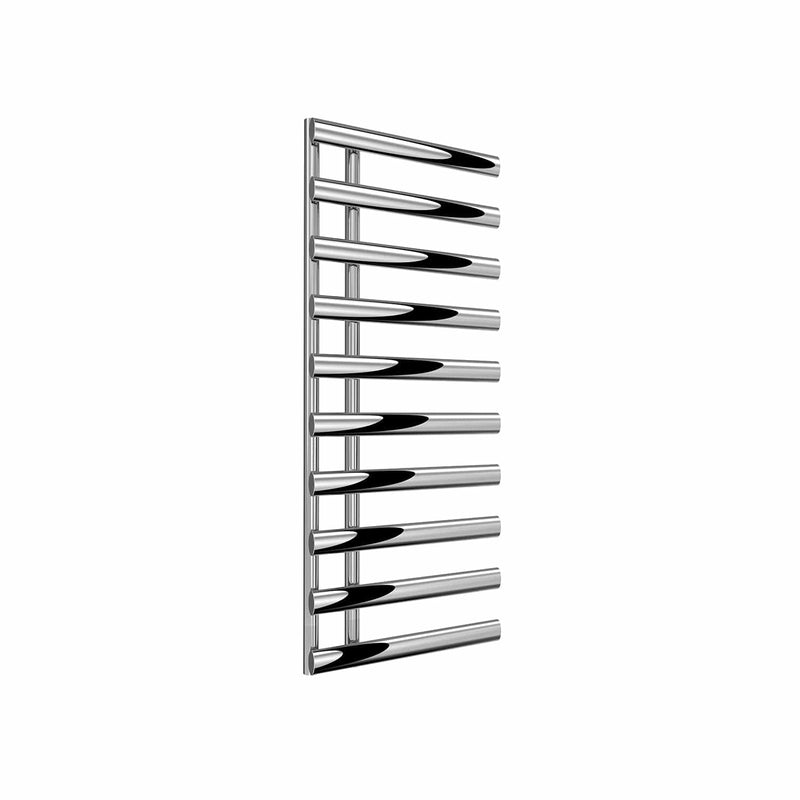

ChromeBoth sizes
AnthraciteBoth sizes
WhiteBoth sizes
Heat Output by Size & Finish
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Chrome has a lower output than Anthracite and White.
| Height 500mm wide |
Finish | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 780mm | Chrome | 7 | 992 | 775 | 401 | 227 | 118 |
| 780mm | Anthracite | 7 | 1,439 | 1,124 | 582 | 330 | 171 |
| 780mm | White | 7 | 1,439 | 1,124 | 582 | 330 | 171 |
| 1140mm | Chrome | 10 | 1,402 | 1,095 | 567 | 321 | 166 |
| 1140mm | Anthracite | 10 | 2,033 | 1,588 | 822 | 466 | 241 |
| 1140mm | White | 10 | 2,033 | 1,588 | 822 | 466 | 241 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Grace |
| Height | 780 / 1140mm |
| Width | 500mm (both sizes) |
| Projection from wall | 102–117mm |
| Pipe centres | 100mm |
| Wall to pipe centres | 61–76mm |
| Connection | G1/2" (per Reina installation guide) |
| Material | Mild steel |
| Bars | 7 (780mm) / 10 (1140mm) |
| Finishes | Chrome / Anthracite / White |
| Fuel type | Central heating / electric / dual fuel |
| Included | Wall brackets, wall anchors, fixings, air vent and end plug |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
780 / 1140mm
2 heights · 500mm wide
Bars7 / 10
Finishes3
✓
ΔT30 rated
Heat pump compatible
✓
5-year guarantee
Reina manufacturer
Free deliveryorders over £200
Same-daydispatch before 12pm
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Grace compatible with a heat pump?
A. Reina publish a Delta T30 output for every Grace size and finish, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Grace be used as an electric or dual fuel towel rail?
A. Reina list the Grace for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size and finish before ordering.
Q.
What valves do I need for the Grace?
A. The Grace has G1/2 inch connections with pipe centres of 100mm. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Grace?
A. Pipe centres are 100mm, wall to pipe centres is 61 to 76mm, and the rail projects 102 to 117mm from the wall. Both sizes are 500mm wide.
Q.
Why is the Chrome output lower than Anthracite and White?
A. Reina's datasheet lists a lower output for the Chrome finish than for Anthracite and White at each size. At 1140mm, Chrome is rated at 321W at Delta T50 against 466W for Anthracite and White. Use the row for your finish in the heat output table when you size the rail.
Q.
Which size Grace do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Grace size and finish meets your heat loss. The 780mm rail has 7 bars and the 1140mm rail has 10 bars for towels.
Q.
What finishes is the Grace available in?
A. Chrome, Anthracite and White, in both the 780mm and 1140mm heights. Anthracite and White have the same heat output at each size.
Q.
What are the maximum temperature and pressure, and how far from the floor should it be fitted?
A. Reina's installation guide gives a maximum working temperature of 95C and a maximum working pressure of 4 bar. Do not mount the radiator closer than 50mm below an overhanging surface such as a shelf, or lower than 100mm from the floor. The Grace carries a 5-year Reina guarantee and should be fitted by a qualified installer.
