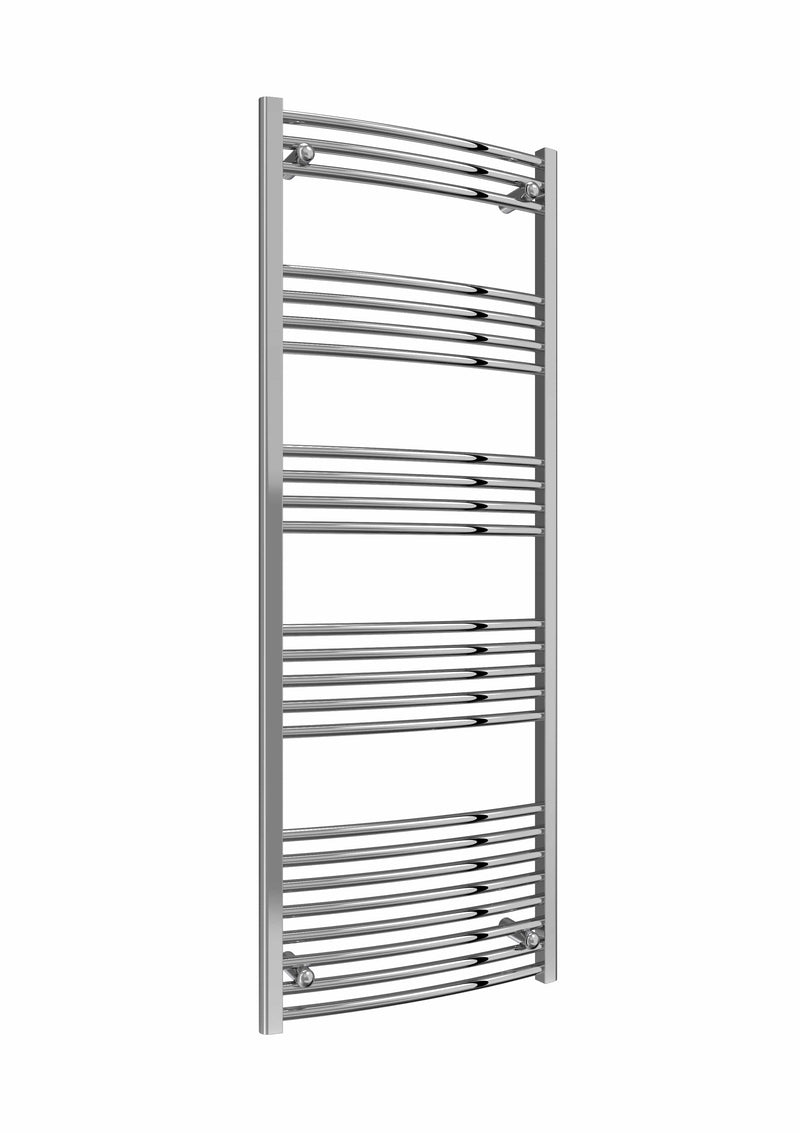

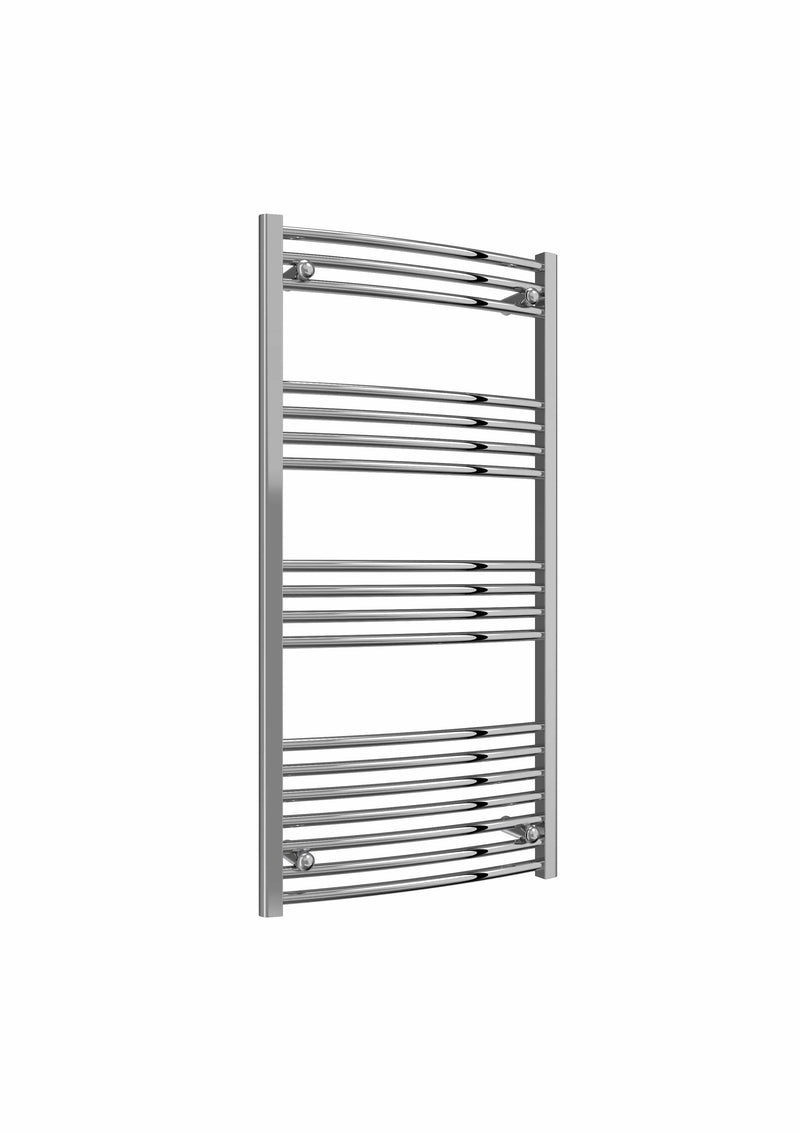

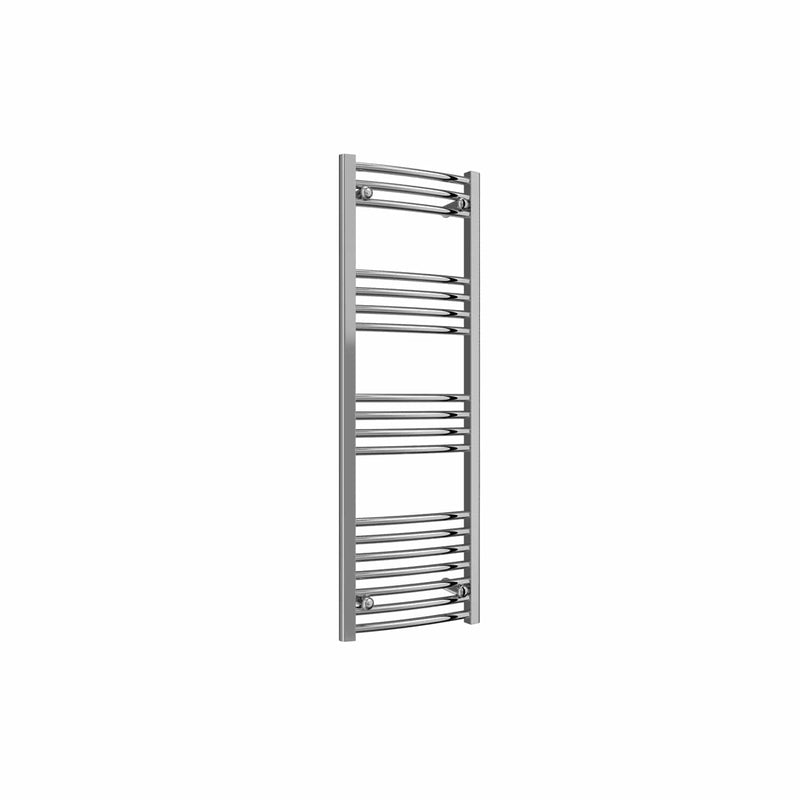

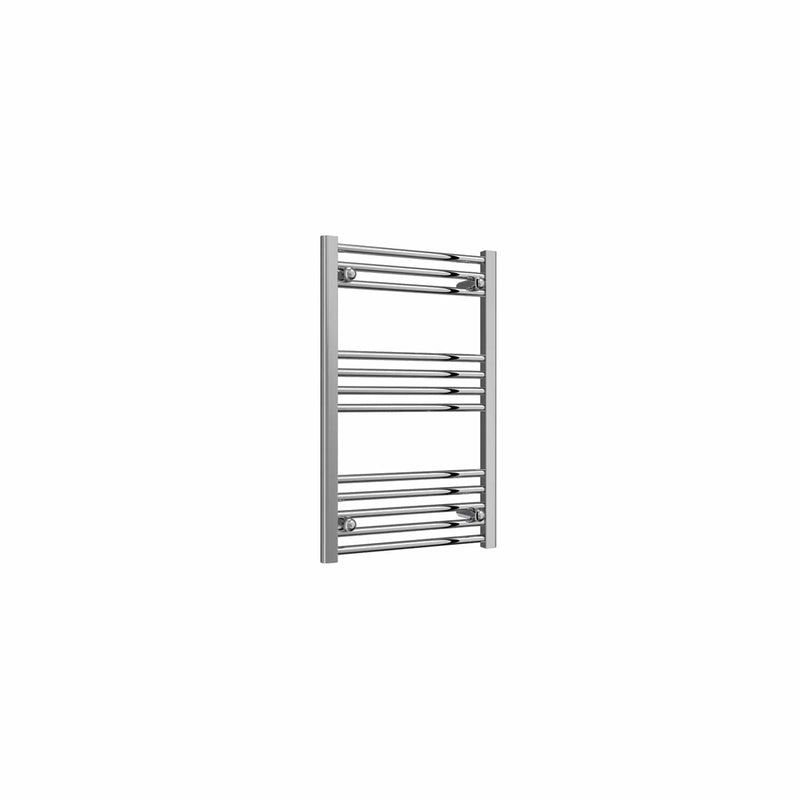

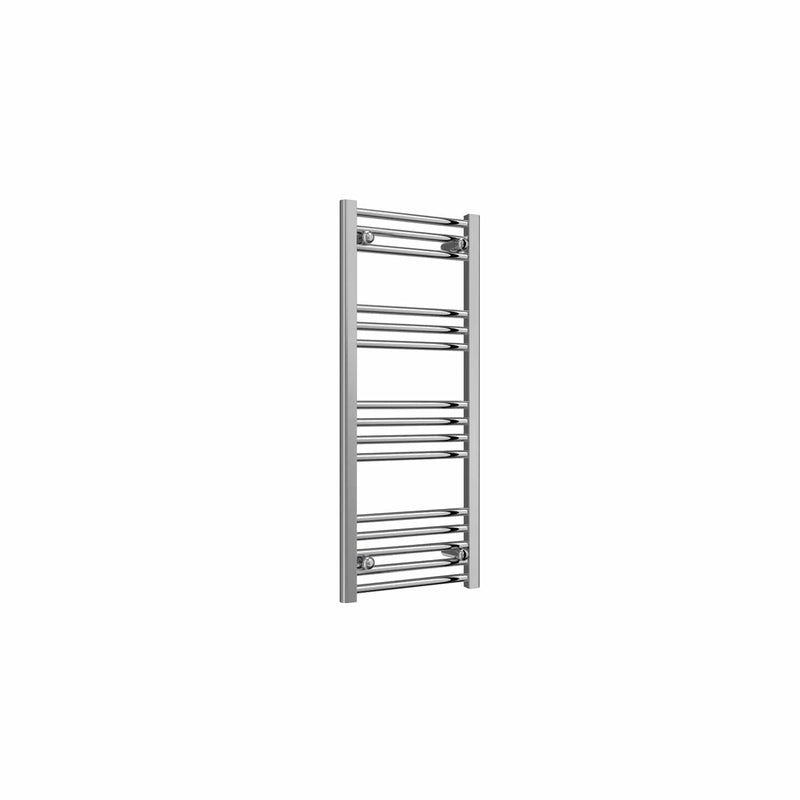

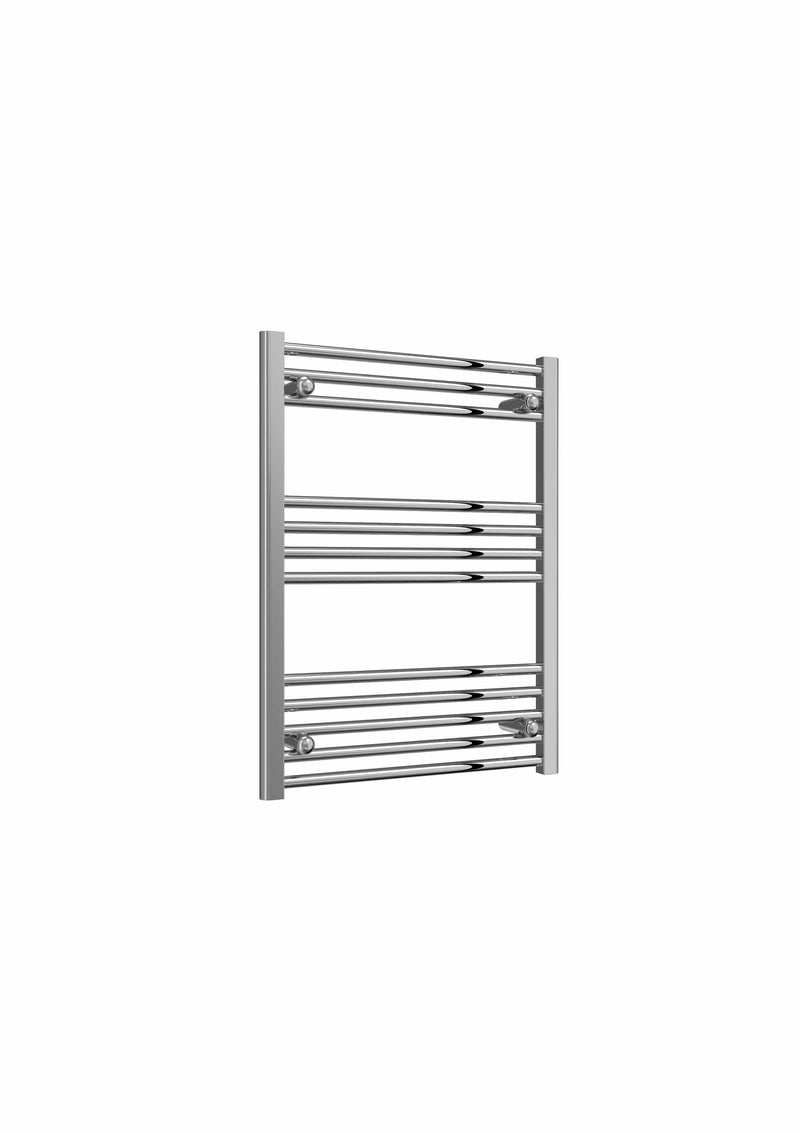

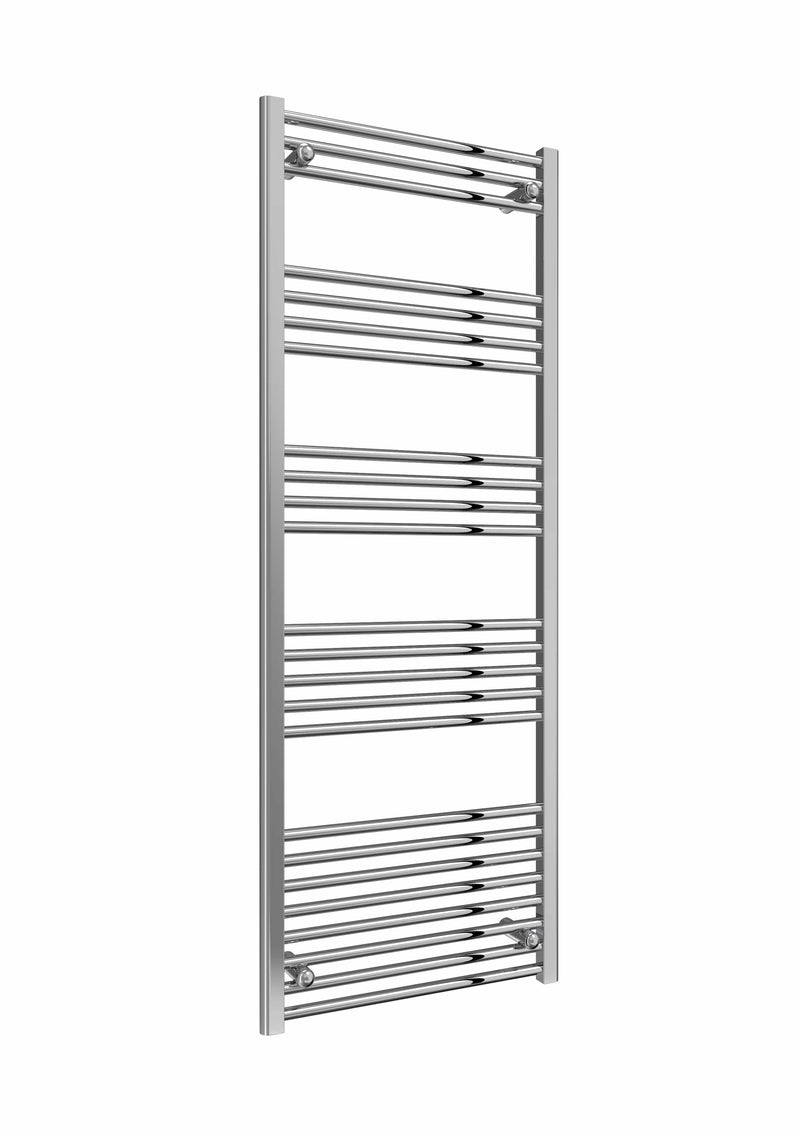

Reina Capo Chrome Flat & Curved Towel Rail Radiator
£80.30
£100.30
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Frequently Bought Together
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Mild steel. Chrome ladder towel rail, straight or curved.
Product Overview & Key Specs

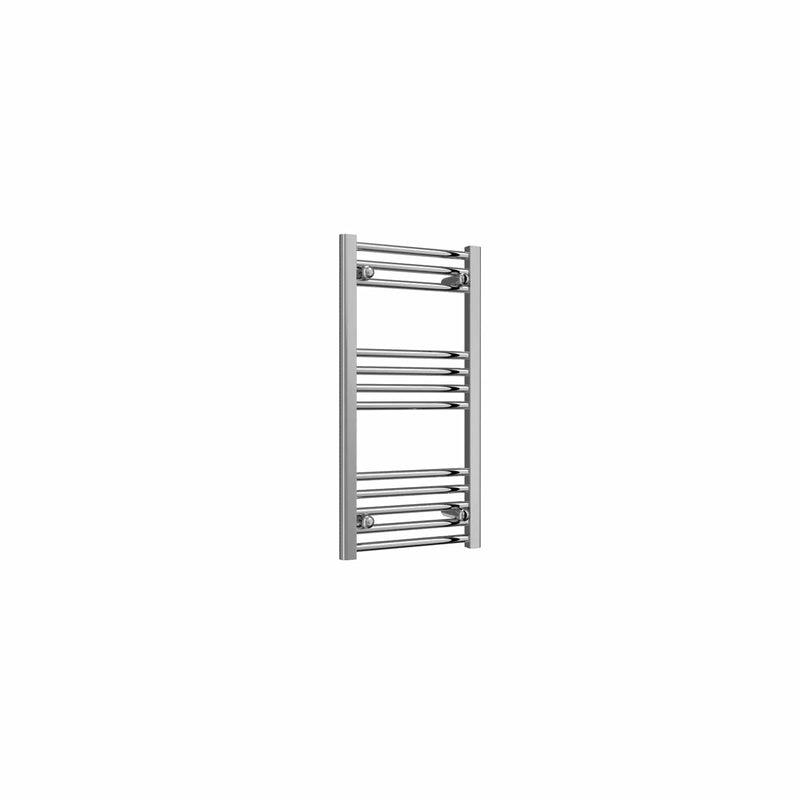

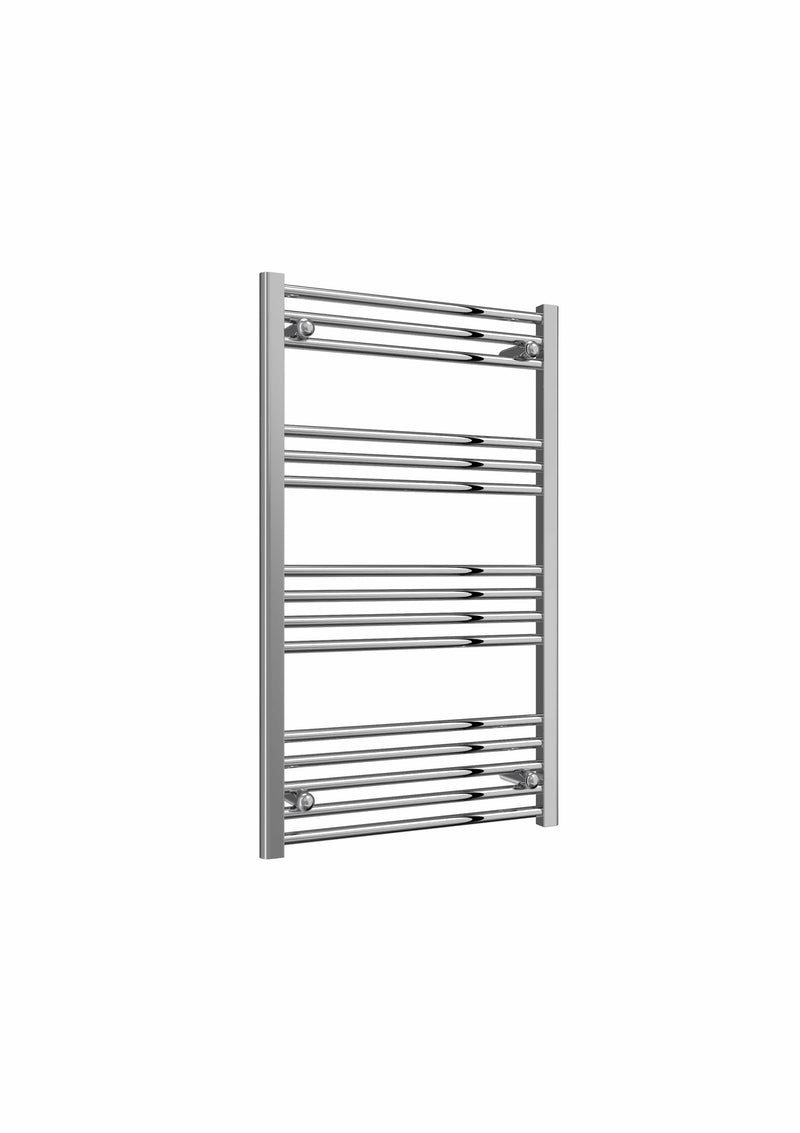

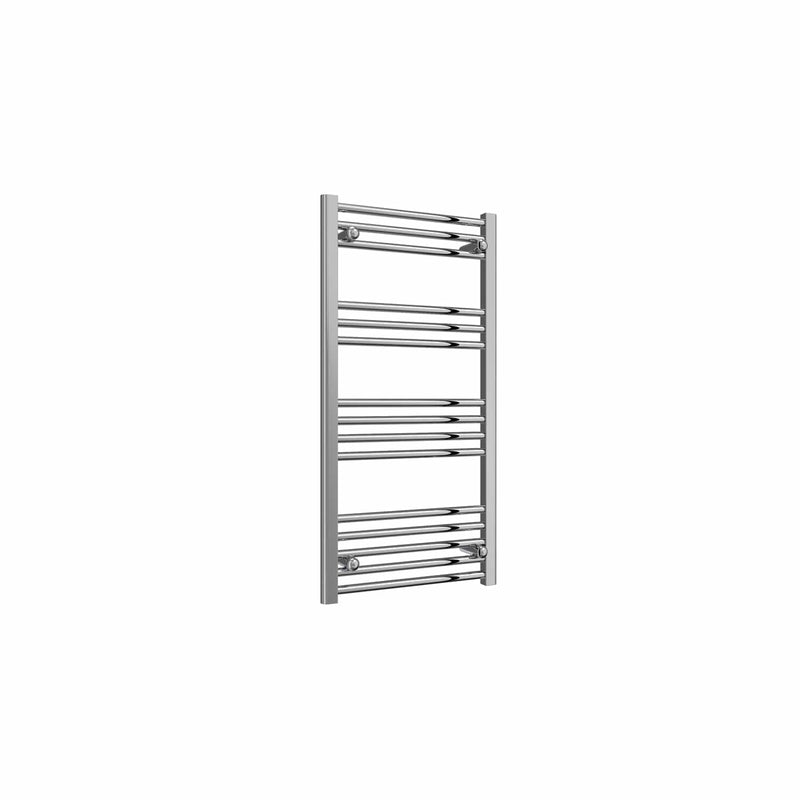

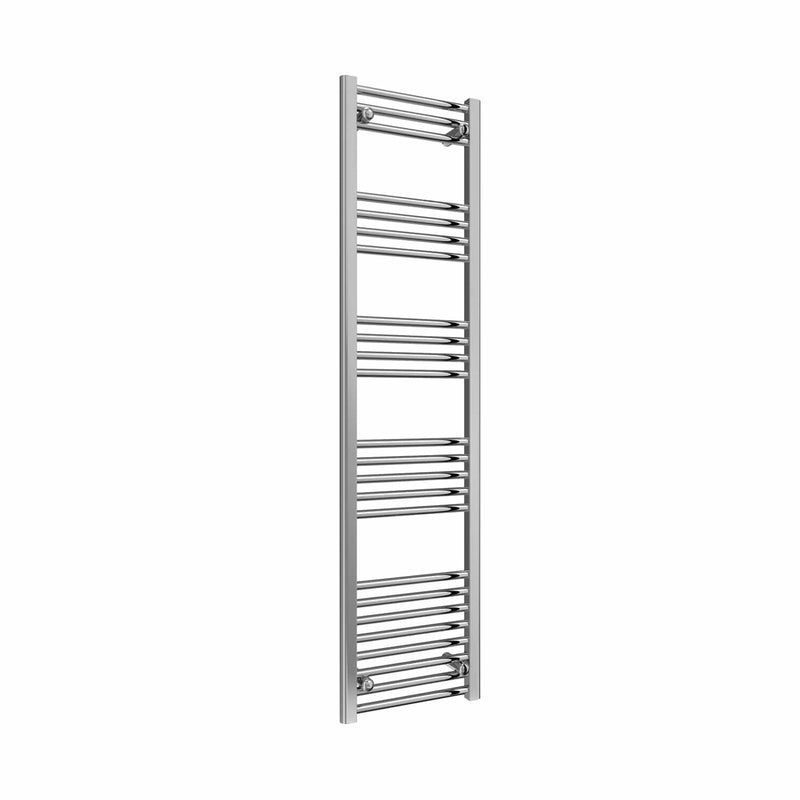

The Reina Capo is a mild steel ladder towel rail in polished chrome, available in five heights from 800mm to 1800mm and three widths (400, 500 and 600mm). Pick straight tubes for a clean flat face, or curved tubes for a little more room between the rails for towels. Both use 22mm horizontal tubes and the same brackets, and the thick steel body holds its heat after the boiler switches off.
800–1800mm
Five heights
400–600mm
Three widths
2
Shapes
4
Finishes
5 yr
Warranty
Why Mild Steel for a Towel Rail?
Three practical reasons a steel ladder rail suits a modern central heating system.
Robust buildHard-wearing ✔
Thick-wall 22mm steel tubes with a durable finish. A ladder rail takes knocks and keeps its looks in busy bathrooms and kitchens.
Holds its heatWarm towels ✔
Steel retains heat after the boiler switches off, so towels stay warm and the room temperature stays steady between cycles.
Straight or curvedYour choice
Same rail, same brackets, same pipe centres - choose flat tubes for a clean face or curved tubes for extra towel space.

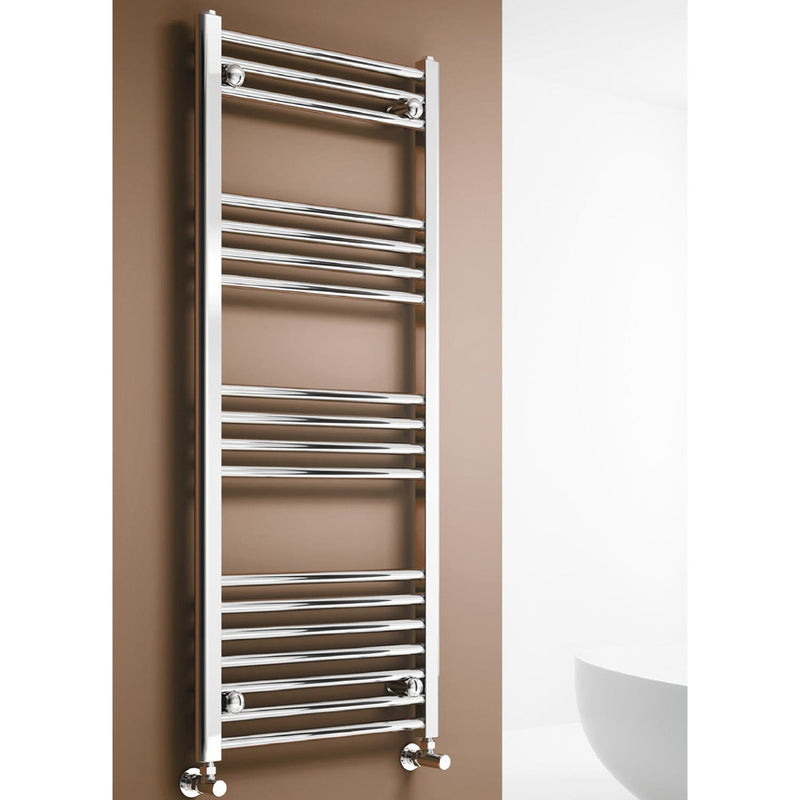

In the Room
The Capo chrome in three settings.
Choose Your Finish
Chrome shown. The same rail is also available in the finishes below.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Choose straight or curved to match your size selection.
| Height | Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 800mm | 400mm | 12 | 749 | 585 | 303 | 172 | 89 |
| 800mm | 500mm | 12 | 886 | 692 | 358 | 203 | 105 |
| 800mm | 600mm | 12 | 1,027 | 802 | 415 | 235 | 122 |
| 1000mm | 400mm | 16 | 960 | 750 | 388 | 220 | 114 |
| 1000mm | 500mm | 16 | 1,101 | 860 | 445 | 252 | 131 |
| 1000mm | 600mm | 16 | 1,243 | 971 | 503 | 285 | 147 |
| 1200mm | 400mm | 18 | 1,075 | 840 | 435 | 246 | 127 |
| 1200mm | 500mm | 18 | 1,269 | 991 | 513 | 291 | 151 |
| 1200mm | 600mm | 18 | 1,471 | 1,149 | 595 | 337 | 174 |
| 1600mm | 400mm | 24 | 1,421 | 1,110 | 575 | 326 | 169 |
| 1600mm | 500mm | 24 | 1,675 | 1,309 | 677 | 384 | 199 |
| 1600mm | 600mm | 24 | 1,943 | 1,518 | 786 | 445 | 230 |
| 1800mm | 400mm | 27 | 1,502 | 1,173 | 607 | 344 | 178 |
| 1800mm | 500mm | 27 | 1,836 | 1,434 | 743 | 421 | 218 |
| 1800mm | 600mm | 27 | 2,982 | 2,330 | 1,206 | 683 | 354 |
Straight and curved are identical up to 1600mm; the 1800mm sizes differ slightly. Heat pump owners: use the ΔT30 column.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Capo (Chrome, straight & curved) |
| Shape | Straight or curved tubes - choose with your size |
| Heights | 800 / 1000 / 1200 / 1600 / 1800mm |
| Widths | 400 / 500 / 600mm |
| Pipe centres | 355 / 455 / 555mm (rail width minus 45mm) |
| Wall to pipe centres | 70–85mm |
| Projection from wall | 85–100mm |
| Tube diameter | 22mm horizontal tubes |
| Bars | 12 / 16 / 18 / 24 / 27 (by height) |
| Connection | 1/2" BSP thread |
| Material | Mild steel, polished chrome |
| Finishes | Chrome / White / Anthracite / Black |
| Fuel type | Central heating / electric / dual fuel |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 8 bar (800 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
800–1800mm
5 heights · 3 widths · 2 shapes
FinishChrome
Warranty5 yr
✓
ΔT30 rated
Heat pump compatible
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and pick your system and shape.
Frequently Asked Questions
Q.
What is the difference between the straight and curved Capo?

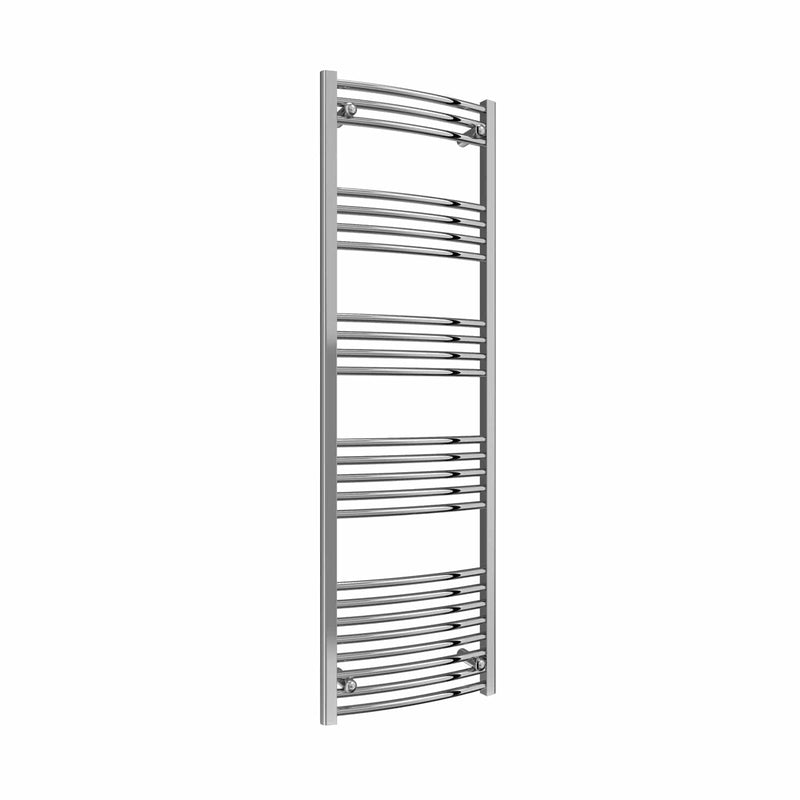

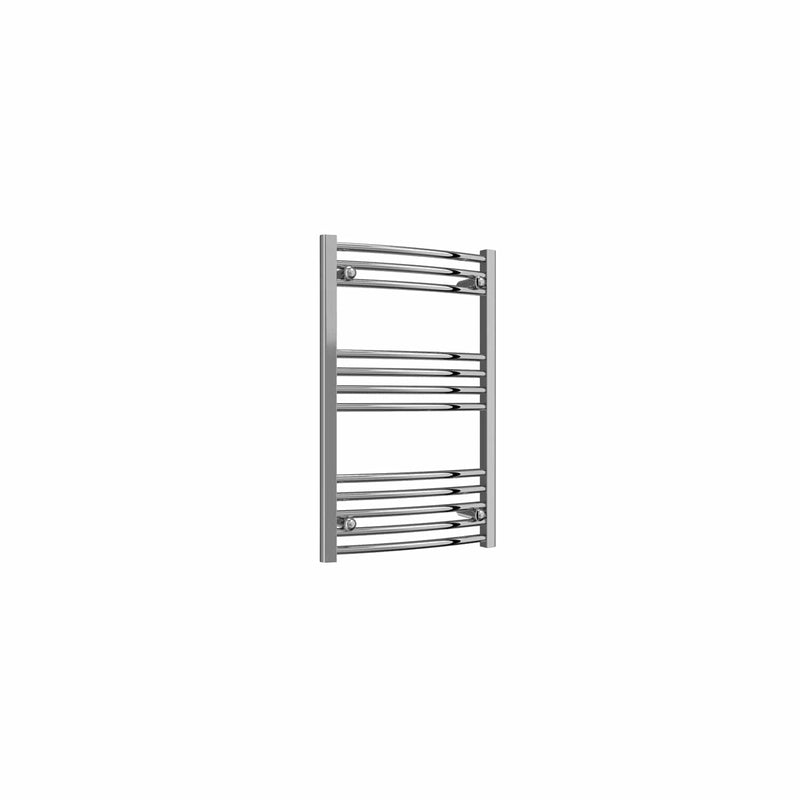

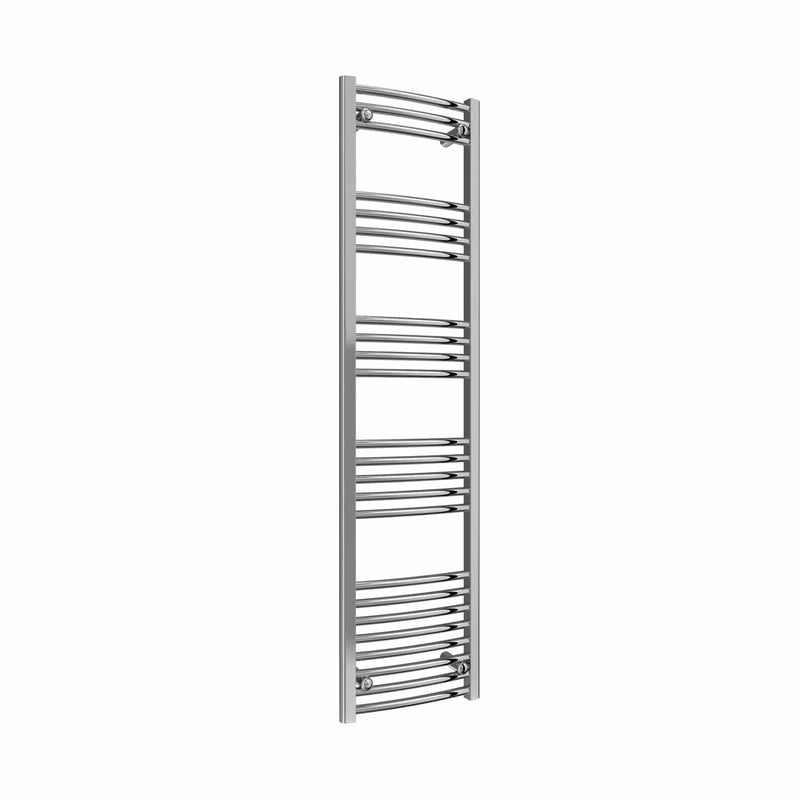

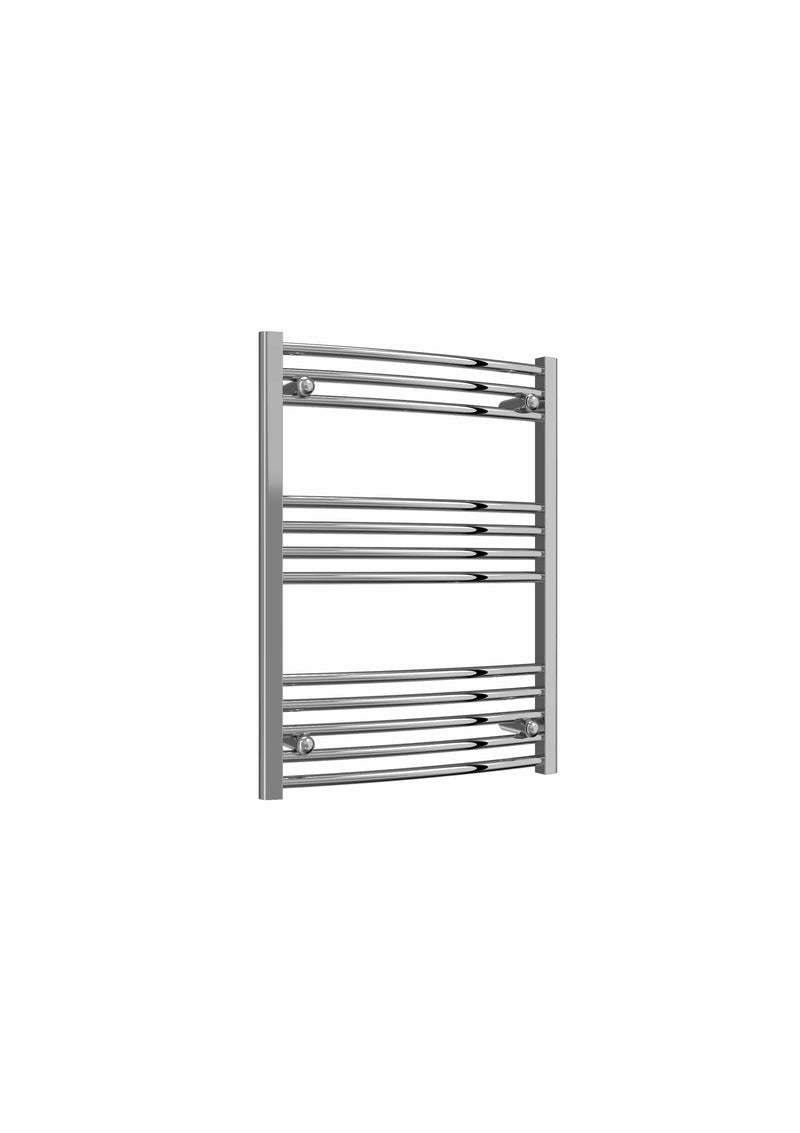

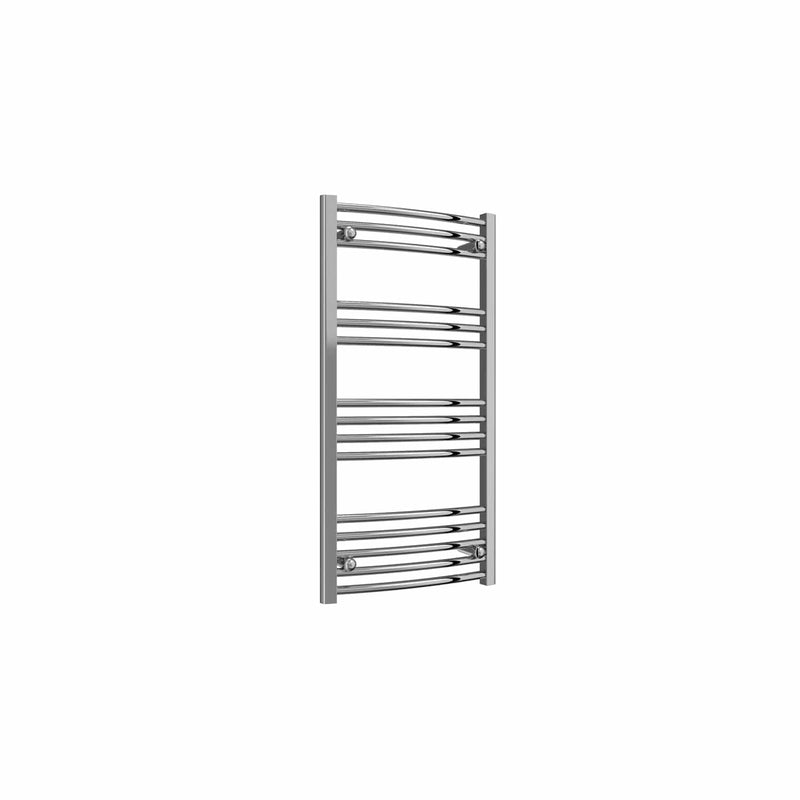

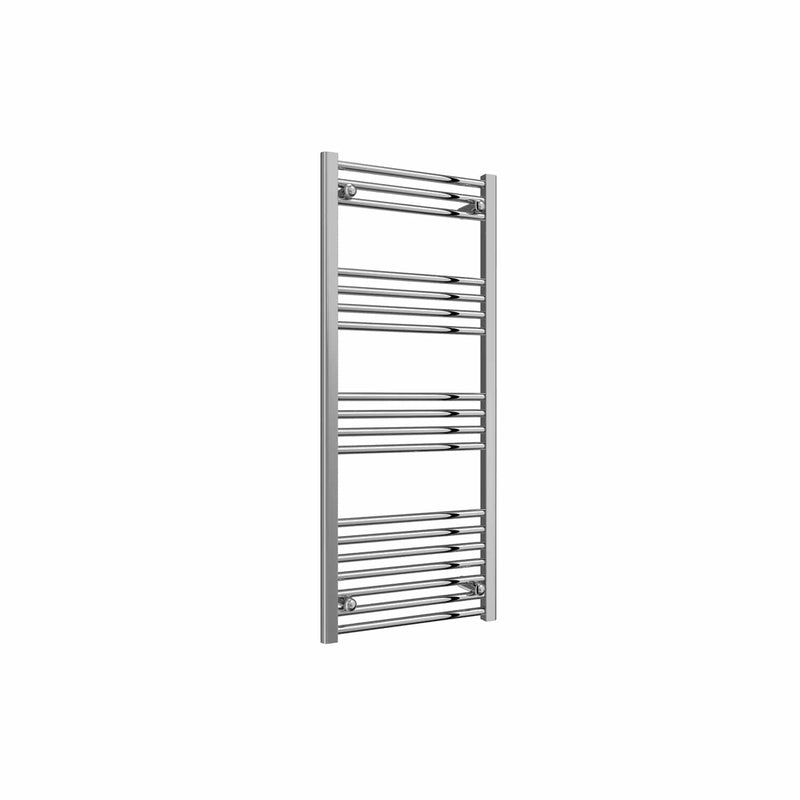

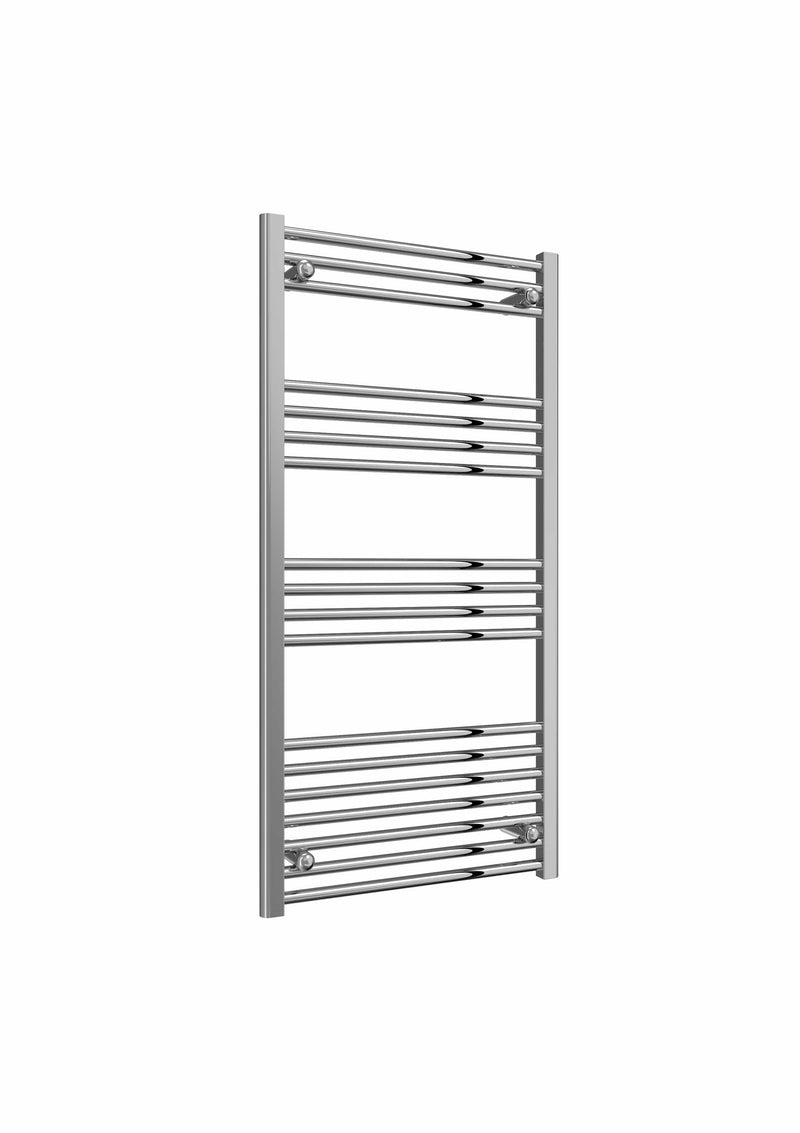

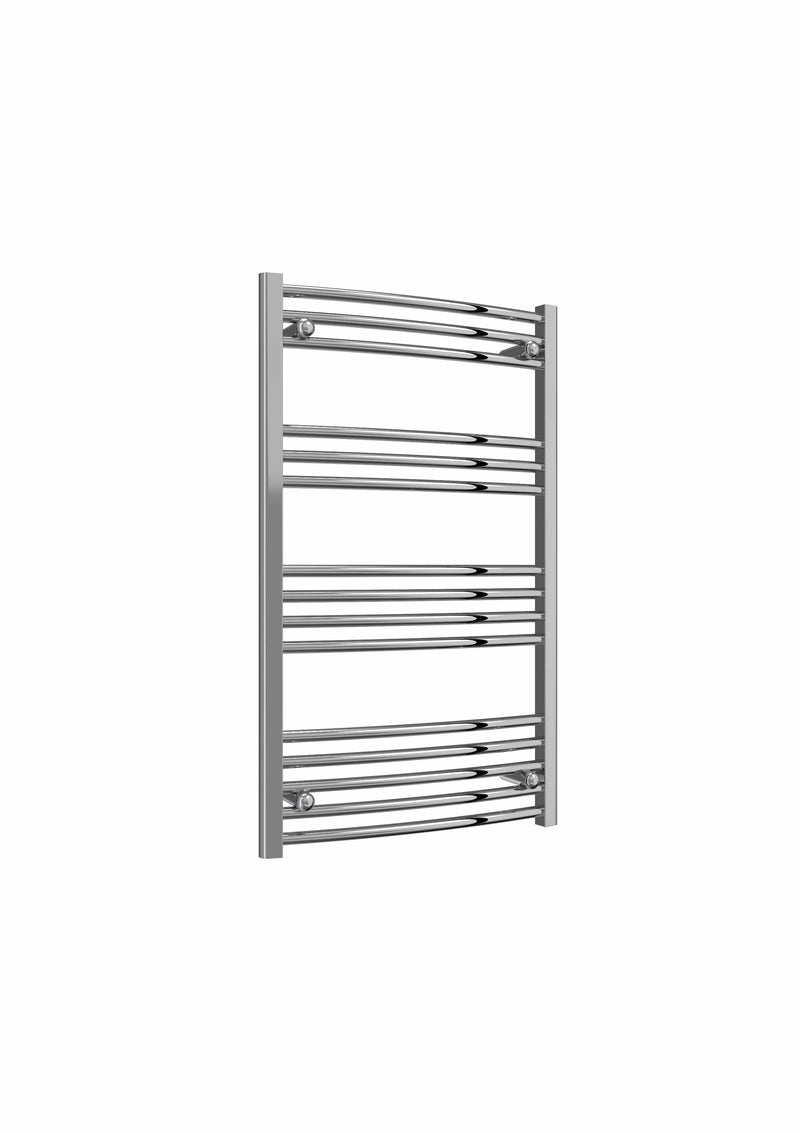

A. Straight rails have flat 22mm horizontal tubes running across the front. Curved rails have the same 22mm tubes but they bow outwards, giving a little more space between the tubes for towels. Both use the same brackets and fit the same pipe centres for a given size.
Q.
Do the straight and curved versions have the same heat output?
A. Very nearly. The two are identical up to 1600mm high. On the 1800mm sizes the curved rail is slightly lower - the 1800 x 600mm straight delivers 2,330 BTU at Delta T50 against 1,646 BTU for the curved. Use the shape selector above the table to see both.
Q.
Is the Reina Capo compatible with a heat pump?
A. It is rated at Delta T30, so it will work on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Steel warms up more slowly than aluminium, so if your system runs at low flow temperatures year-round it will take a little longer to reach temperature.
Q.
What valves do I need for the Capo?
A. The Capo takes standard 1/2 inch BSP valves. We recommend thermostatic radiator valves (TRVs) for individual room control. One lockshield valve and one TRV is the usual pairing for a towel rail.
Q.
What are the pipe centres on the Capo?
A. Pipe centres are 45mm less than the rail width - 355mm on the 400mm wide, 455mm on the 500mm and 555mm on the 600mm. Wall to pipe centres is 70-85mm depending on how you set the brackets.
Q.
How do I look after a chrome towel rail?
A. Wipe chrome with a soft damp cloth and dry it off - never use abrasive pads or chemical cleaners, which scratch the plating. Keep the rail out of direct contact with wet towels for long periods if you want the finish to stay bright.
Q.
Can the Capo be used as an electric or dual fuel towel rail?
A. Yes for most sizes. The datasheets list central heating, electric and dual fuel for every size except the two largest 1800 x 500mm and 1800 x 600mm, which are central heating only. Contact our team and we will confirm the correct element for your size.
Q.
Why choose a mild steel towel rail?
A. Steel is robust, takes a hard-wearing finish and holds its heat after the boiler switches off, which keeps towels warm between cycles. A ladder profile gives a lot of heated surface in a small footprint.
