Sale
Reina Belbo Stainless Steel Vertical Towel Rail
£248.00
£268.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Ladder design.
Product Overview & Key Specs

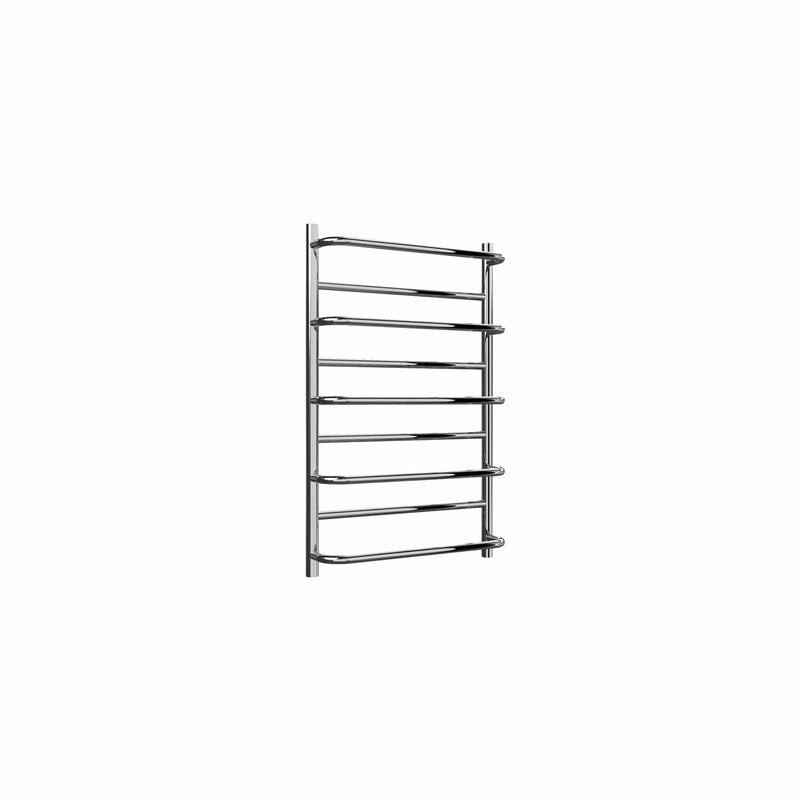

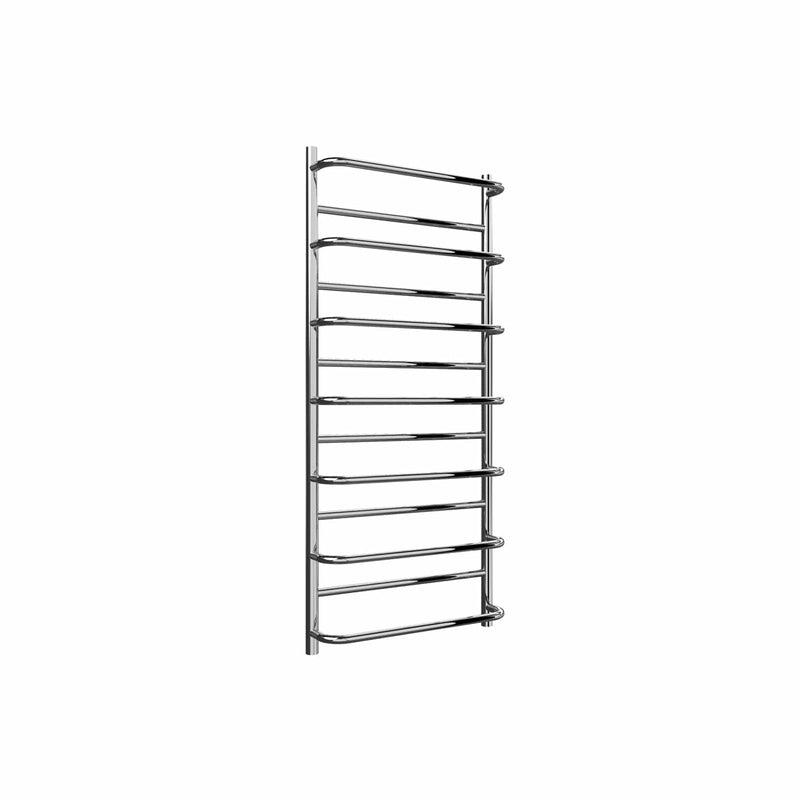

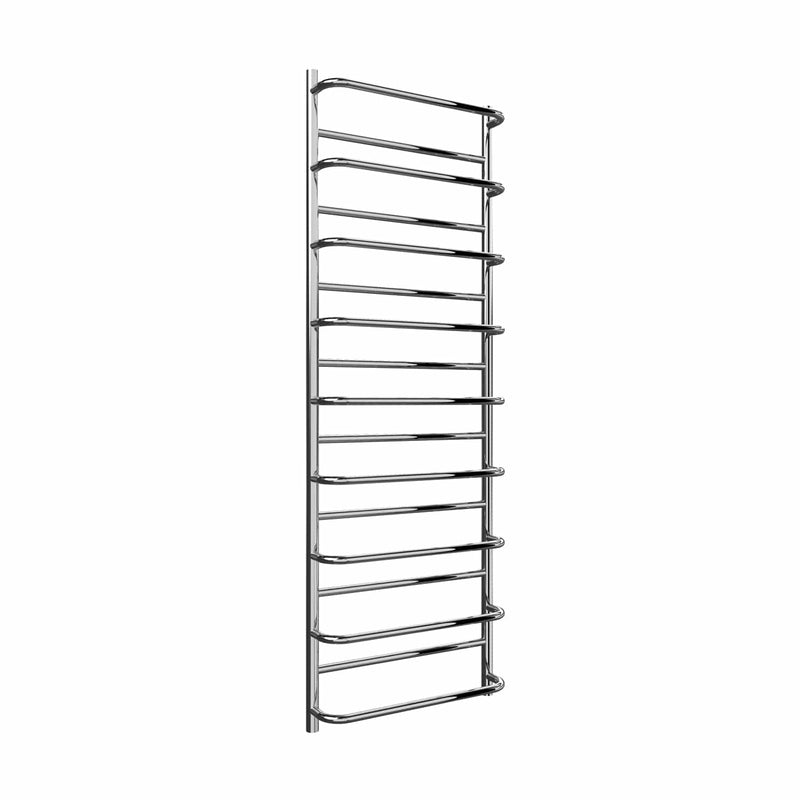

The Reina Belbo is a towel rail with polished stainless steel horizontal tubes in a ladder design. Choose 820, 1180 or 1540mm high, all 530mm wide, with 9 to 17 bars for towels. It suits central heating, electric or dual fuel, and carries a 25-year guarantee.
820–1540mm
Three heights
530mm
Width
9–17
Bars
ΔT30
Heat pump rated
25 yr
Guarantee
View the Belbo in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Belbo in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a polished stainless steel towel rail suits a bathroom.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Belbo keeps its polished finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Belbo with a 25-year guarantee, a long cover period for a bathroom radiator.
Ladder designPractical towel storage
Curved horizontal tubes give a classic ladder profile, with 9 to 17 bars for hanging towels.
In the Room

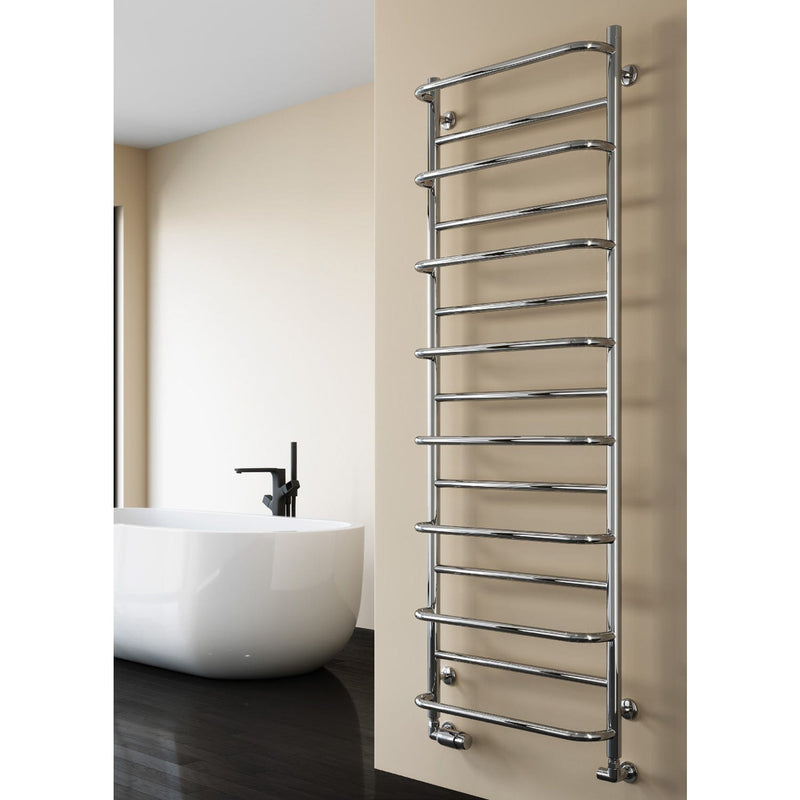

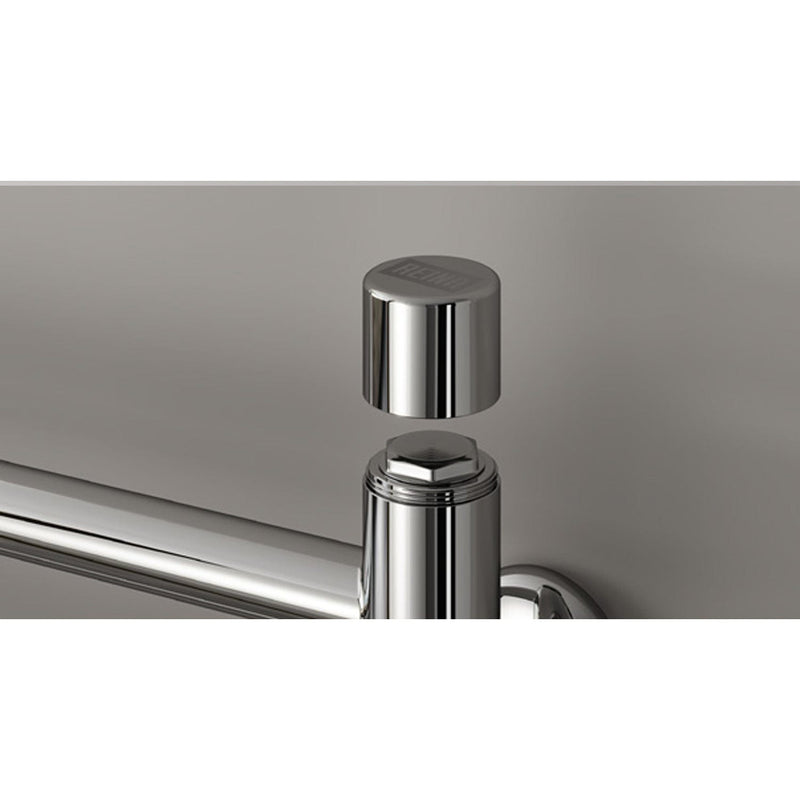

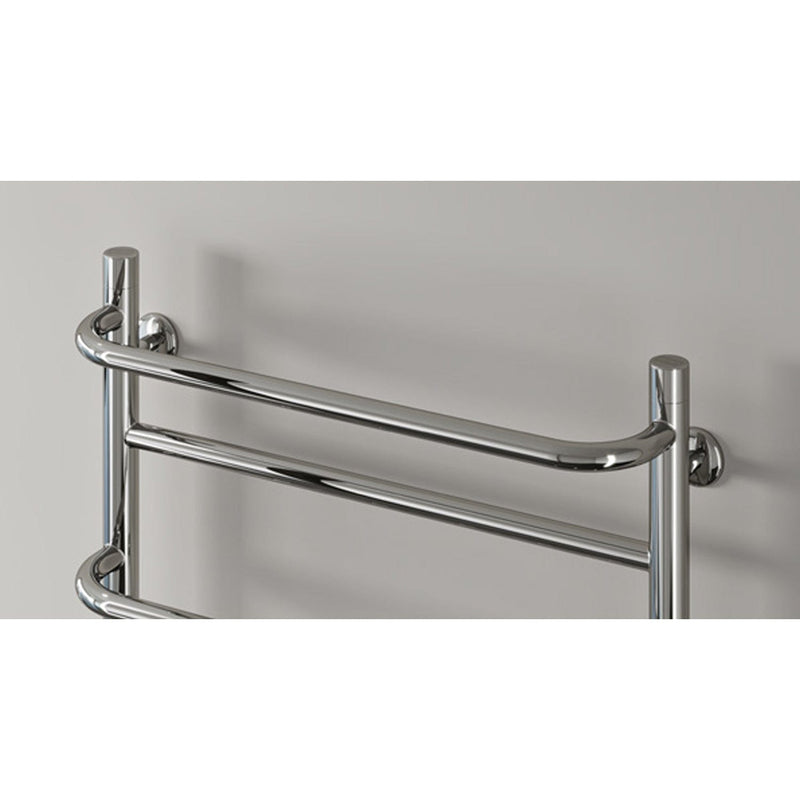

The Belbo shown in a room setting, plus two close-ups of the polished stainless steel.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height | Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 820mm | 530mm | 9 bars | 1,068 | 834 | 432 | 245 | 127 |
| 1180mm | 530mm | 13 bars | 1,539 | 1,202 | 622 | 353 | 183 |
| 1540mm | 530mm | 17 bars | 2,007 | 1,568 | 812 | 460 | 238 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Belbo |
| Height | 820 / 1180 / 1540mm |
| Width | 530mm |
| Projection from wall | 147mm |
| Pipe centres | 500mm (all sizes) |
| Wall to pipe centres | 50–60mm |
| Connection | 1/2" BSP female thread (inlet / outlet) |
| Material | Stainless steel (304 quality) |
| Bars | 9 / 13 / 17 (by height) |
| Finish | Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Water volume | 2.06–3.89 litres (by size) |
| Empty weight | 5.74–10.34kg (by size) |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
820–1540mm
3 heights · 530mm wide
Bars9–17
Sizes3
✓
ΔT30 rated
Heat pump compatible
✓
Electric ready
Electric & dual fuel listed
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Belbo compatible with a heat pump?
A. Reina publish a Delta T30 output for every Belbo size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Belbo be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Belbo for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Belbo?
A. The Belbo has 1/2 inch BSP female inlet and outlet connections. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Belbo?
A. Pipe centres are 500mm across all three sizes. Wall to pipe centres is 50 to 60mm, and the rail stands 147mm off the wall.
Q.
Which size Belbo do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Belbo size meets your heat loss. The 1180mm height is a popular mid-size choice for a family bathroom.
Q.
What finish is the Belbo available in?
A. Polished stainless steel, in all three sizes. Every size has the same construction and finish.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Belbo carries a 25-year Reina guarantee.
Q.
How much water does the Belbo hold?
A. From about 2.06 litres in the 820 x 530mm size up to about 3.89 litres in the 1540 x 530mm size, so it fills and heats up quickly.
