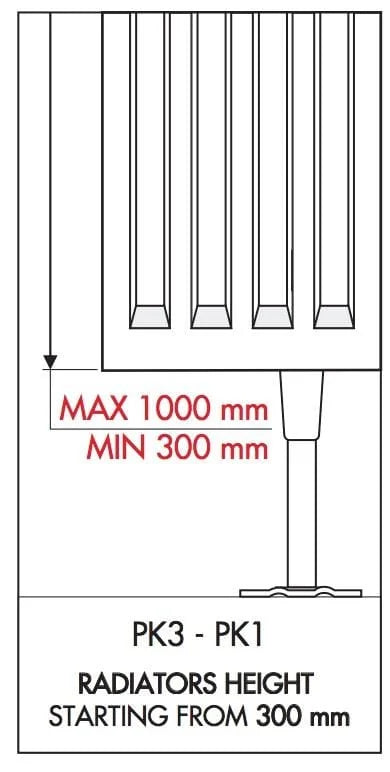

PK1 and PK3 floor brackets suit panel radiators 300 to 1000 mm high

PK1 Floor Brackets for 300-1000 mm Panel Radiators – Adjustable Raw Floor Feet, White (Pair)

Name: PK1 Floor Brackets for 300-1000 mm Panel Radiators – Adjustable Raw Floor Feet, White (Pair)
Brand: MB
SKU: MB-FLR-BRCK-PK1
Price: 49.99 GBP
Availability: InStock
Rating: 5.0 (13 reviews)

£49.99

Inc. VAT · Fast UK delivery

Estimated Delivery:

Free delivery over £200 — £9.99 below

30-day returns

Need Help Choosing?

Our heating experts are here to help

WhatsApp 02477 220 780

Mon-Fri 9am-5pm

★ Excellent service · Elegant Radiators · Coventry, UK

UK stock · Fast dispatch from our UK warehouse

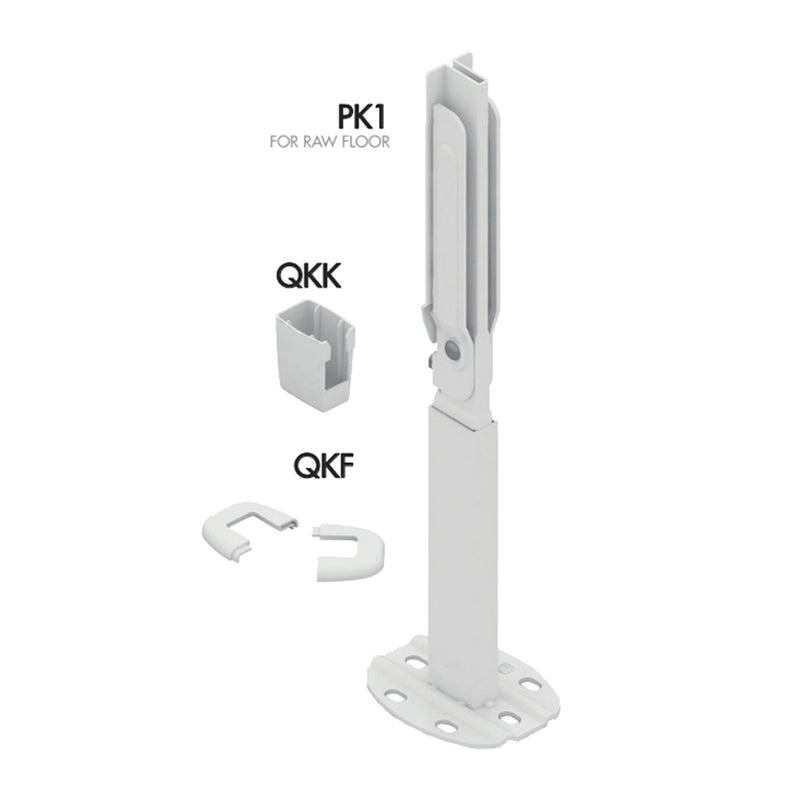

PK1 white floor bracket for raw floor with QKK radiator clip and QKF floor cover for panel radiators

Floor brackets · Raw floor · Pair

PK1 Adjustable Floor Brackets for Panel Radiators

Support a panel radiator from the floor instead of the wall. The PK1 is the raw floor bracket for type 11, 21, 22 and 33 radiators from 300 to 1000 mm high, with adjustable clearance under the radiator and a floor cover that hides the fixing. Supplied as a pair.

300–1000 mm

Radiator height

262–360 mm

Floor clearance

Type 11–33

Panel radiators

TÜV SÜD

Type tested

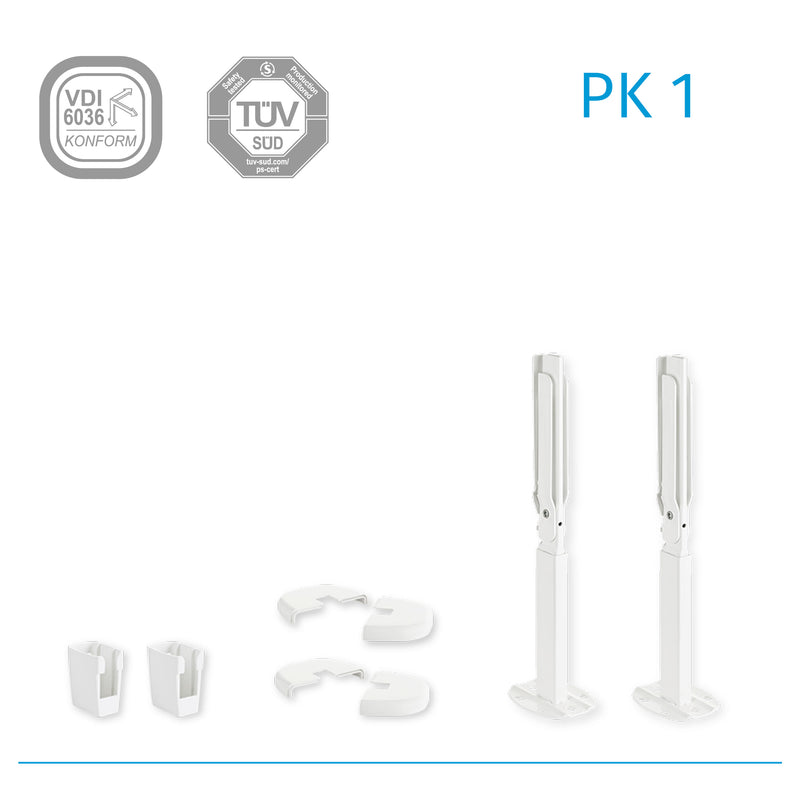

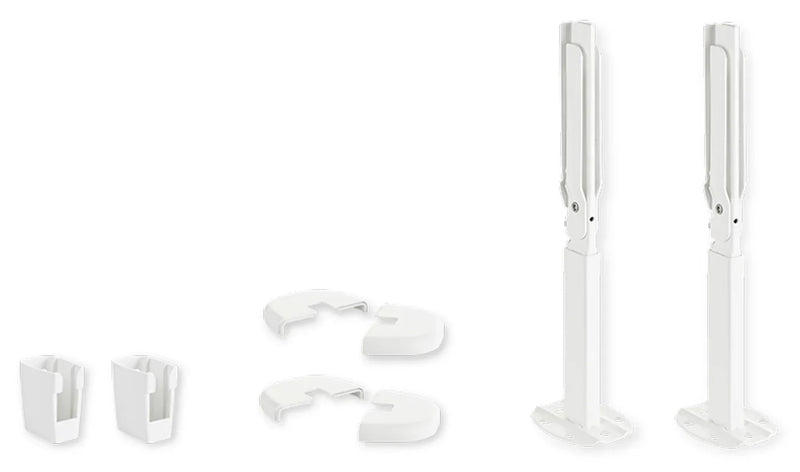

What's in the pack

One pair, ready to fit one radiator.

2 x PK1Adjustable floor brackets

2 x QKKRadiator clips

2 x QKFTwo-part floor covers

Will it fit my radiator?

Check these things before you order.

Fit check

Radiator type	✓ Panel type 11, 21, 22 or 33
Radiator height	✓ 300 mm to 1000 mm
Pipework	Not for radiators with central connections
Floor	Raw floor. For a finished floor see the PK3 brackets

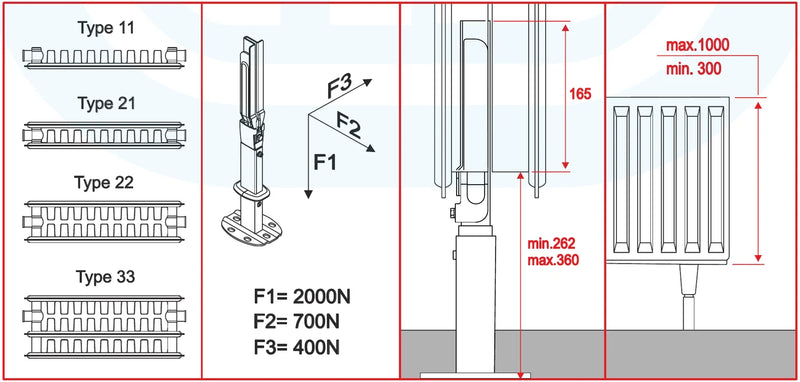

PK1 compatible radiator types 11, 21, 22 and 33, load ratings, 262 to 360 mm floor clearance and 300 to 1000 mm height range

Dimensions & fixing

Straight from the maker's data sheet. All sizes in mm.

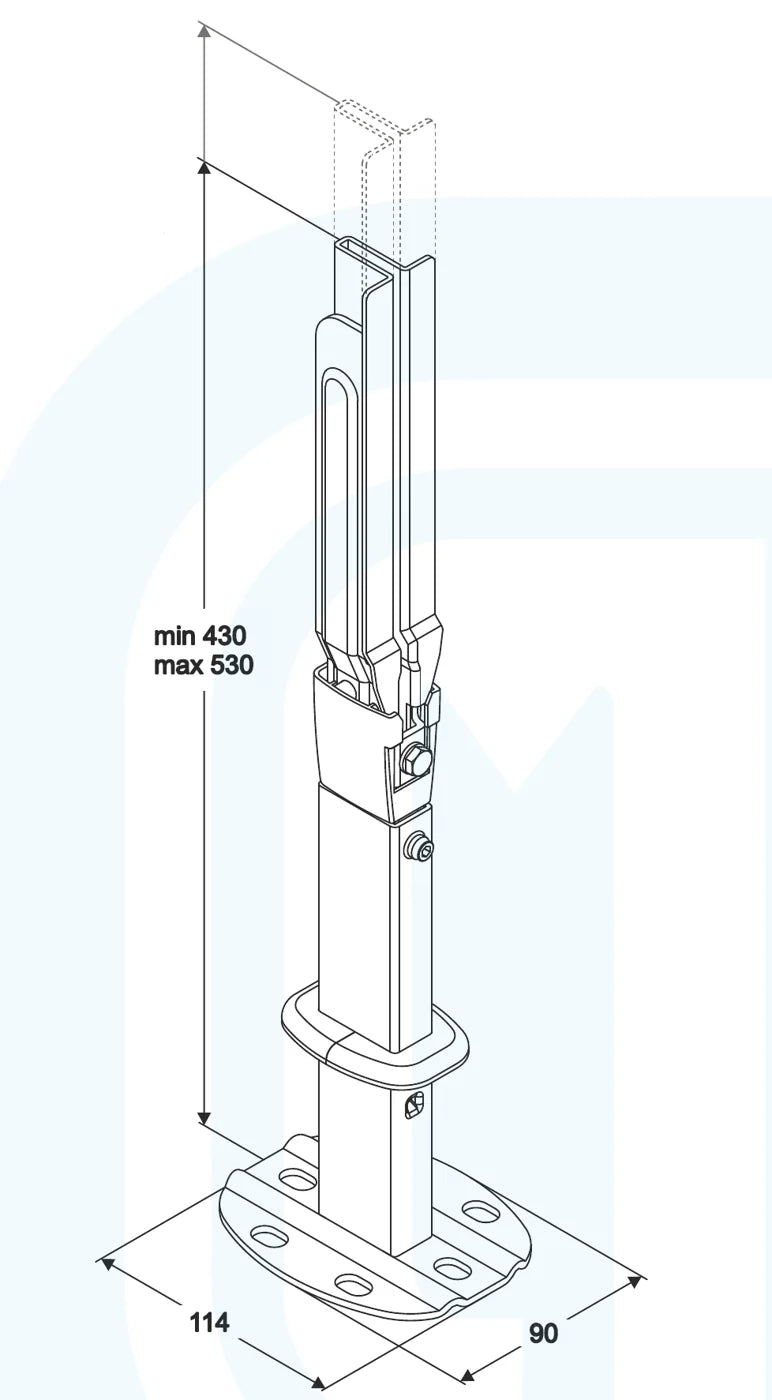

PK1 floor bracket dimensions: 430 to 530 mm adjustable height, 114 by 90 mm base plate

PK1 base plate drilling layout with Ø9 mm slots at 79, 43 and 65 mm centres

Ø9 mm slotted holes let you fine-tune the bracket position before you fix it down.

Full specification

Pack contents	2 x PK1 + 2 x QKF + 2 x QKK (1 pair)
Suitable radiators	Panel types 11, 21, 22, 33
Radiator height range	300 mm to 1000 mm
Centre connections	Not suitable (no central connections)
Floor type	Raw floor (PK1 configuration)
Floor to radiator underside	262 mm to 360 mm adjustable
Bracket height (adjustable)	430 mm to 530 mm
Base plate	114 mm x 90 mm, Ø9 mm slotted holes
Load rating (single fastener)	F1 2000 N / F2 700 N / F3 400 N
Certification	TÜV SÜD type tested · VDI 6036 conform
Finish / material	White / steel
SKU	MB-FLR-BRCK-PK1

Installation manual (PDF) · PK1 data sheet (PDF)

Fitting the PK1

The bracket is lowered onto the radiator from above, then set to height and fixed to the floor.

Check the radiator

Confirm it is a type 11, 21, 22 or 33 panel radiator, 300–1000 mm high, with no central connections.

Fit the brackets to the radiator

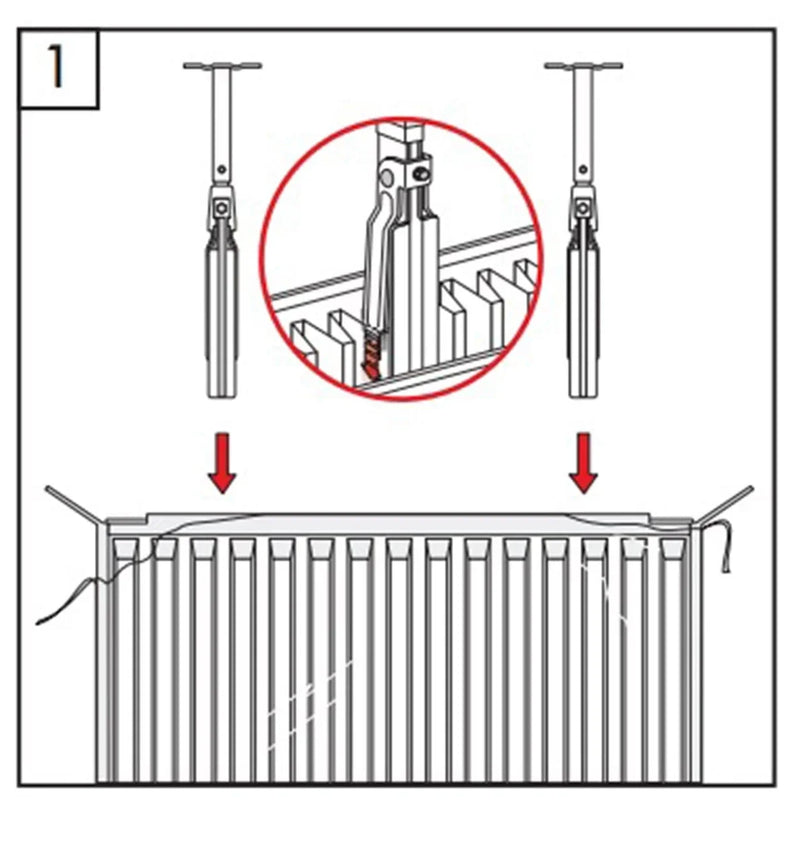

The PK1 clip locates on the radiator panel from above (see step 1 in the manual). Use one bracket at each end.

Set the height

Adjust so the underside of the radiator is 262 mm to 360 mm above the floor.

Fix to the floor and cover

Screw the base plate down through the slots using fixings suited to your floor, then close the two-part QKF floor cover over it.

Always follow the maker's manual. Fixing choice and floor strength are the installer's responsibility.

Assembly video (38 seconds):

Questions about the PK1

What is the PK1 floor bracket for?

The PK1 is a floor-standing radiator bracket (radiator foot) for panel radiators. It holds the radiator off the floor from underneath instead of hanging it from the wall. PK1 is the configuration for a raw floor. For a finished floor the maker offers the PK3 version.

Which radiators does the PK1 fit?

Panel radiators of type 11, 21, 22 and 33, from 300 mm up to 1000 mm high, without central connections. Radiators with pipework entering at the centre of the underside are not covered by this bracket.

How high will the radiator sit off the floor?

The distance from the floor to the bottom of the radiator is adjustable from 262 mm to 360 mm. The bracket's overall adjustable height range is 430 mm to 530 mm.

What is included in the pack?

One pair: 2 x PK1 floor brackets, 2 x QKF floor covers and 2 x QKK radiator clips, the same contents as maker kit 60741001. Floor fixing screws and plugs depend on your floor, so choose them to suit the substrate.

How much load can it take?

The data sheet gives F1 2000 N (vertical), F2 700 N and F3 400 N (horizontal directions) for a single fastener under ideal test conditions. The fixing method, the floor's load-bearing capacity and the radiator's suitability remain the installer's responsibility.

Is the PK1 tested or certified?

Yes. The PK1 is TÜV SÜD type tested (certificate B 15 01 68251 002) and VDI 6036 conform. The design is patented.

How big is the base plate and how is it fixed?

The base plate is 114 mm x 90 mm with Ø9 mm slotted holes (hole centres 79 mm, 43 mm and 65 mm apart as shown in the drawing), so it can be screwed down through the slots.

Should I choose the PK1 or the PK3?

Choose by floor: the PK1 is for a raw floor, the PK3 is for a finished floor. Both take the same radiators (types 11, 21, 22, 33, 300–1000 mm high, no central connections). See the PK3 floor brackets.
