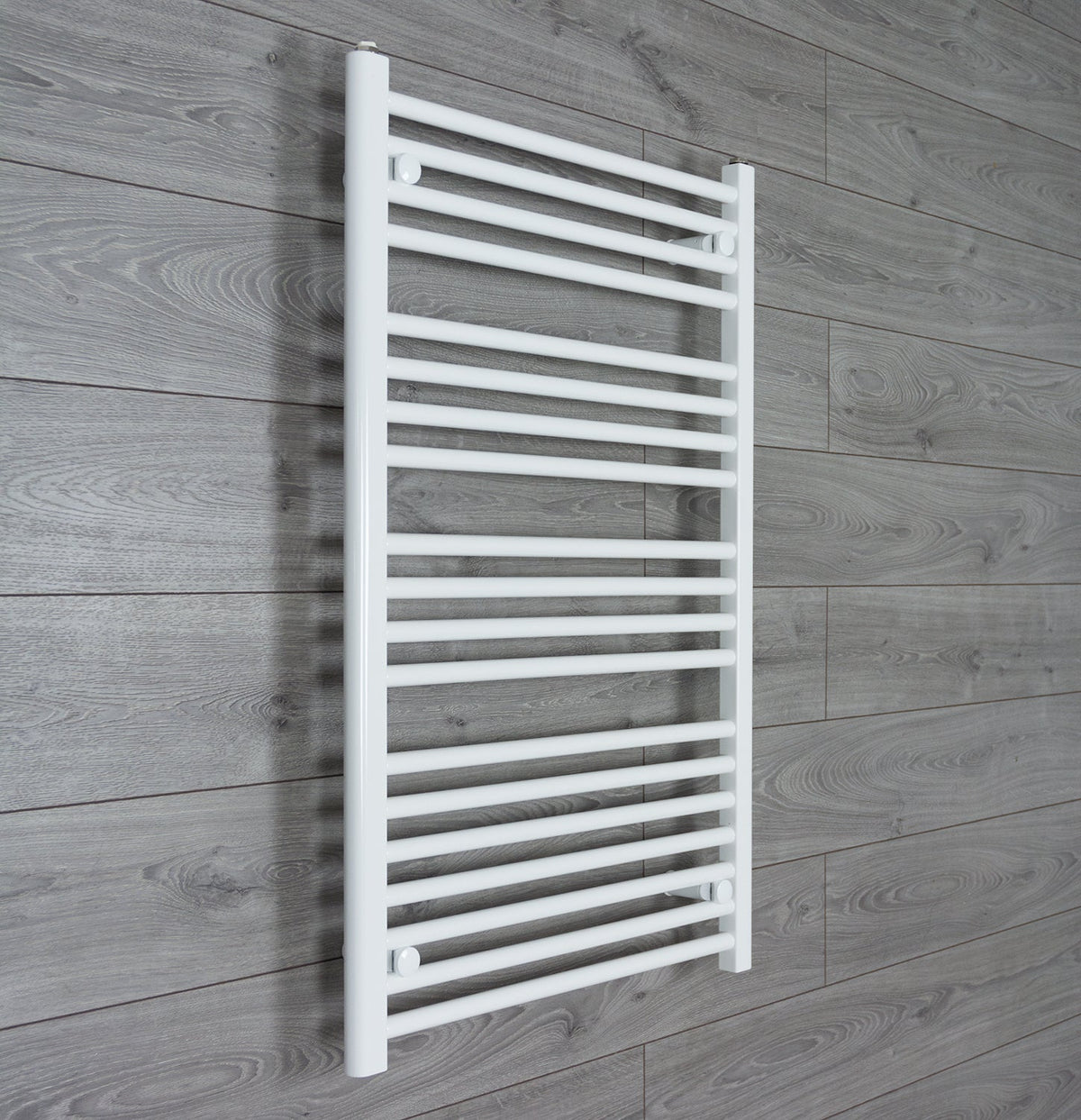

700mm Wide White Towel Rails

At 700mm wide, this white towel rail crosses the threshold from practical bathroom accessory into architectural feature — wide enough for two adults to hang full bath towels simultaneously without the towels touching each other. The 650mm pipe centre requires wider-spaced supply pipes than standard narrow installations, so it is most commonly found in newly tiled wet rooms where pipe positions are set from scratch, in master suites with bespoke bathroom layouts, or as a direct replacement for existing 700mm-centre roughed-in plumbing. At 1700mm height, it produces 2,320 BTU — sufficient to heat a master bathroom of 14–16m² as the sole radiator.

Pipe Centre Note: When installing a 700mm wide white towel rail on central heating, your pipework should be set at 650mm centre-to-centre for straight floor-entry valves. For wall-emerging pipework, factor in angled or corner valve offsets.

Technical Specifications & Multi-ΔT Heat Output Table

All outputs are tested in accordance with BS EN 442 standards.

Why Choose a 700mm Width Towel Rail?

The 700mm is where a towel rail becomes a dominant visual element in a master bathroom — it commands attention in a way that a 500mm or 400mm unit does not. It is also functionally superior for households where two people share a bathroom and each person expects their towel to warm and dry independently without contact with the other.

• Ideal Room Suitability: Spacious master bathrooms (8–16m²), luxury wet rooms with floor-to-ceiling tiling, and any room where the towel rail is intended as a visual anchor for a feature wall.
• Towel Drying Capacity & Ergonomics: Two standard bath towels (each 70cm, folded to 35cm) hang across the 700mm rungs with a 30mm gap between them. Two bath sheets (each folded to 45cm) will overlap slightly in the centre — fold each to one-third (30cm) for a clean side-by-side arrangement. At 1700mm height, the 31-bar layout provides ample surface area for a family’s full towel set.
• Installation & Wall Space Considerations: Allow 800mm of clear wall space minimum for the 700mm body and valve connections. The 650mm pipe centre requires the plumber to position supply pipes wider than standard — plan this during the first-fix stage of a renovation, not after tiling. Wall bracket span is 700mm − 130mm = 570mm centre-to-centre.

Explore Alternative Sizes & Finishes

• Adjacent Widths: Compare with our 500mm Wide White Towel Rails or step up to 750mm Wide White Towel Rails.
• Alternative Finishes in 700mm: 700mm Chrome | 700mm Matt Black.

Key Installation & Accessory Compatibility

• Pipe Centre Alignment: Fixed at 650mm across all heights in this width range.
• Required Valve Hardware: Pair your rail with our Chrome Radiator Valves — select straight valves for floor pipework or angled/corner valves for wall pipework.
• Dual Fuel Conversion: To operate your towel rail in summer when central heating is off, install a Dual Fuel Kit and electric Heating Element.

Delta T (ΔT) Thermal Output Calculations

• ΔT50°C Standard (Boilers): UK baseline (BS EN 442) — 75°C flow, 65°C return, 20°C ambient.
• ΔT30°C Low-Temperature (Heat Pumps): Multiply ΔT50 by 0.515 for systems operating around 45°C–50°C.
• ΔT60°C High-Temperature (Legacy Systems): Multiply ΔT50 by 1.268 for older systems at ~80°C flow.
• BTU Calculator: Calculate your exact room heat requirement.

Frequently Asked Questions

Q: What is the pipe centre measurement for a 700mm white towel rail?
A: The standard pipe centre for a 700mm wide white towel rail is 650mm, leaving 25mm clearance on each side for valve connections.

Q: Can two people hang full bath towels simultaneously on a 700mm white towel rail without the towels touching?
A: Yes. Two standard bath towels folded to 35cm each occupy 70cm total, leaving a 30mm gap between them across the 700mm rung. For bath sheets folded to 45cm each, they would be close to touching — fold each to one-third (approximately 30cm) for a clean side-by-side arrangement with a 100mm gap.

Q: Is a 700mm white towel rail powerful enough to be the primary heat source in a large master bathroom?
A: At 1700mm height, the 700mm outputs 2,320 BTU / 680W at ΔT50 — sufficient as the primary heat source in master bathrooms of 14–16m² at standard heat-loss. At 1500mm (2,208 BTU), it covers up to 12m². Use our BTU Calculator to confirm for your specific room.
