Reina Resia Horizontal Aluminium Radiator
£239.20
£259.20
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Heat pump ready. Horizontal designer aluminium.
Product Overview & Key Specs
The Reina Resia Horizontal is a clean-lined designer aluminium central heating radiator - six widths from 470mm to 1420mm, fixed 600mm height, in White or Anthracite. Aluminium's fast response and large surface area make it equally effective on gas boilers and low-temperature heat pump systems.
470–1420mm
Six widths
600mm
Height
2
Finishes
HP
Heat pump ready
5 yr
Warranty
View the Resia in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Resia in your room using augmented reality.
Why Aluminium for Central Heating?
Three practical reasons aluminium outperforms steel for modern heating systems.
Heat pump readyLow temp ✔
Aluminium delivers excellent heat output at lower flow temperatures — well suited to air-source and ground-source heat-pump systems.
Fast responseSmart controls ✔
Aluminium heats up quickly and responds rapidly to thermostats, timers and smart heating controls, so no energy is wasted.
Corrosion resistantBuilt to last
Aluminium naturally forms a protective oxide layer, helping it withstand warm, humid conditions. Install in a clean, correctly treated central-heating system for optimum life.
In the Room
The Resia Horizontal shown in three settings.
Choose Your Finish
White or Anthracite - same aluminium body, same heat output.

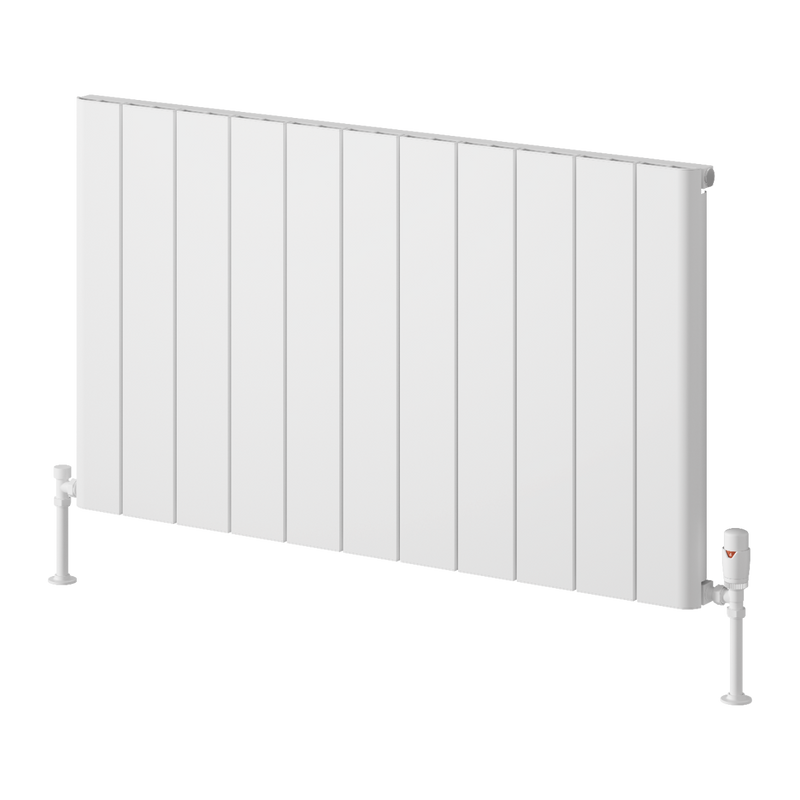

WhiteAll sizes

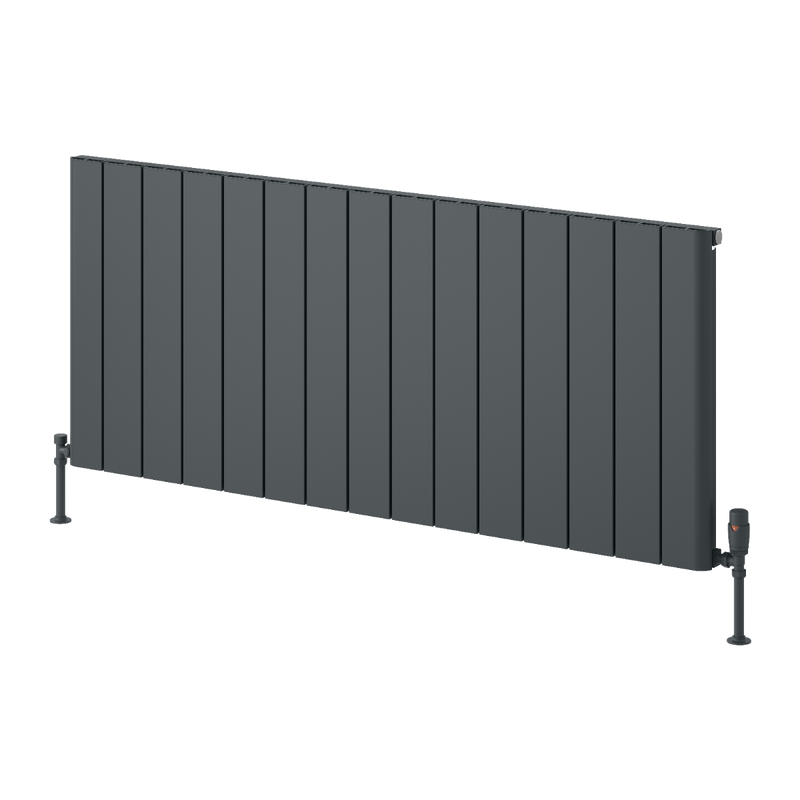

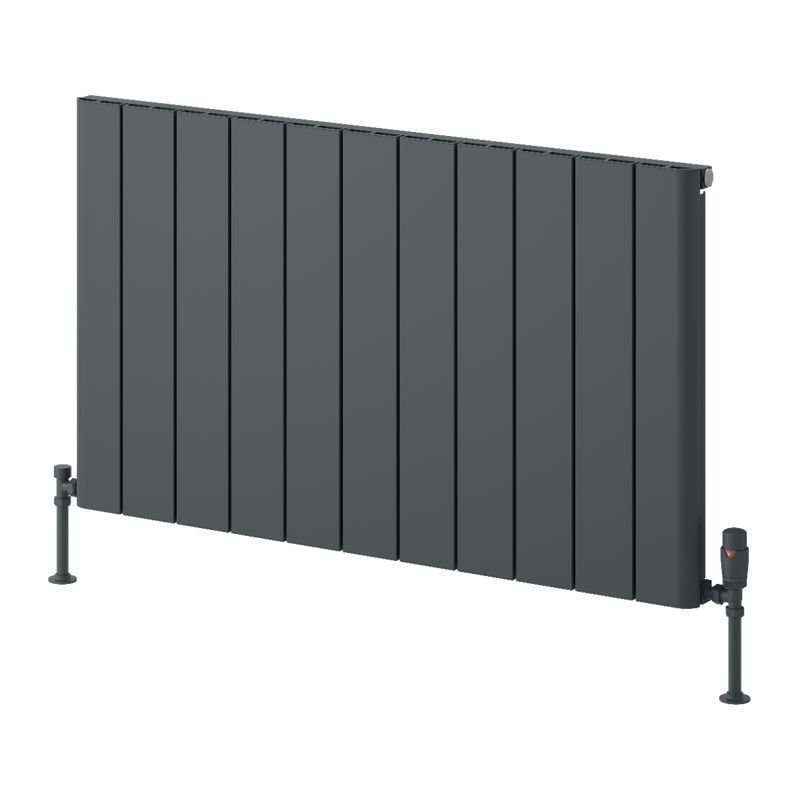

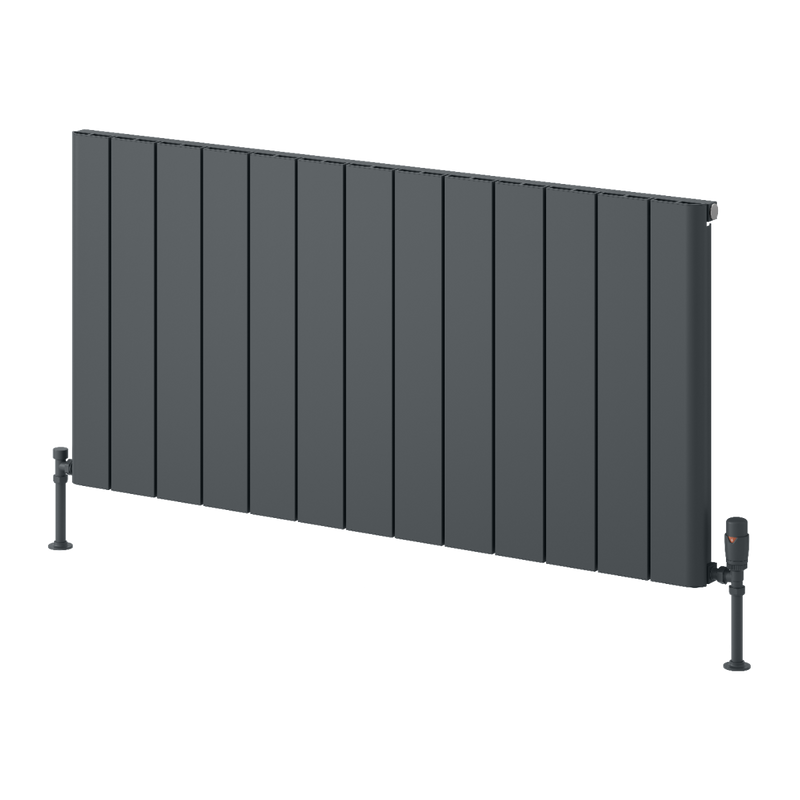

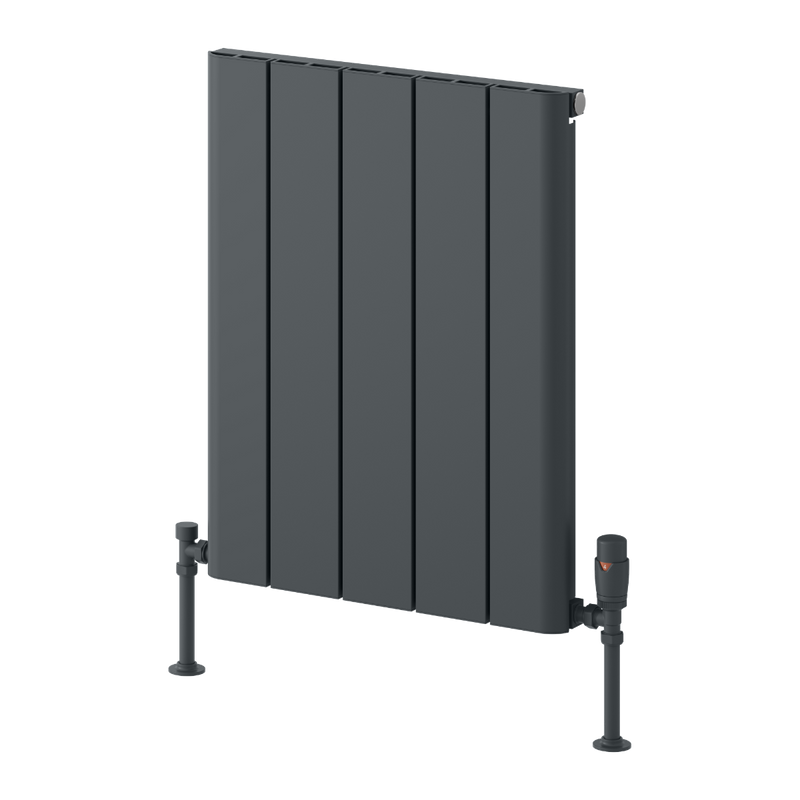

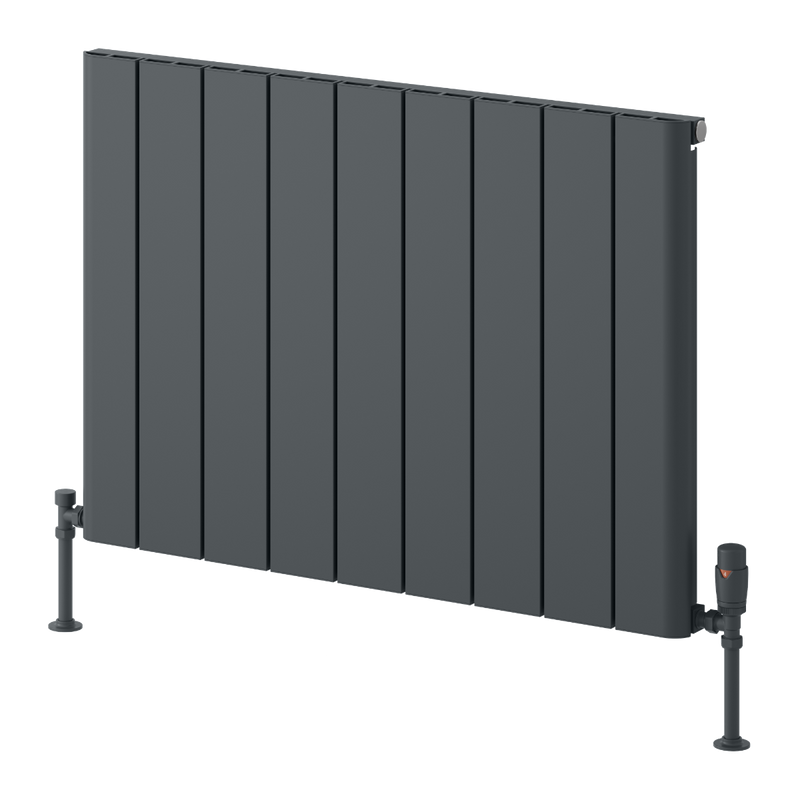

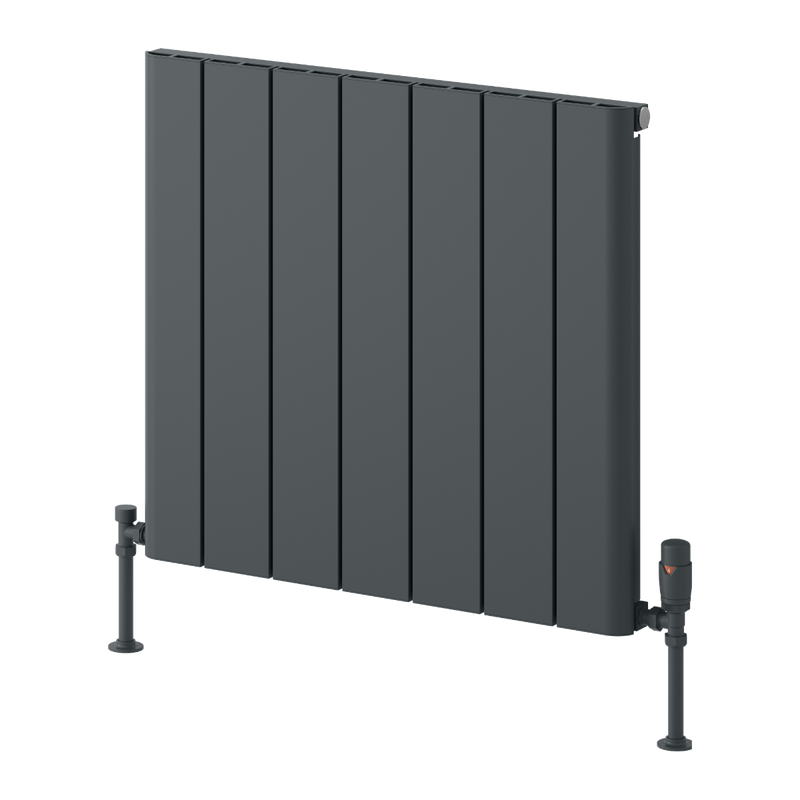

AnthraciteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). All at 600mm height.
| Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|

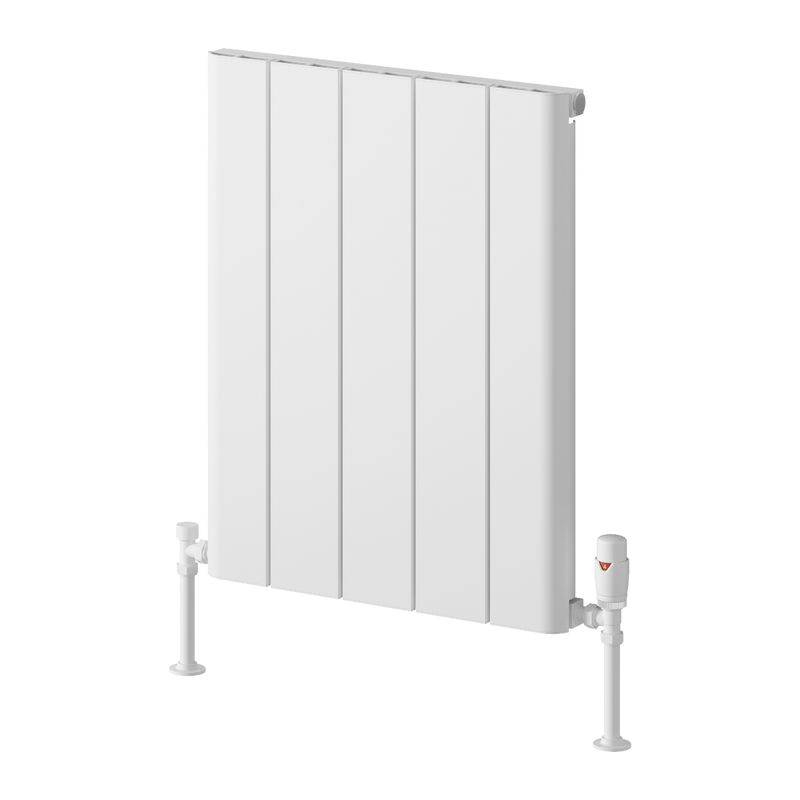

| 470mm | 5 bar | 2,054 | 1,605 | 831 | 471 | 244 |

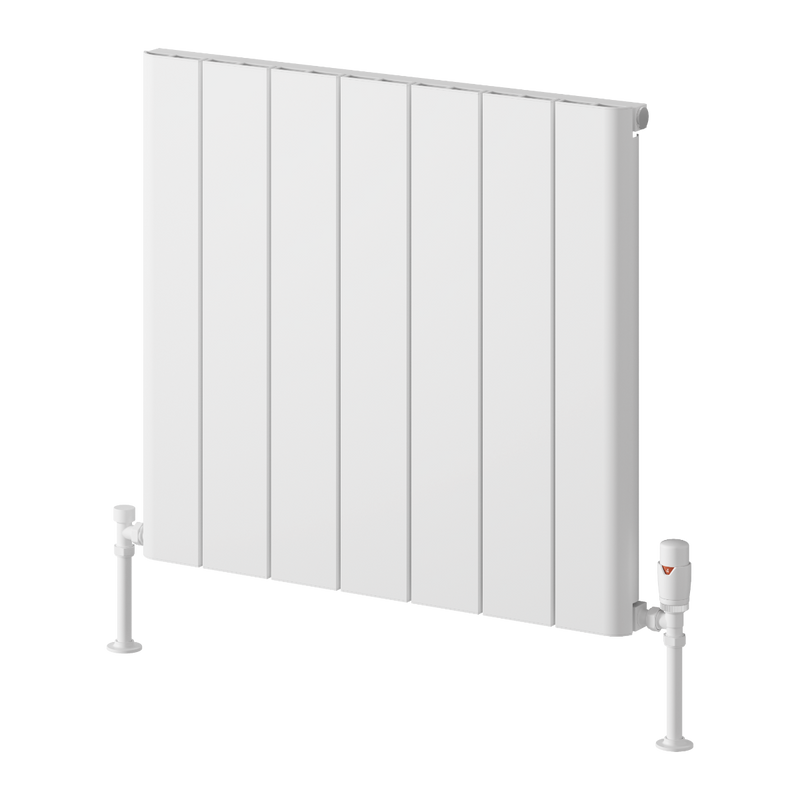

| 660mm | 7 bar | 2,848 | 2,225 | 1,152 | 652 | 338 |

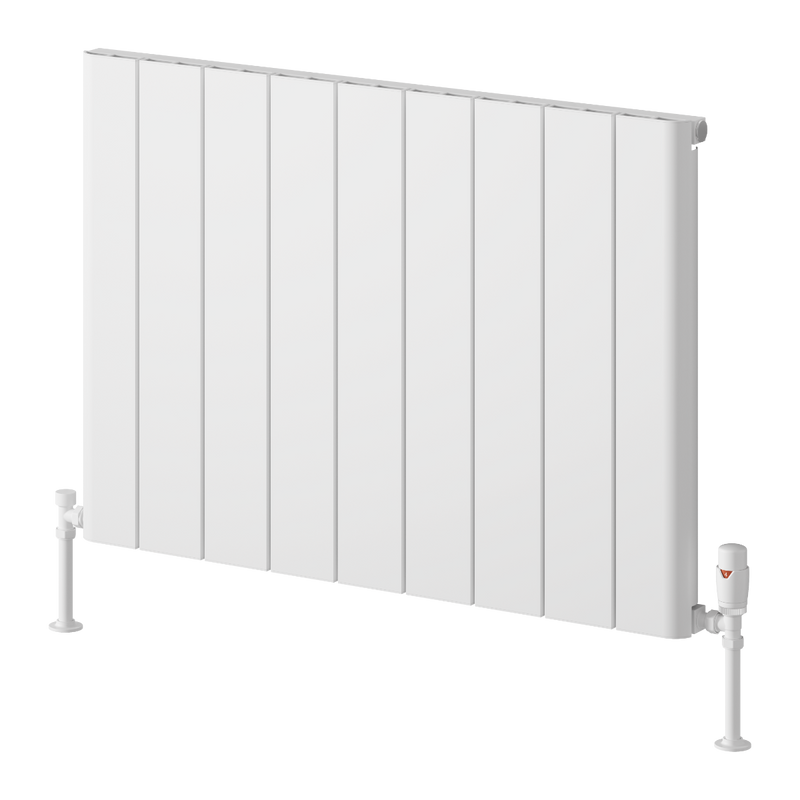

| 850mm | 9 bar | 3,661 | 2,860 | 1,481 | 839 | 434 |
| 1040mm | 11 bar | 4,475 | 3,496 | 1,810 | 1,025 | 531 |

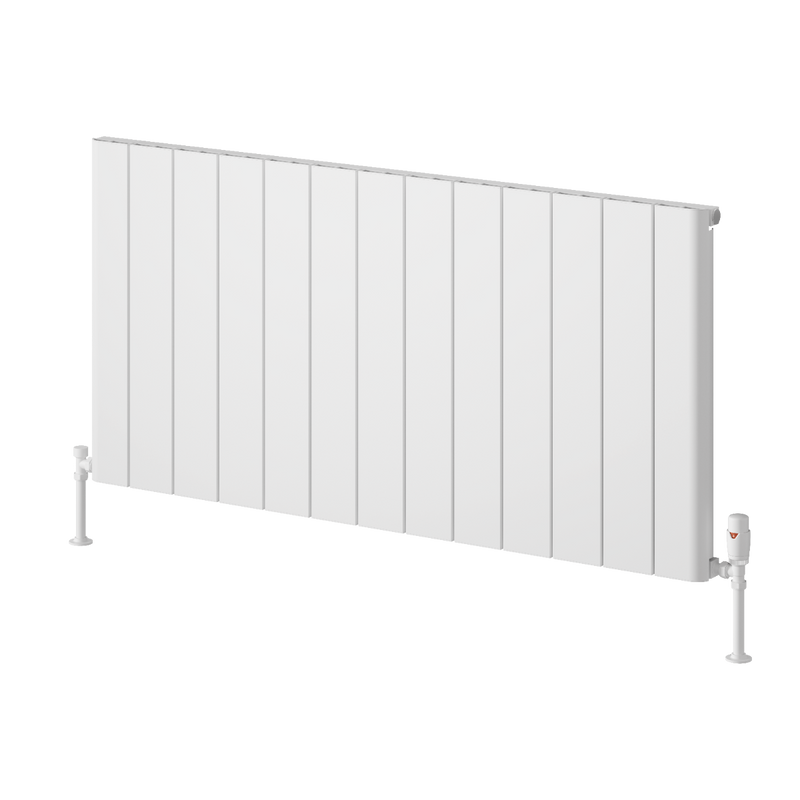

| 1230mm | 13 bar | 5,289 | 4,132 | 2,139 | 1,212 | 627 |

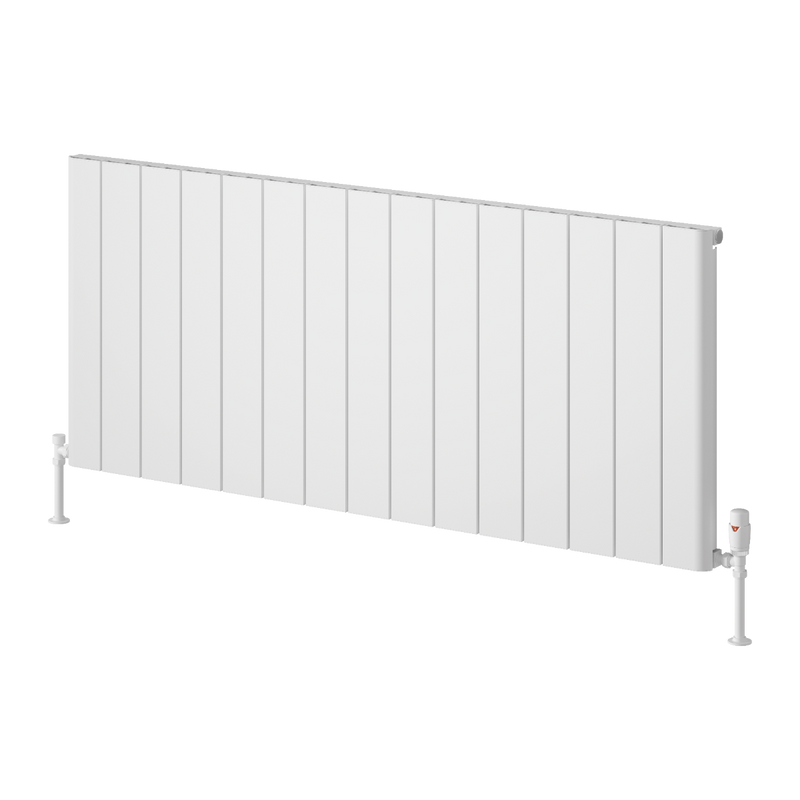

| 1420mm | 15 bar | 6,104 | 4,769 | 2,469 | 1,398 | 724 |
Heat pump owners: use the ΔT30 column. Aluminium retains a strong proportion of its rated output at lower flow temperatures.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Resia Horizontal |
| Height | 600mm (all sizes) |
| Width options | 470 / 660 / 850 / 1040 / 1230 / 1420mm |
| Projection from wall | 90mm |
| Pipe centres | Equal to radiator width (470–1420mm) |
| Valve allowance | Add 90mm total for valve set |
| Connection | 1/2" BSP thread |
| Material | Aluminium |
| Finishes | White / Anthracite |
| Included | Wall brackets and fixings |
| Not included | Radiator valves, towel hanger |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - excellent output at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
470–1420mm
6 width options
Height600mm
Finishes2
✓
Heat pump ready
ΔT30 rated · large surface area
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Resia Horizontal compatible with a heat pump?
A. Yes. The Resia Horizontal is aluminium, which delivers excellent heat output at the low water temperatures (40-50 degrees C) used by heat pumps. Use the Delta T30 column in our heat output table for accurate figures.
Q.
What valves do I need for the Resia Horizontal?
A. The Resia has standard 1/2 inch BSP connections. We recommend thermostatic radiator valves (TRVs) for individual room control. A valve set adds 90mm total to the pipe centre measurement.
Q.
What are the pipe centres on the Resia Horizontal?
A. Pipe centres equal the radiator width, from 470mm to 1420mm. For pipe centre measurement including valves, add 90mm.
Q.
Which size Resia Horizontal do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator shows whether the radiator will meet your heat loss. As a guide, allow around 100 BTU per cubic metre for a modern well-insulated UK room.
Q.
What finishes is the Resia Horizontal available in?
A. White and Anthracite, across all six widths (470mm to 1420mm). Both finishes share the same aluminium construction and heat output.
Q.
Why choose an aluminium radiator for central heating?
A. Aluminium heats up 5 to 10 times faster than steel or cast iron, responds quickly to thermostat changes, and works efficiently at the lower flow temperatures that heat pumps and modern condensing boilers use.
