Reina Loco Horizontal Double Aluminium Radiator
£216.00
£236.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Heat pump ready. Horizontal double-panel aluminium.
Product Overview & Key Specs
The Reina Loco Horizontal Double is a designer aluminium central heating radiator — six widths from 470mm to 1420mm, fixed 600mm height, double panel throughout, in White or Anthracite. The double-panel build gives a higher heat output per width than a single panel, while aluminium's fast response keeps it equally effective on gas boilers and low-temperature heat pump systems.
470–1420mm
Six widths
Double
Panel
600mm
Height
HP
Heat pump ready
5 yr
Warranty
View the Loco in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Loco in your room using augmented reality.
Why Aluminium for Central Heating?
Three practical reasons aluminium outperforms steel for modern heating systems.
Heat pump readyLow temp ✔
Aluminium delivers excellent heat output at lower flow temperatures — well suited to air-source and ground-source heat-pump systems.
Fast responseSmart controls ✔
Aluminium heats up quickly and responds rapidly to thermostats, timers and smart heating controls, so no energy is wasted.
Corrosion resistantBuilt to last
Aluminium naturally forms a protective oxide layer, helping it withstand warm, humid conditions. Install in a clean, correctly treated central-heating system for optimum life.
In the Room
The Loco Horizontal Double shown in three settings.
Choose Your Finish
White or Anthracite — same aluminium body, same heat output.

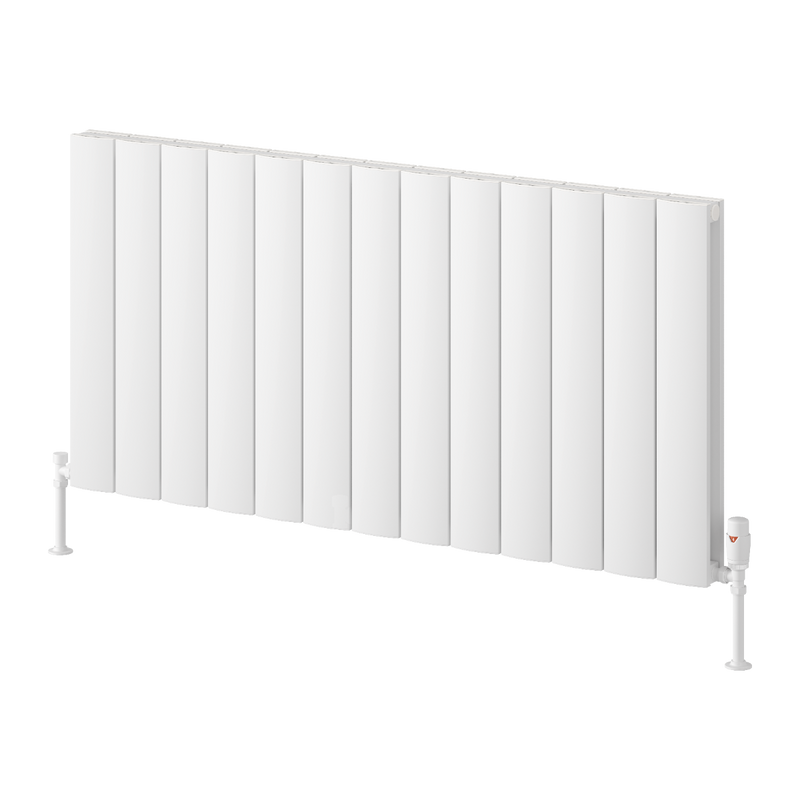

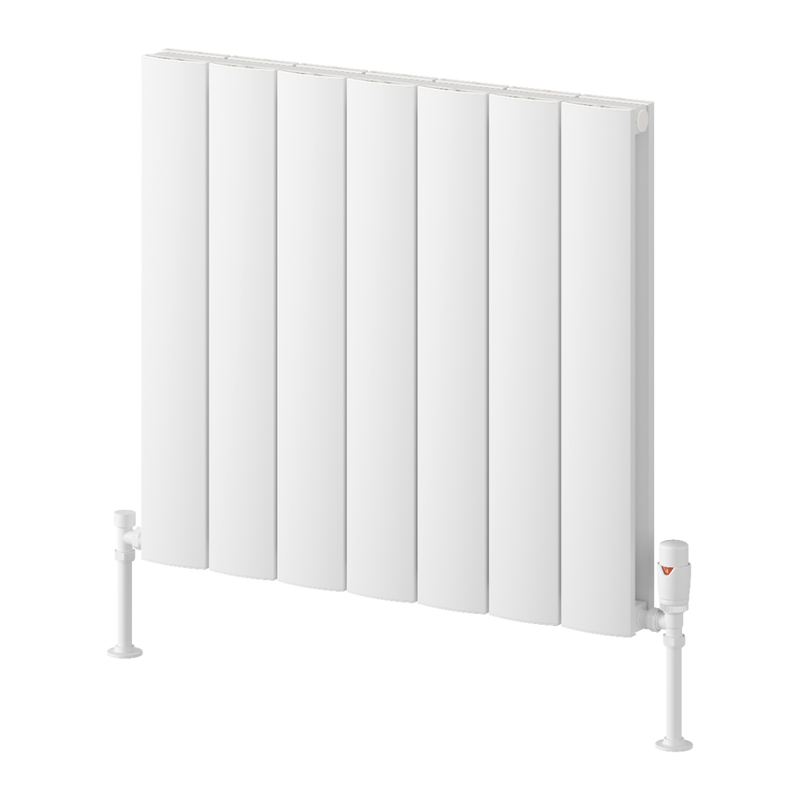

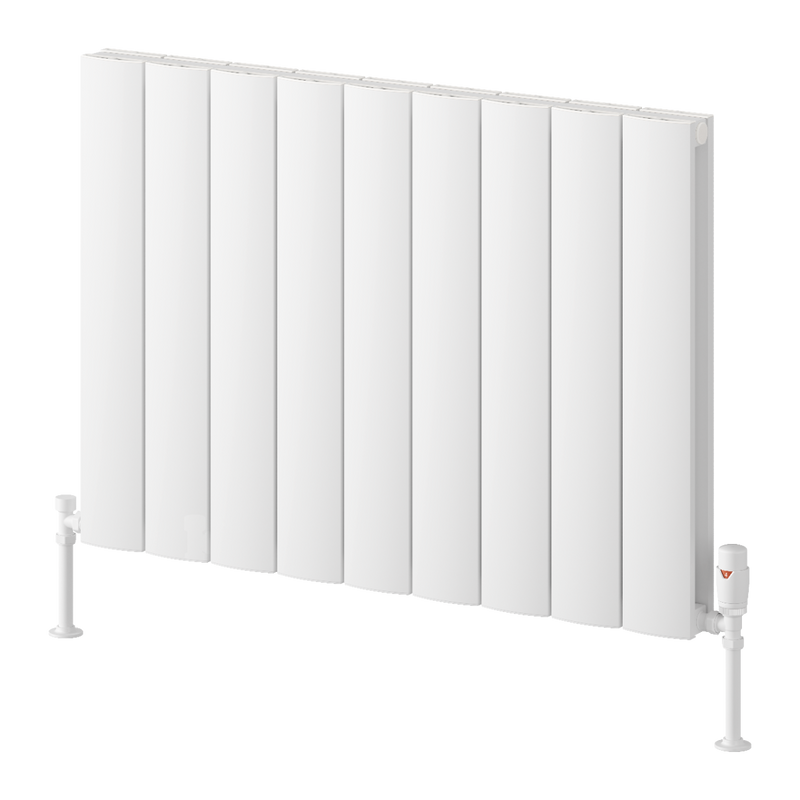

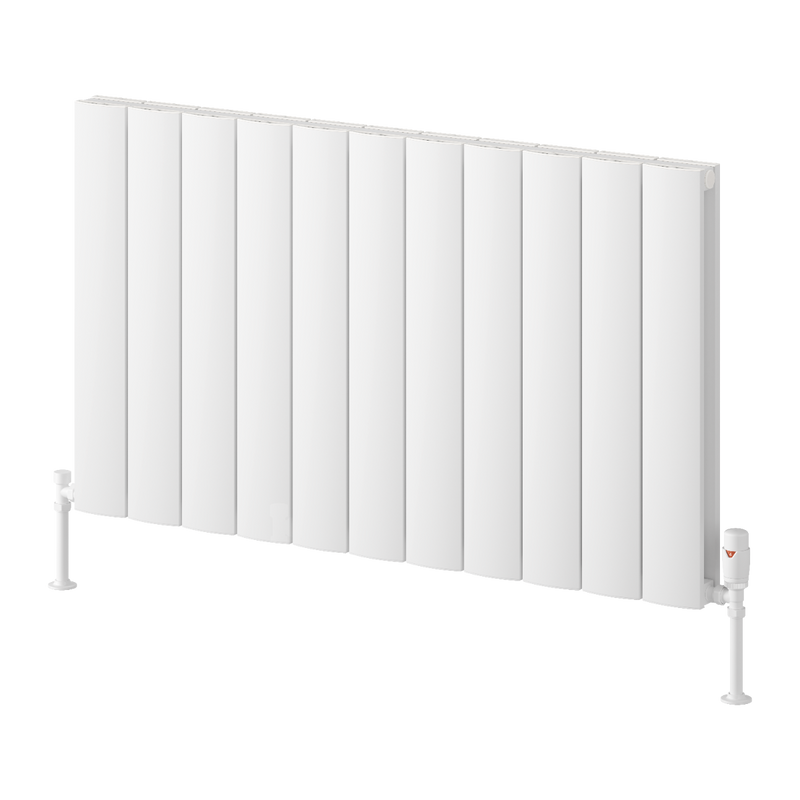

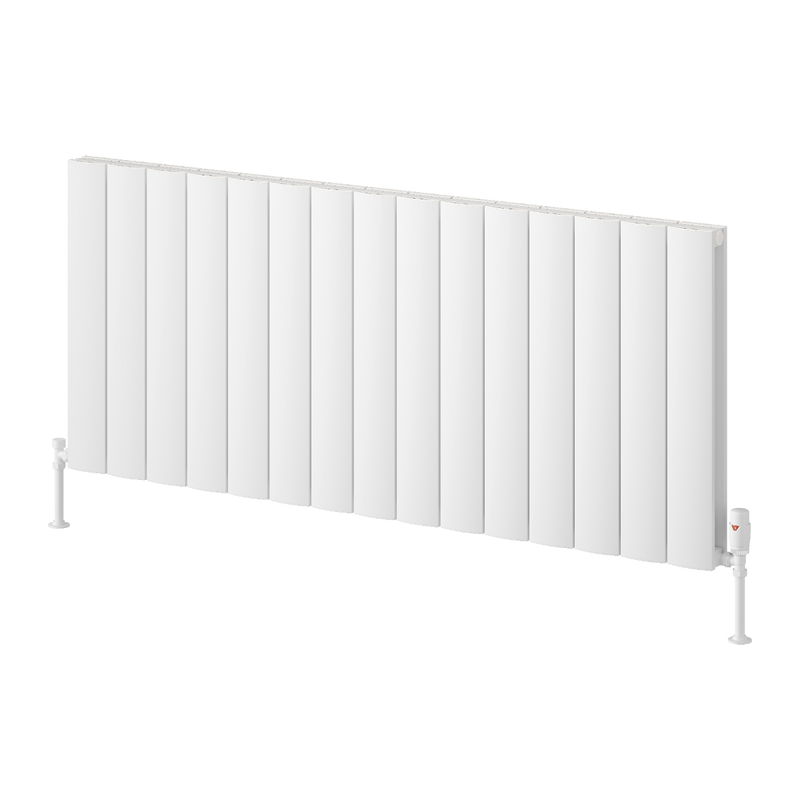

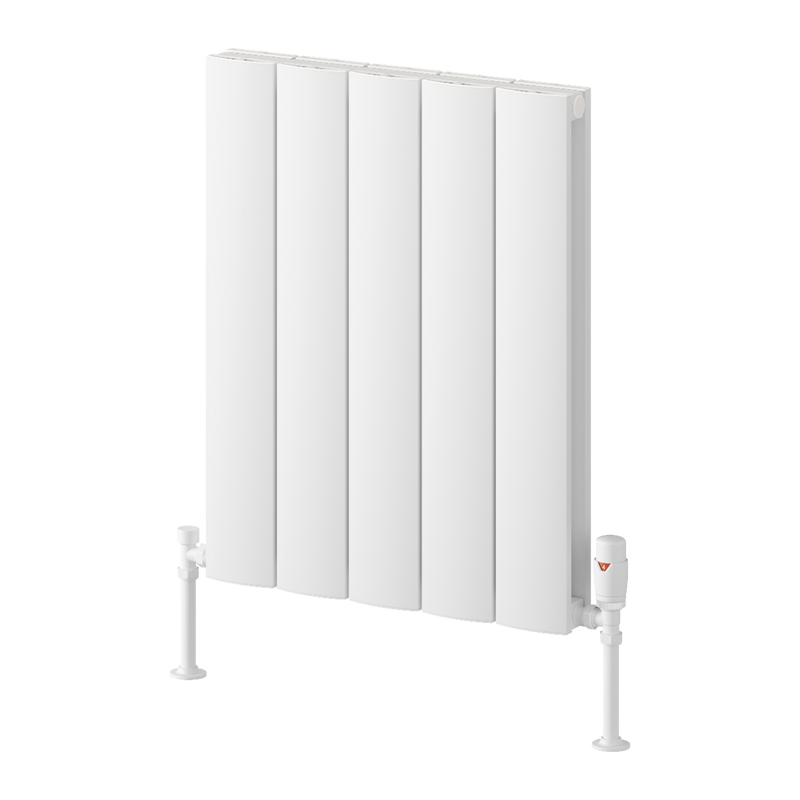

WhiteDouble panel

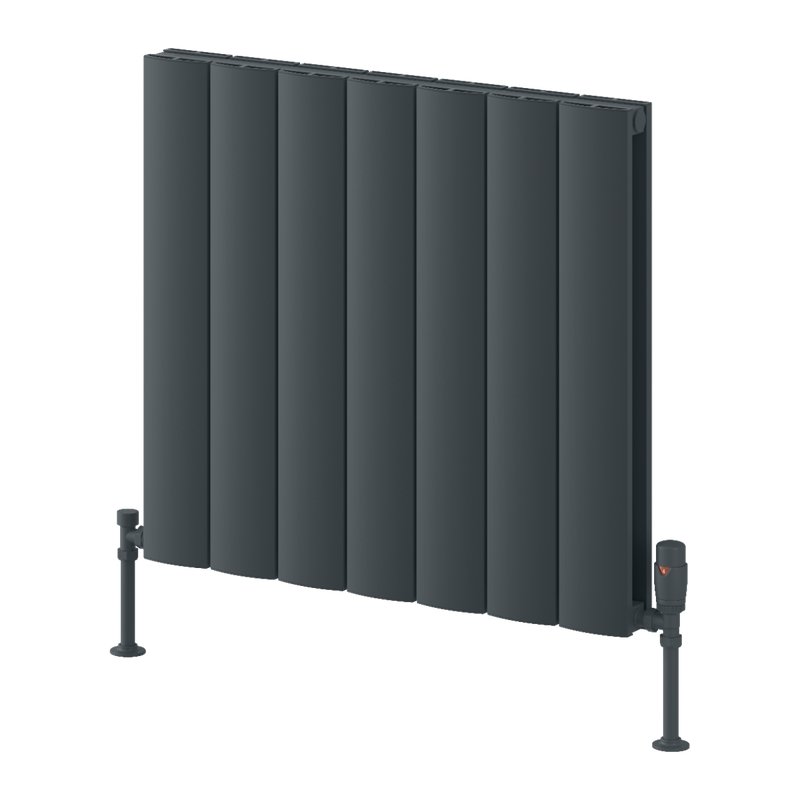

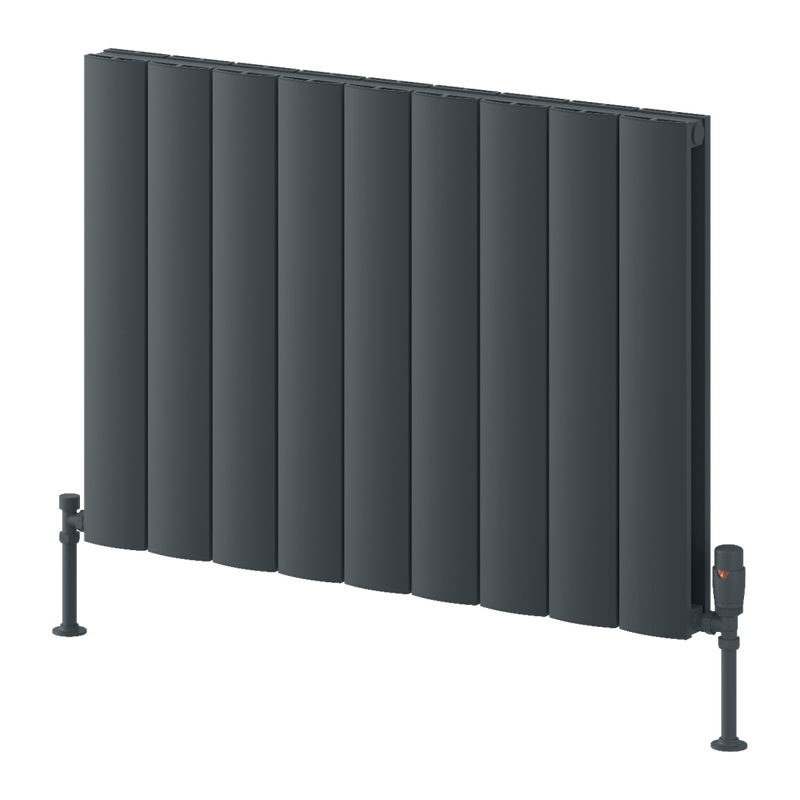

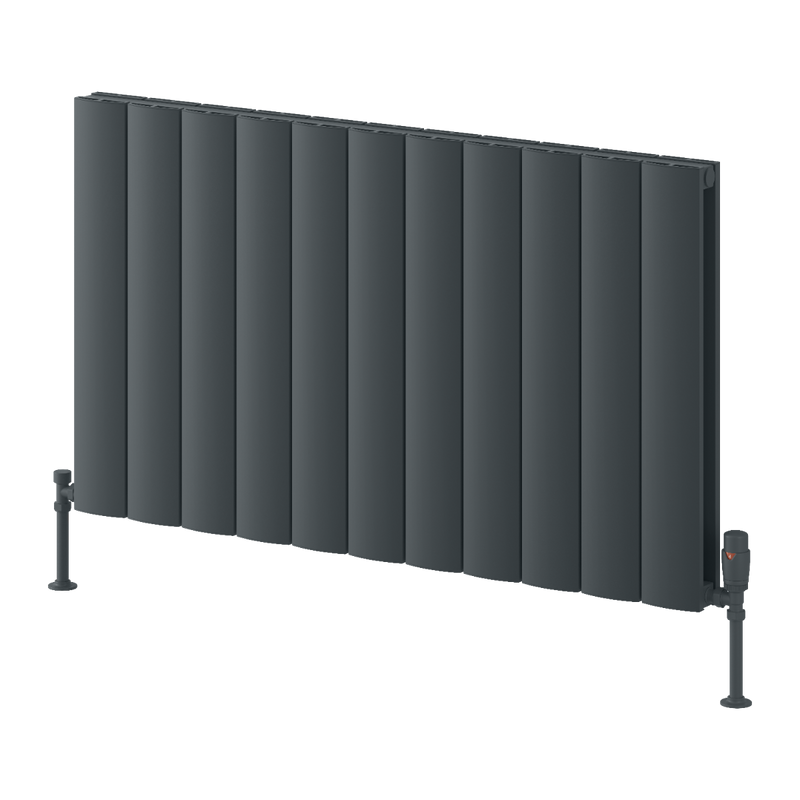

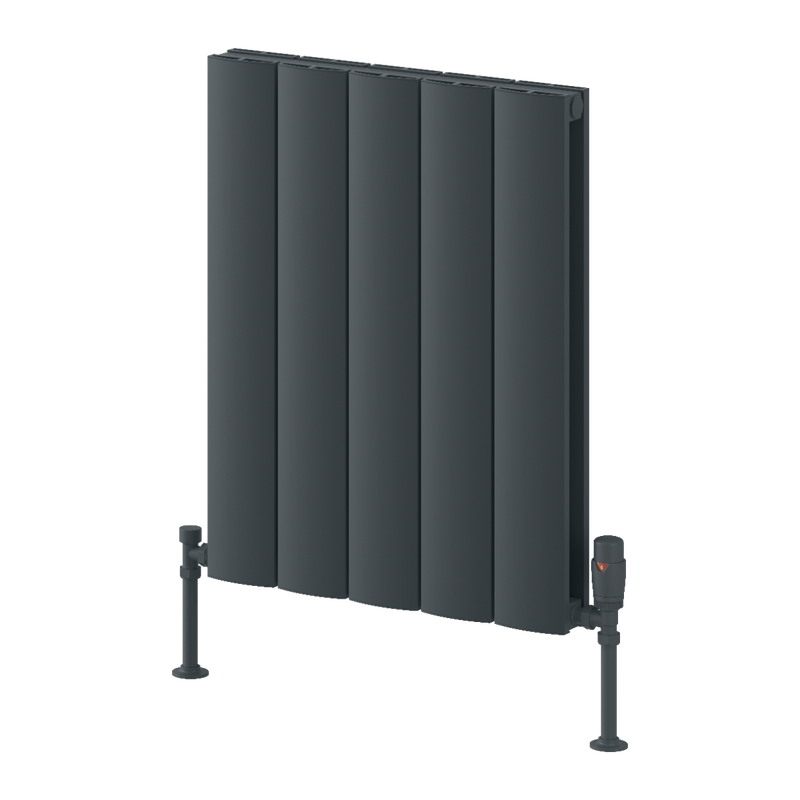

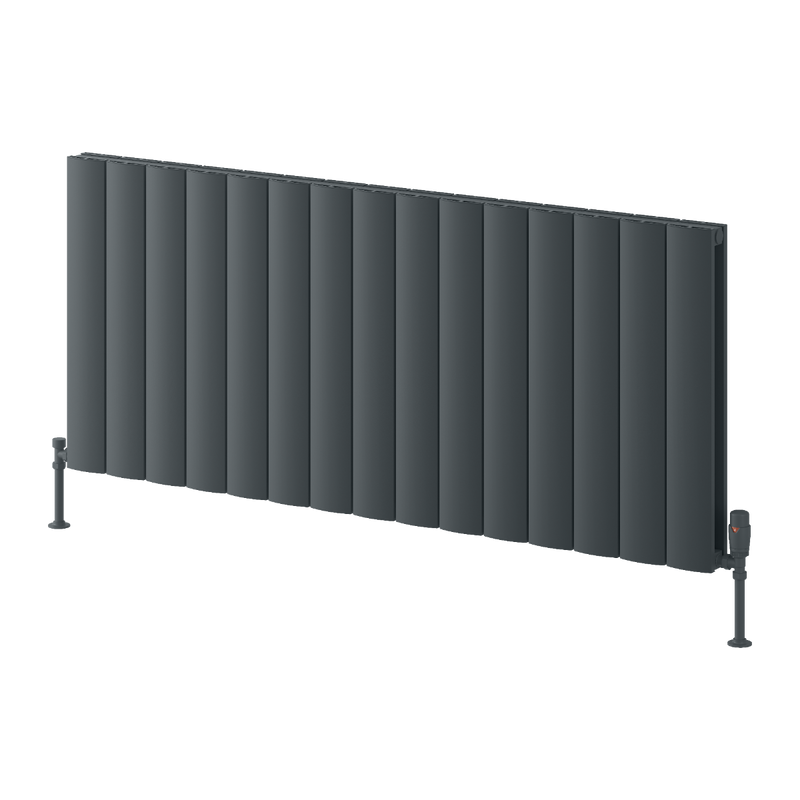

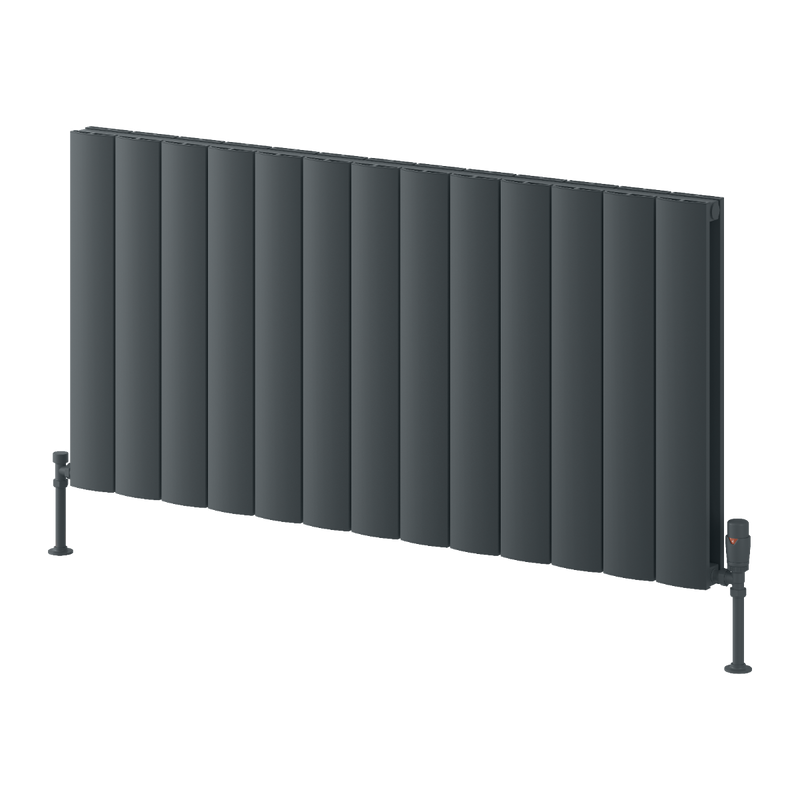

AnthraciteDouble panel
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). All at 600mm height, double panel.
| Width | Panel | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 470mm | 10 col | 2,252 | 1,759 | 911 | 516 | 267 |
| 660mm | 14 col | 3,152 | 2,463 | 1,275 | 722 | 374 |
| 850mm | 18 col | 4,053 | 3,166 | 1,639 | 929 | 481 |
| 1040mm | 22 col | 4,954 | 3,870 | 2,004 | 1,135 | 588 |
| 1230mm | 26 col | 5,855 | 4,574 | 2,368 | 1,341 | 694 |
| 1420mm | 30 col | 6,756 | 5,278 | 2,732 | 1,548 | 801 |
Heat pump owners: use the ΔT30 column. Aluminium retains a strong proportion of its rated output at lower flow temperatures.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Loco Horizontal Double |
| Height | 600mm (all sizes) |
| Width options | 470 / 660 / 850 / 1040 / 1230 / 1420mm |
| Panel | Double |
| Projection from wall | 87mm |
| Pipe centres | Equal to radiator width (470–1420mm) |
| Valve allowance | Add 90mm total for valve set |
| Connection | 1/2" BSP thread |
| Material | Aluminium |
| Finishes | White / Anthracite |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 10 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes — excellent output at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
470–1420mm
6 width options
Height600mm
PanelDouble
✓
Heat pump ready
ΔT30 rated · large surface area
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Loco Horizontal Double compatible with a heat pump?
A. Yes. Aluminium delivers strong heat output at the lower flow temperatures (40–50°C) that heat pumps run at. Use the ΔT30 column in the heat output table for accurate figures.
Q.
Why is the Loco double panel only?
A. The Loco range is built as a double-panel design only. That gives a higher heat output for a given width, which suits larger rooms.
Q.
What are the pipe centres?
A. Pipe centres equal the radiator width (470mm to 1420mm). Add 90mm for the valve set when measuring for installation.
Q.
Which size do I need?
A. Use the room fit calculator above. As a rule of thumb, allow 100 BTU per m³ for a modern well-insulated UK room, then choose the smallest width that exceeds that figure at your system's ΔT.
Q.
Can I replace my existing radiator?
A. Yes, if pipe positions align. Measure your existing pipe centres and match to one of the six Loco widths. Standard 1/2" BSP connections fit all UK central heating systems.
Q.
Why aluminium over steel?
A. Aluminium heats and cools 5–10× faster than steel. Better for TRV-controlled zones, weather compensation, and any system where you want quick response and minimal wasted heat.
