Reina Eos Curved Stainless Steel Designer Radiator
£152.00
£172.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Curved ladder.
Product Overview & Key Specs

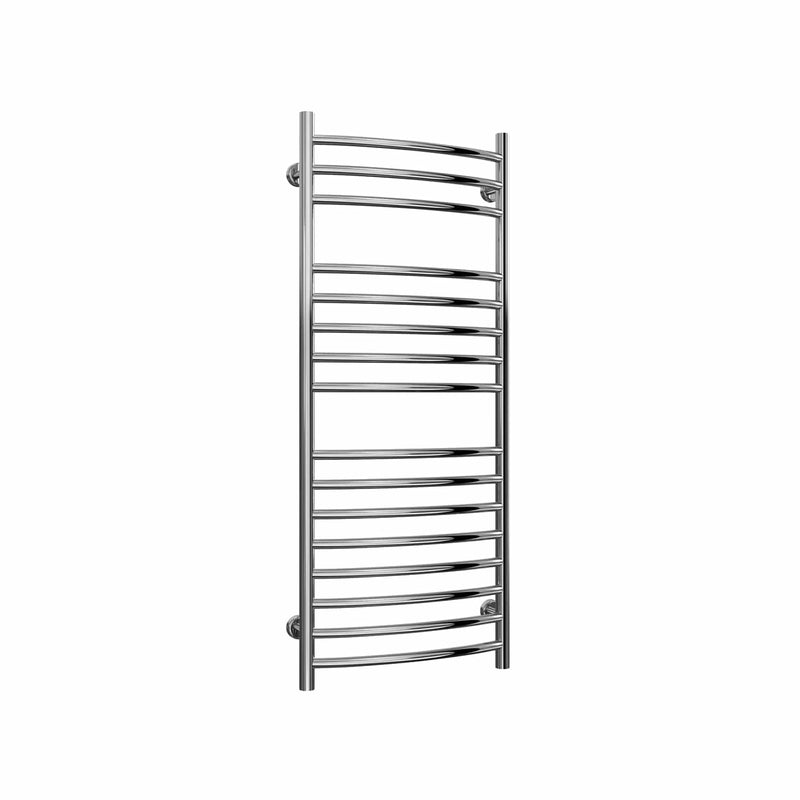

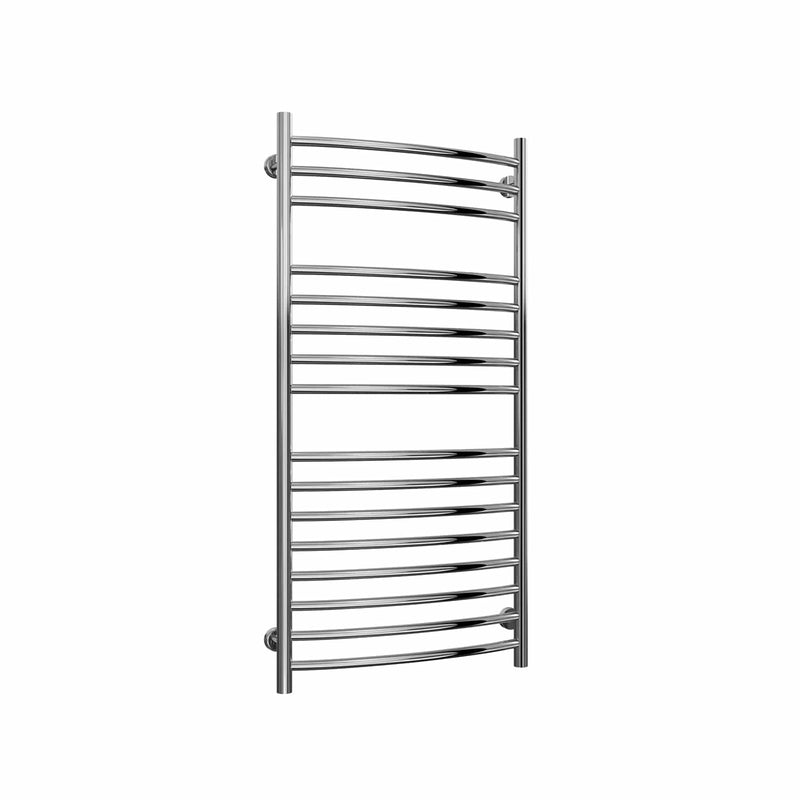

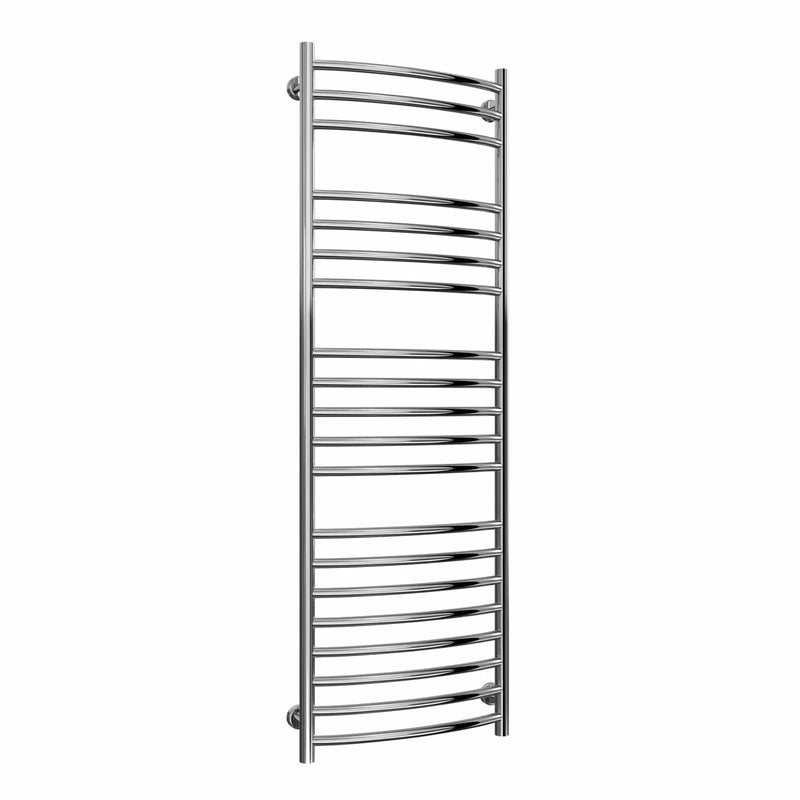

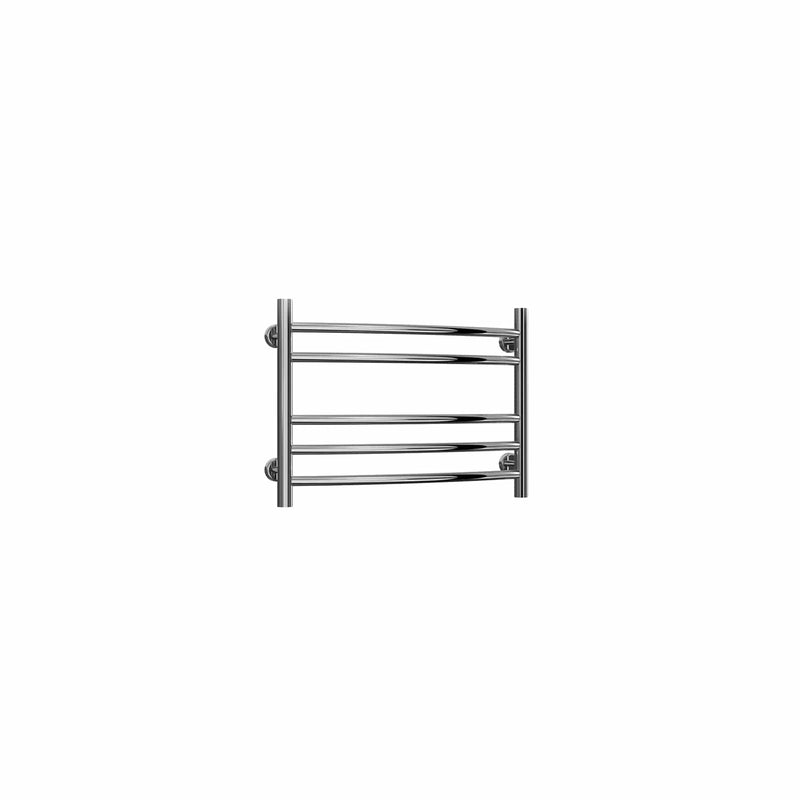

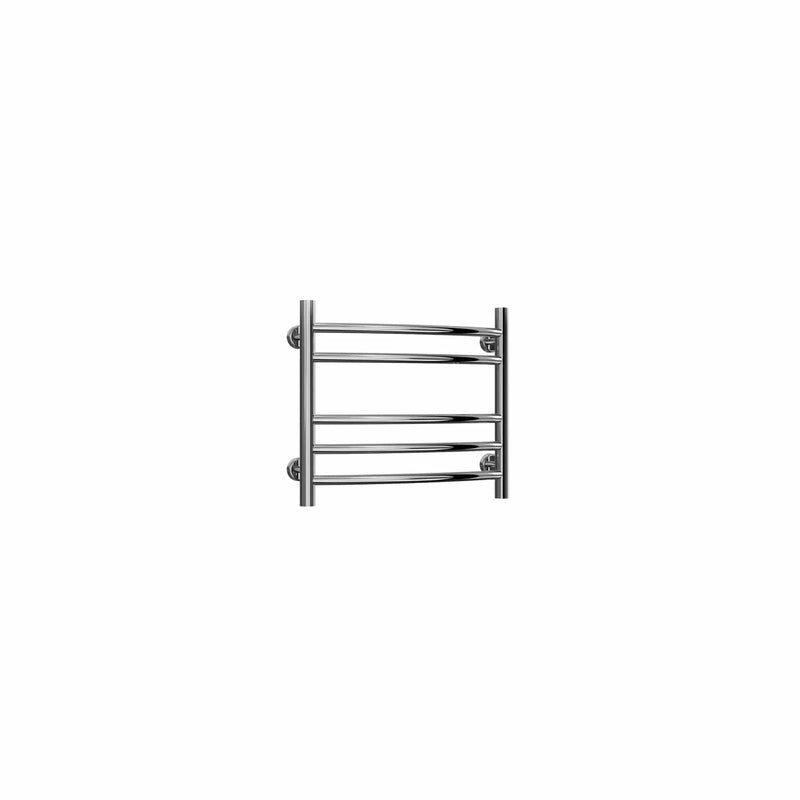

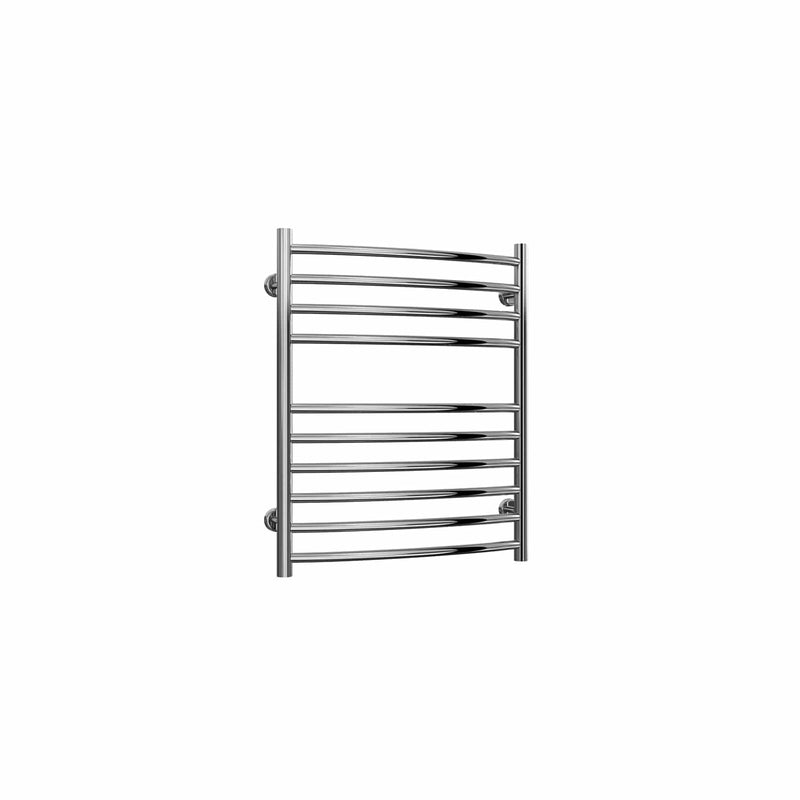

The Reina Eos is a curved towel radiator with polished stainless steel horizontal tubes. Choose 430, 720, 1200 or 1500mm high in 500 or 600mm widths, with 6 to 20 bars for towels. It suits central heating, electric or dual fuel, and carries a 25-year guarantee.
430–1500mm
Four heights
500/600mm
Two widths
6–20
Bars
ΔT30
Heat pump rated
25 yr
Guarantee
View the Eos in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Eos in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a polished stainless steel towel rail suits a bathroom.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Eos keeps its polished finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Eos with a 25-year guarantee, a long cover period for a bathroom radiator.
Curved profileSofter shape
Curved horizontal tubes give a softer look than a straight ladder, with 6 to 20 bars for hanging towels.

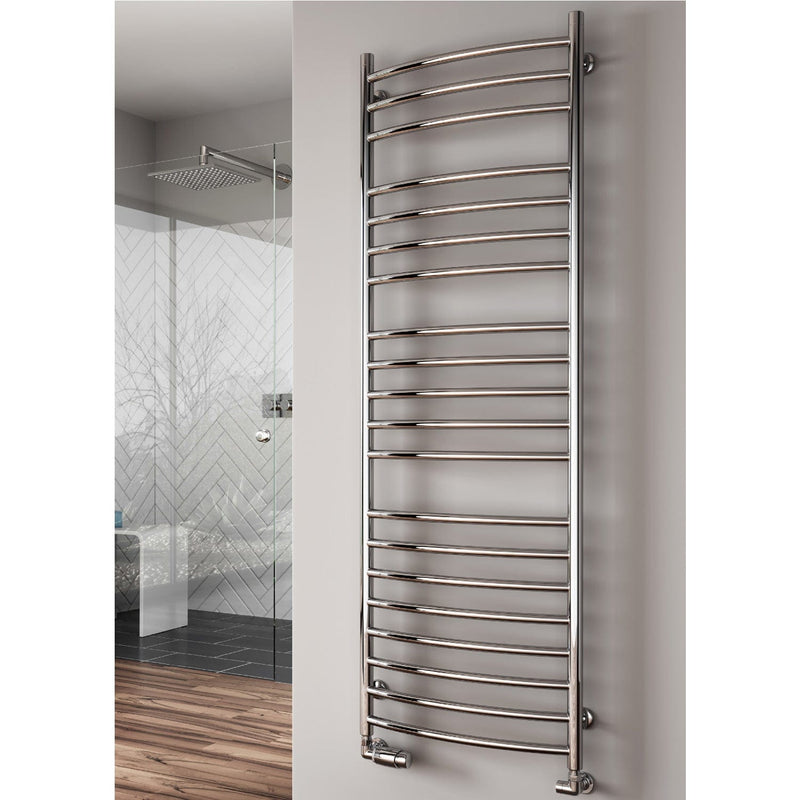

In the Room

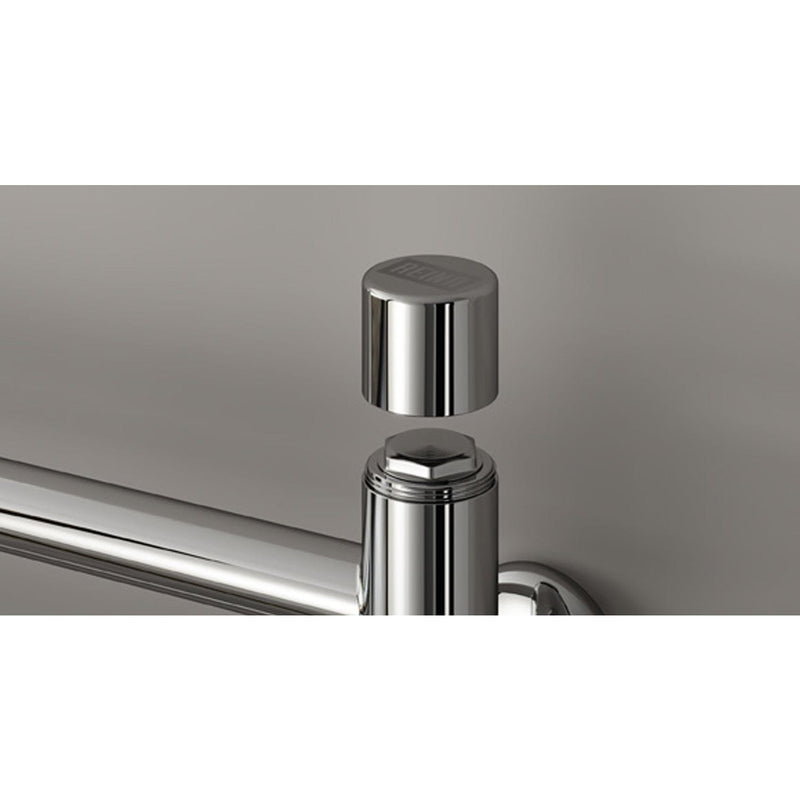

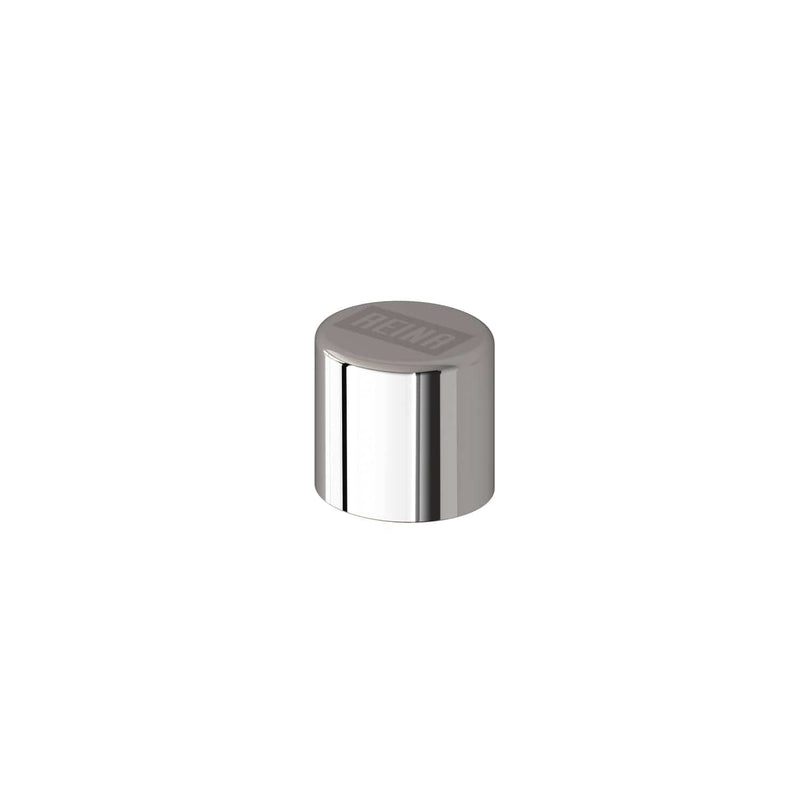

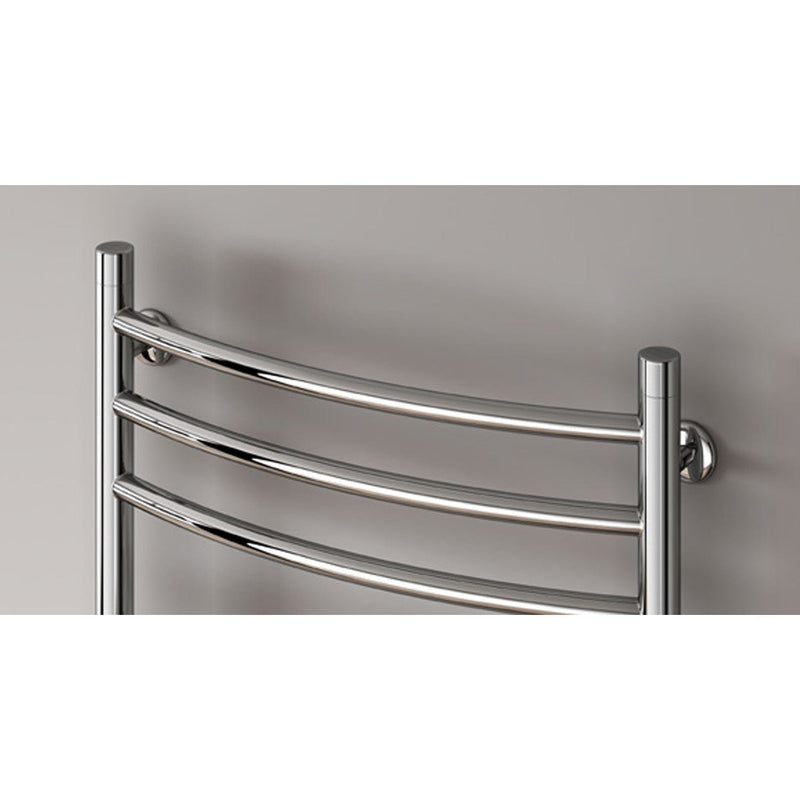

The Eos shown in a room setting, plus two close-ups of the polished stainless steel.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height | Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 430mm | 500mm | 6 bars | 795 | 621 | 322 | 182 | 94 |
| 430mm | 600mm | 6 bars | 909 | 710 | 368 | 208 | 108 |
| 720mm | 500mm | 10 bars | 1,586 | 1,239 | 641 | 363 | 188 |
| 720mm | 600mm | 10 bars | 1,711 | 1,337 | 692 | 392 | 203 |
| 1200mm | 500mm | 16 bars | 2,180 | 1,703 | 882 | 499 | 259 |
| 1200mm | 600mm | 16 bars | 2,595 | 2,027 | 1,049 | 595 | 308 |
| 1500mm | 500mm | 20 bars | 2,905 | 2,270 | 1,175 | 666 | 345 |
| 1500mm | 600mm | 20 bars | 3,073 | 2,401 | 1,243 | 704 | 364 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Eos Curved |
| Height | 430 / 720 / 1200 / 1500mm |
| Width | 500 or 600mm |
| Projection from wall | 75–85mm |
| Pipe centres | 468mm (500 wide) / 568mm (600 wide) |
| Wall to pipe centres | 50–60mm |
| Connection | 1/2" BSP female thread (inlet / outlet) |
| Material | Stainless steel (304 quality) |
| Bars | 6 / 10 / 16 / 20 (by height) |
| Finish | Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Water volume | 1.08–4.25 litres (by size) |
| Empty weight | 2.9–10.95kg (by size) |
| Included | Wall brackets, fixings and back covers |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
430–1500mm
4 heights · 2 widths
Bars6–20
Sizes8
✓
ΔT30 rated
Heat pump compatible
✓
Electric ready
Electric & dual fuel listed
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Eos Curved compatible with a heat pump?
A. Reina publish a Delta T30 output for every Eos size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Eos be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Eos for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Eos?
A. The Eos has 1/2 inch BSP female inlet and outlet connections. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Eos?
A. Pipe centres are 468mm on the 500mm wide models and 568mm on the 600mm wide models. Wall to pipe centres is 50 to 60mm, and the rail stands 75 to 85mm off the wall.
Q.
Which size Eos do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Eos size meets your heat loss. The 720mm and 1200mm heights are the most popular towel storage sizes for a bathroom.
Q.
What finish is the Eos available in?
A. Polished stainless steel, in all eight sizes. Every size has the same construction and finish.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Eos carries a 25-year Reina guarantee.
Q.
How much water does the Eos hold?
A. From about 1.1 litres in the 430 x 500mm size up to about 4.3 litres in the 1500 x 600mm size, so it fills and heats up quickly.
