Central heating only. Stainless steel. Square frame with integral towel bar.
Product Overview & Key Specs

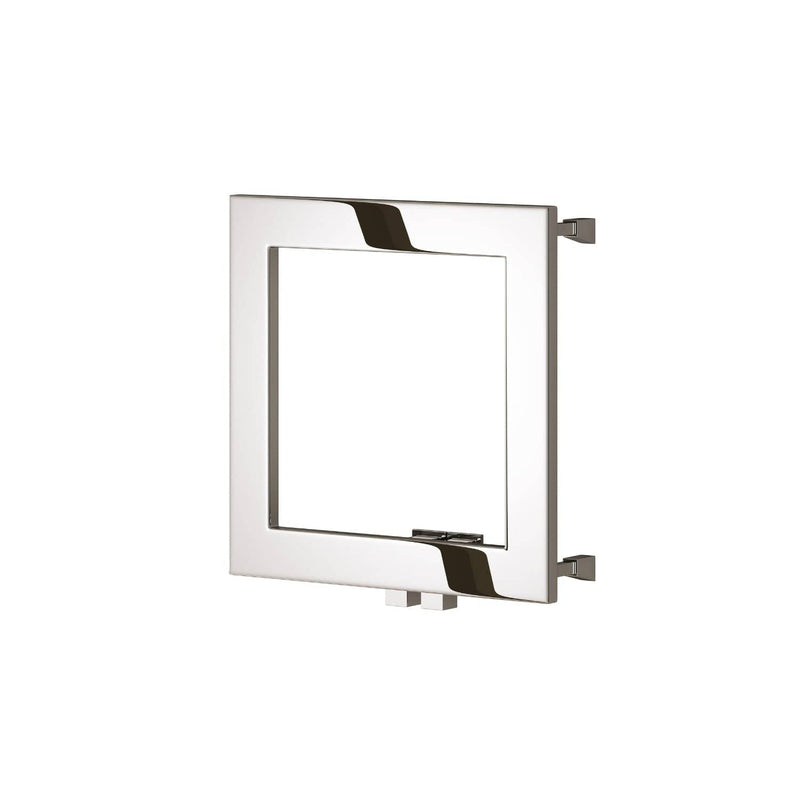

The Reina Square is a compact square towel radiator in polished stainless steel, with a single towel bar built into the bottom of the frame. One size, 450mm high and 450mm wide, ideal for smaller bathrooms and cloakrooms. Central heating only, with a 25-year guarantee.
450mm
Height
450mm
Width
C
Central heating only
ΔT30
Heat pump rated
25 yr
Guarantee
View the Square in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Square in your room using augmented reality.
Why Stainless Steel?
Three practical reasons the Square suits a bathroom.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Square keeps its polished finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Square with a 25-year guarantee, a long cover period for a bathroom radiator.
Compact square footprintIdeal for confined spaces
A single compact 450 x 450mm size with an integral towel bar, so it suits smaller bathrooms and cloakrooms.

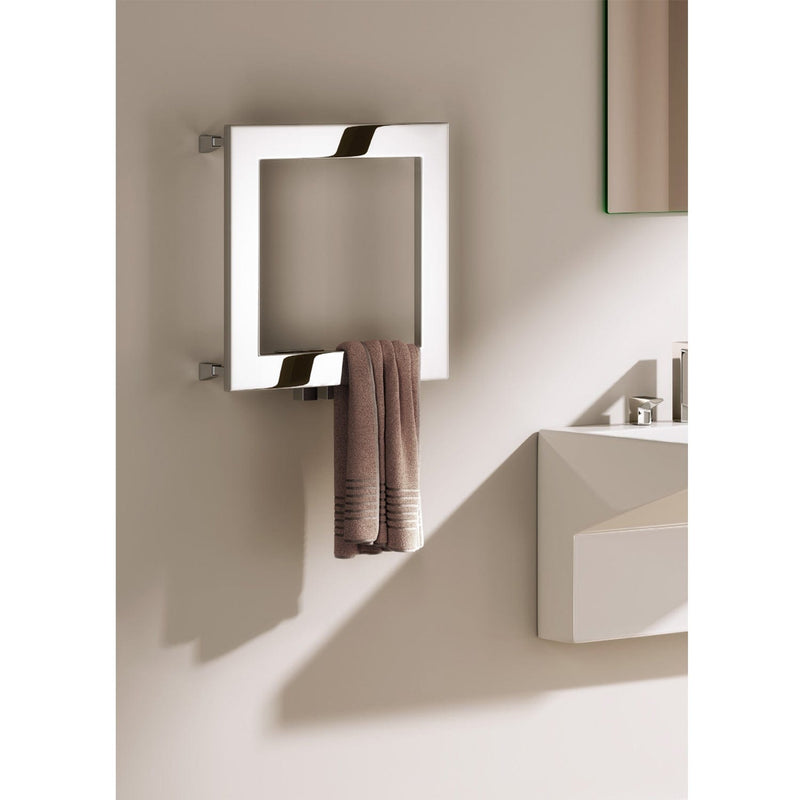

In the Room
The Square shown in a room setting, plus two close-ups of the polished stainless steel.
Heat Output & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height 450mm wide |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| 450mm | 612 | 478 | 248 | 140 | 73 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Square |
| Height | 450mm |
| Width | 450mm |
| Frame thickness | 30mm |
| Wall distance | 125–140mm |
| Pipe centres | 50mm |
| Wall to pipe centres | 115–130mm |
| Connection | 1/2" BSP female thread (inlet / outlet) |
| Material | Stainless steel (304 quality) |
| Finish | Polished stainless steel |
| Fuel type | Central heating only |
| Included | Wall brackets, fixings and an Allen key |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
450 x 450mm
Height x width
FuelCentral heating
Towel barIntegral
✓
ΔT30 rated
Heat pump compatible
✓
Towel bar
Integral, across the base of the frame
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Square compatible with a heat pump?
A. Reina publish a Delta T30 output for the Square, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Check it against your room heat loss with the calculator on this page.
Q.
Can the Square be used as an electric or dual fuel towel rail?
A. No - Reina list the Square for central heating only, so it is not available as an electric or dual fuel towel rail.
Q.
What valves do I need for the Square?
A. The Square has 1/2 inch BSP female inlet and outlet connections. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
How far does the Square sit off the wall?
A. The frame itself is 30mm thick, and the wall distance including brackets is 125 to 140mm. Leave clear space around it, away from doors, basins and window sills.
Q.
What are the pipe centres on the Square?
A. Pipe centres are 50mm and wall to pipe centres is 115 to 130mm. The Square is 450mm high and 450mm wide.
Q.
What finish is the Square available in?
A. Polished stainless steel. The Square is made in one size, 450 x 450mm.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Square carries a 25-year Reina guarantee.
Q.
What is included with the Square?
A. Wall brackets, fixings (inserts, screws, wall plugs and grab screws) and an Allen key are included. Radiator valves are not supplied.
