Reina Designer Slimline Vertical Radiator
£176.00
£196.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
Elegant Radiators · Coventry, UK
Free delivery over £200 · 5-year guarantee
Central heating. Mild steel flat panel. Vertical designer.
Product Overview & Key Specs
The Reina Slimline Vertical is a mild steel flat panel central heating radiator with a single smooth face. It comes in five heights from 470mm to 1770mm and three widths from 300mm to 500mm, in White or Anthracite, and every size has a published Delta T30 output for heat pump systems.
470–1770mm
Five heights
300–500mm
Three widths
2
Finishes
13mm
Panel thickness
5 yr
Guarantee
View the Slimline Vertical in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Slimline Vertical in your room using augmented reality.
Why a Slimline Flat Panel?
Three practical reasons a single smooth steel panel suits a modern central heating system.
One smooth panelEasy to wipe ✔
A single flat face with no bars or gaps to collect dust, so it wipes clean and gives a minimal, uncluttered look on the wall.
Tall and narrowWall-friendly
Widths of 300 to 500mm and heights up to 1770mm give useful output from a slim wall footprint, such as between doors or beside a window.
Holds its heatSteady warmth ✔
Steel retains heat after the boiler switches off, so the room temperature stays steadier between heating cycles.
In the Room

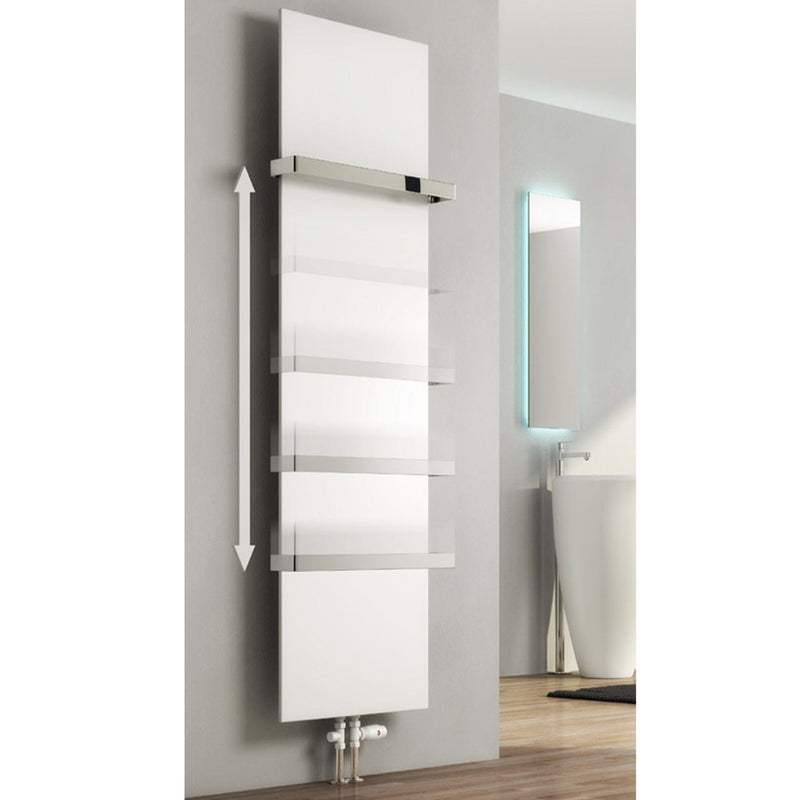

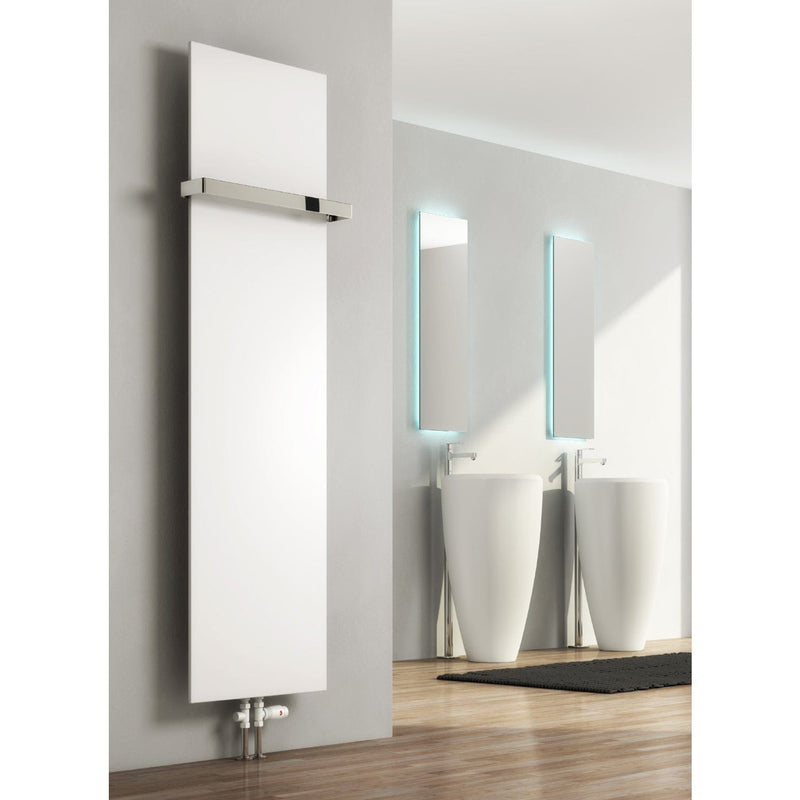

The Slimline Vertical shown in a bathroom setting with the optional towel hanger.
Choose Your Finish
White or Anthracite - same steel panel, same heat output. The images show the optional towel hanger, which is not included.

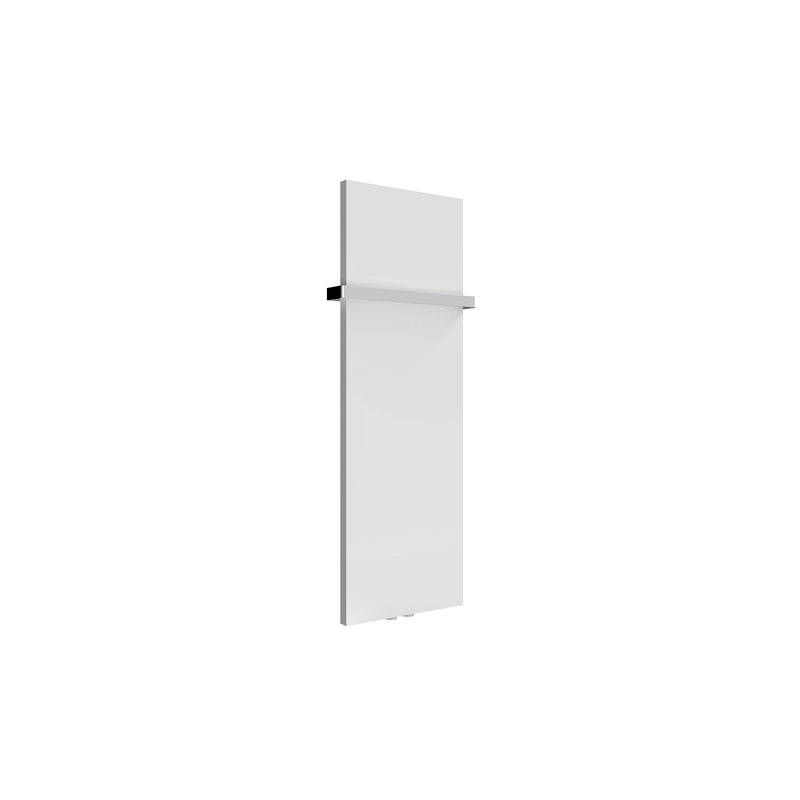

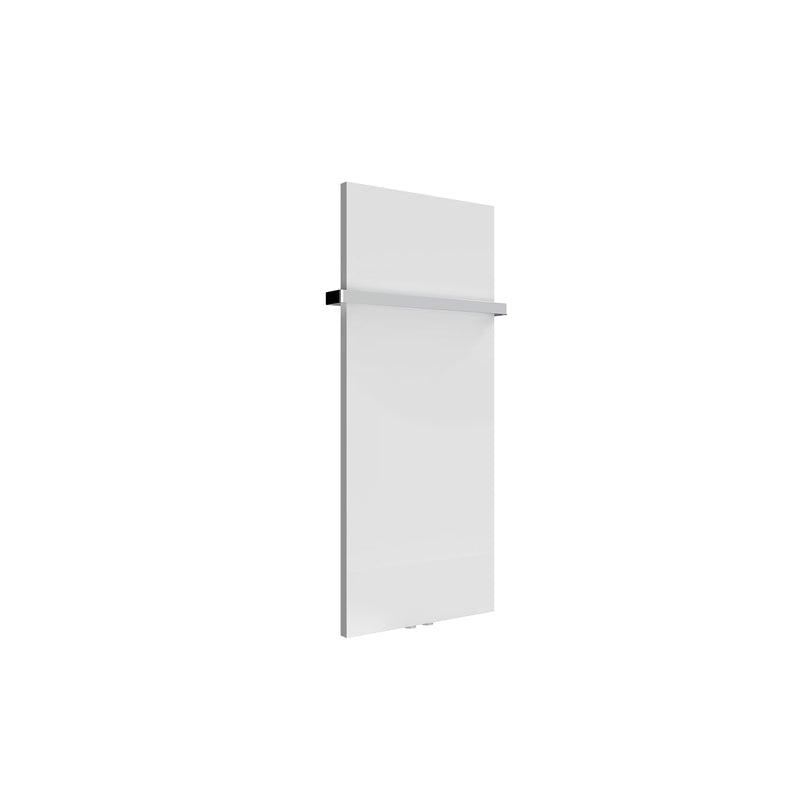

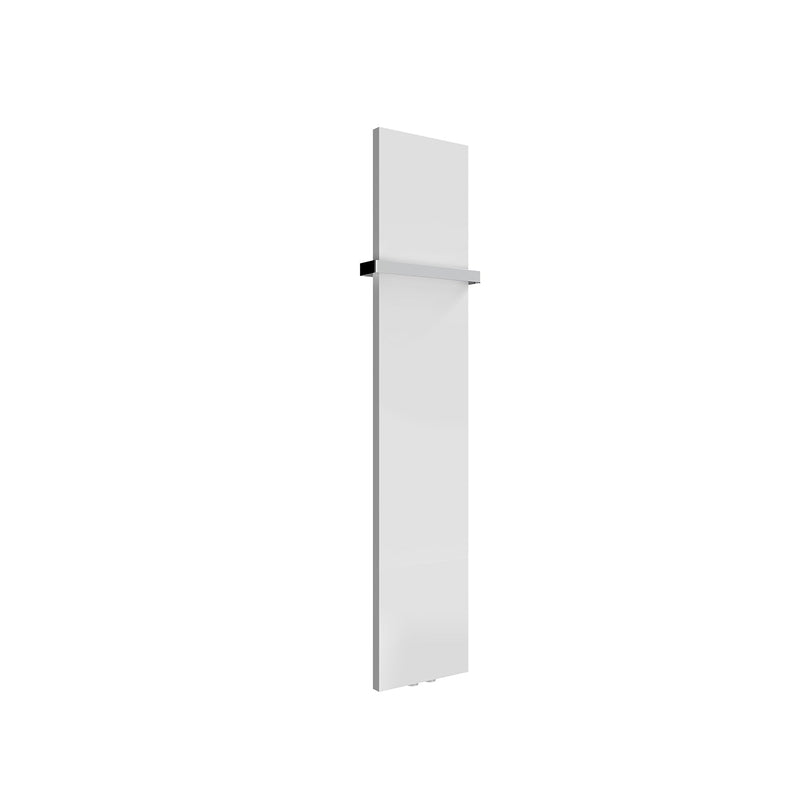

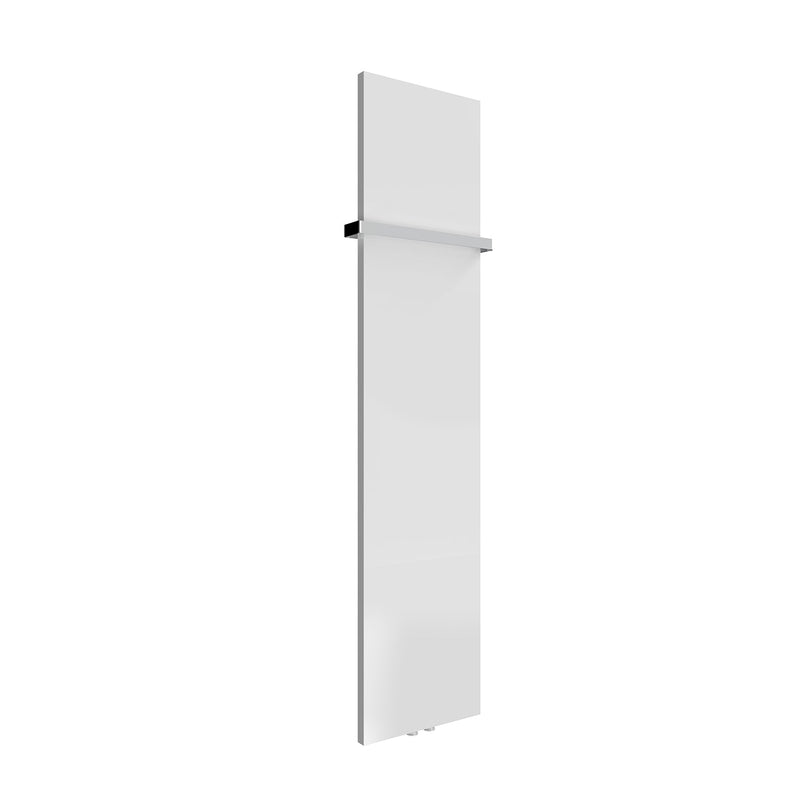

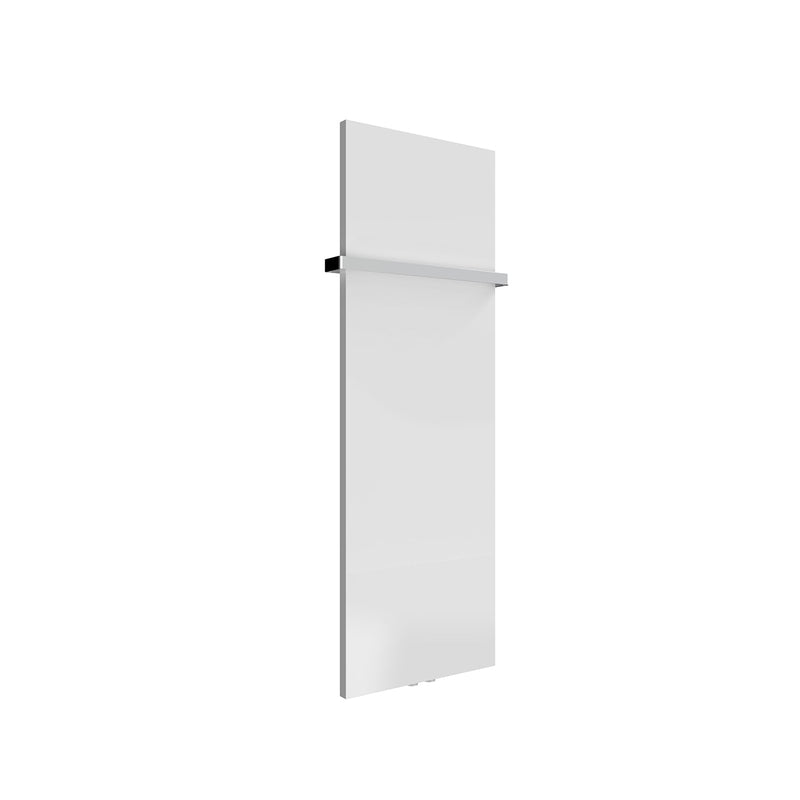

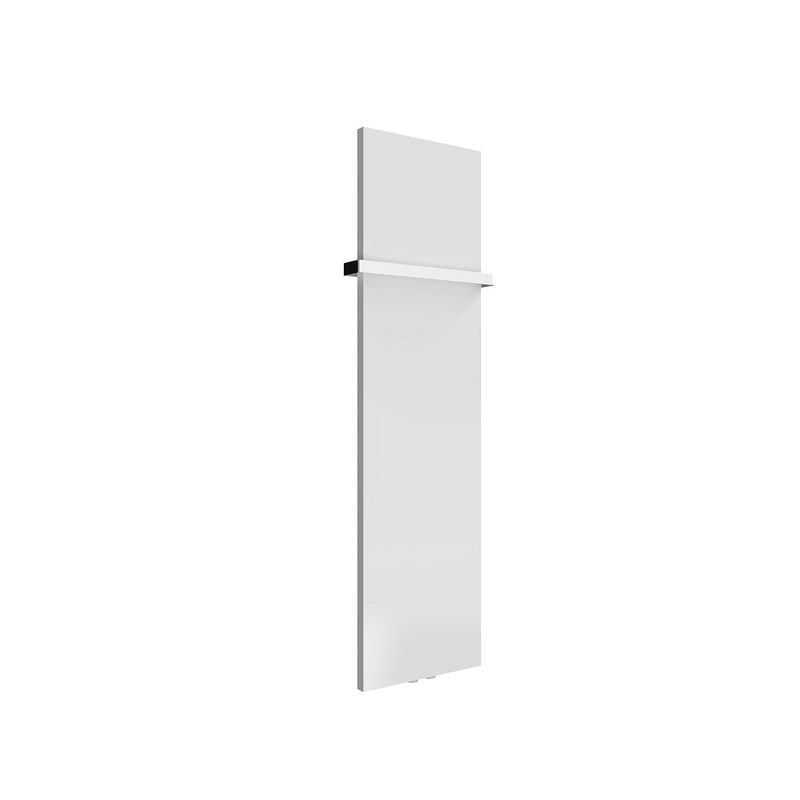

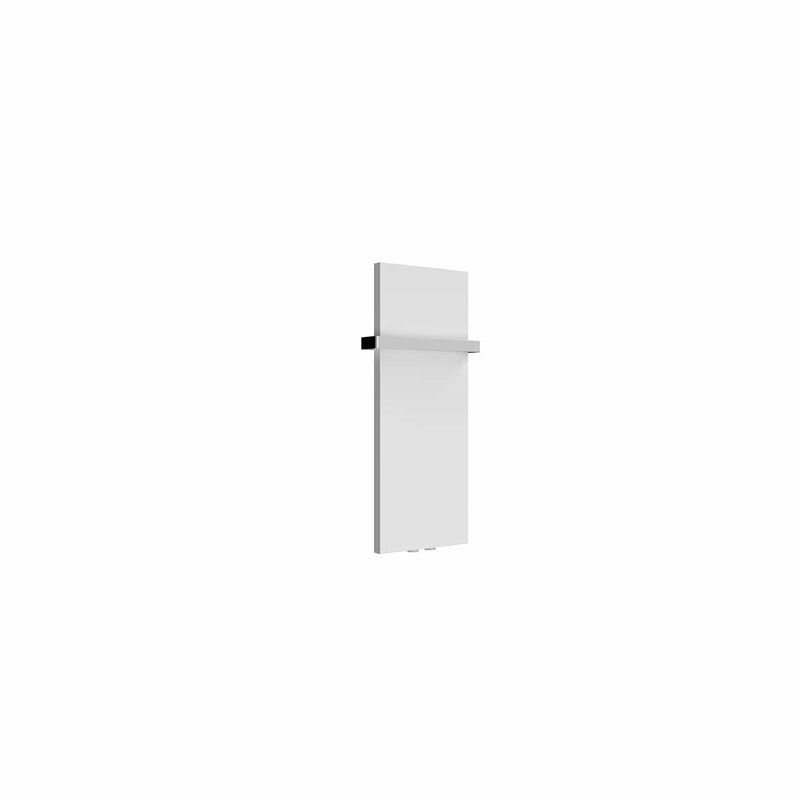

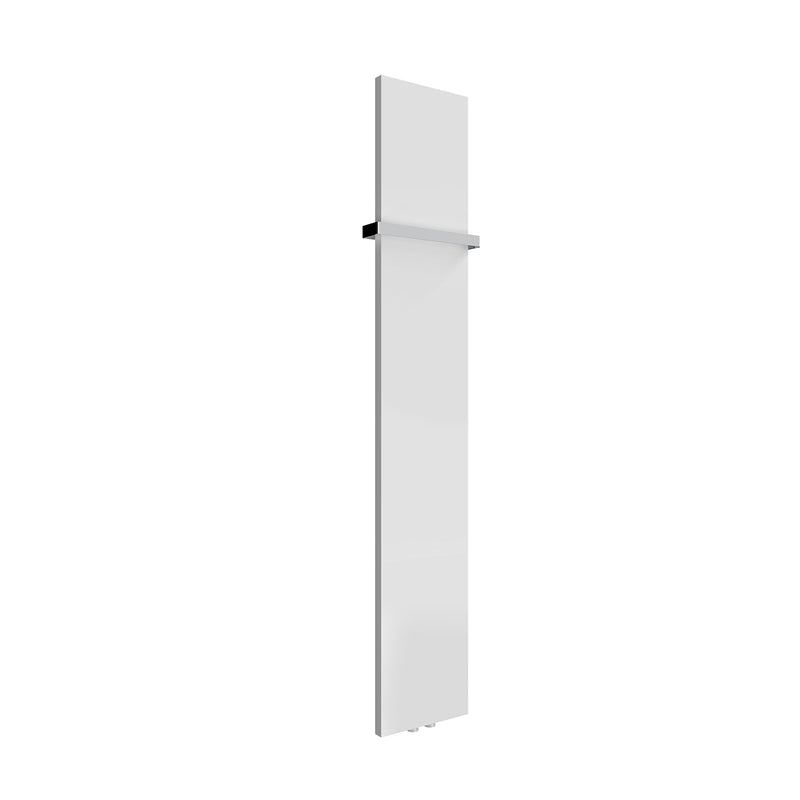

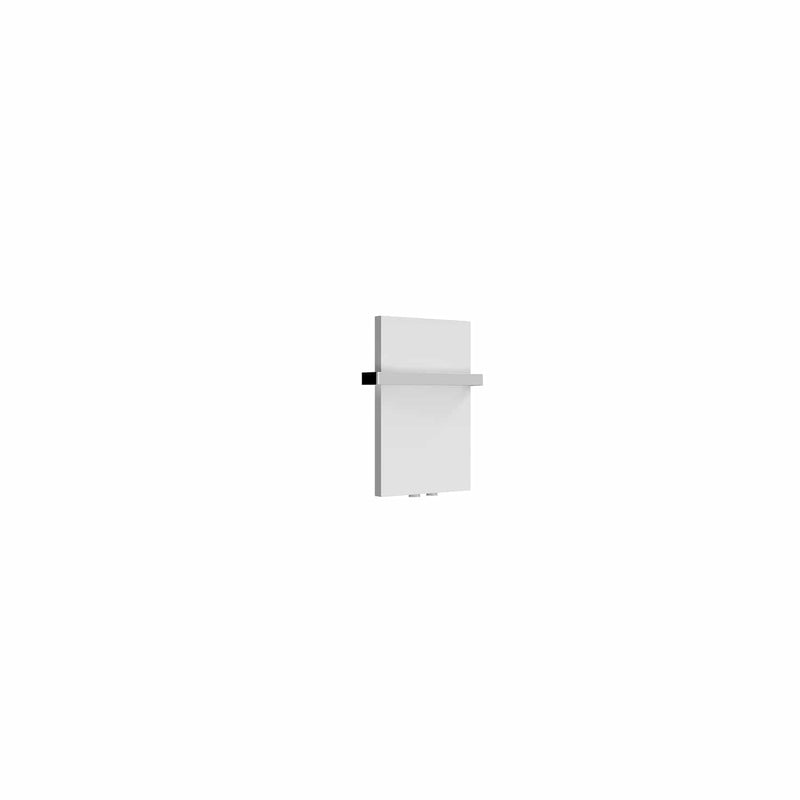

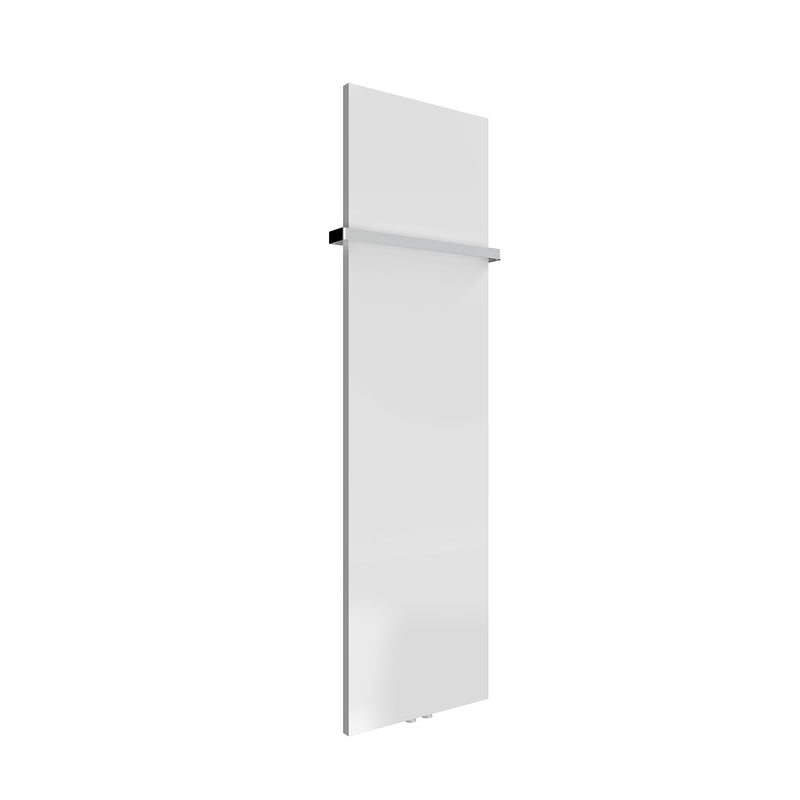

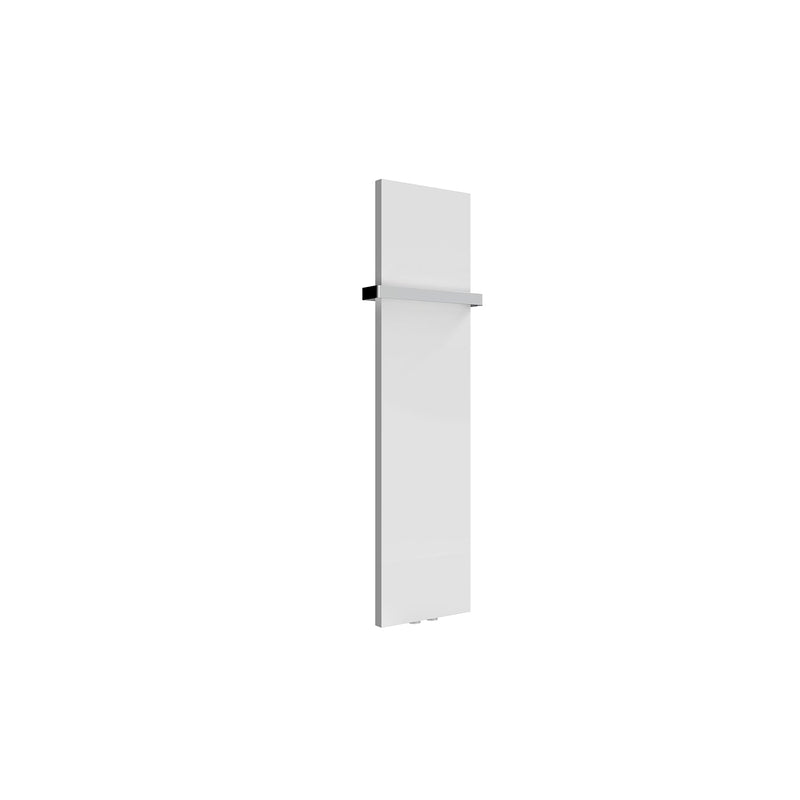

WhiteAll sizes

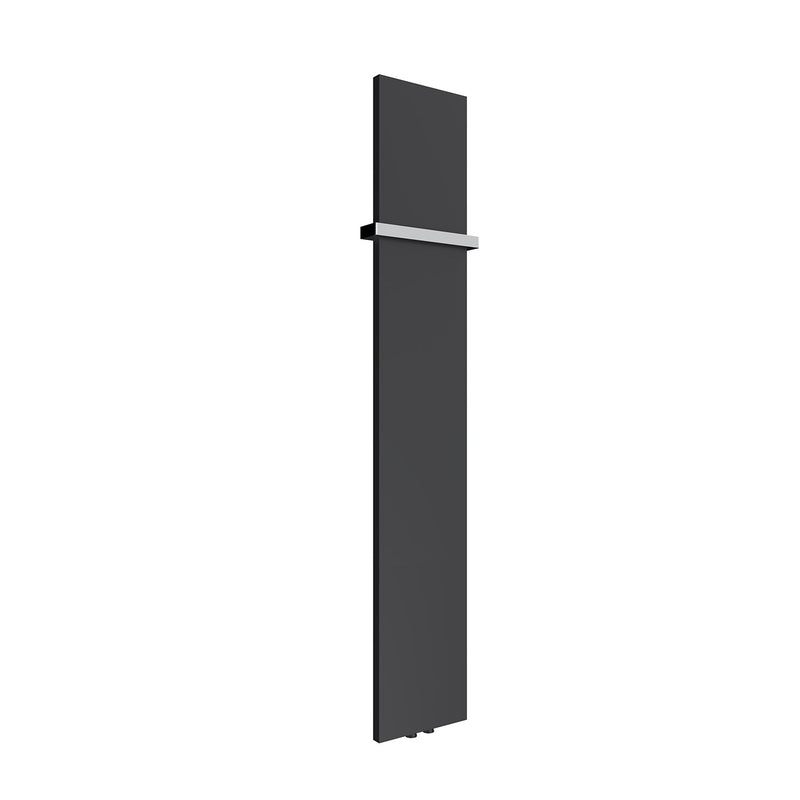

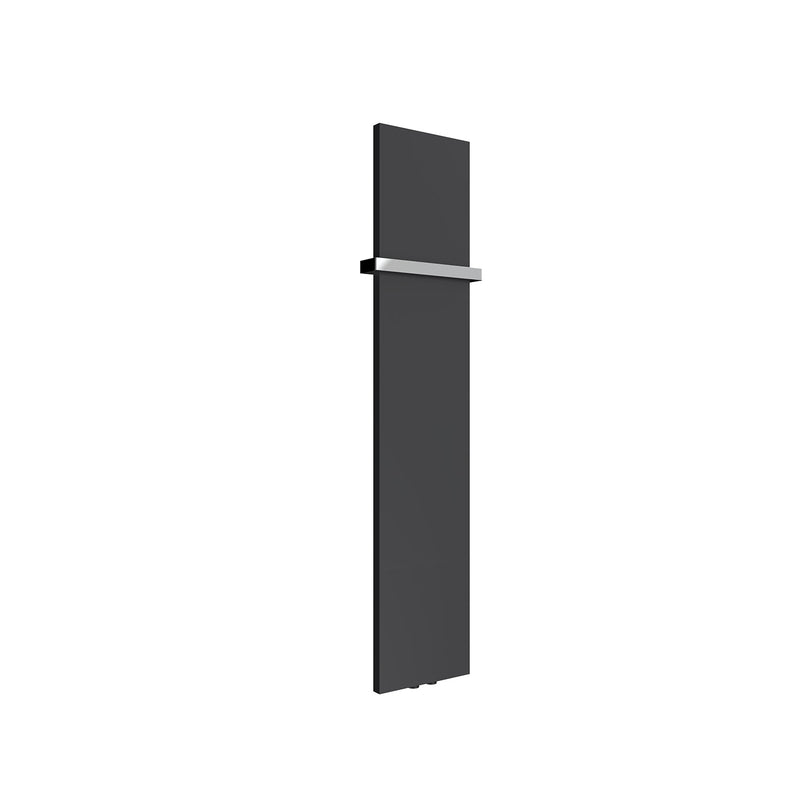

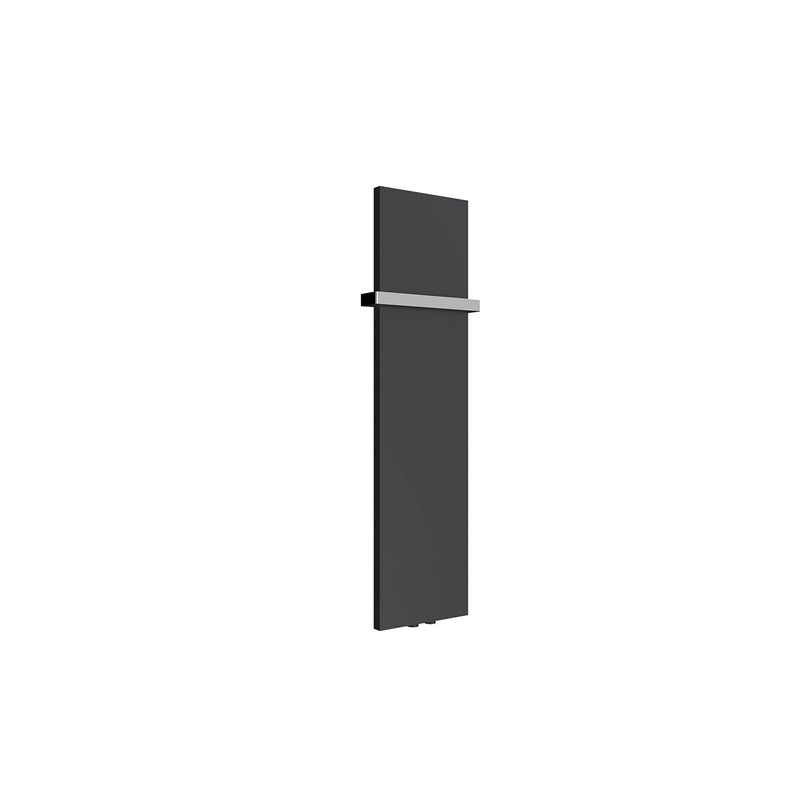

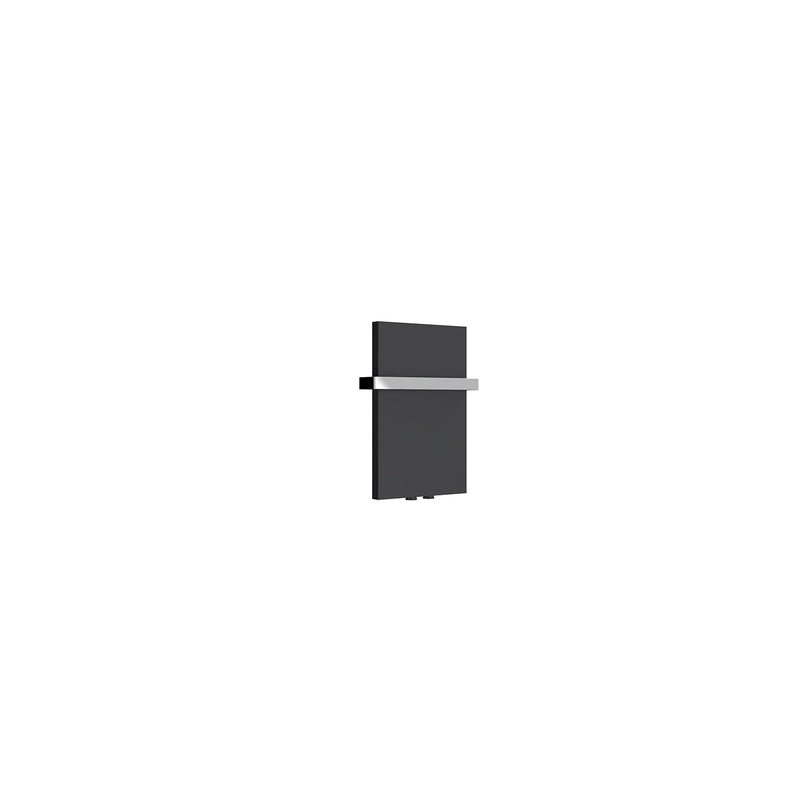

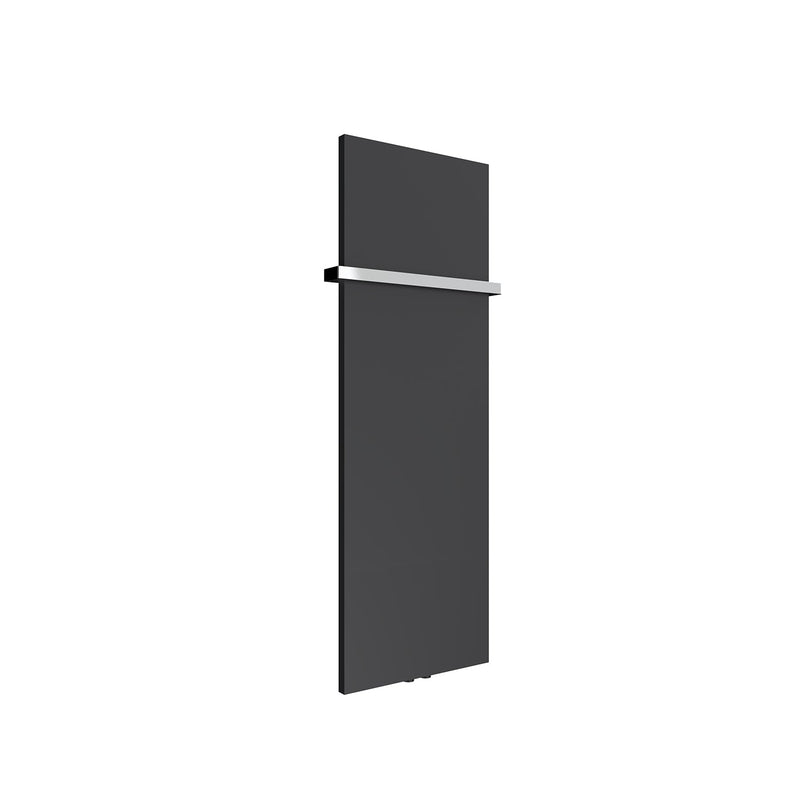

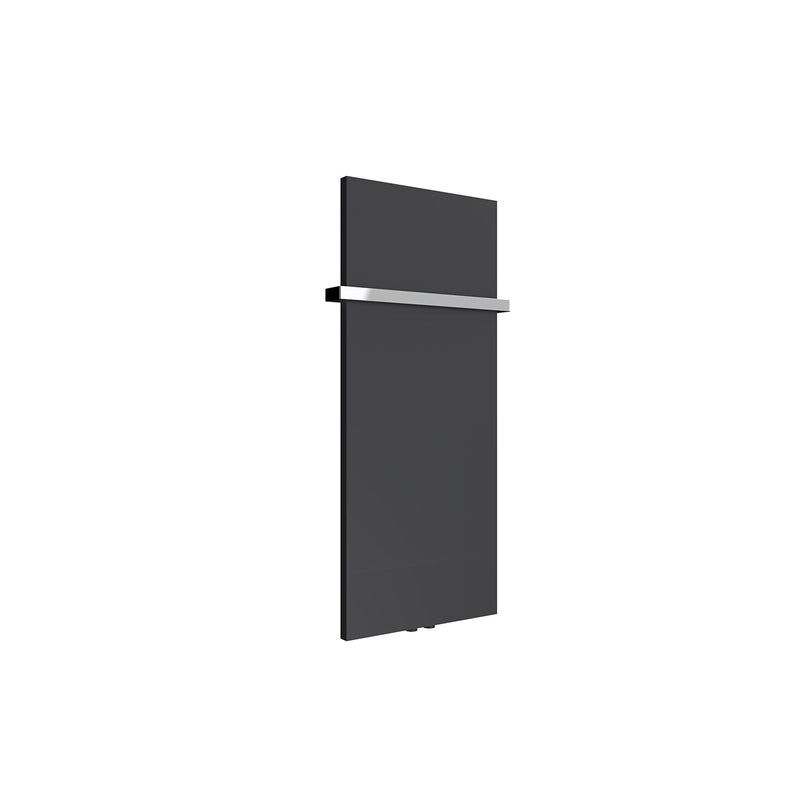

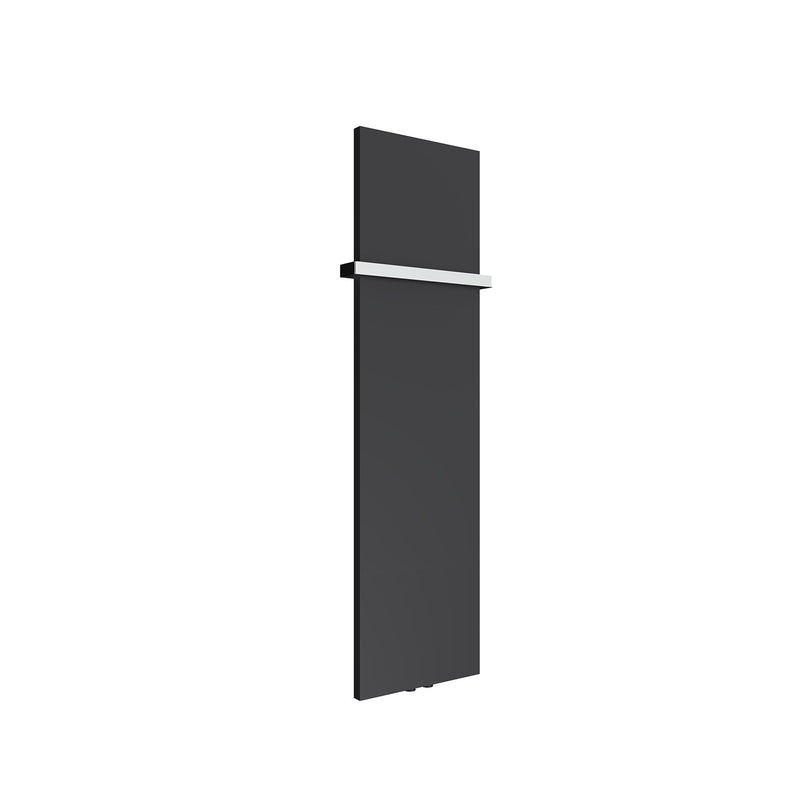

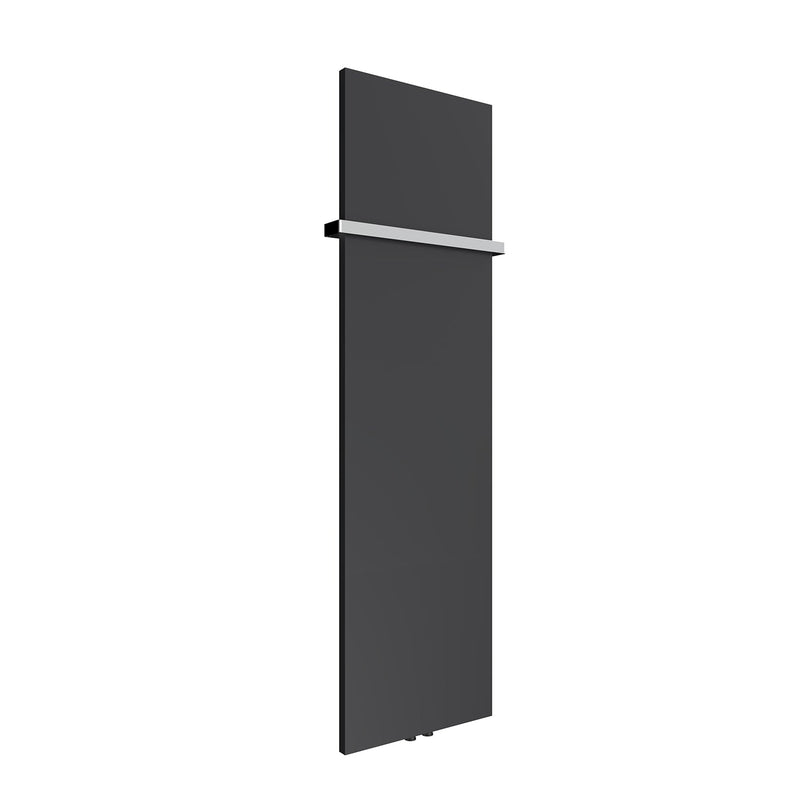

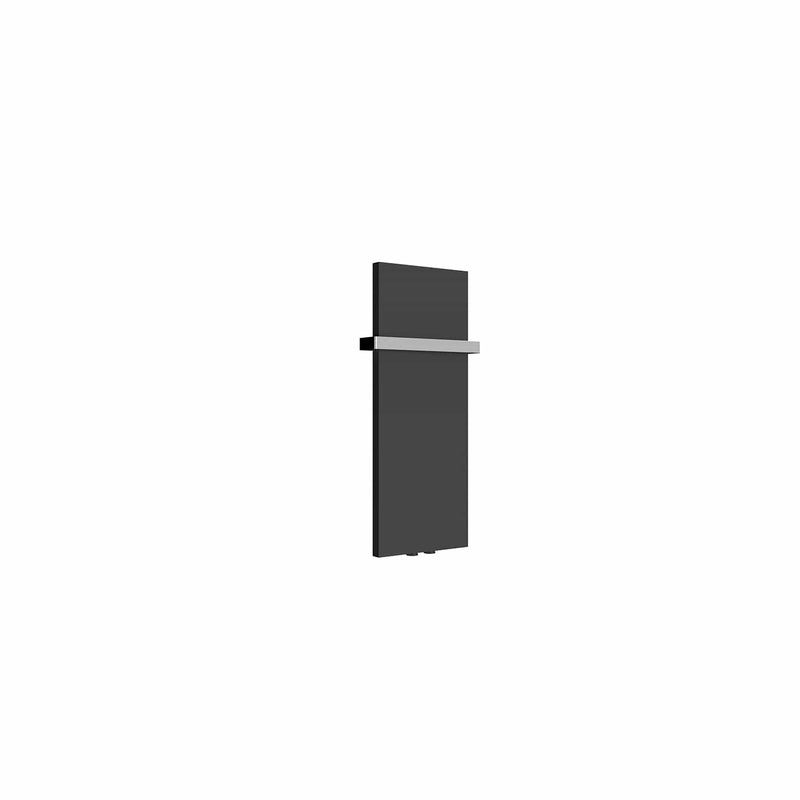

AnthraciteAll sizes
Heat Output by Size & System
Reina datasheet figures, identical for White and Anthracite. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height | Width | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 470mm | 300mm | 801 | 626 | 324 | 184 | 95 |
| 770mm | 300mm | 1,316 | 1,028 | 532 | 302 | 156 |
| 1170mm | 300mm | 2,001 | 1,563 | 809 | 458 | 237 |
| 1170mm | 400mm | 2,667 | 2,084 | 1,079 | 611 | 316 |
| 1170mm | 500mm | 3,333 | 2,604 | 1,348 | 764 | 395 |
| 1470mm | 300mm | 2,516 | 1,966 | 1,018 | 576 | 298 |
| 1470mm | 400mm | 3,352 | 2,619 | 1,356 | 768 | 398 |
| 1470mm | 500mm | 4,191 | 3,274 | 1,695 | 960 | 497 |
| 1770mm | 300mm | 3,028 | 2,366 | 1,225 | 694 | 359 |
| 1770mm | 400mm | 4,035 | 3,152 | 1,632 | 924 | 479 |
| 1770mm | 500mm | 5,044 | 3,941 | 2,040 | 1,156 | 598 |
Heat pump owners: use the ΔT30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Slimline Vertical |
| Height options | 470 / 770 / 1170 / 1470 / 1770mm |
| Width options | 300 / 400 / 500mm |
| Panel thickness | 13mm |
| Pipe centres | 50mm (all sizes) |
| Wall to pipe centres | 30-55mm |
| Wall distance | 62-87mm |
| Hanger centres (S) | 175mm (300 and 400 wide) / 240mm (500 wide) |
| Connection | 1/2" female pipe thread, bottom |
| Water volume | 0.4 - 2.4 litres (by size) |
| Empty weight | 4.0 - 20.9kg (by size) |
| Material | Mild steel |
| Finishes | White / Anthracite |
| Fuel type | Central heating |
| Included | Wall and panel brackets, fixings |
| Not included | Radiator valves, towel hanger |
| Max working pressure | 6 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - use the ΔT30 column |
| Guarantee | 5 years (Reina manufacturer) |
Fixing dimensions and weights by size (mm, litres, kg)
| Size | S Hanger centres |
F Hanger to bottom |
G Hanger spacing (vertical) |
Water litres |
Empty weight kg |
|---|---|---|---|---|---|
| 470 x 300mm | 175 | 392 | 240 | 0.4 | 4.0 |
| 770 x 300mm | 175 | 572 | 360 | 0.6 | 6.1 |
| 1170 x 300mm | 175 | 877 | 600 | 0.9 | 8.8 |
| 1170 x 400mm | 175 | 877 | 600 | 1.3 | 11.4 |
| 1170 x 500mm | 240 | 907 | 600 | 1.6 | 14.1 |
| 1470 x 300mm | 175 | 1117 | 720 | 1.2 | 10.8 |
| 1470 x 400mm | 175 | 1117 | 720 | 1.6 | 14.1 |
| 1470 x 500mm | 240 | 1147 | 780 | 2.0 | 17.5 |
| 1770 x 300mm | 175 | 1357 | 840 | 1.4 | 12.9 |
| 1770 x 400mm | 175 | 1357 | 840 | 1.9 | 16.9 |
| 1770 x 500mm | 240 | 1387 | 900 | 2.4 | 20.9 |
Source: Reina installation guide. S, F and G match the labels on the technical drawing.
470–1770mm
5 heights · 3 widths
Widths300–500mm
Finishes2
✓
ΔT30 output listed
For heat pump sizing
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
5-yearguarantee
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Slimline Vertical compatible with a heat pump?
A. Reina publish a Delta T30 output for every size, so it can be sized for a heat pump system - use the Delta T30 column in our heat output table. Steel warms up more slowly than aluminium, so if your system runs at low flow temperatures all year an aluminium model will respond faster.
Q.
What valves do I need for the Slimline Vertical?
A. Valves are not supplied. The radiator has two 1/2 inch female pipe thread connections at the bottom, 50mm apart. We recommend thermostatic radiator valves (TRVs) for individual room control. If you are unsure which valve set suits your pipework, contact our team.
Q.
What are the pipe centres and wall distances?
A. Pipe centres are 50mm on every size. Wall to pipe centres is 30-55mm and the wall distance is 62-87mm. The panel itself is 13mm thick. Use the fixing table on this page for the hanger positions on your size.
Q.
Which size Slimline Vertical do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows the first size that covers your heat loss. Output ranges from 184W (470 x 300mm) to 1,156W (1770 x 500mm) at Delta T50.
Q.
What finishes is the Slimline Vertical available in?
A. White and Anthracite, in all eleven sizes. Reina's datasheet lists the same heat output for both finishes.
Q.
Can the Slimline Vertical be used as an electric radiator?
A. No. Reina list the Slimline Vertical for central heating only, so it is not available as an electric or dual fuel radiator.
Q.
Does it come with a towel hanger?
A. No. The images show the optional chrome towel hanger, which is not included with the radiator. Contact our team if you would like to ask about the hanger for your size.
Q.
What are the pressure and temperature limits, and what is included?
A. The maximum working pressure is 6 bar and the maximum water temperature is 95 degrees C. The 5-year guarantee is from Reina. The box includes wall and panel mounting brackets and fixings. Valves are not supplied.
