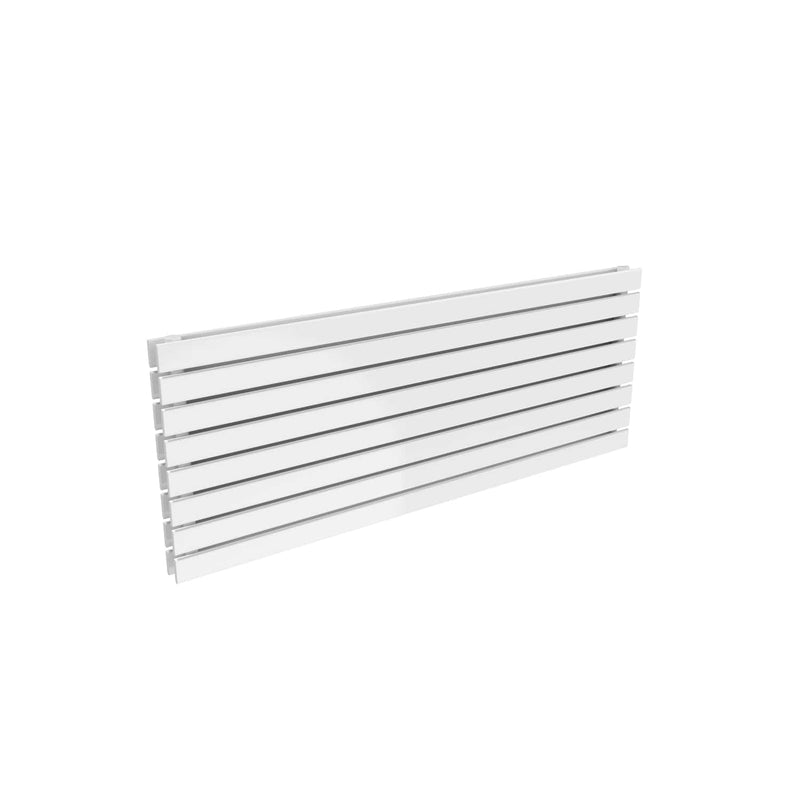

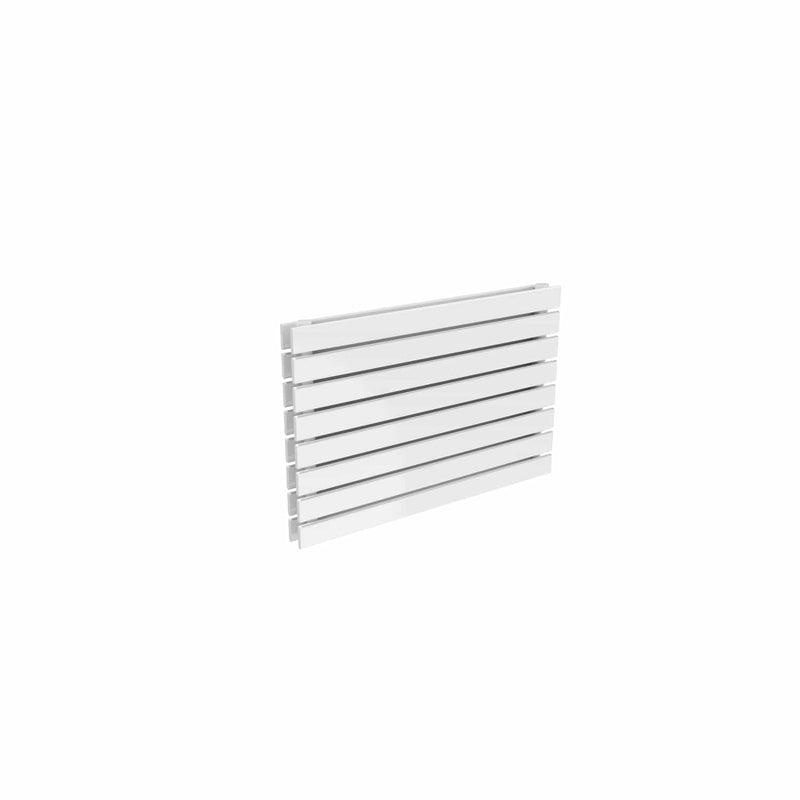

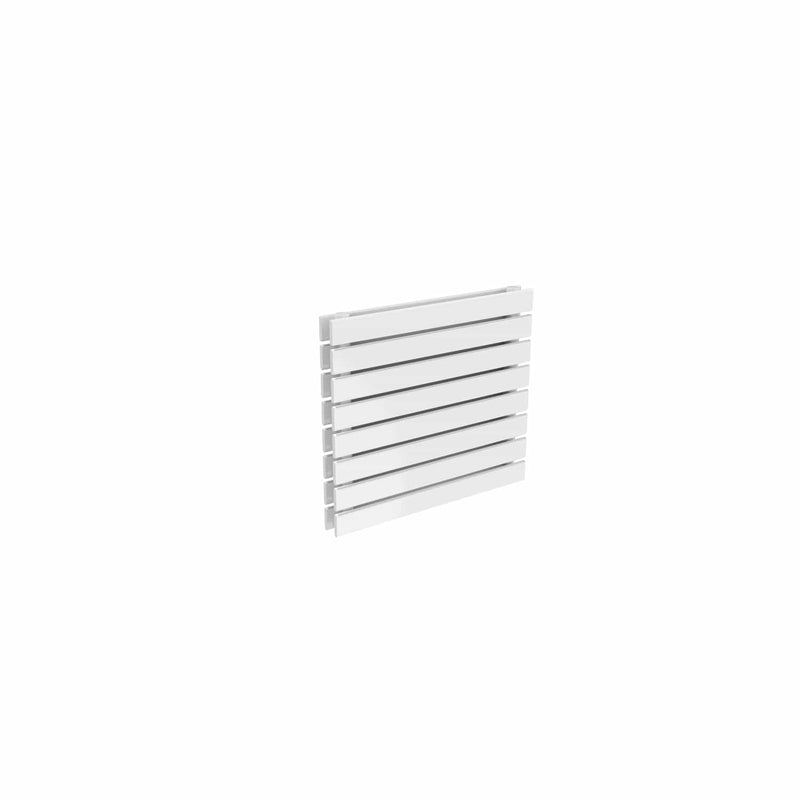

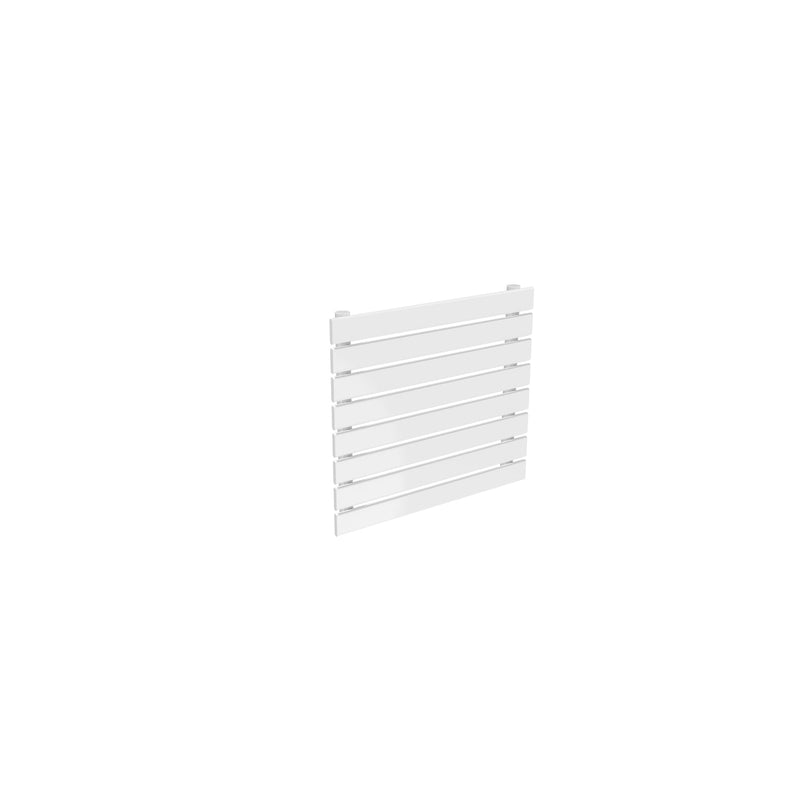

Reina Designer Rione Horizontal Steel Radiator White
£124.80
£144.00
Save £19.20
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating. Mild steel. Flat panel horizontal design. Single or double panel.
Product Overview & Key Specs
The Reina Rione Horizontal is a mild steel designer radiator with smooth flat panel slats, 544mm high in widths from 400mm to 1400mm. Choose a single or double panel in White - six sizes in each, with a 5-year manufacturer guarantee.
544mm
Height
400–1400mm
Widths
1–2
Panels
4,732
Max BTU (ΔT50)
5 yr
Guarantee
View the Rione in 3D & Augmented Reality
Rotate and inspect every angle. Switch between the single and double panel model, and on mobile scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Rione in your room using augmented reality.
Why Choose the Rione?
Three practical reasons this mild steel designer radiator suits a modern central heating system.
Flat panel designClean lines ✔
Smooth flat panel slats run the full width of the radiator, giving a modern, minimal look that suits living rooms, kitchens and hallways.
Single or double panelFlexible output ✔
Pick a single panel for a slimmer profile, or a double panel for a higher heat output from the same width and height.
Mild steel build5-year guarantee ✔
Made from robust mild steel with a factory finish, and backed by a 5-year manufacturer guarantee.

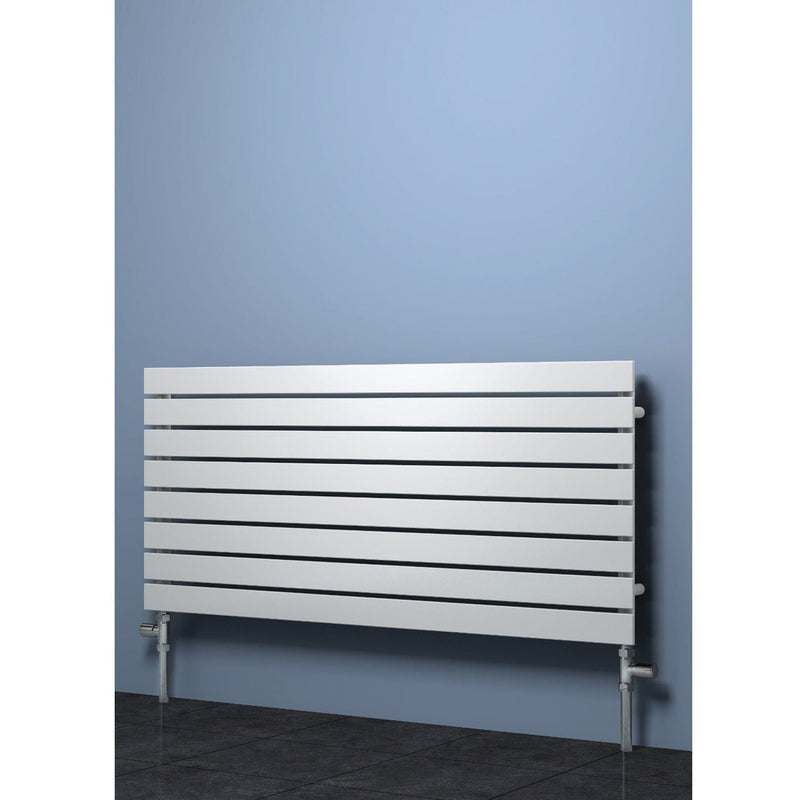

In the Room

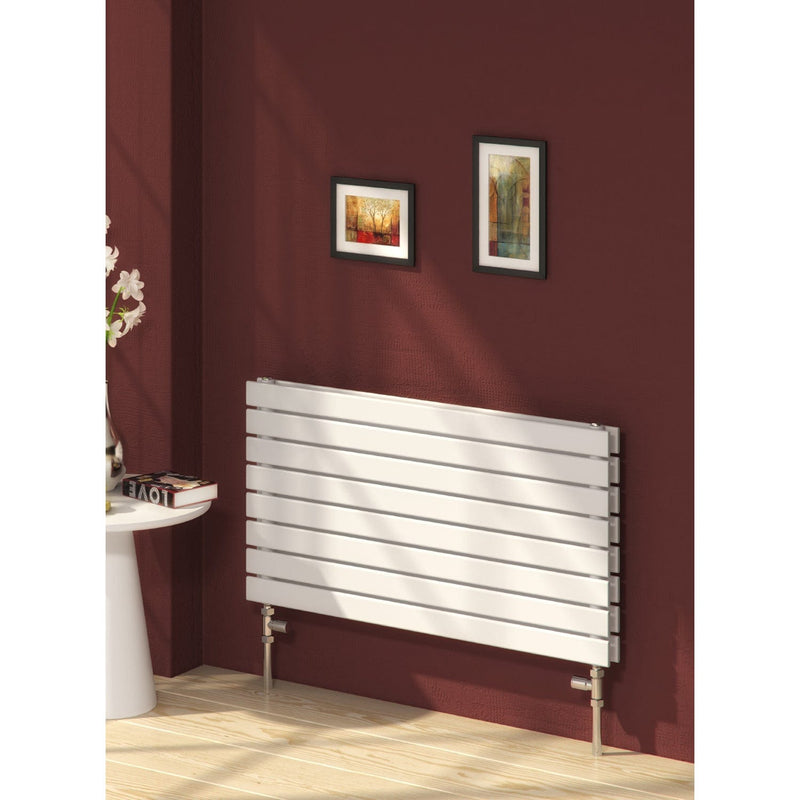

The Rione shown in a room setting, with two close-up views.
Heat Output by Size & System
ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height x width | Panel | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 544 x 400mm | Single | 1,138 | 889 | 460 | 261 | 135 |
| 544 x 600mm | Single | 1,707 | 1,334 | 690 | 391 | 202 |
| 544 x 800mm | Single | 2,276 | 1,778 | 920 | 521 | 270 |
| 544 x 1000mm | Single | 2,845 | 2,223 | 1,151 | 652 | 337 |
| 544 x 1200mm | Single | 3,416 | 2,669 | 1,382 | 783 | 405 |
| 544 x 1400mm | Single | 3,984 | 3,113 | 1,611 | 913 | 472 |
| 544 x 400mm | Double | 1,730 | 1,352 | 700 | 396 | 205 |
| 544 x 600mm | Double | 2,595 | 2,027 | 1,049 | 595 | 308 |
| 544 x 800mm | Double | 3,460 | 2,703 | 1,399 | 793 | 410 |
| 544 x 1000mm | Double | 4,325 | 3,379 | 1,749 | 991 | 513 |
| 544 x 1200mm | Double | 5,192 | 4,056 | 2,100 | 1,190 | 616 |
| 544 x 1400mm | Double | 6,057 | 4,732 | 2,450 | 1,388 | 718 |
Heat pump owners: use the ΔT30 column. Mild steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Rione Horizontal |
| Height | 544mm (also listed as 550mm) |
| Width options | 400 / 600 / 800 / 1000 / 1200 / 1400mm |
| Panels | Single or double |
| Tubes | Single 8 / Double 16 |
| Pipe centres | Width minus 45mm (355mm to 1355mm) |
| Wall to pipe centres | Single 67-77mm / Double 68mm |
| Wall distance | Single 96-106mm / Double 97mm |
| Connection | 1/2" female pipe thread |
| Material | Mild steel |
| Finish | White |
| Fuel type | Central heating (most sizes also listed for electric / dual fuel; double 1200 & 1400mm are for central heating use) |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 6 bar |
| Max water temperature | 95°C |
| Heat pump | ΔT30 outputs published - see table |
| Guarantee | 5 years (Reina manufacturer) |
400–1400mm
Width range
Height544mm
PanelsSingle / Double
✓
ΔT30 outputs published
Heat pump sizing
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system. The calculator checks all twelve single and double panel sizes.
Frequently Asked Questions
Q.
Is the Reina Rione compatible with a heat pump?
A. Reina publish Delta T30 outputs for every Rione size and panel option, so it can be sized for a low-temperature system - use the Delta T30 column in our heat output table. Mild steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Q.
Single or double panel - which should I choose?
A. A double panel gives a higher heat output for the same width: for example the 544 x 1000mm gives 2,223 BTU as a single and 3,379 BTU as a double at Delta T50. Both panels are 544mm high and sit at the same 96-106mm wall distance range, so the choice comes down to the heat output you need.
Q.
What valves do I need for the Rione?
A. Valves are not supplied. The Rione has 1/2 inch female pipe thread connections, and we recommend thermostatic radiator valves (TRVs) for individual room control.
Q.
What are the pipe centres on the Rione?
A. Pipe centres are 45mm less than the overall width: 355mm for the 400mm width, up to 1355mm for the 1400mm width. Wall to pipe centres is 67-77mm on the single panel and 68mm on the double, and the wall distance is 96-106mm single and 97mm double.
Q.
Which size Rione do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type - the calculator checks all twelve single and double panel sizes and shows whether the radiator will meet your heat loss. As a guide, allow around 100 BTU per cubic metre for a modern well-insulated UK room.
Q.
What sizes and finishes does the Rione come in?
A. One height, 544mm, in six widths from 400mm to 1400mm, each as a single or double panel. The Rione is available in White.
Q.
Can the Rione be used as an electric or dual fuel radiator?
A. Most Rione sizes are listed by Reina for central heating, electric and dual fuel use: every single panel width, and the double panel up to 1000mm wide. The double panel in 1200mm and 1400mm widths is listed for central heating use. If you want an electric or dual fuel set-up, contact our team and we will confirm the correct electric element kit for your size.
Q.
What is the guarantee and maximum working pressure?
A. The Rione carries a 5-year manufacturer guarantee. The installation guide gives a maximum operational pressure of 6 bar, and we recommend a maximum water temperature of 95 degrees C.
