Reina Designer Piazza Vertical Heated Towel Rail Stainless Steel Radiator
£358.40
£378.40
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Offset ladder.
Product Overview & Key Specs

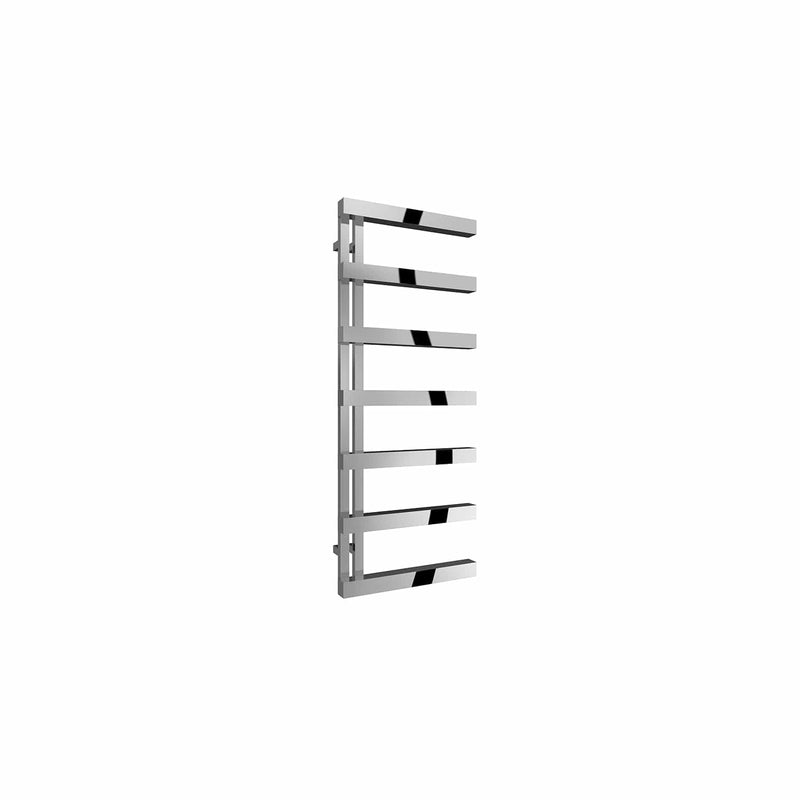

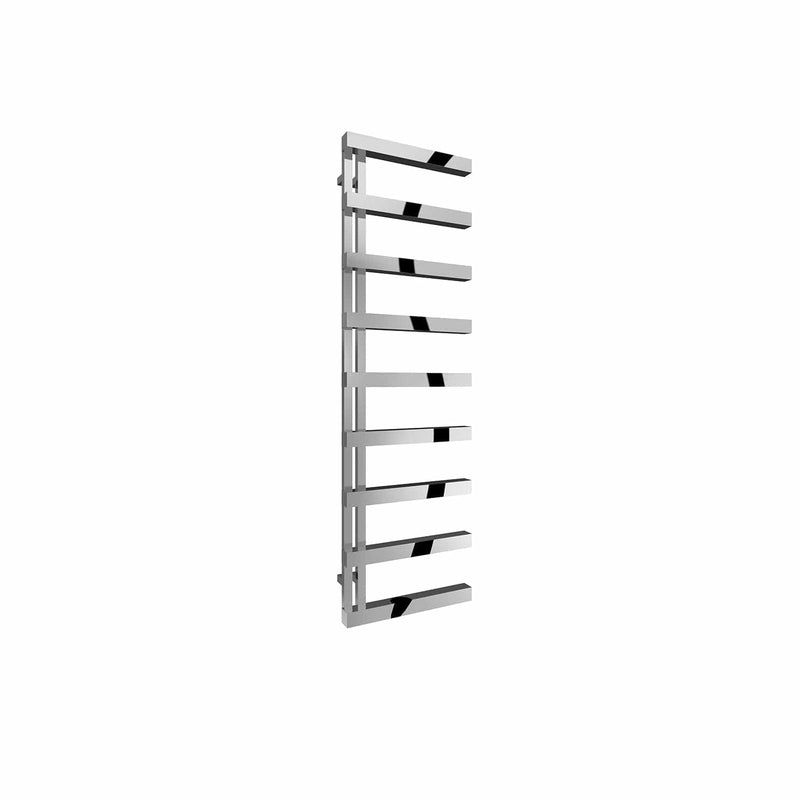

The Reina Piazza is an offset ladder towel radiator with horizontal square bars in polished stainless steel. Choose 870, 1270 or 1670mm high, all 500mm wide, with 5 to 9 bars for towels. It suits central heating, electric or dual fuel, and carries a 25-year guarantee.
870–1670mm
Three heights
500mm
Width
5–9
Bars
ΔT30
Heat pump rated
25 yr
Guarantee
View the Piazza in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Piazza in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a polished stainless steel towel rail suits a bathroom.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Piazza keeps its polished finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Piazza with a 25-year guarantee, a long cover period for a bathroom radiator.
Offset ladderReversible design
Offset horizontal square bars give a distinctive look and a reversible fit, with 5 to 9 bars for hanging towels.
In the Room

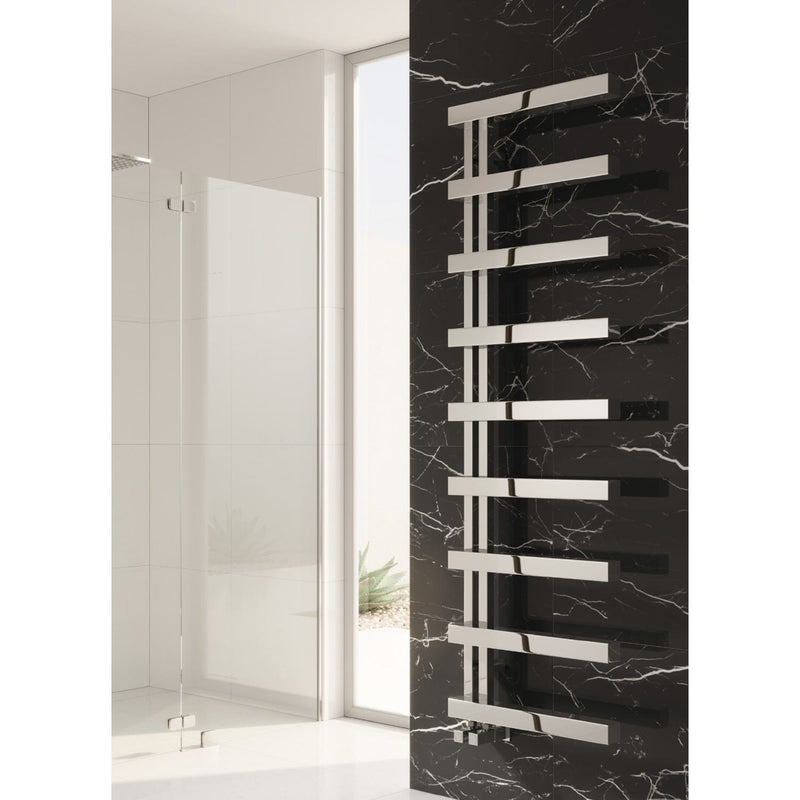

The Piazza shown in a room setting, plus two close-ups of the polished stainless steel.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height | Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 870mm | 500mm | 5 bars | 1,025 | 801 | 415 | 235 | 122 |
| 1270mm | 500mm | 7 bars | 1,424 | 1,113 | 576 | 326 | 169 |
| 1670mm | 500mm | 9 bars | 1,830 | 1,430 | 740 | 419 | 217 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Piazza |
| Height | 870 / 1270 / 1670mm |
| Width | 500mm |
| Projection from wall | 120–135mm |
| Pipe centres | 50mm |
| Wall to pipe centres | 65–80mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Stainless steel (304 quality) |
| Bars | 5 / 7 / 9 (by height) |
| Finish | Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Water volume | 6.32–11.60 litres (by size) |
| Empty weight | 5.31–9.39kg (by size) |
| Included | Wall mounting brackets and fixing kit |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
870–1670mm
3 heights · 500mm wide
Bars5–9
Sizes3
✓
ΔT30 rated
Heat pump compatible
✓
Electric ready
Electric & dual fuel listed
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Piazza compatible with a heat pump?
A. Reina publish a Delta T30 output for every Piazza size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Piazza be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Piazza for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Piazza?
A. The Piazza has 1/2 inch female pipe thread inlet and outlet connections. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Piazza?
A. Pipe centres are 50mm across all three sizes. Wall to pipe centres is 65 to 80mm, and the rail stands 120 to 135mm off the wall.
Q.
Which size Piazza do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Piazza size meets your heat loss. The 870mm and 1270mm heights are the most popular for a standard bathroom.
Q.
What finish is the Piazza available in?
A. Polished stainless steel, in all three sizes. Every size has the same offset ladder construction and finish.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Piazza carries a 25-year Reina guarantee.
Q.
How much water does the Piazza hold?
A. From about 6.3 litres in the 870 x 500mm size up to about 11.6 litres in the 1670 x 500mm size, so it fills and heats up quickly.
