Reina Designer Mina Vertical Heated Towel Rail Stainless Steel Radiator
£224.00
£244.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Vertical ladder.
Product Overview & Key Specs

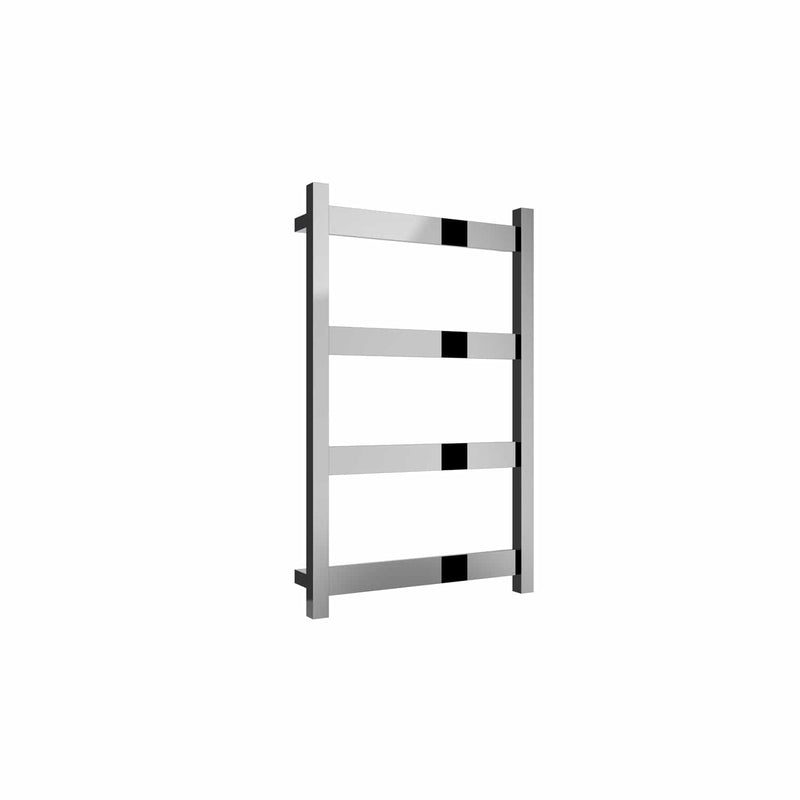

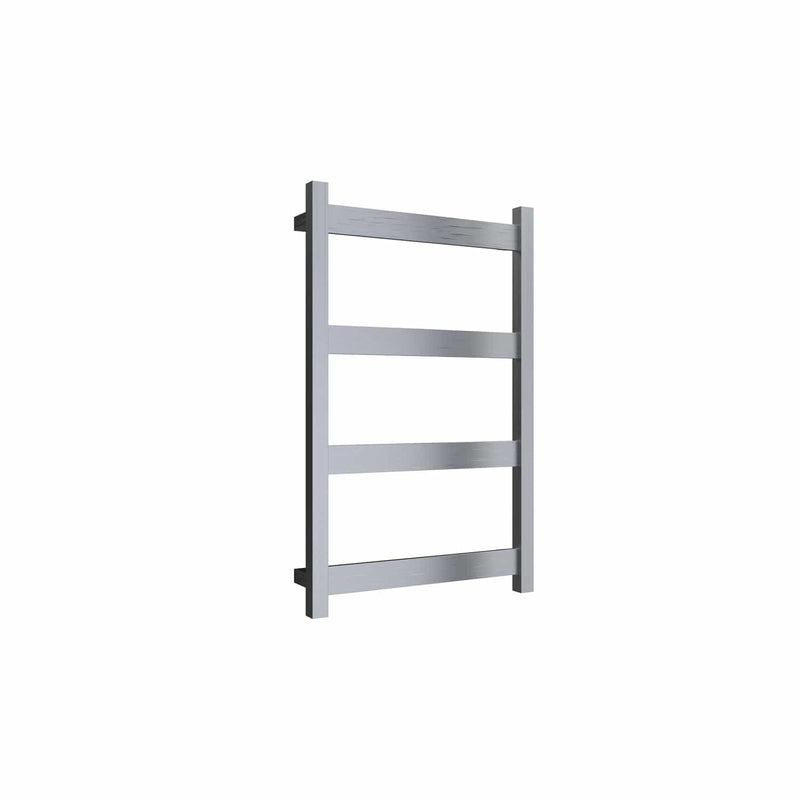

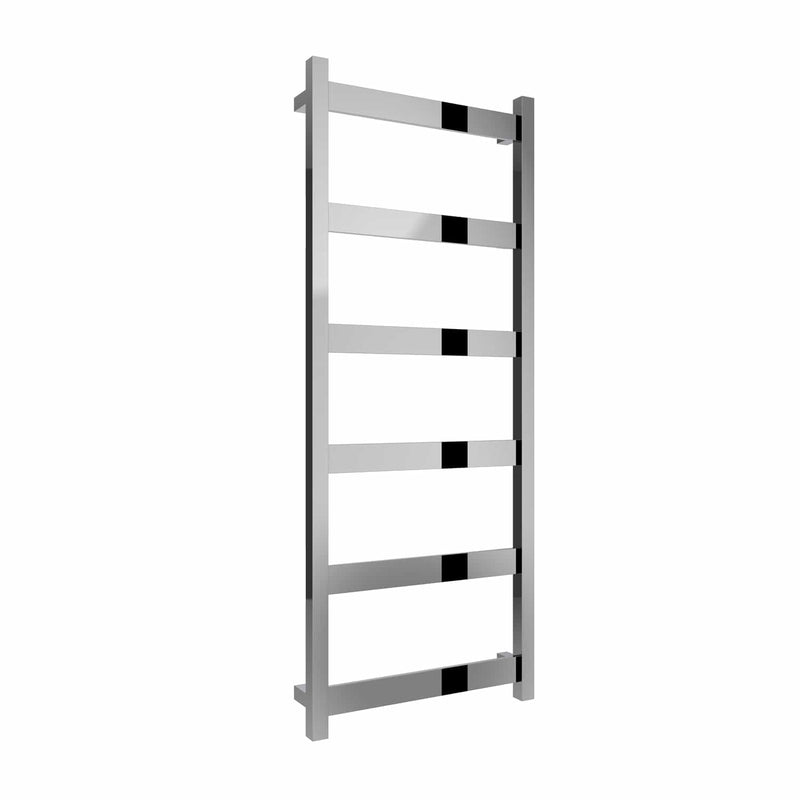

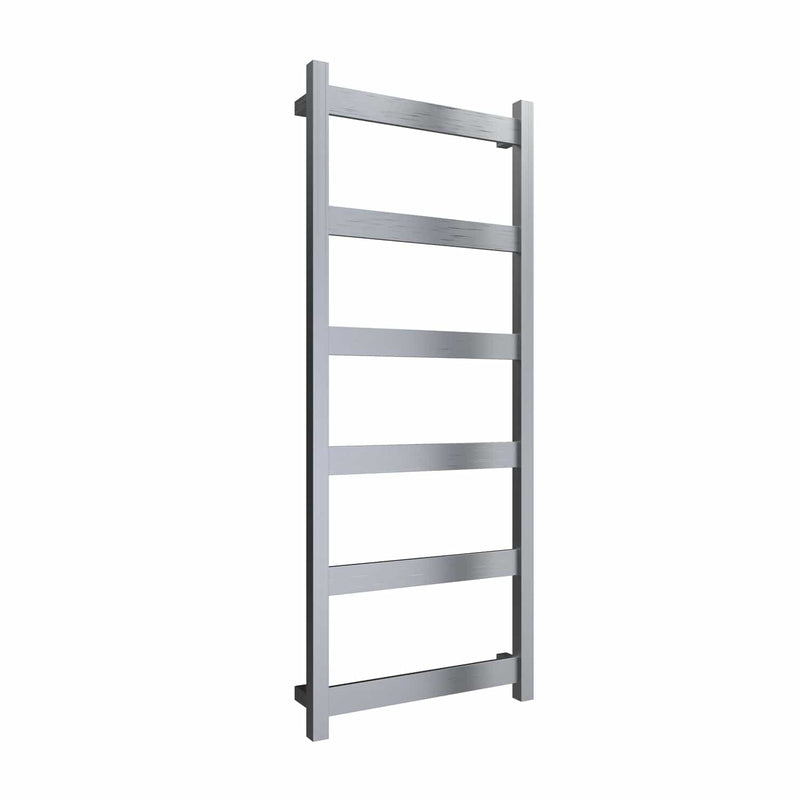

The Reina Mina is a vertical ladder towel radiator with square-profile bars in brushed or polished stainless steel. Choose 750 or 1170mm high, both 480mm wide, with 4 or 6 bars for towels. It suits central heating, electric or dual fuel systems.
750–1170mm
Two heights
480mm
Width
2
Finishes
ΔT30
Heat pump rated
25 yr
Guarantee
View the Mina in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Mina in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a stainless steel ladder rail suits a bathroom or kitchen.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Mina keeps its finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Mina with a 25-year guarantee, a long cover period for a bathroom radiator.
Vertical ladder4 or 6 bars ✔
Square-profile bars evenly spaced on a vertical ladder frame, giving a clean, contemporary look and good towel-drying coverage.

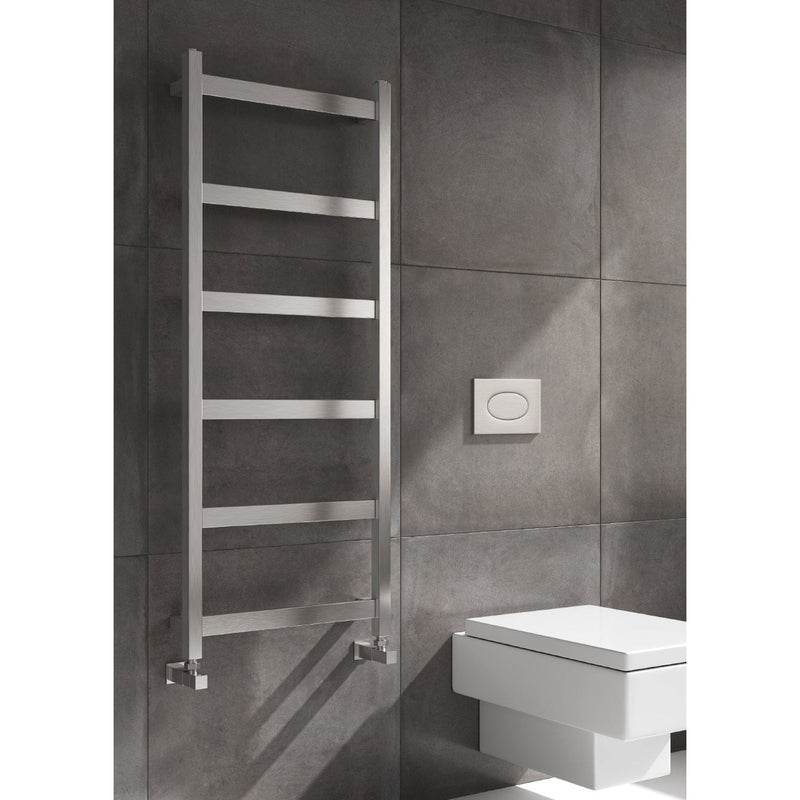

In the Room
The Mina shown in a room setting, plus two close-ups of the brushed stainless steel.
Choose Your Finish
Brushed or polished stainless steel - same construction, same heat output.
Brushed Stainless SteelAll sizes
Polished Stainless SteelAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height 480mm wide |
Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 750mm | 4 bars | 990 | 773 | 400 | 227 | 117 |
| 1170mm | 6 bars | 1,544 | 1,206 | 624 | 354 | 183 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Mina |
| Height | 750 / 1170mm |
| Width | 480mm (both sizes) |
| Projection from wall | 80–95mm |
| Pipe centres | 440mm |
| Wall to pipe centres | 65–80mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Stainless steel |
| Bars | 4 / 6 (by height) |
| Finishes | Brushed / Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Mounting | Vertical wall mounting |
| Included | Wall brackets, inserts, screws, wall plugs, grab screws and Allen key |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
750–1170mm
2 heights · 480mm wide
Bars4–6
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
Electric & dual fuel
Contact us for the kit
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Mina compatible with a heat pump?
A. Reina publish a Delta T30 output for both Mina sizes, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Mina be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Mina for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Mina?
A. The Mina has 1/2 inch female pipe thread inlet and outlet connections, 440mm apart. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Mina?
A. Pipe centres are 440mm, wall to pipe centres is 65 to 80mm, and the rail projects 80 to 95mm from the wall. Both sizes are 480mm wide.
Q.
Which size Mina do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Mina size meets your heat loss. The 1170mm height offers more bars and towel storage.
Q.
What finishes is the Mina available in?
A. Brushed stainless steel and polished stainless steel, in both heights. Both finishes have the same construction and heat output.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Mina carries a 25-year Reina guarantee.
Q.
What is included with the Mina?
A. Each Mina comes with wall mounting brackets, inserts, screws, wall plugs, grab screws and an Allen key for fitting. Radiator valves are not supplied.
