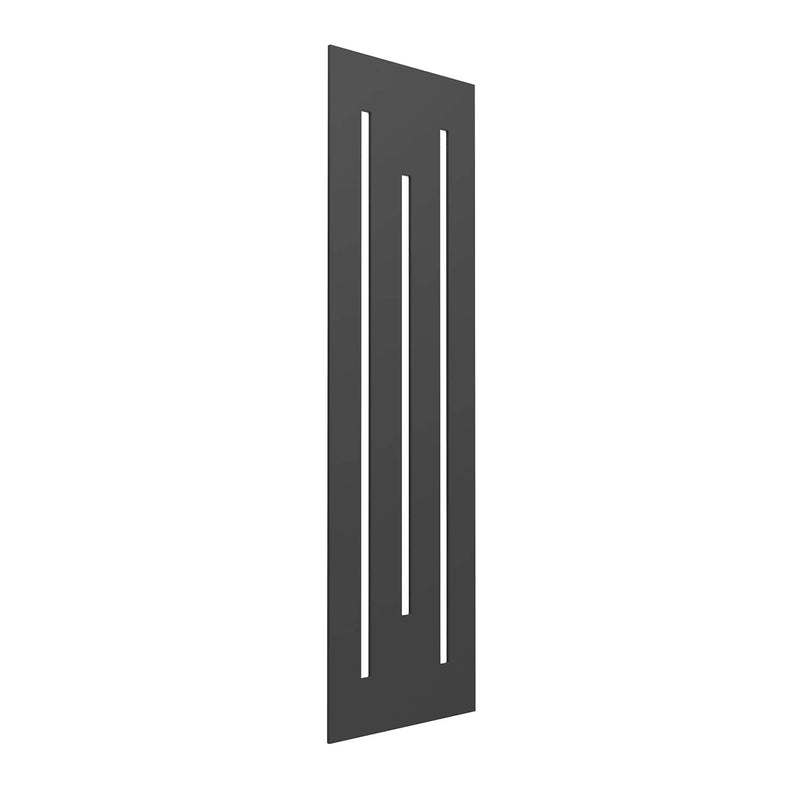

Reina Designer Line Vertical Steel Radiator
£582.40
£602.40
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating. Mild steel. Slotted flat panel design.
Product Overview & Key Specs
The Reina Line is a vertical designer radiator with an elegant slotted flat panel design, made from mild steel. It stands 1800mm high and 490mm wide, in white or anthracite, and connects to central heating only. Both finishes share the same Reina heat output, so check the table below against your room.
1800mm
Height
490mm
Width
2
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Line in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Line in your room using augmented reality.
Why the Line?
Three things that set this designer radiator apart.
Slotted flat panelA clean, modern look ✔
Three slim vertical slots run down a flat steel panel, giving the Line a minimal, contemporary profile.
Mild steel build5-year guarantee ✔
Made from robust mild steel and backed by a 5-year Reina guarantee.
Two finishesWhite or anthracite ✔
Pick the finish to suit the room. Both finishes are rated the same, so it’s a straightforward choice.

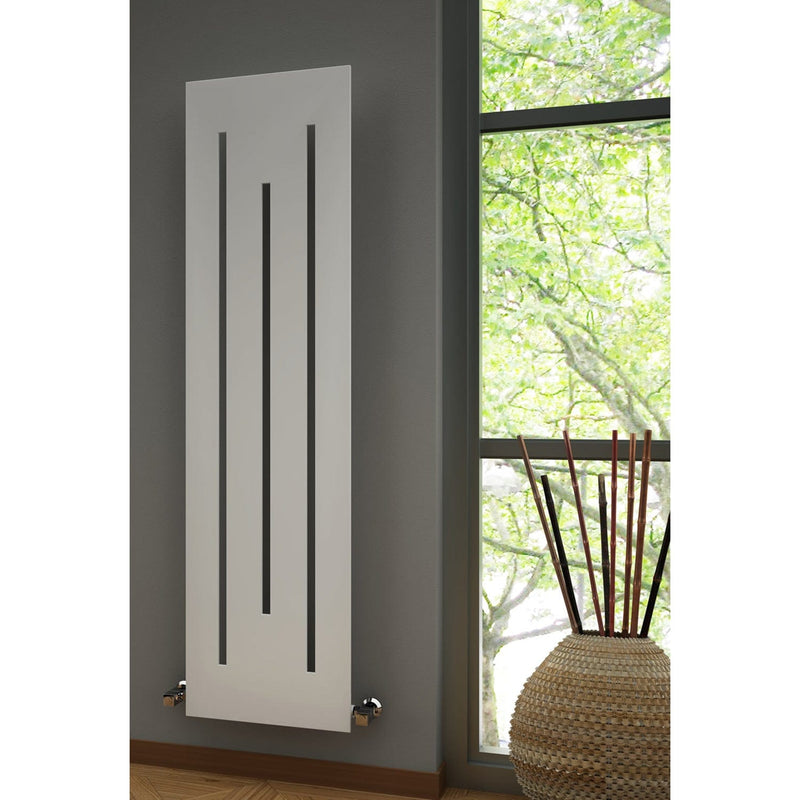

In the Room
The Line shown in a room setting, plus two close-ups of the white finish.
Choose Your Finish
Same slotted panel design in two finishes, both with the same heat output.
White978W ΔT50
Anthracite978W ΔT50
Heat Output by Size & System
Per finish, from Reina’s datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Finish 1800 x 490mm |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| White | 4,269 | 3,335 | 1,726 | 978 | 506 |
| Anthracite | 4,269 | 3,335 | 1,726 | 978 | 506 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Line |
| Height | 1800mm |
| Width | 490mm |
| Distance from wall | 68–88mm |
| Pipe centres | 490mm |
| Wall to pipe centres | 35–55mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Mild steel |
| Finishes | White / Anthracite |
| Fuel type | Central heating only |
| Mounting | Vertical only |
| Included | 4 screws, 4 wall pegs, 4 M5x10mm bolts, 4 wall mounting brackets, 4 panel mounting brackets, purger |
| Not included | Radiator valves |
| Max working pressure | 6 bar |
| Max working temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
1800mm
1 size · 490mm wide
Finishes2
Max6 bar
✓
ΔT30 rated
Heat pump compatible
✓
Central heating
Not electric
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Line compatible with a heat pump?
A. Reina publish a Delta T30 output for the Line, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Q.
Can the Line be used as an electric or dual fuel radiator?
A. No. Reina list the Line for central heating only, so it is not available as an electric or dual fuel radiator.
Q.
What valves do I need for the Line?
A. Radiator valves are not supplied, so you need a lockshield valve and a manual or thermostatic valve. The Line has a 1/2 inch female pipe thread inlet and outlet, with 490mm pipe centres. Contact our team if you would like help choosing a pair that suits your pipework.
Q.
Why does the Line have the same heat output in both finishes?
A. Reina's datasheet rates white and anthracite the same, at 978W (Delta T50). The finish is a painted coating rather than a plating process, so it doesn't affect heat output - you can choose on looks alone.
Q.
What are the pipe centres and wall distances on the Line?
A. The Line is 1800mm high and 490mm wide, with pipe centres of 490mm. Wall to pipe centres is 35 to 55mm and the distance from the wall is 68 to 88mm.
Q.
Which size Line do I need?
A. The Line comes in one size, 1800 x 490mm, in white or anthracite. Use the room fit calculator on this page to see whether it meets your room's heat loss, or contact our team for advice on your room.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working pressure of 6 bar. A maximum water temperature is not stated for this model, so we apply the standard 95 degrees C limit used across central heating radiators. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Q.
What is included in the box and can I fit it myself?
A. The Line comes with 4 screws, 4 wall pegs, 4 M5 x 10mm bolts, 4 wall mounting brackets, 4 panel mounting brackets and a purger (air vent). Radiator valves are not included. It mounts vertically only, so check your wall space before ordering.
