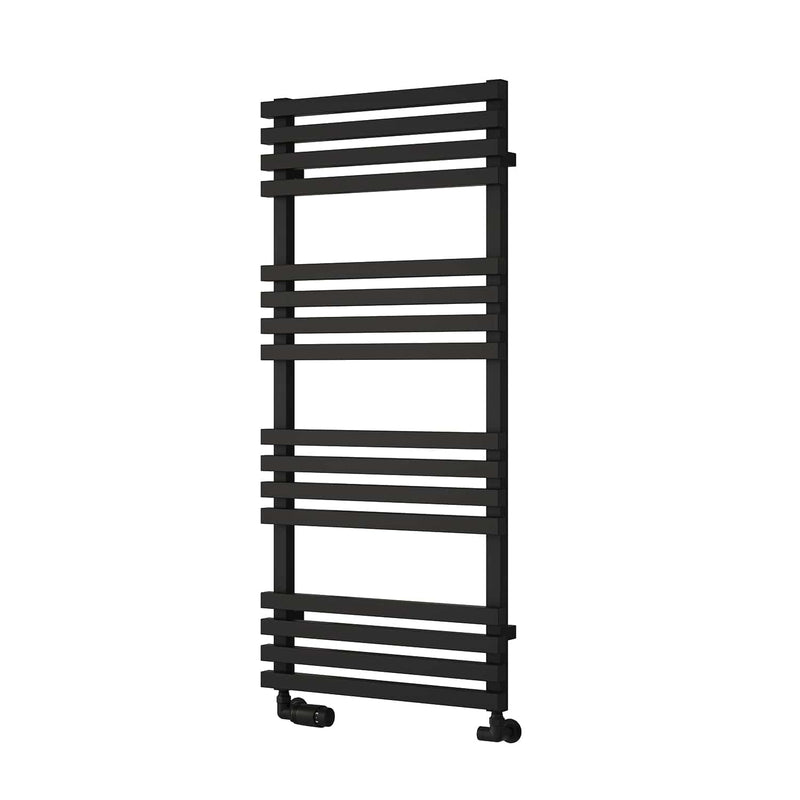

Reina Designer Kale Vertical Heated Towel Rail Steel Radiator
£195.40
£215.40
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating, electric or dual fuel. Mild steel. Square-tube ladder.
Product Overview & Key Specs
The Reina Kale is a designer towel radiator with a modern square-tube ladder design in mild steel. Choose 816, 1126 or 1436mm high, all 500mm wide, with 12 to 20 bars for towels. It comes in black, anthracite or white, and suits central heating, electric or dual fuel.
816–1436mm
Three heights
500mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Kale in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Kale in your room using augmented reality.
Why a Square-Tube Ladder Rail?
Three practical reasons the Kale suits a bathroom, en-suite or cloakroom.
Square-tube designCrisp, modern lines ✔
Square-section bars give the Kale a clean, contemporary look that suits modern bathrooms and en-suites.
Room for towels12 to 20 bars ✔
Choose 12, 16 or 20 bars depending on height, all in a 500mm wide frame, so there is space to hang and warm towels.
5-year guaranteeReina manufacturer cover ✔
Reina back the Kale with a 5-year guarantee, and it is available in black, anthracite or white to match your bathroom.

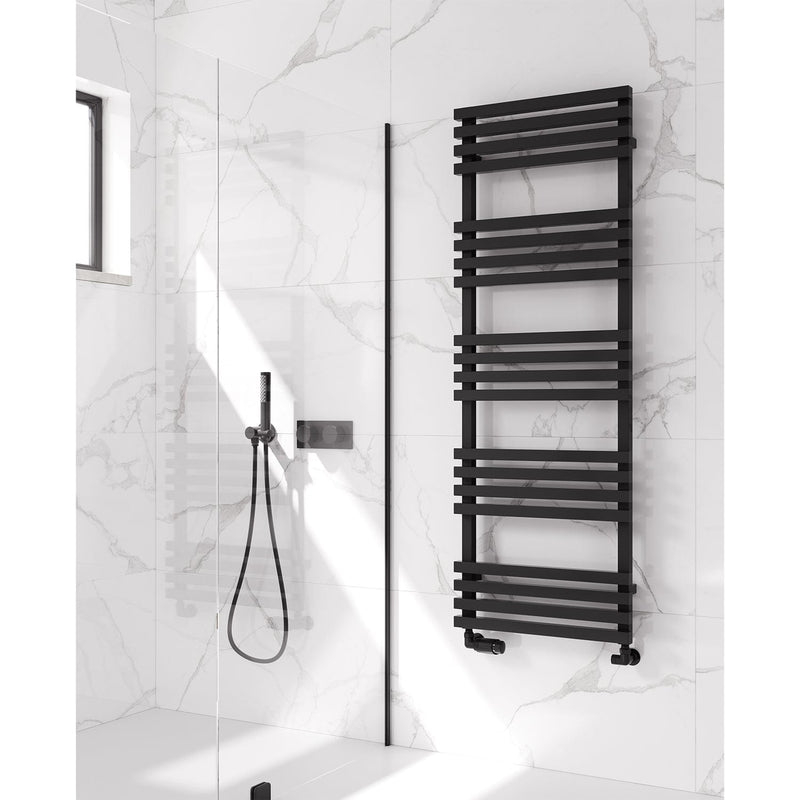

In the Room
The Kale shown in a room setting, plus two close-ups of the black finish.
Choose Your Finish
Black, anthracite or white - same construction, same heat output.

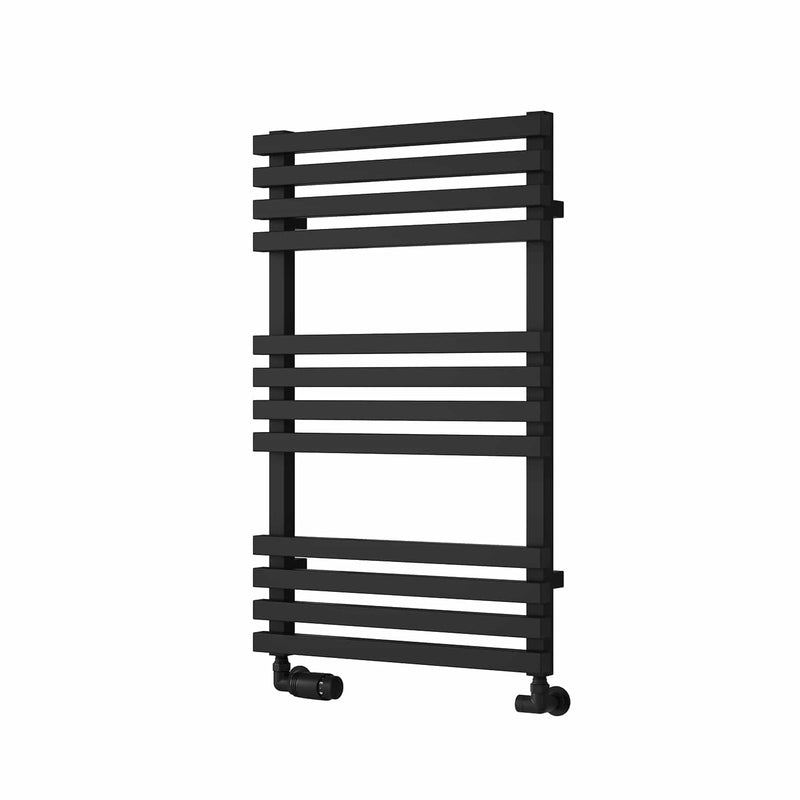

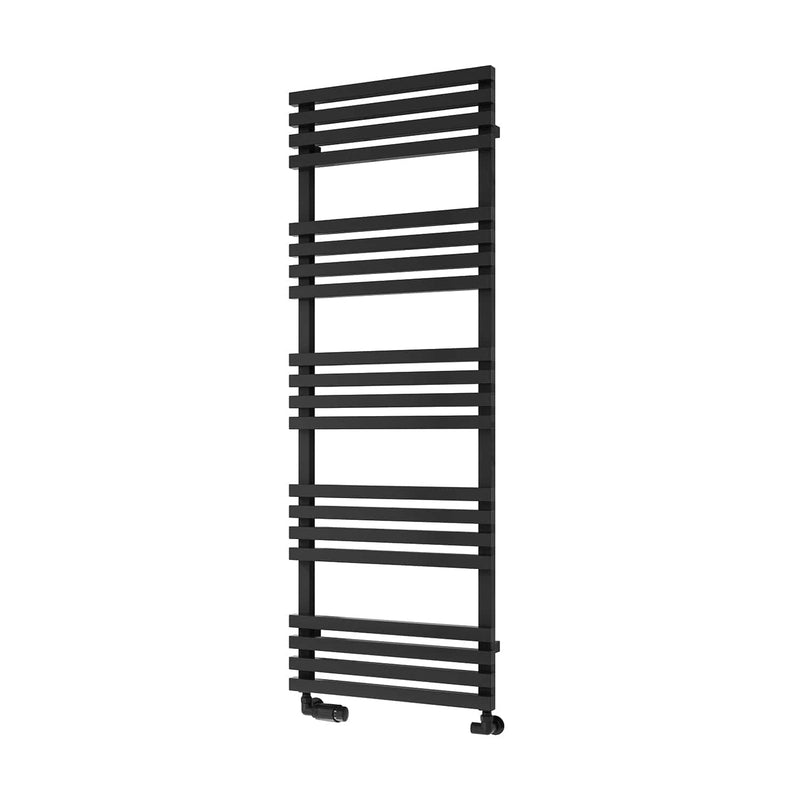

BlackAll sizes

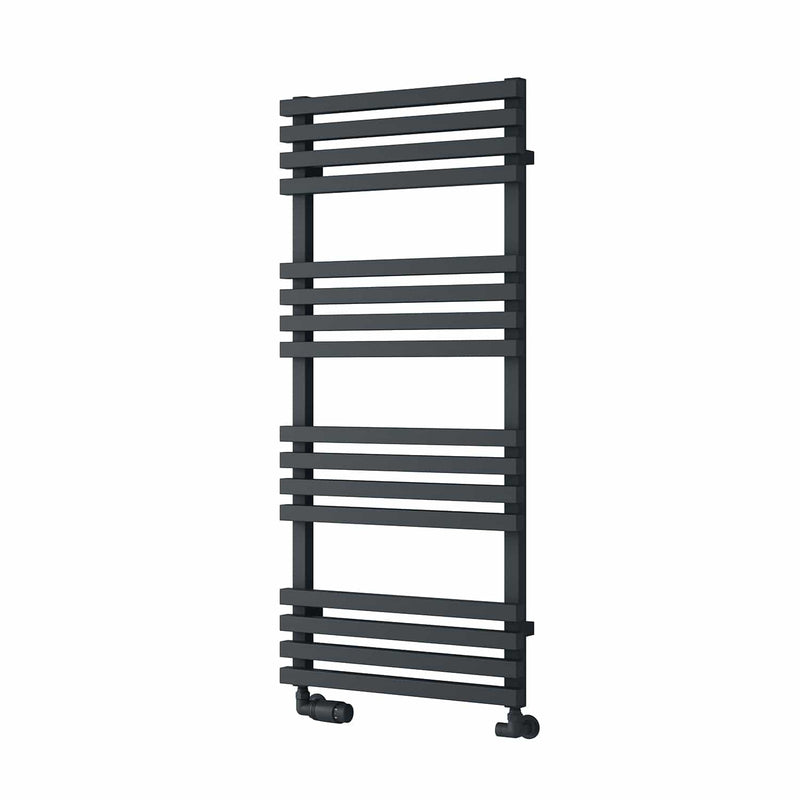

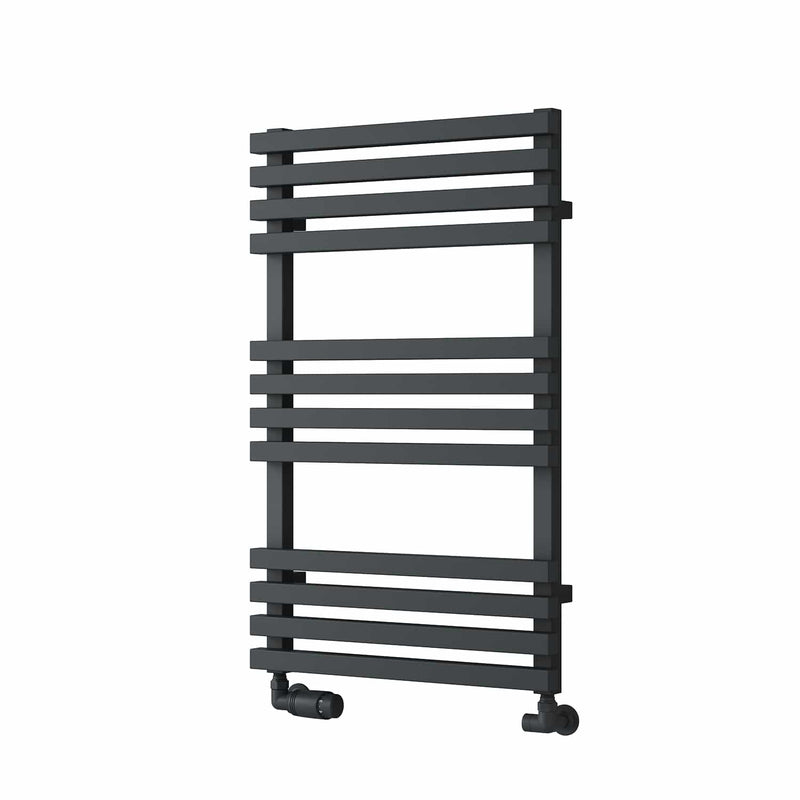

AnthraciteAll sizes

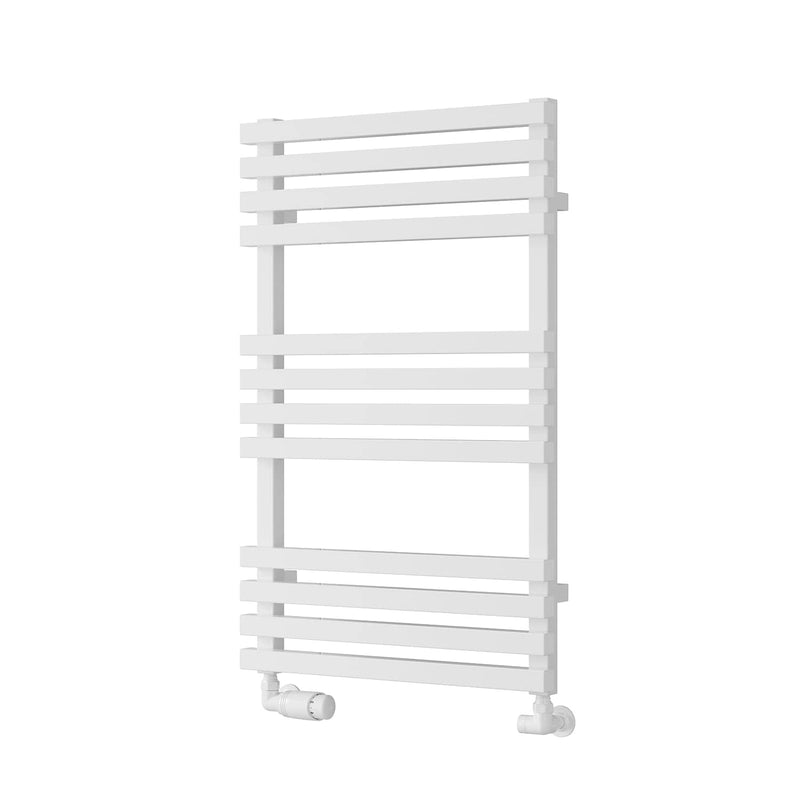

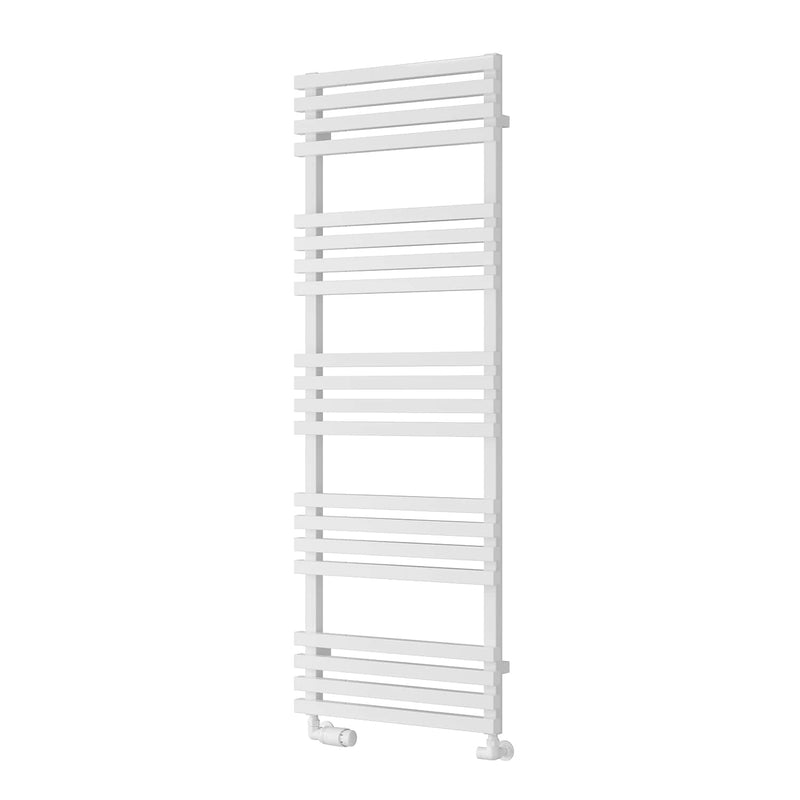

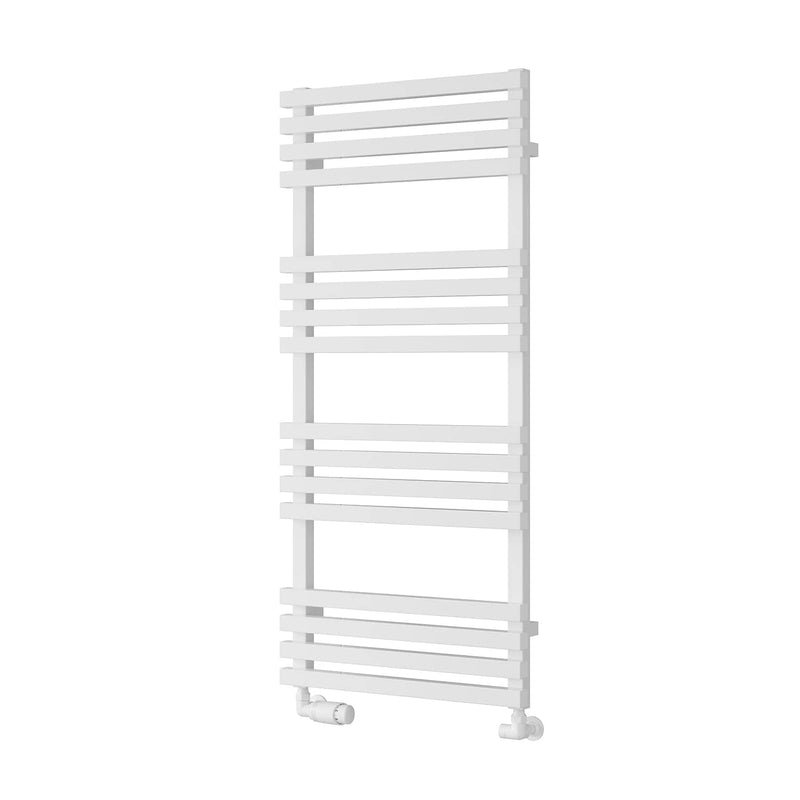

WhiteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Same output in all three finishes.
| Height 500mm wide |
Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 816mm | 12 bars | 2,205 | 1,723 | 892 | 505 | 262 |
| 1126mm | 16 bars | 3,010 | 2,352 | 1,217 | 690 | 357 |
| 1436mm | 20 bars | 3,608 | 2,819 | 1,459 | 827 | 428 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Kale |
| Height | 816 / 1126 / 1436mm |
| Width | 500mm (all sizes) |
| Projection from wall | 100mm |
| Pipe centres | 450mm |
| Wall to pipe centres | 55mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Mild steel, square tube |
| Bars | 12 / 16 / 20 (by height) |
| Empty weight | 12.7 / 16.5 / 20.2 kg (by height) |
| Finishes | Black / Anthracite / White |
| Fuel type | Central heating / electric / dual fuel |
| Included | Wall brackets, screws, wall plugs and hex key |
| Not included | Radiator valves |
| Max working pressure | 6 bar (600 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
816–1436mm
3 heights · 500mm wide
Bars12–20
Finishes3
✓
ΔT30 rated
Heat pump compatible
✓
5-year guarantee
Reina manufacturer
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Kale compatible with a heat pump?
A. Reina publish a Delta T30 output for every Kale size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Kale be used as an electric or dual fuel towel rail?
A. Reina list the Kale for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Kale?
A. The Kale has 1/2 inch female pipe thread inlet and outlet connections, 450mm apart. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Kale?
A. Pipe centres are 450mm for all three sizes, wall to pipe centres is 55mm, and the rail projects 100mm from the wall. All sizes are 500mm wide.
Q.
Which size Kale do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Kale size meets your heat loss. The 816mm height has 12 bars, the 1126mm has 16 and the 1436mm has 20.
Q.
What finishes is the Kale available in?
A. Black, anthracite and white, in all three heights. All finishes have the same construction and the same published heat output.
Q.
What is the maximum working pressure and temperature?
A. Reina's installation guide gives a maximum operational pressure of 6 bar (600 kPa). We rate the Kale for water temperatures up to 95°C, which covers standard central heating flow temperatures.
Q.
What is supplied with the Kale and how heavy is it?
A. Reina supply wall brackets, screws with wall plugs, grub screws and a hex key. Valves are not included. Empty weight is 12.7kg for the 816mm, 16.5kg for the 1126mm and 20.2kg for the 1436mm, so check your wall suits the fixings before installing.
