Reina Helin Vertical Heated Stainless Steel Towel Rail
£299.40
£319.40
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Ladder towel rail.
Product Overview & Key Specs

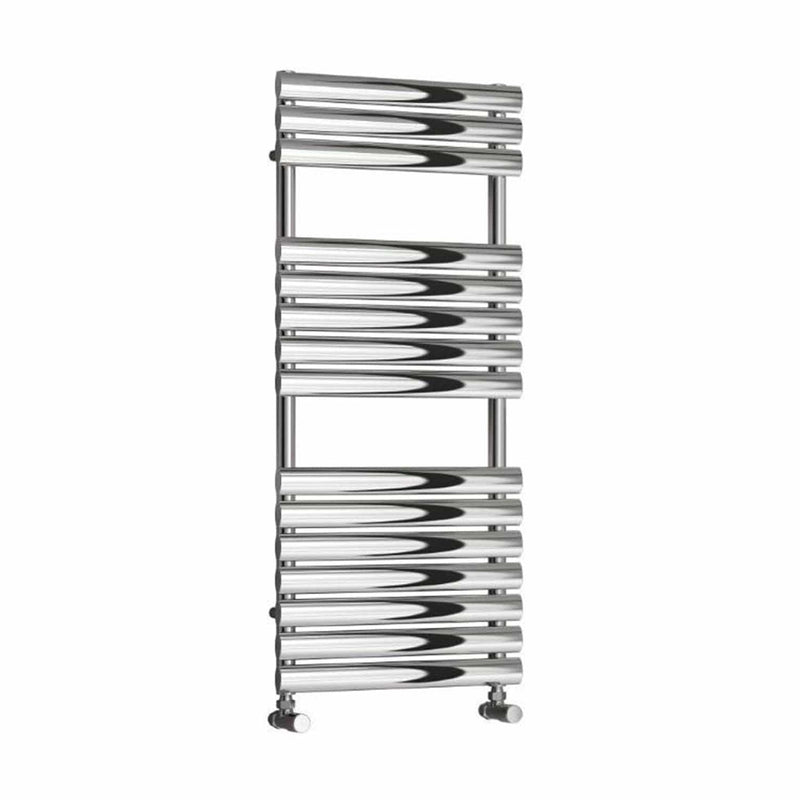

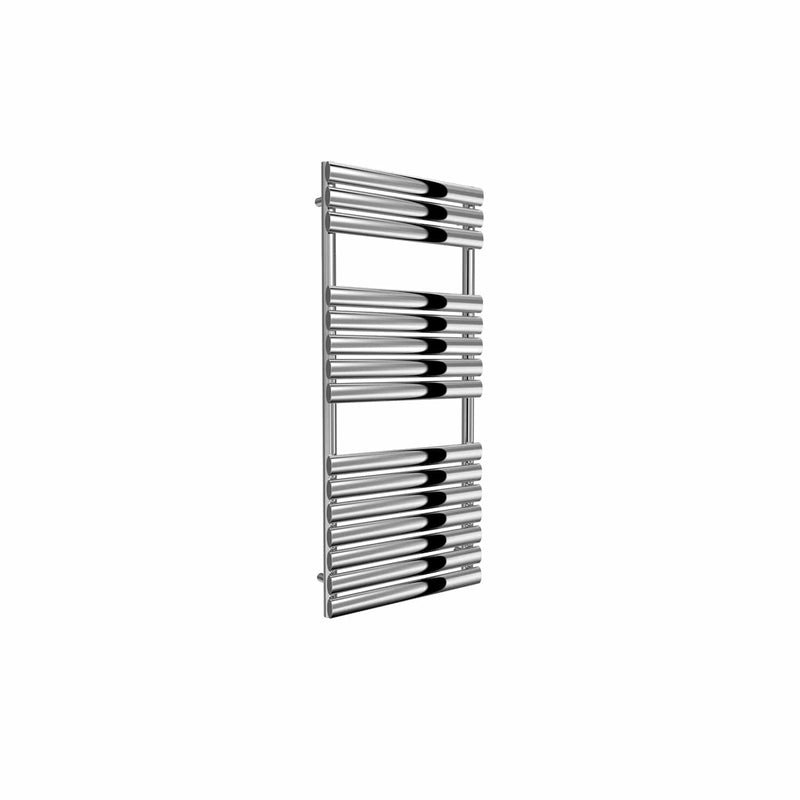

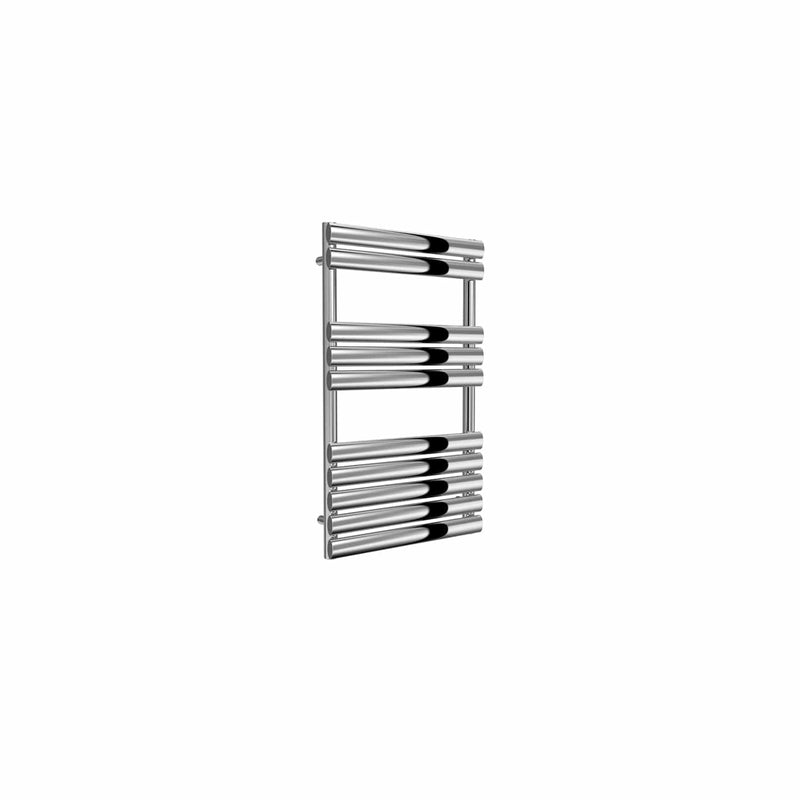

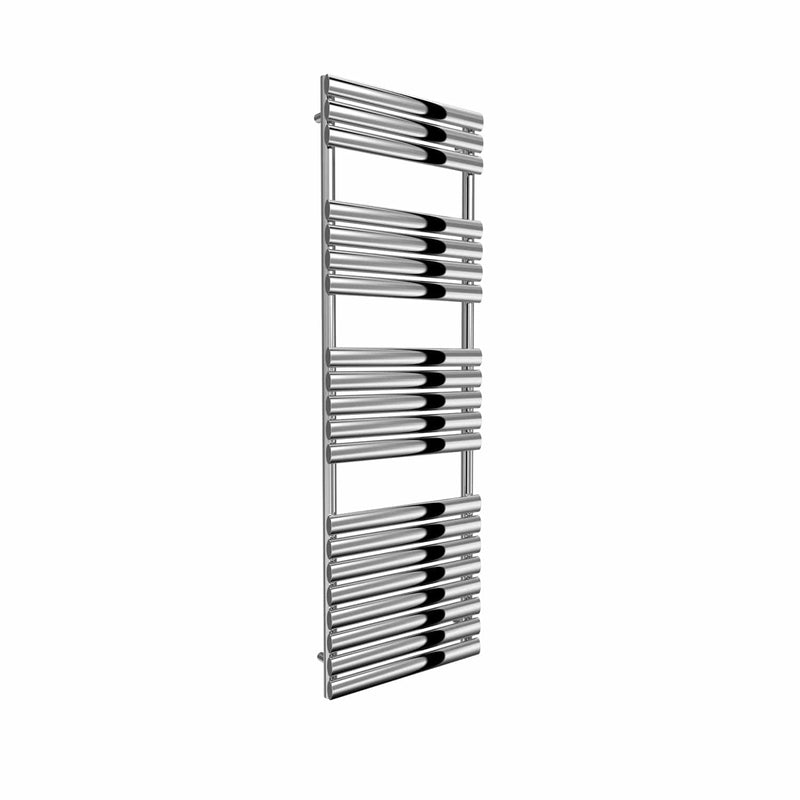

The Reina Helin is a ladder towel radiator with round horizontal bars in polished stainless steel. Choose 826, 1120 or 1535mm high, all 500mm wide, with 10 to 20 bars for towels. It suits central heating, electric or dual fuel, and carries a 25-year guarantee.
826–1535mm
Three heights
500mm
Width
10–20
Bars
ΔT30
Heat pump rated
25 yr
Guarantee
View the Helin in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Helin in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a polished stainless steel towel rail suits a bathroom.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Helin keeps its polished finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Helin with a 25-year guarantee, a long cover period for a bathroom radiator.
Classic ladderSimple, tidy look
Round horizontal bars in a straight ladder layout, with 10 to 20 bars for hanging towels.
In the Room

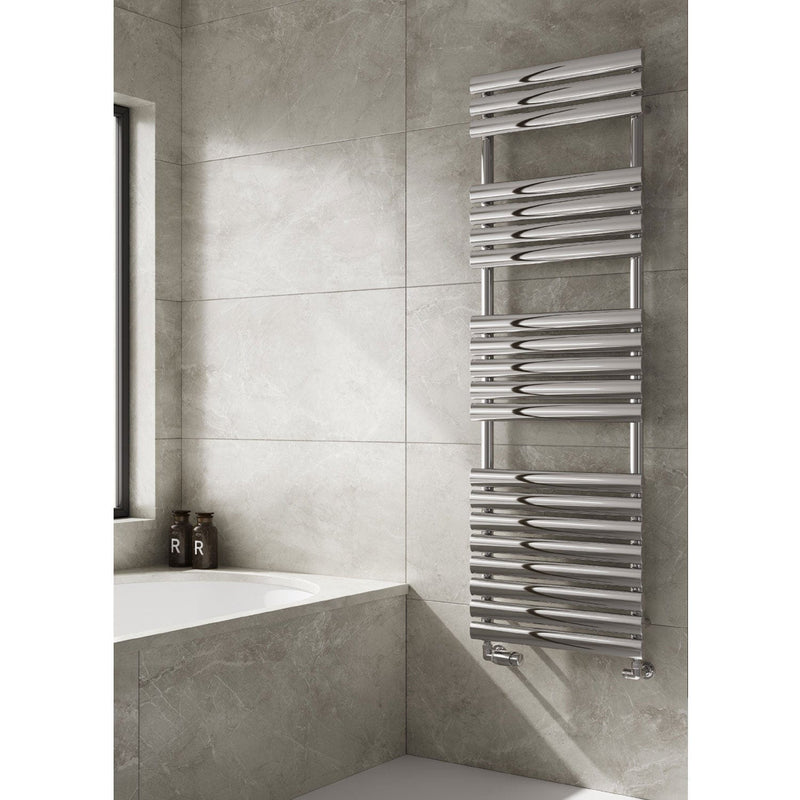

The Helin shown in a room setting, plus two close-ups of the polished stainless steel.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height 500mm wide |
Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 826mm | 10 bars | 1,676 | 1,309 | 678 | 384 | 199 |
| 1120mm | 15 bars | 2,347 | 1,834 | 949 | 538 | 278 |
| 1535mm | 20 bars | 3,023 | 2,362 | 1,223 | 693 | 359 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Helin |
| Height | 826 / 1120 / 1535mm |
| Width | 500mm (all sizes) |
| Projection from wall | 103–118mm |
| Pipe centres | 460mm |
| Wall to pipe centres | 63–78mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Stainless steel (304 grade) |
| Bars | 10 / 15 / 20 (by height) |
| Finish | Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Water volume | 5.4–10.8 litres (by size) |
| Empty weight | 9.2–17.9kg (by size) |
| Included | Wall brackets, fixings and air vent |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
826–1535mm
3 heights · 500mm wide
Bars10–20
Sizes3
✓
ΔT30 rated
Heat pump compatible
✓
Electric ready
Electric & dual fuel listed
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Helin compatible with a heat pump?
A. Reina publish a Delta T30 output for every Helin size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Helin be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Helin for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Helin?
A. The Helin has a 1/2 inch female pipe thread inlet and outlet. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Helin?
A. Pipe centres are 460mm on every size. Wall to pipe centres is 63 to 78mm, and the rail stands 103 to 118mm off the wall.
Q.
Which size Helin do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Helin size meets your heat loss. All three sizes are 500mm wide, so the choice is height: 826, 1120 or 1535mm.
Q.
What finish is the Helin available in?
A. Polished stainless steel, in all three sizes. Every size has the same construction and finish.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Helin carries a 25-year Reina guarantee.
Q.
How much water does the Helin hold?
A. From about 5.4 litres in the 826mm size up to about 10.8 litres in the 1535mm size.
