Reina Designer Grande Vertical Chrome Heated Towel Rail Steel Radiator

$786.00 $813.00 Save $27.00
Inc. VAT · Fast UK delivery
  • Finish
In Stock
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee

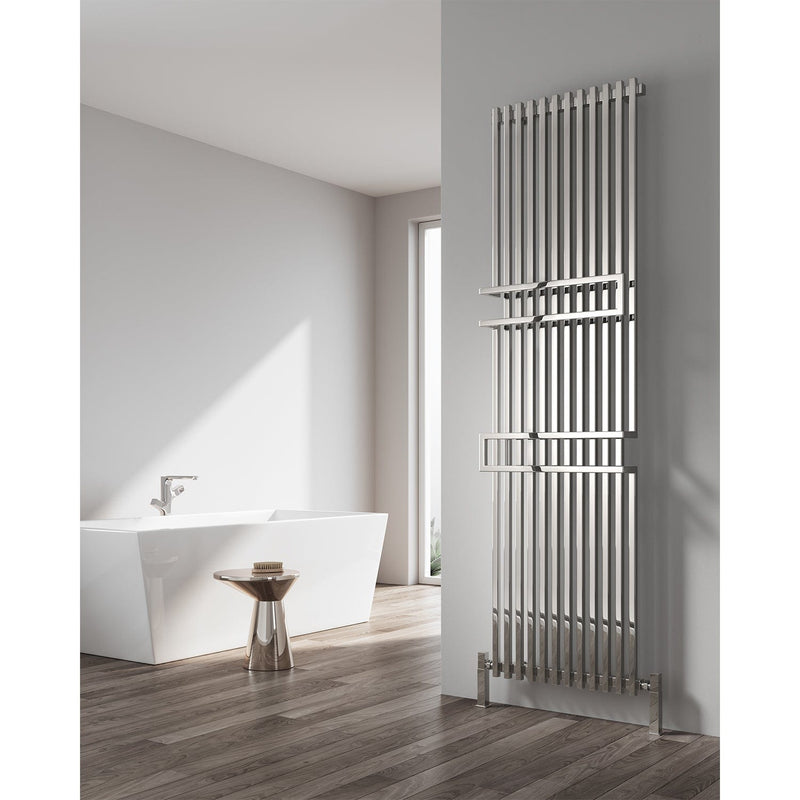

Reina Grande vertical designer towel radiator - room setting
Central heating. Mild steel. Integral towel bars.

Product Overview & Key Specs

The Reina Grande is a vertical designer towel radiator made from mild steel, with 12 square-section bars and integral towel bars built into the design. It stands 1800mm high and 500mm wide, in chrome, white or anthracite, and connects to central heating. Each finish has its own Reina heat output, so check the table below against your room.

1800mm
Height
500mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee

View the Grande in 3D & Augmented Reality

Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.

Mobile AR View

Reina Grande AR QR Code

Point your phone camera at this code to place the Grande in your room using augmented reality.

Why the Grande?

Three things that define this designer towel radiator.
Integral towel barsBuilt into the design ✔
Towel bars are part of the radiator itself, so the Grande warms towels as well as the room.
Square-section bars12 vertical bars ✔
Twelve vertical square-section bars give a tall, linear look that suits a modern bathroom or hallway.
Mild steel build5-year guarantee ✔
Made from durable mild steel in chrome, white or anthracite, backed by a 5-year Reina guarantee.

In the Room

The Grande shown in a room setting, plus two close-ups of the chrome finish.
Reina Grande in a room setting Reina Grande chrome close-up of the integral towel bars Reina Grande chrome close-up of the bars and base pipework

Choose Your Finish

The same design in three finishes. White and anthracite share one heat output; chrome is rated lower.

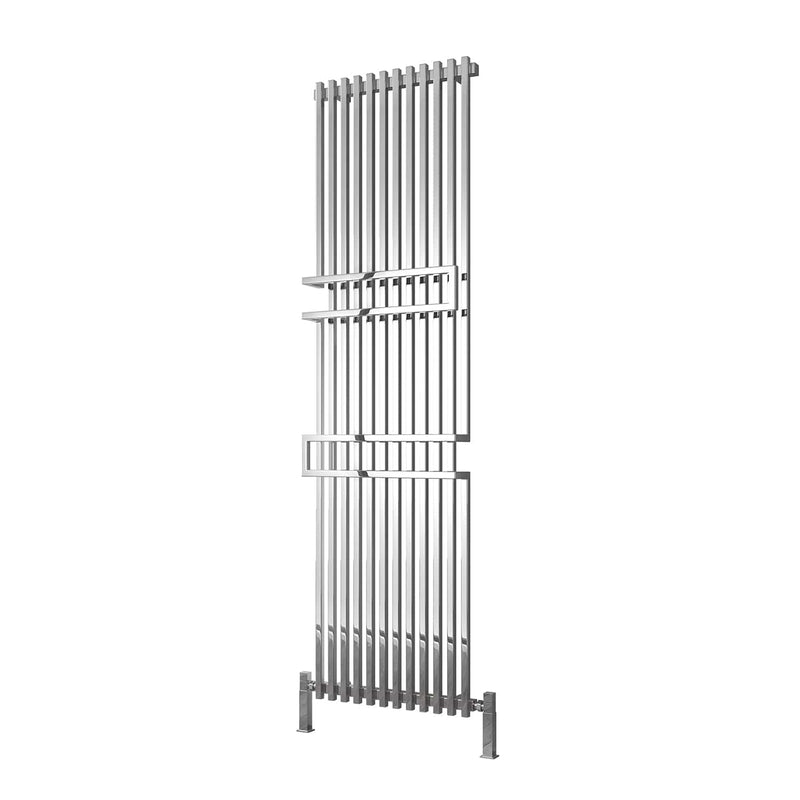

Chrome802W ΔT50
Reina Grande vertical towel radiator in chrome

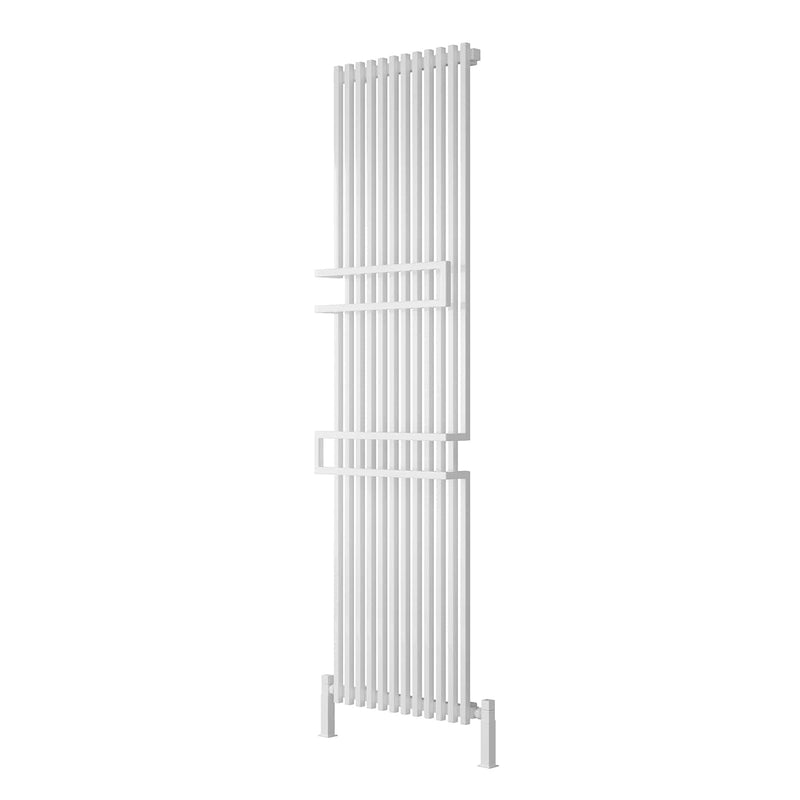

White1,217W ΔT50
Reina Grande vertical towel radiator in white

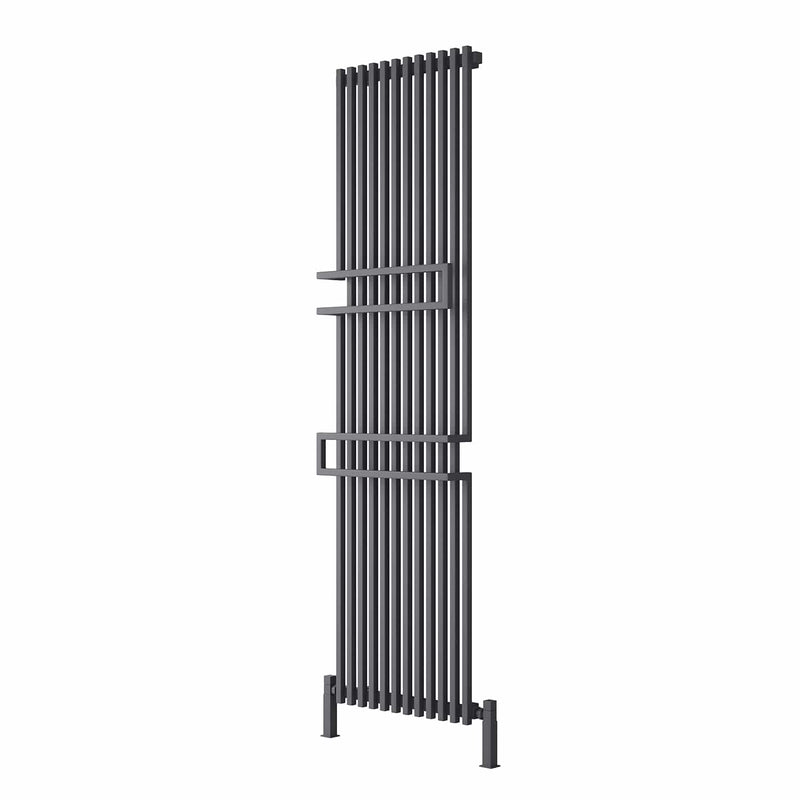

Anthracite1,217W ΔT50
Reina Grande vertical towel radiator in anthracite

Heat Output by Size & System

Per finish, from Reina’s datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
Finish
1800 x 500mm
ΔT60 BTU
High-temp
ΔT50 BTU
Gas boiler
ΔT30 BTU
Heat pump
Watts
ΔT50
Watts
ΔT30
Chrome 3,500 2,734 1,415 802 415
Anthracite 5,313 4,151 2,149 1,217 630
White 5,313 4,151 2,149 1,217 630
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.

Technical Specifications & Dimensions

Fit-check before you buy
Model Reina Grande
Height 1800mm
Width 500mm
Distance from wall 177–192mm
Pipe centres 500mm (add 90mm if measuring including valves)
Wall to pipe centres 67–82mm
Number of bars 12
Thread G1/2"
Material Mild steel
Finishes Chrome / White / Anthracite
Fuel type Central heating only
Included 4 brackets, 4 fixing screws, 4 wall anchors, 4 security screws, 4 washers, air vent, end plug
Not included Radiator valves
Max working pressure 4 bar
Max working temperature 95°C
Heat pump compatible Yes - rated at ΔT30
Guarantee 5 years (Reina manufacturer)
1800mm
1 size · 500mm wide
Finishes3
Max4 bar
✓
ΔT30 rated
Heat pump compatible
✓
Central heating
Not electric
Free deliveryorders over £200
In stockships today
30-dayreturns

Will This Radiator Heat My Room?

Enter your room dimensions and select your heating system.

Frequently Asked Questions

Q.

Is the Reina Grande compatible with a heat pump?

A. Reina publish a Delta T30 output for the Grande in every finish, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Technical team · Elegant Radiators
Q.

Can the Grande be used as an electric or dual fuel radiator?

A. No. Reina list the Grande for central heating only, so it connects to your boiler or heat pump circuit and is not available as an electric or dual fuel radiator.
Technical team · Elegant Radiators
Q.

What valves do I need for the Grande?

A. Radiator valves are not supplied, so you need a lockshield valve and a manual or thermostatic valve. Reina's guide shows a G1/2 connection, the pipe centre figure is 500mm, and for a measurement including valves you add 90mm. Contact our team if you would like help choosing a pair that suits your pipework.
Technical team · Elegant Radiators
Q.

Why is the chrome Grande rated lower than white or anthracite?

A. Reina's datasheet rates the chrome finish at 802W (Delta T50) and the white and anthracite finishes at 1,217W. A polished chrome surface gives off less radiant heat than a painted one, so if the Grande is your main heat source in a room, check the chrome figures in our table before you choose.
Technical team · Elegant Radiators
Q.

What size is the Grande and what are the pipe centres?

A. The Grande comes in one size, 1800mm high and 500mm wide, with pipe centres of 500mm. Wall to pipe centres is 67 to 82mm and the distance from the wall is 177 to 192mm. Leave at least 50mm below any overhanging surface such as a shelf, and no lower than 100mm from the floor.
Technical team · Elegant Radiators
Q.

Does the Grande have towel bars?

A. Yes. Reina describe the Grande as a designer heated towel radiator with integral towel bars, so towels can be hung on the radiator itself. It has 12 vertical bars in total.
Technical team · Elegant Radiators
Q.

What is the maximum working temperature and pressure?

A. Reina's installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Technical team · Elegant Radiators
Q.

What is included in the box and who should fit it?

A. The Grande comes with four brackets, four fixing screws, four wall anchors, four security screws, four washers, an air vent and an end plug. Radiator valves are not included. Reina state it must be fitted by a fully qualified installer.
