Reina Fiore Designer Vertical Steel Radiator
£476.00
£496.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating only. Mild steel. Flat-face vertical radiator.
Product Overview & Key Specs
The Reina Fiore is a flat-face vertical radiator with a slotted panel design, in white or anthracite mild steel. Standing 1790mm tall, it is available 400, 490 or 590mm wide, so it suits both narrow and wider walls. Constructed from durable mild steel and built for central heating systems only.
1790mm
Height
400–590mm
Three widths
2
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Fiore in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Fiore in your room using augmented reality.
Why Mild Steel?
Three practical reasons a mild steel panel radiator suits modern living spaces.
Durable constructionBuilt to last ✔
Mild steel is a robust, long-lasting material that keeps its shape and finish through years of everyday use.
5-year guaranteeLong-term peace of mind ✔
Reina back the Fiore with a 5-year guarantee against manufacturing defects.
Flat-face designArchitectural character ✔
A slotted flat panel gives the Fiore a clean, geometric profile that suits living rooms, kitchens and hallways.

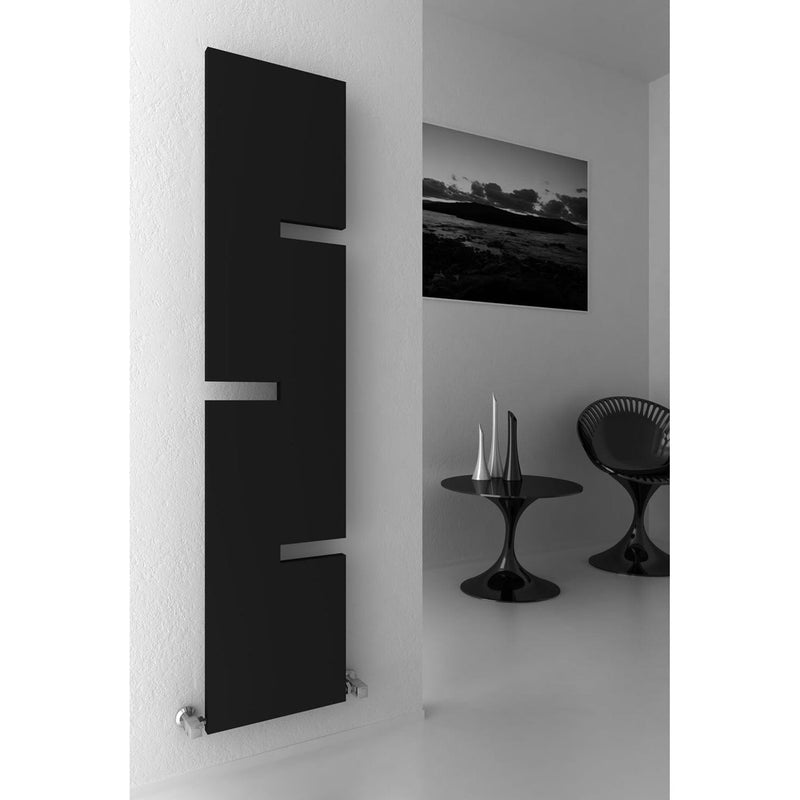

In the Room
The Fiore shown in a room setting, plus two close-ups of the Anthracite finish.
Choose Your Finish
White or Anthracite - same construction, same heat output.
WhiteAll sizes
AnthraciteAll sizes
Heat Output by Size
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Size Height x width |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| 1790 x 400mm | 3,136 | 2,450 | 1,268 | 718 | 372 |
| 1790 x 490mm | 3,985 | 3,113 | 1,612 | 913 | 473 |
| 1790 x 590mm | 4,796 | 3,747 | 1,940 | 1,099 | 569 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Fiore |
| Height | 1790mm (all sizes) |
| Width | 400 / 490 / 590mm |
| Wall distance | 68–88mm |
| Pipe centres | 400 / 490 / 590mm (matches width) |
| Wall to pipe centres | 35–55mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Mild steel |
| Finishes | White / Anthracite |
| Fuel type | Central heating only |
| Included | Wall mounting apparatus, panel mounting apparatus, screws, pegs, bolts, purger |
| Not included | Radiator valves |
| Max working pressure | 6 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
400–590mm
3 widths · 1790mm high
Max pressure6 bar
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
Flat-face panel
Slotted vertical design
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Fiore compatible with a heat pump?
A. Reina publish a Delta T30 output for every Fiore size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Q.
Can the Fiore be used as an electric or dual fuel radiator?
A. No - the Fiore is listed by Reina for central heating only, so it is not available as an electric or dual fuel radiator.
Q.
What valves do I need for the Fiore?
A. The Fiore has a 1/2 inch female pipe thread inlet and outlet. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Fiore?
A. Pipe centres match the radiator width - 400, 490 or 590mm depending on the size you choose. Wall to pipe centres is 35 to 55mm, and the radiator projects 68 to 88mm from the wall.
Q.
Which size Fiore do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Fiore width meets your heat loss. All three widths share the same 1790mm height.
Q.
What finishes is the Fiore available in?
A. White and Anthracite, in all three widths. Both finishes have the same construction and heat output.
Q.
What is the Fiore made from?
A. The Fiore is a mild steel radiator with a flat, slotted panel design, backed by a 5-year Reina guarantee.
Q.
What is the maximum pressure and temperature for the Fiore?
A. The Fiore is rated to a maximum operating pressure of 6 bar. Reina do not state a maximum water temperature for this model on their technical drawing, so the standard EN 442 maximum of 95 degrees C applies.
