Reina Designer Coredo Vertical Radiator
£556.00
£576.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating. Mild steel. X-shaped crossover design.
Product Overview & Key Specs
The Reina Coredo is a vertical designer radiator with square tubes that cross over in an X shape, made from mild steel. It stands 1760mm high and 620mm wide, in chrome, white or anthracite, and connects to central heating. Each finish has its own Reina heat output, so check the table below against your room.
1760mm
Height
620mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Coredo in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Coredo in your room using augmented reality.
Why the Coredo?
Three things that set this designer radiator apart.
X-shaped crossoverA statement piece ✔
Square tubes cross over in the middle, so the Coredo works as wall art as well as a radiator.
Mild steel build5-year guarantee ✔
Made from robust mild steel and backed by a 5-year Reina guarantee.
Three finishesChrome, white, anthracite ✔
Pick the finish to suit the room. White and anthracite are rated higher than chrome, so check the heat output table.
In the Room

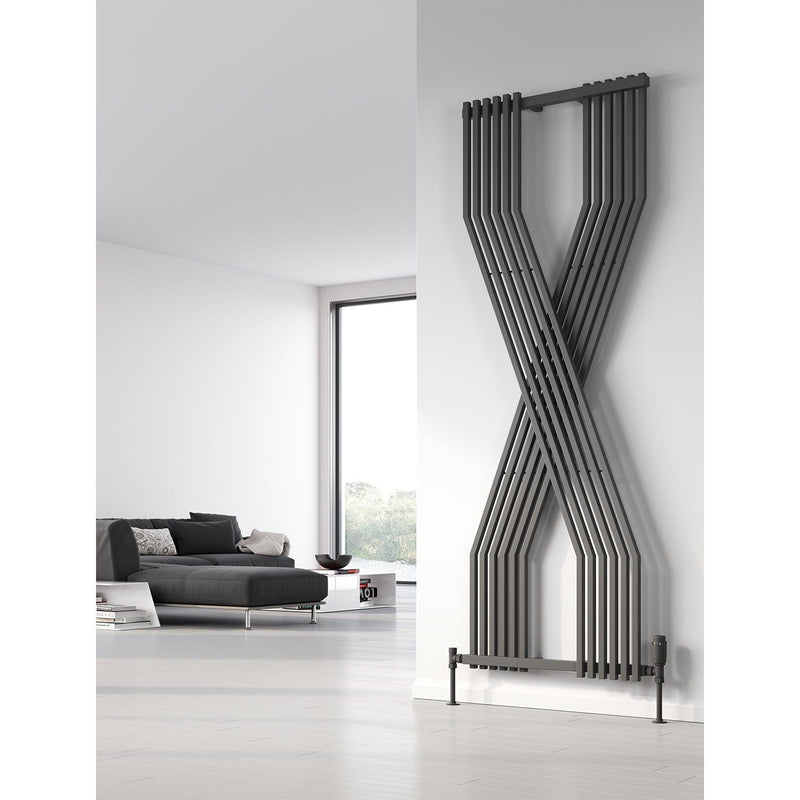

The Coredo shown in a room setting, plus two close-ups of the anthracite finish.
Choose Your Finish
Same X-shaped design in three finishes. White and anthracite share one heat output; chrome is rated lower.

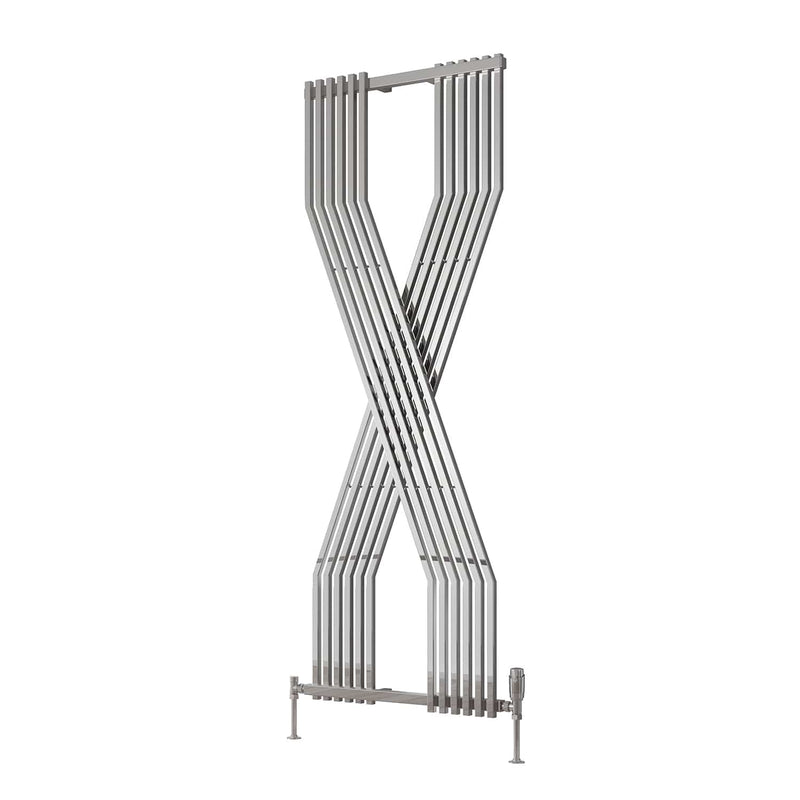

Chrome861W ΔT50

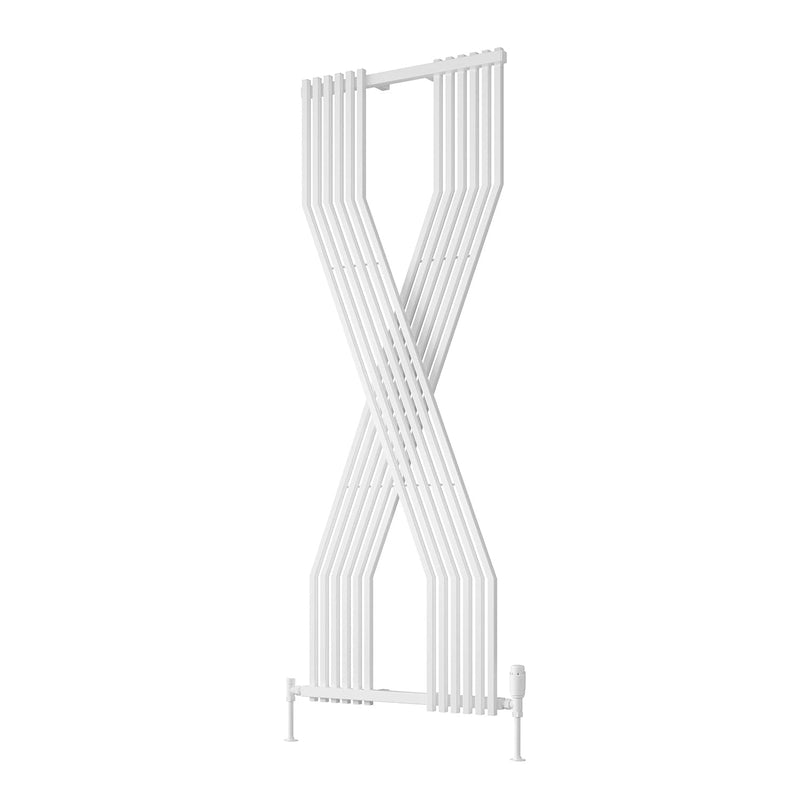

White1,274W ΔT50

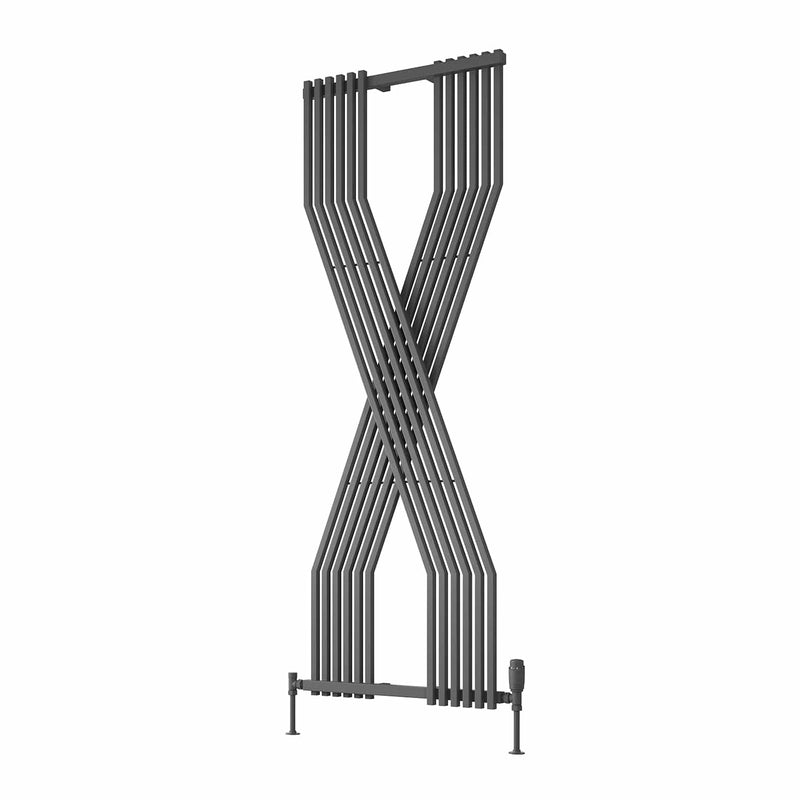

Anthracite1,274W ΔT50
Heat Output by Size & System
Per finish, from Reina’s datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Finish 1760 x 620mm |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| Chrome | 3,757 | 2,935 | 1,519 | 861 | 446 |
| Anthracite | 5,561 | 4,345 | 2,249 | 1,274 | 660 |
| White | 5,561 | 4,345 | 2,249 | 1,274 | 660 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Coredo |
| Height | 1760mm |
| Width | 620mm |
| Distance from wall | 97–112mm |
| Pipe centres | 620mm (add 90mm if measuring including valves) |
| Wall to pipe centres | 67–82mm |
| Material | Mild steel |
| Connections | G1/2 inch |
| Number of bars | 12 |
| Finishes | Chrome / White / Anthracite |
| Fuel type | Central heating only |
| Included | 4 wall brackets, 4 wall anchors, 4 fixing screws, 4 washers, 4 security screws, air vent, end plug |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max working temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
1760mm
1 size · 620mm wide
Finishes3
Max4 bar
✓
ΔT30 rated
Heat pump compatible
✓
Central heating
Not electric
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Coredo compatible with a heat pump?
A. Reina publish a Delta T30 output for the Coredo in every finish, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Q.
Can the Coredo be used as an electric or dual fuel radiator?
A. No. Reina list the Coredo for central heating only, so it connects to your boiler or heat pump circuit and is not available as an electric or dual fuel radiator.
Q.
What valves do I need for the Coredo?
A. Radiator valves are not supplied, so you need a lockshield valve and a manual or thermostatic valve. The connections are G1/2 inch, Reina's pipe centre figure is 620mm, and for a measurement including valves you add 90mm. Contact our team if you would like help choosing a pair that suits your pipework.
Q.
Why is the chrome Coredo rated lower than white or anthracite?
A. Reina's datasheet rates the chrome finish at 861W (Delta T50) and the white and anthracite finishes at 1,274W. A polished chrome surface gives off less radiant heat than a painted one, so if the Coredo is your main heat source in a room, check the chrome figures in our table before you choose.
Q.
What are the pipe centres and wall distances on the Coredo?
A. The Coredo is 1760mm high and 620mm wide, with pipe centres of 620mm. Wall to pipe centres is 67 to 82mm and the distance from the wall is 97 to 112mm. Leave at least 50mm below any overhanging surface such as a shelf, and no lower than 100mm from the floor.
Q.
Which size Coredo do I need?
A. The Coredo comes in one size, 1760 x 620mm, in chrome, white or anthracite. Use the room fit calculator on this page to see whether it meets your room's heat loss in your chosen finish, or contact our team for advice on your room.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Q.
What is included in the box and who should fit it?
A. The Coredo comes with four wall brackets, four wall anchors, four fixing screws, four washers, four security screws, an air vent and an end plug. Radiator valves are not included. Reina state it must be fitted by a fully qualified installer.
