Reina Designer Chisa Vertical Heated Towel Rail Steel Radiator
£220.00
£240.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating, electric or dual fuel. Mild steel. Vertical towel rail.
Product Overview & Key Specs

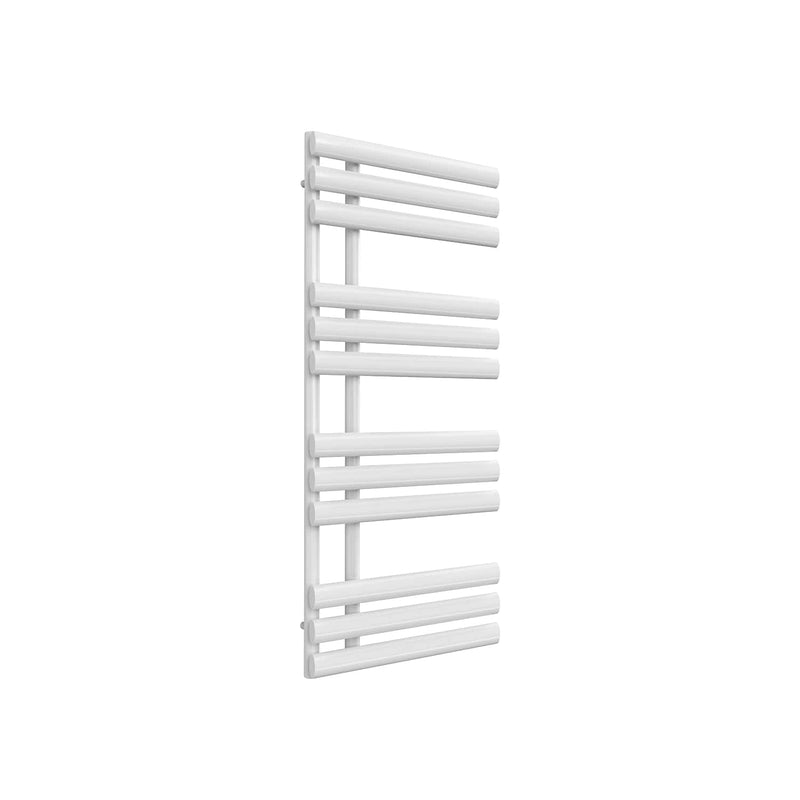

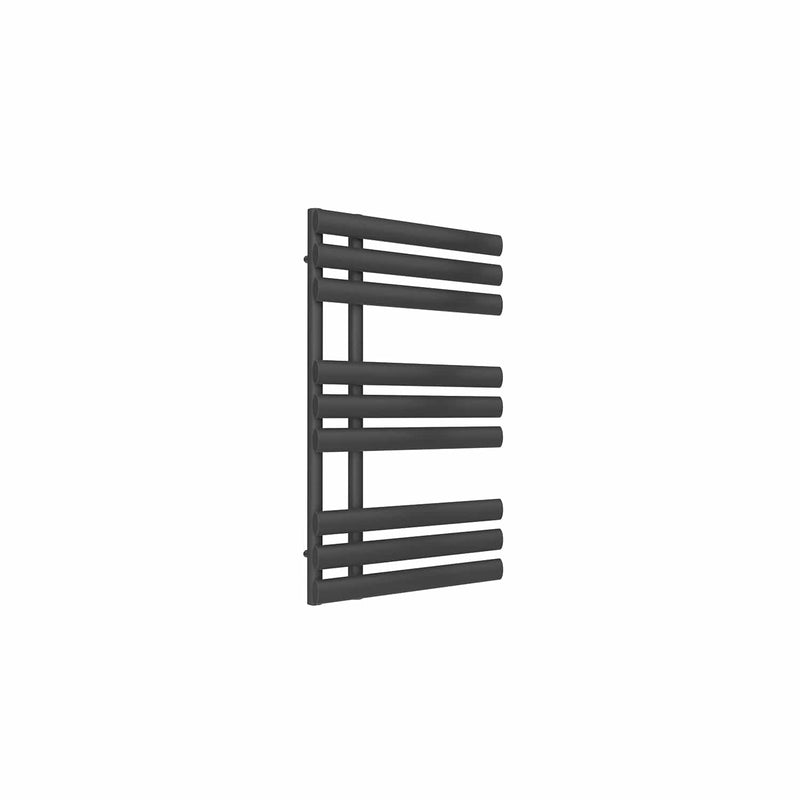

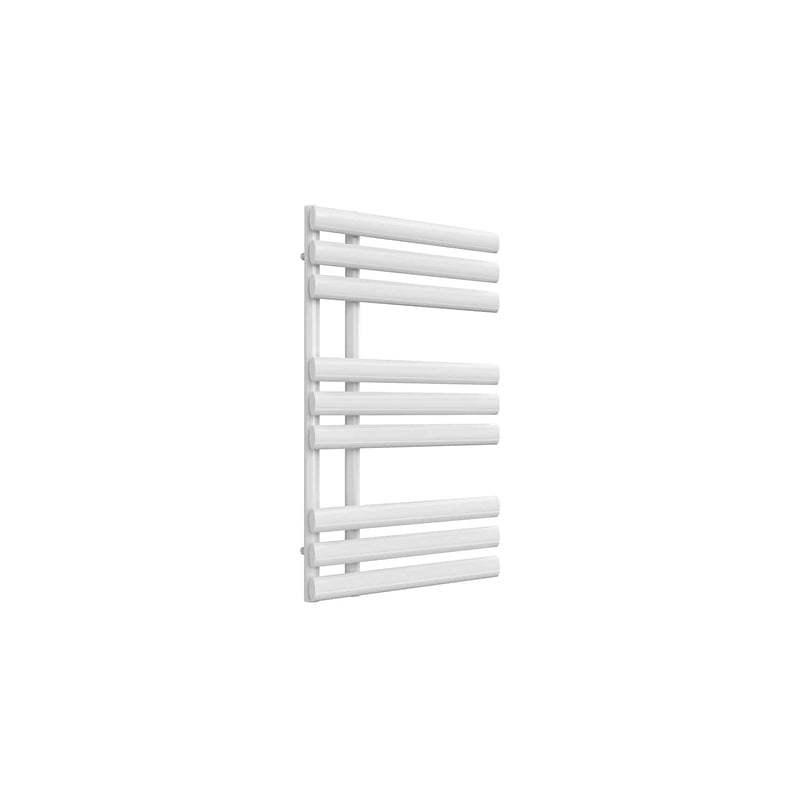

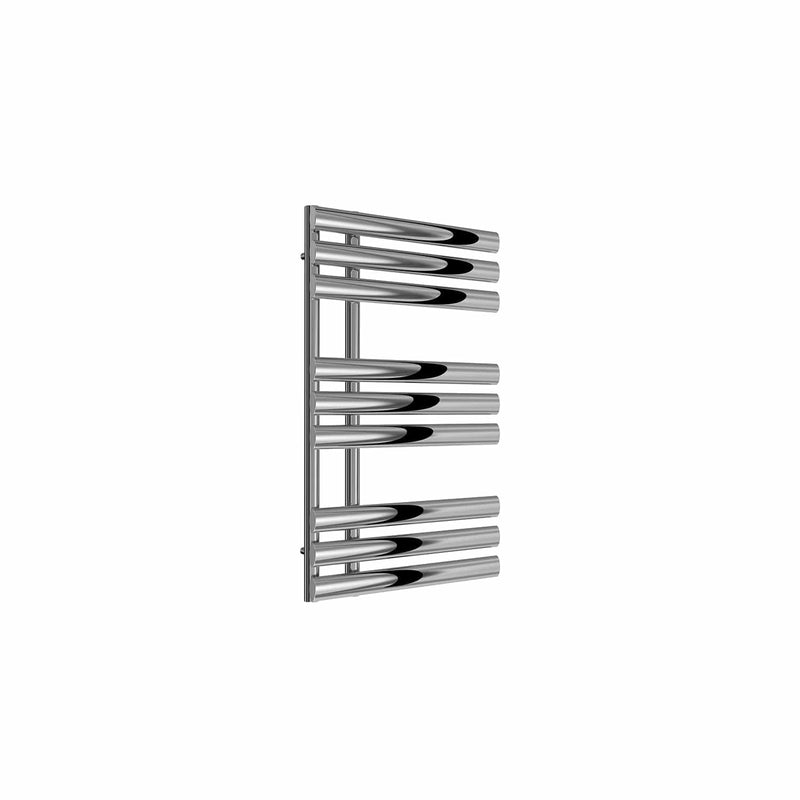

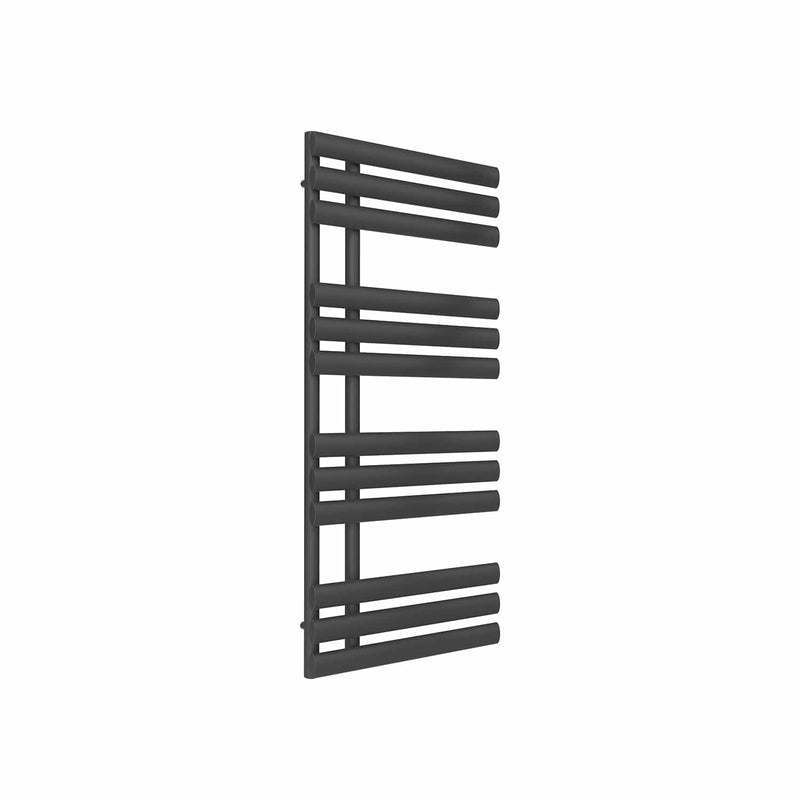

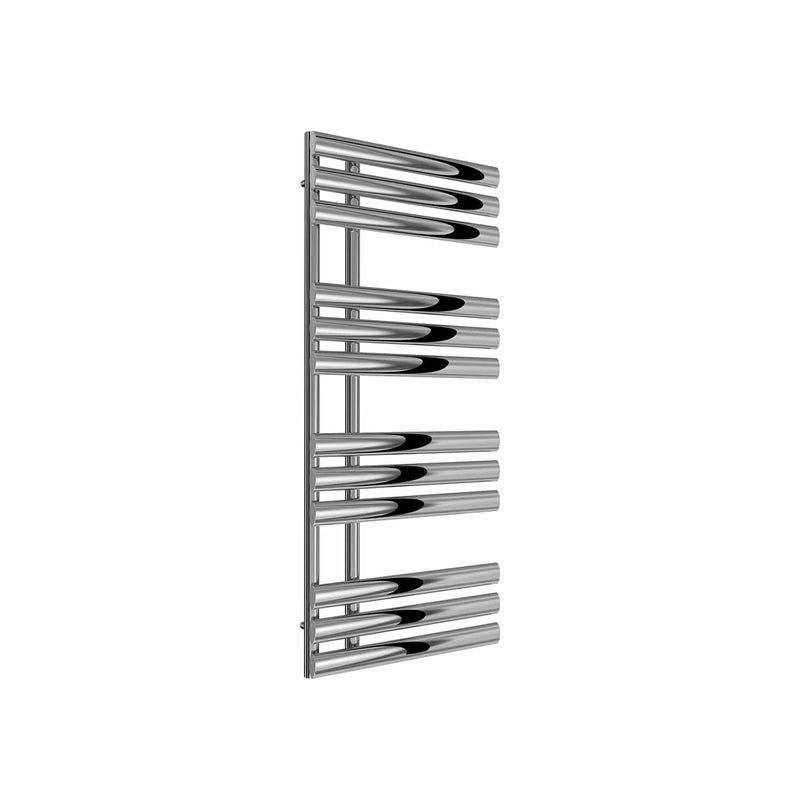

The Reina Chisa is a vertical mild steel towel radiator with tapered, teardrop-profile bars. Choose 820 or 1130mm high, both 500mm wide, with 9 or 12 bars for towels. Available in chrome, white or anthracite, and suits central heating, electric or dual fuel.
820–1130mm
Two heights
500mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Chisa in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Chisa in your room using augmented reality.
Why the Chisa?
Three things that set this towel rail apart.
Tapered bar designA visual statement ✔
Teardrop-profile bars taper to a point, giving the Chisa a sculpted look that stands out from a flat ladder rail.
Mild steel build5-year guarantee ✔
Made from mild steel and backed by a 5-year Reina guarantee.
Central heating, electric or dual fuelFlexible install ✔
Reina list the Chisa for central heating, electric and dual fuel, so contact our team for an element kit if you need it.
In the Room

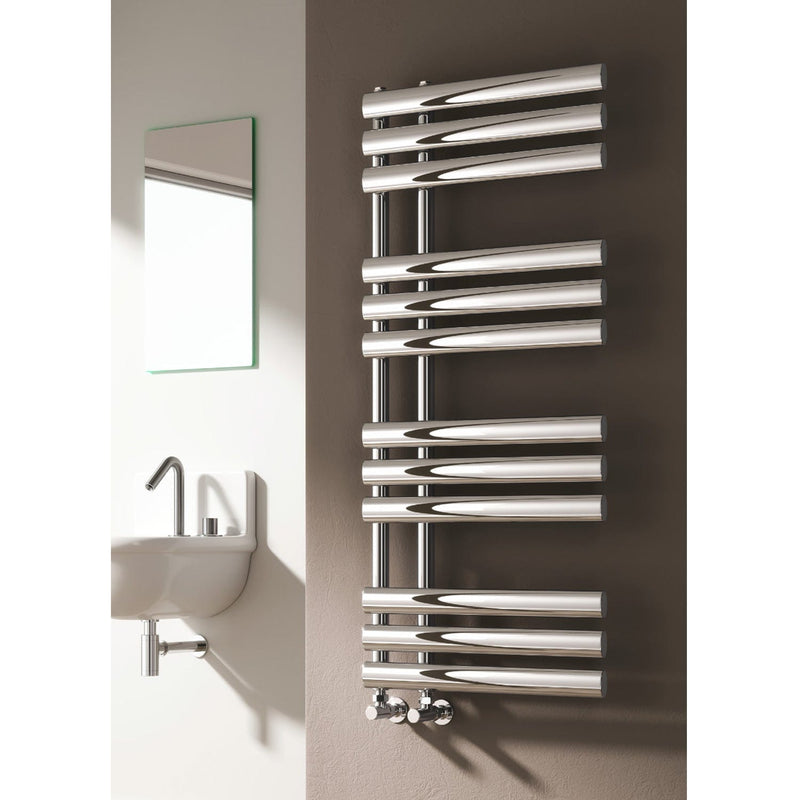

The Chisa in a room setting, plus a second view of the chrome finish.
Choose Your Finish
Chrome, white or anthracite, in both heights. White and anthracite share one heat output; chrome is rated lower.
Chrome2 sizes
White2 sizes
Anthracite2 sizes
Heat Output by Size & Finish
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height 500mm wide |
Finish | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|---|
| 820mm | Chrome | 9 bars | 1,163 | 909 | 470 | 266 | 138 |
| 820mm | Anthracite | 9 bars | 1,662 | 1,298 | 672 | 381 | 197 |
| 820mm | White | 9 bars | 1,662 | 1,298 | 672 | 381 | 197 |
| 1130mm | Chrome | 12 bars | 1,657 | 1,295 | 670 | 380 | 197 |
| 1130mm | Anthracite | 12 bars | 2,402 | 1,877 | 971 | 550 | 285 |
| 1130mm | White | 12 bars | 2,402 | 1,877 | 971 | 550 | 285 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Chisa |
| Height | 820 / 1130mm |
| Width | 500mm (both sizes) |
| Wall distance | 102–117mm |
| Pipe centres | 100mm |
| Wall to pipe centres | 61–76mm |
| Connection | G1/2" (inlet / outlet) |
| Material | Mild steel |
| Bars | 9 / 12 (by height) |
| Finishes | Chrome / White / Anthracite |
| Fuel type | Central heating / electric / dual fuel |
| Included | 4 wall brackets, wall anchors, fixing screws, washers, security screws, air vent, end plug |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max working temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
820–1130mm
2 heights · 500mm wide
Bars9–12
Finishes3
✓
ΔT30 rated
Heat pump compatible
✓
C / E / D
Central heating, electric, dual fuel
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Chisa compatible with a heat pump?
A. Reina publish a Delta T30 output for every Chisa size and finish, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Chisa be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Chisa for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
Why is the chrome Chisa rated lower than white or anthracite?
A. Reina's datasheet rates the chrome finish lower than white and anthracite at both heights - for example 266W against 381W at 820mm (Delta T50). A polished chrome surface gives off less radiant heat than a painted one, so if the Chisa is your main heat source in a room, check the chrome figures in our table before you choose.
Q.
What valves do I need for the Chisa?
A. The Chisa has G1/2 inch connections, 100mm apart. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Chisa?
A. Pipe centres are 100mm, wall to pipe centres is 61 to 76mm, and the rail sits 102 to 117mm from the wall. Both heights are 500mm wide.
Q.
Which size Chisa do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it checks both the 820mm and 1130mm heights, in chrome and in white/anthracite, against your heat loss.
Q.
What finishes is the Chisa available in?
A. Chrome, white and anthracite, in both heights. White and anthracite share the same heat output; chrome is rated lower, as shown in our heat output table.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. If you are unsure whether your system stays within those limits, ask your installer before ordering.
