Reina Designer Cavo Vertical Heated Towel Rail Stainless Steel Radiator
£236.00
£256.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 25-year guarantee
Central heating, electric or dual fuel. Stainless steel. Offset ladder.
Product Overview & Key Specs
The Reina Cavo is a modern offset ladder towel radiator with horizontal oval tubes in brushed or polished stainless steel. Choose 530, 880, 1230 or 1580mm high, all 500mm wide, with 5 to 14 bars for towels. The reversible design mounts left or right handed, and it suits central heating, electric or dual fuel.
530–1580mm
Four heights
500mm
Width
2
Finishes
ΔT30
Heat pump rated
25 yr
Guarantee
View the Cavo in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Cavo in your room using augmented reality.
Why Stainless Steel?
Three practical reasons a stainless steel ladder rail suits a bathroom or kitchen.
Corrosion resistantBuilt for bathrooms ✔
Stainless steel resists corrosion, so the Cavo keeps its finish in steamy bathrooms and humid rooms.
25-year guaranteeLong-term peace of mind ✔
Reina back the Cavo with a 25-year guarantee, a long cover period for a bathroom radiator.
Offset ladderLeft or right ✔
Horizontal oval tubes hang off an offset upright. The reversible design mounts left or right handed to suit your wall.

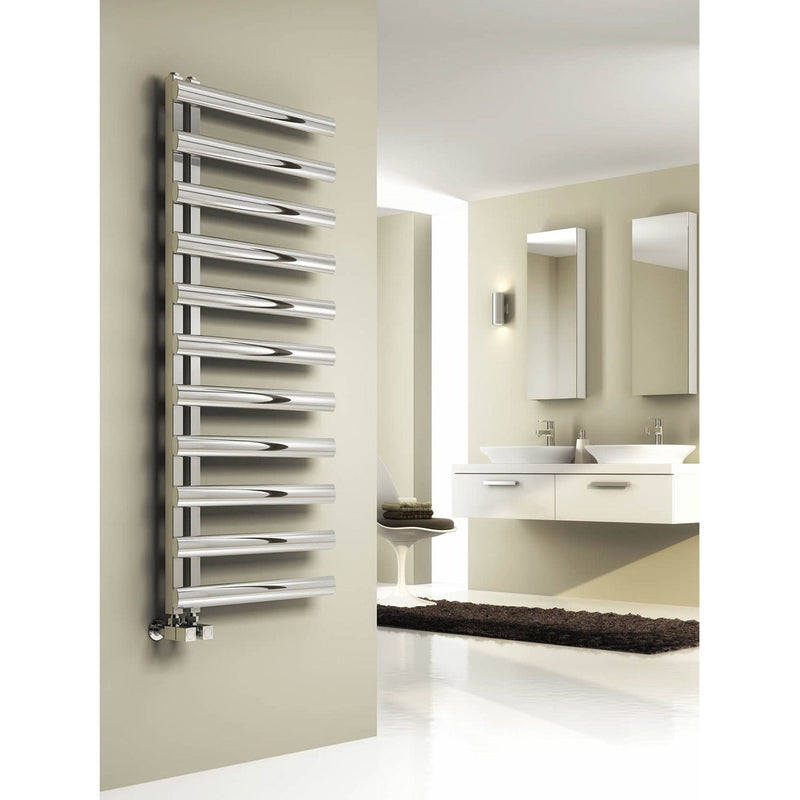

In the Room
The Cavo shown in a room setting, plus two close-ups of the polished stainless steel.
Choose Your Finish
Brushed or polished stainless steel - same construction, same heat output.

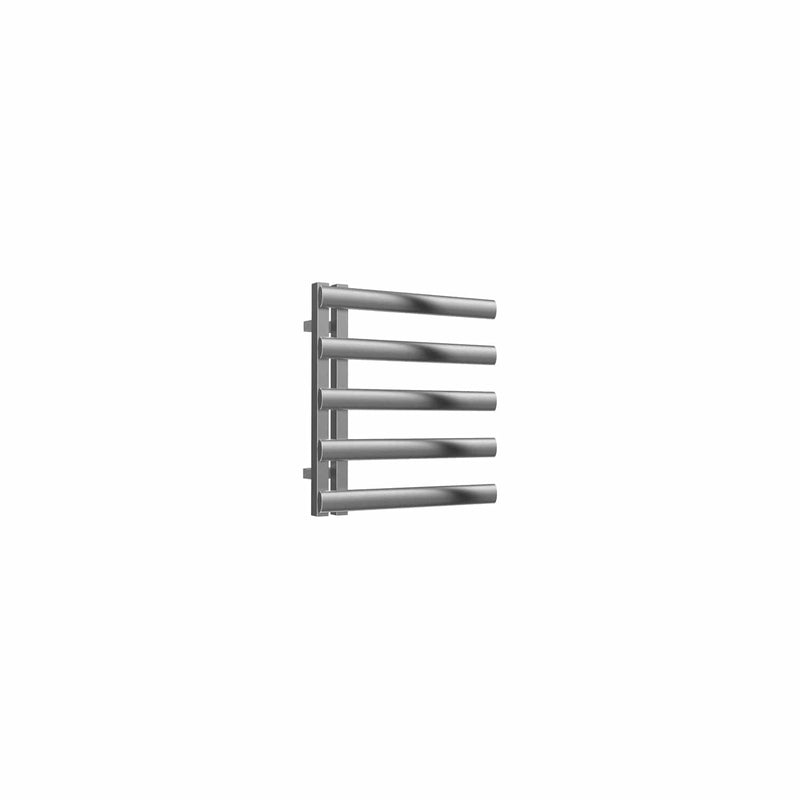

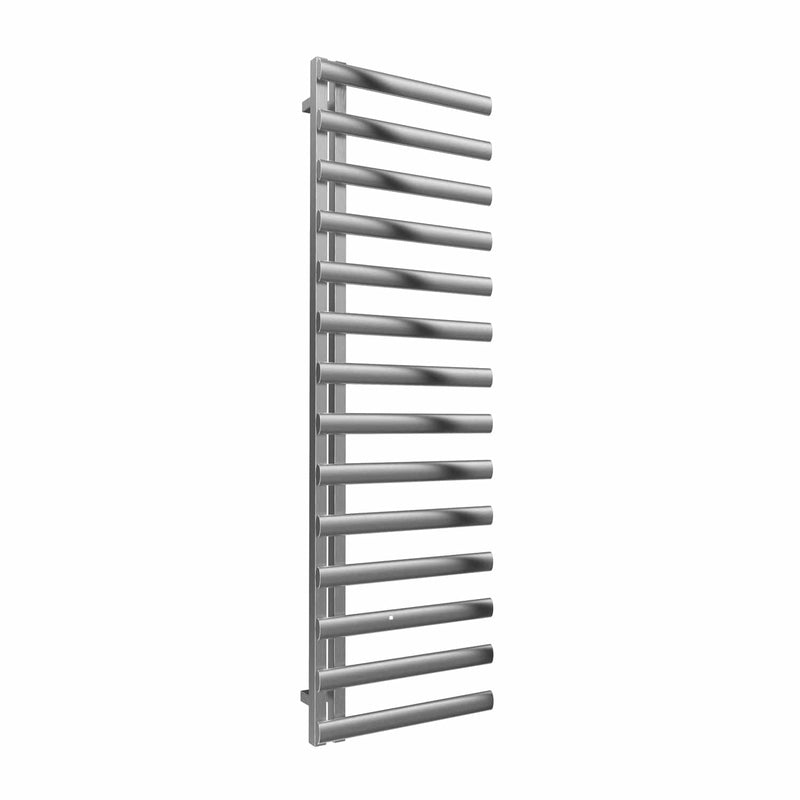

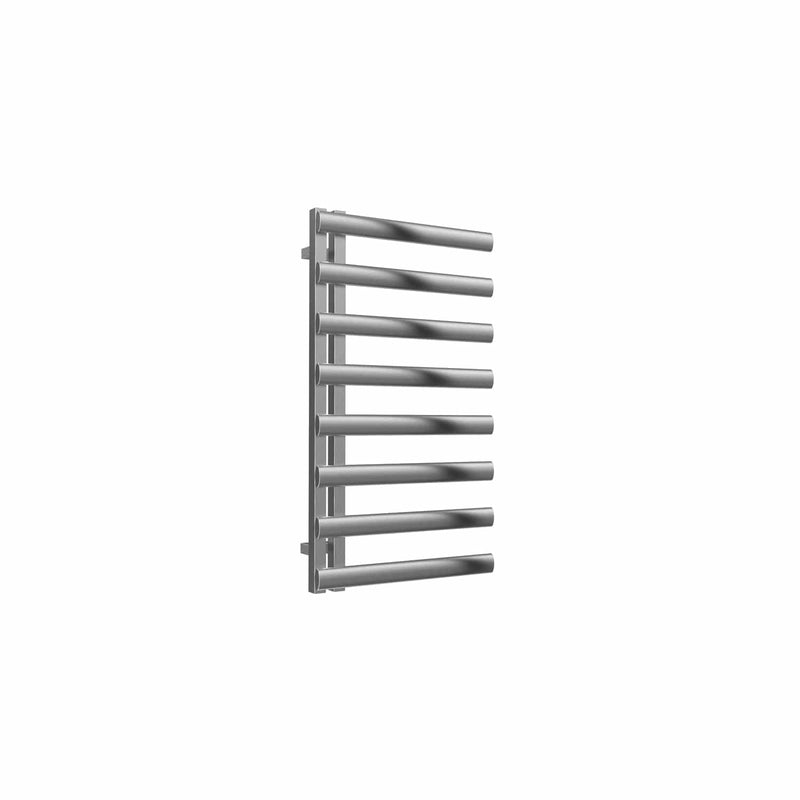

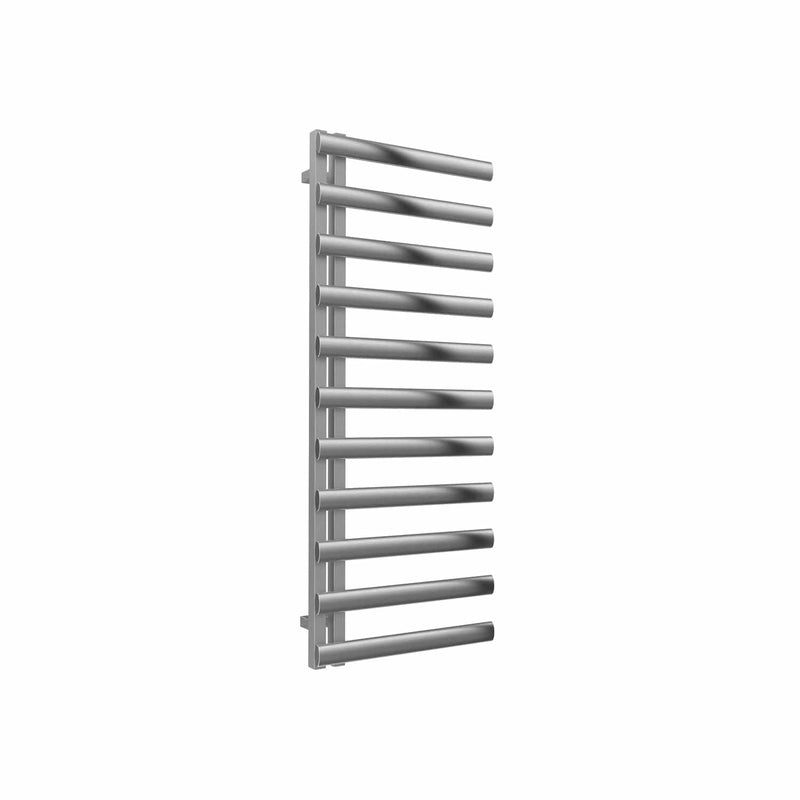

Brushed Stainless SteelAll sizes

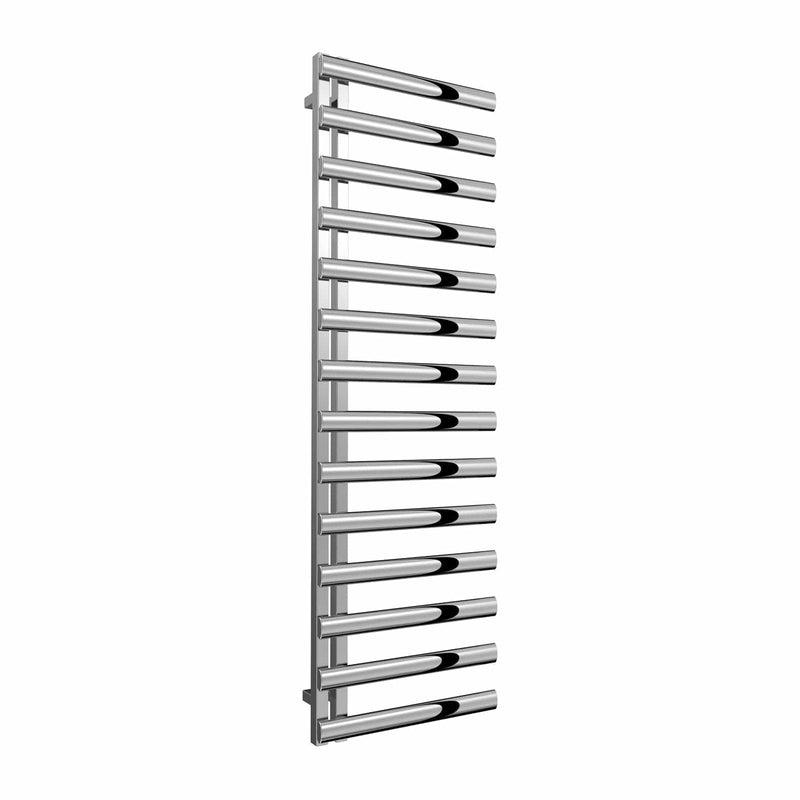

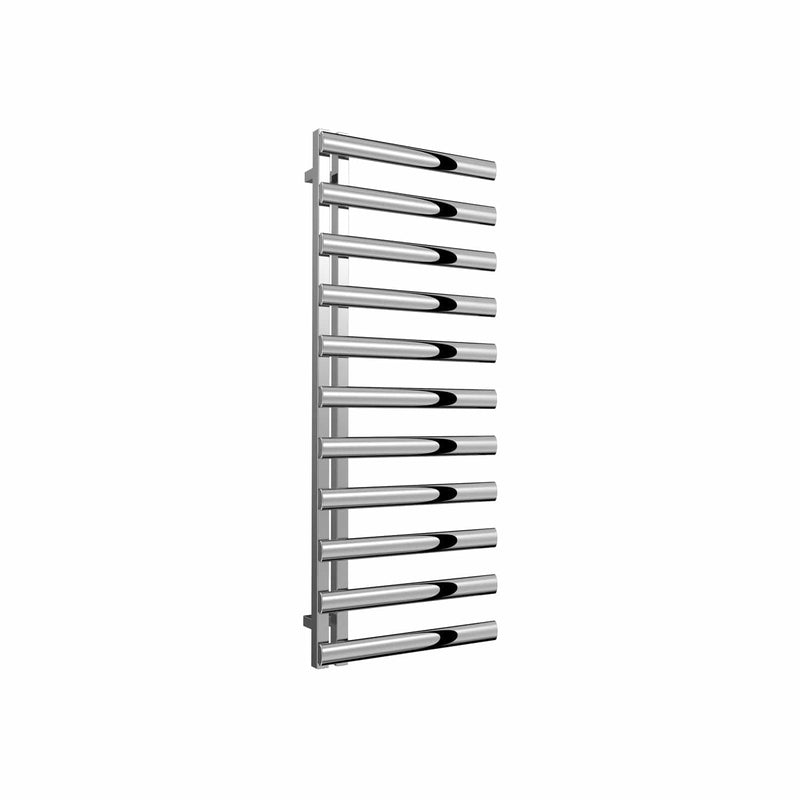

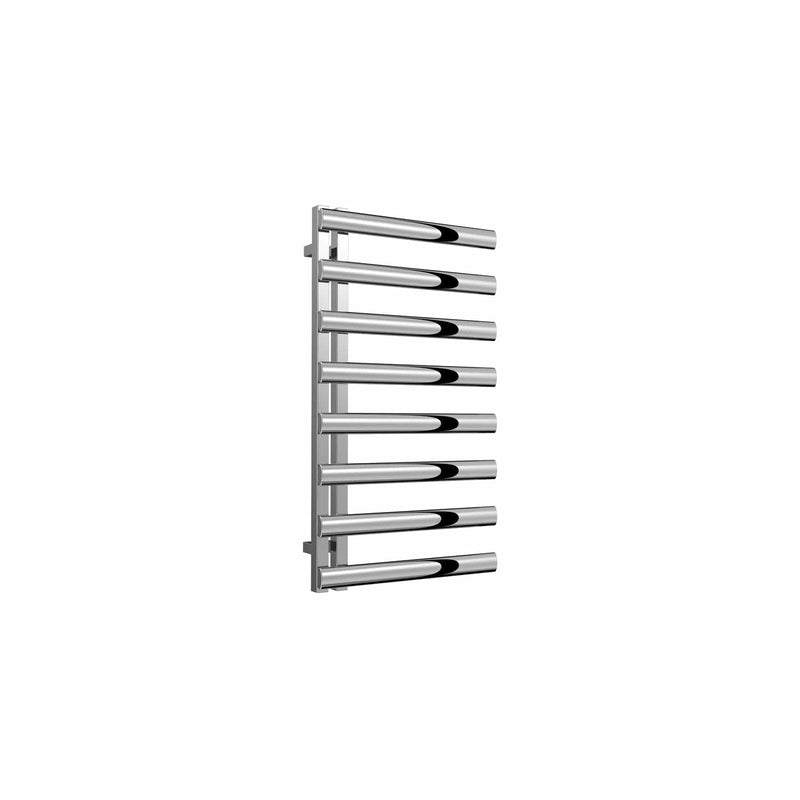

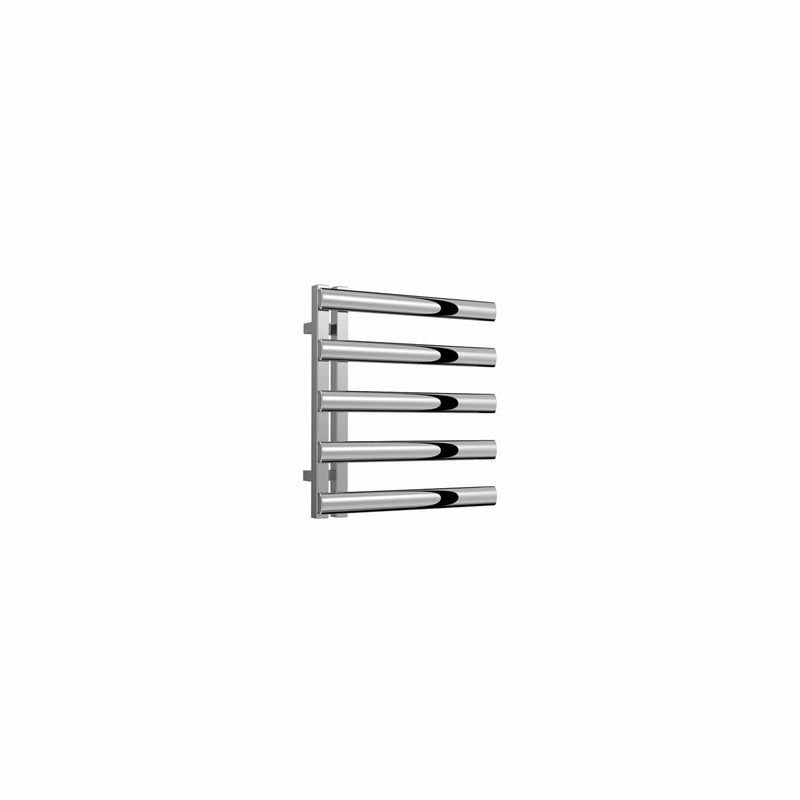

Polished Stainless SteelAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height 500mm wide |
Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 530mm | 5 bars | 807 | 630 | 326 | 185 | 96 |
| 880mm | 8 bars | 1,251 | 977 | 506 | 287 | 148 |
| 1230mm | 11 bars | 1,581 | 1,235 | 639 | 362 | 188 |
| 1580mm | 14 bars | 2,231 | 1,743 | 902 | 511 | 265 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Cavo |
| Height | 530 / 880 / 1230 / 1580mm |
| Width | 500mm (all sizes) |
| Projection from wall | 105–120mm |
| Pipe centres | 50mm |
| Wall to pipe centres | 65–80mm |
| Connection | 1/2" BSP female thread (inlet / outlet) |
| Material | Stainless steel (304 quality) |
| Bars | 5 / 8 / 11 / 14 (by height) |
| Finishes | Brushed / Polished stainless steel |
| Fuel type | Central heating / electric / dual fuel |
| Mounting | Reversible - left or right handed |
| Included | Wall brackets, fixings, air vent and blanking plug |
| Not included | Radiator valves |
| Max working pressure | 10 bar (1000 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 25 years (Reina manufacturer) |
530–1580mm
4 heights · 500mm wide
Bars5–14
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
Reversible
Left or right mounting
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Cavo compatible with a heat pump?
A. Reina publish a Delta T30 output for every Cavo size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Cavo be used as an electric or dual fuel towel rail?
A. Yes - Reina list the Cavo for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right kit for your size before ordering.
Q.
What valves do I need for the Cavo?
A. The Cavo has 1/2 inch BSP female inlet and outlet connections, 50mm apart. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Cavo?
A. Pipe centres are 50mm, wall to pipe centres is 65 to 80mm, and the rail projects 105 to 120mm from the wall. All four sizes are 500mm wide.
Q.
Can the Cavo be fitted on the left or the right?
A. Yes. The Cavo is an offset ladder with a reversible design, so it can be mounted left or right handed to suit your wall.
Q.
Which size Cavo do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Cavo size meets your heat loss. For a bathroom, the 880mm and 1230mm heights are the most popular towel storage sizes.
Q.
What finishes is the Cavo available in?
A. Brushed stainless steel and polished stainless steel, in all four heights. Both finishes have the same construction and heat output.
Q.
Is stainless steel a good choice for a bathroom towel rail?
A. Stainless steel resists corrosion, so it suits bathrooms and other humid rooms, and the Cavo carries a 25-year Reina guarantee.
