Sale
Reina Bonera Designer Vertical Radiator
£220.00
£240.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating. Mild steel. Flat panel vertical design.
Product Overview & Key Specs

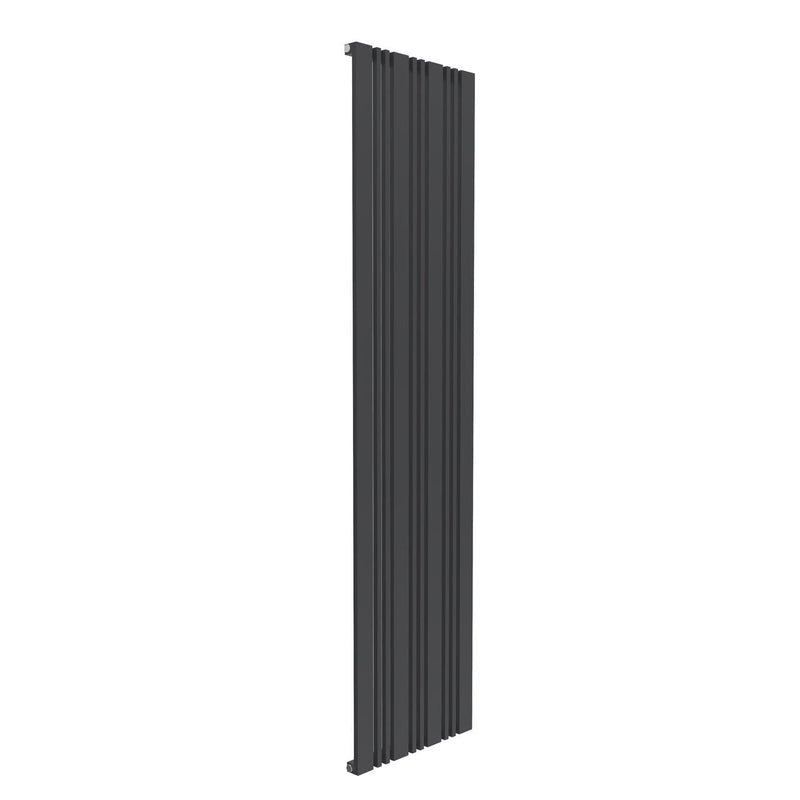

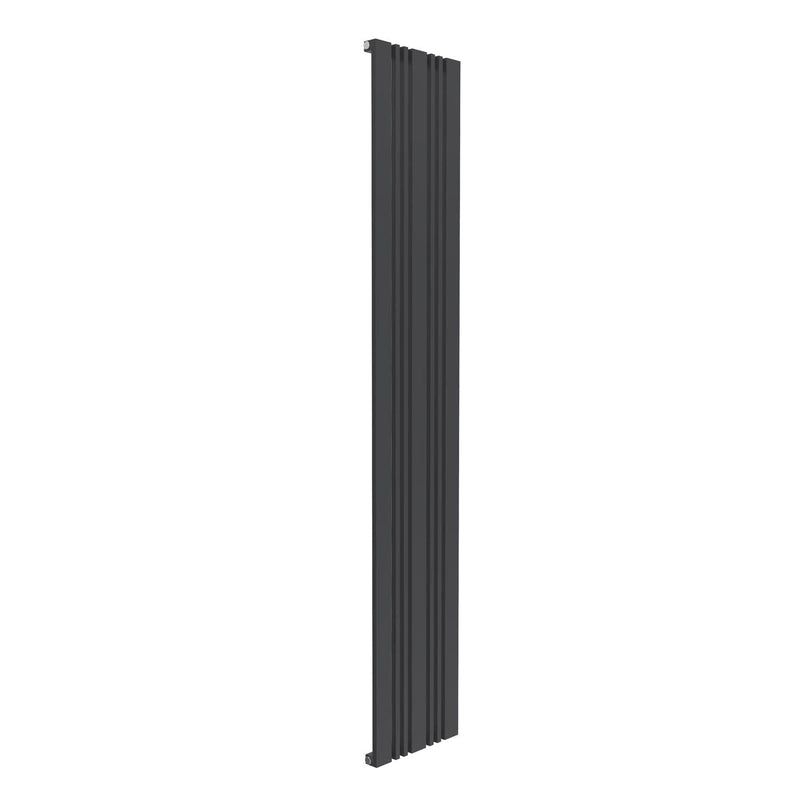

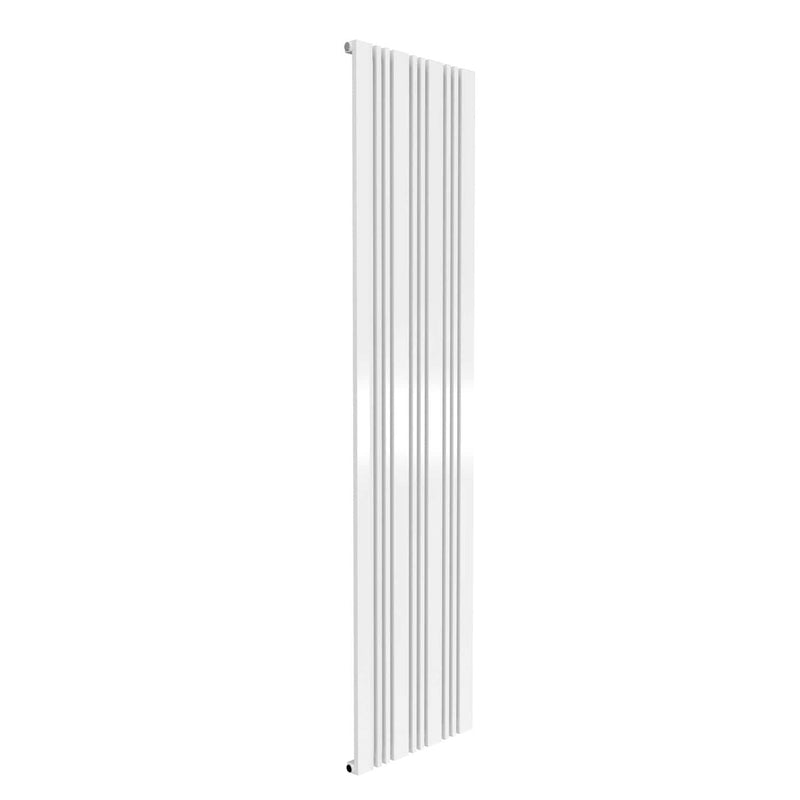

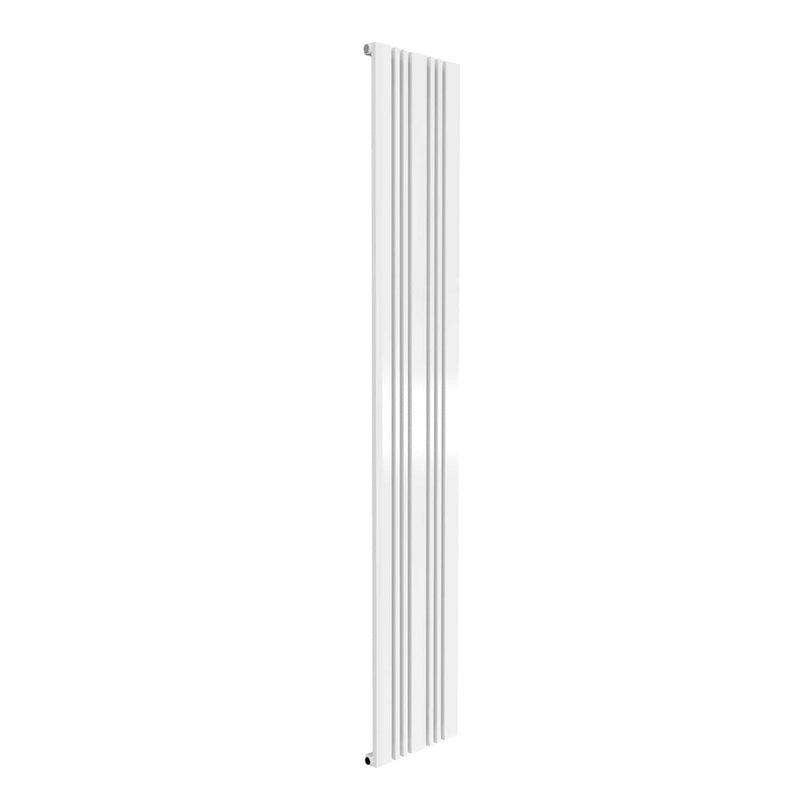

The Reina Bonera Vertical is a modern flat panel radiator with clean vertical sections, built from durable mild steel. Choose 1800x324mm or 1800x456mm, in white or anthracite, with 7 or 10 sections. It suits living rooms, bedrooms, hallways and offices on a central heating system.
324–456mm
Two widths
1800mm
Height
2
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Bonera in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Bonera in your room using augmented reality.
Why the Bonera Vertical?
Three practical reasons this flat panel radiator suits modern interiors.
Slim flat panel designSpace-saving profile ✔
Clean vertical sections give the Bonera a slim, modern architectural look that fits tight wall space.
Durable mild steelBuilt to last ✔
Constructed from mild steel for long-lasting strength and consistent everyday performance.
5-year guaranteePeace of mind ✔
Reina back the Bonera with a 5-year guarantee on this mild steel radiator.
In the Room

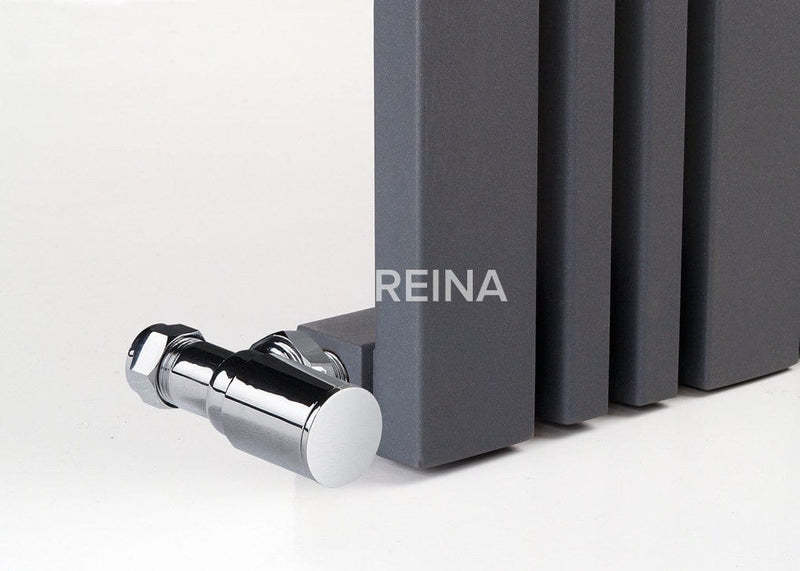

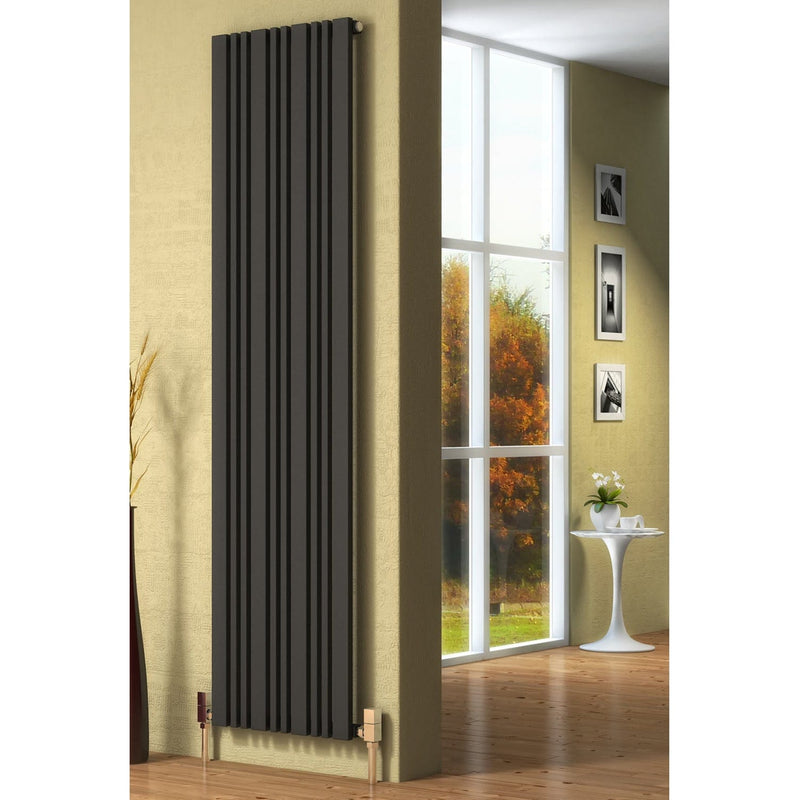

The Bonera shown in a room setting, plus two close-ups of the anthracite finish.
Choose Your Finish
White or anthracite - same construction, same heat output.
WhiteBoth sizes
AnthraciteBoth sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Size | Sections | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 1800 x 324mm | 7 | 3,212 | 2,509 | 1,299 | 736 | 381 |
| 1800 x 456mm | 10 | 4,469 | 3,491 | 1,807 | 1,024 | 530 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Bonera Vertical |
| Height | 1800mm (both sizes) |
| Width | 324 / 456mm |
| Wall distance | 100mm |
| Pipe centres | 324 / 456mm (matches width) |
| Wall to pipe centres | 65mm |
| Connection | 1/2" female pipe thread (inlet / outlet) |
| Material | Mild steel |
| Sections | 7 / 10 (by width) |
| Finishes | White / Anthracite |
| Fuel type | Central heating only |
| Mounting | Wall-mounted, vertical |
| Included | Wall mounting brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 6 bar (600 kPa) |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
For pipe centre measurement including valves, Reina say to add 90mm.
324–456mm
2 widths · 1800mm high
Sections7–10
Finishes2
✓
ΔT30 rated
Heat pump compatible
✓
5-year guarantee
Reina manufacturer cover
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Bonera Vertical compatible with a heat pump?
A. Reina publish a Delta T30 output for both Bonera sizes, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the radiator against that column rather than the gas boiler figures.
Q.
Can the Bonera be used as an electric or dual fuel radiator?
A. No - Reina list the Bonera Vertical for central heating only, so it is not available as an electric or dual fuel radiator.
Q.
What valves do I need for the Bonera?
A. The Bonera has a 1/2 inch female pipe thread inlet and outlet. Radiator valves are not supplied, so contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Bonera?
A. Pipe centres match the width - 324mm on the 1800x324mm size, 456mm on the 1800x456mm size. Wall to pipe centres is 65mm and the radiator projects 100mm from the wall on both sizes. For pipe centre measurement including valves, Reina say to add 90mm.
Q.
Which size Bonera do I need?
A. Use the room fit calculator on this page. Enter your room dimensions and heating system type and it shows which Bonera size meets your heat loss.
Q.
What finishes is the Bonera available in?
A. White and anthracite, in both the 1800x324mm and 1800x456mm sizes. Both finishes have the same construction and heat output.
Q.
What is the maximum operating pressure on the Bonera?
A. The Reina installation guide states a maximum operating pressure of 6 bar.
Q.
Is mild steel a good choice for a radiator?
A. Mild steel is a widely used radiator material valued for its strength and heat conduction. The Bonera is a powder-coated mild steel flat panel radiator backed by a 5-year Reina guarantee.
