Reina Designer Arbori Vertical Steel Radiator
£200.00
£219.99
Save £19.99
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating, electric or dual fuel. Mild steel. Towel rail.
Product Overview & Key Specs

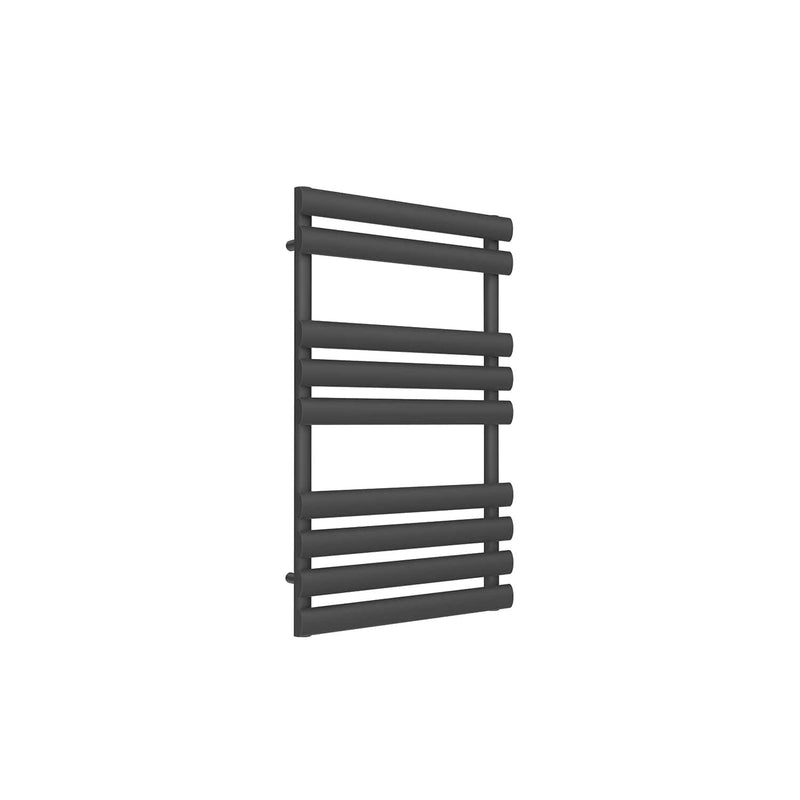

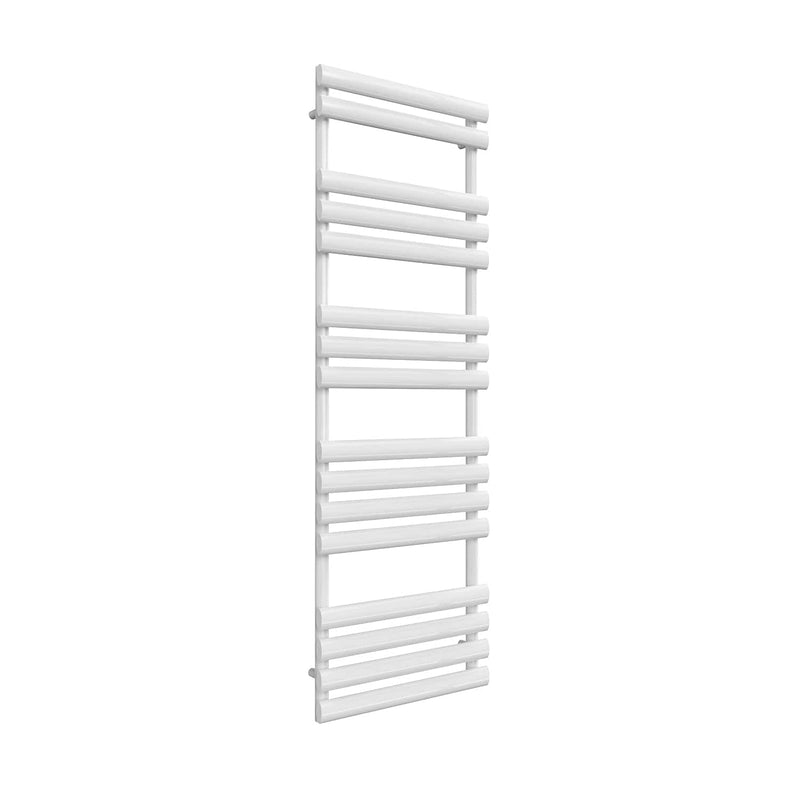

The Reina Arbori is a mild steel towel rail with flat oval bars arranged in groups on vertical uprights. Choose 820, 1130 or 1510mm high, all 500mm wide, with 9, 12 or 16 bars for towels, in chrome, anthracite or white. It suits central heating, electric or dual fuel. Chrome has its own lower Reina heat output, so check the table below against your room.
820–1510mm
Three heights
500mm
Width
3
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Arbori in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Arbori in your room using augmented reality.
Why the Arbori?
Three things that set this towel rail apart.
Grouped bar design9, 12 or 16 bars ✔
Flat oval bars sit in groups with gaps between them, giving you room to hang towels while the rail stays a design feature.
Mild steel build5-year guarantee ✔
Made from robust mild steel and backed by a 5-year Reina guarantee.
Three finishesChrome, anthracite, white ✔
Pick the finish to suit the room. Anthracite and white are rated higher than chrome, so check the heat output table.
In the Room

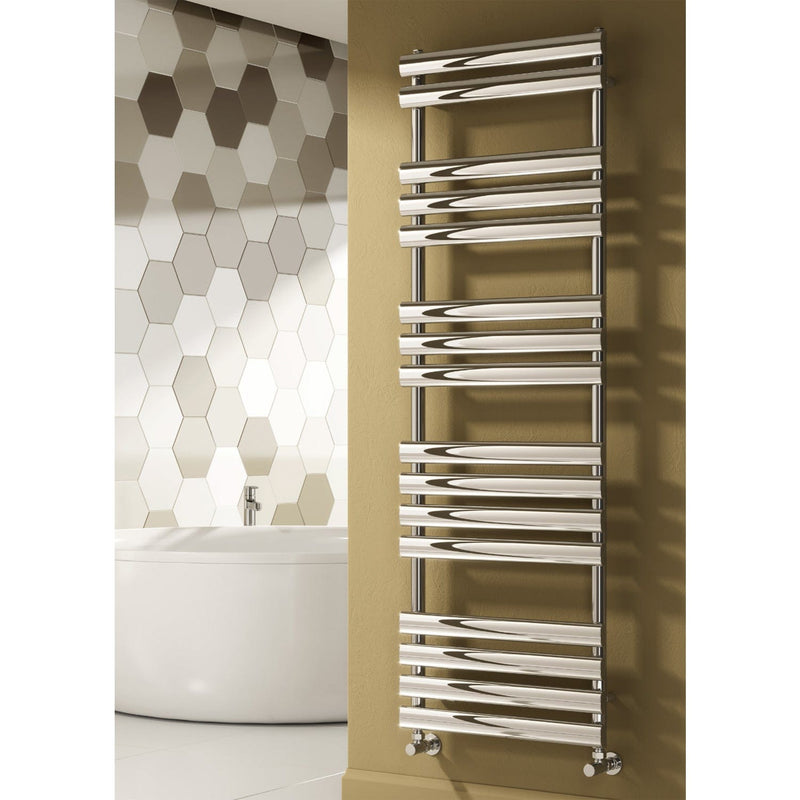

The Arbori shown in a room setting, plus two close-ups of the chrome finish.
Choose Your Finish
Same design in three finishes, in all three sizes. Anthracite and white share one heat output; chrome is rated lower.

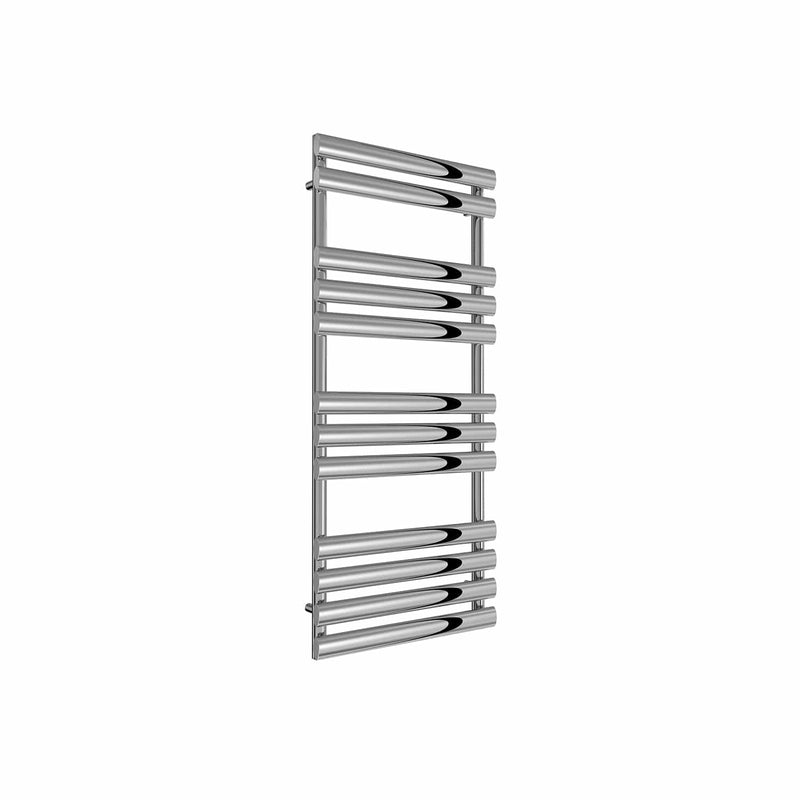

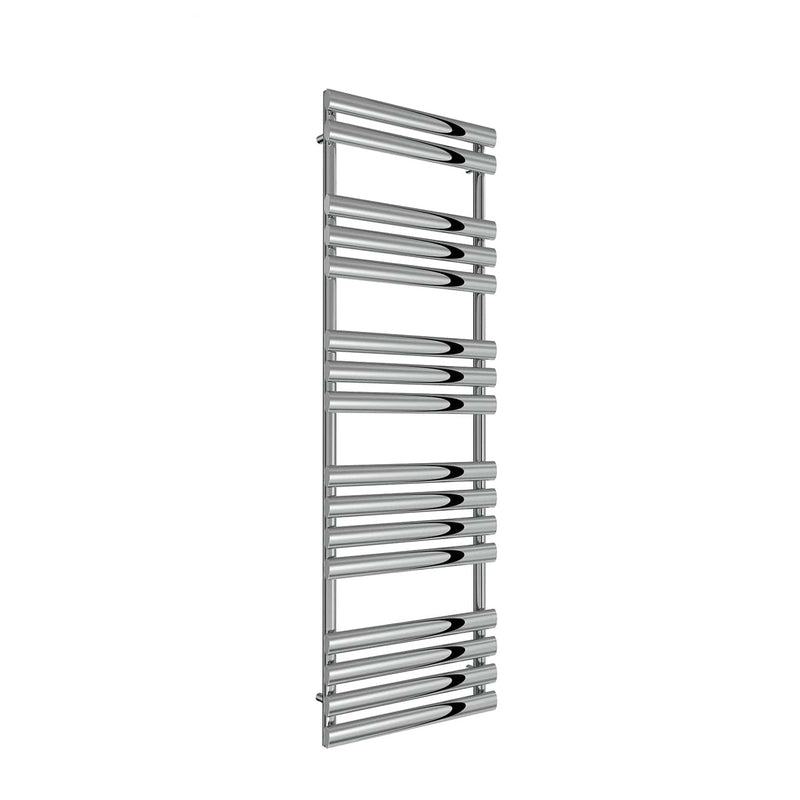

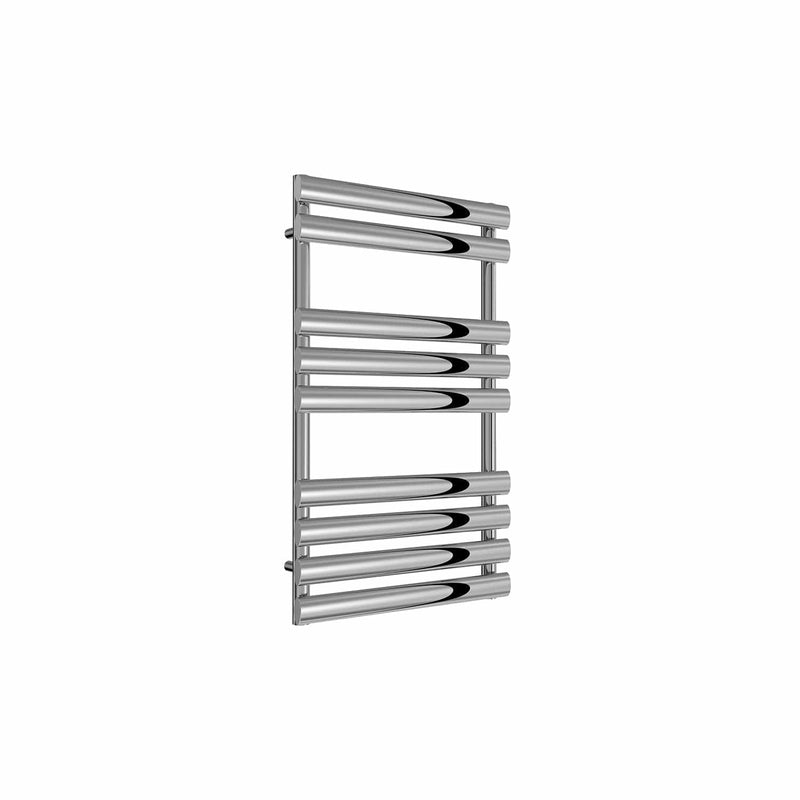

ChromeAll 3 sizes

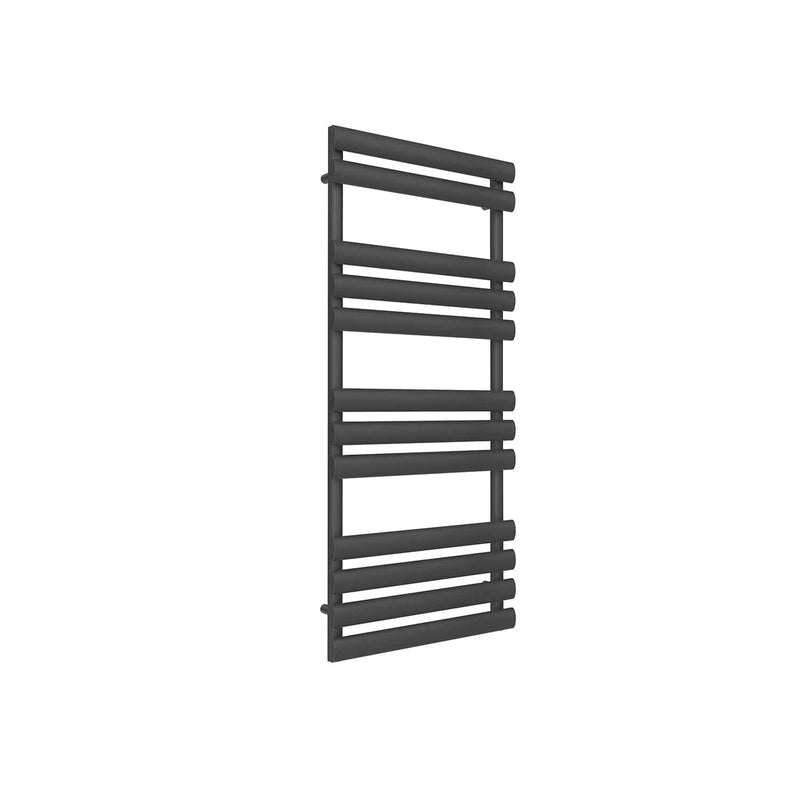

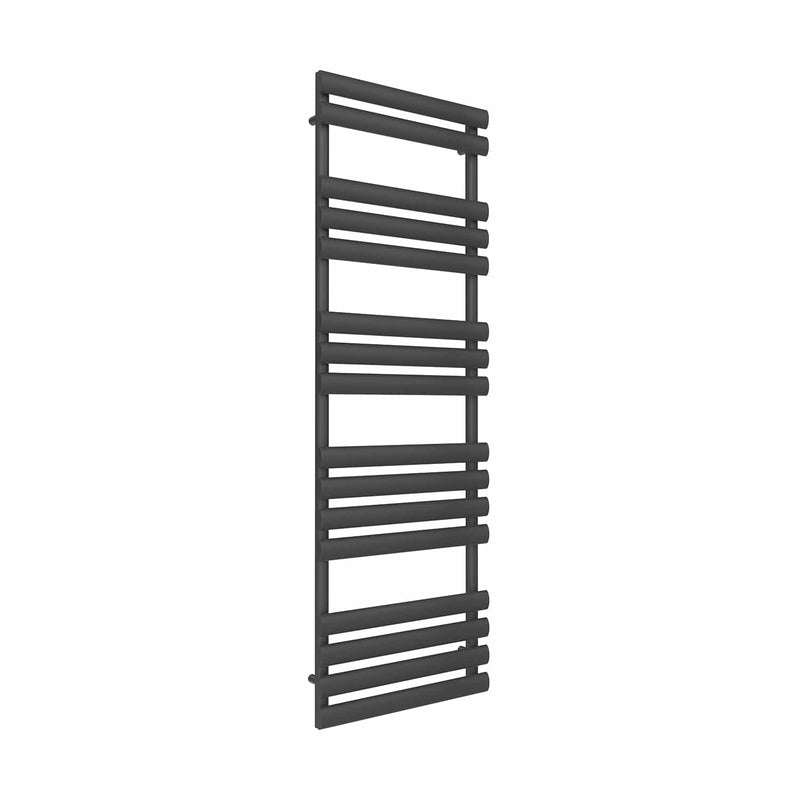

AnthraciteAll 3 sizes

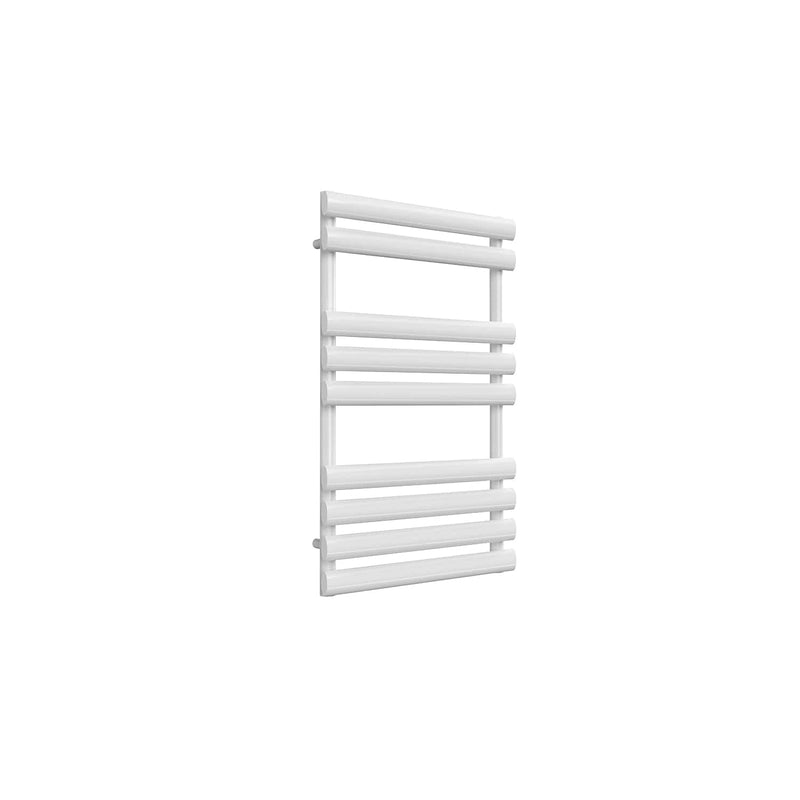

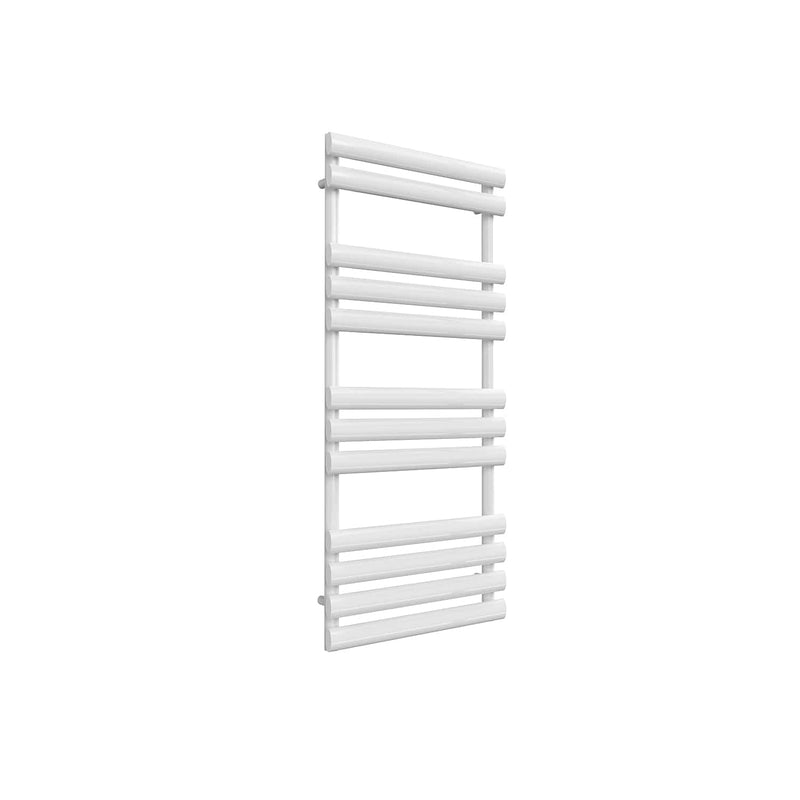

WhiteAll 3 sizes
Heat Output by Size & System
Per size and finish, from Reina’s datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Height · Finish 500mm wide |
Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 820mm · Chrome | 9 bars | 1,229 | 960 | 497 | 282 | 146 |
| 820mm · Anthracite | 9 bars | 1,781 | 1,391 | 720 | 408 | 211 |
| 820mm · White | 9 bars | 1,781 | 1,391 | 720 | 408 | 211 |
| 1130mm · Chrome | 12 bars | 1,657 | 1,295 | 670 | 380 | 197 |
| 1130mm · Anthracite | 12 bars | 2,402 | 1,877 | 971 | 550 | 285 |
| 1130mm · White | 12 bars | 2,402 | 1,877 | 971 | 550 | 285 |
| 1510mm · Chrome | 16 bars | 2,203 | 1,721 | 891 | 505 | 261 |
| 1510mm · Anthracite | 16 bars | 3,195 | 2,496 | 1,292 | 732 | 379 |
| 1510mm · White | 16 bars | 3,195 | 2,496 | 1,292 | 732 | 379 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Arbori |
| Height | 820 / 1130 / 1510mm |
| Width | 500mm (all sizes) |
| Distance from wall | 102–117mm |
| Pipe centres | 450mm (all sizes) |
| Wall to pipe centres | 61–76mm |
| Bars | 9 / 12 / 16 (by height) |
| Bracket spacing (top to bottom) | 620 / 930 / 1310mm (by height) |
| Material | Mild steel |
| Finishes | Chrome / Anthracite / White |
| Fuel type | Central heating / electric / dual fuel |

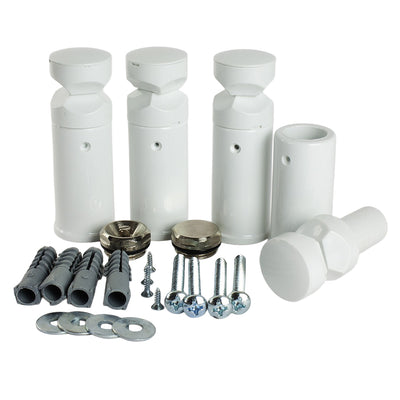

| Included | 4 wall brackets, wall anchors, fixing screws, washers, security screws, air vent, end plug |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max working temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
820–1510mm
3 heights · 500mm wide
Finishes3
Max4 bar
✓
ΔT30 rated
Heat pump compatible
✓
Fuel options
Central heating, electric or dual fuel
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Arbori compatible with a heat pump?
A. Reina publish a Delta T30 output for every Arbori size and finish, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the rail against that column rather than the gas boiler figures.
Q.
Can the Arbori be used as an electric or dual fuel towel rail?
A. Reina list the Arbori for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element kit, so please contact our team to confirm the right option for your size and finish before ordering.
Q.
What valves do I need for the Arbori?
A. Radiator valves are not supplied, so you need a lockshield valve and a manual or thermostatic valve. Reina's pipe centre figure is 450mm on all three sizes. Contact our team if you would like help choosing a pair that suits your pipework.
Q.
Why is the chrome Arbori rated lower than white or anthracite?
A. Reina's datasheet rates the chrome finish lower than the painted finishes at every size. For example, the 1510mm high rail is 505W (Delta T50) in chrome and 732W in white or anthracite. If the Arbori is your main heat source in a room, check the chrome figures in our table before you choose.
Q.
What are the pipe centres and wall distances on the Arbori?
A. All three sizes are 500mm wide with pipe centres of 450mm. Wall to pipe centres is 61 to 76mm and the distance from the wall is 102 to 117mm. Reina advise leaving at least 50mm below any overhanging surface such as a shelf, and mounting no lower than 100mm from the floor.
Q.
Which size Arbori do I need?
A. The Arbori comes in 820, 1130 and 1510mm heights, all 500mm wide, with 9, 12 or 16 bars. Use the room fit calculator on this page to see which size meets your room's heat loss in your chosen finish, or contact our team for advice.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Q.
What is included in the box and who should fit it?
A. The Arbori comes with four wall brackets, wall anchors, fixing screws, washers, security screws, an air vent and an end plug. Radiator valves are not included. Reina state it must be fitted by a fully qualified installer.
