Reina Designer Ancora Vertical Steel Radiator
£582.40
£602.40
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating. Mild steel. Vertical flat panel with towel slots.
Product Overview & Key Specs
The Reina Ancora is a vertical single-panel designer radiator made from mild steel, with five integral slots for hanging towels. It stands 1800mm high and 490mm wide, in white or anthracite, and connects to central heating. Both finishes have the same Reina heat output, so check the table below against your room.
1800mm
Height
490mm
Width
2
Finishes
ΔT30
Heat pump rated
5 yr
Guarantee
View the Ancora in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Ancora in your room using augmented reality.
Why the Ancora?
Three things that set this designer radiator apart.
Sleek flat panelSingle panel ✔
A tall, smooth single panel that sits close to the wall, with a 68 to 88mm distance from the wall.
Integral towel slotsFive slots ✔
Curved slots cut into the panel let you hang a towel or two without adding a separate rail.
Mild steel build5-year guarantee ✔
Made from durable mild steel in white or anthracite, backed by a 5-year Reina guarantee.

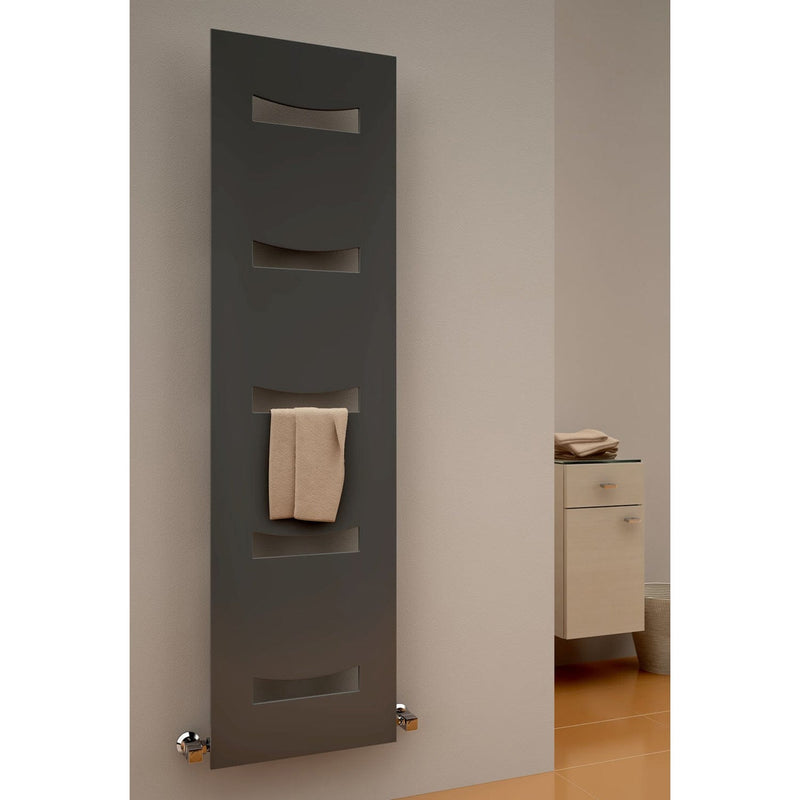

In the Room
The Ancora shown in a room setting, plus two close-ups of the anthracite finish.
Choose Your Finish
Same flat panel design in two finishes. Both share the same heat output.
White929W ΔT50

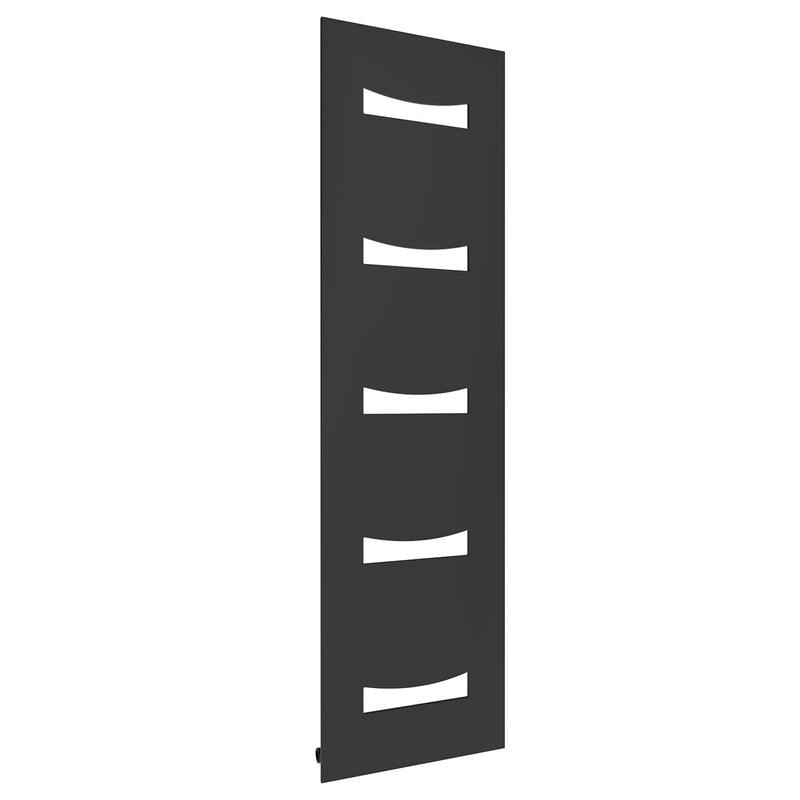

Anthracite929W ΔT50
Heat Output by Size & System
Per finish, from Reina’s datasheet. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Finish 1800 x 490mm |
ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|
| Anthracite | 4,054 | 3,167 | 1,640 | 929 | 481 |
| White | 4,054 | 3,167 | 1,640 | 929 | 481 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Ancora |
| Height | 1800mm |
| Width | 490mm |
| Distance from wall | 68–88mm |
| Pipe centres | 490mm (add 90mm if measuring including valves) |
| Wall to pipe centres | 35–55mm |
| Material | Mild steel |
| Finishes | White / Anthracite |
| Fuel type | Central heating only |
| Connections | 1/2 inch female inlet and outlet |
| Included | 4 wall mounting brackets, 4 panel mounting brackets, 4 screws, 4 pegs, 4 M5 x 10mm bolts, purger |
| Not included | Radiator valves |
| Max working pressure | 6 bar |
| Max working temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
1800mm
1 size · 490mm wide
Finishes2
Max6 bar
✓
ΔT30 rated
Heat pump compatible
✓
Central heating
Not electric
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Ancora compatible with a heat pump?
A. Reina publish a Delta T30 output for the Ancora, 481W (1,640 BTU) in both finishes, so it can be used on a heat pump system. Use the Delta T30 column in our heat output table for accurate figures and size the radiator against that column rather than the gas boiler figures.
Q.
Can the Ancora be used as an electric or dual fuel radiator?
A. No. Reina list the Ancora for central heating only, so it connects to your boiler or heat pump circuit and is not available as an electric or dual fuel radiator.
Q.
What valves do I need for the Ancora?
A. Radiator valves are not supplied, so you need a lockshield valve and a manual or thermostatic valve. The inlet and outlet connections are 1/2 inch female, and Reina's pipe centre figure is 490mm. For a measurement including valves you add 90mm. Contact our team if you would like help choosing a pair that suits your pipework.
Q.
Can I hang towels on the Ancora?
A. Reina describe the Ancora as having integral slots for towel hanging, and the panel has five of them. It is a flat panel radiator rather than a dedicated towel rail, so check the heat output table if you also need it to warm the room.
Q.
What are the pipe centres and wall distances on the Ancora?
A. The Ancora is 1800mm high and 490mm wide, with pipe centres of 490mm. Wall to pipe centres is 35 to 55mm and the distance from the wall is 68 to 88mm, according to Reina's datasheet.
Q.
Which size Ancora do I need?
A. The Ancora comes in one size, 1800 x 490mm, in white or anthracite, and both finishes have the same heat output. Use the room fit calculator on this page to see whether it meets your room's heat loss, or contact our team for advice on your room.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working pressure of 6 bar, and we list a maximum working temperature of 95 degrees C. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Q.
What is included in the box and who should fit it?
A. The Ancora comes with four wall mounting brackets, four panel mounting brackets, four screws, four pegs, four M5 x 10mm bolts and a purger. Radiator valves are not included. We recommend that it is fitted by a qualified installer.
