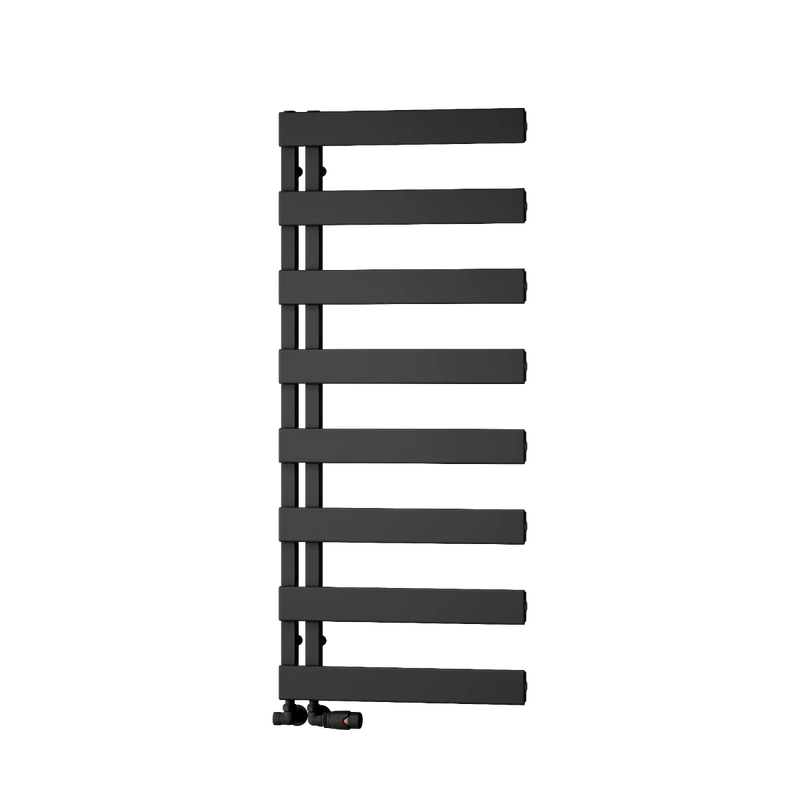

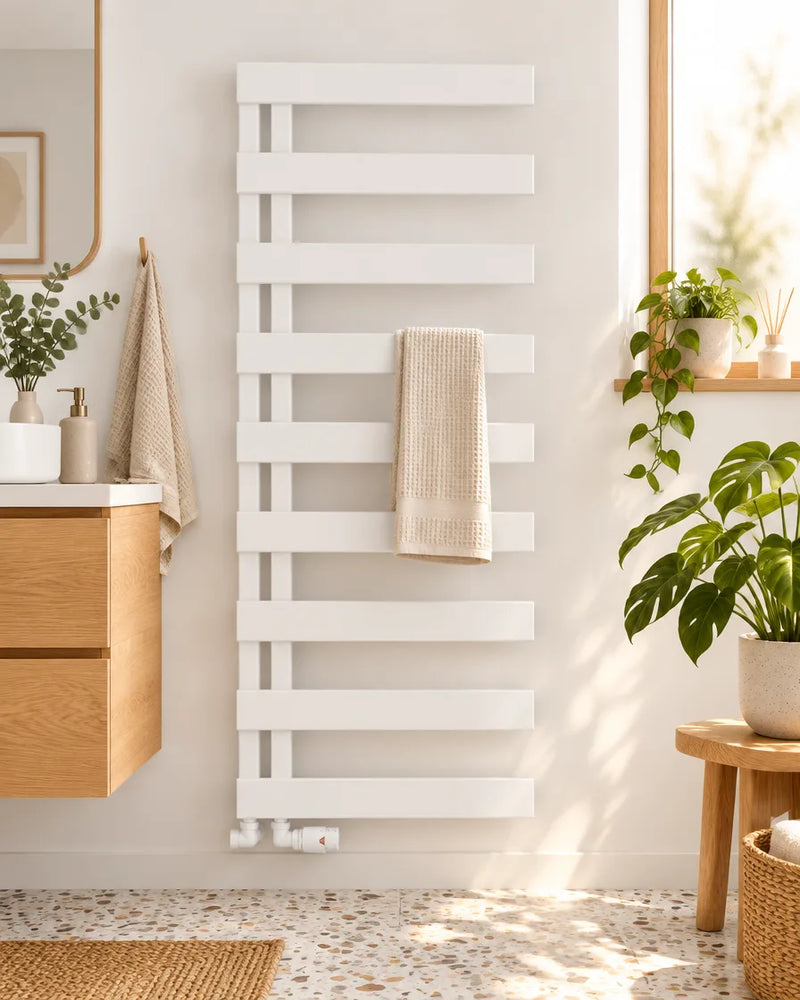

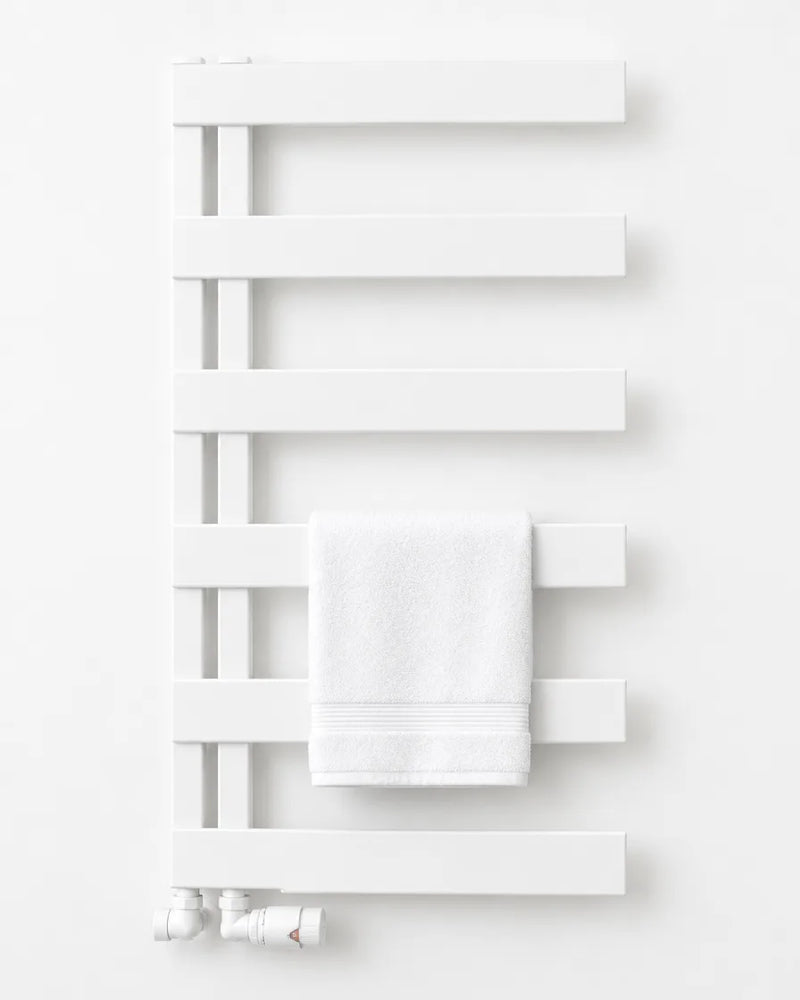

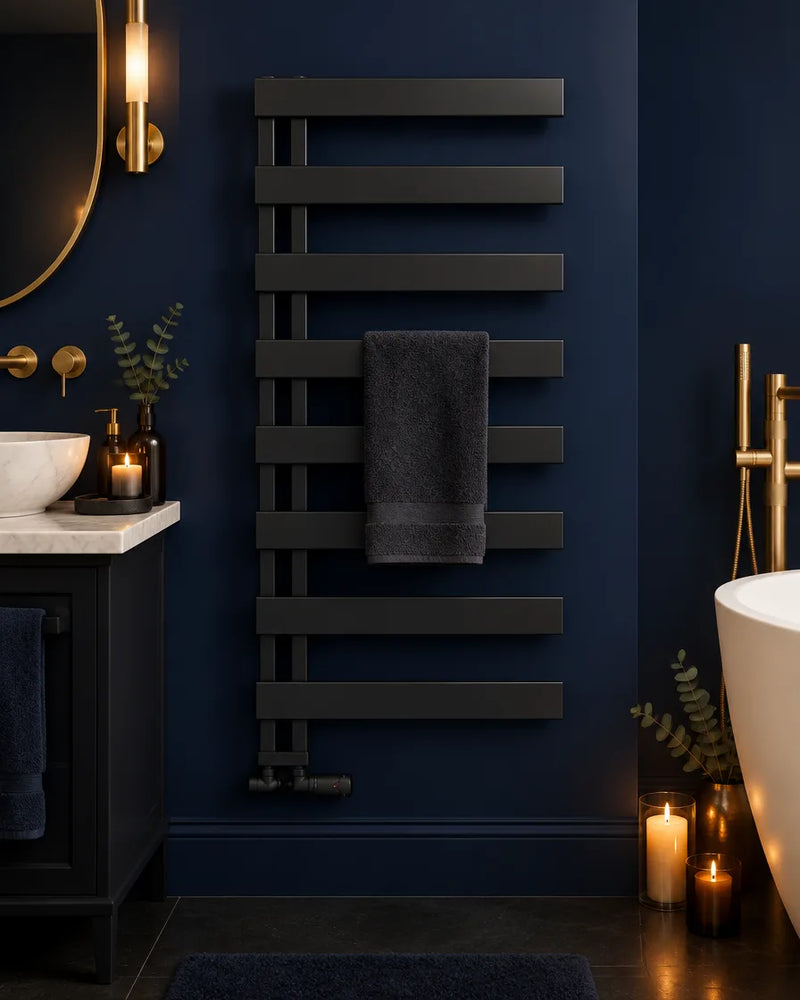

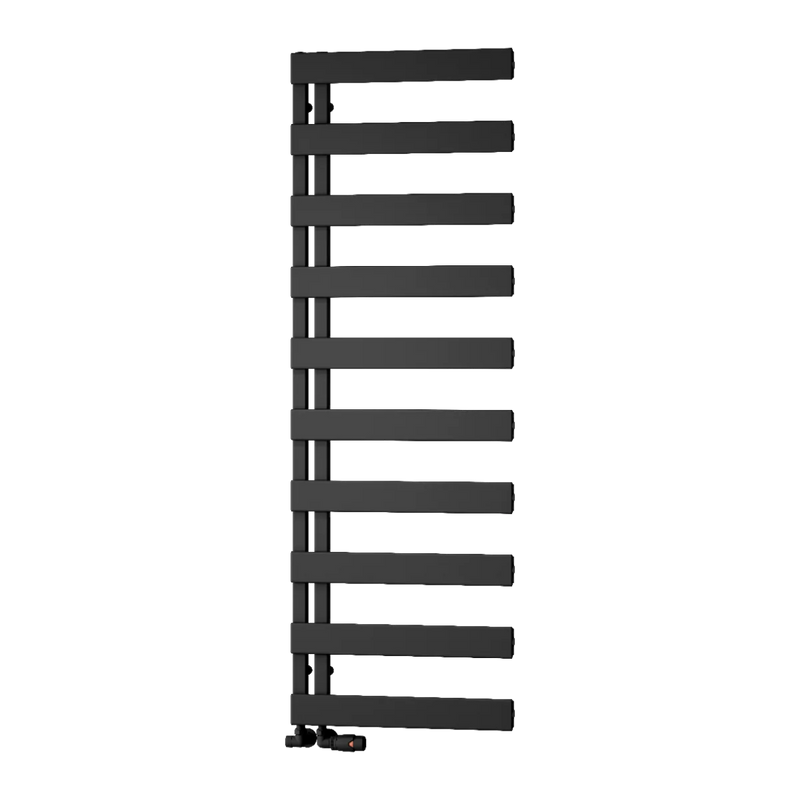

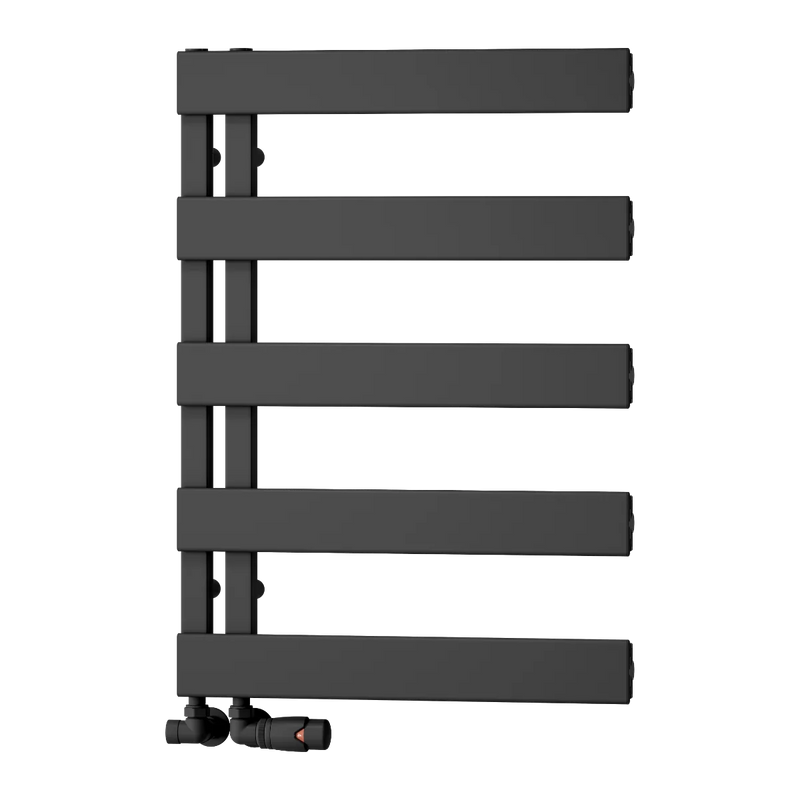

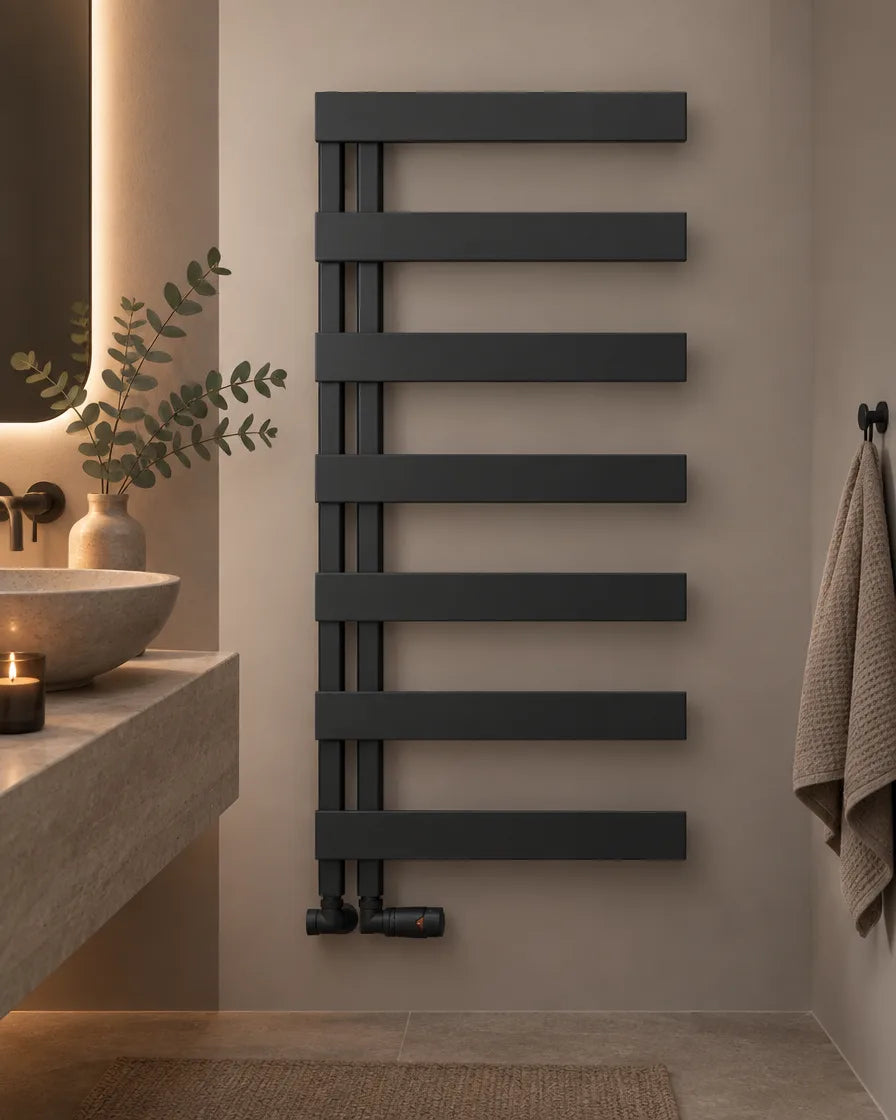

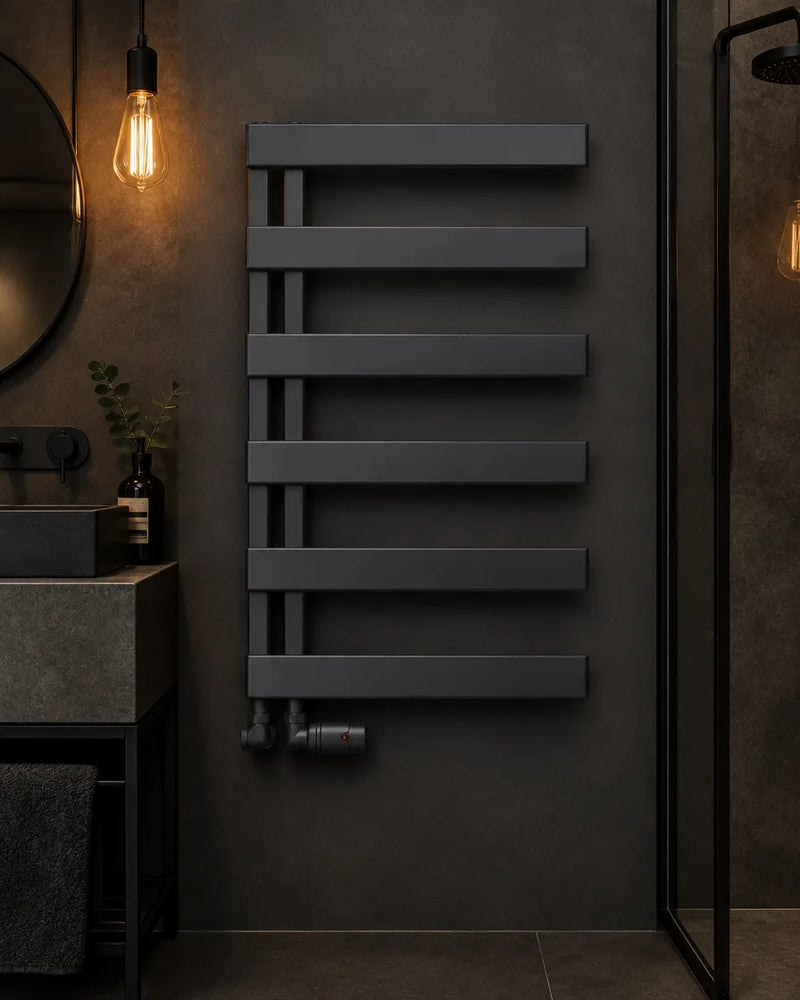

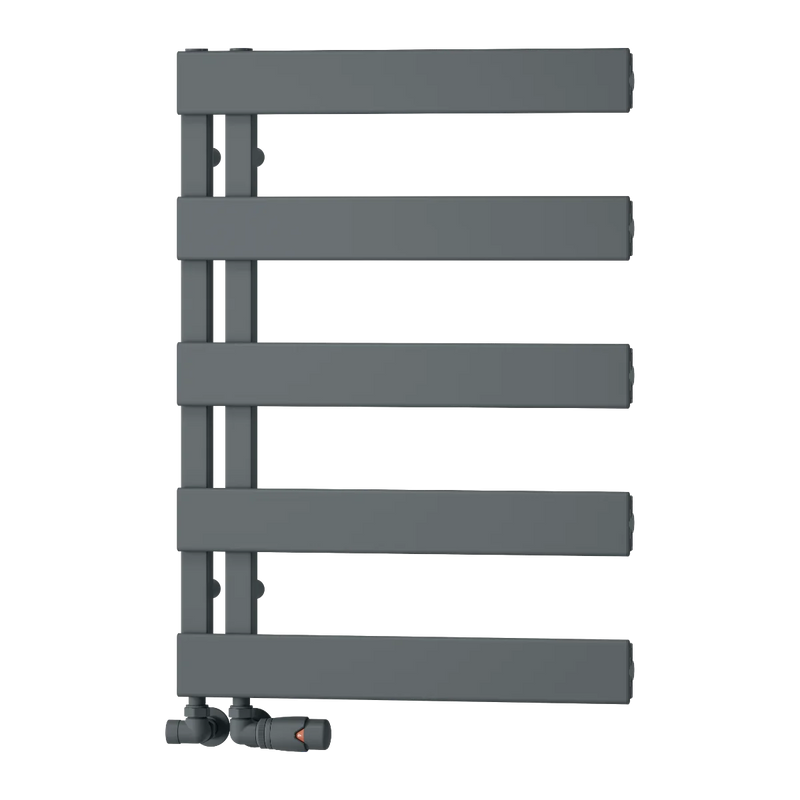

Reina Carpena Aluminium Heated Towel Rail
£168.00
£188.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Heat pump ready. 50mm close-coupled connections.
Product Overview & Key Specs
The Reina Carpena is a premium aluminium central heating towel radiator — three heights from 710mm to 1510mm, all 500mm wide, in White, Anthracite, or Matt Black. Aluminium's fast thermal response and high surface area make it ideal for modern gas systems and heat pumps running at low water temperatures.
710–1510mm
Three heights
500mm
Width
HP
Heat pump ready
5 yr
Warranty
View the Carpena in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Carpena in your room using augmented reality.
Choose Your Finish
White, Anthracite, and Matt Black — all three available in every height.

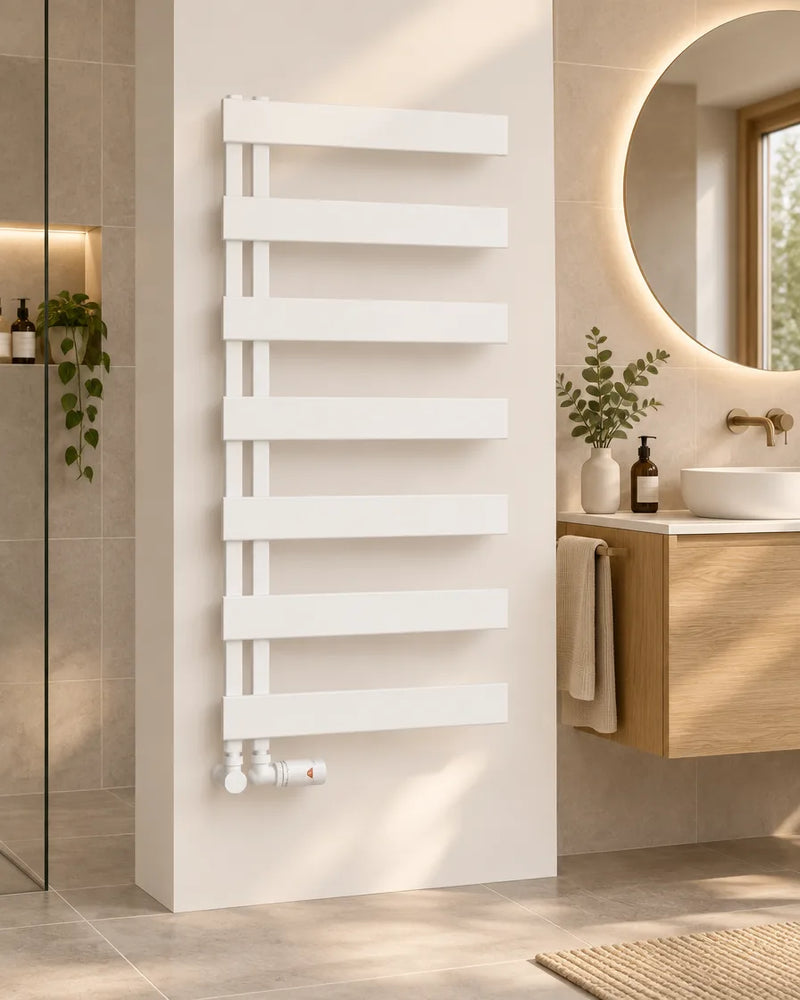

WhiteAll heights

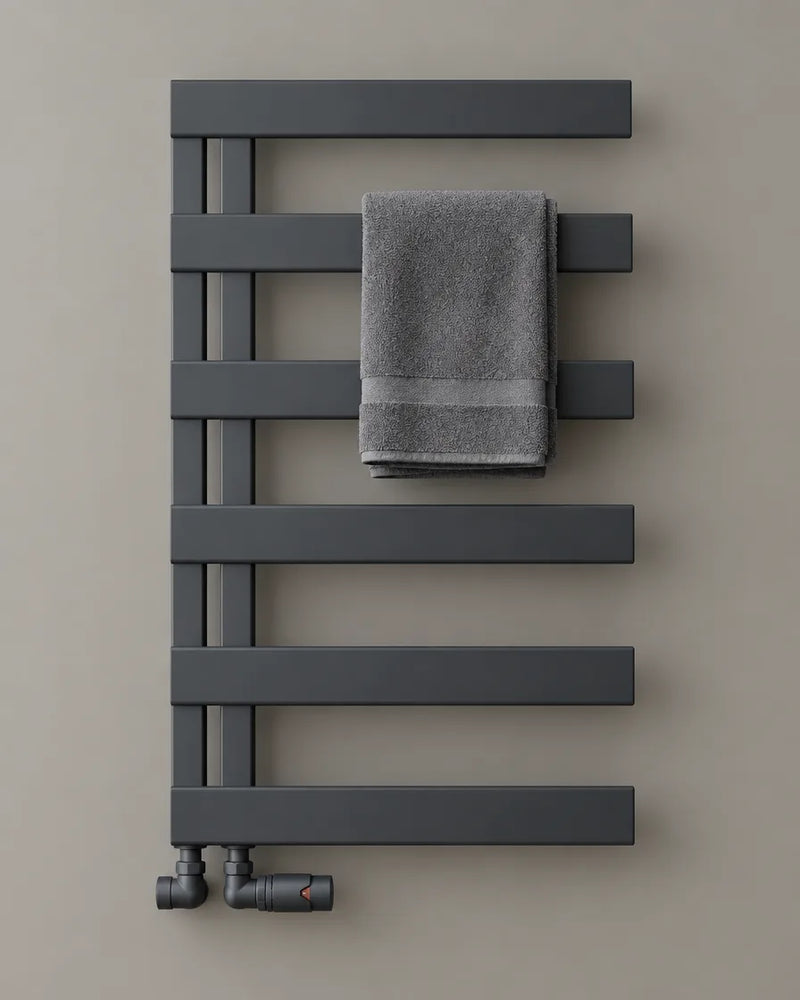

AnthraciteAll heights

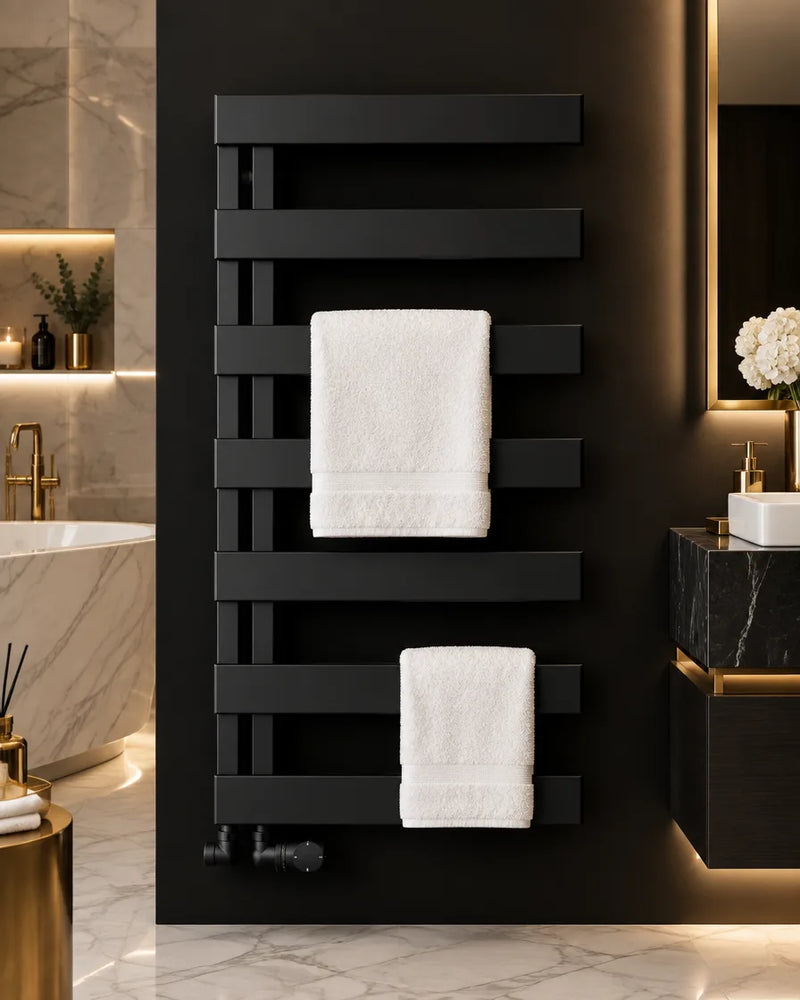

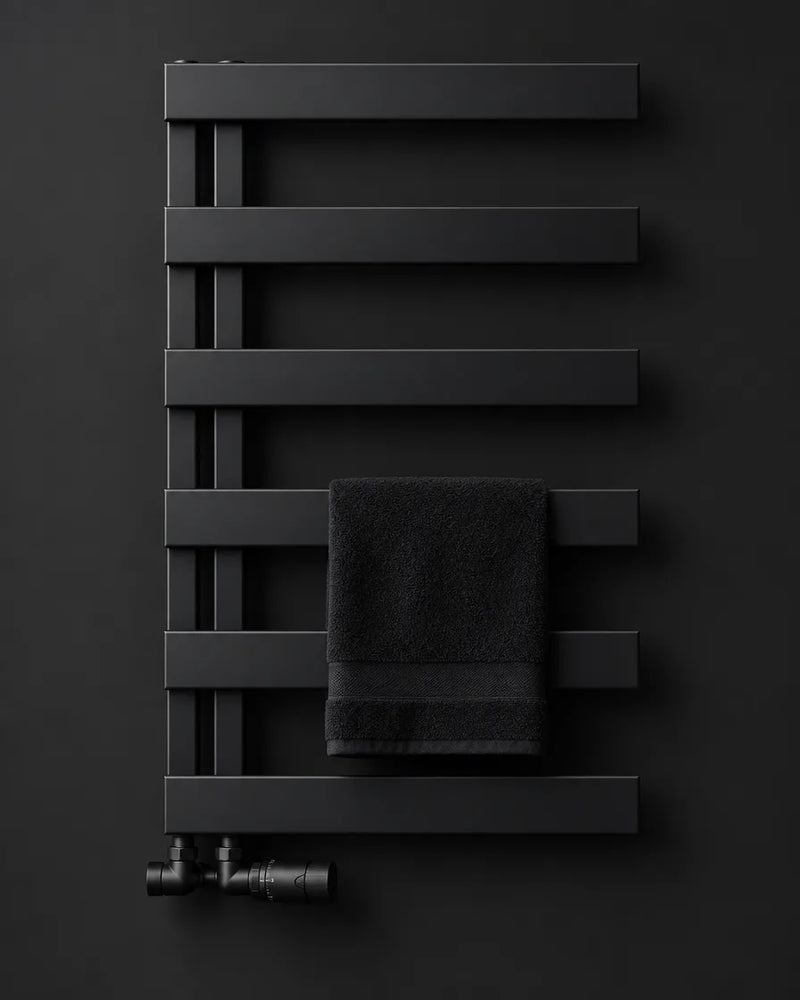

Matt BlackAll heights
Why Aluminium for Central Heating?
Three reasons the Carpena's aluminium construction makes a practical difference.
Heat pump readyLow temp ✔
Aluminium delivers excellent heat output at lower flow temperatures, making the Carpena well suited to air-source and ground-source heat-pump systems. It provides comfortable warmth at the 40–50°C flow temperatures used by many modern heat-pump installations.
Fast responseSmart controls ✔
Aluminium heats up quickly, so the bathroom and towels become warm soon after the heating comes on. It responds rapidly to thermostats, timers and smart heating controls, reducing wasted energy between cycles.
Corrosion resistantBuilt to last
Aluminium naturally forms a protective oxide layer, helping the Carpena withstand the warm, humid conditions found in bathrooms. For optimum service life, install it in a clean, correctly treated central-heating system with a suitable inhibitor.
Central-heating systems containing aluminium should be flushed and dosed with an inhibitor compatible with aluminium — such as Fernox F1 or Sentinel X100. Check manufacturer guidance for correct system treatment and ongoing maintenance.
Heat Output by Height & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). All at 500mm width.
| Height | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts |
|---|---|---|---|---|
| 710mm | 1,333 | 1,041 | 528 | 305W |
| 1190mm | 2,152 | 1,681 | 852 | 493W |
| 1510mm | 2,698 | 2,108 | 1,069 | 618W |
Heat pump owners: use the ΔT30 column for accurate figures. Aluminium's large surface area means the Carpena retains a good proportion of its rated output at lower flow temperatures.
Choose Your Height
All three sizes are 500mm wide with 50mm pipe centres.

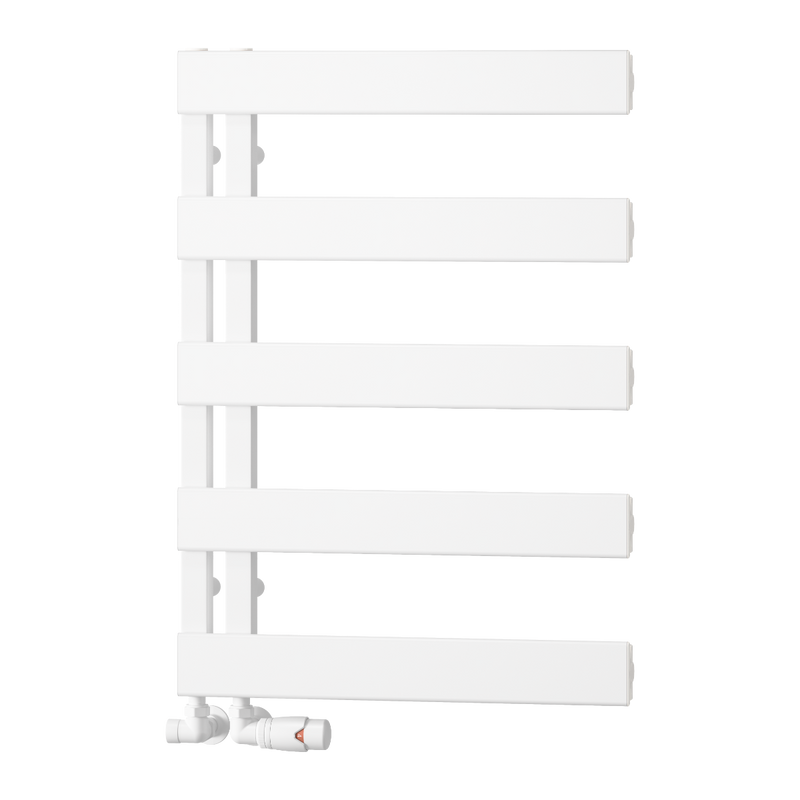

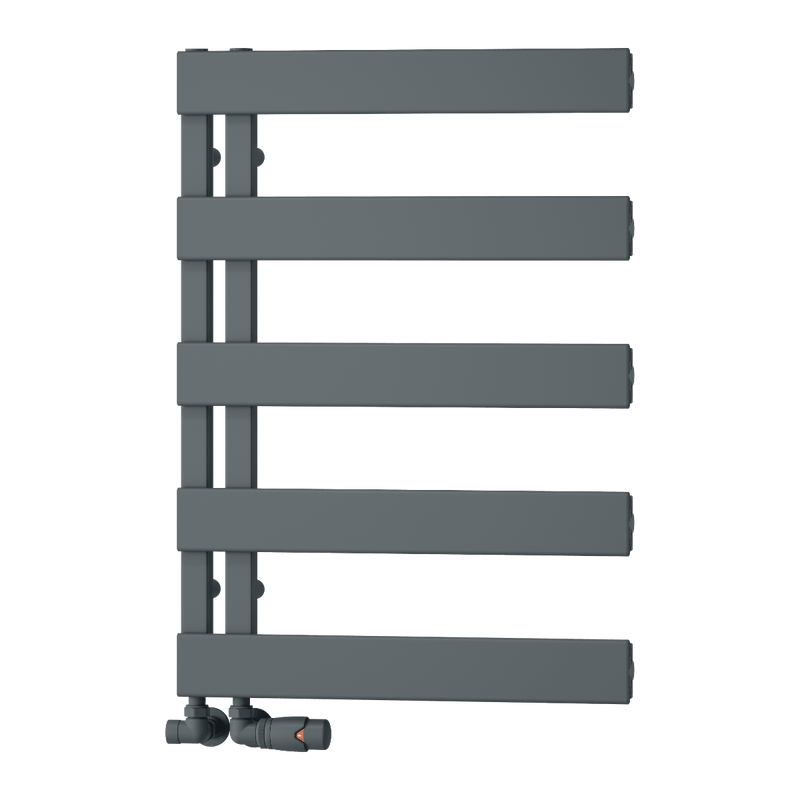

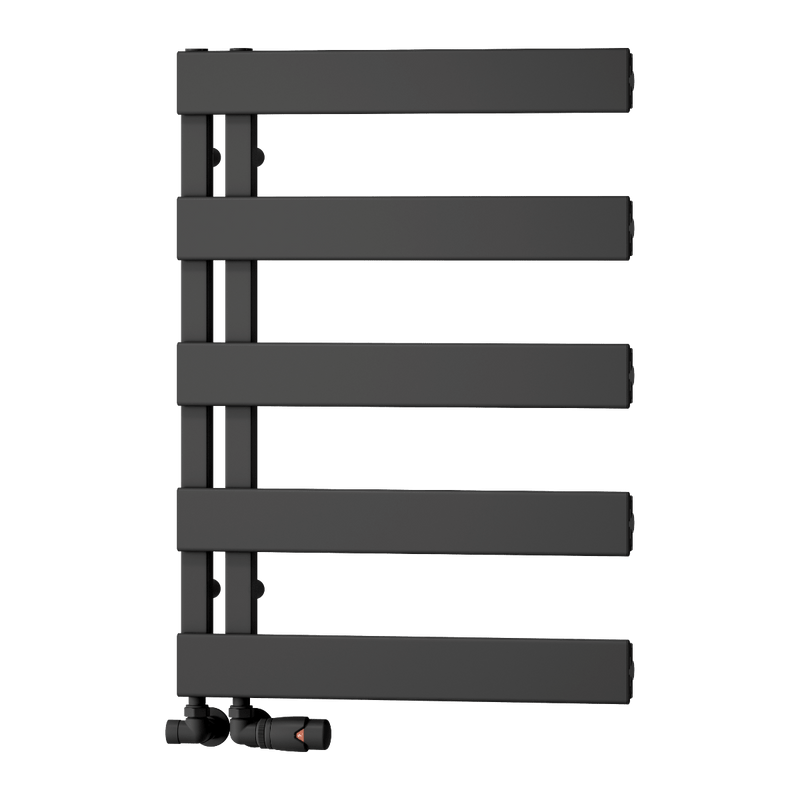

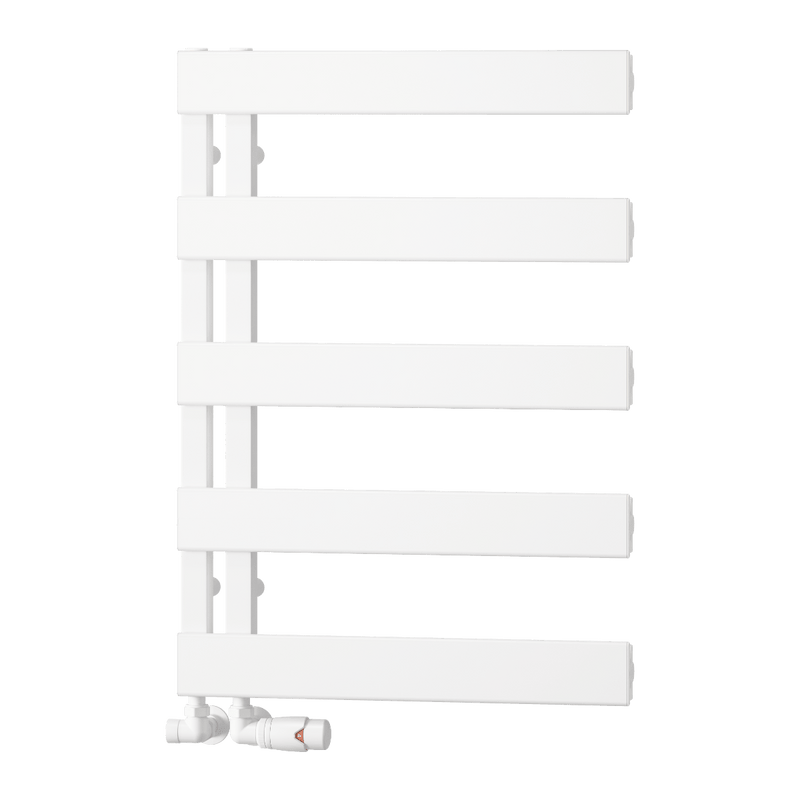

710mm
500mm wide
1,041 BTU (T50)

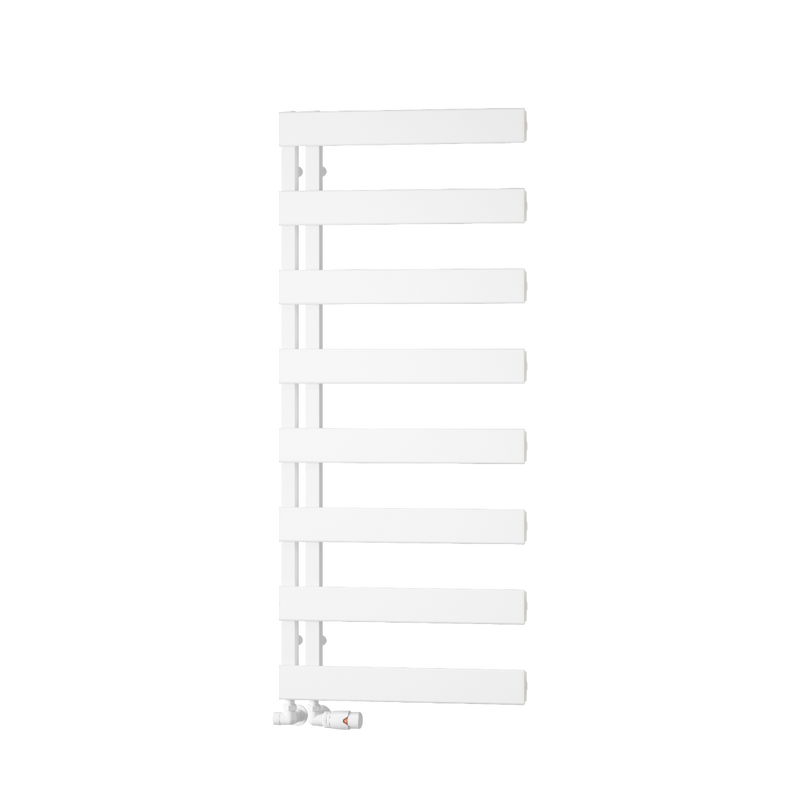

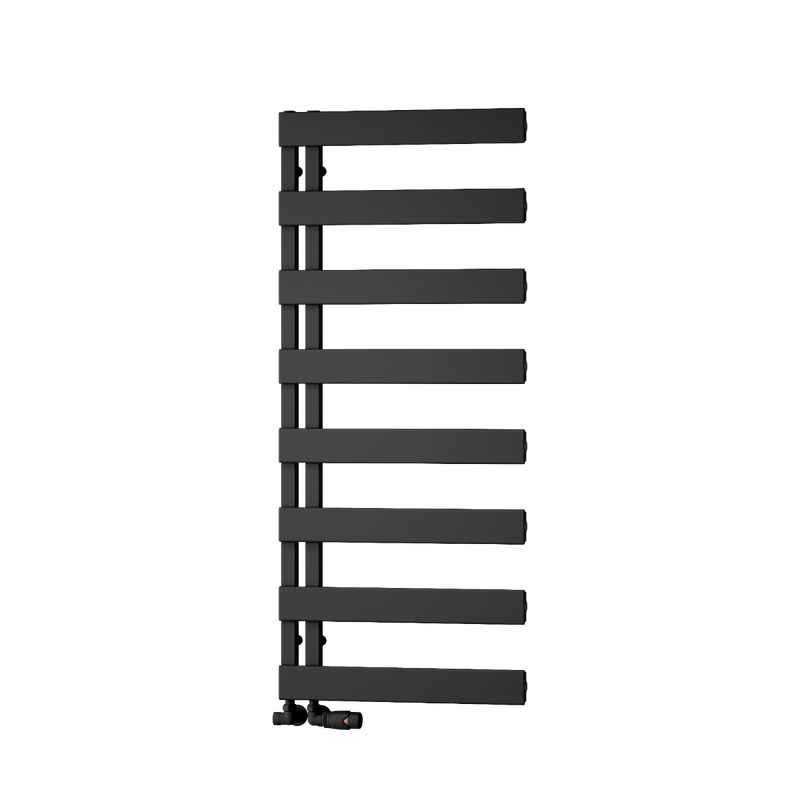

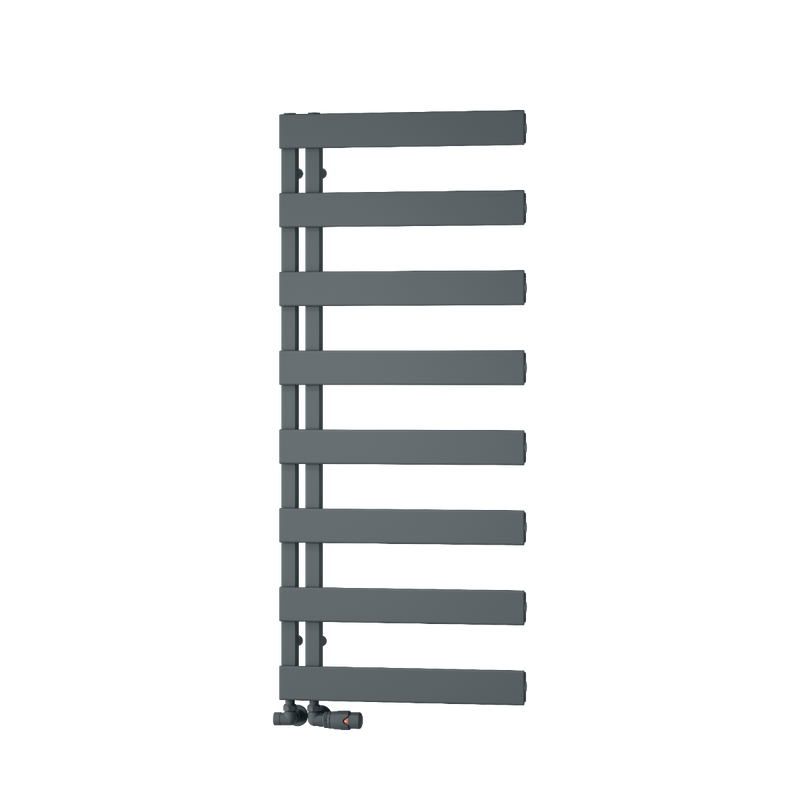

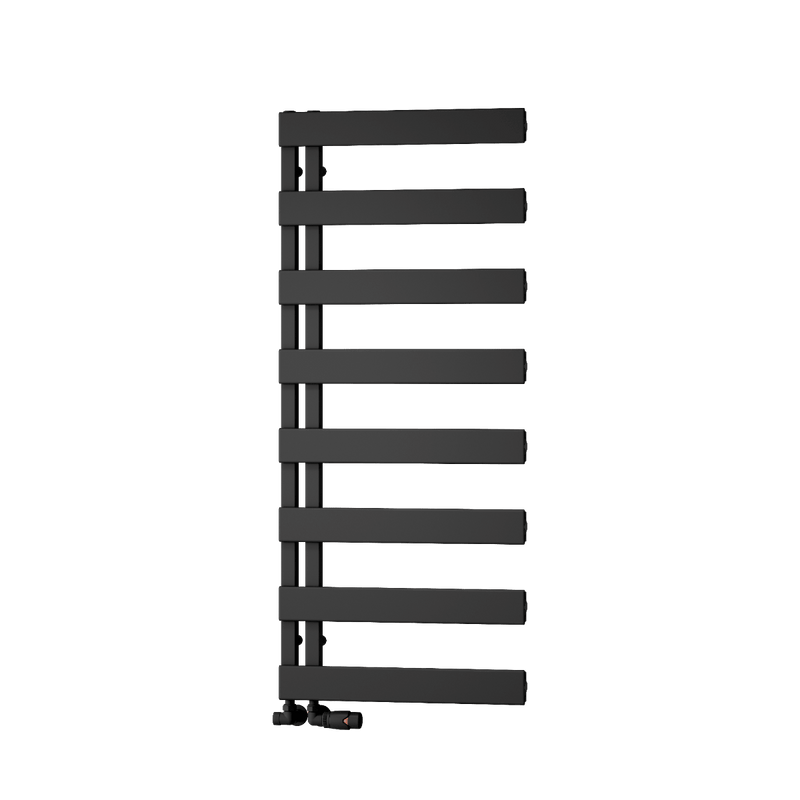

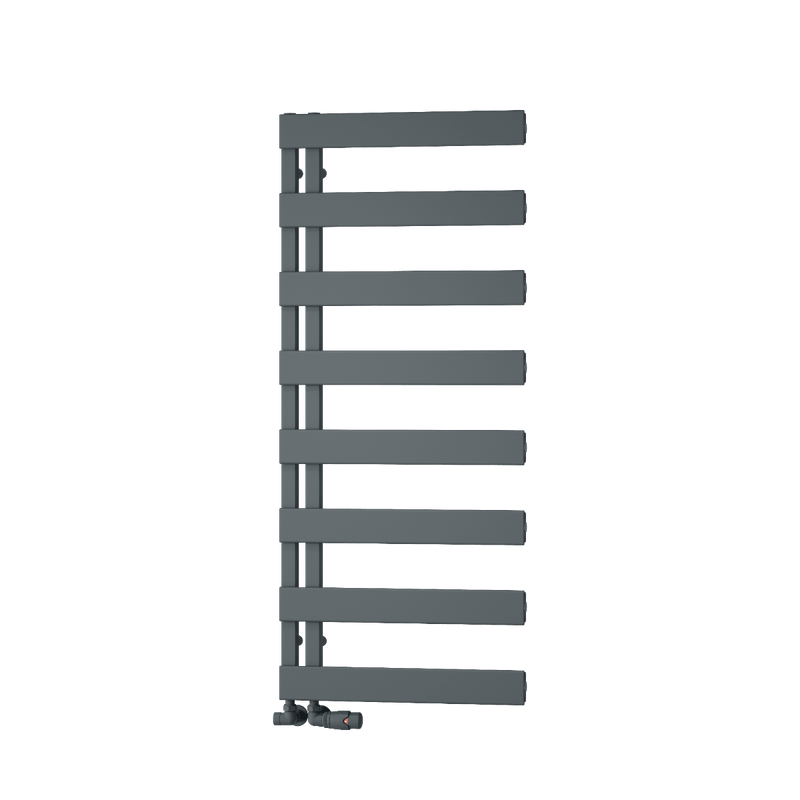

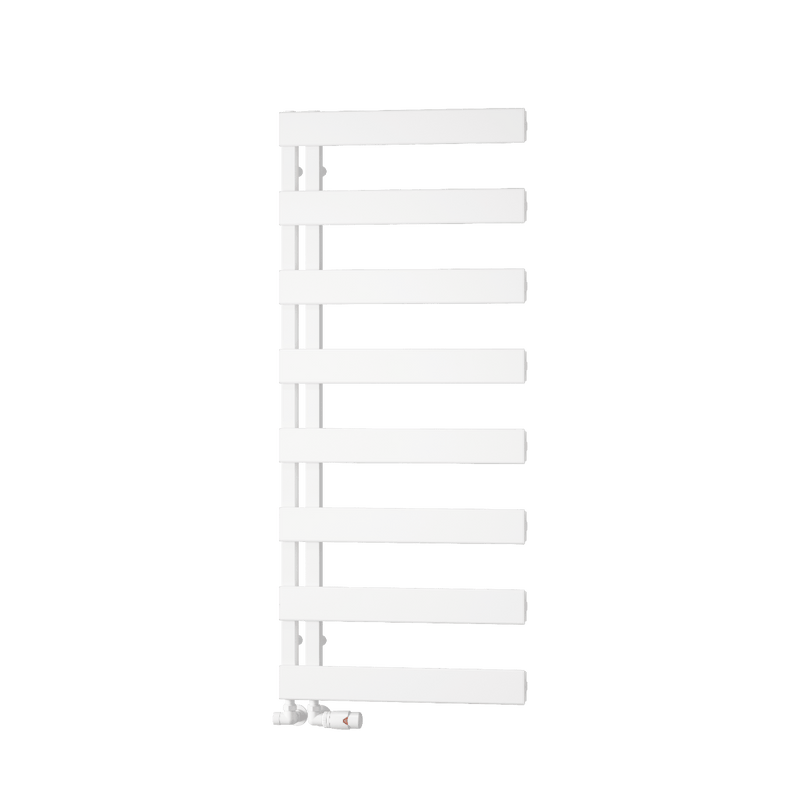

1190mm
500mm wide
1,681 BTU (T50)

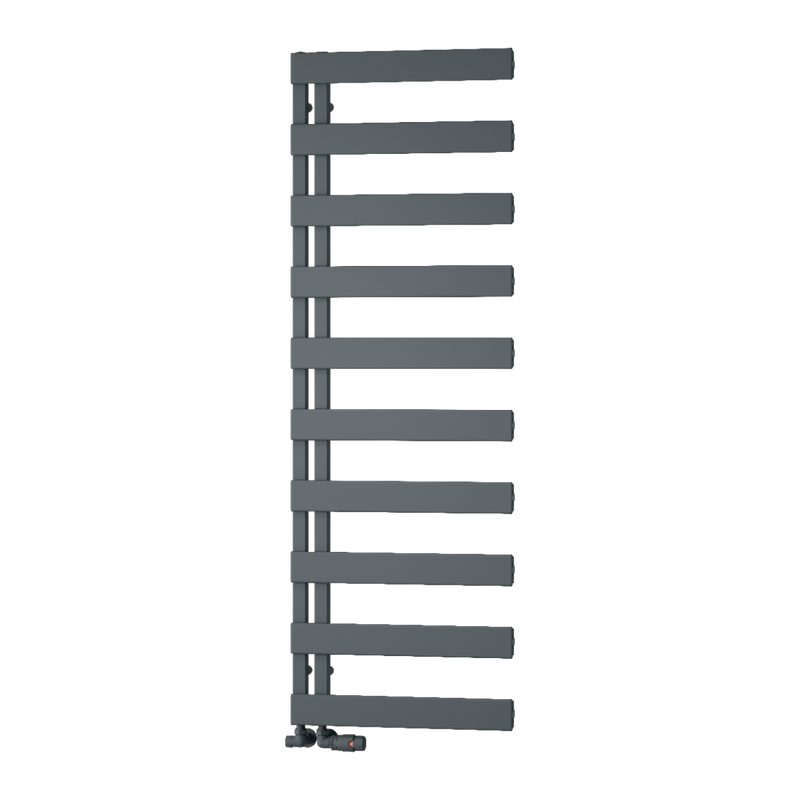

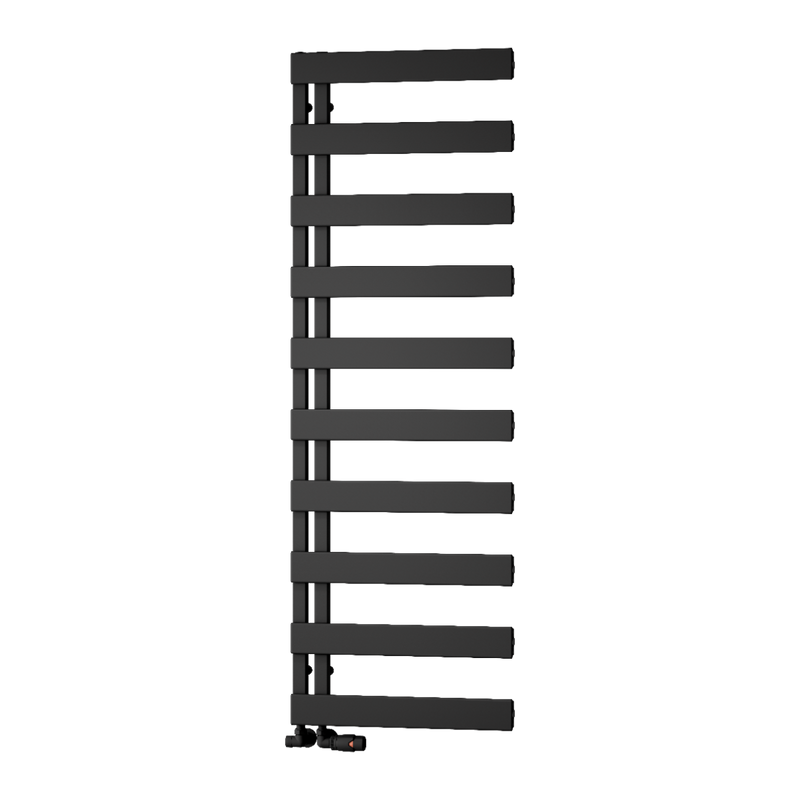

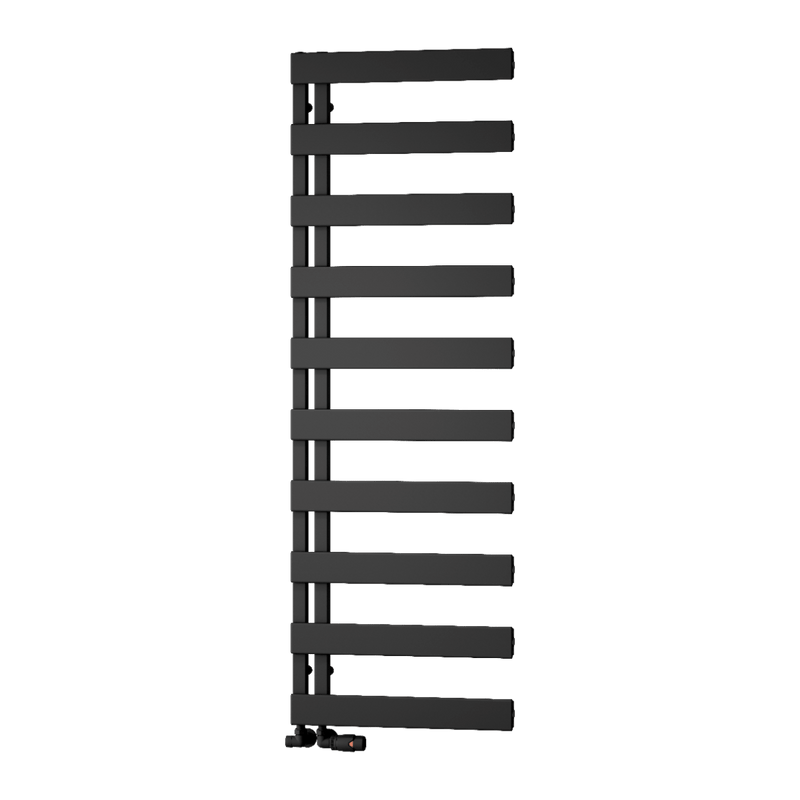

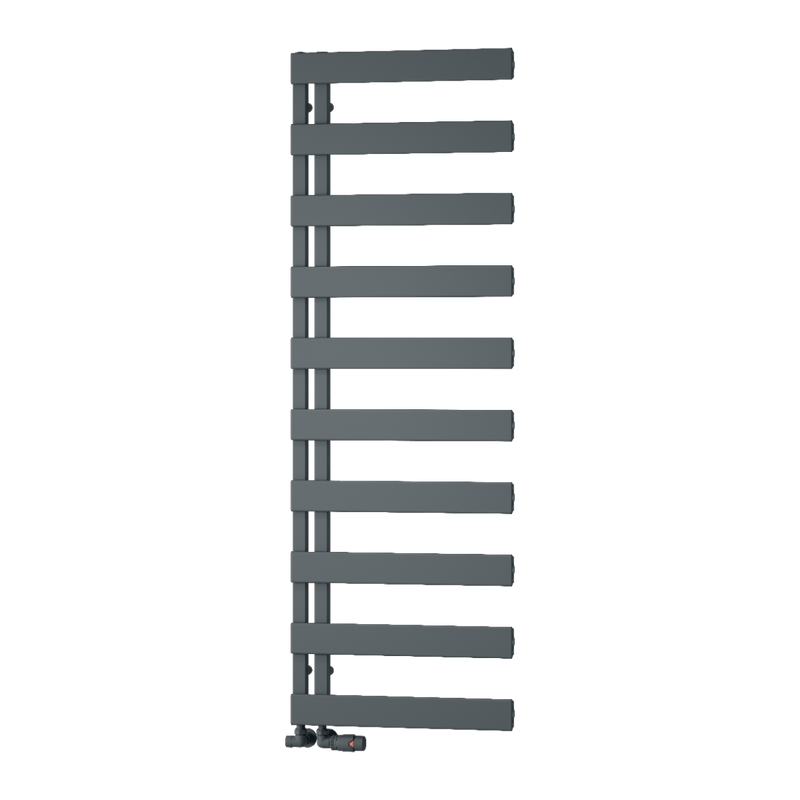

1510mm
500mm wide
2,108 BTU (T50)

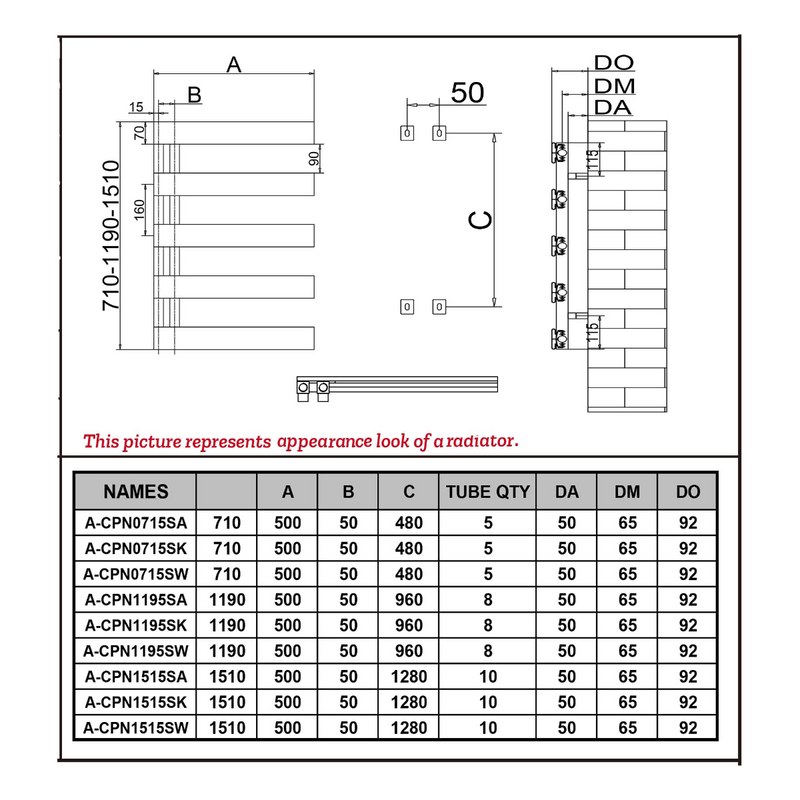

Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Carpena |
| Heights available | 710 / 1190 / 1510mm |
| Width | 500mm (all sizes) |
| Projection from wall | ~92mm (including bracket) |
| Pipe centres | 50mm (close-coupled, fixed across all heights) |
| Connection | 1/2" BSP bottom inlets |
| Valve type | H-block / close-coupled valves required |
| Bars | 5 (710mm) / 8 (1190mm) / 10 (1510mm) |
| Material | Aluminium |
| Finishes | White / Anthracite / Matt Black |
| Max working pressure | 10 bar |
| Max water temperature | 110°C |
| Heat pump compatible | Yes — good output at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
710–1510mm
3 height options
Width500mm
Centres50mm
✓
Heat pump ready
ΔT30 rated · aluminium construction
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system — we'll compare against the Carpena's output.
Frequently Asked Questions
Q.
Is the Carpena compatible with a heat pump?
A. Yes. Aluminium's large surface area delivers good heat output at the lower flow temperatures (40–50°C) that ASHPs and GSHPs run at. Check the ΔT30 column in our output table for accurate figures.
Q.
What valves do I need?
A. The Carpena has bottom connections with 50mm pipe centres. Standard angled or corner valves will not span this distance directly — you need H-block manifold valves or close-coupled fittings. Contact our team to confirm the right valve for your pipework.
Q.
What is the pipe centre distance?
A. 50mm, fixed across all three heights (710mm, 1190mm, and 1510mm). This is closer than most towel rails — confirm valve compatibility before ordering.
Q.
Which height do I need?
A. Use the room fit calculator above. For a bathroom up to ~6m³, the 710mm (1,041 BTU) is typically sufficient. For bathrooms up to ~10m³, choose the 1190mm (1,681 BTU). For larger or poorly insulated bathrooms, the 1510mm (2,108 BTU) provides better headroom.
Q.
Why choose aluminium over steel?
A. Aluminium heats and cools 5–10× faster than steel. Towels warm up quickly after the heating comes on and the radiator cools down fast when you're done — reducing wasted heat. It responds well to TRV and thermostat control.
Q.
What finishes are available?
A. White, Anthracite, and Matt Black — all available in every height. Heat output is identical across all three colours.
Q.
Can I replace my existing towel rail with the Carpena?
A. If your existing rail also has 50mm pipe centres, yes — it's a direct replacement. If your current rail has wider pipe centres, your plumber will need to adjust or re-route the pipework. Our team can advise.
