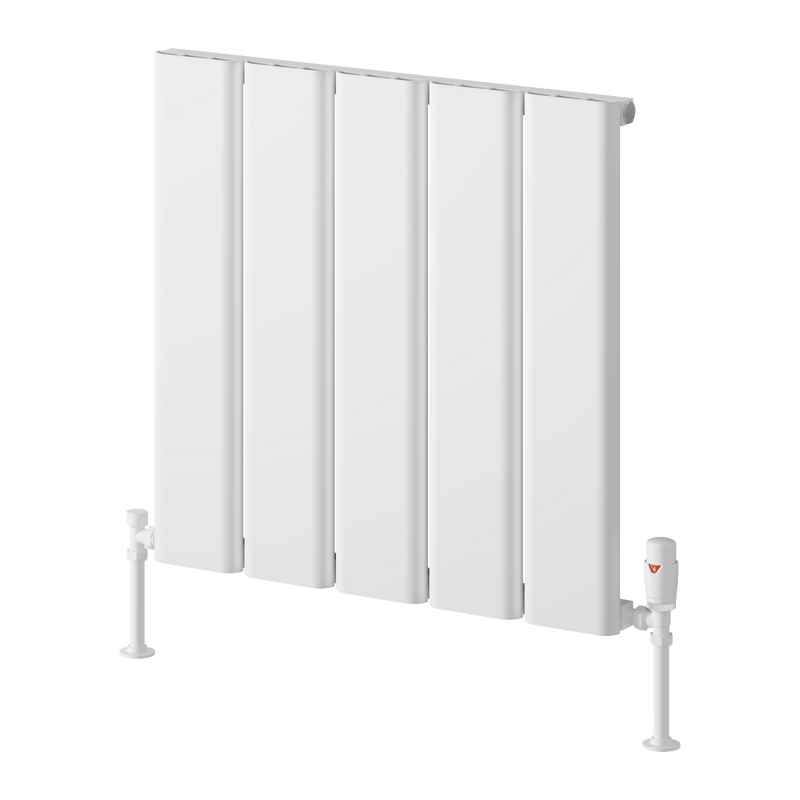

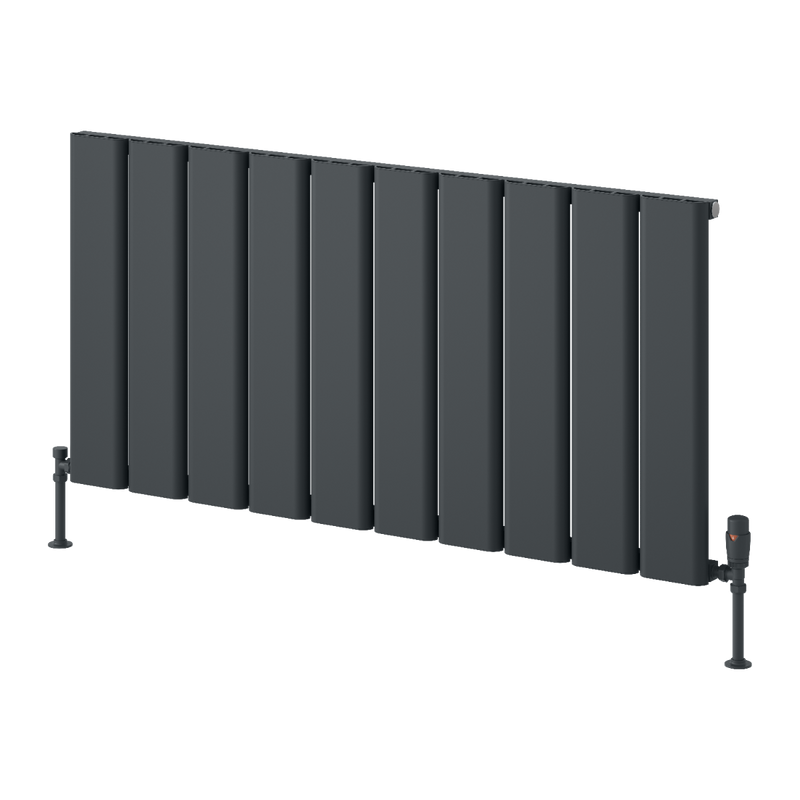

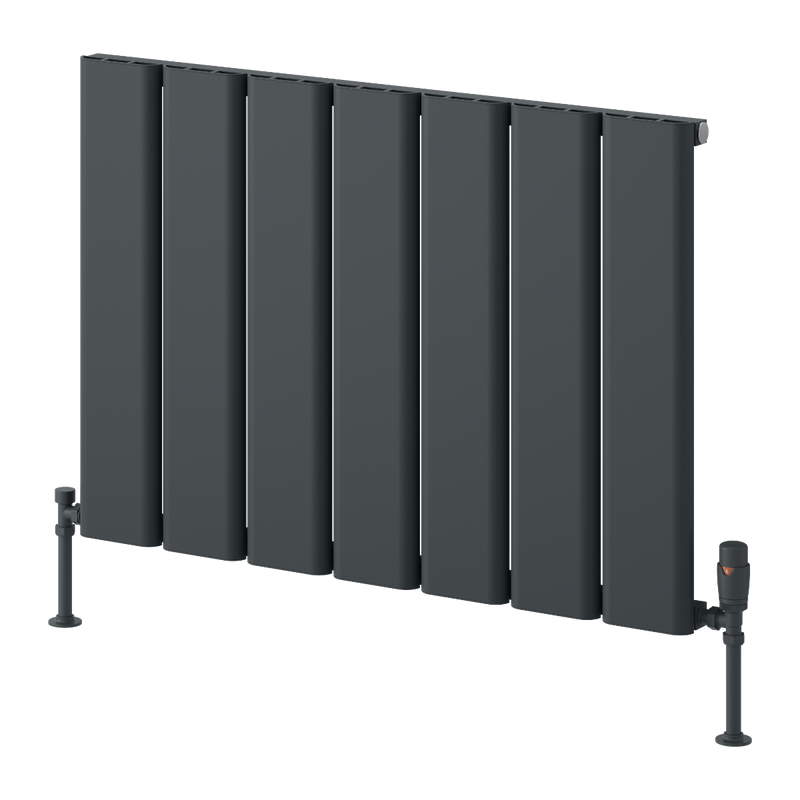

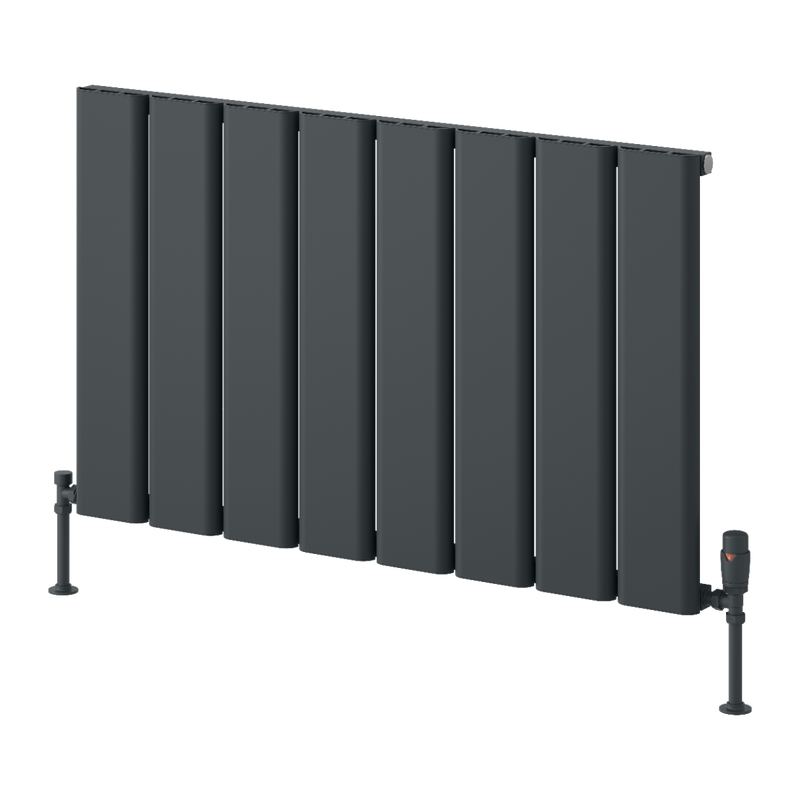

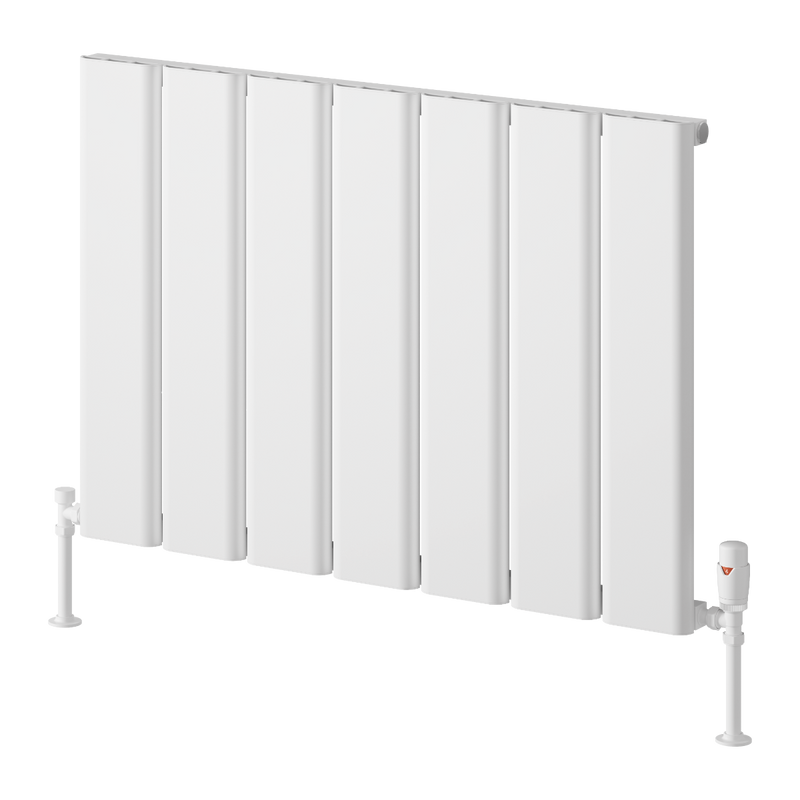

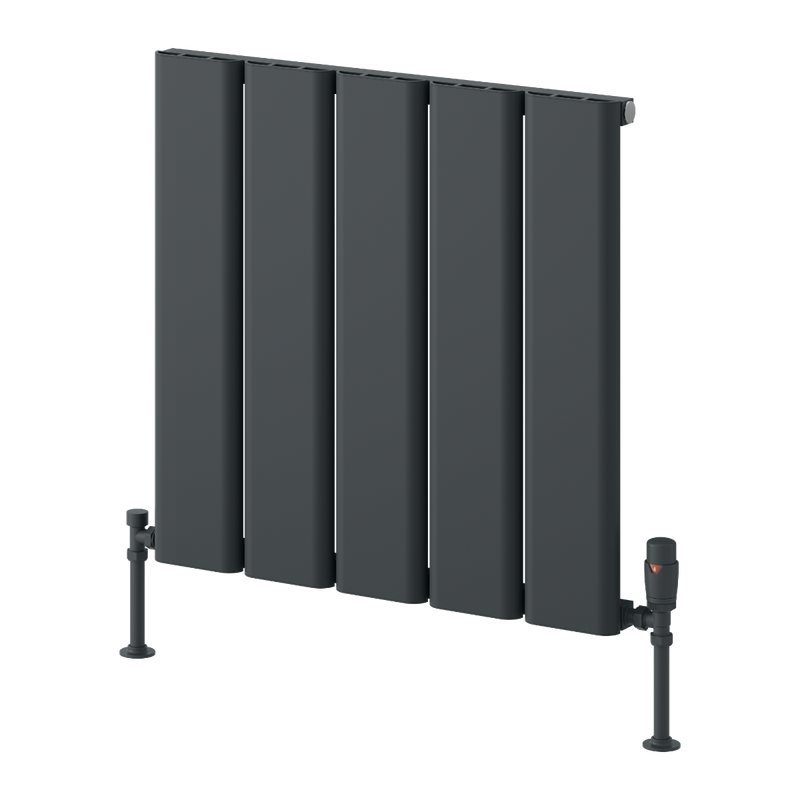

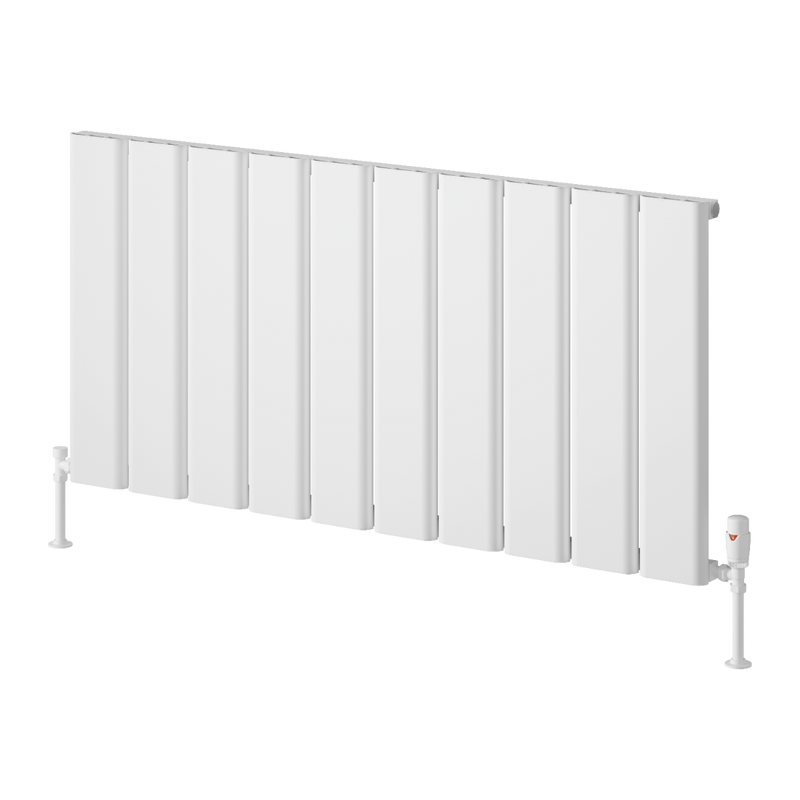

Reina Caldaro Horizontal Aluminium Radiator
£249.60
£269.60
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
Central heating. Heat pump ready. Horizontal designer aluminium.
Product Overview & Key Specs
The Reina Caldaro Horizontal is a designer aluminium central heating radiator — four widths from 620mm to 1245mm, fixed 600mm height, in White or Anthracite. Aluminium's fast response and large surface area make it equally effective on gas boilers and low-temperature heat pump systems.
620–1245mm
Four widths
600mm
Height
HP
Heat pump ready
5 yr
Warranty
View the Caldaro in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Caldaro in your room using augmented reality.
Why Aluminium for Central Heating?
Three practical reasons aluminium outperforms steel for modern heating systems.
Heat pump readyLow temp ✔
Aluminium delivers excellent heat output at lower flow temperatures — well suited to air-source and ground-source heat-pump systems. It provides comfortable warmth at the 40–50°C flow temperatures used by many modern heat-pump installations.
Fast responseSmart controls ✔
Aluminium heats up quickly, so the bathroom and towels become warm soon after the heating comes on. It responds rapidly to thermostats, timers and smart heating controls.
Corrosion resistantBuilt to last
Aluminium naturally forms a protective oxide layer, helping it withstand the warm, humid conditions found in bathrooms. For optimum service life, install in a clean, correctly treated central-heating system.
In the Room

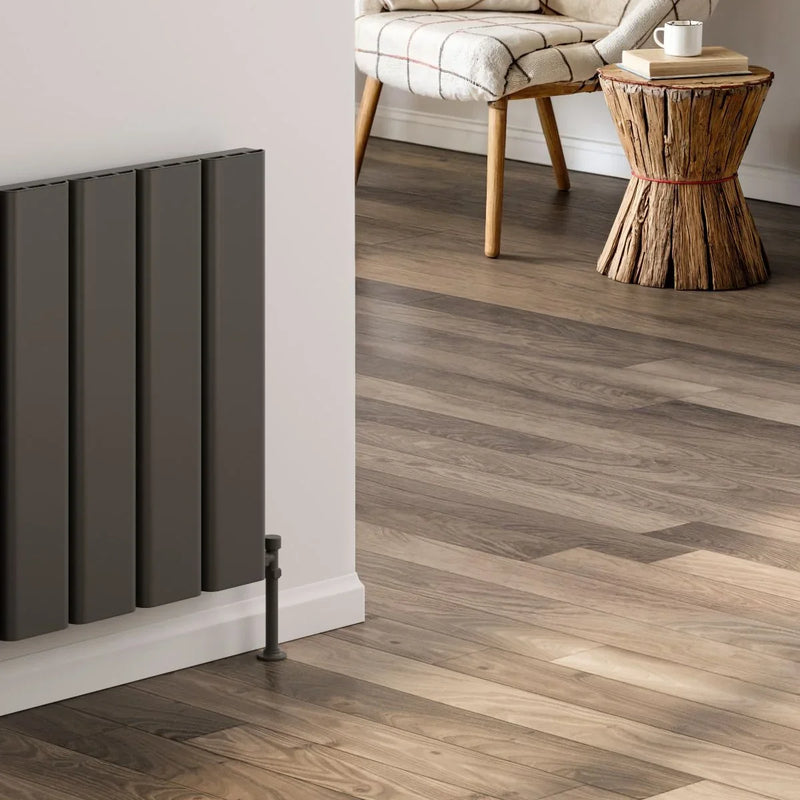

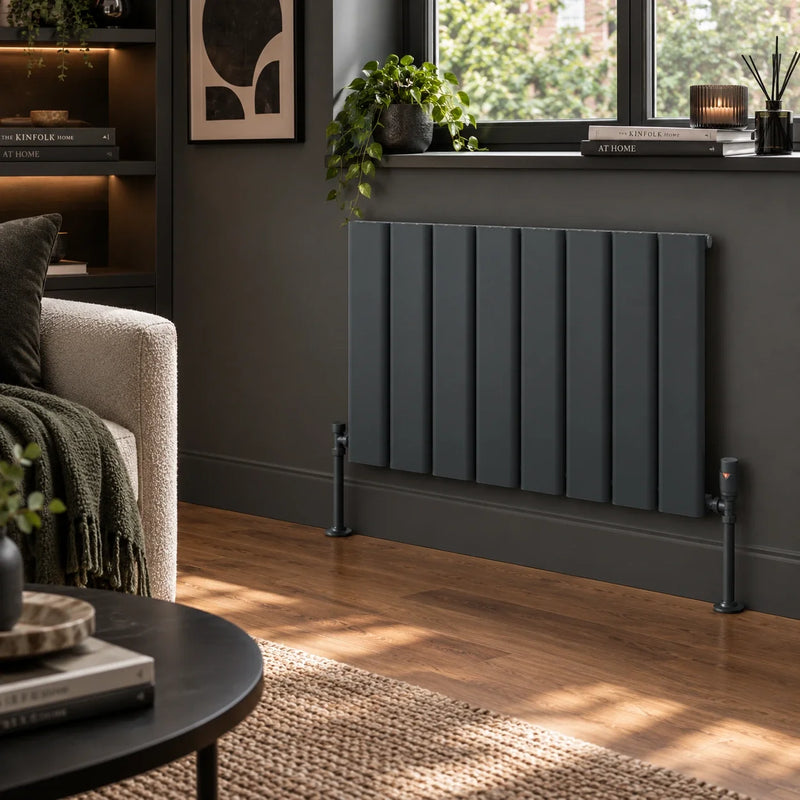

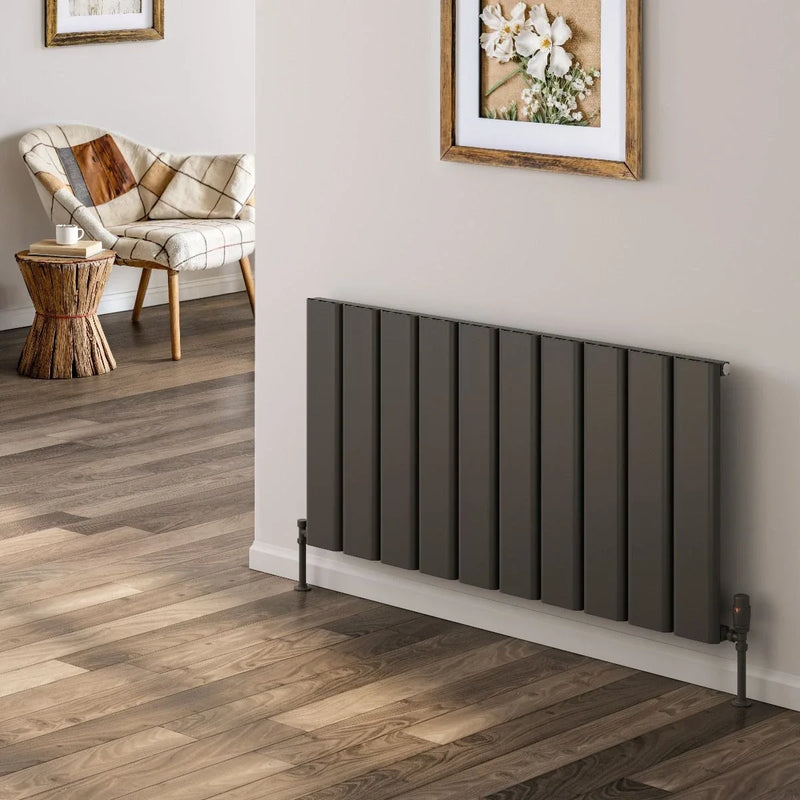

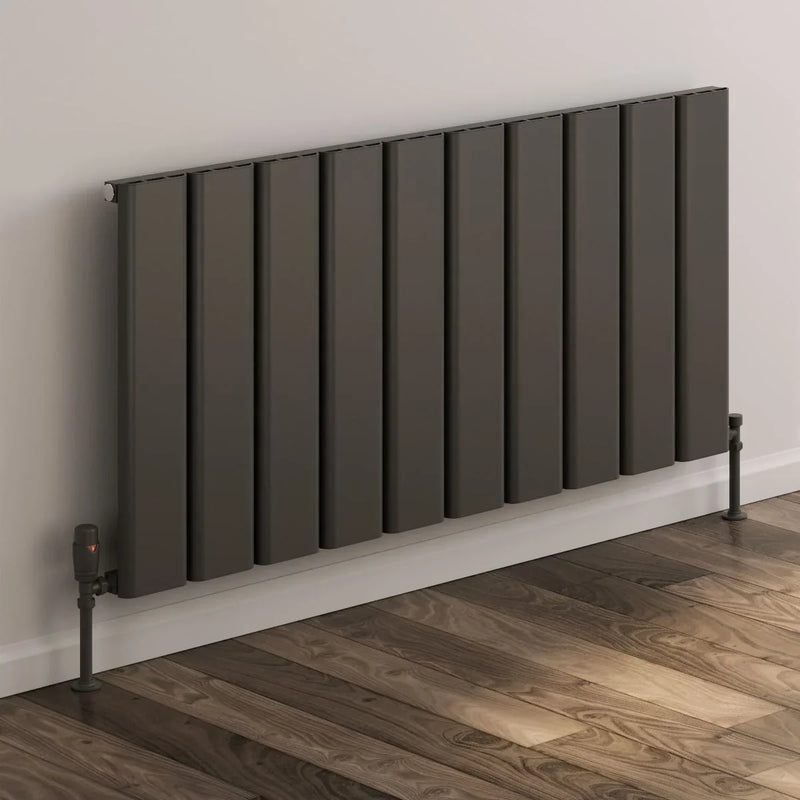

The Caldaro Horizontal in Anthracite — shown in three different room settings.
Choose Your Finish
White or Anthracite — same aluminium body, same heat output.
WhiteAll sizes
AnthraciteAll sizes
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). All at 600mm height.
| Width | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
Finishes |
|---|---|---|---|---|---|---|---|
| 620mm | 5 col | 2,488 | 1,944 | 1,006 | 570 | 295 | W / A |
| 870mm | 7 col | 3,483 | 2,721 | 1,409 | 798 | 413 | W / A |
| 995mm | 8 col | 3,980 | 3,109 | 1,610 | 912 | 472 | W / A |
| 1245mm | 10 col | 4,972 | 3,884 | 2,011 | 1,139 | 590 | W / A |
Heat pump owners: use the ΔT30 column. Aluminium retains a strong proportion of its rated output at lower flow temperatures.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Caldaro Horizontal |
| Height | 600mm (all sizes) |
| Width options | 620 / 870 / 995 / 1245mm |
| Projection from wall | 90mm |
| Pipe centres | Radiator width + 90mm — e.g. 870mm model = ~960mm centres |
| Connection | 1/2" BSP side inlets |
| Valve type | Angled or corner valves — TRV recommended |
| Material | Aluminium |
| Finishes | White / Anthracite |
| Included | Wall brackets and fixings |
| Not included | Radiator valves |
| Max working pressure | 10 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes — excellent output at ΔT30 |
| Warranty | 5 years (Reina manufacturer) |
620–1245mm
4 width options
Height600mm
Proj90mm
✓
Heat pump ready
ΔT30 rated · large surface area
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Caldaro Horizontal compatible with a heat pump?
A. Yes. Aluminium delivers strong heat output at the lower flow temperatures (40–50°C) that heat pumps run at. Use the ΔT30 column in the heat output table for accurate figures.
Q.
What valves do I need?
A. TRV recommended for individual room control. Angled valves for floor or wall pipes; corner valves for wall-surface pipes only. A valve set adds 90mm total (45mm per side) to the pipe centre distance.
Q.
What are the pipe centres?
A. Pipe centres = radiator width + 90mm. Example: 870mm model = ~960mm pipe centres. Each valve adds 45mm (90mm for the set). Measure before cutting or routing pipes.
Q.
Which size do I need?
A. Use the room fit calculator above. As a rule of thumb, allow 100 BTU per m³ for a modern well-insulated UK room, then choose the smallest size that exceeds that figure at your system's ΔT.
Q.
Can I replace my existing radiator?
A. Yes, if pipe positions align. Measure existing pipe centres, subtract 90mm to find the radiator width you need, then match to one of the four Caldaro Horizontal sizes. Standard 1/2" BSP connections.
Q.
Why aluminium over steel?
A. Aluminium heats and cools 5–10× faster than steel. Better for TRV-controlled zones, weather compensation, and any system where you want quick response and minimal wasted heat.
Q.
What finishes are available?
A. White and Anthracite across all four widths. Both share the same aluminium body and heat output — the choice is purely aesthetic.
