Elegant Antico White Horizontal Column Radiator | 300-750 mm | 9-30 Bars

9766
BTU
2864W
Watts
£78.30 £98.30 Save £20.00
Inc. VAT · Fast UK delivery
  • Column
In Stock
Estimated Delivery:
30-day returns
WhatsApp 02477 220 780
5 Years Guarantee
Manufacturer backed
UK Company
Since 2012 · Coventry
Expert Help
WhatsApp or call
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty

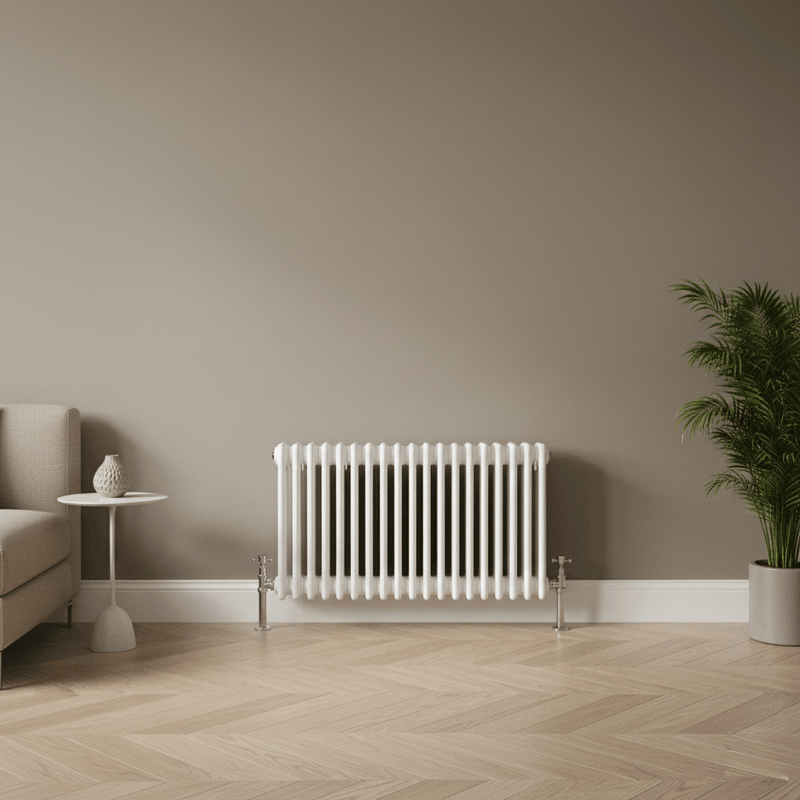

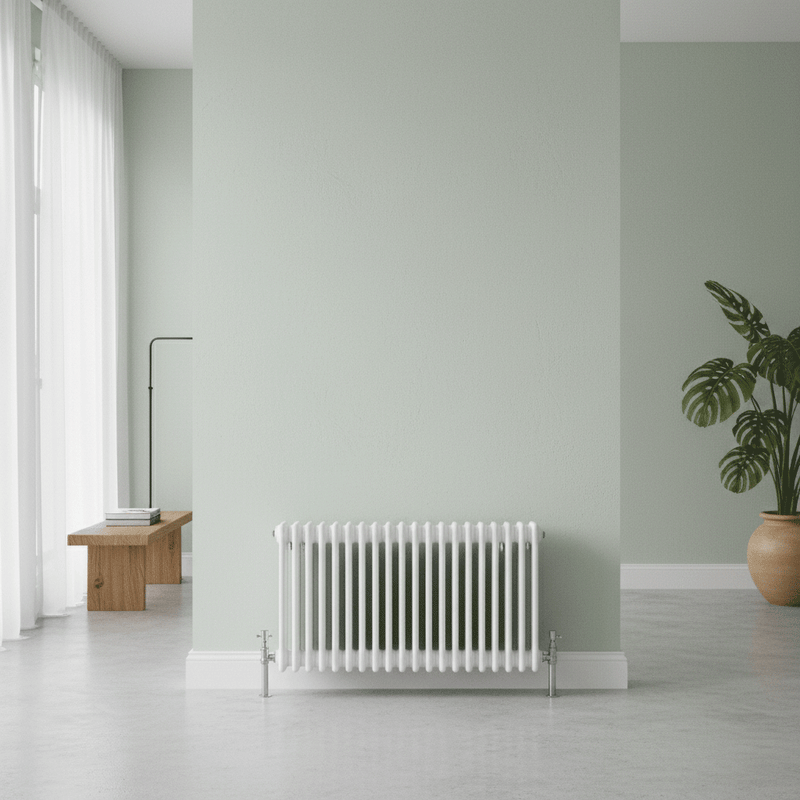

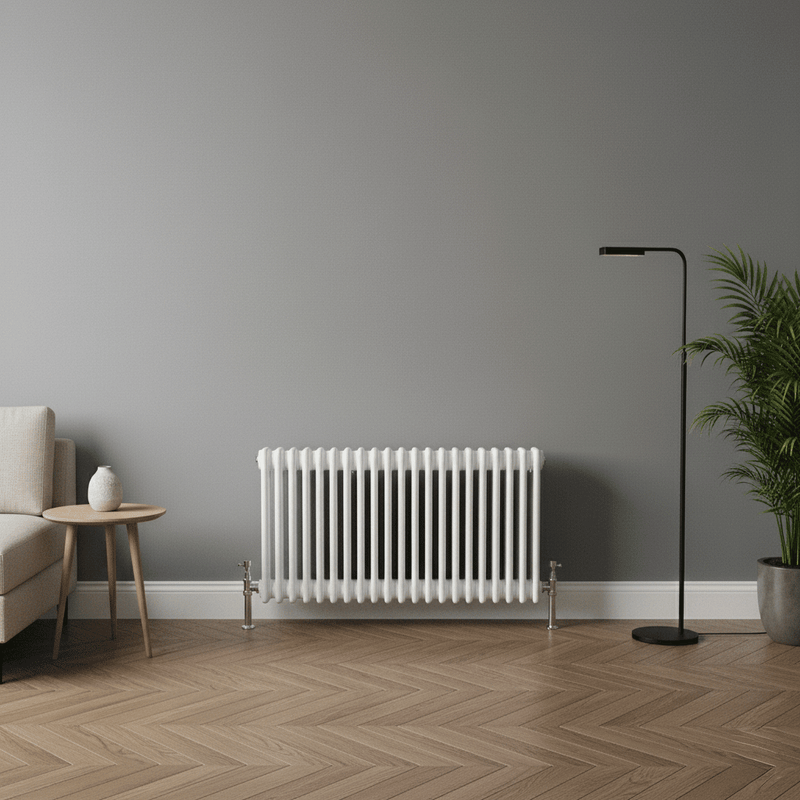

Elegant Antico white horizontal column radiator
Central heating. Mild steel column. Horizontal.

Product Overview & Key Specs

The Elegant Antico is a timeless mild steel column radiator with a low, wide profile, made to sit under a window or along a feature wall. Choose 2, 3, 4 or 6 columns across 28 height and width combinations, from 300mm to 750mm high and 425mm to 1370mm wide, in a clean white finish. The steel body holds its heat after the boiler switches off, and every size has published heat outputs for gas boilers and heat pumps.

2–6
Columns
28
Sizes
9,766
Max BTU (ΔT50)
ΔT30
Heat pump rated
5 yr
Warranty

Why Mild Steel for Central Heating?

Three practical reasons a steel column radiator suits a modern central heating system.
Robust buildHard-wearing ✔
Mild steel with a durable white finish. A column radiator takes knocks and keeps its looks in hallways, kitchens and busy rooms.
Holds its heatSteady warmth ✔
Steel retains heat after the boiler switches off, so the room temperature stays steady instead of dropping away between cycles.
Column profileClassic look
9 to 30 vertical bars, depending on width, give a traditional column silhouette and a generous surface area for the heat it delivers.

Choose Your Column Count

The same white mild steel column design in four depths. More columns means more surface area and more heat from the same height and width.
2 Column10 sizes
Elegant Antico white horizontal 2 column radiator
3 Column28 sizes
Elegant Antico white horizontal 3 column radiator
4 Column28 sizes
Elegant Antico white horizontal 4 column radiator
6 Column14 sizes
Elegant Antico white horizontal 6 column radiator

Heat Output by Size & Column Count

Calculated to EN 442 from the manufacturer's published data. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C). Grouped below by column count.

2 Column - 10 sizes (500mm or 600mm high, 425-1190mm wide)

Height x Width Bars ΔT60 BTU
High-temp 		ΔT50 BTU
Gas boiler 		ΔT30 BTU
Heat pump 		Watts
ΔT50 		Watts
ΔT30 		Weight
kg 		Water
litres
500 x 425mm 9 1,441 1,126 583 330 171 8.1 5.5
500 x 605mm 13 2,083 1,627 842 477 247 11.6 7.9
500 x 830mm 18 2,883 2,252 1,166 660 342 15.8 10.9
500 x 965mm 21 3,999 3,124 1,617 916 474 18.5 12.7
500 x 1190mm 26 4,165 3,254 1,684 954 494 22.9 15.8
600 x 425mm 9 1,700 1,328 687 390 202 9.5 6.4
600 x 605mm 13 2,458 1,920 994 563 291 13.5 9.2
600 x 830mm 18 3,401 2,657 1,375 779 403 18.8 –
600 x 965mm 21 4,718 3,686 1,908 1,081 560 21.9 14.8
600 x 1190mm 26 4,914 3,839 1,987 1,126 583 26.9 18.3

3 Column - 28 sizes (300-750mm high, 425-1370mm wide)

Height x Width Bars ΔT60 BTU
High-temp 		ΔT50 BTU
Gas boiler 		ΔT30 BTU
Heat pump 		Watts
ΔT50 		Watts
ΔT30 		Weight
kg 		Water
litres
300 x 830mm 18 2,417 1,888 977 554 287 14.8 10.5
300 x 965mm 21 2,819 2,202 1,140 645 334 17.2 12.2
300 x 1190mm 26 3,489 2,726 1,411 799 414 22.7 15.1
300 x 1370mm 30 4,026 3,145 1,628 923 478 25.9 17.4
400 x 425mm 9 1,610 1,258 651 369 191 9.7 6.6
400 x 605mm 13 2,327 1,818 941 533 276 13.8 9.5
400 x 830mm 18 3,222 2,517 1,303 738 382 19.0 13.1
400 x 965mm 21 3,758 2,936 1,520 861 446 22.1 15.3
400 x 1190mm 26 4,653 3,635 1,882 1,066 552 28.8 18.9
400 x 1370mm 30 5,367 4,193 2,171 1,230 637 33.2 21.8
500 x 425mm 9 1,987 1,552 803 455 236 11.8 7.9
500 x 605mm 13 2,870 2,242 1,161 658 341 16.9 11.4
500 x 830mm 18 3,973 3,104 1,607 910 471 23.1 15.8
500 x 965mm 21 4,636 3,622 1,875 1,063 550 26.9 18.4
500 x 1190mm 26 5,742 4,486 2,322 1,316 681 34.7 22.7
500 x 1370mm 30 6,624 5,175 2,679 1,518 786 39.8 26.2
600 x 425mm 9 2,346 1,833 949 538 279 13.9 9.2
600 x 605mm 13 3,389 2,648 1,371 777 402 19.9 13.3
600 x 830mm 18 4,676 3,653 1,891 1,071 554 27.3 18.4
600 x 965mm 21 5,455 4,262 2,206 1,250 647 31.8 21.5
600 x 1190mm 26 6,755 5,277 2,732 1,548 801 40.8 26.6
600 x 1370mm 30 7,793 6,088 3,152 1,785 924 46.8 30.6
750 x 425mm 9 2,934 2,292 1,186 672 348 17.0 11.2
750 x 605mm 13 4,237 3,310 1,713 971 503 24.3 16.2
750 x 830mm 18 5,844 4,566 2,364 1,339 693 33.5 22.4
750 x 965mm 21 6,820 5,328 2,758 1,563 809 39.2 26.1
750 x 1190mm 26 8,443 6,596 3,414 1,934 1,001 50.1 32.3
750 x 1370mm 30 9,741 7,610 3,939 2,232 1,155 57.5 37.3

4 Column - 28 sizes (300-750mm high, 425-1370mm wide)

Height x Width Bars ΔT60 BTU
High-temp 		ΔT50 BTU
Gas boiler 		ΔT30 BTU
Heat pump 		Watts
ΔT50 		Watts
ΔT30 		Weight
kg 		Water
litres
300 x 830mm 18 3,117 2,435 1,261 714 370 20.2 15.0
300 x 965mm 21 3,636 2,841 1,471 833 431 23.5 17.4
300 x 1190mm 26 4,502 3,517 1,821 1,031 534 30.4 21.6
300 x 1370mm 30 5,196 4,059 2,101 1,191 617 34.8 24.9
400 x 425mm 9 2,026 1,583 819 464 240 13.1 9.3
400 x 605mm 13 2,627 2,052 1,062 670 347 18.8 13.4
400 x 830mm 18 4,052 3,166 1,639 928 480 25.8 18.5
400 x 965mm 21 4,727 3,693 1,912 1,083 561 30.1 21.6
400 x 1190mm 26 5,853 4,573 2,367 1,341 694 38.8 26.7
400 x 1370mm 30 6,755 5,277 2,732 1,548 801 44.4 30.8
500 x 425mm 9 2,533 1,979 1,024 580 300 15.9 11.0
500 x 605mm 13 3,658 2,858 1,479 838 434 22.8 15.9
500 x 830mm 18 5,065 3,957 2,048 1,160 600 31.2 22.0
500 x 965mm 21 5,910 4,617 2,390 1,354 701 36.4 25.7
500 x 1190mm 26 7,316 5,716 2,959 1,676 868 46.5 31.8
500 x 1370mm 30 8,443 6,596 3,414 1,934 1,001 53.3 36.7
600 x 425mm 9 3,000 2,344 1,213 688 356 18.7 12.8
600 x 605mm 13 4,334 3,386 1,753 993 514 26.7 18.5
600 x 830mm 18 6,001 4,688 2,427 1,375 712 37.0 25.6
600 x 965mm 21 7,002 5,470 2,832 1,604 830 43.1 29.8
600 x 1190mm 26 8,668 6,772 3,506 1,986 1,028 54.8 36.9
600 x 1370mm 30 10,001 7,813 4,044 2,291 1,186 63.1 42.6
750 x 425mm 9 3,750 2,930 1,517 859 445 22.9 15.5
750 x 605mm 13 5,418 4,233 2,191 1,241 642 32.9 22.3
750 x 830mm 18 7,501 5,860 3,033 1,719 890 45.4 30.9
750 x 965mm 21 8,751 6,837 3,539 2,005 1,038 52.6 36.0
750 x 1190mm 26 10,835 8,465 4,382 2,482 1,285 66.7 44.6
750 x 1370mm 30 12,500 9,766 5,055 2,864 1,483 76.8 51.4

6 Column - 14 sizes (300-600mm high, 605-1190mm wide)

Height x Width Bars ΔT60 BTU
High-temp 		ΔT50 BTU
Gas boiler 		ΔT30 BTU
Heat pump 		Watts
ΔT50 		Watts
ΔT30 		Weight
kg 		Water
litres
300 x 830mm 18 4,591 3,587 1,857 1,052 545 33.4 19.6
300 x 965mm 21 5,330 4,164 2,156 1,221 632 38.8 22.8
300 x 1190mm 26 6,390 4,992 2,584 1,464 758 49.3 28.3
400 x 830mm 18 6,122 4,783 2,476 1,402 726 41.6 24.9
400 x 965mm 21 7,107 5,552 2,874 1,628 843 48.6 29.0
400 x 1190mm 26 8,520 6,656 3,446 1,952 1,010 61.6 35.9
500 x 605mm 13 5,263 4,112 2,129 1,205 624 36.5 21.8
500 x 830mm 18 7,379 5,765 2,984 1,691 875 50.2 30.2
500 x 965mm 21 8,612 6,728 3,483 1,973 1,021 58.4 35.2
500 x 1190mm 26 10,721 8,376 4,336 2,456 1,271 73.7 43.6
600 x 605mm 13 6,240 4,875 2,524 1,430 740 42.3 25.6
600 x 830mm 18 8,699 6,796 3,518 1,993 1,032 58.3 35.5
600 x 965mm 21 10,148 7,928 4,104 2,325 1,204 67.8 41.4
600 x 1190mm 26 12,274 9,589 4,964 2,812 1,456 85.4 51.2
Heat pump owners: use the ΔT30 column. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.

Technical Specifications & Dimensions

Fit-check before you buy
Model Elegant Antico Horizontal Column Radiator
Heights 300 / 400 / 500 / 600 / 750mm
Widths 425 / 605 / 830 / 965 / 1190 / 1370mm
Column options 2, 3, 4 or 6 column
Bars 9 to 30, by width (425mm = 9, 605mm = 13, 830mm = 18, 965mm = 21, 1190mm = 26, 1370mm = 30)
Pipe centres Equal to radiator width (425–1370mm)
Wall to pipe centres 68mm (2 and 3 column), 95mm (4 column), 133mm (6 column)
Wall distance (projection) 92mm (2 column), 118mm (3 column), 160mm (4 column), 243mm (6 column)
Valve allowance Add 90mm to width for pipe centres including valves
Material Mild steel
Finish White (RAL 9016)
Fuel type Central heating only
Included Wall brackets and fixings
Not included Radiator valves
Max working pressure 8 bar (800 kPa)
Max water temperature 120°C
Test pressure 10 bar
Weight and water content 8.1 to 85.4 kg and 5.5 to 51.4 litres, by size (see tables above)
Heat pump compatible Yes - published ΔT30 outputs
Warranty 5 years
2–6
Column options
Sizes28
FinishWhite
✓
ΔT30 rated
Heat pump compatible
✓
TRV compatible
Part L compliant · zone control
Free deliveryorders over £200
In stockships today
30-dayreturns

Will This Radiator Heat My Room?

Enter your room dimensions and select your heating system. Checks every size and column combination for the best fit.

Frequently Asked Questions

Q.

Is the Elegant Antico horizontal radiator suitable for a heat pump?

A. Yes - it has published Delta T30 heat outputs, so you can size it for a heat pump. Use the Delta T30 column in the heat output table or switch the room calculator on this page to Heat pump. Steel warms up more slowly than aluminium, so allow a little longer to reach temperature.
Technical team · Elegant Radiators
Q.

How many columns should I choose - 2, 3, 4 or 6?

A. More columns means more surface area and a higher heat output for the same height and width. A 2 column suits a small room or a low window sill, while a 4 or 6 column gives far more heat from the same wall space. Compare them in the heat output tables below, or use the room calculator.
Technical team · Elegant Radiators
Q.

What valves do I need for the Elegant Antico?

A. Radiator valves are not supplied. We recommend thermostatic radiator valves (TRVs) for individual room control. When measuring for your pipework, add 90mm to the radiator width for the pipe centres including valves.
Technical team · Elegant Radiators
Q.

What are the pipe centres and wall clearance?

A. Pipe centres equal the radiator width, from 425mm up to 1370mm. Wall to pipe centres is 68mm on the 2 and 3 column, 95mm on the 4 column and 133mm on the 6 column. The 2 column projects 92mm from the wall, the 3 column 118mm, the 4 column 160mm and the 6 column 243mm.
Technical team · Elegant Radiators
Q.

Which size and column count do I need?

A. Use the room fit calculator on this page. Enter your room dimensions and heating system and it checks every size and column combination to find the smallest one that meets your heat requirement.
Technical team · Elegant Radiators
Q.

Can I use it with an electric element or on a dual fuel system?

A. No. The Elegant Antico horizontal radiator is a central heating radiator only. If you want an electric or dual fuel radiator, browse our electric and dual fuel ranges or contact our team for advice.
Technical team · Elegant Radiators
Q.

Why choose a mild steel column radiator?

A. Steel is robust, takes a hard-wearing finish and holds its heat after the boiler switches off, which smooths out temperature swings. The timeless column profile suits traditional and modern rooms alike, and its low, wide shape sits neatly under a window or along a feature wall.
Technical team · Elegant Radiators

Product TypeColumn Radiator
Column Options2, 3, 4 & 6 Column
OrientationHorizontal
MaterialMild Steel
FinishWhite (RAL 9016)
Available Heights300, 400, 500, 600, 750 mm
Available Widths425 – 1370 mm
BTU Range (ΔT50)1,126 – 9,766 BTU/hr
Watt Range330 – 2,864W
Connection TypeBottom connection
Thread Size½" BSP
Pipe Centres50 mm from wall
Working Pressure10 bar
Test Pressure13 bar
Heating SystemCentral Heating (Hot Water)
StandardBS EN 442 Certified
IncludedWall brackets, fixings, blanking plug, bleed valve
Not IncludedRadiator valves (sold separately)
Warranty5 Years
MPN / SKURV-CS25009
BrandElegant Radiators

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Fast UK Delivery

Order before noon for next working day delivery anywhere in the UK mainland.

5 Years Guarantee

Every product is backed by a manufacturer guarantee for complete peace of mind.

Expert Advice

Real heating specialists — not a call centre. WhatsApp us for instant help.

Trusted Since 2012

UK-based in Coventry with 14 years serving homeowners, plumbers & designers.

£78.30 Fast UK Delivery
High Performance

Powerful Heat, Sleek Design

Don't compromise on warmth for style. This radiator delivers serious heat output while looking stunning in any room — from living spaces to hallways and bedrooms.

Connected to your central heating system, it provides consistent, controllable warmth throughout the heating season with zero extra running costs.

9766
BTU Output
2864W
Wattage
£0
Extra Running Cost
Elegant Antico White Horizontal Column Radiator | 300-750 mm | 9-30 Bars
Quality

Built to Last — 5 Years Guarantee

Every radiator is independently tested to BS EN 442 — the European standard for radiator heat output. The numbers we show are real, tested figures.

  • Mild Steel construction with quality welds
  • Pressure tested: 13 bar test, 10 bar working pressure
  • 5 Years guarantee — we stand behind every unit
  • Compatible: All central heating systems, combi & system boilers
Elegant Antico White Horizontal Column Radiator | 300-750 mm | 9-30 Bars
What's Included

Everything You Need (Except Valves)

Each radiator arrives with all the wall mounting hardware. The only extra you'll need is a pair of radiator valves — we sell matching sets separately.

  • Included: Wall brackets, fixings, blanking plug, bleed valve
  • Included: Installation guide with dimensions
  • You'll need: A pair of radiator valves (angled or corner)
  • Installation: DIY-friendly for like-for-like swaps
Elegant Antico White Horizontal Column Radiator | 300-750 mm | 9-30 Bars
Buying Guide

Single vs Double Panel

Double panel radiators output roughly 60–80% more BTUs than single panel in the same dimensions. Choose double for larger rooms or if you want more heat from a smaller footprint. Single panels are slimmer and lighter.

  • Single Panel: Slimmer profile (~50mm), lighter, ideal for smaller rooms or hallways
  • Double Panel: Higher heat output (~60-80% more BTU), deeper (~100mm), best for living rooms and bedrooms
Elegant Antico White Horizontal Column Radiator | 300-750 mm | 9-30 Bars - Single vs Double Panel

You May Also Like

Cart

Your cart is currently empty!

Wishlist
